CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

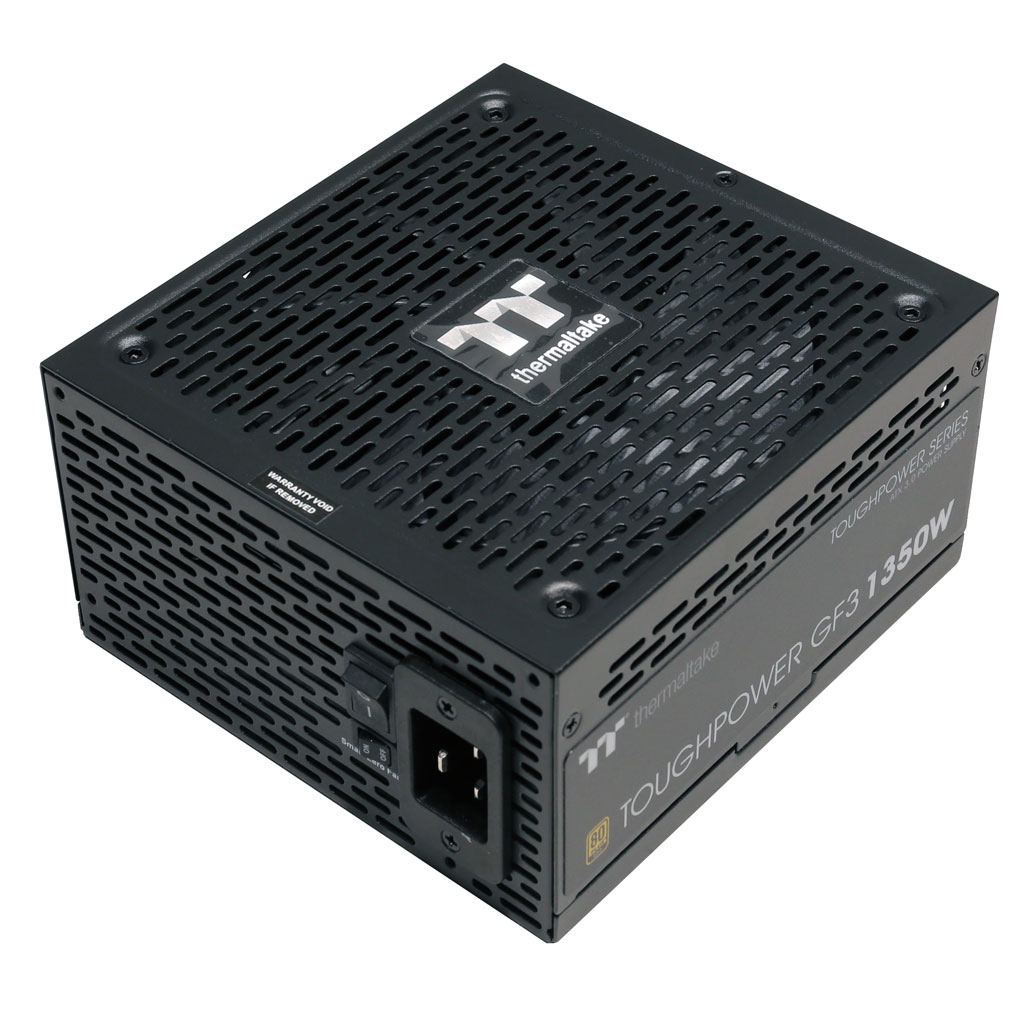

Thermaltake Toughpower GF3 1350W
Serial Number PSTPD1350FNFAGE4SL000366
Lab IDTT13502077
  • Report: 22PS2077A
  • Receipt Date: Sep 22, 2022
  • Test Date: Oct 14, 2022
  • Report Date: Oct 17, 2022
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandThermaltake
Manufacturer (OEM)High Power
SeriesToughpower GF3
Model NumberTPD-1350AH3FSG
Serial Number PSTPD1350FNFAGE4SL000366
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)16-8
Rated Frequency (Hz)50-60
Rated Power (W)1350
TypeATX12V
Cooling140mm Hydraulic Bearing Fan
[TT-1425 (A1425S12S-2)]
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

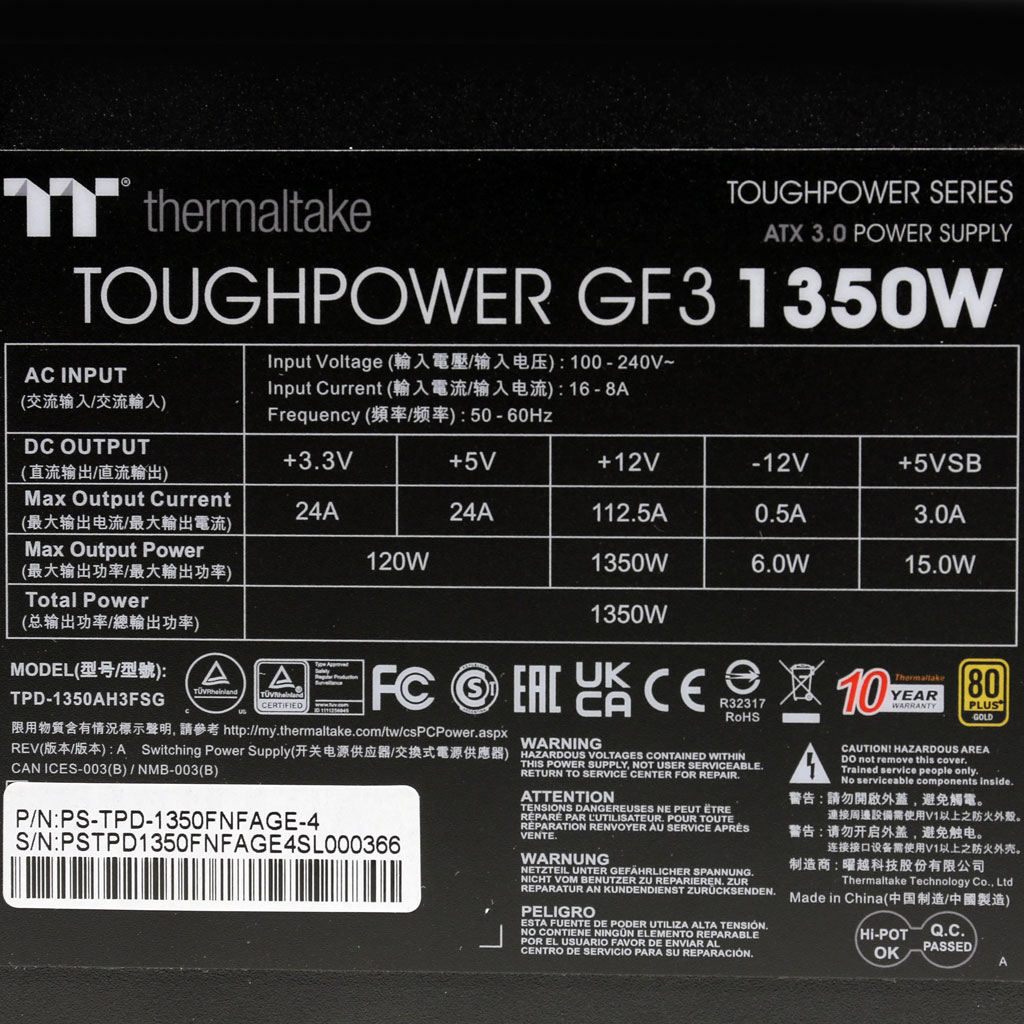

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps2424112.530.5
Watts1201350156
Total Max. Power (W)1350

Test Equipment

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 18AWG No
8 pin EPS12V (700mm) 1 1 16AWG No
4+4 pin EPS12V (700mm) 1 1 16AWG No
6+2 pin PCIe (500mm+150mm) 3 6 16-18AWG No
12+4 pin PCIe (500mm) (450W) 1 1 16-24AWG No
SATA (500mm+150mm+150mm) 4 12 18AWG No
4-pin Molex (500mm+150mm+150mm+150mm) 1 4 18AWG No
FDD Adapter (150mm) 1 1 22AWG No
AC Power Cord (1390mm) - C19 coupler 1 1 16AWG -

Parts Description

General Data -
Manufacturer (OEM) High Power
PCB Type Double Sided
Primary Side -
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV, 1x MPS HF81 (Discharge IC)
Inrush Protection 1x NTC Thermistor SCK-057 (5 Ohm) & Relay
Bridge Rectifier(s) 2x GBJ5006 (600V, 50A @ 100°C)
APFC MOSFETs 2x Infineon IPW60R060P7 (600V, 30A @ 100°C, Rds(on): 0.06Ohm)
APFC Boost Diode 1x Toshiba TRS12E65F (650V, 12A)
Bulk Cap(s) 2x Rubycon (420V, 680uF each or 1360uF combined, 2,000h @ 105°C, MXE)
Main Switchers 2x Infineon IPP60R060P7 (600V, 30A @ 100°C, Rds(on): 0.06Ohm)
APFC Controller Infineon ICE3PCS01G
Resonant Controller Champion CU6901V
Topology Primary side: APFC, Half-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side -
+12V MOSFETs 8x Infineon BSC010N04LS (40V, 178A @ 100°C, Rds(on): 1mOhm)
5V & 3.3V DC-DC Converters: 8x Infineon BSC0906NS (30V, 40A @ 100°C, Rds(on): 4.5mOhm)
PWM Controller(s): ANPEC APW7159C
Filtering Capacitors Electrolytic: 5x Rubycon (3-6,000h @ 105°C, YXG), 1x Nichicon (4-10,000h @ 105°C, HE), 2x Rubycon (6-10,000h @ 105°C, ZLH), 2x Rubycon (4-10,000h @ 105°C, YXJ)
Polymer: 20x FPCAP, 4x Nippon Chemi-Con
Supervisor IC Weltrend WT7527RA (OCP, OVP, UVP, SCP, PG)
Fan Controller STCmicro STC15W408AS
Fan Model Thermaltake TT-1425 (A1425S12S) (140mm, 12V, 0.70A, Hydraulic Bearing Fan)
5VSB Circuit -
Rectifier(s) 1x Infineon IPN70R1K4P7S (700V, 2.5A @ 100°C, Rds(on): 1.4Ohm) & 1x PFC P10V45SP SBR (45V, 10A)
Standby PWM Controller Si-Trend SI8016HSP8

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.0 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)25.7
AC Loss to PWR_OK Hold Up Time (ms)18.4
PWR_OK Inactive to DC Loss Delay (ms)7.3

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.17 V 115.15 V 113.85 V 115.18 V 116.15 V PASS
Mains Frequency: 60.00 Hz 60.00 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.13 % 0.11 % N/A 0.15 % 2.00 % PASS
Real Power: 0.085 W 0.072 W N/A 0.097 W N/A N/A
Apparent Power: 9.830 W 9.822 W N/A 9.840 W N/A N/A
Power Factor: 0.008 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.37 V 230.34 V 227.70 V 230.39 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.00 Hz 50.50 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.14 % 0.13 % N/A 0.16 % 2.00 % PASS
Real Power: 0.093 W 0.019 W N/A 0.157 W N/A N/A
Apparent Power: 32.871 W 32.819 W N/A 32.907 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A

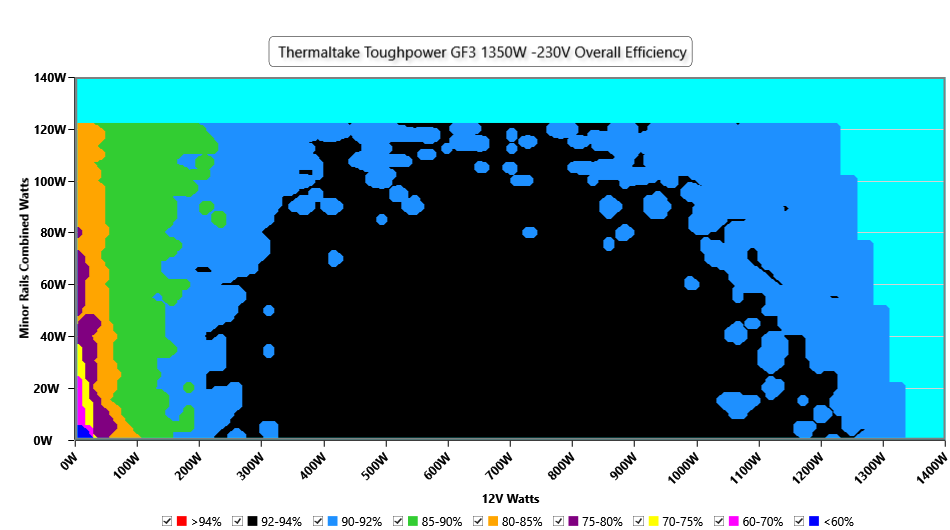

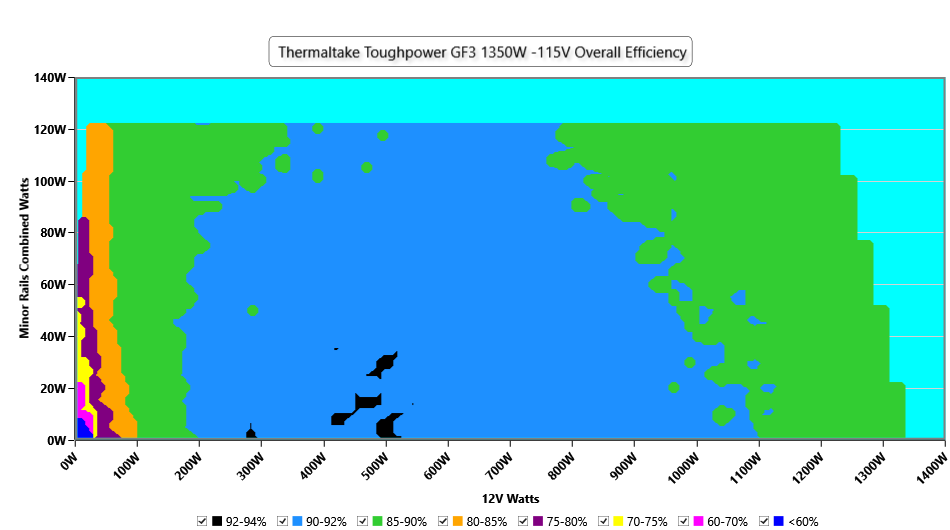

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

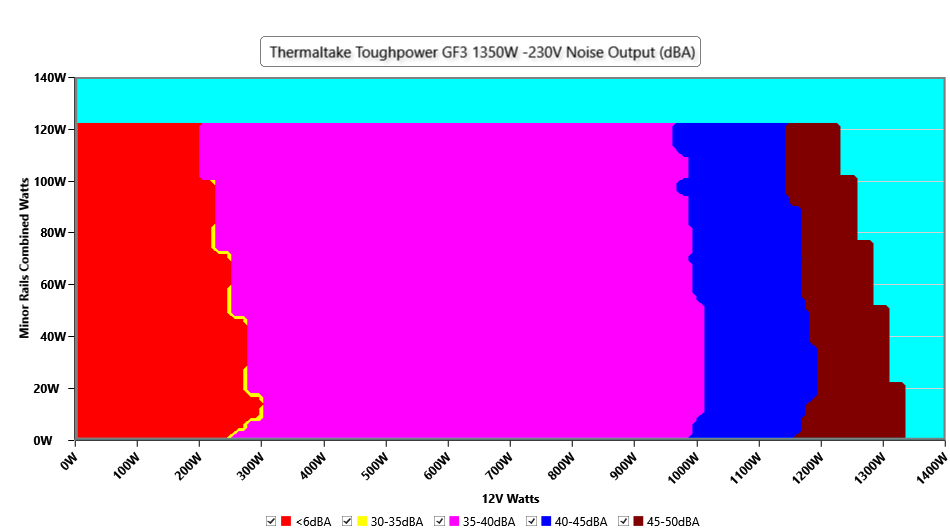

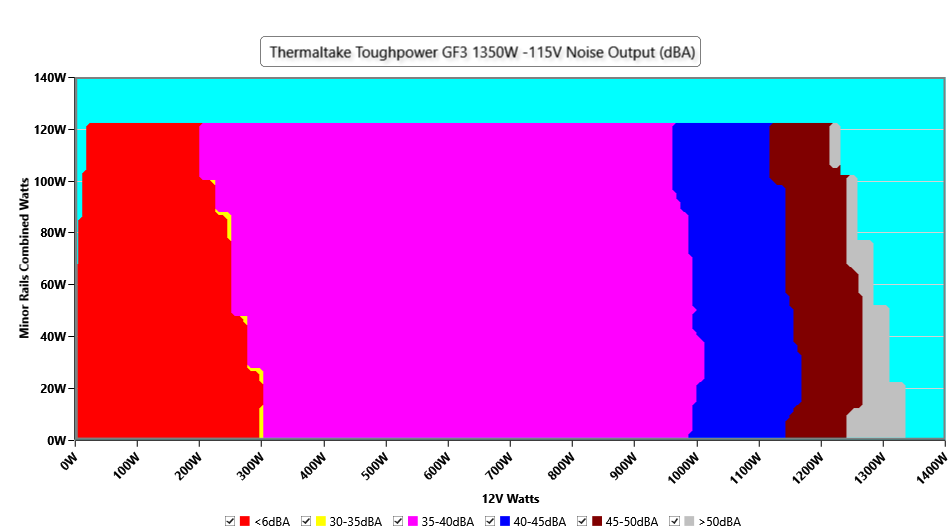

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

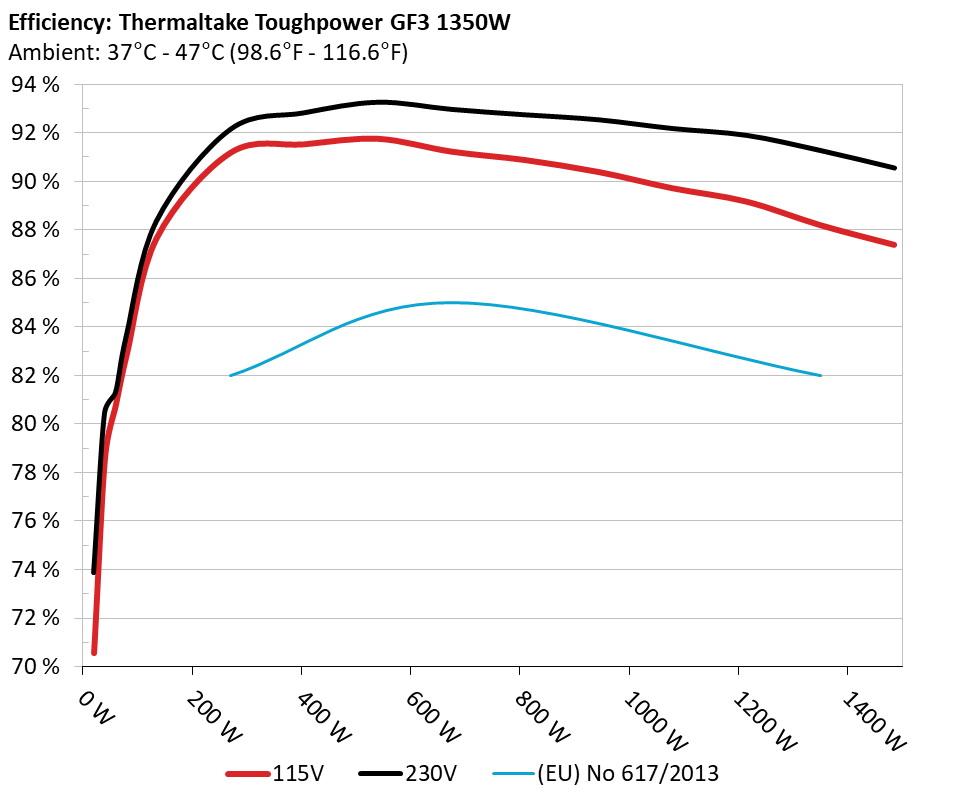

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

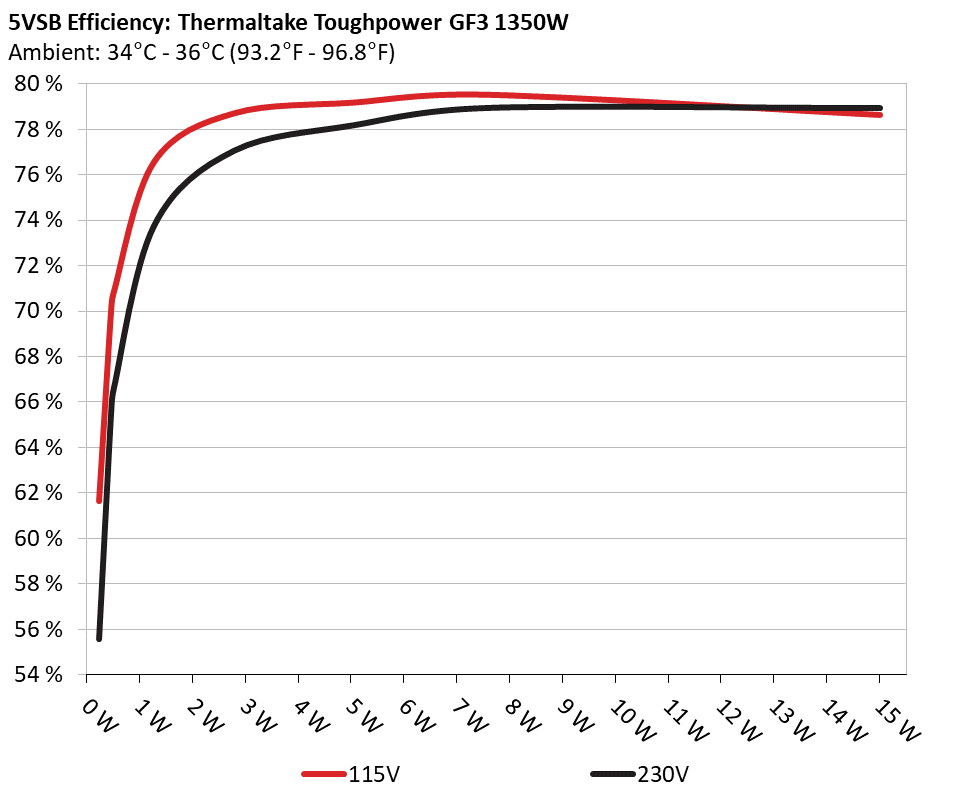

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.228W 61.628% 0.038
5.072V 0.37W 115.17V
2 0.09A 0.457W 70.081% 0.065
5.071V 0.652W 115.16V
3 0.55A 2.784W 78.709% 0.27
5.061V 3.537W 115.17V
4 1A 5.051W 79.183% 0.366
5.05V 6.379W 115.16V
5 1.5A 7.559W 79.527% 0.414
5.038V 9.503W 115.17V
6 3A 15.002W 78.636% 0.481
5V 19.078W 115.16V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.228W 55.557% 0.013
5.072V 0.41W 230.39V
2 0.09A 0.457W 65.576% 0.021
5.072V 0.697W 230.39V
3 0.55A 2.784W 77.056% 0.105
5.061V 3.615W 230.39V
4 1A 5.051W 78.18% 0.173
5.05V 6.46W 230.39V
5 1.5A 7.559W 78.938% 0.231
5.038V 9.577W 230.39V
6 3A 15.007W 78.933% 0.333
5.002V 19.013W 230.39V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 9.383A 1.986A 1.962A 0.993A 134.988 87.68% 0 <6.0 44.5°C 0.982
12.084V 5.036V 3.364V 5.037V 153.939 40.28°C 115.15V
20% 19.804A 2.982A 2.945A 1.195A 269.994 91.18% 0 <6.0 45.49°C 0.993
12.073V 5.031V 3.362V 5.022V 296.045 40.79°C 115.12V
30% 30.623A 3.485A 3.441A 1.398A 405.031 91.526% 1098 36.5 41.32°C 0.995
12.049V 5.022V 3.357V 5.009V 442.554 46.39°C 115.07V
40% 41.435A 3.988A 3.935A 1.602A 539.824 91.752% 1101 36.5 41.37°C 0.996
12.034V 5.016V 3.355V 4.995V 588.474 46.88°C 115.04V
50% 51.914A 4.99A 4.921A 1.808A 674.789 91.225% 1105 36.6 42.16°C 0.997
12.025V 5.011V 3.353V 4.979V 739.743 48.24°C 115V
60% 62.411A 5.995A 5.91A 2.001A 809.661 90.877% 1242 39.5 42.7°C 0.998
12.016V 5.006V 3.351V 4.963V 890.951 49.24°C 114.96V
70% 72.935A 7.003A 6.899A 2.224A 944.644 90.384% 1245 39.6 43.54°C 0.998
12.005V 5V 3.349V 4.947V 1045.11 50.69°C 114.93V
80% 83.532A 8.003A 7.889A 2.332A 1079.837 89.716% 1567 45.3 44.49°C 0.998
11.995V 4.994V 3.347V 4.933V 1203.657 52.6°C 114.88V
90% 94.493A 8.52A 8.371A 2.439A 1214.881 89.168% 1769 48.6 45.25°C 0.998
11.984V 4.989V 3.345V 4.921V 1362.521 54.32°C 114.85V
100% 105.320A 9.037A 8.89A 3.065A 1350.192 88.198% 2238 54.3 46.41°C 0.998
11.968V 4.981V 3.341V 4.895V 1530.871 56.47°C 114.8V
110% 115.968A 10.05A 9.972A 3.073A 1485.209 87.388% 2234 54.2 47.04°C 0.998
11.959V 4.976V 3.339V 4.883V 1699.574 57.88°C 114.75V
CL1 0.118A 14.378A 14.211A 0A 121.32 80.414% 1157 37.7 42.5°C 0.982
12.072V 5.022V 3.356V 5.046V 150.864 48.01°C 115.15V
CL2 0.116A 23.915A 0A 0A 121.403 78.689% 1115 36.8 43.66°C 0.983
12.066V 5.018V 3.354V 5.06V 154.299 50.69°C 115.15V
CL3 0.116A 0A 23.535A 0A 80.597 73.938% 1092 36.4 44.35°C 0.971
12.070V 5.038V 3.365V 5.043V 109.055 52.43°C 115.16V
CL4 112.596A 0A 0A 0A 1349.764 88.985% 1245 39.6 45.96°C 0.998
11.988V 5V 3.351V 4.982V 1517.01 55.93°C 114.81V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 9.382A 1.986A 1.962A 0.993A 134.978 88.362% 0 <6.0 44.85°C 0.898
12.084V 5.037V 3.364V 5.037V 152.769 40.68°C 230.39V
20% 19.813A 2.982A 2.945A 1.195A 269.971 92.138% 0 <6.0 45.39°C 0.955
12.066V 5.032V 3.362V 5.022V 293.012 40.86°C 230.38V
30% 30.601A 3.483A 3.438A 1.398A 404.964 92.824% 1099 36.5 41.99°C 0.974
12.055V 5.025V 3.359V 5.008V 436.332 46.86°C 230.37V
40% 41.414A 3.986A 3.933A 1.602A 539.703 93.261% 1097 36.5 42.62°C 0.985
12.037V 5.018V 3.356V 4.994V 578.636 48.17°C 230.35V
50% 51.923A 4.99A 4.921A 1.808A 674.747 92.965% 1104 36.6 42.71°C 0.99
12.022V 5.011V 3.353V 4.979V 725.816 48.72°C 230.34V
60% 62.411A 5.993A 5.908A 2.001A 809.643 92.743% 1239 39.5 43.38°C 0.993
12.015V 5.007V 3.352V 4.963V 873.013 50.11°C 230.32V
70% 72.943A 7.002A 6.898A 2.224A 944.503 92.536% 1250 39.8 43.51°C 0.994
12.001V 5V 3.349V 4.948V 1020.548 50.53°C 230.3V
80% 83.537A 8.003A 7.887A 2.331A 1079.737 92.174% 1433 43.2 44.66°C 0.996
11.993V 4.995V 3.347V 4.934V 1171.482 52.74°C 230.28V
90% 94.511A 8.52A 8.371A 2.438A 1214.721 91.895% 1570 45.4 45.19°C 0.997
11.980V 4.989V 3.344V 4.922V 1322.312 54.29°C 230.26V
100% 105.337A 9.034A 8.887A 3.065A 1350.092 91.267% 2231 54.2 45.85°C 0.998
11.965V 4.982V 3.342V 4.894V 1479.145 55.81°C 230.25V
110% 115.950A 10.046A 9.969A 3.073A 1485.168 90.549% 2234 54.2 47.12°C 0.998
11.961V 4.977V 3.341V 4.882V 1640.347 58.02°C 230.22V
CL1 0.116A 14.38A 14.213A 0A 121.316 81.136% 1103 36.6 42.85°C 0.903
12.066V 5.021V 3.356V 5.046V 149.511 48.31°C 230.39V
CL2 0.116A 23.915A 0A 0A 121.401 79.538% 0 <6.0 50.14°C 0.899
12.065V 5.018V 3.355V 5.06V 152.743 43.12°C 230.4V
CL3 0.116A 0A 23.506A 0A 80.596 74.557% 0 <6.0 53.01°C 0.846
12.077V 5.044V 3.369V 5.042V 108.098 44.69°C 230.4V
CL4 112.630A 0A 0A 0A 1349.829 91.715% 1290 40.5 45.08°C 0.998
11.985V 4.999V 3.351V 4.982V 1471.713 54.99°C 230.24V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.236A 0.496A 0.49A 0.197A 20.007 70.579% 0 <6.0 39.81°C 0.82
12.017V 5.041V 3.365V 5.066V 28.228 36.67°C 115.17V
40W 2.723A 0.695A 0.687A 0.296A 40.004 78.608% 0 <6.0 40.98°C 0.919
12.007V 5.04V 3.365V 5.062V 50.864 37.67°C 115.17V
60W 4.212A 0.893A 0.883A 0.396A 60.003 80.803% 0 <6.0 42.39°C 0.951
11.996V 5.039V 3.364V 5.058V 74.322 38.64°C 115.17V
80W 5.648A 1.092A 1.079A 0.495A 79.968 82.878% 0 <6.0 44.09°C 0.966
12.100V 5.039V 3.364V 5.054V 96.463 40.12°C 115.16V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.236A 0.496A 0.49A 0.197A 20.007 73.863% 0 <6.0 40.43°C 0.417
12.015V 5.041V 3.365V 5.066V 27.085 37.32°C 230.41V
40W 2.724A 0.695A 0.687A 0.296A 40.004 80.438% 0 <6.0 41.1°C 0.612
12.005V 5.04V 3.365V 5.062V 49.957 37.8°C 230.4V
60W 4.213A 0.893A 0.883A 0.396A 60.003 81.287% 0 <6.0 42.12°C 0.738
11.993V 5.039V 3.364V 5.058V 73.842 38.56°C 230.4V
80W 5.648A 1.092A 1.079A 0.495A 79.965 83.645% 0 <6.0 43.6°C 0.811
12.099V 5.038V 3.364V 5.054V 95.6 39.79°C 230.4V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load7.90mV4.35mV6.09mV7.70mVPass
20% Load11.07mV5.06mV5.84mV7.75mVPass
30% Load12.96mV5.17mV6.50mV8.16mVPass
40% Load13.67mV5.93mV6.66mV7.95mVPass
50% Load11.63mV6.55mV7.27mV8.51mVPass
60% Load11.89mV6.80mV7.22mV8.21mVPass
70% Load12.87mV6.96mV7.78mV8.36mVPass
80% Load12.26mV8.03mV14.89mV8.87mVPass
90% Load12.26mV9.05mV15.00mV8.77mVPass
100% Load17.47mV10.77mV17.72mV10.68mVPass
110% Load18.47mV11.42mV17.43mV11.69mVPass
Crossload111.41mV9.06mV16.63mV8.33mVPass
Crossload27.49mV8.39mV6.55mV7.75mVPass
Crossload38.17mV7.57mV18.52mV7.44mVPass
Crossload417.08mV9.23mV9.56mV8.80mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load8.01mV4.60mV6.30mV8.05mVPass
20% Load10.76mV4.86mV5.99mV8.26mVPass
30% Load12.50mV5.62mV6.60mV8.26mVPass
40% Load12.85mV5.47mV7.17mV8.51mVPass
50% Load11.32mV6.39mV7.47mV8.41mVPass
60% Load12.09mV6.65mV7.88mV8.01mVPass
70% Load12.45mV7.21mV7.83mV8.21mVPass
80% Load11.63mV8.03mV14.33mV8.98mVPass
90% Load11.59mV9.31mV14.79mV8.67mVPass
100% Load18.01mV10.69mV16.64mV10.05mVPass
110% Load18.82mV11.32mV17.47mV10.13mVPass
Crossload111.04mV8.55mV16.79mV8.41mVPass
Crossload27.80mV8.69mV6.04mV7.75mVPass
Crossload37.59mV8.08mV20.88mV7.60mVPass
Crossload417.39mV8.96mV9.17mV8.69mVPass

The results above are not used in the certification process

Thermaltake Toughpower GF3 1350W

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
