CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
SilverStone DA1000R Gold
Serial Number
Lab IDSL10002062
  • Report: 22PS2062A
  • Receipt Date: Aug 30, 2022
  • Test Date: Sep 12, 2022
  • Report Date: Sep 12, 2022
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandSilverStone
Manufacturer (OEM)High Power
SeriesHELA
Model NumberSST-AX1000MCGD-A
Serial Number
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)15-6.5
Rated Frequency (Hz)50-60
Rated Power (W)1000
TypeATX12V
Cooling135mm Fluid Dynamic Bearing Fan
(HA13525H12SF-Z)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps222283.530.3
Watts1201000153.6
Total Max. Power (W)1000

Test Equipment

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 16AWG No
4+4 pin EPS12V (750mm) 2 2 16AWG No
6+2 pin PCIe (600mm+150mm) 3 6 16-18AWG No
12+4 pin PCIe (590mm) (600W) 1 1 16-24AWG No
SATA (590mm+150mm+150mm+150mm) 3 12 18AWG No
4-pin Molex (600mm+150mm+150mm) 1 3 18AWG No
FDD Adapter (100m) 1 1 20AWG No

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.0 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)16.8
AC Loss to PWR_OK Hold Up Time (ms)14.3
PWR_OK Inactive to DC Loss Delay (ms)2.5

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.94 V 114.89 V 113.85 V 114.97 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.98 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.15 % 0.12 % N/A 0.19 % 2.00 % PASS
Real Power: 0.016 W 0.014 W N/A 0.018 W N/A N/A
Apparent Power: 10.422 W 10.401 W N/A 10.444 W N/A N/A
Power Factor: 0.002 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.88 V 229.83 V 227.70 V 229.95 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.417 1.490 PASS
Mains Voltage THD: 0.15 % 0.13 % N/A 0.18 % 2.00 % PASS
Real Power: 0.074 W 0.064 W N/A 0.091 W N/A N/A
Apparent Power: 35.156 W 35.134 W N/A 35.180 W N/A N/A
Power Factor: 0.002 N/A N/A N/A N/A N/A

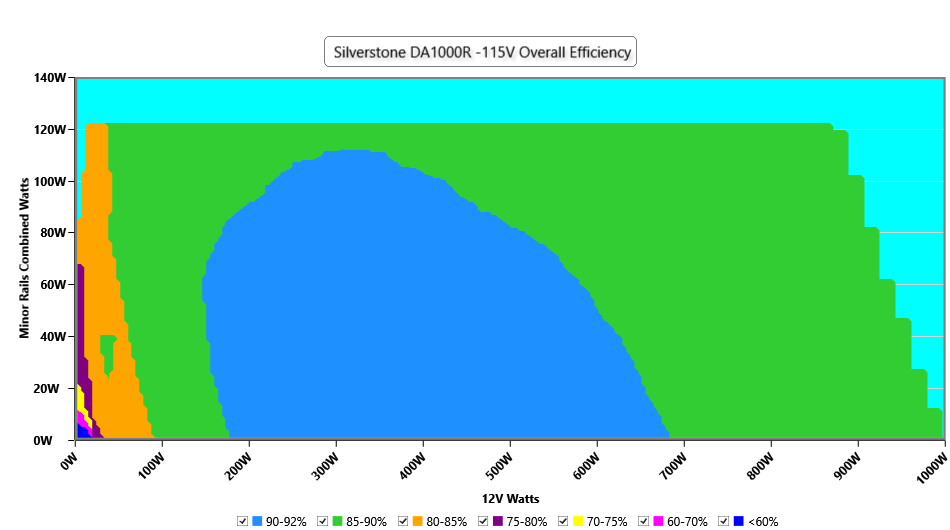

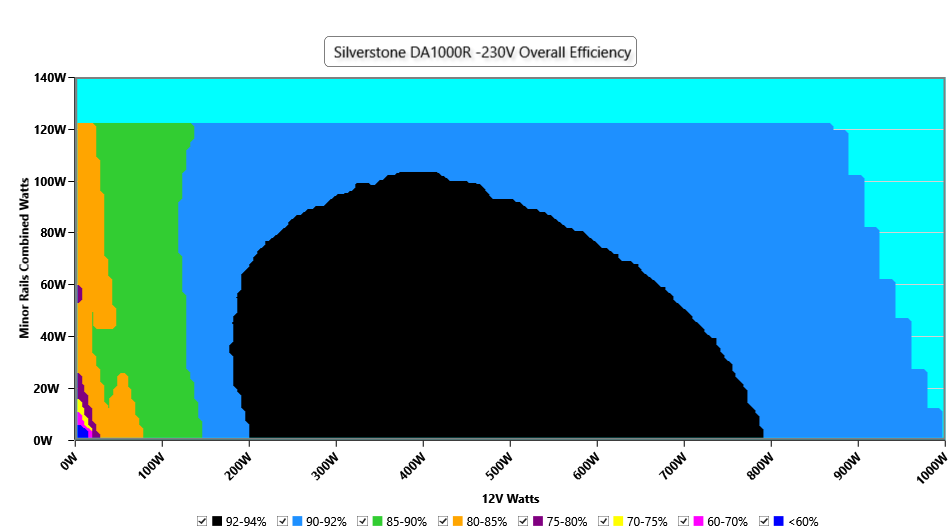

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

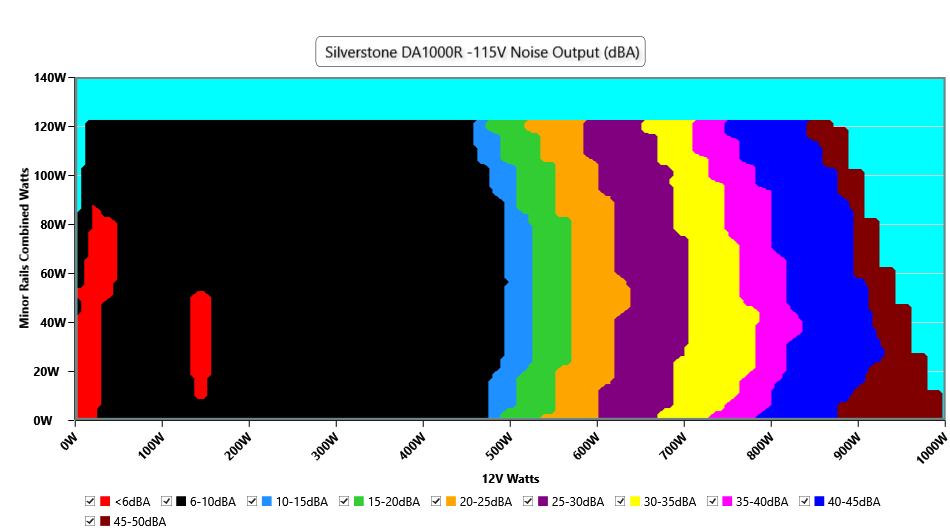

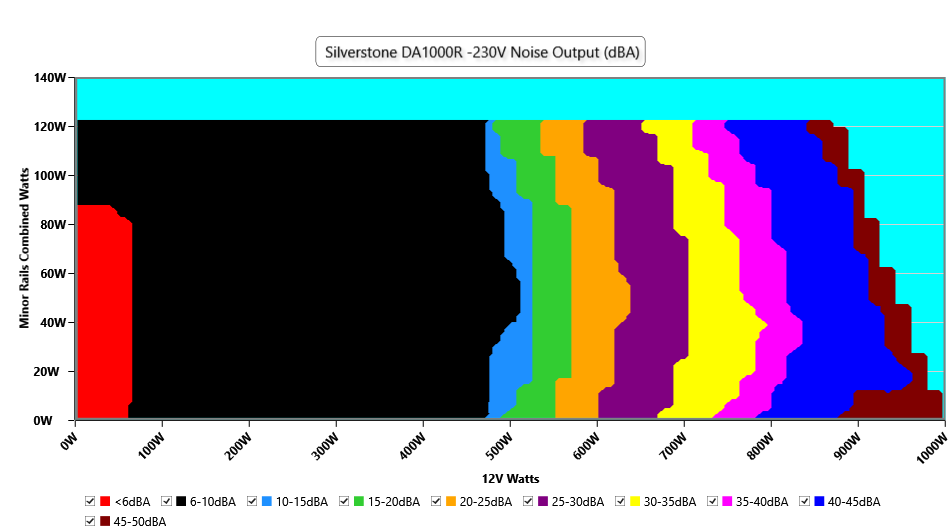

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

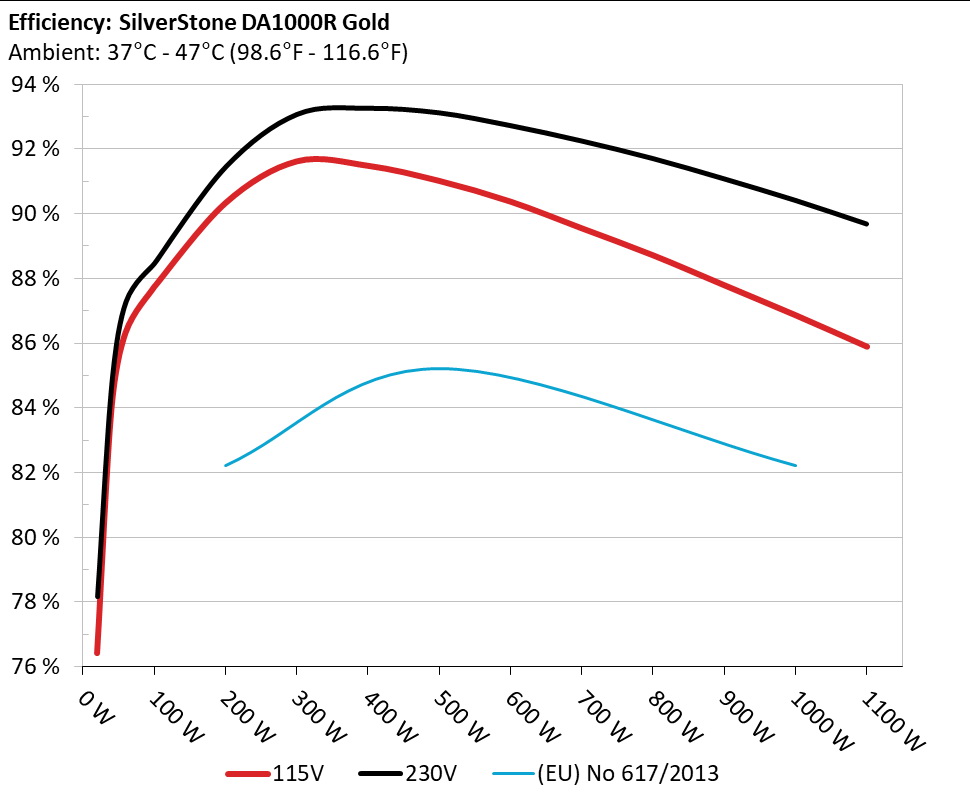

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

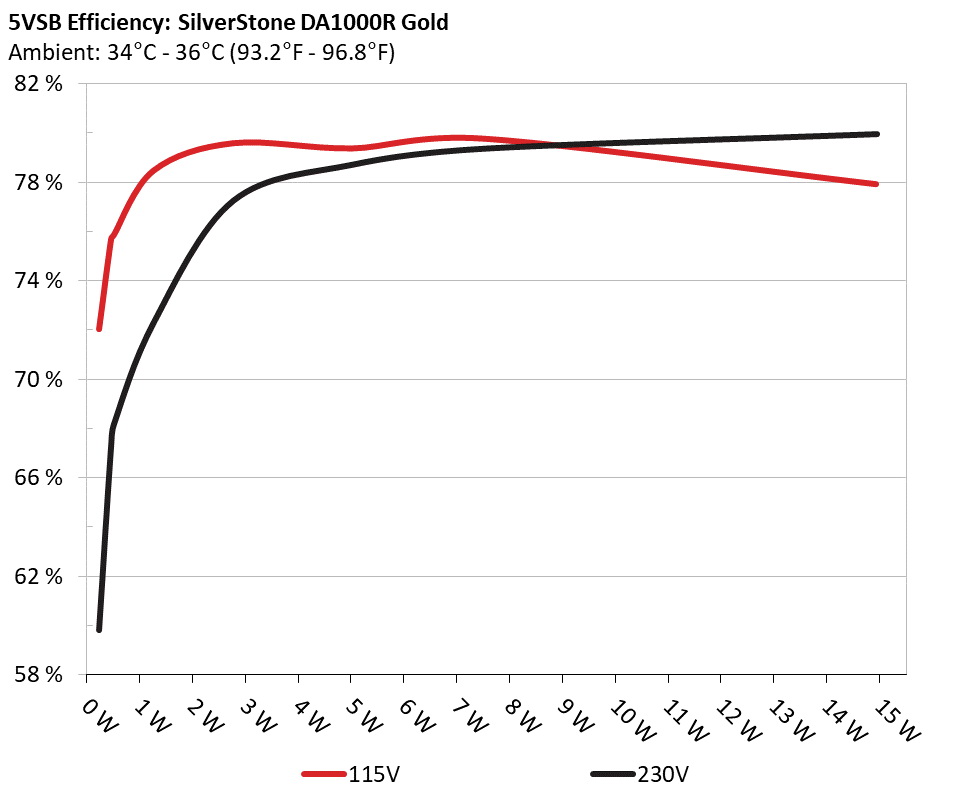

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.227W 72.033% 0.03
5.044V 0.315W 114.94V
2 0.09A 0.454W 75.686% 0.057
5.043V 0.6W 114.93V
3 0.55A 2.769W 79.6% 0.264
5.033V 3.479W 114.93V
4 1A 5.024W 79.387% 0.371
5.023V 6.328W 114.94V
5 1.5A 7.52W 79.784% 0.422
5.013V 9.426W 114.93V
6 3.001A 14.939W 77.931% 0.503
4.979V 19.17W 114.92V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.227W 59.824% 0.011
5.046V 0.38W 229.89V
2 0.09A 0.454W 67.314% 0.019
5.044V 0.675W 229.89V
3 0.55A 2.769W 77.273% 0.098
5.033V 3.583W 229.89V
4 1A 5.025W 78.734% 0.164
5.024V 6.382W 229.88V
5 1.5A 7.521W 79.384% 0.224
5.013V 9.473W 229.88V
6 3.001A 14.941W 79.974% 0.324
4.979V 18.683W 229.88V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.451A 1.988A 2.011A 0.996A 100.019 85.47% 0 <6.0 43.83°C 0.972
12.156V 5.03V 3.282V 5.023V 117.023 39.61°C 114.9V
20% 13.909A 2.983A 3.019A 1.197A 199.978 90.126% 0 <6.0 45.56°C 0.983
12.156V 5.028V 3.279V 5.013V 221.888 40.85°C 114.88V
30% 21.748A 3.481A 3.524A 1.377A 300.041 91.415% 0 <6.0 46.39°C 0.983
12.139V 5.028V 3.277V 5.084V 328.216 41.34°C 114.85V
40% 29.578A 3.979A 4.031A 1.575A 399.76 91.279% 0 <6.0 47.41°C 0.983
12.122V 5.027V 3.275V 5.079V 437.954 41.89°C 114.83V
50% 37.079A 4.976A 5.043A 1.775A 499.483 90.814% 626 17.1 42.11°C 0.985
12.109V 5.024V 3.272V 5.07V 550.013 48.23°C 114.81V
60% 44.670A 5.973A 6.057A 1.977A 600.012 90.171% 819 26.0 42.45°C 0.987
12.093V 5.023V 3.269V 5.06V 665.416 49.12°C 114.79V
70% 52.216A 6.97A 7.071A 2.179A 699.765 89.35% 1130 35.7 43.22°C 0.989
12.078V 5.023V 3.267V 5.049V 783.171 50.26°C 114.76V
80% 59.854A 7.968A 8.085A 2.282A 799.784 88.516% 1491 43.4 44.25°C 0.99
12.060V 5.022V 3.265V 5.041V 903.547 52.28°C 114.74V
90% 67.824A 8.468A 8.581A 2.385A 899.569 87.592% 1872 50.0 45.22°C 0.991
12.047V 5.02V 3.263V 5.033V 1026.991 54.33°C 114.7V
100% 75.550A 8.968A 9.109A 2.993A 999.58 86.666% 2150 52.8 46.09°C 0.992
12.044V 5.019V 3.261V 5.012V 1153.386 56.12°C 114.68V
110% 83.188A 9.967A 10.221A 2.997A 1100.206 85.691% 2150 52.8 46.83°C 0.993
12.043V 5.018V 3.258V 5.006V 1283.919 57.71°C 114.63V
CL1 0.115A 14.384A 14.564A 0A 121.328 82.853% 589 15.0 42.25°C 0.982
12.176V 5.021V 3.275V 5.038V 146.442 48.76°C 114.9V
CL2 0.115A 21.911A 0A 0A 111.43 81.179% 508 10.3 43.12°C 0.979
12.182V 5.022V 3.287V 5.045V 137.269 50.17°C 114.9V
CL3 0.115A 0A 22.22A 0A 73.988 74.466% 439 8.2 44.33°C 0.97
12.179V 5.037V 3.267V 5.039V 99.366 52.42°C 114.91V
CL4 83.015A 0A 0A 0A 1000.041 87.487% 2137 52.6 45.27°C 0.992
12.046V 5.038V 3.271V 5.09V 1143.08 55.19°C 114.67V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.450A 1.989A 2.011A 0.996A 100.013 86.507% 0 <6.0 44.52°C 0.883
12.158V 5.028V 3.282V 5.022V 115.611 40.22°C 229.88V
20% 13.907A 2.984A 3.019A 1.197A 199.966 91.254% 0 <6.0 45.69°C 0.94
12.157V 5.026V 3.279V 5.013V 219.129 40.97°C 229.87V
30% 21.748A 3.482A 3.524A 1.377A 300.023 92.88% 0 <6.0 46.65°C 0.958
12.138V 5.025V 3.277V 5.083V 323.019 41.36°C 229.86V
40% 29.572A 3.98A 4.03A 1.575A 399.756 93.07% 457 8.6 41.87°C 0.968
12.124V 5.025V 3.275V 5.079V 429.524 47.39°C 229.84V
50% 37.072A 4.978A 5.043A 1.775A 499.467 92.93% 634 17.5 42.51°C 0.972
12.110V 5.022V 3.272V 5.07V 537.463 48.46°C 229.83V
60% 44.664A 5.976A 6.056A 1.977A 599.988 92.534% 874 28.1 42.61°C 0.975
12.094V 5.021V 3.27V 5.06V 648.397 49.22°C 229.82V
70% 52.213A 6.973A 7.07A 2.179A 699.742 92.06% 1111 35.2 43.69°C 0.977
12.078V 5.02V 3.268V 5.049V 760.09 50.73°C 229.81V
80% 59.849A 7.973A 8.085A 2.282A 799.763 91.518% 1481 43.3 43.72°C 0.979
12.061V 5.019V 3.265V 5.041V 873.892 52.11°C 229.8V
90% 67.829A 8.473A 8.581A 2.385A 899.555 90.893% 1866 50.0 44.09°C 0.98
12.046V 5.017V 3.263V 5.032V 989.687 53.13°C 229.79V
100% 75.564A 8.974A 9.108A 2.993A 999.57 90.227% 2150 52.8 45.28°C 0.981
12.041V 5.016V 3.261V 5.012V 1107.835 55.35°C 229.77V
110% 83.180A 9.968A 10.22A 2.997A 1100.218 89.494% 2155 52.9 47.44°C 0.983
12.045V 5.018V 3.258V 5.006V 1229.359 58.35°C 229.76V
CL1 0.115A 14.391A 14.563A 0A 121.324 83.577% 577 14.3 42.35°C 0.909
12.177V 5.018V 3.275V 5.038V 145.16 48.89°C 229.87V
CL2 0.115A 21.926A 0A 0A 111.428 81.655% 438 8.2 43.49°C 0.903
12.180V 5.018V 3.287V 5.044V 136.457 50.68°C 229.88V
CL3 0.115A 0A 22.22A 0A 73.988 75.419% 406 7.6 44.23°C 0.859
12.175V 5.035V 3.267V 5.038V 98.109 52.72°C 229.88V
CL4 83.075A 0A 0A 0A 1000.05 90.879% 1991 50.9 45.84°C 0.981
12.038V 5.037V 3.271V 5.088V 1100.422 55.81°C 229.77V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.228A 0.495A 0.501A 0.198A 20.011 76.225% 0 <6.0 39.98°C 0.876
12.095V 5.047V 3.291V 5.044V 26.252 36.87°C 114.93V
40W 2.702A 0.694A 0.702A 0.298A 40.01 83.751% 0 <6.0 41.29°C 0.944
12.105V 5.047V 3.291V 5.041V 47.771 37.95°C 114.91V
60W 4.174A 0.893A 0.904A 0.397A 60.009 86.131% 0 <6.0 42.09°C 0.957
12.109V 5.038V 3.286V 5.038V 69.673 38.36°C 114.92V
80W 5.645A 1.093A 1.106A 0.497A 79.969 87.535% 0 <6.0 43.39°C 0.97
12.106V 5.033V 3.284V 5.035V 91.358 39.42°C 114.91V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.228A 0.496A 0.501A 0.198A 20.009 77.973% 0 <6.0 39.88°C 0.495
12.092V 5.044V 3.291V 5.044V 25.659 36.83°C 229.89V
40W 2.702A 0.694A 0.702A 0.298A 40.008 84.542% 0 <6.0 40.76°C 0.698
12.101V 5.044V 3.291V 5.041V 47.325 37.46°C 229.88V
60W 4.174A 0.894A 0.904A 0.397A 60.007 87.09% 0 <6.0 41.48°C 0.79
12.105V 5.034V 3.286V 5.038V 68.9 37.97°C 229.89V
80W 5.646A 1.093A 1.105A 0.497A 79.964 88.275% 0 <6.0 42.72°C 0.843
12.104V 5.03V 3.284V 5.035V 90.58 38.96°C 229.88V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load5.99mV5.06mV6.24mV5.94mVPass
20% Load5.58mV5.41mV6.85mV6.91mVPass
30% Load12.46mV5.41mV7.42mV8.70mVPass
40% Load10.57mV5.72mV7.31mV8.60mVPass
50% Load10.18mV8.53mV11.66mV10.13mVPass
60% Load10.13mV6.44mV7.82mV11.51mVPass
70% Load10.64mV6.84mV8.44mV11.92mVPass
80% Load11.05mV7.51mV10.02mV13.36mVPass
90% Load12.44mV7.82mV10.59mV15.10mVPass
100% Load18.14mV9.69mV13.19mV16.18mVPass
110% Load17.93mV9.91mV12.81mV19.16mVPass
Crossload18.57mV8.07mV10.37mV11.55mVPass
Crossload210.34mV9.50mV6.60mV10.75mVPass
Crossload36.60mV5.16mV12.27mV11.31mVPass
Crossload416.99mV7.87mV10.76mV14.60mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load5.63mV4.95mV6.29mV5.63mVPass
20% Load6.04mV5.72mV7.11mV6.96mVPass
30% Load14.25mV5.51mV7.57mV8.55mVPass
40% Load11.28mV5.82mV7.36mV8.04mVPass
50% Load10.21mV7.87mV11.76mV9.31mVPass
60% Load9.93mV6.28mV7.62mV10.29mVPass
70% Load10.44mV6.59mV8.23mV10.69mVPass
80% Load11.36mV7.30mV9.82mV11.16mVPass
90% Load11.82mV7.97mV11.40mV11.21mVPass
100% Load19.59mV10.06mV12.32mV12.40mVPass
110% Load20.07mV9.72mV13.04mV13.68mVPass
Crossload112.74mV8.08mV10.82mV11.10mVPass
Crossload210.28mV9.50mV6.39mV10.64mVPass
Crossload36.60mV5.31mV12.58mV11.00mVPass
Crossload418.11mV7.82mV9.96mV12.62mVPass

The results above are not used in the certification process

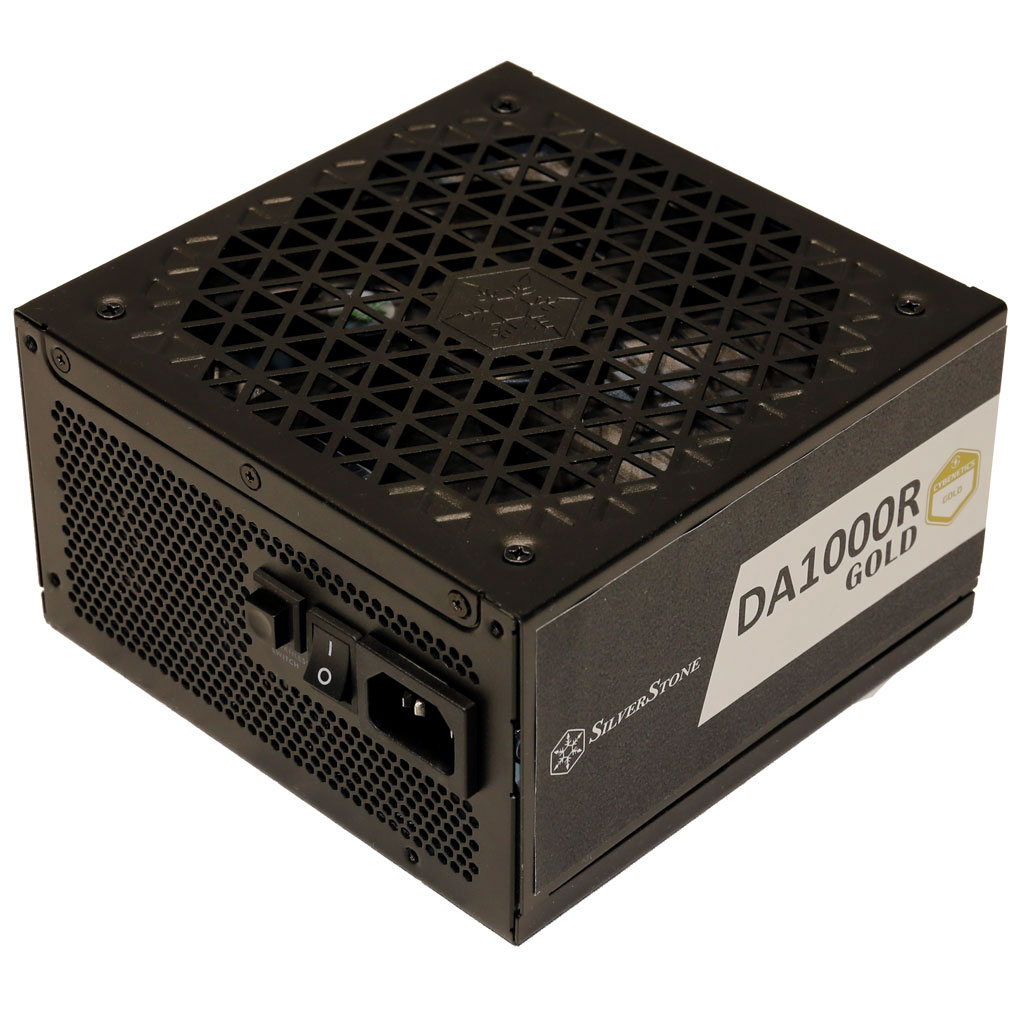

SilverStone DA1000R Gold

Top side

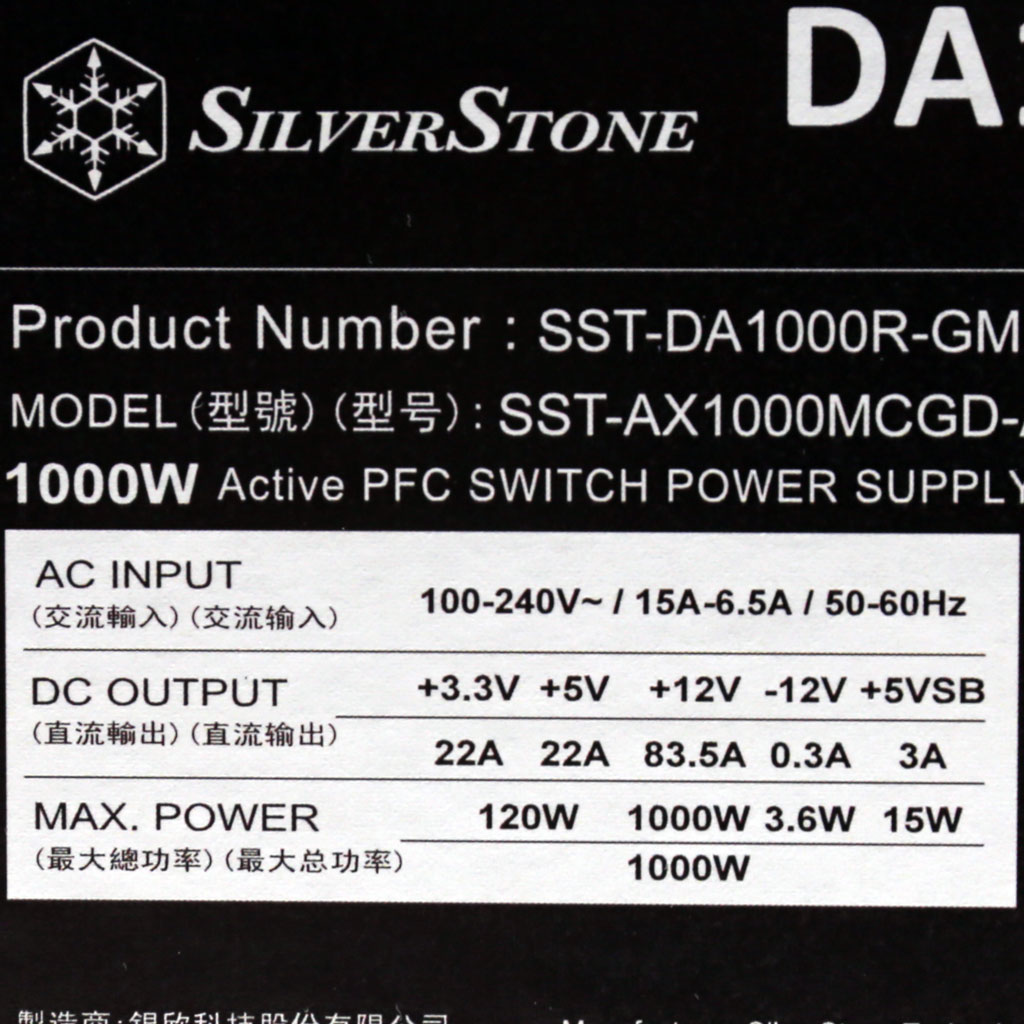

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
