Superframe SF-G850M
Serial Number
Lab IDSR85002059
  • Report: 22PS2059A
  • Receipt Date: Aug 5, 2022
  • Test Date: Sep 7, 2022
  • Report Date: Sep 7, 2022
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandSuperframe
Manufacturer (OEM)Channel Well Technology
Series
Model Number
Serial Number
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)10
Rated Frequency (Hz)47-63
Rated Power (W)850
TypeATX12V
Cooling135mm Fluid Dynamic Bearing Fan
(HA13525H12SF-Z)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps222270.830.3
Watts120849.6153.6
Total Max. Power (W)850

Test Equipment

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 18AWG No
4+4 pin EPS12V (700mm) 2 2 18AWG No
6+2 pin PCIe (600mm+150mm) 2 4 18AWG No
12+4 pin PCIe (600mm) (450W) 1 1 16-24AWG No
SATA (500mm+150mm+150mm) 3 9 18AWG No
4-pin Molex (500mm+150mm+150mm+150mm) / FDD (+150mm) 1 4 / 1 18-20AWG No

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.0 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)15.4
AC Loss to PWR_OK Hold Up Time (ms)14.1
PWR_OK Inactive to DC Loss Delay (ms)1.3

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.93 V 114.89 V 113.85 V 114.96 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.02 Hz 60.60 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.14 % 0.12 % N/A 0.19 % 2.00 % PASS
Real Power: 0.019 W 0.017 W N/A 0.020 W N/A N/A
Apparent Power: 10.213 W 10.191 W N/A 10.233 W N/A N/A
Power Factor: 0.002 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.88 V 229.85 V 227.70 V 229.93 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.00 Hz 50.50 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.417 1.490 PASS
Mains Voltage THD: 0.15 % 0.13 % N/A 0.17 % 2.00 % PASS
Real Power: 0.089 W 0.077 W N/A 0.106 W N/A N/A
Apparent Power: 34.505 W 34.480 W N/A 34.532 W N/A N/A
Power Factor: 0.002 N/A N/A N/A N/A N/A

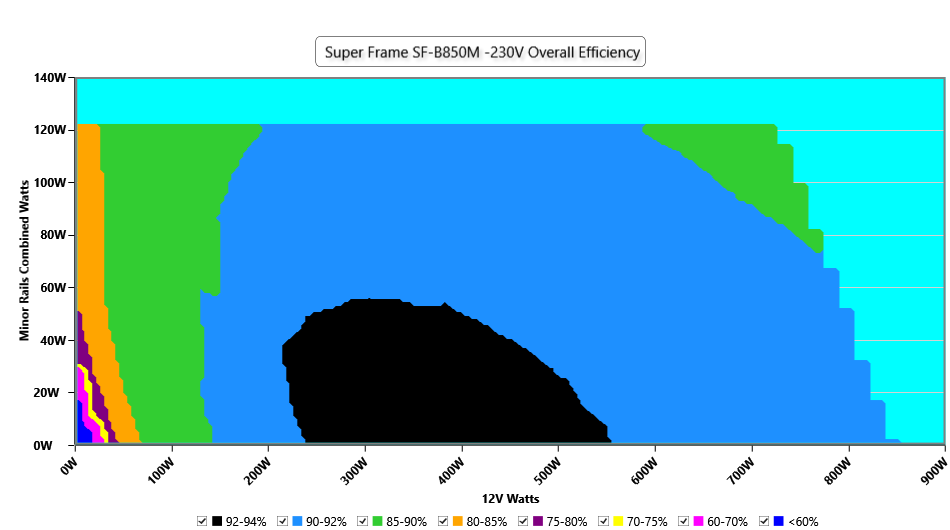

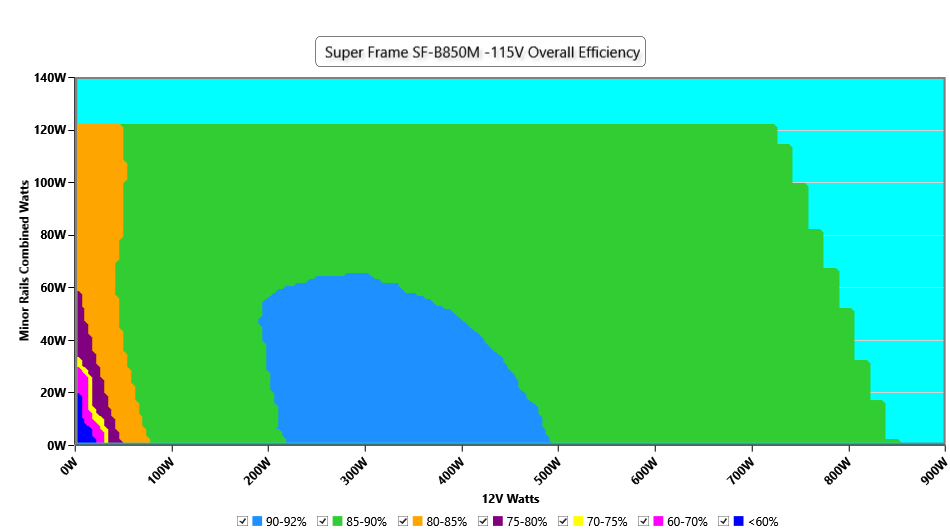

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

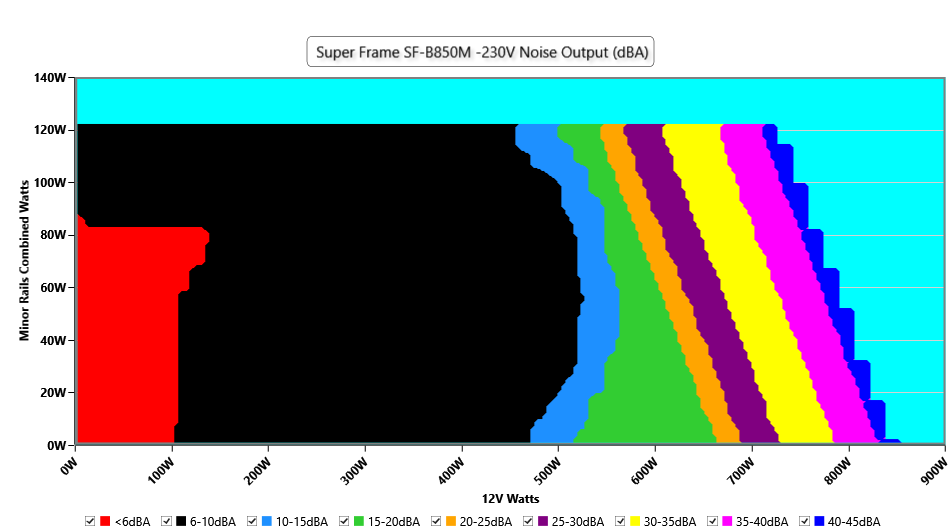

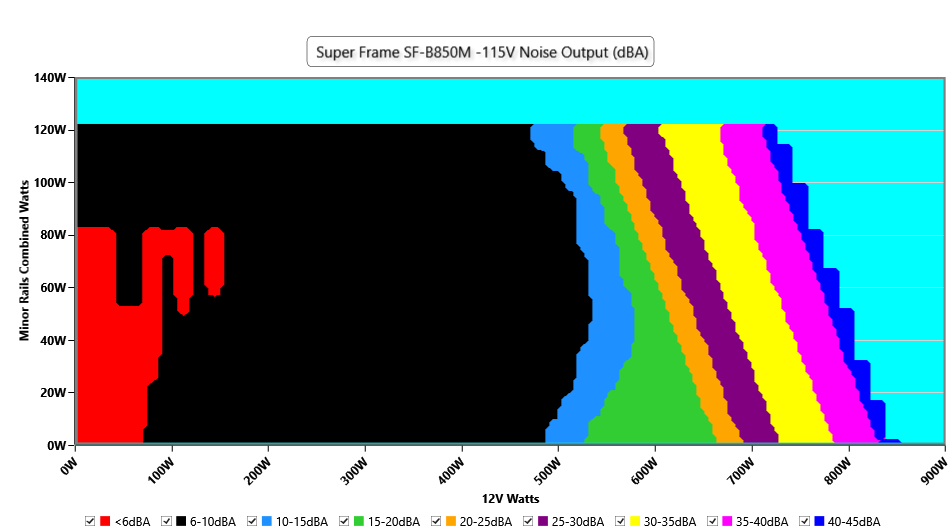

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

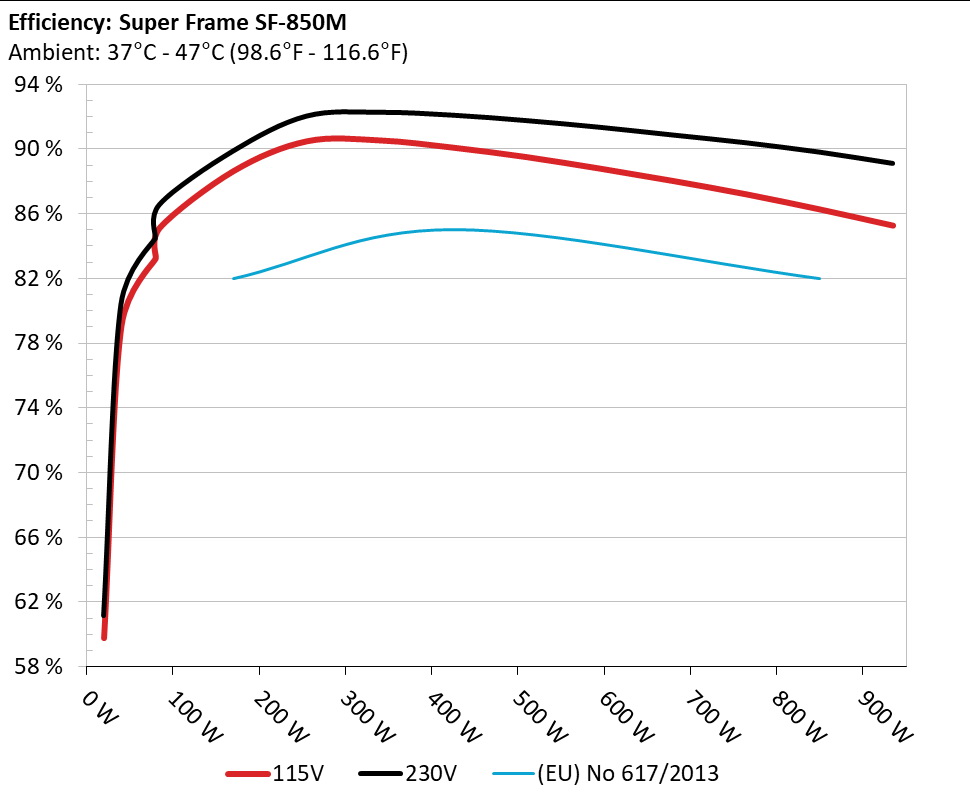

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

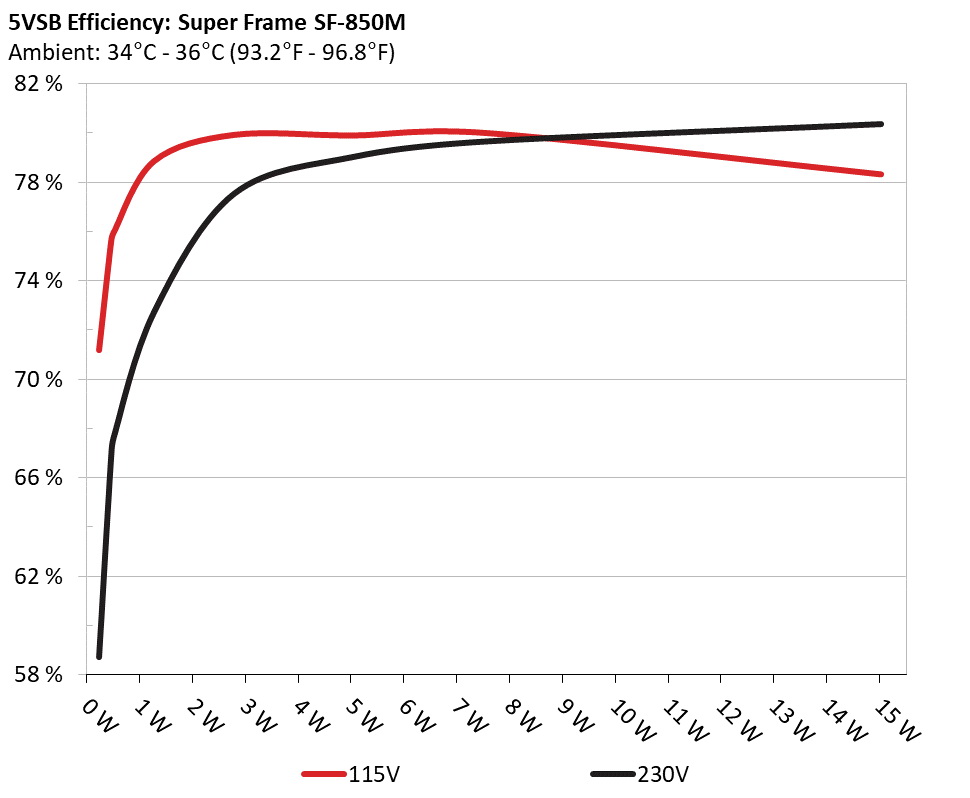

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.229W 70.692% 0.032
5.076V 0.324W 114.93V
2 0.09A 0.457W 75.105% 0.059
5.075V 0.609W 114.93V
3 0.55A 2.786W 79.438% 0.266
5.065V 3.507W 114.93V
4 1A 5.055W 79.414% 0.358
5.054V 6.366W 114.93V
5 1.5A 7.565W 79.514% 0.419
5.043V 9.514W 114.93V
6 3A 15.028W 77.834% 0.497
5.009V 19.308W 114.93V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.229W 58.215% 0.011
5.075V 0.394W 229.9V
2 0.09A 0.457W 66.348% 0.02
5.075V 0.689W 229.9V
3 0.55A 2.786W 77.049% 0.1
5.065V 3.616W 229.9V
4 1A 5.055W 78.55% 0.167
5.055V 6.436W 229.9V
5 1.5A 7.565W 79.175% 0.22
5.043V 9.555W 229.89V
6 3.001A 15.028W 79.877% 0.327
5.009V 18.815W 229.89V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 5.252A 1.977A 2.011A 0.992A 85.007 85.149% 0 <6.0 44.82°C 0.974
12.073V 5.059V 3.282V 5.043V 99.834 40.54°C 114.92V
20% 11.520A 2.966A 3.021A 1.193A 169.955 88.623% 0 <6.0 45.53°C 0.987
12.070V 5.057V 3.276V 5.031V 191.777 40.81°C 114.9V
30% 18.139A 3.461A 3.529A 1.372A 254.967 90.471% 0 <6.0 46.42°C 0.99
12.069V 5.056V 3.273V 5.101V 281.823 41.38°C 114.87V
40% 24.800A 3.957A 4.038A 1.57A 340.063 90.523% 0 <6.0 47.38°C 0.991
12.051V 5.054V 3.269V 5.095V 375.671 41.79°C 114.86V
50% 31.090A 4.949A 5.057A 1.77A 425.037 90.076% 407 7.6 42.23°C 0.99
12.047V 5.052V 3.262V 5.085V 471.867 48.17°C 114.83V
60% 37.347A 5.941A 6.08A 1.971A 509.559 89.497% 619 16.7 42.54°C 0.992
12.043V 5.05V 3.257V 5.075V 569.361 48.86°C 114.81V
70% 43.676A 6.934A 7.106A 2.173A 594.869 88.781% 758 23.3 43.04°C 0.993
12.038V 5.048V 3.251V 5.064V 670.042 50.41°C 114.78V
80% 50.022A 7.928A 8.135A 2.275A 679.715 88.018% 972 31.2 44.37°C 0.994
12.031V 5.047V 3.245V 5.056V 772.251 52.57°C 114.77V
90% 56.767A 8.426A 8.639A 2.378A 765.129 87.187% 1243 38.7 44.68°C 0.995
12.025V 5.045V 3.241V 5.047V 877.579 54.03°C 114.73V
100% 63.255A 8.926A 9.177A 2.984A 849.956 86.259% 1560 44.7 45.31°C 0.995
12.019V 5.043V 3.236V 5.027V 985.359 55.34°C 114.71V
110% 69.618A 9.921A 10.309A 2.989A 934.53 85.263% 1872 50.0 47.29°C 0.996
12.012V 5.041V 3.23V 5.02V 1096.047 58.19°C 114.69V
CL1 0.116A 14.273A 14.706A 0A 121.317 82.485% 440 8.2 42.47°C 0.983
12.079V 5.06V 3.243V 5.05V 147.076 48.94°C 114.89V
CL2 0.116A 21.67A 0A 0A 111.422 81.489% 408 7.6 43.39°C 0.982
12.087V 5.078V 3.296V 5.058V 136.733 50.79°C 114.9V
CL3 0.116A 0A 22.527A 0A 73.985 74.7% 408 7.6 44.72°C 0.974
12.084V 5.064V 3.222V 5.053V 99.045 53.01°C 114.91V
CL4 70.724A 0A 0A 0A 849.614 87.2% 1326 40.6 45.99°C 0.995
12.014V 5.059V 3.275V 5.105V 974.341 55.89°C 114.71V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 5.250A 1.977A 2.01A 0.992A 85.009 86.576% 0 <6.0 44.84°C 0.87
12.078V 5.059V 3.284V 5.042V 98.19 40.6°C 229.88V
20% 11.518A 2.966A 3.02A 1.193A 169.958 89.863% 0 <6.0 45.61°C 0.943
12.074V 5.057V 3.278V 5.031V 189.127 40.79°C 229.87V
30% 18.135A 3.462A 3.528A 1.372A 254.972 92.022% 0 <6.0 46.25°C 0.965
12.072V 5.055V 3.274V 5.101V 277.076 40.98°C 229.86V
40% 24.796A 3.958A 4.037A 1.57A 340.08 92.258% 0 <6.0 47.39°C 0.974
12.053V 5.054V 3.27V 5.095V 368.618 41.75°C 229.85V
50% 31.092A 4.95A 5.056A 1.77A 425.091 92.081% 408 7.6 42.38°C 0.98
12.047V 5.051V 3.264V 5.085V 461.647 48.41°C 229.84V
60% 37.354A 5.943A 6.078A 1.971A 509.615 91.747% 611 12.3 43.02°C 0.983
12.042V 5.049V 3.258V 5.074V 555.452 49.53°C 229.83V
70% 43.690A 6.936A 7.103A 2.173A 594.921 91.336% 819 26 43.49°C 0.985
12.035V 5.048V 3.252V 5.064V 651.359 50.58°C 229.82V
80% 50.037A 7.93A 8.13A 2.275A 679.761 90.857% 984 31.7 44.06°C 0.986
12.028V 5.046V 3.247V 5.055V 748.168 52.11°C 229.81V
90% 56.791A 8.429A 8.635A 2.378A 765.168 90.371% 1211 37.7 44.45°C 0.988
12.020V 5.044V 3.242V 5.047V 846.69 53.46°C 229.8V
100% 63.288A 8.928A 9.173A 2.985A 849.993 89.796% 1494 43.5 45.01°C 0.989
12.013V 5.042V 3.238V 5.027V 946.584 55.04°C 229.79V
110% 69.658A 9.925A 10.305A 2.989A 934.567 89.101% 1874 50.0 47.04°C 0.989
12.006V 5.04V 3.231V 5.02V 1048.894 57.91°C 229.78V
CL1 0.116A 14.276A 14.695A 0A 121.324 83.782% 439 8.2 42.61°C 0.922
12.078V 5.059V 3.246V 5.05V 144.809 48.03°C 229.88V
CL2 0.116A 21.668A 0A 0A 111.428 82.567% 439 8.2 43.73°C 0.915
12.089V 5.078V 3.296V 5.058V 134.949 50.03°C 229.88V
CL3 0.116A 0A 22.5A 0A 73.988 75.886% 408 7.6 44.49°C 0.871
12.087V 5.063V 3.226V 5.052V 97.497 52.61°C 229.88V
CL4 70.713A 0A 0A 0A 849.652 90.603% 1359 41.0 45.72°C 0.989
12.016V 5.059V 3.275V 5.105V 937.771 55.7°C 229.79V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.230A 0.493A 0.501A 0.197A 20.005 59.786% 0 <6.0 40.43°C 0.911
12.073V 5.074V 3.295V 5.067V 33.462 37.38°C 114.92V
40W 2.708A 0.69A 0.701A 0.296A 40.005 79.038% 0 <6.0 41.48°C 0.949
12.071V 5.073V 3.294V 5.063V 50.617 38.12°C 114.91V
60W 4.186A 0.889A 0.903A 0.395A 60.004 83.243% 0 <6.0 42.39°C 0.962
12.071V 5.063V 3.288V 5.06V 72.086 38.67°C 114.92V
80W 5.660A 1.087A 1.105A 0.495A 79.958 85.556% 0 <6.0 43.05°C 0.972
12.072V 5.06V 3.286V 5.056V 93.46 39.09°C 114.92V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.230A 0.493A 0.5A 0.197A 20.004 61.163% 0 <6.0 40.49°C 0.609
12.078V 5.074V 3.297V 5.067V 32.706 37.42°C 229.89V
40W 2.708A 0.69A 0.701A 0.296A 40.005 80.375% 0 <6.0 40.5°C 0.722
12.076V 5.073V 3.296V 5.063V 49.774 37.2°C 229.88V
60W 4.184A 0.889A 0.903A 0.395A 60.004 84.48% 0 <6.0 41.37°C 0.813
12.076V 5.063V 3.289V 5.059V 71.029 37.81°C 229.89V
80W 5.658A 1.087A 1.104A 0.495A 79.959 86.967% 0 <6.0 42.52°C 0.859
12.076V 5.06V 3.287V 5.055V 91.941 38.71°C 229.89V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load5.73mV5.72mV5.83mV4.76mVPass
20% Load6.09mV6.79mV6.13mV4.91mVPass
30% Load14.81mV7.20mV6.65mV5.07mVPass
40% Load16.96mV8.73mV7.00mV5.12mVPass
50% Load17.93mV7.91mV7.36mV5.99mVPass
60% Load18.44mV7.86mV7.42mV8.34mVPass
70% Load18.91mV10.42mV12.99mV6.91mVPass
80% Load19.01mV8.89mV9.46mV7.63mVPass
90% Load19.36mV9.29mV10.07mV8.19mVPass
100% Load26.76mV11.17mV10.68mV9.90mVPass
110% Load26.93mV11.89mV10.86mV10.92mVPass
Crossload112.79mV10.14mV10.50mV9.76mVPass
Crossload29.67mV12.51mV7.26mV9.62mVPass
Crossload36.34mV6.38mV11.91mV9.57mVPass
Crossload417.45mV9.53mV8.47mV12.00mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load5.53mV5.77mV5.52mV5.17mVPass
20% Load6.34mV6.84mV6.24mV5.32mVPass
30% Load17.98mV6.84mV6.09mV5.53mVPass
40% Load17.37mV8.22mV6.65mV5.53mVPass
50% Load17.06mV7.51mV6.80mV6.09mVPass
60% Load17.22mV7.86mV7.67mV5.94mVPass
70% Load18.04mV10.62mV12.73mV6.86mVPass
80% Load18.75mV8.89mV10.23mV7.21mVPass
90% Load19.47mV9.20mV9.67mV7.78mVPass
100% Load27.99mV10.65mV10.35mV9.26mVPass
110% Load29.52mV11.30mV10.78mV10.13mVPass
Crossload112.62mV10.82mV9.90mV9.60mVPass
Crossload28.75mV12.05mV6.39mV9.72mVPass
Crossload36.14mV5.87mV11.87mV9.21mVPass
Crossload418.25mV9.13mV8.56mV11.25mVPass

The results above are not used in the certification process

Superframe SF-G850M

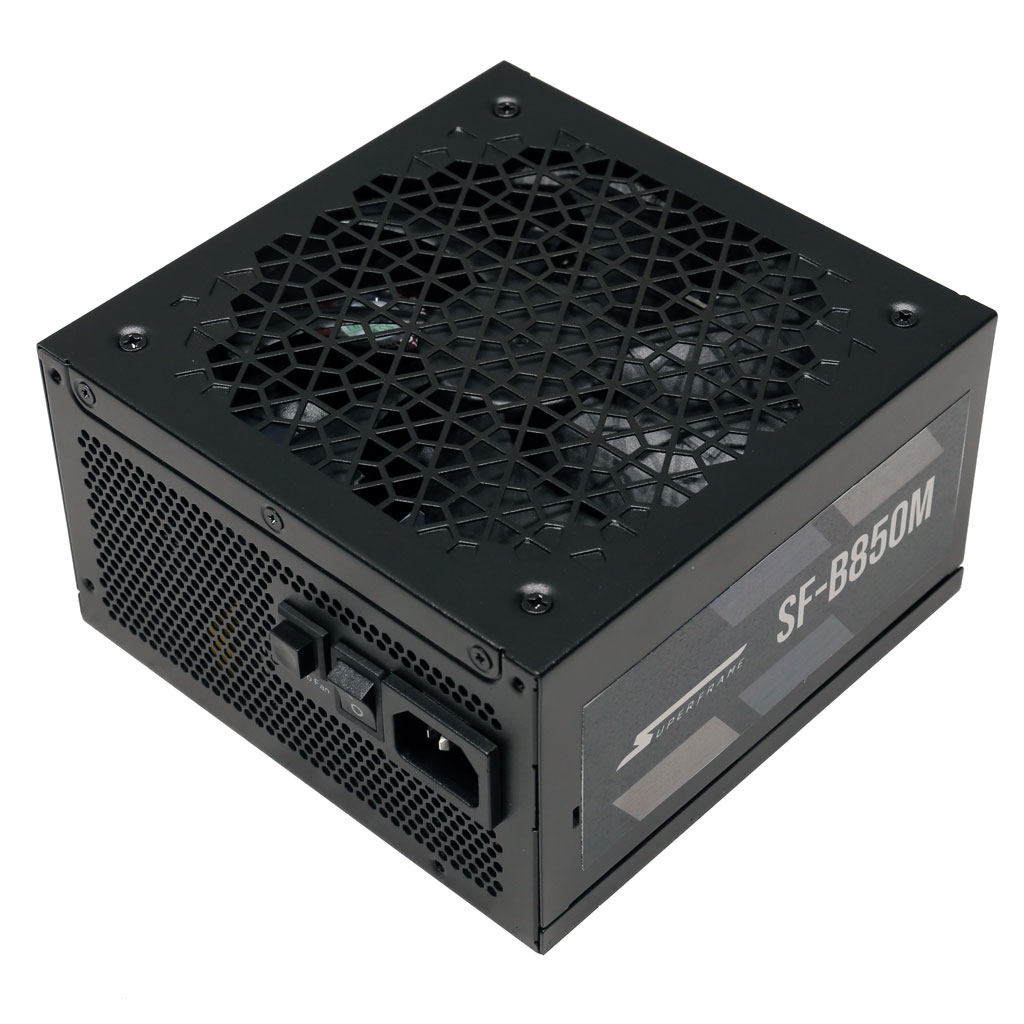

Top side

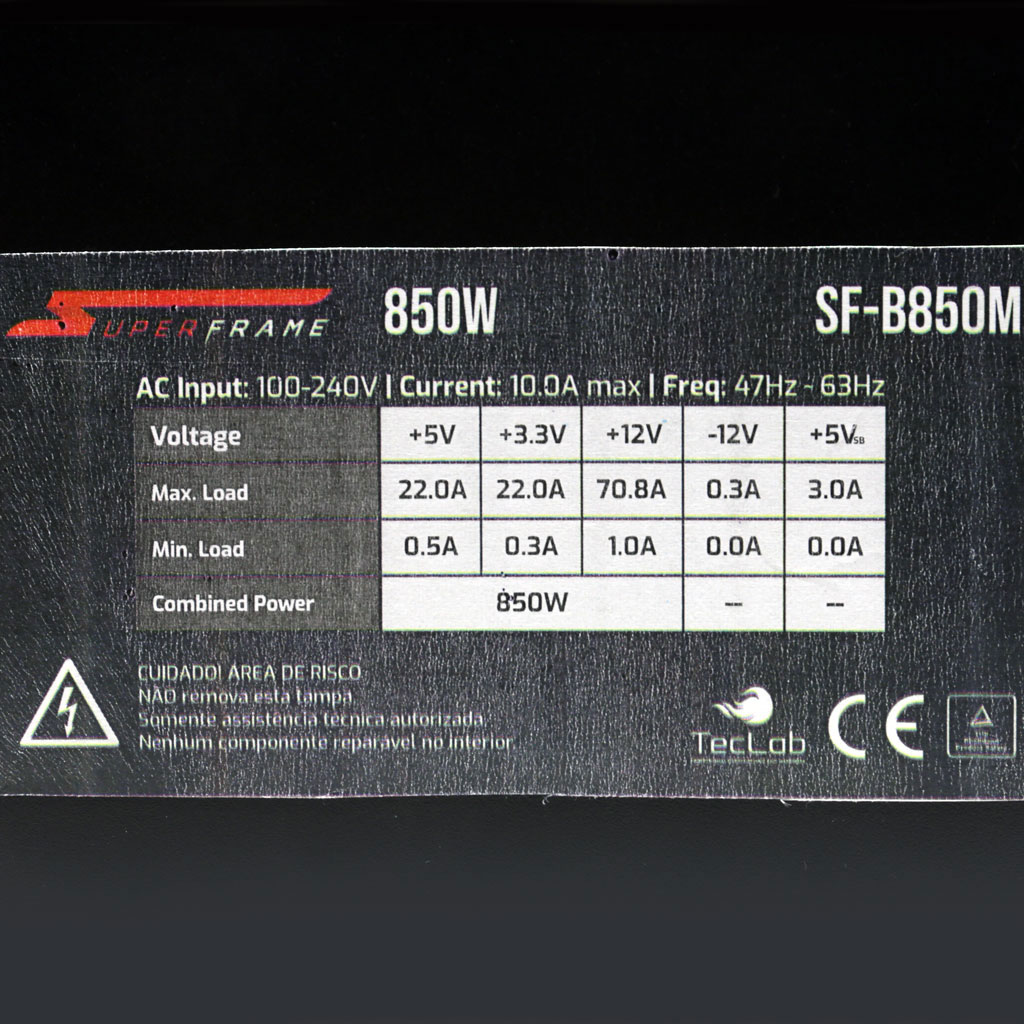

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
