Seasonic Prime TX-1600
Serial NumberR2206AA152390025
Lab IDSS16002051
  • Report: 22PS2051A
  • Receipt Date: Jul 30, 2022
  • Test Date: Aug 4, 2022
  • Report Date: Aug 5, 2022
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandSeasonic
Manufacturer (OEM)Seasonic
SeriesPrime Titanium
Model NumberSSR-1600TR
Serial NumberR2206AA152390025
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)15-10
Rated Frequency (Hz)50-60
Rated Power (W)1600
TypeATX12V
Cooling135mm Fluid Dynamic Bearing Fan
(HA13525H12SF-Z)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps2525133.3330.5
Watts1251600156
Total Max. Power (W)1600

Test Equipment

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (620mm) 1 1 16-18AWG No
4+4 pin EPS12V (710mm) 3 3 16AWG No
6+2 pin PCIe (760mm) 8 8 16AWG No
12+2 pin PCIe (760mm) 2 2 16-28AWG No
SATA (510mm+150mm+150mm+150mm) 4 16 18AWG No
SATA (410mm+150mm) 1 2 18AWG No
4 pin Molex (460mm+125mm+125mm) 1 3 18AWG No
AC Power Cord (1360mm) - C19 coupler 1 1 16AWG -

Parts Description

General Data -
Manufacturer (OEM) Seasonic
PCB Type Double Sided
Primary Side -
Transient Filter 5x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection 2x NTC Thermistor MF72-20D20M (20 Ohm) & Relay
Bridge Rectifier(s) (Standby Mode) 1x Shindengen LL25XB60 (600V, 25A @ 113°C)
Rectifier FETs 4x Infineon IPB60R040C7 (600V, 32A @ 100°C, Rds(on): 0.040Ohm)
APFC MOSFETs 4x Infineon IPA60R099P6 (600V, 24A @ 100°C, Rds(on): 0.099Ohm)
APFC Boost Diodes 2x Infineon IDH10G65C6 (650V, 10A @ 140°C)
Bulk Cap(s) 1x Nippon Chemi-Con (420V, 680uF, 2,000h @ 105°C, KMZ) & 2x Nippon Chemi-Con (420V, 820uF each or 1640uF combined, 2,000h @ 105°C, KHE)
Main Switchers 4x Infineon IPP60R099CP (600V, 19A @ 100°C, Rds(on): 0.099Ohm)
Drivers ICs 2x Silicon Labs Si8233BD
APFC Controller Texas Instruments UCD28070
Resonant Controller Champion CM6901T2X
Topology Primary side: Bridgeless, Interleaved PFC, Full-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side -
+12V MOSFETs 16x Nexperia PSMN1R0-40YLD (40V, 198A @ 100°C, Rds(on): 1.93mOhm)
5V & 3.3V DC-DC Converters
Filtering Capacitors Electrolytic: 7x Nippon Chemi-Con (105°C, W), 1x Nippon Chemi-Con (5-6,000h @ 105°C, KZH), 1x Nippon Chemi-Con (2-5,000h @ 105°C, KZE), 3x Nippon Chemi-Con (4-10,000h @ 105°C, KY), 2x Rubycon (3-6,000h @ 105°C, YXG)
Polymer: 18x Nippon Chemi-Con, 20x FPCAP
Supervisor IC Weltrend WT7527RA (OCP, OVP, UVP, SCP, PG)
Fan Controller Weltrend WT51F104
Fan Model Hong Hua HA13525H12SF-Z (135mm, 12V, 0.5A, Fluid Dynamic Bearing Fan)
5VSB Circuit -
Rectifier 1x Infineon BSC100N06LS3 FET (60V, 36A @ 100°C, Rds(on): 10mOhm)
Standby PWM Controller Power Integrations INN3164C

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓

Performance Summary 115V

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)26.3
AC Loss to PWR_OK Hold Up Time (ms)23
PWR_OK Inactive to DC Loss Delay (ms)3.3

Vampire Power

Tables 115V

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.18 V 115.16 V 113.85 V 115.20 V 116.15 V PASS
Mains Frequency: 60.00 Hz 60.00 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.13 % 0.11 % N/A 0.15 % 2.00 % PASS
Real Power: 0.020 W 0.013 W N/A 0.028 W N/A N/A
Apparent Power: 10.342 W 10.333 W N/A 10.349 W N/A N/A
Power Factor: 0.002 N/A N/A N/A N/A N/A

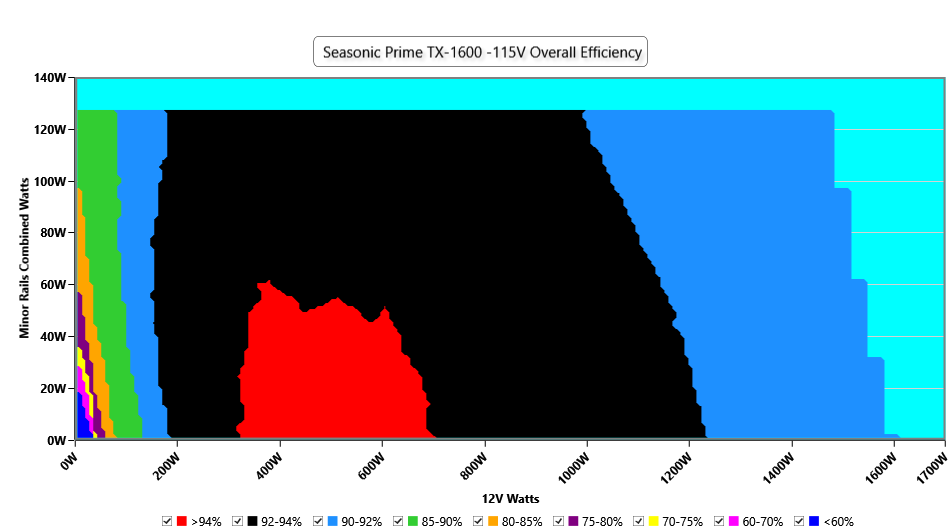

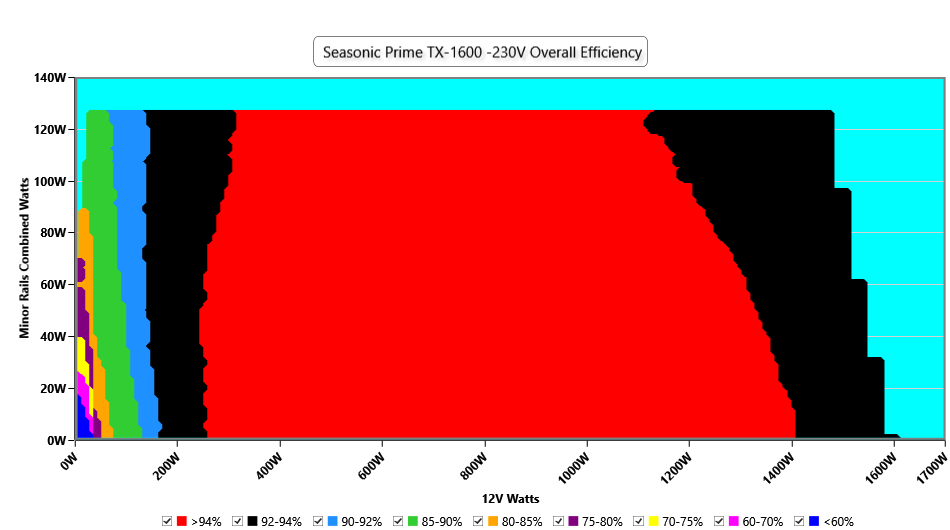

Efficiency Graph

115V

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

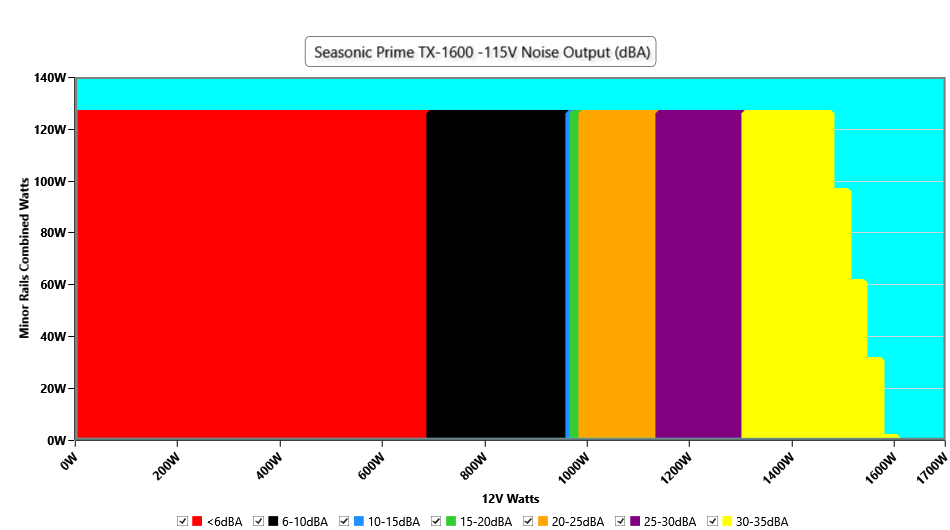

Noise Graph

115V

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

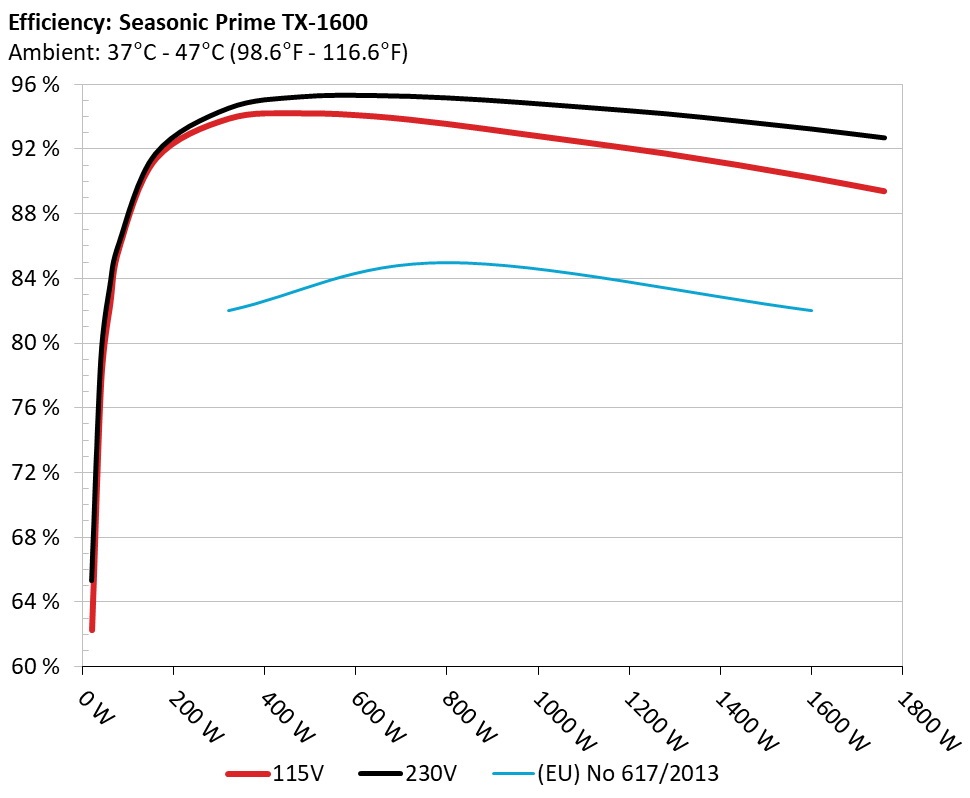

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC) 115V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.226W 71.051% 0.031
5.007V 0.318W 115.18V
2 0.09A 0.451W 78.843% 0.055
5.006V 0.572W 115.18V
3 0.55A 2.766W 86.023% 0.253
5.027V 3.215W 115.18V
4 1A 5.056W 85.595% 0.366
5.054V 5.907W 115.18V
5 1.5A 7.636W 84.995% 0.434
5.089V 8.985W 115.18V
6 3.001A 15.44W 83.152% 0.528
5.146V 18.569W 115.18V

Supplementary Tests (For Reference)

Typical Load Tests 115V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 11.504A 1.982A 1.976A 0.987A 160.039 91.365% 0 <6.0 44.79°C 0.976
12.033V 5.047V 3.34V 5.07V 175.17 40.71°C 115.13V
20% 24.033A 2.977A 2.966A 1.186A 320.023 93.842% 0 <6.0 45.36°C 0.985
12.030V 5.041V 3.338V 5.061V 341.027 41.05°C 115.09V
30% 36.876A 3.477A 3.462A 1.379A 479.547 94.175% 0 <6.0 46.42°C 0.985
12.026V 5.035V 3.336V 5.077V 509.224 41.67°C 115.05V
40% 49.801A 3.978A 3.959A 1.58A 639.968 93.987% 0 <6.0 47.4°C 0.989
12.023V 5.029V 3.335V 5.066V 680.904 42.36°C 115.01V
50% 62.336A 4.977A 4.951A 1.777A 799.73 93.523% 486 9.4 42.8°C 0.992
12.019V 5.025V 3.333V 5.065V 855.115 48.34°C 114.97V
60% 74.946A 5.979A 5.945A 1.976A 960.233 92.92% 486 9.4 43.65°C 0.994
12.015V 5.019V 3.331V 5.062V 1033.396 49.79°C 114.96V
70% 87.494A 6.983A 6.94A 2.174A 1119.99 92.317% 722 21.8 43.71°C 0.995
12.011V 5.014V 3.329V 5.06V 1213.194 50.77°C 114.93V
80% 100.122A 7.991A 7.935A 2.276A 1280.073 91.692% 822 26.1 44.3°C 0.995
12.006V 5.008V 3.327V 5.054V 1396.048 52.41°C 114.88V
90% 113.093A 8.5A 8.42A 2.378A 1439.917 90.985% 973 31.3 44.75°C 0.996
12.002V 5.001V 3.326V 5.048V 1582.587 54.04°C 114.84V
100% 125.866A 9.011A 8.937A 2.966A 1599.951 90.214% 1028 33 45.32°C 0.996
11.998V 4.995V 3.324V 5.059V 1773.5 55.38°C 114.8V
110% 138.585A 10.024A 10.026A 2.971A 1760.605 89.374% 1031 33.1 46.83°C 0.996
11.994V 4.989V 3.322V 5.049V 1969.92 57.75°C 114.75V
CL1 0.117A 14.948A 14.895A 0A 126.32 86.503% 0 <6.0 50.42°C 0.971
12.026V 5.038V 3.33V 5.016V 146.013 45°C 115.14V
CL2 0.116A 24.771A 0A 0A 126.406 85.219% 465 8.8 40.89°C 0.971
12.033V 5.046V 3.331V 5.028V 148.323 48.23°C 115.14V
CL3 0.116A 0A 24.727A 0A 83.902 79.482% 439 8.2 41.15°C 0.964
12.019V 5.039V 3.336V 5.009V 105.554 50.17°C 115.15V
CL4 133.335A 0A 0A 0A 1600.366 90.57% 1027 33 43.51°C 0.996
12.002V 5.005V 3.333V 4.948V 1766.982 54.25°C 114.8V

The results above are not used in the certification process

Light Load Tests 115V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.234A 0.494A 0.493A 0.199A 20.013 62.29% 0 <6.0 40.24°C 0.875
12.046V 5.058V 3.346V 5.034V 32.146 37.23°C 115.17V
40W 2.719A 0.692A 0.69A 0.298A 40.008 77.593% 0 <6.0 40.88°C 0.928
12.026V 5.057V 3.346V 5.035V 51.558 37.55°C 115.16V
60W 4.202A 0.891A 0.888A 0.397A 60.006 82.444% 0 <6.0 41.91°C 0.947
12.027V 5.053V 3.344V 5.039V 72.796 38.18°C 115.15V
80W 5.682A 1.089A 1.086A 0.496A 79.975 85.897% 0 <6.0 42.29°C 0.957
12.027V 5.051V 3.342V 5.042V 93.11 38.32°C 115.15V

The results above are not used in the certification process

Ripple Measurements 115V

Test12V5V3.3V5VSBPass/Fail
10% Load12.50mV4.04mV4.40mV25.64mVPass
20% Load10.71mV4.25mV4.30mV10.04mVPass
30% Load9.99mV3.89mV4.45mV23.81mVPass
40% Load10.56mV4.45mV4.66mV14.89mVPass
50% Load10.86mV4.14mV4.71mV10.04mVPass
60% Load10.91mV4.75mV4.56mV17.23mVPass
70% Load11.07mV5.68mV4.91mV15.60mVPass
80% Load11.78mV6.14mV10.13mV17.08mVPass
90% Load12.04mV5.78mV11.15mV16.16mVPass
100% Load16.54mV6.19mV11.38mV14.16mVPass
110% Load17.61mV5.73mV12.01mV16.52mVPass
Crossload117.44mV5.24mV13.00mV6.98mVPass
Crossload214.64mV6.14mV5.99mV5.97mVPass
Crossload38.53mV4.60mV15.71mV5.81mVPass
Crossload416.16mV5.73mV5.59mV9.25mVPass

The results above are not used in the certification process

Seasonic Prime TX-1600

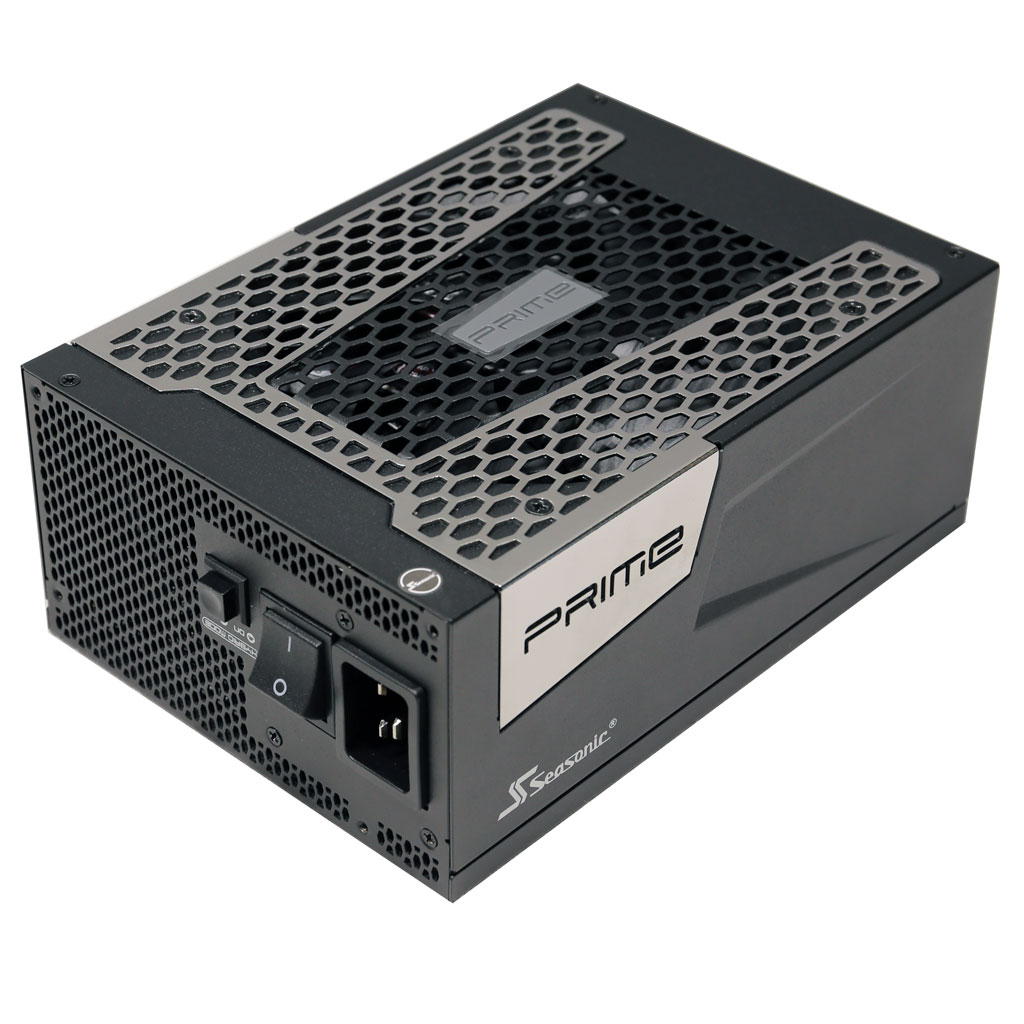

Top side

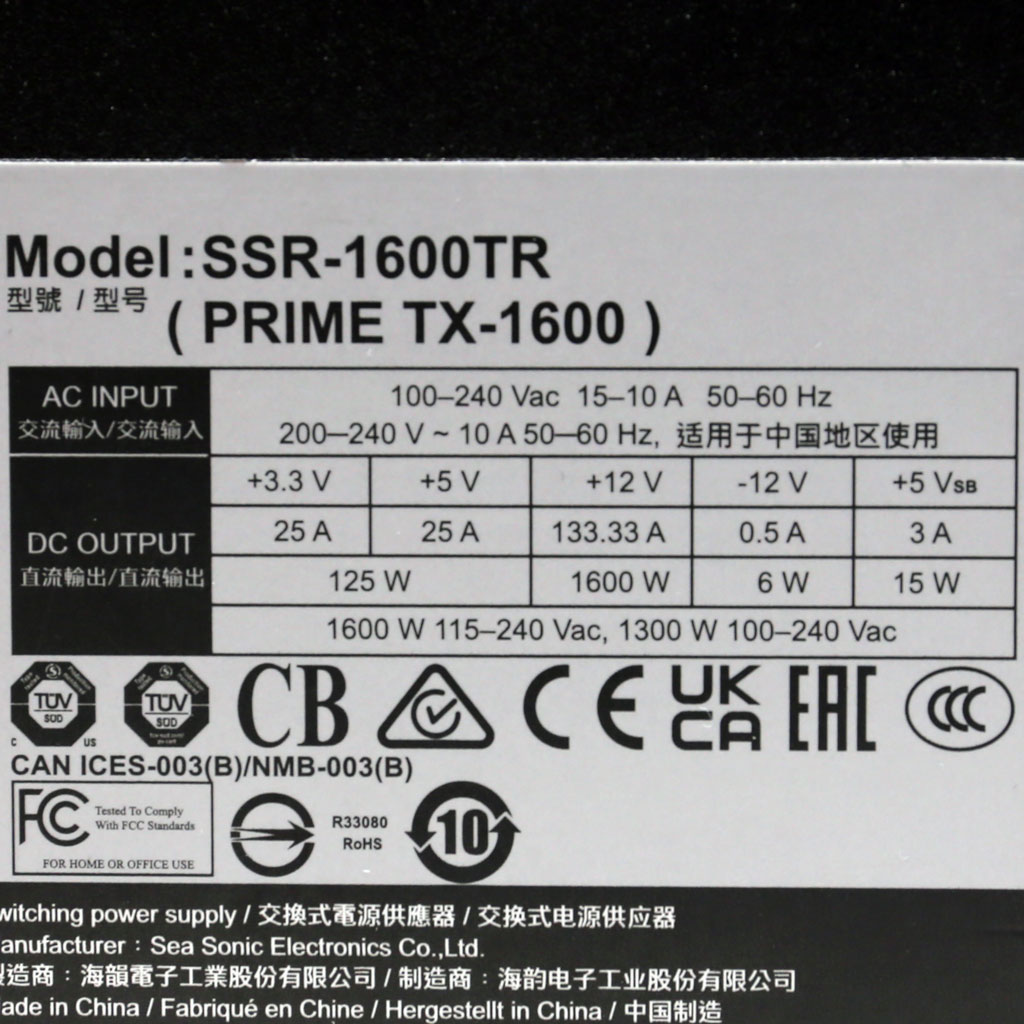

Power specifications label
