CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Thermaltake Toughpower PF1 1050W
Serial NumberPSTPD1050FNFAPE1SKCH00006
Lab IDTT10502046
  • Report: 22PS2046A
  • Receipt Date: Jul 11, 2022
  • Test Date: Jul 26, 2022
  • Report Date: Jul 28, 2022
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandThermaltake
Manufacturer (OEM)Jiu Zhou Yang Guang Power Supply (HKC)
SeriesToughpower PF1
Model NumberTTP-1050AH2FLP
Serial NumberPSTPD1050FNFAPE1SKCH00006
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)16-8
Rated Frequency (Hz)50/60
Rated Power (W)1050
TypeATX12V
Cooling120mm Hydraulic Bearing Fan
[TT-1225(A1225M12S)]
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202087.52.50.3
Watts100105012.53.6
Total Max. Power (W)1050

Test Equipment

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 16-22AWG No
4+4 pin EPS12V (650mm) 2 2 16AWG No
6+2 pin PCIe (500mm+150mm) 4 8 16AWG No
SATA (500mm+150mm+150mm+150mm) 3 12 18AWG No
4-pin Molex (500mm+150mm+150mm+150mm) 1 4 18AWG No
FDD Adapter (150mm) 1 1 22AWG No
AC Power Cord (1390mm) - C13 coupler 1 1 17AWG -

Parts Description

General Data -
Manufacturer (OEM) HKC
PCB Type Double Sided
Primary Side -
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor MF72-5D15 (5 Ohm) & Relay
Bridge Rectifier(s) 2x  GBU2506L (600V, 25A @ 100°C)
APFC MOSFETs 2x Lonten LSD65R099GF (650V, 26A @ 100°C, Rds(on): 0.099Ohm)
APFC Boost Diode 1x Global Power Technology G3S06510A (650V, 10A @ 155°C)
Bulk Cap(s) 1x Nichicon (400V, 1,000uF, 2,000h @ 105°C, GG)
Main Switchers 4x Lonten LSD55R140GF (550V, 15A @ 100°C, Rds(on): 0.14Ohm)
APFC Controller Champion CM6500UNX & CM03AX
Resonant Controller Champion CM6901T6X
Topology Primary side: APFC, Full-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side -
+12V MOSFETs 8x Infineon BSC014N04LS (40V, 125A @ 100°C, Rds(on): 1.4mOhm)
5V & 3.3V DC-DC Converters
Filtering Capacitors Electrolytic: 3x Nichicon (10,000h @ 105°C, HW), 1x Rubycon (6-10,000h @ 105°C, ZLH), 5x Nippon Chemi-Con (4-10,000h @ 105°C, KY), 1x Nippon Chemi-Con (4-10,000h @ 105°C, KYA)
Polymer: 31x Teapo
Supervisor IC Grenergy GR8329N (OCP, OVP, UVP, SCP, PG)
Fan Model Thermaltake TT-1225 (A1225M12S) (120mm, 12V, 0.38A, Hydraulic
Bearing Fan)
5VSB Circuit -
Rectifier 1x CRMicro CRTD045N03L (30V, 93A @ 100°C, Rds(on): 4.5mOhm) FET
Standby PWM Controller Sanken STR-A6069H
-12V Circuit -
Rectifier 1x

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)18.3
AC Loss to PWR_OK Hold Up Time (ms)15.8
PWR_OK Inactive to DC Loss Delay (ms)2.5

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.15 V 115.12 V 113.85 V 115.19 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.13 % 0.10 % N/A 0.19 % 2.00 % PASS
Real Power: 0.121 W 0.112 W N/A 0.131 W N/A N/A
Apparent Power: 7.779 W 7.566 W N/A 8.010 W N/A N/A
Power Factor: 0.015 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.33 V 230.23 V 227.70 V 230.37 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.417 1.490 PASS
Mains Voltage THD: 0.12 % 0.10 % N/A 0.20 % 2.00 % PASS
Real Power: 0.148 W 0.130 W N/A 0.176 W N/A N/A
Apparent Power: 25.599 W 25.276 W N/A 25.930 W N/A N/A
Power Factor: 0.005 N/A N/A N/A N/A N/A

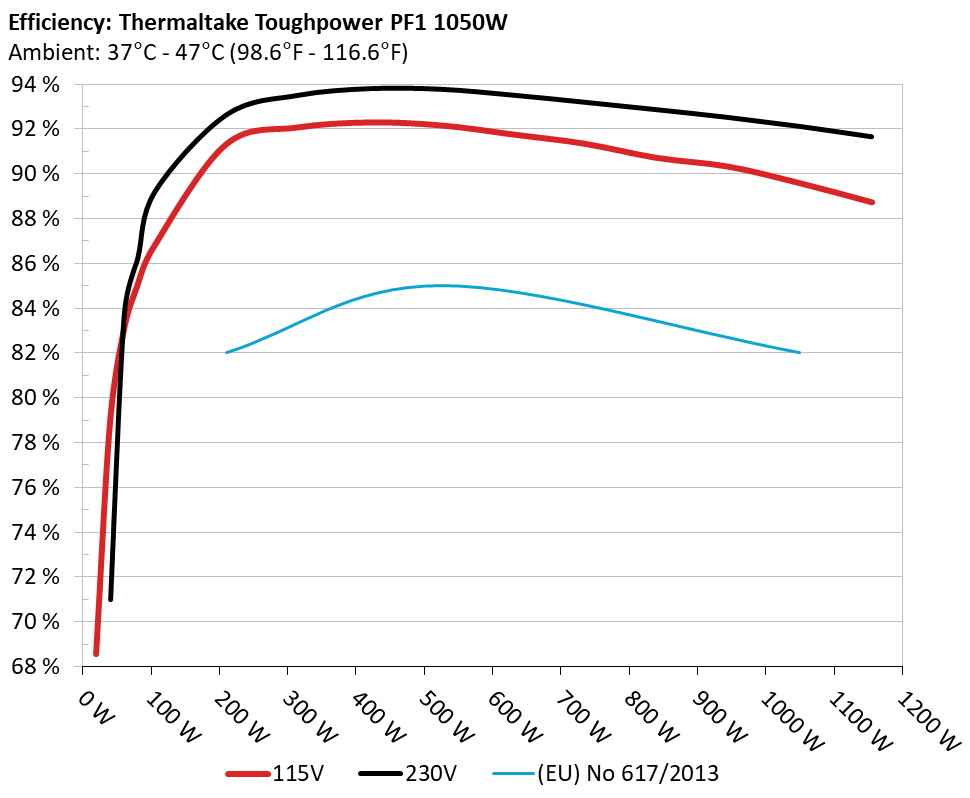

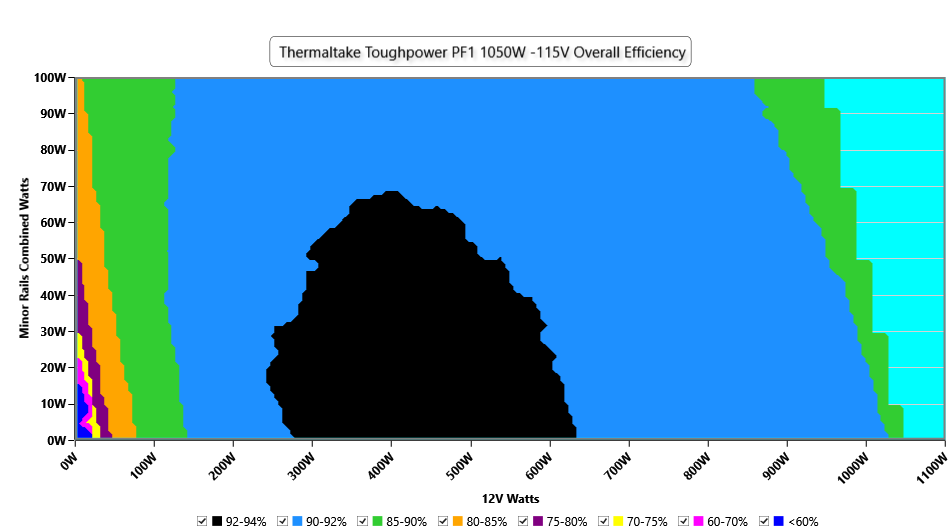

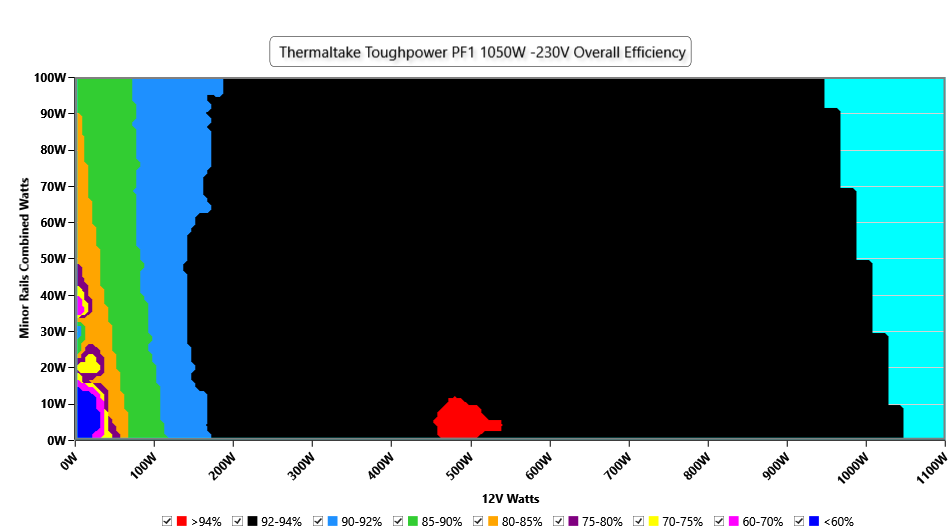

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

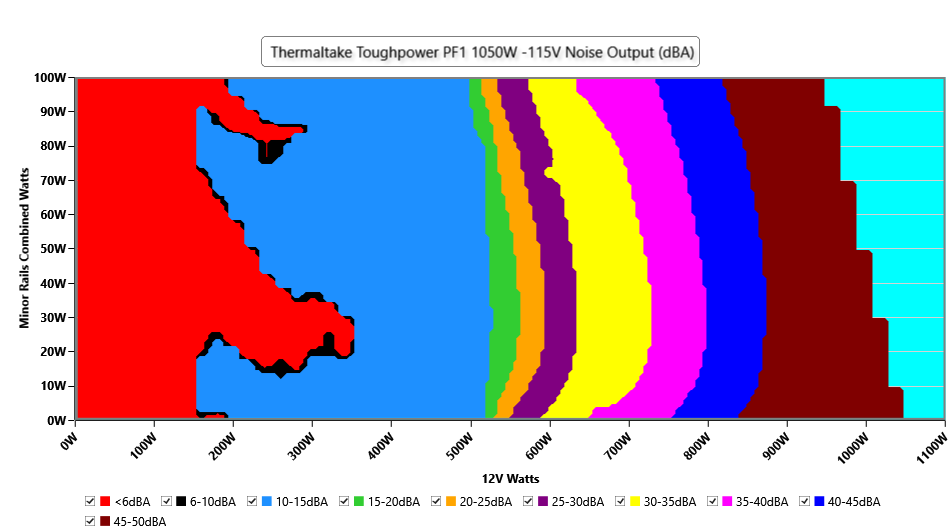

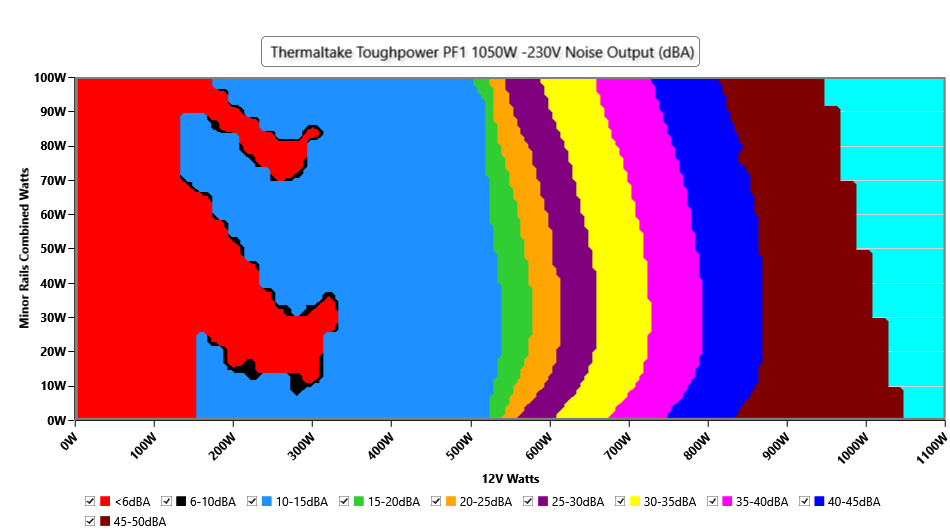

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

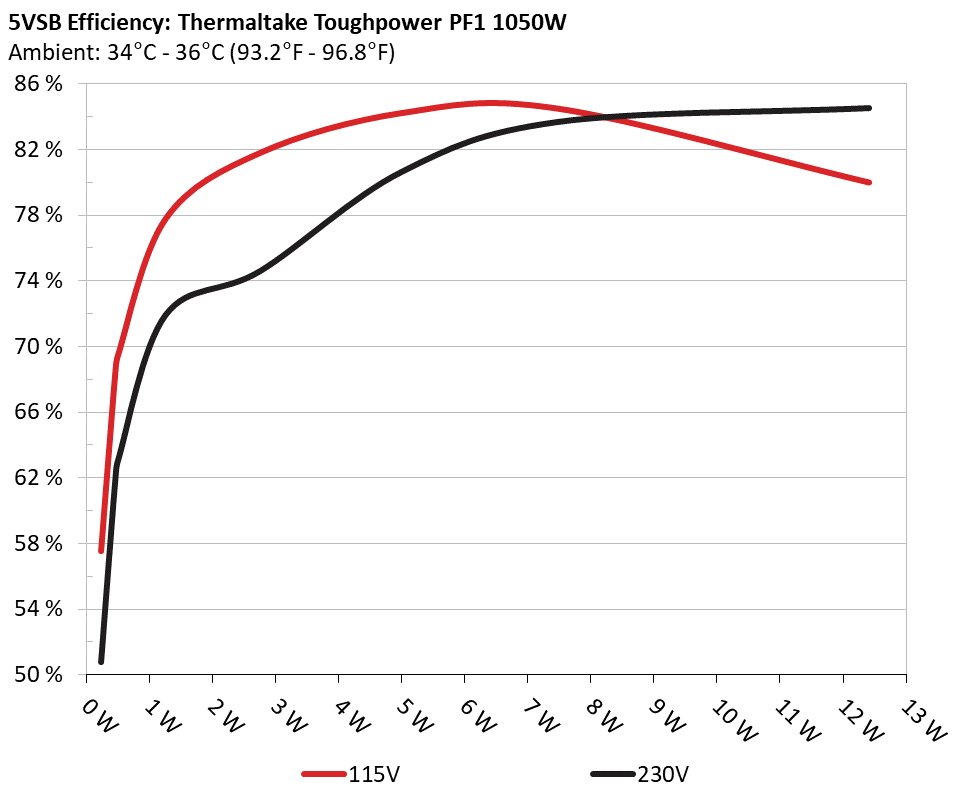

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.225W 57.033% 0.054
5.013V 0.395W 115.16V
2 0.09A 0.451W 67.913% 0.088
5.012V 0.664W 115.16V
3 0.55A 2.751W 81.313% 0.306
5.003V 3.383W 115.16V
4 1A 4.994W 83.736% 0.389
4.995V 5.964W 115.15V
5 1.5A 7.478W 84.004% 0.43
4.986V 8.902W 115.16V
6 2.499A 12.408W 79.504% 0.479
4.966V 15.607W 115.16V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.225W 50.28% 0.018
5.013V 0.448W 230.34V
2 0.09A 0.451W 61.395% 0.03
5.011V 0.732W 230.34V
3 0.55A 2.751W 74.095% 0.139
5.003V 3.713W 230.34V
4 1A 4.994W 80.131% 0.208
4.995V 6.232W 230.34V
5 1.5A 7.478W 83.173% 0.264
4.986V 8.991W 230.34V
6 2.499A 12.413W 84.013% 0.332
4.968V 14.775W 230.33V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.920A 1.992A 1.981A 1.001A 104.929 86.782% 0 <6.0 44.67°C 0.976
12.043V 5.019V 3.332V 4.992V 120.912 40.64°C 115.13V
20% 14.868A 2.99A 2.973A 1.203A 209.908 91.325% 0 <6.0 45.14°C 0.982
12.039V 5.017V 3.33V 4.984V 229.857 40.83°C 115.11V
30% 23.183A 3.492A 3.471A 1.407A 314.903 92.086% 835 13.7 41.65°C 0.985
12.029V 5.012V 3.327V 4.975V 341.967 46.43°C 115.08V
40% 31.457A 3.993A 3.969A 1.611A 419.454 92.308% 846 14 42.05°C 0.99
12.024V 5.009V 3.325V 4.967V 454.401 47.09°C 115.05V
50% 39.444A 4.993A 4.964A 1.814A 524.776 92.178% 1226 26.6 42.24°C 0.993
12.024V 5.007V 3.324V 4.96V 569.307 47.71°C 115.02V
60% 47.390A 5.996A 5.961A 2A 629.213 91.774% 1887 38.3 42.95°C 0.994
12.017V 5.004V 3.322V 4.953V 685.618 49.03°C 114.98V
70% 55.411A 7A 6.959A 2.223A 734.601 91.357% 2380 44 43.18°C 0.995
12.010V 5.001V 3.319V 4.946V 804.097 50.34°C 114.95V
80% 63.435A 8.002A 7.955A 2.326A 839.465 90.729% 2609 46.6 43.93°C 0.996
12.006V 4.998V 3.317V 4.942V 925.256 51.96°C 114.91V
90% 72.009A 8.51A 8.451A 2.432A 944.73 90.337% 2580 46.4 44.06°C 0.996
11.975V 4.993V 3.312V 4.932V 1045.798 53.21°C 114.88V
100% 80.278A 9.011A 8.962A 2.534A 1049.454 89.597% 2638 46.6 45.63°C 0.997
11.987V 4.993V 3.313V 4.931V 1171.311 55.65°C 114.83V
110% 88.284A 10.014A 10.048A 2.533A 1154.99 88.741% 2661 46.8 47.24°C 0.997
11.997V 4.993V 3.313V 4.933V 1301.515 58.22°C 114.78V
CL1 0.116A 11.998A 11.921A 0A 101.282 83.358% 866 15.5 40.32°C 0.977
12.060V 5.018V 3.33V 5.049V 121.515 45.86°C 115.14V
CL2 0.114A 19.904A 0A 0A 101.383 83.016% 849 14.2 40.44°C 0.977
12.059V 5.024V 3.33V 5.076V 122.129 47.72°C 115.14V
CL3 0.114A 0A 19.767A 0A 67.371 76.639% 837 13.7 40.9°C 0.962
12.049V 5.024V 3.339V 5.023V 87.896 49.91°C 115.15V
CL4 87.421A 0A 0A 0A 1049.473 89.904% 2625 46.5 44.78°C 0.997
12.005V 5.006V 3.323V 5.005V 1167.321 55.28°C 114.83V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.919A 1.992A 1.981A 1.002A 104.931 89.197% 0 <6.0 44.73°C 0.828
12.045V 5.02V 3.332V 4.991V 117.632 40.67°C 230.34V
20% 14.876A 2.991A 2.974A 1.204A 209.914 92.637% 0 <6.0 45.13°C 0.929
12.034V 5.015V 3.329V 4.982V 226.6 40.79°C 230.32V
30% 23.182A 3.491A 3.472A 1.407A 314.916 93.504% 833 13.7 41.35°C 0.955
12.029V 5.013V 3.327V 4.974V 336.794 46.03°C 230.31V
40% 31.459A 3.992A 3.97A 1.611A 419.464 93.802% 847 14 41.54°C 0.965
12.024V 5.01V 3.325V 4.965V 447.187 46.61°C 230.3V
50% 39.452A 4.993A 4.965A 1.815A 524.784 93.772% 1222 26.5 42.07°C 0.971
12.022V 5.008V 3.323V 4.959V 559.639 47.59°C 230.29V
60% 47.391A 5.995A 5.962A 2A 629.215 93.513% 1968 39.2 42.73°C 0.974
12.017V 5.005V 3.321V 4.953V 672.877 48.89°C 230.27V
70% 55.423A 7A 6.961A 2.224A 734.662 93.196% 2443 44.6 43.39°C 0.978
12.009V 5.001V 3.319V 4.944V 788.289 50.49°C 230.26V
80% 63.450A 8.002A 7.957A 2.326A 839.465 92.865% 2606 46.6 43.41°C 0.98
12.003V 4.998V 3.317V 4.941V 903.97 51.51°C 230.24V
90% 71.860A 8.505A 8.443A 2.429A 944.85 92.517% 2628 46.5 44.66°C 0.981
12.001V 4.996V 3.316V 4.937V 1021.274 53.98°C 230.23V
100% 80.178A 9.01A 8.959A 2.533A 1049.564 92.116% 2640 46.6 45.58°C 0.982
12.003V 4.994V 3.314V 4.933V 1139.39 55.67°C 230.21V
110% 88.240A 10.015A 10.049A 2.532A 1155.005 91.654% 2655 46.7 46.86°C 0.983
12.004V 4.992V 3.313V 4.934V 1260.19 57.82°C 230.19V
CL1 0.116A 11.999A 11.923A 0A 101.281 84.659% 885 16.7 42.6°C 0.835
12.062V 5.017V 3.329V 5.049V 119.644 48.13°C 230.34V
CL2 0.114A 19.907A 0A 0A 101.378 84.439% 842 13.8 40.07°C 0.835
12.057V 5.024V 3.33V 5.077V 120.065 47.3°C 230.34V
CL3 0.114A 0A 19.765A 0A 67.368 78.207% 828 13.3 41.28°C 0.752
12.047V 5.024V 3.339V 5.024V 86.132 50.57°C 230.34V
CL4 87.406A 0A 0A 0A 1049.43 92.553% 2632 46.5 45.41°C 0.982
12.006V 5.006V 3.323V 5.006V 1133.869 56.38°C 230.21V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.234A 0.497A 0.495A 0.199A 19.985 68.55% 0 <6.0 40.04°C 0.775
12.021V 5.026V 3.336V 5.02V 29.159 37.03°C 115.16V
40W 2.718A 0.696A 0.692A 0.299A 39.987 78.76% 0 <6.0 40.52°C 0.902
12.025V 5.026V 3.336V 5.017V 50.776 37.22°C 115.15V
60W 4.200A 0.896A 0.891A 0.399A 59.988 82.938% 0 <6.0 42.36°C 0.947
12.028V 5.023V 3.334V 5.011V 72.327 38.58°C 115.14V
80W 5.676A 1.095A 1.089A 0.499A 79.922 84.984% 0 <6.0 43.93°C 0.967
12.031V 5.021V 3.332V 5.007V 94.048 39.96°C 115.14V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.235A 0.497A 0.495A 0.199A 19.986 70.98% 0 <6.0 40.27°C 0.513
12.013V 5.025V 3.335V 5.019V 28.168 37.18°C 230.34V
40W 2.719A 0.697A 0.693A 0.299A 39.987 70.763% 0 <6.0 40.45°C 0.589
12.018V 5.025V 3.335V 5.015V 50.331 37.13°C 230.34V
60W 4.202A 0.896A 0.891A 0.399A 59.987 83.706% 0 <6.0 41.62°C 0.688
12.023V 5.022V 3.333V 5.01V 71.662 38.12°C 230.34V
80W 5.678A 1.095A 1.089A 0.499A 79.921 86.241% 0 <6.0 42.52°C 0.769
12.028V 5.02V 3.332V 5.005V 92.661 38.79°C 230.34V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load35.57mV12.45mV8.19mV21.20mVPass
20% Load14.66mV5.69mV8.29mV8.40mVPass
30% Load12.53mV12.96mV8.75mV10.27mVPass
40% Load9.55mV6.40mV10.57mV8.45mVPass
50% Load9.82mV12.81mV8.69mV12.85mVPass
60% Load10.13mV7.17mV8.90mV9.51mVPass
70% Load11.80mV7.37mV9.35mV10.07mVPass
80% Load10.63mV7.72mV11.28mV9.31mVPass
90% Load11.90mV14.69mV12.79mV12.04mVPass
100% Load17.47mV10.48mV13.39mV11.62mVPass
110% Load18.26mV10.84mV13.70mV11.71mVPass
Crossload121.06mV9.05mV13.50mV8.90mVPass
Crossload216.59mV9.66mV9.15mV9.16mVPass
Crossload37.24mV14.48mV14.05mV12.65mVPass
Crossload417.15mV7.32mV8.89mV11.03mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load15.98mV4.93mV8.19mV7.34mVPass
20% Load14.51mV9.09mV8.59mV10.63mVPass
30% Load11.82mV5.54mV8.69mV8.35mVPass
40% Load9.70mV11.59mV10.16mV11.49mVPass
50% Load9.09mV6.56mV8.85mV9.01mVPass
60% Load9.32mV10.93mV9.15mV11.39mVPass
70% Load10.03mV12.75mV9.20mV11.03mVPass
80% Load11.64mV11.74mV11.37mV12.60mVPass
90% Load10.58mV13.36mV12.28mV13.00mVPass
100% Load17.44mV10.28mV12.36mV12.46mVPass
110% Load18.26mV11.43mV13.56mV12.84mVPass
Crossload120.20mV8.55mV13.01mV8.98mVPass
Crossload216.93mV9.96mV8.09mV9.82mVPass
Crossload35.92mV6.10mV12.34mV7.44mVPass
Crossload416.87mV11.36mV9.57mV20.15mVPass

The results above are not used in the certification process

Thermaltake Toughpower PF1 1050W

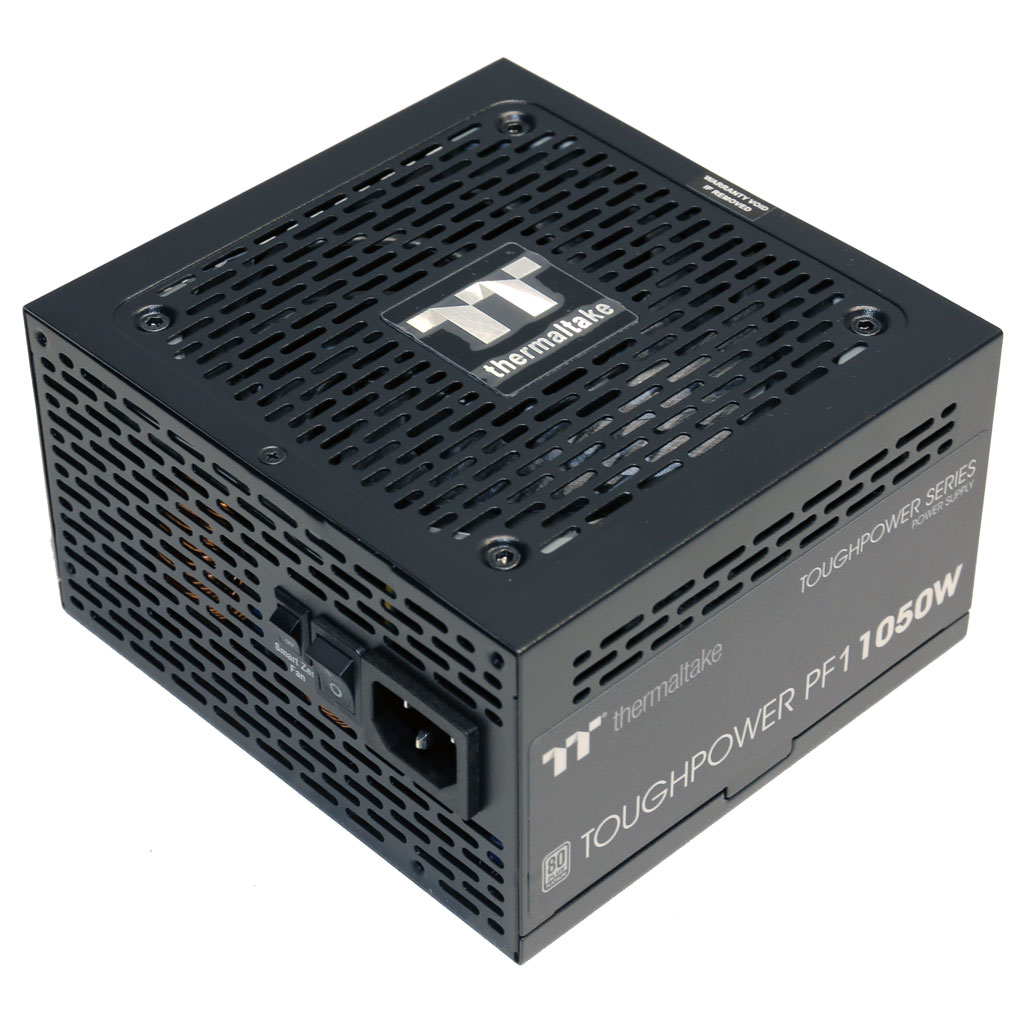

Top side

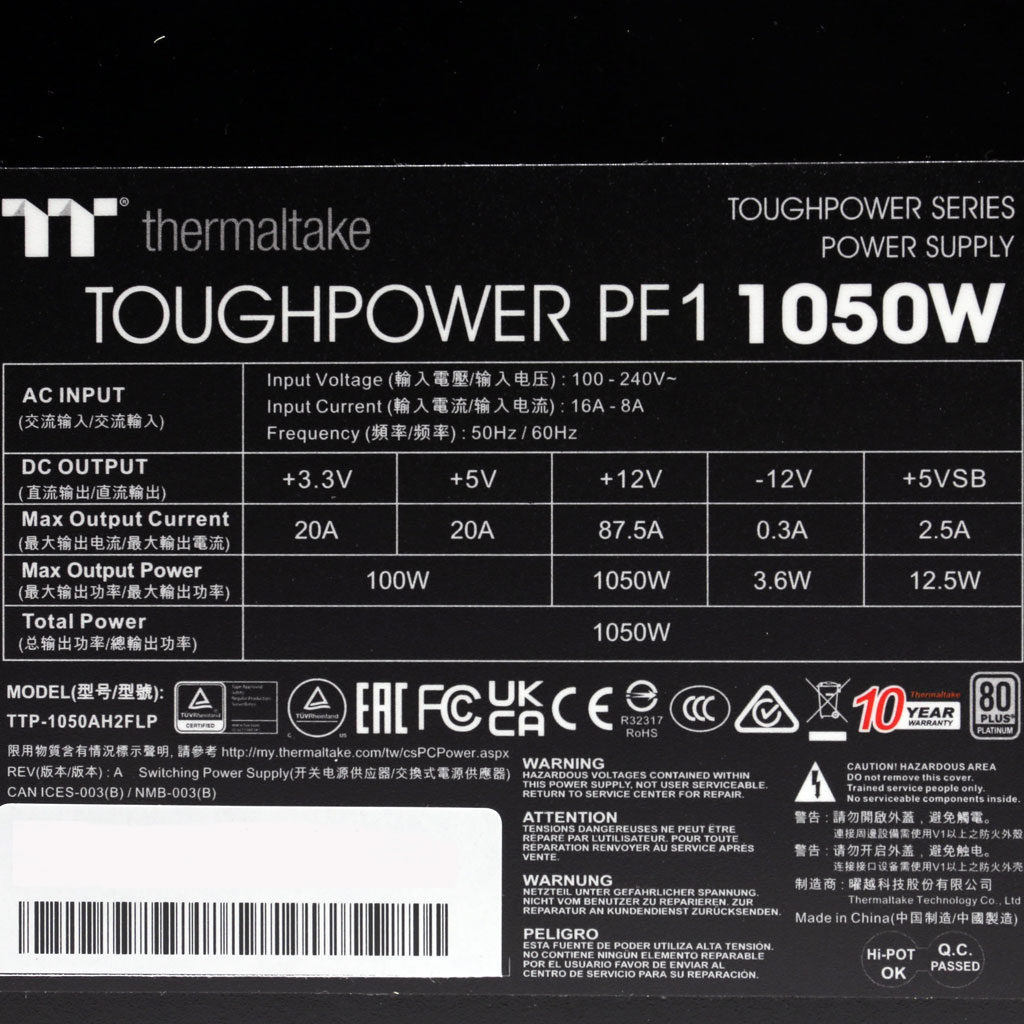

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
