CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Cougar Polar 1050W
Serial Number12BB02PR10500001
Lab IDCG10502005
  • Report: 22PS2005A
  • Receipt Date: Apr 5, 2022
  • Test Date: Apr 21, 2022
  • Report Date: Apr 21, 2022
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandCougar
Manufacturer (OEM)XHY-Power
SeriesPolar
Model NumberCGR PR-1050
Serial Number12BB02PR10500001
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)15-7
Rated Frequency (Hz)47-63
Rated Power (W)1050
TypeATX12V
Cooling135mm Hydraulic Dynamic Bearing Fan
(DWPH EFF-14E12H)
Semi-Passive Operation✓
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202087.530.3
Watts1001050153.6
Total Max. Power (W)1050

Test Equipment

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (650mm) 1 1 18-22AWG No
4+4 pin EPS12V (650mm) 1 1 16AWG No
8 pin EPS12V (650mm) 1 1 16AWG No
6+2 pin PCIe (650mm) 7 7 16AWG No
6+2 pin PCIe (650mm+100mm) 1 2 16AWG No
SATA (500mm+115mm+115mm+115mm) 3 12 18AWG No
4 pin Molex (500mm+120mm+120mm+120mm) 1 4 18AWG No
AC Power Cord (1400mm) - C13 coupler 1 1 14AWG -

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)21.1
AC Loss to PWR_OK Hold Up Time (ms)18
PWR_OK Inactive to DC Loss Delay (ms)3.1

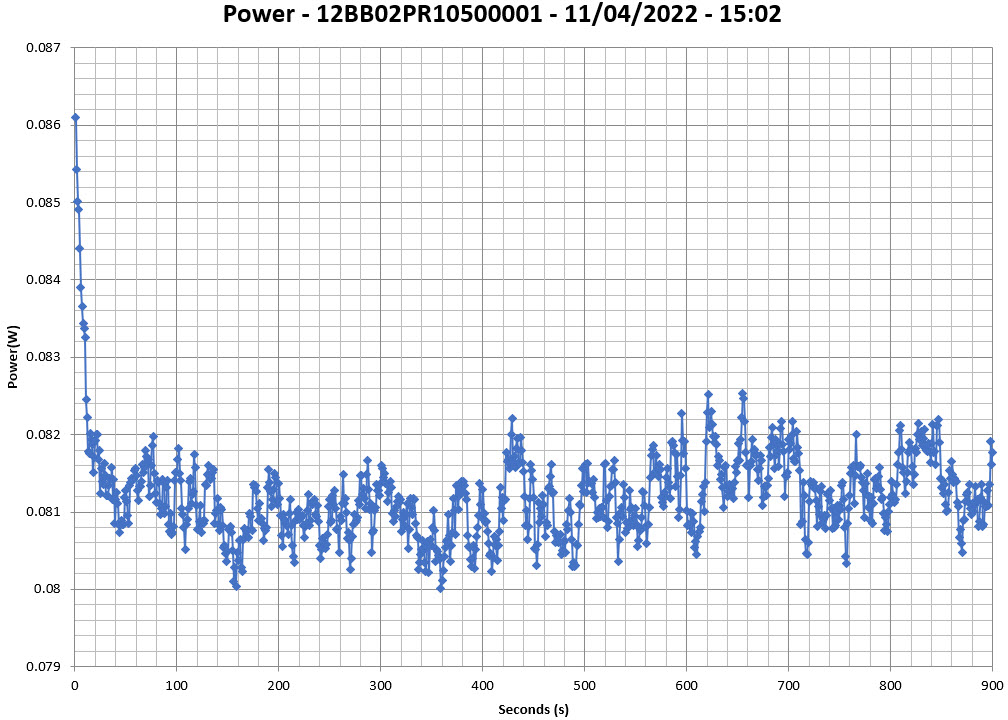

Vampire Power

Graphs

INFO

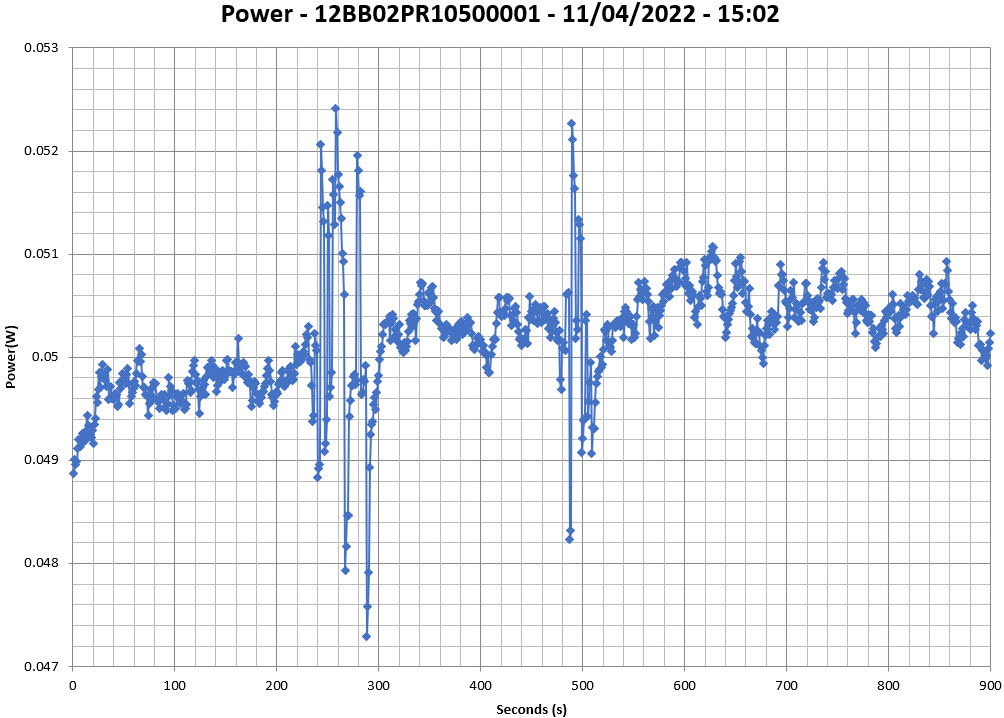

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

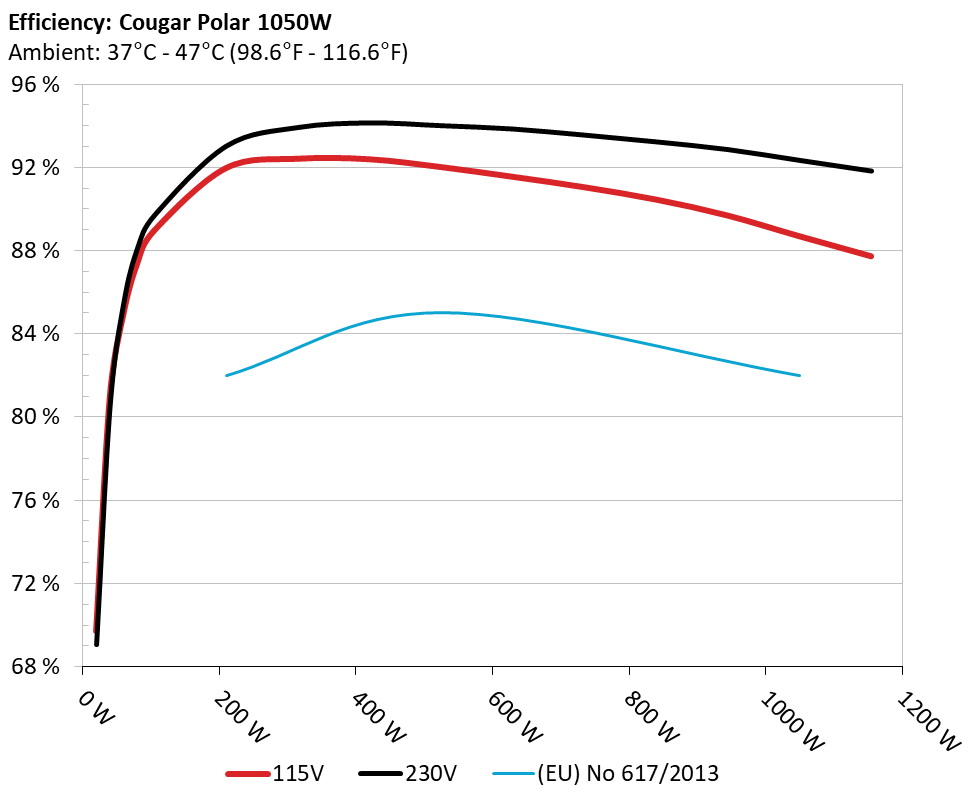

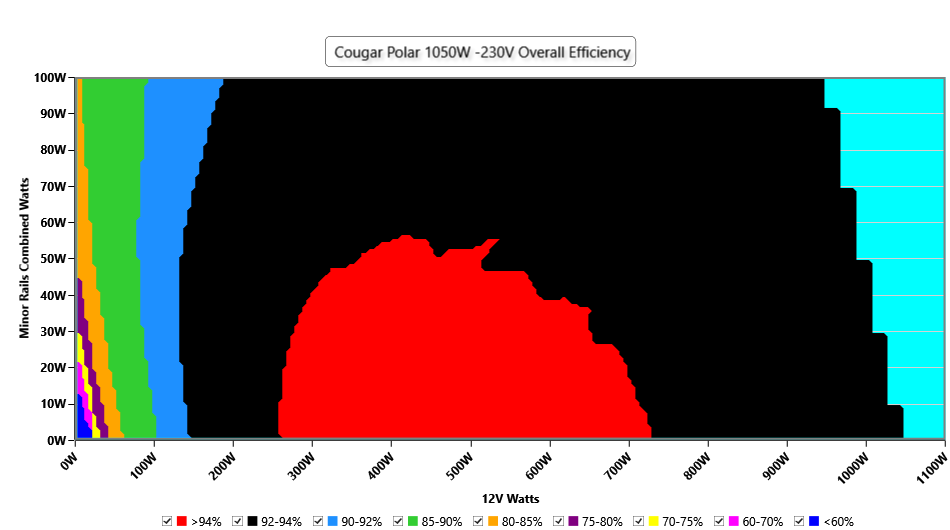

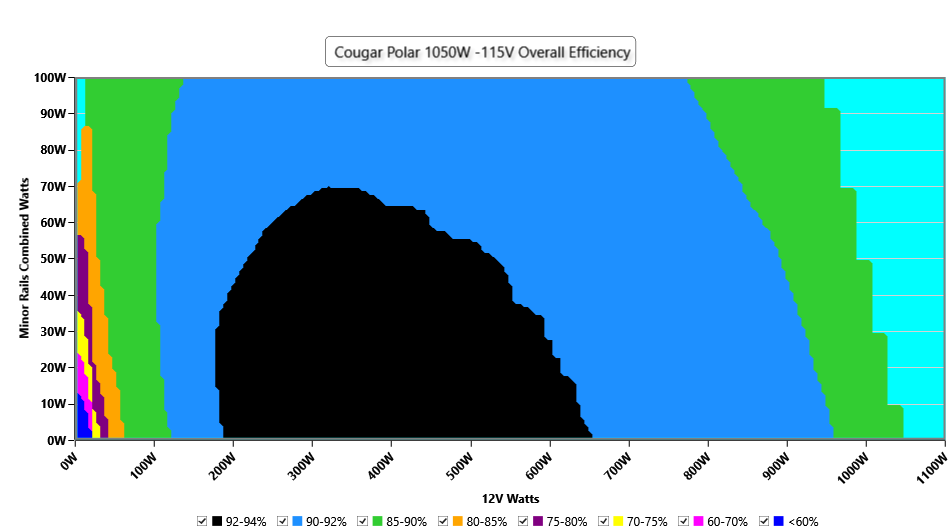

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

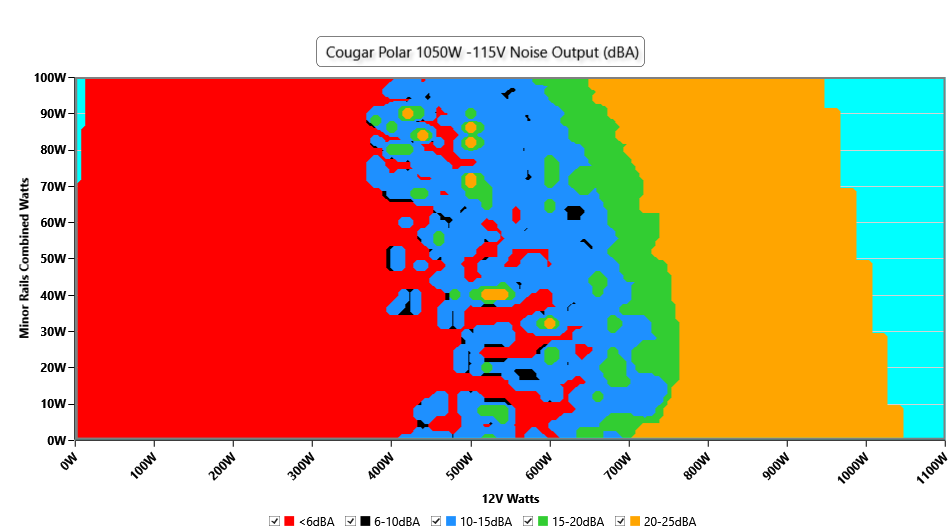

Noise Graph

INFO

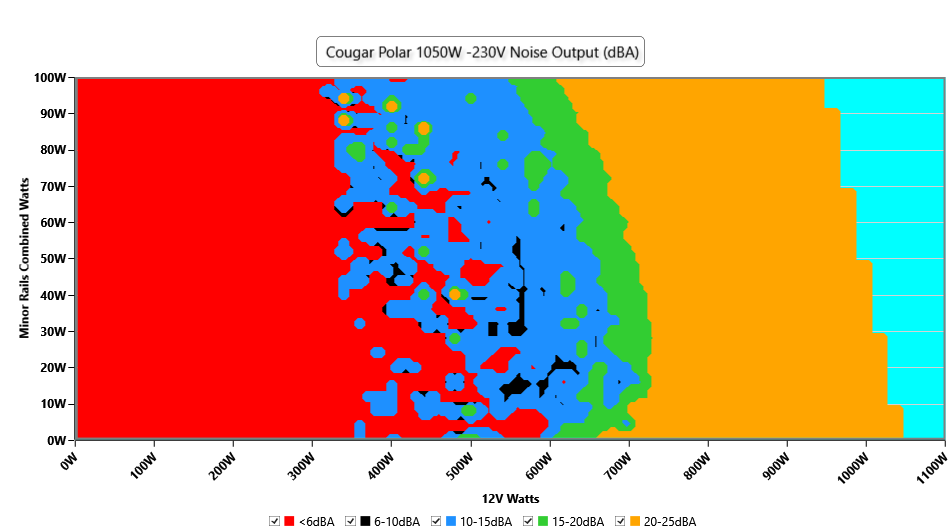

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

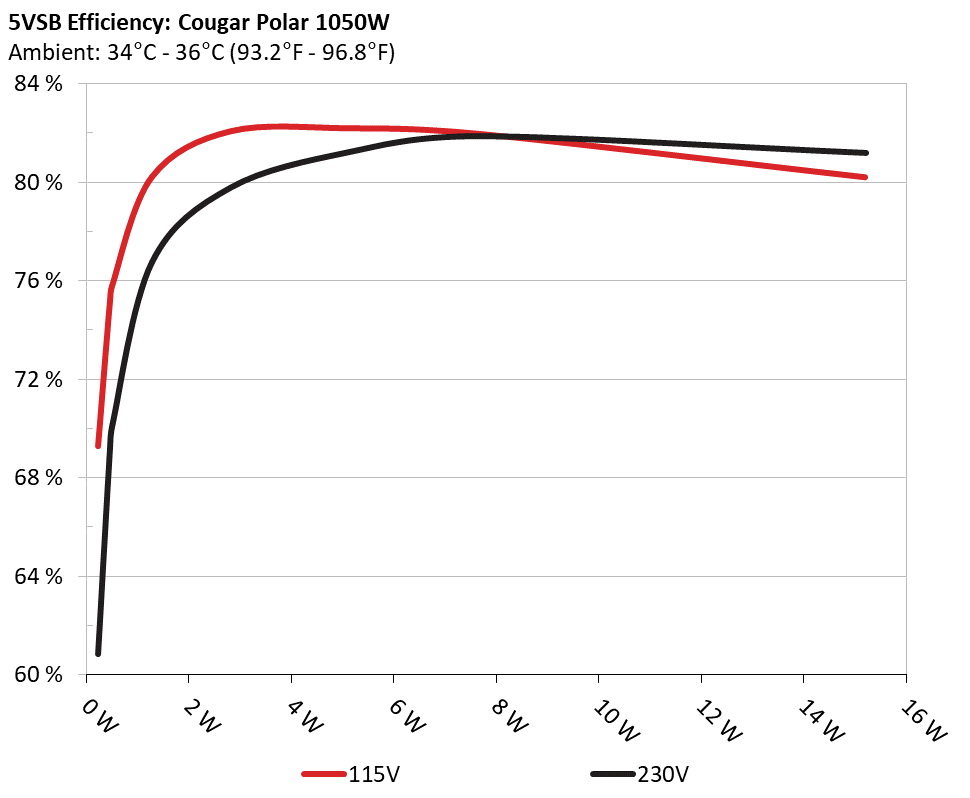

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231W 69.286% 0.05
5.129V 0.333W 115.12V
2 0.09A 0.461W 75.128% 0.09
5.129V 0.614W 115.12V
3 0.55A 2.815W 82.086% 0.321
5.119V 3.429W 115.12V
4 1A 5.11W 82.207% 0.399
5.111V 6.216W 115.12V
5 1.5A 7.651W 81.984% 0.442
5.101V 9.332W 115.12V
6 2.999A 15.205W 80.218% 0.498
5.071V 18.954W 115.12V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231W 60.826% 0.018
5.13V 0.38W 230.23V
2 0.09A 0.461W 69.115% 0.031
5.129V 0.667W 230.22V
3 0.55A 2.815W 79.797% 0.148
5.12V 3.528W 230.23V
4 1A 5.11W 81.235% 0.229
5.112V 6.29W 230.23V
5 1.5A 7.651W 81.89% 0.287
5.102V 9.343W 230.23V
6 2.999A 15.209W 81.21% 0.376
5.072V 18.728W 230.23V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.826A 1.991A 1.985A 0.98A 104.929 88.976% 0 <6.0 44.95°C 0.977
12.210V 5.022V 3.323V 5.102V 117.929 40.57°C 115.14V
20% 14.666A 2.989A 2.979A 1.178A 209.912 91.984% 0 <6.0 45.64°C 0.984
12.206V 5.019V 3.322V 5.092V 228.205 40.73°C 115.14V
30% 22.851A 3.489A 3.477A 1.377A 314.91 92.437% 0 <6.0 46.42°C 0.98
12.203V 5.016V 3.321V 5.083V 340.673 41.17°C 115.14V
40% 30.991A 3.991A 3.976A 1.577A 419.379 92.411% 0 <6.0 47.53°C 0.977
12.203V 5.012V 3.319V 5.074V 453.82 41.79°C 115.14V
50% 38.860A 4.988A 4.971A 1.777A 524.733 92.036% 489 14.0 42.92°C 0.978
12.204V 5.012V 3.319V 5.065V 570.138 49.11°C 115.14V
60% 46.681A 5.988A 5.966A 1.978A 629.235 91.568% 716 22.8 43.15°C 0.98
12.198V 5.011V 3.319V 5.055V 687.181 50.24°C 115.13V
70% 54.571A 6.99A 6.962A 2.179A 734.555 91.065% 722 23.0 43.82°C 0.982
12.194V 5.008V 3.318V 5.046V 806.628 51.36°C 115.12V
80% 62.459A 7.994A 7.956A 2.281A 839.365 90.472% 729 23.1 44.21°C 0.985
12.192V 5.005V 3.316V 5.039V 927.765 52.61°C 115.12V
90% 70.734A 8.495A 8.443A 2.384A 944.732 89.697% 913 29.4 44.81°C 0.986
12.190V 5.001V 3.315V 5.031V 1053.247 53.91°C 115.11V
100% 78.774A 8.998A 8.959A 2.991A 1049.573 88.702% 1298 39.1 45.33°C 0.987
12.186V 5V 3.314V 5.014V 1183.259 55.38°C 115.1V
110% 86.698A 10.003A 10.048A 2.994A 1154.183 87.741% 1710 46.7 46.76°C 0.988
12.179V 4.997V 3.313V 5.009V 1315.446 57.64°C 115.1V
CL1 0.113A 12.024A 11.936A 0A 101.262 84.332% 719 23.0 43.35°C 0.979
12.222V 5.006V 3.325V 5.111V 120.075 49.93°C 115.16V
CL2 0.112A 20.091A 0A 0A 101.373 82.69% 393 8.8 43.97°C 0.981
12.223V 4.977V 3.319V 5.115V 122.596 51.33°C 115.16V
CL3 0.112A 0A 19.889A 0A 67.361 76.579% 0 <6.0 53.01°C 0.973
12.227V 5.001V 3.318V 5.112V 87.97 44.61°C 115.15V
CL4 86.056A 0A 0A 0A 1049.324 89.665% 806 26.0 45.25°C 0.987
12.193V 5V 3.309V 5.08V 1170.273 55.32°C 115.1V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.826A 1.991A 1.986A 0.98A 104.918 89.716% 0 <6.0 44.17°C 0.869
12.209V 5.022V 3.323V 5.103V 116.944 39.63°C 230.25V
20% 14.665A 2.989A 2.98A 1.178A 209.895 93.041% 0 <6.0 45.61°C 0.933
12.206V 5.018V 3.322V 5.094V 225.595 40.56°C 230.25V
30% 22.849A 3.489A 3.478A 1.376A 314.887 93.939% 0 <6.0 46.92°C 0.953
12.203V 5.015V 3.321V 5.085V 335.204 41.24°C 230.26V
40% 30.992A 3.99A 3.976A 1.576A 419.327 94.157% 0 <6.0 47.62°C 0.958
12.201V 5.012V 3.319V 5.076V 445.35 41.6°C 230.25V
50% 38.861A 4.988A 4.971A 1.777A 524.722 94.025% 509 14.9 42.33°C 0.963
12.203V 5.012V 3.319V 5.065V 558.069 48.82°C 230.27V
60% 46.683A 5.988A 5.967A 1.977A 629.21 93.866% 699 22.0 42.41°C 0.965
12.197V 5.01V 3.318V 5.057V 670.327 49.51°C 230.27V
70% 54.566A 6.993A 6.964A 2.178A 734.465 93.57% 720 23.0 42.88°C 0.968
12.194V 5.005V 3.317V 5.047V 784.934 50.93°C 230.26V
80% 62.463A 7.995A 7.957A 2.281A 839.303 93.245% 728 23.1 44.2°C 0.969
12.190V 5.004V 3.316V 5.04V 900.108 52.81°C 230.26V
90% 70.736A 8.498A 8.445A 2.383A 944.681 92.872% 868 28.2 44.53°C 0.971
12.190V 4.999V 3.314V 5.032V 1017.191 53.61°C 230.26V
100% 78.772A 9.002A 8.961A 2.99A 1049.56 92.354% 1389 40.7 45.39°C 0.973
12.186V 4.998V 3.313V 5.014V 1136.451 55.54°C 230.27V
110% 86.691A 10.009A 10.051A 2.993A 1154.17 91.84% 1711 46.6 47.15°C 0.974
12.180V 4.994V 3.312V 5.009V 1256.712 58.02°C 230.26V
CL1 0.113A 12.029A 11.939A 0A 101.259 84.972% 720 23.0 42.19°C 0.875
12.223V 5.004V 3.324V 5.112V 119.169 48.59°C 230.28V
CL2 0.112A 20.124A 0A 0A 101.373 82.969% 0 <6.0 50.87°C 0.877
12.224V 4.969V 3.316V 5.116V 122.184 43.31°C 230.28V
CL3 0.112A 0A 19.881A 0A 67.359 77.345% 0 <6.0 52.94°C 0.829
12.226V 5.004V 3.319V 5.112V 87.09 44.79°C 230.28V
CL4 86.050A 0A 0A 0A 1049.315 93.014% 1108 34.7 45.79°C 0.972
12.194V 4.997V 3.308V 5.08V 1128.127 55.84°C 230.26V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.214A 0.497A 0.496A 0.195A 19.983 69.693% 0 <6.0 39.75°C 0.882
12.216V 5.025V 3.328V 5.121V 28.673 36.65°C 115.15V
40W 2.676A 0.697A 0.694A 0.293A 39.985 80.947% 0 <6.0 40.67°C 0.943
12.214V 5.025V 3.327V 5.119V 49.396 37.29°C 115.15V
60W 4.136A 0.895A 0.893A 0.391A 59.985 84.964% 0 <6.0 42.66°C 0.958
12.212V 5.024V 3.325V 5.116V 70.601 38.89°C 115.15V
80W 5.593A 1.094A 1.092A 0.489A 79.923 87.381% 0 <6.0 44.48°C 0.974
12.212V 5.024V 3.324V 5.113V 91.465 40.45°C 115.14V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.215A 0.497A 0.496A 0.195A 19.981 69.048% 0 <6.0 40.27°C 0.579
12.209V 5.027V 3.329V 5.123V 28.938 37.17°C 230.24V
40W 2.676A 0.696A 0.694A 0.293A 39.983 80.618% 0 <6.0 40.99°C 0.714
12.209V 5.026V 3.327V 5.12V 49.596 37.77°C 230.25V
60W 4.138A 0.895A 0.893A 0.391A 59.982 85.518% 0 <6.0 42.39°C 0.783
12.208V 5.025V 3.325V 5.117V 70.14 38.84°C 230.25V
80W 5.594A 1.094A 1.092A 0.489A 79.913 88.127% 0 <6.0 42.76°C 0.831
12.209V 5.024V 3.324V 5.114V 90.679 39.08°C 230.25V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load14.51mV4.47mV7.68mV7.19mVPass
20% Load16.99mV5.34mV8.09mV7.09mVPass
30% Load16.58mV5.23mV8.19mV7.34mVPass
40% Load16.03mV5.89mV8.90mV7.44mVPass
50% Load15.42mV6.20mV9.60mV7.29mVPass
60% Load14.46mV6.81mV10.61mV7.99mVPass
70% Load16.30mV7.47mV10.67mV8.25mVPass
80% Load17.47mV8.33mV13.14mV9.06mVPass
90% Load18.53mV10.17mV13.65mV9.16mVPass
100% Load30.32mV11.48mV16.47mV10.86mVPass
110% Load32.47mV12.28mV16.62mV10.56mVPass
Crossload119.82mV11.40mV14.44mV9.55mVPass
Crossload214.30mV15.65mV11.33mV9.46mVPass
Crossload312.18mV6.10mV15.98mV9.31mVPass
Crossload429.64mV7.41mV11.11mV12.34mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load16.58mV4.68mV7.13mV7.18mVPass
20% Load18.51mV4.93mV8.04mV6.63mVPass
30% Load16.03mV5.29mV8.65mV7.39mVPass
40% Load17.55mV5.74mV8.80mV7.54mVPass
50% Load16.23mV6.66mV9.45mV7.74mVPass
60% Load15.64mV7.07mV9.86mV8.25mVPass
70% Load15.90mV7.93mV11.02mV8.55mVPass
80% Load17.11mV8.28mV12.99mV9.01mVPass
90% Load18.28mV10.67mV14.21mV9.06mVPass
100% Load31.54mV12.01mV15.86mV9.87mVPass
110% Load32.94mV12.52mV16.97mV10.63mVPass
Crossload120.08mV11.28mV14.38mV9.52mVPass
Crossload216.23mV15.14mV11.07mV9.05mVPass
Crossload313.35mV6.10mV16.83mV10.12mVPass
Crossload430.98mV6.95mV10.91mV12.02mVPass

The results above are not used in the certification process

Cougar Polar 1050W

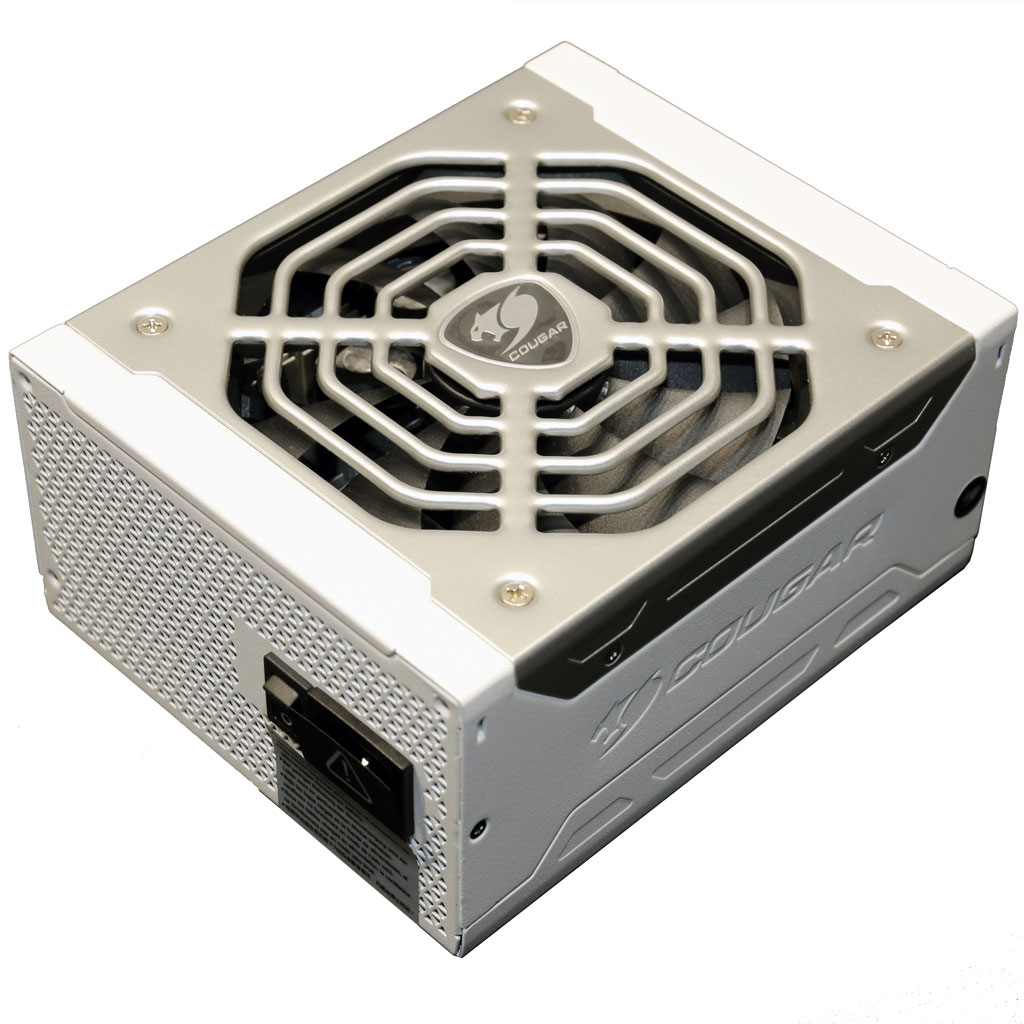

Top side

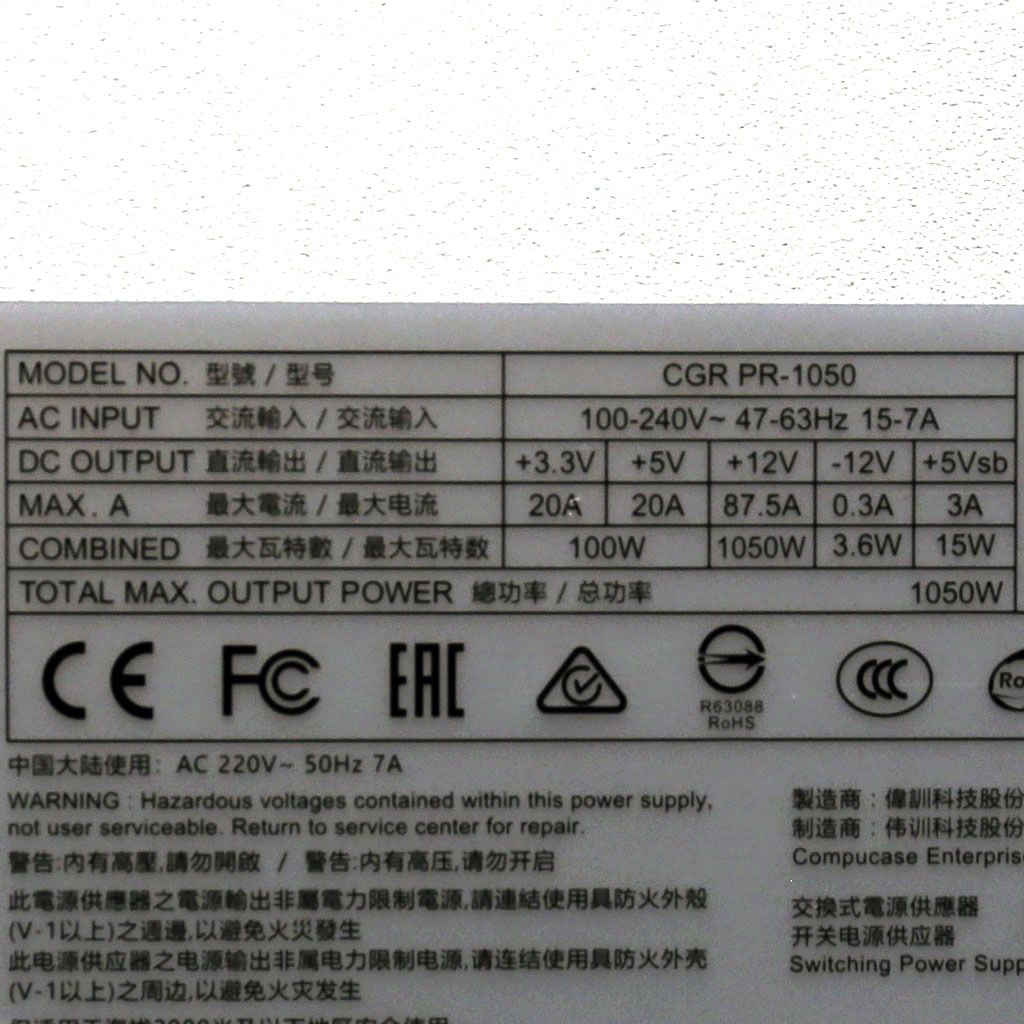

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
