CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Aqirys Pulsar LS 750W
20210831027
Lab IDAQ75001967
  • Report: 22PS1967A
  • Receipt Date: Dec 10, 2021
  • Test Date: Jan 24, 2022
  • Report Date: Jan 26, 2022
115V230V
Wirkungsgrad
115V230V
Lautstärkeklasse
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

Aqirys
Hersteller (OEM)SANR Electronic Technology
Pulsar
20210831027

(Vrms)200-240
(Arms)7
(Hz)50/60
(W)750
ATX12V
120mm Fluid Dynamic Bearing Fan
(DWPH EFS-12E12L)
✗
Fixed cables

Rail3.3V5V12V5VSB-12V
Max. PowerAmps222062.52.50.5
Watts12075012.56
Total Max. Power (W)750

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Captive Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (540mm) 1 1 18-22AWG No
8 pin EPS12V (660mm) / 4+4 EPS12V (+150mm) 1 1 / 1 18AWG No
6+2 pin PCIe (570mm) 2 2 18AWG No
SATA (470mm+150mm+150mm) 2 6 18AWG No
4-pin Molex (470mm+150mm+150mm) 1 3 18AWG No
Modular Cables
PCI Express Splitter (2x90mm) 1 2 18AWG No
AC Power Cord (1400mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data -
Manufacturer (OEM) SANR Electronic Technology
PCB Type Single Sided
Primary Side -
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x Champion CM02X (Discharge IC)
Inrush Protection NTC Thermistor 2.5D-15 (2.5Ohm)
Bridge Rectifier(s) 1x  GBU1508 (800V, 15A @ 100°C)
APFC MOSFET(s) 1x FuXin Semiconductor FXN28N50F (500V, 16.7A @ 100°C, Rds(on): 0.2Ohm)
APFC Boost Diode 1x Champion CMPFCD86 (600V, 8A @ 140°C)
Bulk Cap(s) 2x TK (420V, 220uF each or 440uF combined, 105°C, LFW)
Main Switchers 2x FuXin Semiconductor FXN25N50F
PFC/PWM Combo Controller Champion CM6800UX
Topology Primary side: APFC, Double Forward
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side -
+12V MOSFETs 4x CYS CSP03N06A
5V & 3.3V DC-DC Converters: 4x UBIQ M3004D (30V, 40A @ 100°C, Rds(on): 8.5mOhm)
PWM Controller(s): ANPEC APW7159A
Filtering Capacitors Electrolytic: 13x Hangcon (105°C)
Polymer: 2x NJcon, 2x no info
Supervisor IC Grenery GR8329N (OCP, OVP, UVP, SCP, PG)
Fan Model DWPH EFS-12E12L (120mm,12V, 0.16A, Fluid Dynamic Bearing Fan)
5VSB Circuit -
Standby PWM Controller Developer Microelectronics DP2358

Test Results

Temperature & Compliance Info

(°C /°F)30-32 / 86-89.6
✓
✓

Performance Summary 230V

WirkungsgradBRONZE
LautstärkeklasseStandard+
(>1450 load combinations)86.862%
Average Noise Output (>1450 Load Combinations)38.50dBA
(>1450 Load Combinations)0.971
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
0.1336W
12V Ripple (Full Load)52.38mV
5V Ripple (Full Load)19.99mV
3.3V Ripple (Full Load)31.35mV
5VSB Ripple (Full Load)24.61mV
12V Load Regulation1.68%
5V Load Regulation4.14%
3.3V Load Regulation6.45%
5VSB Load Regulation6.47%
Inrush Current87.690A
12V Transient Response (150%)0.00V
5V Transient Response (150%)V
3.3V Transient Response (150%)V
5VSB Transient Response (150%)V
14.10ms
AC Loss to PWR_OK Hold Up Time10.90ms
PWR_OK Inactive to DC Loss Delay3.20ms
PSU Timings: T1 (20% / 100%)68.0ms68.0ms
PSU Timings: T3 (20% / 100%)286.0ms300.0ms
OPP (27.83°C / 0.00°C)118.76%0.00%

Hold-Up Time (ms)14.1
AC Loss to PWR_OK Hold Up Time (ms)10.9
PWR_OK Inactive to DC Loss Delay (ms)3.2

Stromverbrauch im Ruhezustand

Tables 230V

Graphs 230V

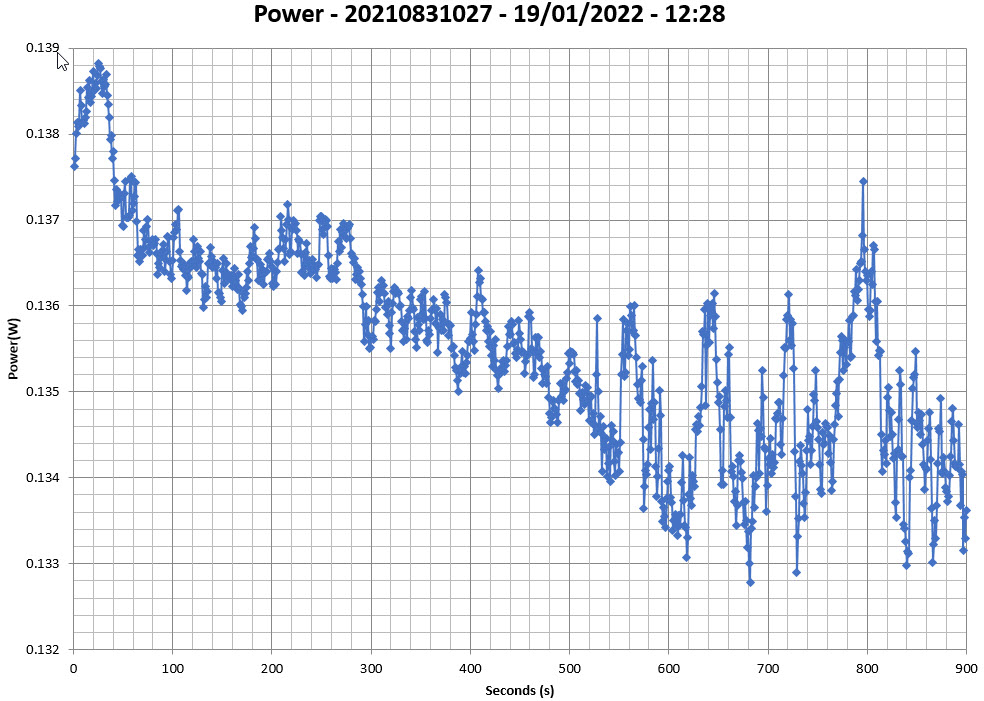

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

230V

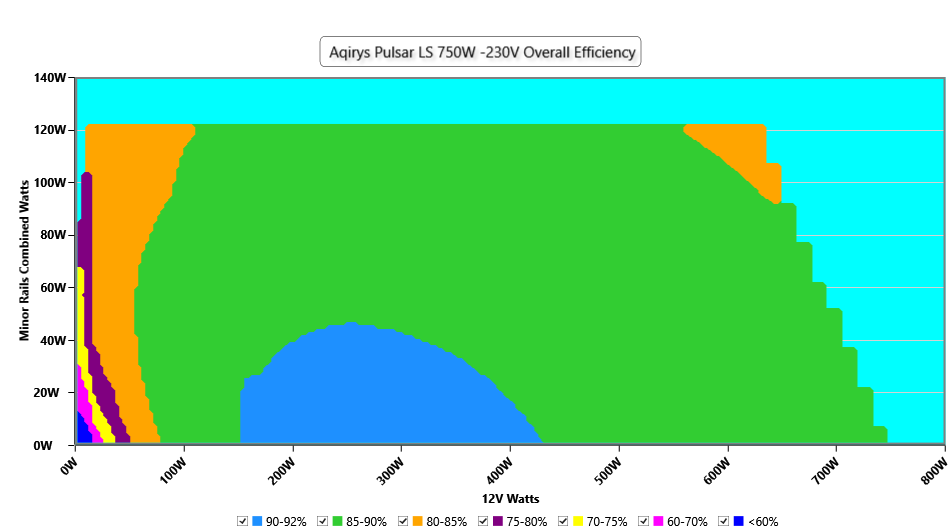

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

230V

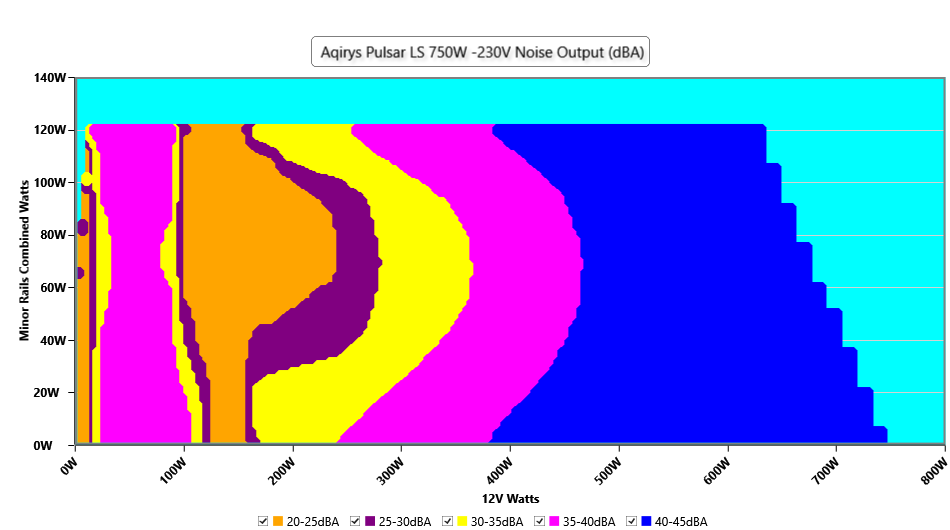

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

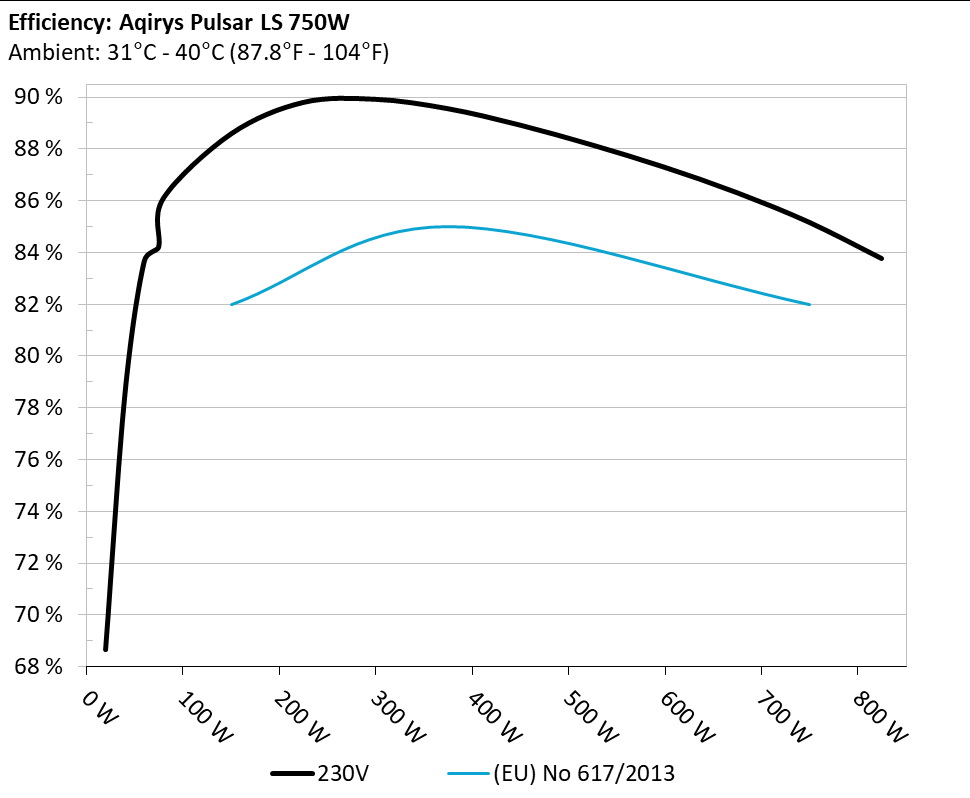

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

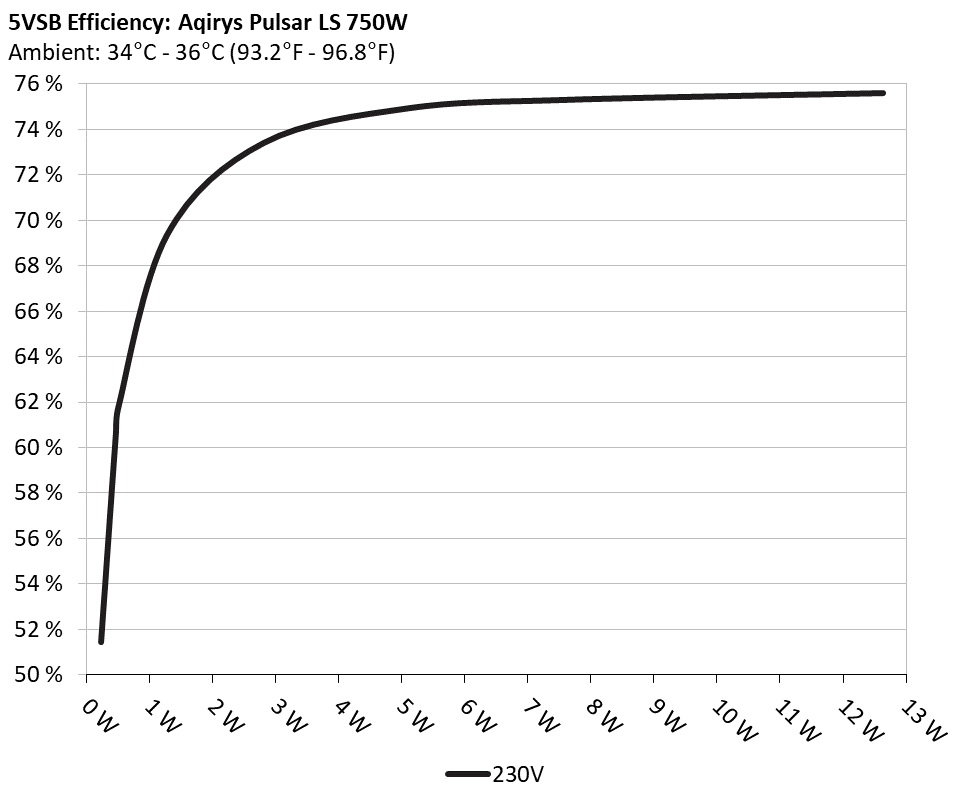

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

230V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231W 51.941% 0.015
5.127V 0.445W 230.25V
2 0.09A 0.461W 60.913% 0.025
5.126V 0.757W 230.23V
3 0.55A 2.812W 73.883% 0.118
5.112V 3.806W 230.24V
4 1A 5.1W 75.406% 0.189
5.099V 6.763W 230.25V
5 1.5A 7.628W 75.779% 0.246
5.085V 10.066W 230.25V
6 2.5A 12.642W 76.074% 0.316
5.056V 16.618W 230.25V

Supplementary Tests (For Reference)

230V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 4.434A 1.984A 1.97A 0.986A 75.008 84.219% 986 29.8 34.27°C 0.874
12.045V 5.041V 3.349V 5.072V 89.064 38.43°C 230.23V
20% 9.900A 2.987A 2.973A 1.19A 149.961 88.59% 1068 32.7 34.9°C 0.949
12.025V 5.022V 3.33V 5.043V 169.274 39.25°C 230.23V
30% 15.734A 3.497A 3.487A 1.395A 224.976 89.81% 1177 35.1 35.5°C 0.971
12.007V 5.004V 3.312V 5.017V 250.501 40.28°C 230.23V
40% 21.592A 4.011A 4.006A 1.603A 300.071 89.931% 1355 38.8 35.67°C 0.981
11.989V 4.987V 3.295V 4.99V 333.669 40.69°C 230.23V
50% 27.084A 5.034A 5.04A 1.815A 374.653 89.571% 1462 40.4 36.43°C 0.986
11.968V 4.966V 3.274V 4.96V 418.276 42.01°C 230.23V
60% 32.624A 6.068A 6.088A 2A 449.43 88.939% 1540 41.5 36.66°C 0.989
11.947V 4.945V 3.252V 4.929V 505.324 42.76°C 230.23V
70% 38.188A 7.112A 7.152A 2.247A 524.498 88.168% 1550 41.8 37.61°C 0.991
11.925V 4.923V 3.23V 4.896V 594.884 44.69°C 230.23V
80% 43.839A 8.003A 8.229A 2.364A 598.931 87.315% 1550 41.8 37.86°C 0.992
11.903V 4.901V 3.208V 4.865V 685.941 46.05°C 230.23V
90% 49.851A 8.712A 8.786A 2.482A 674.745 86.326% 1563 41.9 38.4°C 0.994
11.880V 4.88V 3.186V 4.835V 781.626 47.58°C 230.23V
100% 55.886A 9.266A 9.385A 2.603A 749.884 85.177% 1564 41.9 39.52°C 0.994
11.858V 4.858V 3.164V 4.804V 880.384 49.55°C 230.24V
110% 61.624A 10.35A 10.609A 2.621A 824.902 83.78% 1564 41.9 40.11°C 0.995
11.831V 4.832V 3.138V 4.77V 984.607 50.86°C 230.23V
CL1 0.117A 14.549A 14.562A 0.001A 121.331 78.286% 1545 41.7 38.07°C 0.941
11.983V 4.964V 3.275V 5.012V 154.985 43.59°C 230.25V
CL2 0.117A 20.051A 0A 0.001A 101.436 77.359% 1543 41.6 35.91°C 0.927
12.014V 4.989V 3.319V 5.055V 131.124 43.49°C 230.25V
CL4 62.981A 0A 0A 0.001A 749.742 86.691% 1561 41.9 40.55°C 0.994
11.904V 4.919V 3.224V 4.947V 864.849 51.53°C 230.24V

The results above are not used in the certification process

230V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.232A 0.494A 0.49A 0.196A 20.001 68.666% 746 21.8 31.05°C 0.594
12.057V 5.059V 3.368V 5.115V 29.128 34.08°C 230.23V
40W 2.712A 0.692A 0.687A 0.294A 40.003 78.523% 745 21.8 31.07°C 0.755
12.055V 5.055V 3.363V 5.107V 50.944 34.38°C 230.23V
60W 4.192A 0.891A 0.884A 0.392A 60.004 83.671% 749 21.9 32.21°C 0.839
12.054V 5.05V 3.359V 5.099V 71.713 35.78°C 230.23V
80W 5.672A 1.09A 1.082A 0.491A 79.962 86.107% 752 22.1 33.12°C 0.88
12.049V 5.045V 3.354V 5.09V 92.863 36.89°C 230.24V

The results above are not used in the certification process

230V

Test12V5V3.3V5VSBPass/Fail
10% Load14.89mV13.18mV18.67mV10.49mVPass
20% Load18.22mV13.99mV18.82mV11.00mVPass
30% Load21.08mV13.84mV19.99mV11.41mVPass
40% Load24.56mV15.02mV20.66mV12.69mVPass
50% Load25.18mV15.68mV22.70mV12.85mVPass
60% Load26.92mV15.47mV22.50mV14.28mVPass
70% Load30.14mV16.34mV24.39mV15.30mVPass
80% Load32.60mV16.96mV26.08mV16.12mVPass
90% Load36.18mV17.47mV27.15mV17.15mVPass
100% Load52.38mV19.99mV31.35mV24.61mVPass
110% Load56.95mV20.95mV32.75mV25.14mVPass
Crossload129.63mV18.20mV30.78mV21.99mVPass
Crossload218.73mV18.54mV19.28mV22.52mVPass
Crossload30.00mV0.00mV0.00mV0.00mVPass
Crossload449.27mV17.20mV30.04mV20.28mVPass

The results above are not used in the certification process

Aqirys Pulsar LS 750W

Top side

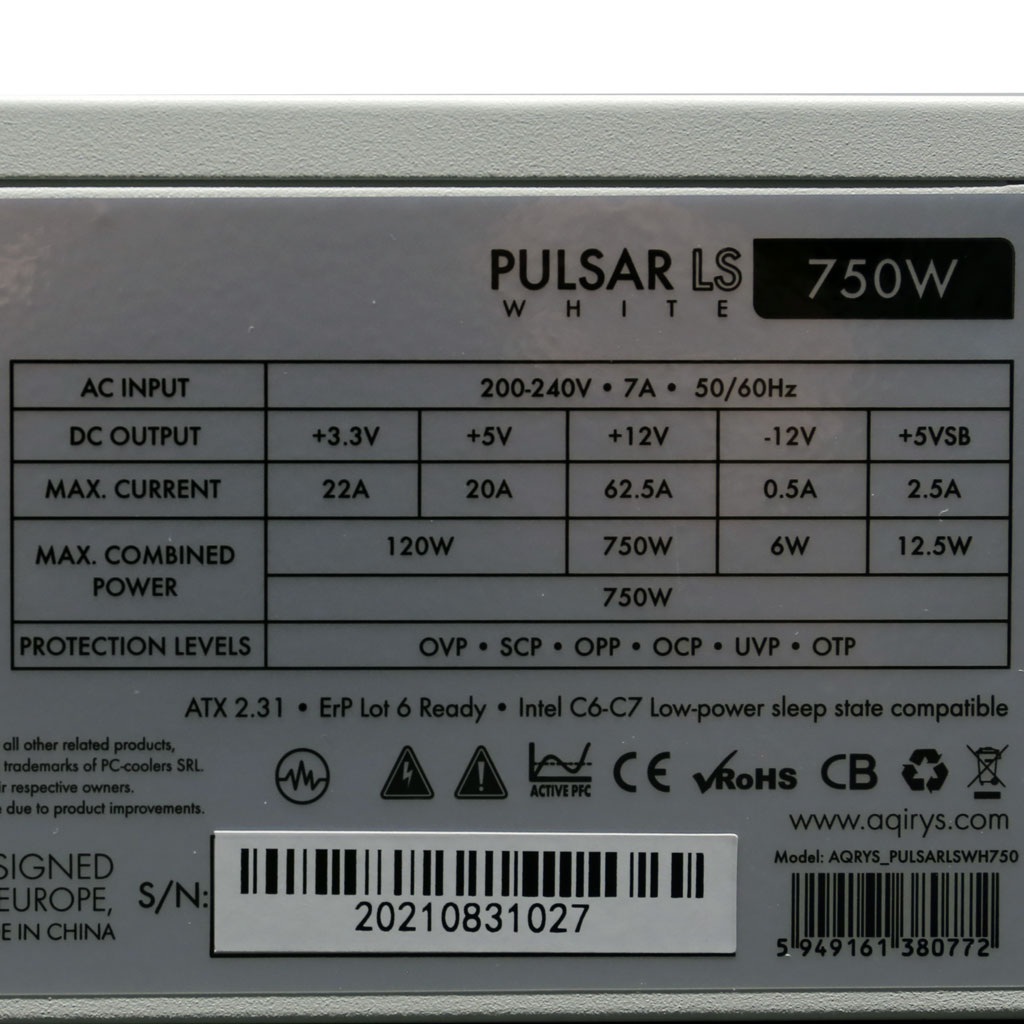

Power specifications label
