Seasonic Prime Platinum 850W
Serial NumberR1701TA101430009
Lab ID196
  • Report:
  • Receipt Date: Oct 7, 2018
  • Test Date: Oct 13, 2018
  • Report Date: Oct 16, 2018
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandSeasonic
Manufacturer (OEM)Seasonic
SeriesPrime Platinum
Model NumberSSR-850PD
Serial NumberR1701TA101430009
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)11-5.5
Rated Frequency (Hz)50-60
Rated Power (W)850
TypeATX12V
Cooling135mm Fluid Dynamic Bearing Fan
(HA13525H12F-Z)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 20 20 70 2.5 0.3
Watts 100 840 12.5 3.6
Total Max. Power (W) 850

Test Equipment

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, Chroma 61604
Power Analyzers N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge
ATX connector 20+4 pin (610mm) 1 1 18-22AWG
4+4 pin EPS12V (650mm) 2 2 18AWG
6+2 pin PCIe (680mm+80mm) 3 6 18AWG
SATA (460mm+110mm+110mm+110mm) 2 8 18AWG
SATA (360mm+110mm) 1 2 18AWG
4 pin Molex (460mm+130mm+130mm) 1 3 18AWG
4 pin Molex (360mm+130mm) 1 2 18AWG
FDD Adapter (+110mm) 1 1 22AWG

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary 115V

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)25.9
AC Loss to PWR_OK Hold Up Time (ms)21.8
PWR_OK Inactive to DC Loss Delay (ms)4.1

Vampire Power

Graphs 115V

INFO

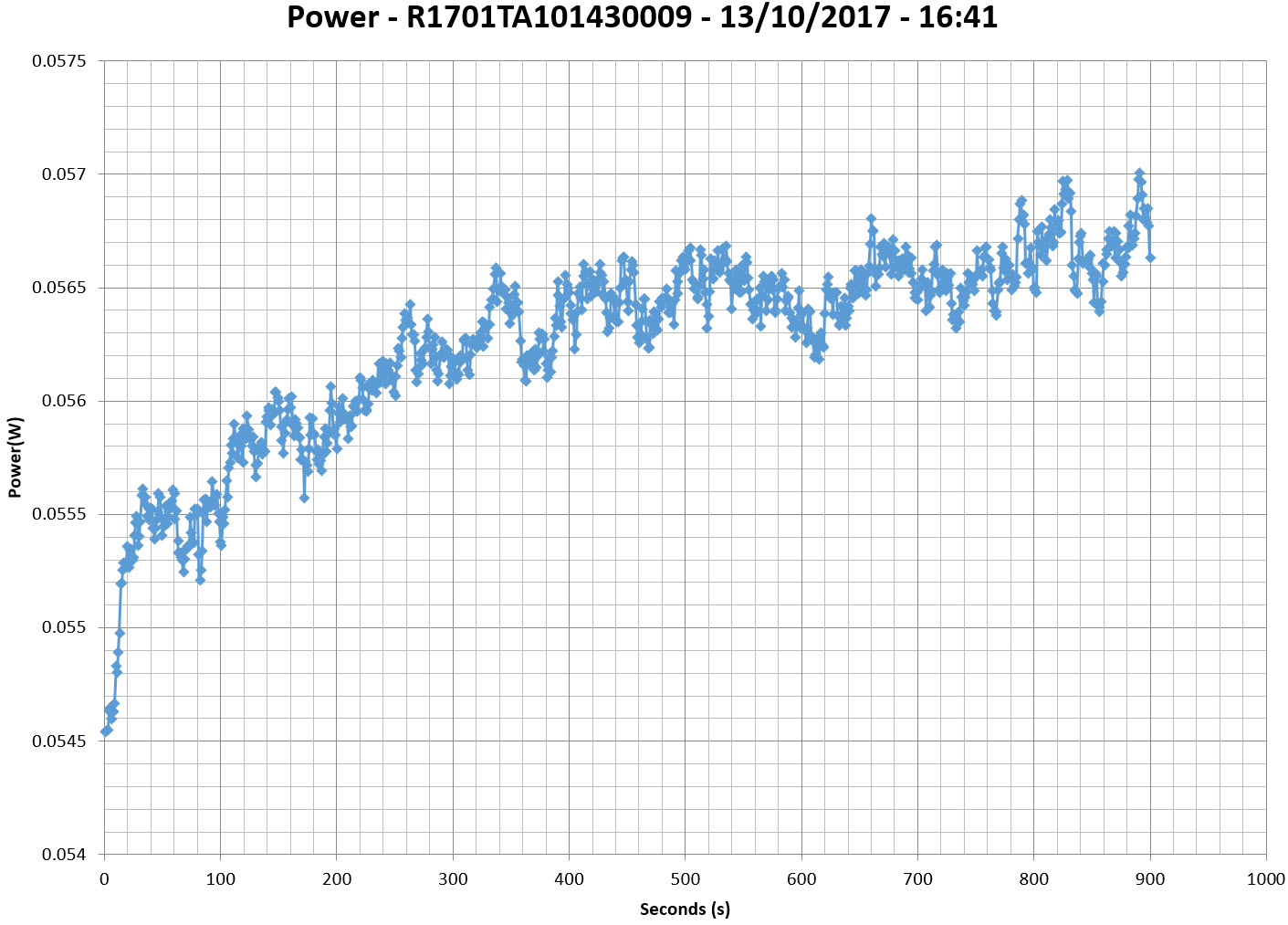

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

Efficiency Graph

115V

INFO

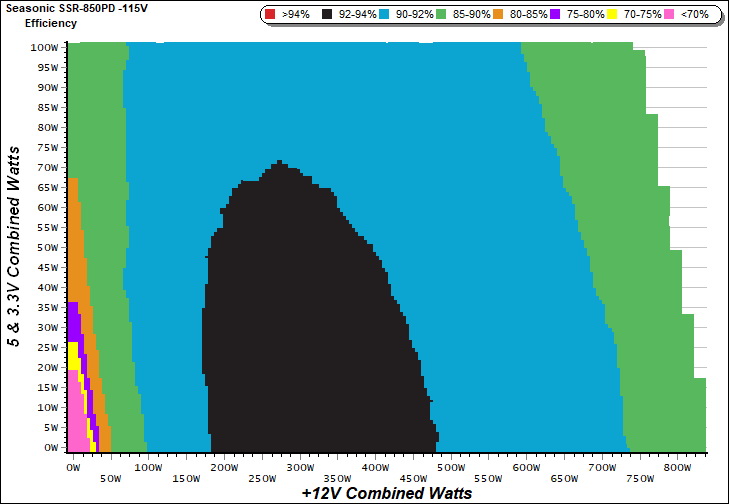

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

Noise Graph

115V

INFO

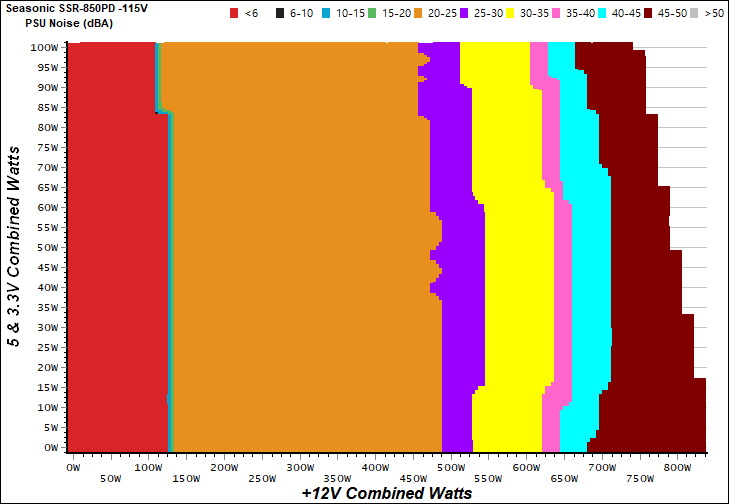

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

Efficiency under high ambient temperature

INFO

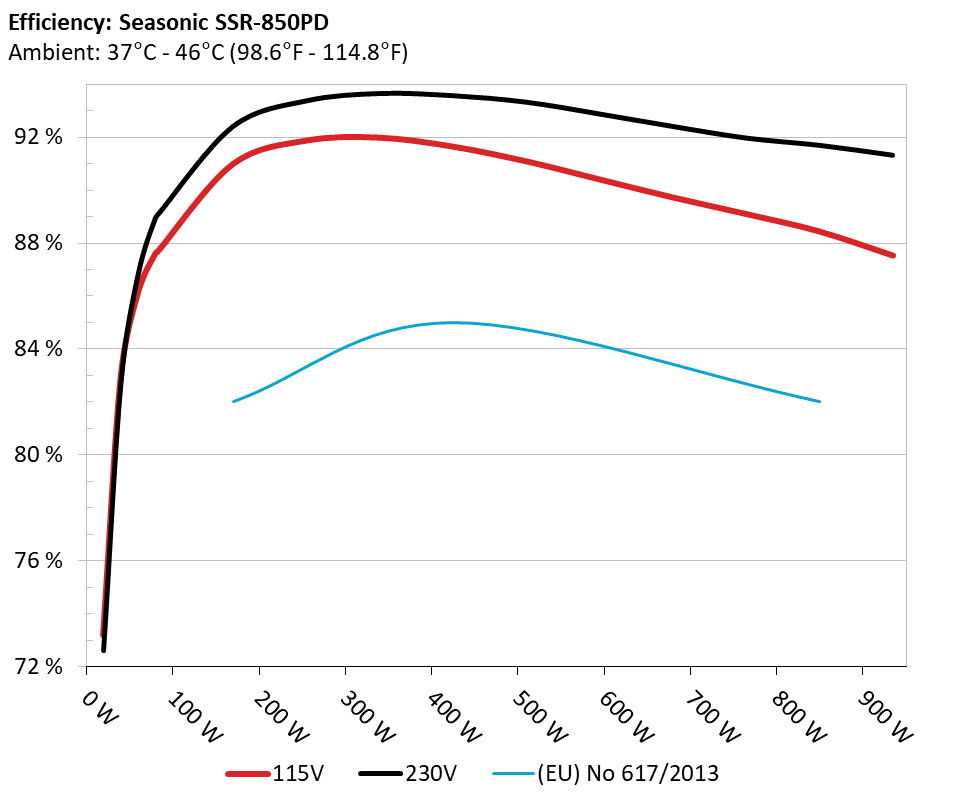

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

5VSB Efficiency

INFO

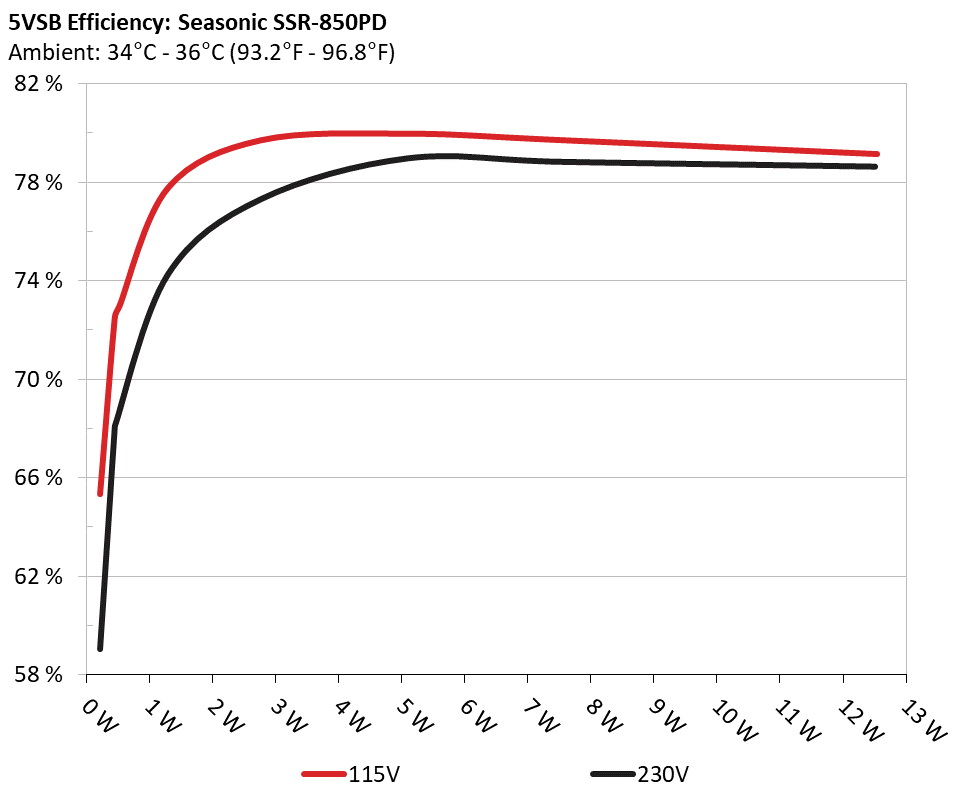

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC) 115V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.042A 0.215 65.350% 0.036
5.128V 0.329 115.14V
2 0.087A 0.448 72.492% 0.067
5.125V 0.618 115.14V
3 0.542A 2.768 79.701% 0.280
5.104V 3.473 115.14V
4 1.002A 5.093 79.965% 0.376
5.082V 6.369 115.14V
5 1.502A 7.596 79.698% 0.428
5.058V 9.531 115.13V
6 2.502A 12.543 79.141% 0.476
5.014V 15.849 115.13V

Supplementary Tests (For Reference)

Typical Load Tests 115V

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 5.201A 1.996A 1.973A 0.986A 84.826 87.759% 660 23.8 38.11°C 0.967
12.155V 5.020V 3.339V 5.071V 96.658 41.95°C 115.12V
2 11.420A 2.982A 2.962A 1.186A 169.657 90.983% 660 23.8 38.34°C 0.992
12.155V 5.018V 3.338V 5.055V 186.471 43.00°C 115.12V
3 17.997A 3.489A 3.475A 1.385A 254.826 91.880% 660 23.8 38.86°C 0.985
12.155V 5.017V 3.336V 5.037V 277.346 43.88°C 115.10V
4 24.562A 3.988A 3.954A 1.591A 339.723 91.991% 823 28.1 39.07°C 0.987
12.155V 5.015V 3.335V 5.019V 369.302 44.25°C 115.09V
5 30.786A 4.980A 4.948A 1.800A 424.663 91.651% 1172 34.8 39.87°C 0.990
12.155V 5.013V 3.334V 4.999V 463.347 45.36°C 115.09V
6 37.013A 5.985A 5.939A 2.005A 509.663 91.096% 1673 45.6 40.52°C 0.992
12.155V 5.011V 3.332V 4.983V 559.482 46.41°C 115.09V
7 43.233A 6.991A 6.930A 2.213A 594.550 90.412% 1975 48.5 41.37°C 0.994
12.154V 5.009V 3.332V 4.965V 657.603 47.53°C 115.09V
8 49.461A 7.990A 7.924A 2.426A 679.547 89.729% 2123 51.2 42.39°C 0.995
12.154V 5.008V 3.330V 4.945V 757.329 49.38°C 115.09V
9 56.105A 8.490A 8.437A 2.429A 764.547 89.102% 2123 51.2 43.64°C 0.996
12.155V 5.007V 3.329V 4.938V 858.055 51.91°C 115.10V
10 62.680A 8.999A 8.926A 2.535A 849.416 88.441% 2123 51.2 45.01°C 0.996
12.160V 5.005V 3.327V 4.927V 960.433 55.05°C 115.10V
11 69.662A 9.002A 8.931A 2.538A 934.307 87.531% 2123 51.2 46.48°C 0.996
12.160V 5.004V 3.324V 4.919V 1067.402 58.83°C 115.10V
CL1 0.099A 12.014A 12.004A 0.005A 101.657 84.646% 2115 50.7 43.42°C 0.985
12.164V 5.018V 3.344V 5.112V 120.096 47.40°C 115.12V
CL2 69.952A 1.003A 1.003A 1.002A 863.926 88.634% 2123 51.2 45.61°C 0.996
12.159V 5.005V 3.325V 5.014V 974.712 55.19°C 115.10V

The results above are not used in the certification process

Light Load Tests 115V

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.202A 0.489A 0.478A 0.196A 19.665 73.180% 0 <6.0 0.826
12.152V 5.026V 3.343V 5.116V 26.872 115.12V
2 2.428A 0.988A 0.986A 0.391A 39.758 82.852% 0 <6.0 0.922
12.154V 5.020V 3.340V 5.103V 47.987 115.12V
3 3.655A 1.485A 1.494A 0.586A 59.863 86.113% 660 23.8 0.958
12.157V 5.020V 3.340V 5.093V 69.517 115.12V
4 4.871A 1.996A 1.976A 0.786A 79.813 87.590% 660 23.8 0.965
12.154V 5.020V 3.339V 5.081V 91.121 115.12V

The results above are not used in the certification process

Ripple Measurements 115V

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 9.0 mV 2.9 mV 3.9 mV 6.2 mV Pass
20% Load 12.1 mV 3.9 mV 5.0 mV 6.9 mV Pass
30% Load 14.8 mV 4.1 mV 5.1 mV 7.4 mV Pass
40% Load 9.3 mV 3.4 mV 5.0 mV 8.8 mV Pass
50% Load 9.9 mV 4.0 mV 5.2 mV 9.8 mV Pass
60% Load 12.5 mV 3.9 mV 5.6 mV 10.6 mV Pass
70% Load 14.1 mV 4.5 mV 5.9 mV 13.7 mV Pass
80% Load 15.2 mV 5.0 mV 6.8 mV 16.3 mV Pass
90% Load 16.5 mV 5.1 mV 7.1 mV 17.7 mV Pass
100% Load 17.2 mV 5.8 mV 7.9 mV 17.8 mV Pass
110% Load 17.7 mV 6.1 mV 9.2 mV 19.7 mV Pass
Crossload 1 10.7 mV 4.3 mV 5.4 mV 5.7 mV Pass
Crossload 2 17.0 mV 5.2 mV 7.9 mV 14.0 mV Pass

The results above are not used in the certification process

Seasonic Prime Platinum 850W

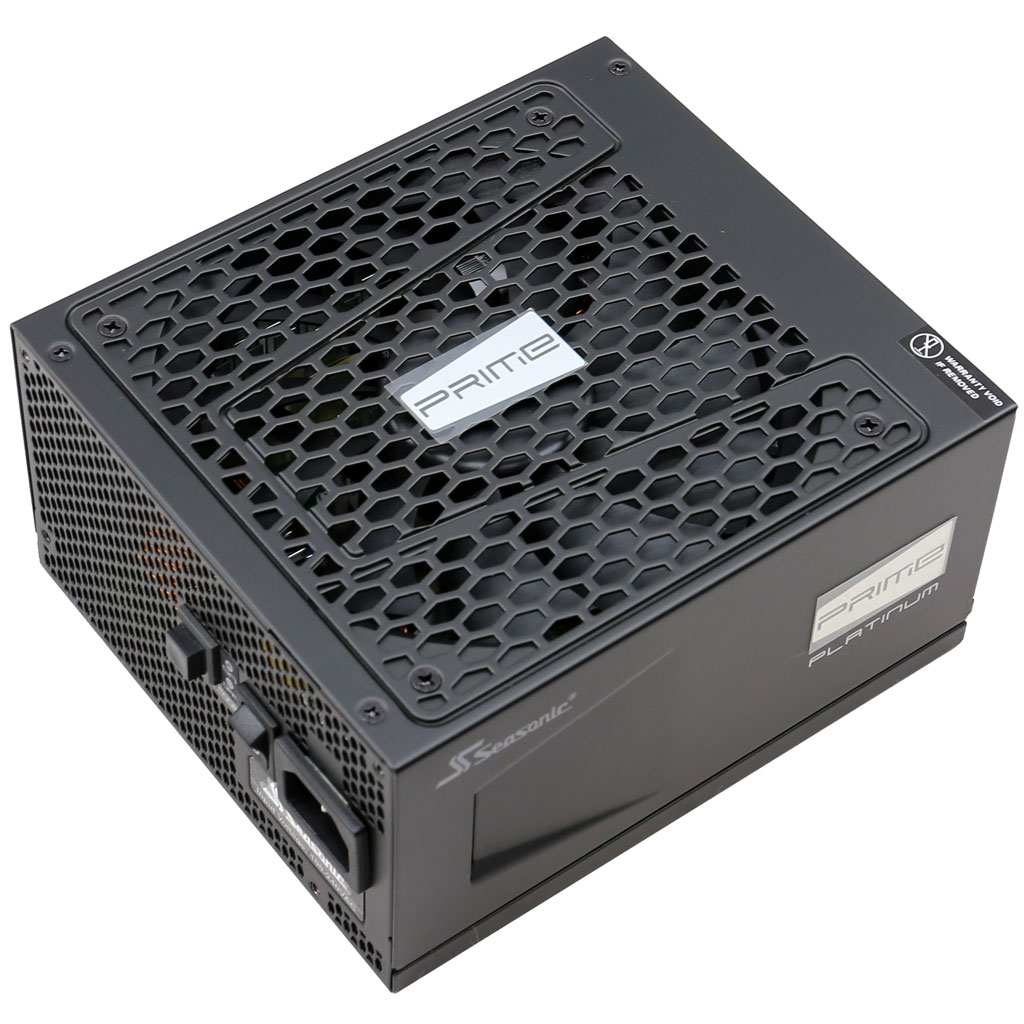

Top side

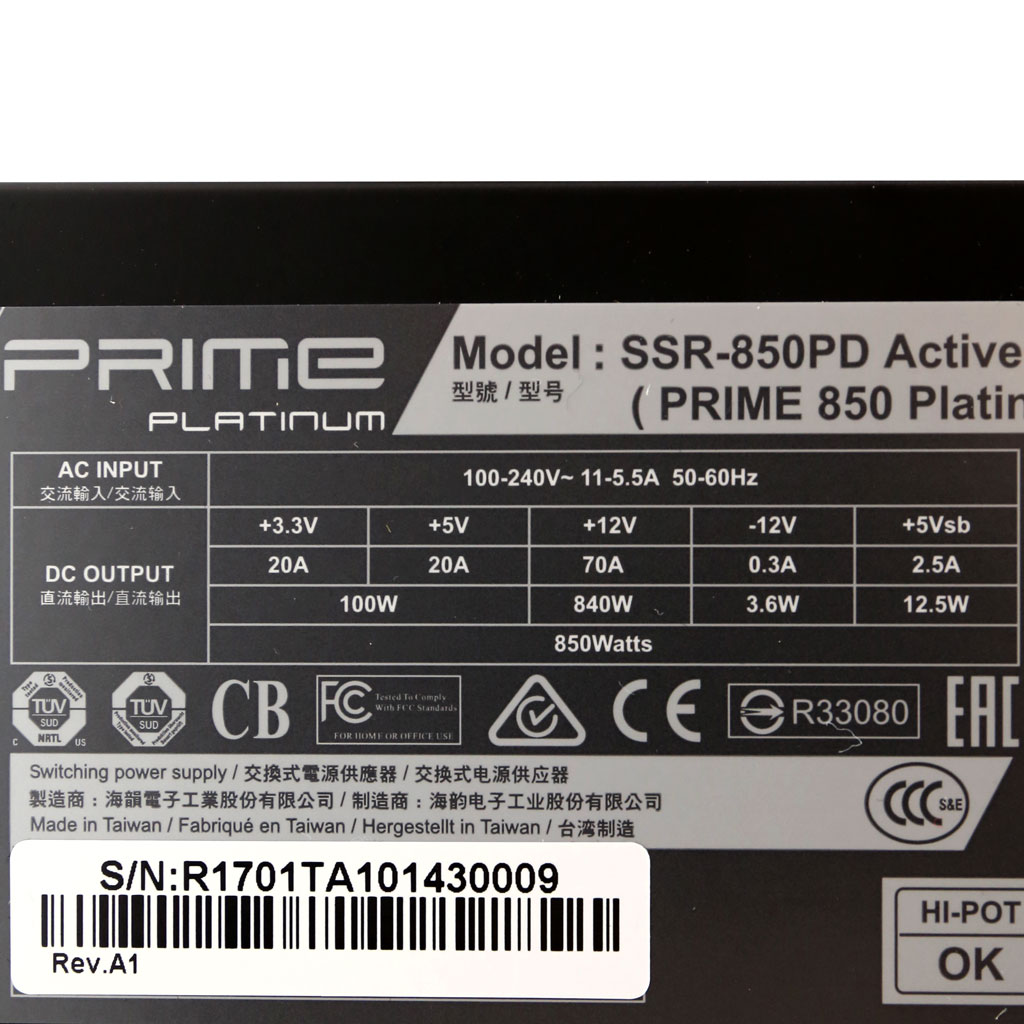

Power specifications label
