CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
SilverStone HELA 2050 Platinum (1650W)
Serial NumberDBHA2K50PT21390099
Lab IDSL16501930
  • Report: 21PS1930A
  • Receipt Date: Oct 26, 2021
  • Test Date: Nov 1, 2021
  • Report Date: Nov 3, 2021
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandSilverStone
Manufacturer (OEM)Enhance Electronics
SeriesHela Platinum
Model NumberSST-AX2050MCPT-A
Serial NumberDBHA2K50PT21390099
DUT Notes

DUT Specifications

Rated Voltage (Vrms)115-240
Rated Current (Arms)16-9
Rated Frequency (Hz)60-50
Rated Power (W)1650
TypeATX12V
Cooling135mm Double Ball Bearing Fan
(RL4Z B1352512EH-3M)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps252213730.3
Watts1201644153.6
Total Max. Power (W)1650

Test Equipment

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 16-22AWG No
4+4 pin EPS12V (700mm) 2 2 16AWG No
12 pin PCIe (560mm) 1 1 16AWG No
6+2 pin PCIe (560mm) 4 4 16AWG No
6+2 pin PCIe (560mm+150mm) 7 14 16-18AWG No
SATA (500mm+125mm+125mm+125mm) 3 12 18AWG No
4-pin Molex (500mm+125mm+125mm) / FDD (+120mm) 1 3 / 1 18-22AWG No

Parts Description

General Data -
Manufacturer (OEM) Enhance Electronics
PCB Type Double Sided
Primary Side -
Transient Filter 6x Y caps, 4x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor MF72-12D20 (12 Ohm) & Relay
Bridge Rectifier(s) 2x
APFC MOSFETs 2x Oriental Semiconductor OSG55R070HF (550V, 30A @ 100°C, Rds(on): 0.07Ohm)
APFC Boost Diode 2x CREE C3D10060A (600V, 10A @ 153°C)
Bulk Cap(s) 3x Nippon Chemi-Con (450V, 680uF each or 2,040uF, 2,000h @ 105°C, KMZ)
Main Switchers 4x Oriental Semiconductor OSG60R074FSZF (600V, 30A @ 100°C, Rds(on): 0.074Ohm)
IC Driver(s) 2x Silicon Labs Si8230BD
APFC Controller ATK AT6201ZSPF
Resonant Controller ATK AT6301ZTSF
Topology Primary side: Interleaved PFC, Full-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side -
+12V MOSFETs no info
5V & 3.3V DC-DC Converters
Filtering Capacitors Electrolytic: 5x Unicon (2,000h @ 125°C, UPL), 1x Rubycon (3-6,000h @ 105°C, YXG), 2x Rubycon (4-10,000h @ 105°C, YXF)
Polymer: 21x Unicon
Supervisor IC Weltrend WT7527RA (OCP, OVP, UVP, SCP, PG)
Fan Controller ATK AT1051ZSP8
Fan Model Globe Fan RL4Z B1352512EH-3M (135mm, 12V, 0.50A, Double Ball Bearing Fan)
5VSB Circuit -
Rectifier 1x 45R10S SBR
Standby PWM Controller ATK AT6002H

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓

Performance Summary 115V

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)11.4
AC Loss to PWR_OK Hold Up Time (ms)10.2
PWR_OK Inactive to DC Loss Delay (ms)1.2

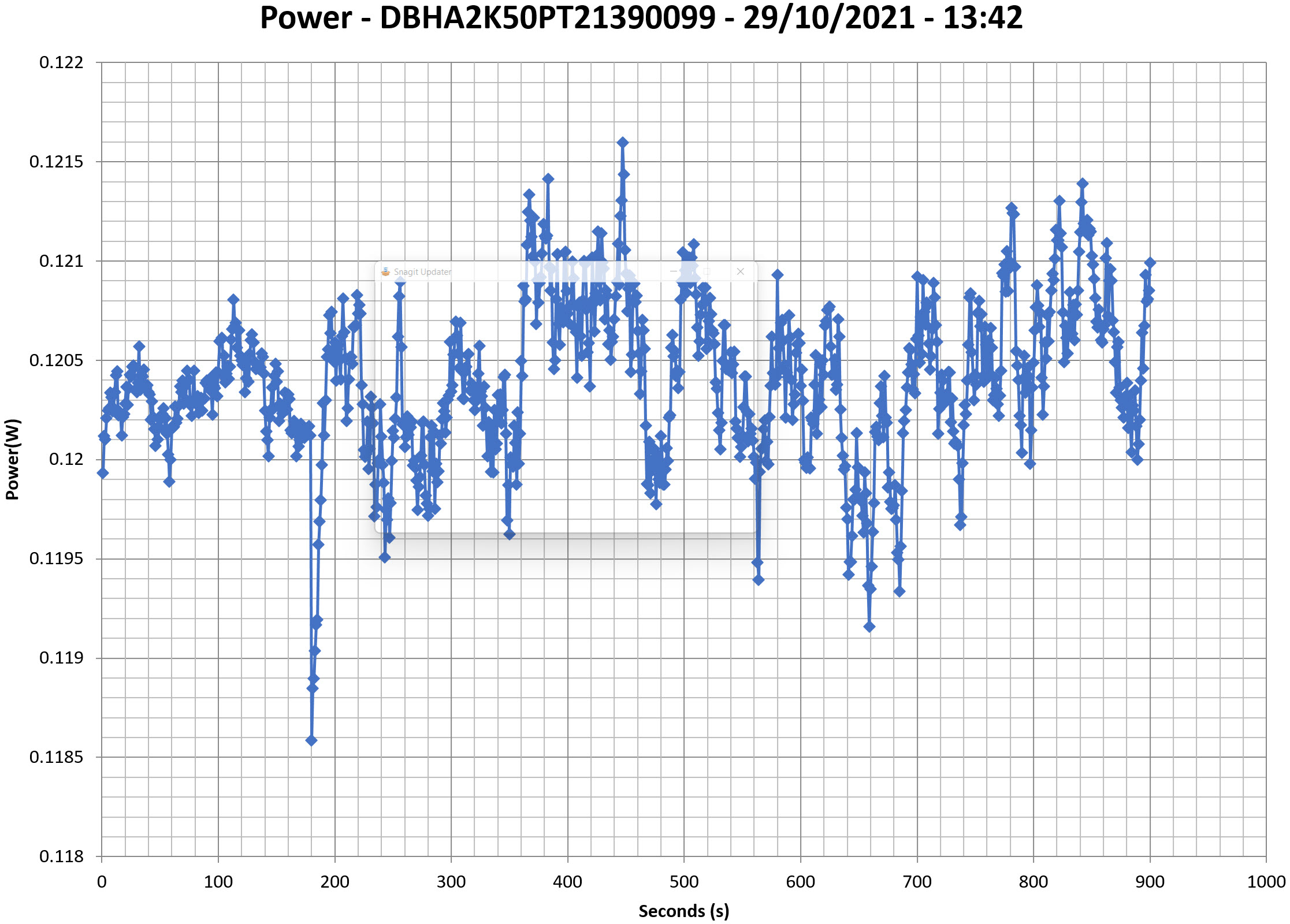

Vampire Power

Graphs 115V

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

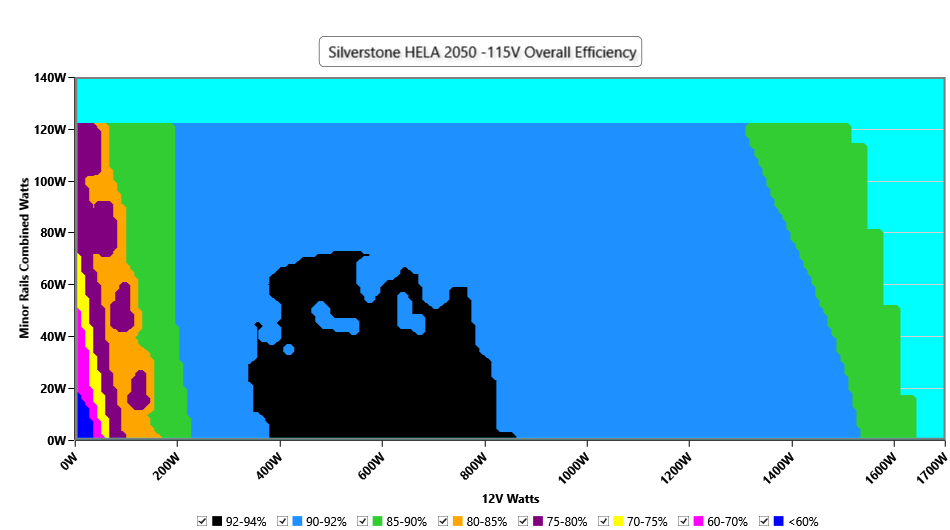

Efficiency Graph

115V

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

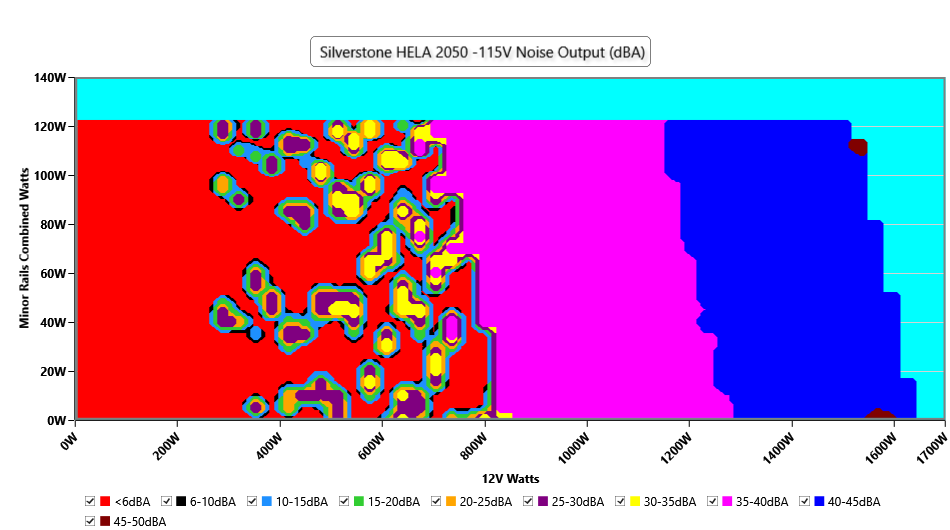

Noise Graph

115V

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

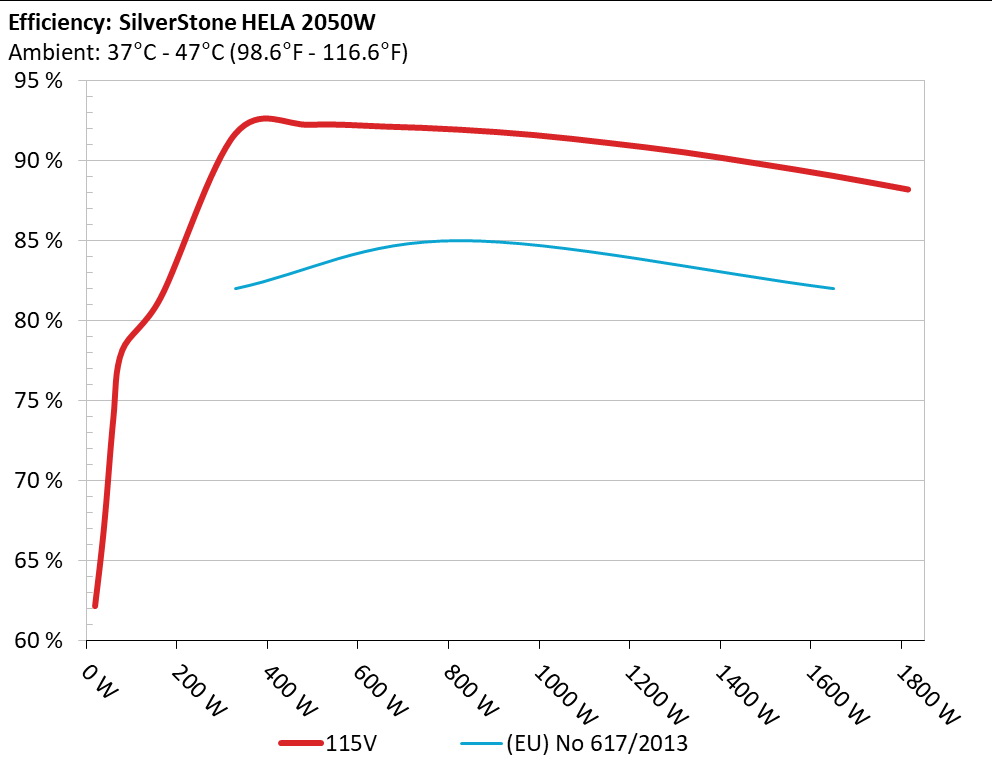

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

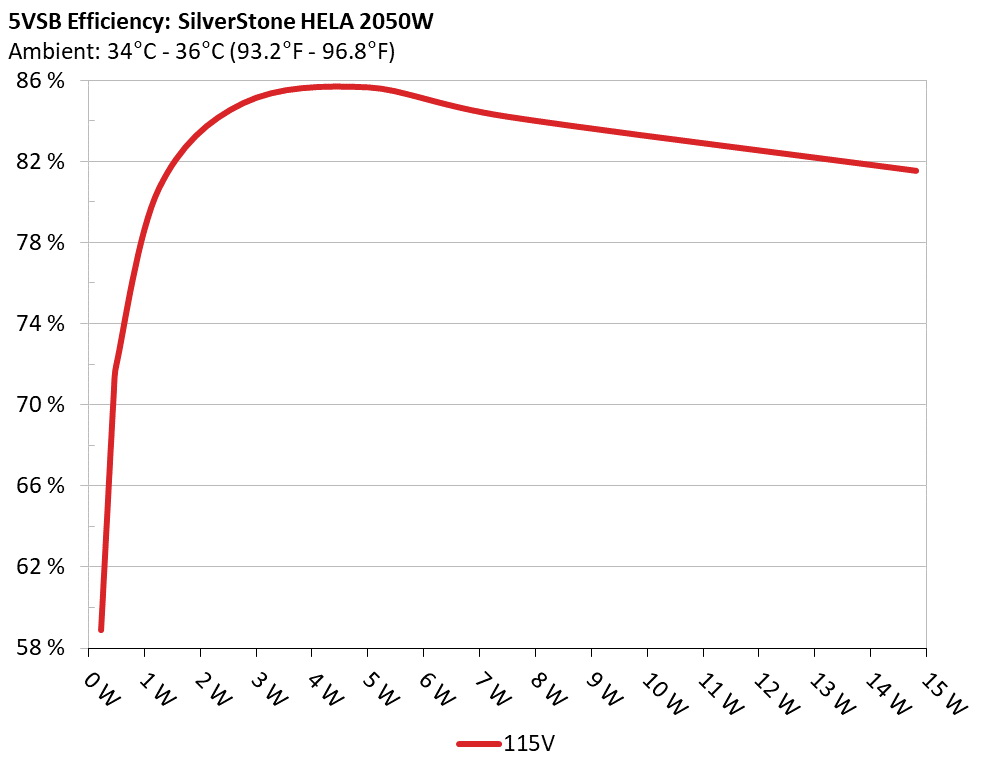

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC) 115V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.227W 58.872% 0.023
5.05V 0.386W 115.11V
2 0.09A 0.454W 70.539% 0.038
5.048V 0.644W 115.11V
3 0.55A 2.767W 84.849% 0.177
5.03V 3.261W 115.11V
4 1A 5.014W 85.632% 0.281
5.013V 5.855W 115.11V
5 1.5A 7.493W 84.191% 0.366
4.994V 8.9W 115.11V
6 3A 14.816W 81.519% 0.492
4.938V 18.174W 115.11V

Supplementary Tests (For Reference)

Typical Load Tests 115V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 11.960A 2A 1.962A 0.999A 164.992 81.43% 612 16.3 40.21°C 0.978
11.989V 4.999V 3.363V 5.003V 202.616 45.21°C 115.12V
20% 24.971A 3.007A 2.952A 1.203A 330.014 91.673% 848 26.3 40.87°C 0.992
11.978V 4.988V 3.354V 4.986V 359.991 46.58°C 115.12V
30% 38.323A 3.515A 3.453A 1.409A 494.575 92.227% 979 30.4 41.38°C 0.991
11.964V 4.979V 3.345V 4.969V 536.257 47.46°C 115.11V
40% 51.756A 4.024A 3.957A 1.616A 659.767 92.113% 1010 31.1 41.92°C 0.985
11.951V 4.97V 3.336V 4.952V 716.256 48.87°C 115.11V
50% 64.883A 5.042A 4.961A 1.824A 825.105 91.918% 1141 35.1 42.41°C 0.989
11.938V 4.959V 3.326V 4.934V 897.655 49.83°C 115.11V
60% 77.964A 6.064A 5.972A 2A 989.432 91.581% 1259 37.9 42.82°C 0.994
11.926V 4.948V 3.316V 4.918V 1080.387 50.79°C 115.1V
70% 91.159A 7.091A 6.99A 2.246A 1154.95 91.081% 1364 39.8 43.07°C 0.996
11.912V 4.937V 3.305V 4.898V 1268.051 51.28°C 115.08V
80% 104.401A 8.003A 8.012A 2.355A 1319.207 90.508% 1465 41.7 43.71°C 0.998
11.895V 4.927V 3.295V 4.884V 1457.561 52.48°C 115.07V
90% 118.108A 8.644A 8.523A 2.465A 1485.206 89.79% 1561 43.8 44.6°C 0.999
11.876V 4.918V 3.285V 4.869V 1654.084 53.8°C 115.06V
100% 131.623A 9.168A 9.069A 3.104A 1650.038 89.031% 1559 43.8 45.7°C 0.999
11.855V 4.91V 3.275V 4.833V 1853.32 55.85°C 115.05V
110% 144.949A 10.209A 10.203A 3.111A 1814.669 88.184% 2160 52.6 46.91°C 1
11.841V 4.899V 3.263V 4.822V 2057.816 57.77°C 115.03V
CL1 0.118A 14.555A 14.275A 0A 121.331 79.118% 896 27.7 42.41°C 0.966
11.969V 4.962V 3.341V 5.035V 153.354 49.46°C 115.13V
CL2 0.117A 22.226A 0A 0A 111.431 77.494% 744 21.6 43.09°C 0.962
11.987V 4.951V 3.36V 5.041V 143.792 50.81°C 115.13V
CL3 0.117A 0A 24.737A 0A 83.887 72.847% 330 <6.0 44.12°C 0.948
11.987V 4.999V 3.335V 5.036V 115.16 53.67°C 115.12V
CL4 138.858A 0A 0A 0A 1649.577 89.698% 1557 43.6 45.33°C 0.999
11.880V 4.943V 3.296V 4.965V 1839.032 55.64°C 115.04V

The results above are not used in the certification process

Light Load Tests 115V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.236A 0.499A 0.489A 0.198A 20.008 62.169% 0 <6.0 40.21°C 0.644
12.023V 5.009V 3.373V 5.044V 32.35 36.87°C 115.13V
40W 2.722A 0.699A 0.685A 0.298A 40.008 67.177% 0 <6.0 41.4°C 0.841
12.013V 5.007V 3.372V 5.039V 59.556 37.65°C 115.13V
60W 4.208A 0.899A 0.881A 0.397A 60.01 73.797% 0 <6.0 42.01°C 0.902
12.008V 5.006V 3.371V 5.033V 81.317 38.01°C 115.13V
80W 5.694A 1.099A 1.077A 0.497A 79.972 78.142% 0 <6.0 44.59°C 0.939
12.003V 5.005V 3.369V 5.028V 102.342 39.97°C 115.13V

The results above are not used in the certification process

Ripple Measurements 115V

Test12V5V3.3V5VSBPass/Fail
10% Load19.58mV13.48mV14.78mV4.91mVPass
20% Load12.49mV14.30mV14.67mV5.12mVPass
30% Load13.72mV13.64mV14.98mV5.42mVPass
40% Load15.45mV14.51mV14.42mV5.78mVPass
50% Load17.55mV14.71mV15.09mV6.14mVPass
60% Load18.93mV15.22mV14.73mV5.94mVPass
70% Load21.49mV15.63mV15.96mV6.70mVPass
80% Load24.97mV15.99mV16.16mV6.70mVPass
90% Load37.97mV31.97mV30.88mV10.70mVPass
100% Load40.72mV29.07mV29.85mV10.86mVPass
110% Load44.06mV33.30mV34.01mV11.74mVPass
Crossload19.88mV16.58mV17.43mV4.99mVPass
Crossload214.48mV17.77mV14.17mV5.84mVPass
Crossload311.92mV13.84mV18.00mV4.15mVPass
Crossload435.57mV24.89mV26.48mV8.90mVPass

The results above are not used in the certification process

SilverStone HELA 2050 Platinum (1650W)

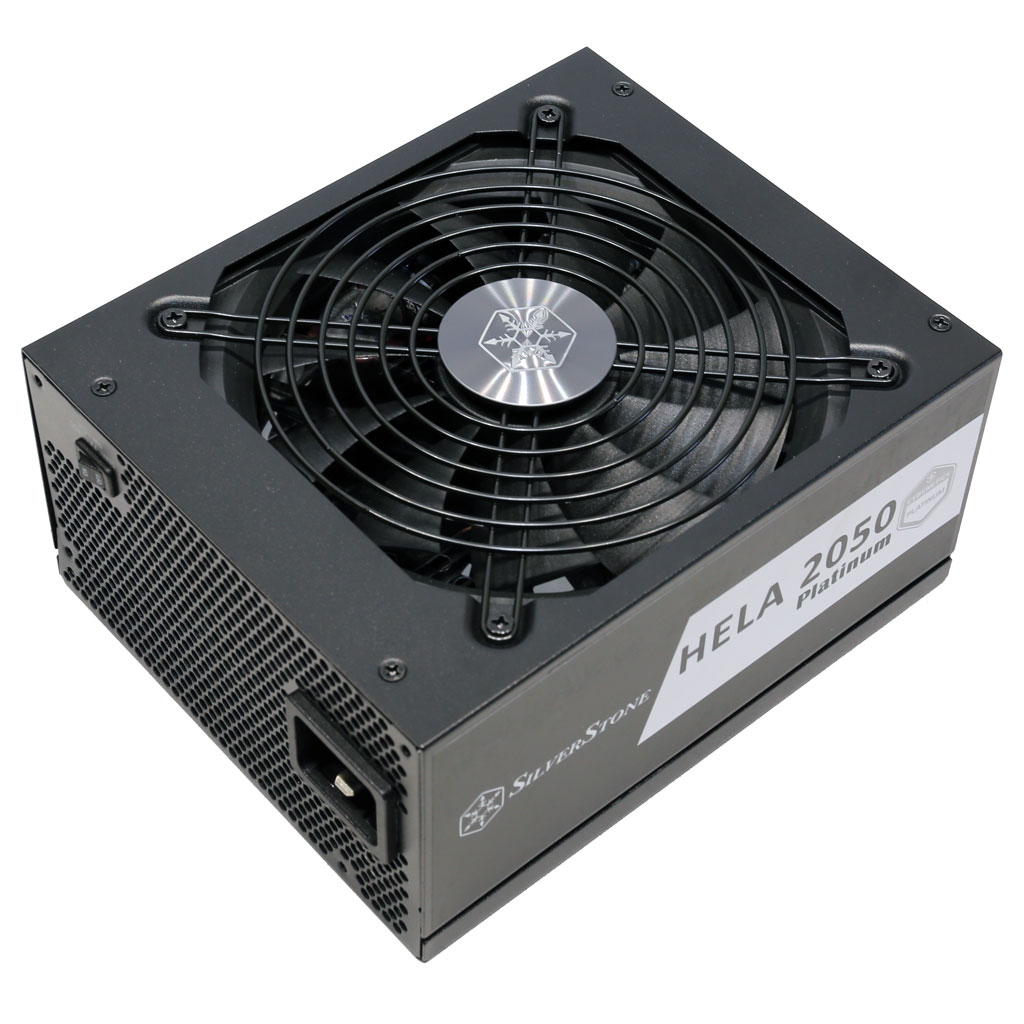

Top side

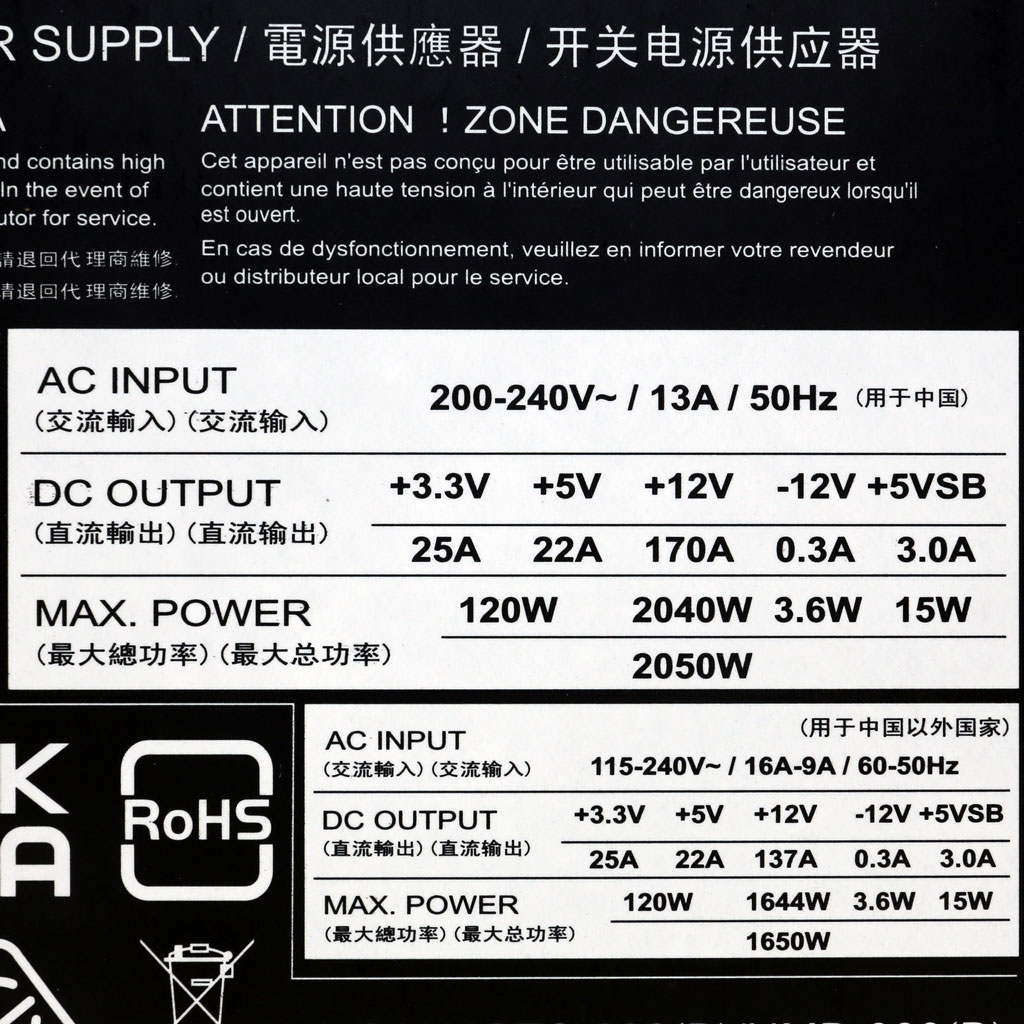

Power specifications label
