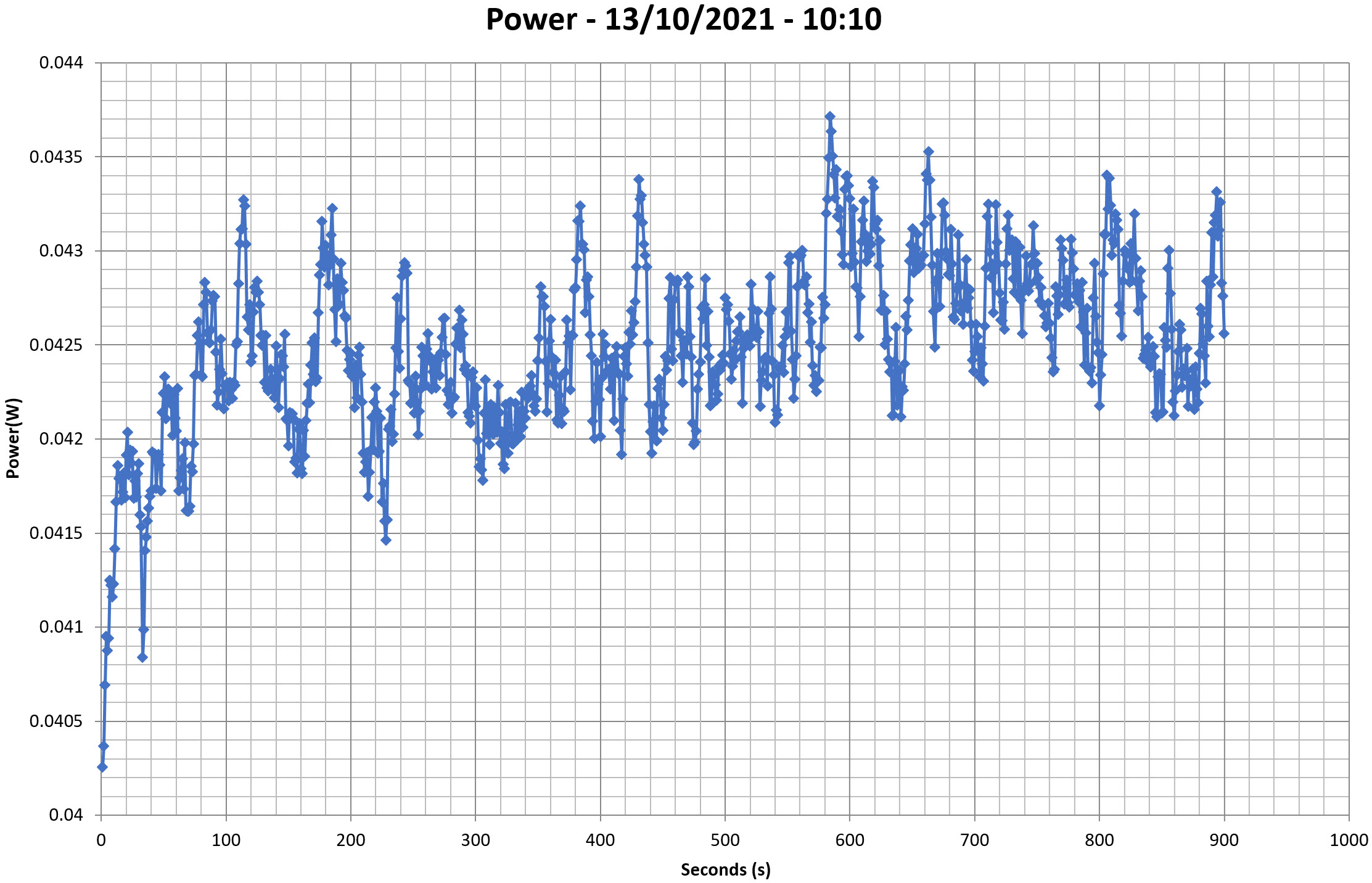

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

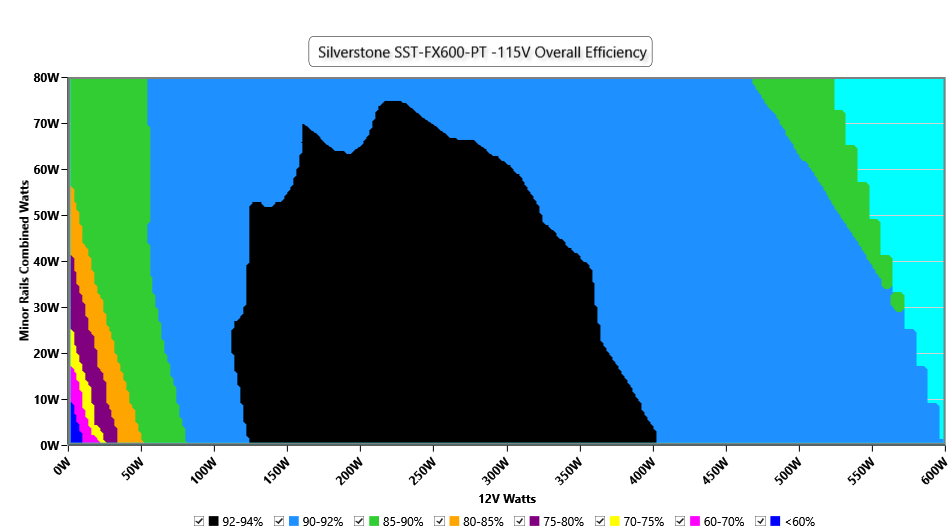

Efficiency Graph
115V
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations
Noise Graph
115V
Indicative Performance

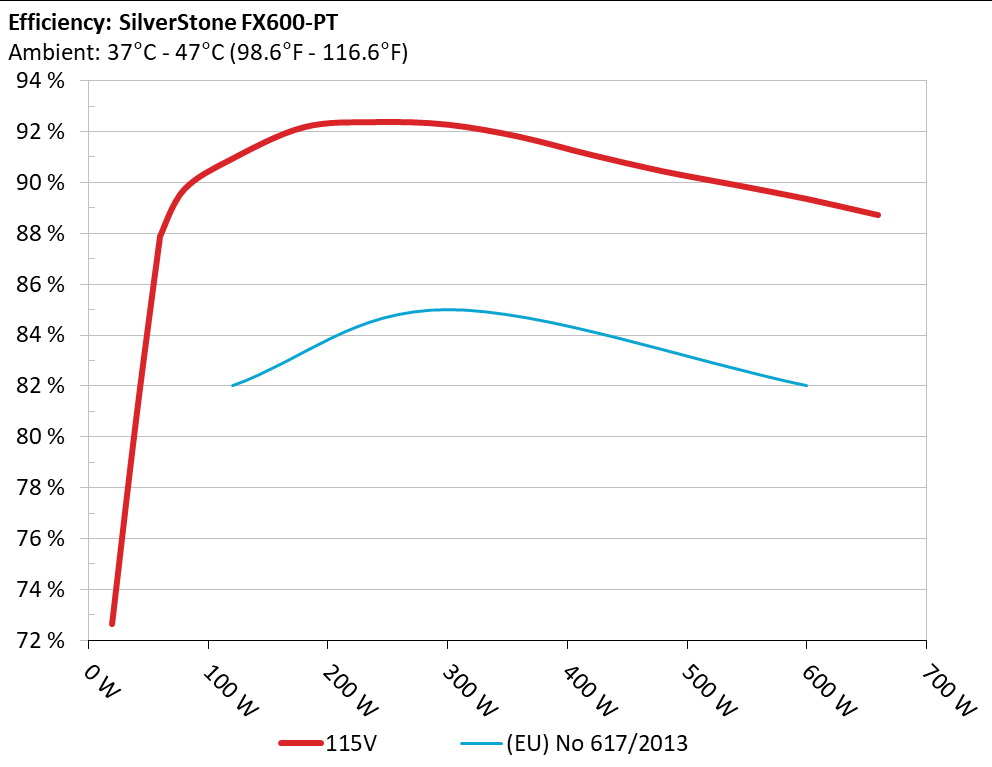

Efficiency under high ambient temperature
INFO
The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

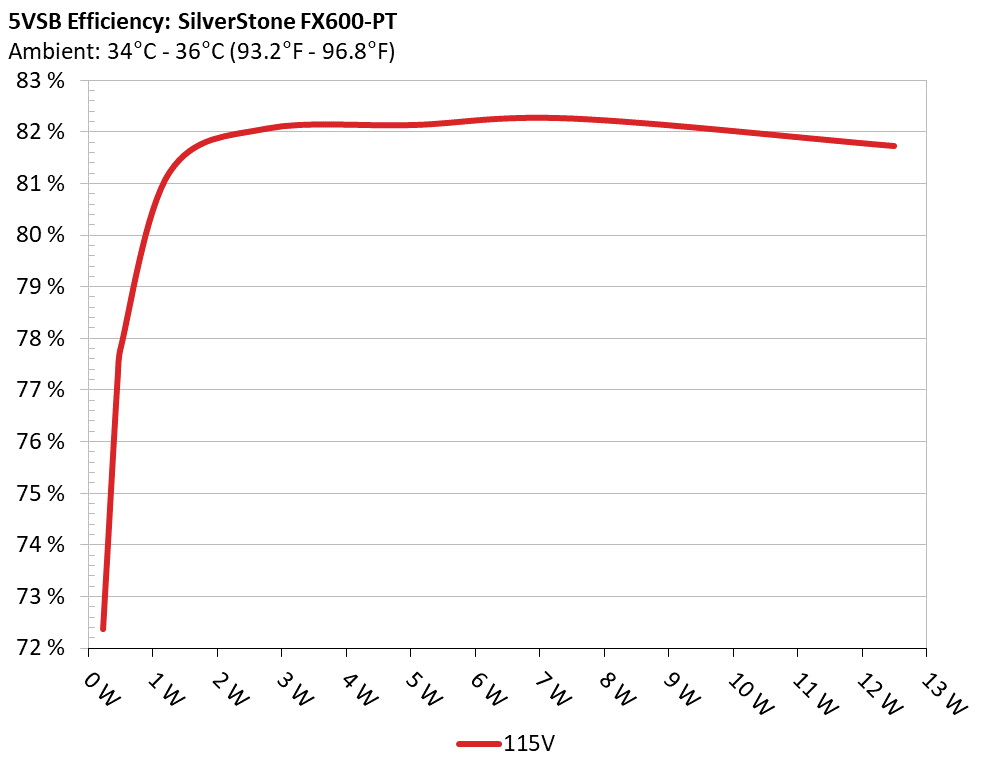

5VSB Efficiency
INFO
This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input
5VSB Efficiency (ERP LOT 3/6 & CEC) 115V
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.045A
0.227W
72.37%
0.025
5.041V
0.314W
115.18V
2
0.09A
0.453W
77.249%
0.047
5.039V
0.586W
115.18V
3
0.55A
2.767W
82.068%
0.214
5.031V
3.372W
115.19V
4
1A
5.024W
82.136%
0.295
5.024V
6.116W
115.19V
5
1.5A
7.524W
82.26%
0.341
5.016V
9.146W
115.19V
6
2.5A
12.489W
81.73%
0.387
4.996V
15.28W
115.19V
Supplementary Tests (For Reference)
Typical Load Tests 115V
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Temps (In/Out)
PF/AC Volts
10%
3.190A
1.99A
1.995A
0.996A
59.989
86.939%
45.17°C
0.94
12.033V
5.026V
3.308V
5.018V
69.001
40.41°C
115.17V
20%
7.400A
2.99A
3A
1.198A
119.917
90.934%
46.27°C
0.98
12.029V
5.016V
3.299V
5.007V
131.872
40.86°C
115.17V
30%
11.967A
3.494A
3.509A
1.401A
179.947
92.183%
47.57°C
0.99
12.024V
5.009V
3.292V
4.997V
195.206
41.58°C
115.17V
40%
16.536A
3.999A
4.02A
1.604A
239.982
92.386%
48.13°C
0.994
12.021V
5.001V
3.284V
4.987V
259.762
41.71°C
115.16V
50%
20.758A
5.009A
5.039A
1.809A
299.931
92.288%
49.71°C
0.996
12.016V
4.992V
3.274V
4.975V
324.993
42.71°C
115.16V
60%
24.986A
6.022A
6.065A
2A
359.886
91.811%
50.96°C
0.997
12.013V
4.982V
3.265V
4.963V
391.985
43.23°C
115.16V
70%
29.183A
7.045A
7.099A
2.222A
419.372
91.107%
52.32°C
0.998
12.003V
4.969V
3.254V
4.949V
460.307
43.95°C
115.16V
80%
33.474A
8.002A
8.136A
2.328A
479.04
90.461%
53.93°C
0.998
11.994V
4.958V
3.244V
4.938V
529.555
44.92°C
115.16V
90%
38.098A
8.588A
8.651A
2.434A
539.159
89.926%
55.31°C
0.999
11.987V
4.948V
3.235V
4.928V
599.559
45.52°C
115.15V
100%
42.796A
9.109A
9.201A
2.54A
599.796
89.368%
56.11°C
0.999
11.978V
4.939V
3.227V
4.919V
671.154
45.86°C
115.14V
110%
47.106A
10.144A
10.349A
2.546A
659.659
88.732%
57.74°C
0.999
11.971V
4.928V
3.216V
4.908V
743.426
46.77°C
115.14V
CL1
0.114A
9.62A
9.675A
0.001A
81.263
87.267%
49.87°C
0.963
12.030V
4.999V
3.286V
5.014V
93.12
42.85°C
115.17V
CL2
0.114A
14.981A
0A
0.001A
76.379
86.452%
51.79°C
0.96
12.035V
5.006V
3.296V
5.025V
88.349
43.29°C
115.17V
CL3
0.114A
0A
15.017A
0A
50.866
82.491%
53.21°C
0.929
12.033V
5.024V
3.296V
5.021V
61.663
44.01°C
115.17V
CL4
49.996A
0.003A
0.004A
0.006A
599.865
90.112%
56.27°C
0.999
11.997V
4.978V
3.259V
4.982V
665.691
45.97°C
115.14V
The results above are not used in the certification process
Light Load Tests 115V
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Temps (In/Out)
PF/AC Volts
20W
1.233A
0.496A
0.497A
0.198A
19.99
72.645%
39.84°C
0.708
12.033V
5.038V
3.319V
5.039V
27.52
37.4°C
115.18V
40W
2.716A
0.695A
0.697A
0.298A
39.989
80.678%
41.44°C
0.9
12.032V
5.035V
3.316V
5.035V
49.566
38.35°C
115.18V
60W
4.200A
0.895A
0.897A
0.398A
59.988
87.894%
42.82°C
0.939
12.030V
5.028V
3.311V
5.028V
68.25
39.14°C
115.17V
80W
5.677A
1.094A
1.097A
0.497A
79.93
89.724%
43.87°C
0.961
12.032V
5.027V
3.309V
5.025V
89.084
39.78°C
115.17V
The results above are not used in the certification process
Ripple Measurements 115V
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
24.12mV
18.75mV
23.81mV
32.03mV
Pass
20% Load
13.21mV
23.22mV
28.92mV
36.74mV
Pass
30% Load
15.74mV
25.00mV
32.56mV
40.63mV
Pass
40% Load
17.67mV
28.15mV
36.00mV
44.22mV
Pass
50% Load
19.85mV
31.30mV
39.69mV
46.86mV
Pass
60% Load
21.82mV
34.81mV
43.83mV
50.35mV
Fail
70% Load
25.67mV
40.96mV
51.37mV
56.57mV
Fail
80% Load
26.78mV
43.55mV
52.48mV
60.42mV
Fail
90% Load
28.10mV
45.79mV
56.27mV
64.51mV
Fail
100% Load
34.16mV
52.46mV
62.28mV
69.28mV
Fail
110% Load
36.63mV
57.57mV
65.27mV
73.15mV
Fail
Crossload1
19.89mV
27.28mV
30.63mV
19.11mV
Pass
Crossload2
12.96mV
26.88mV
23.36mV
17.81mV
Pass
Crossload3
23.21mV
18.19mV
31.50mV
16.09mV
Pass
Crossload4
32.69mV
45.42mV
51.09mV
47.72mV
Fail
The results above are not used in the certification process
SilverStone FX600-PT
Top side

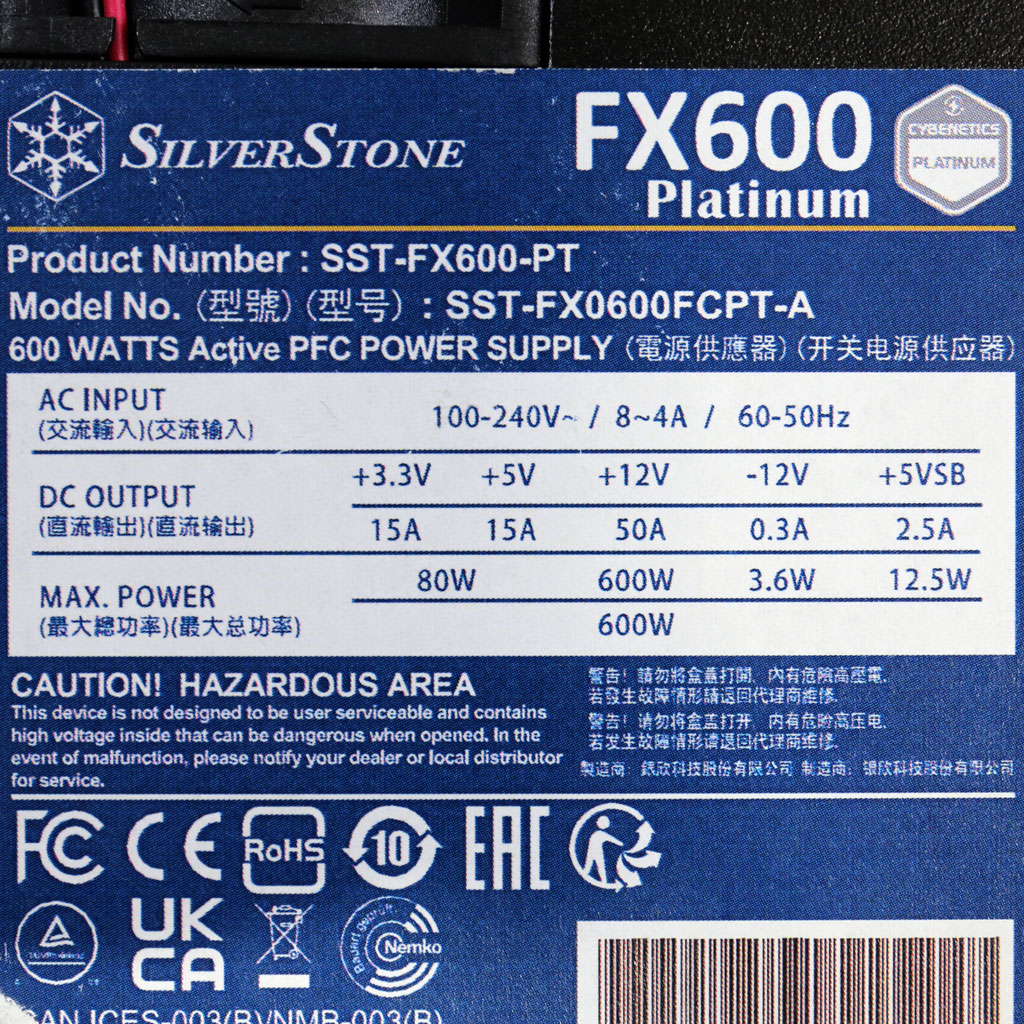

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions: › It should be mentioned that the test results are provided by Cybenetics › The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
