CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

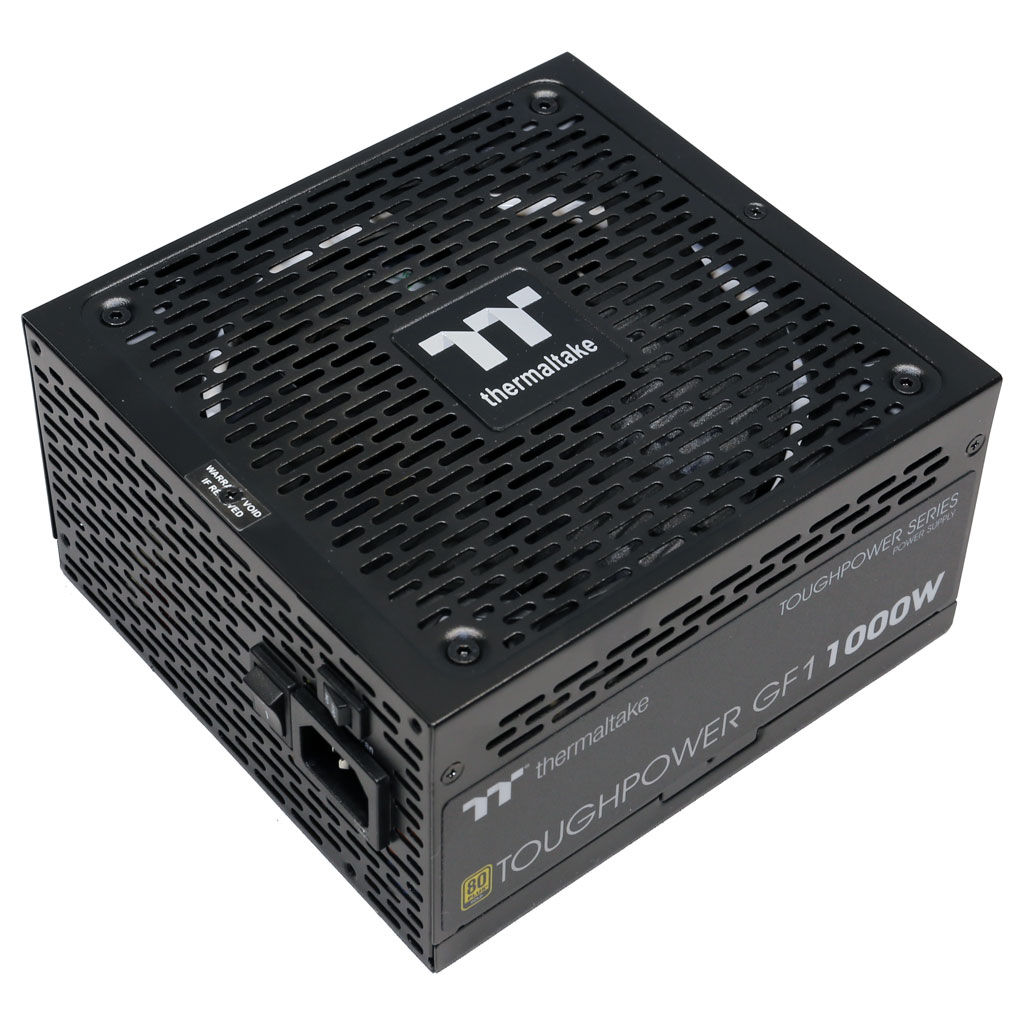

Thermaltake Toughpower GF1 1000W
Serial NumberPSTPD1000FNFAGU1XU000245
Lab IDTT10001885
  • Report: 21PS1885A
  • Receipt Date: Jul 19, 2021
  • Test Date: Aug 24, 2021
  • Report Date: Aug 26, 2021
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandThermaltake
Manufacturer (OEM)Channel Well Technology
SeriesToughpower GF1
Model NumberTTP-1000AH3FCG
Serial NumberPSTPD1000FNFAGU1XU000245
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)15
Rated Frequency (Hz)50-60
Rated Power (W)1000
TypeATX12V
Cooling140mm Hydraulic Bearing Fan
[TT-1425 (A1425L12S)]
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

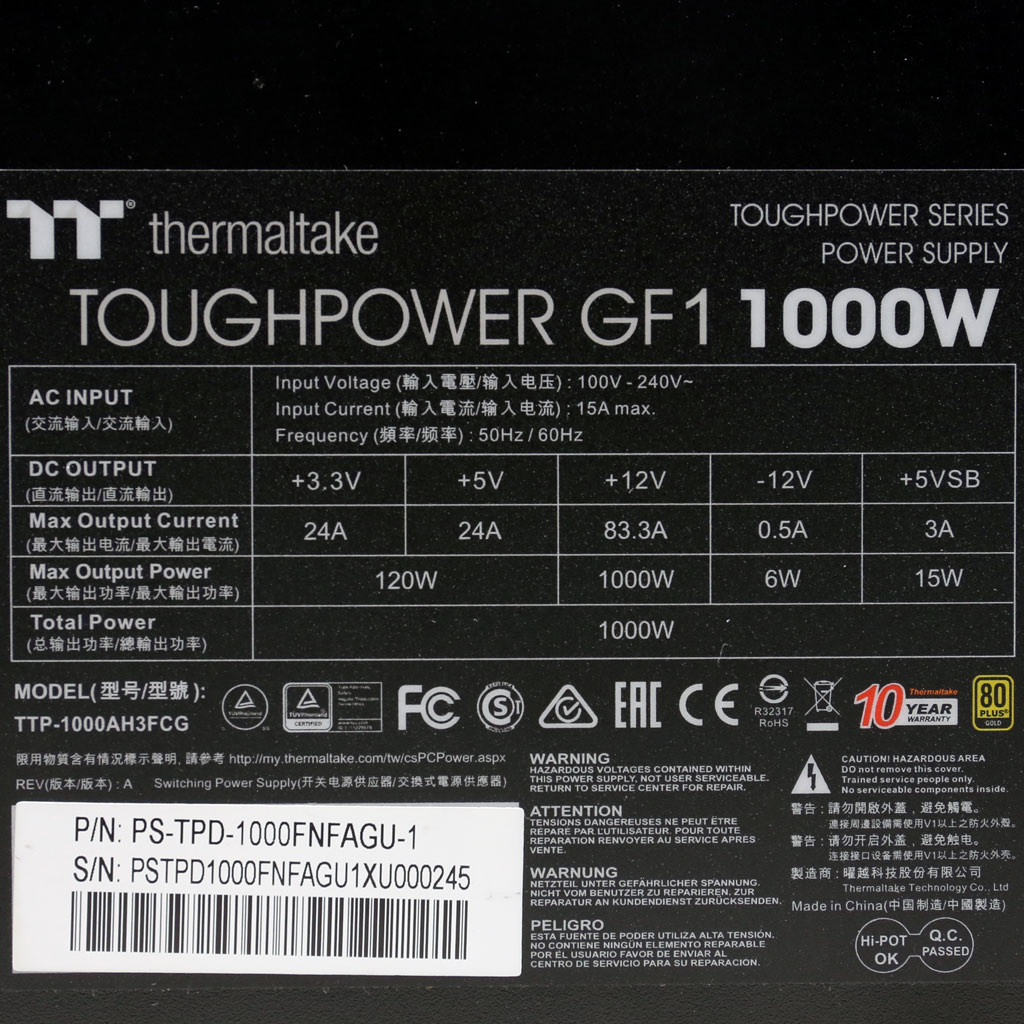

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps242483.330.5
Watts1201000156
Total Max. Power (W)1000

Test Equipment

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 16AWG No
8 pin EPS12V (700mm) 1 1 16AWG No
4+4 pin EPS12V (700mm) 1 1 16AWG No
6+2 pin PCIe (500mm+150mm) 3 6 16-18AWG No
SATA (500mm+150mm+150mm+150mm) 3 12 18AWG No
4-pin Molex (500mm+150mm+150mm+150mm) 1 4 18AWG No
FDD Adapter (150mm) 1 1 20AWG No
AC Power Cord (1420mm) - C13 coupler 1 1 14AWG -

Parts Description

General Data -
Manufacturer (OEM) CWT
PCB Type Double Sided
Primary Side -
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV, 1x CAP200DG (Discharge IC)
Inrush Protection NTC Thermistor SCK-055 (5 Ohm) & Relay
Bridge Rectifier(s) 2x  GBU1510 (1000V, 15A @ 100°C)
APFC MOSFETs 3x Infineon IPA50R140CP (500V, 15A @ 100°C, Rds(on): 0.14 Ohm)
APFC Boost Diode 1x Infineon IDH10G65C6 (650V, 10A @ 140°C)
Bulk Cap(s) 2x Nichicon (400V, 680uF & 470uF each or 1.150uF compined, 2,000h @ 105°C, GG)
Main Switchers 2x Infineon IPW60R125P6 (600V, 19A @ 100°C, Rds(on): 0.125Ohm)
APFC Controller Champion CM6500UNX & Champion CM03X
Resonant Controller Champion CM6901X
Topology Primary side: APFC, Half-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side -
+12V MOSFETs 8x International Rectifier IRFH7004PbF (40V, 164A @ 100°C, Rds(on): 1.4mOhm)
5V & 3.3V DC-DC Converters: 4x UBIQ QM3054M6 (30V, 61A @ 100°C, Rds(on): 4.8mOhm) & 2x UBIQ QN3107M6N (30V, 70A @ 100°C, Rds(on): 2.6mOhm)
PWM Controllers: UPI Semi uP3861P
Filtering Capacitors Electrolytic: 10x Nippon Chemi-Con (4-10,000h @ 105°C, KY), 6x Nichicon (4-10,000h @ 105°C, HE), 1x Rubycon (6-10,000h @ 105°C, ZLH), 1x Rubycon (3-6,000h @ 105°C, YXG)
Polymer: 10x FPCAP, 11x NIC, 5x Nippon Chemi-Con
Supervisor IC IN1S429I (OCP, OVP, UVP, SCP, PG)
Fan Model Thermaltake TT-1425 (Hong Sheng A1425L12S) (140mm, 12V, 0.30A, Hydraulic Bearing Fan)
5VSB Circuit -
Rectifier 1x Galaxy Microelectronics D10PS45L SBR (45V, 10A) & IPS ISD04N65A FET
Standby PWM Controller On-Bright OB5282

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)19
AC Loss to PWR_OK Hold Up Time (ms)17.4
PWR_OK Inactive to DC Loss Delay (ms)1.6

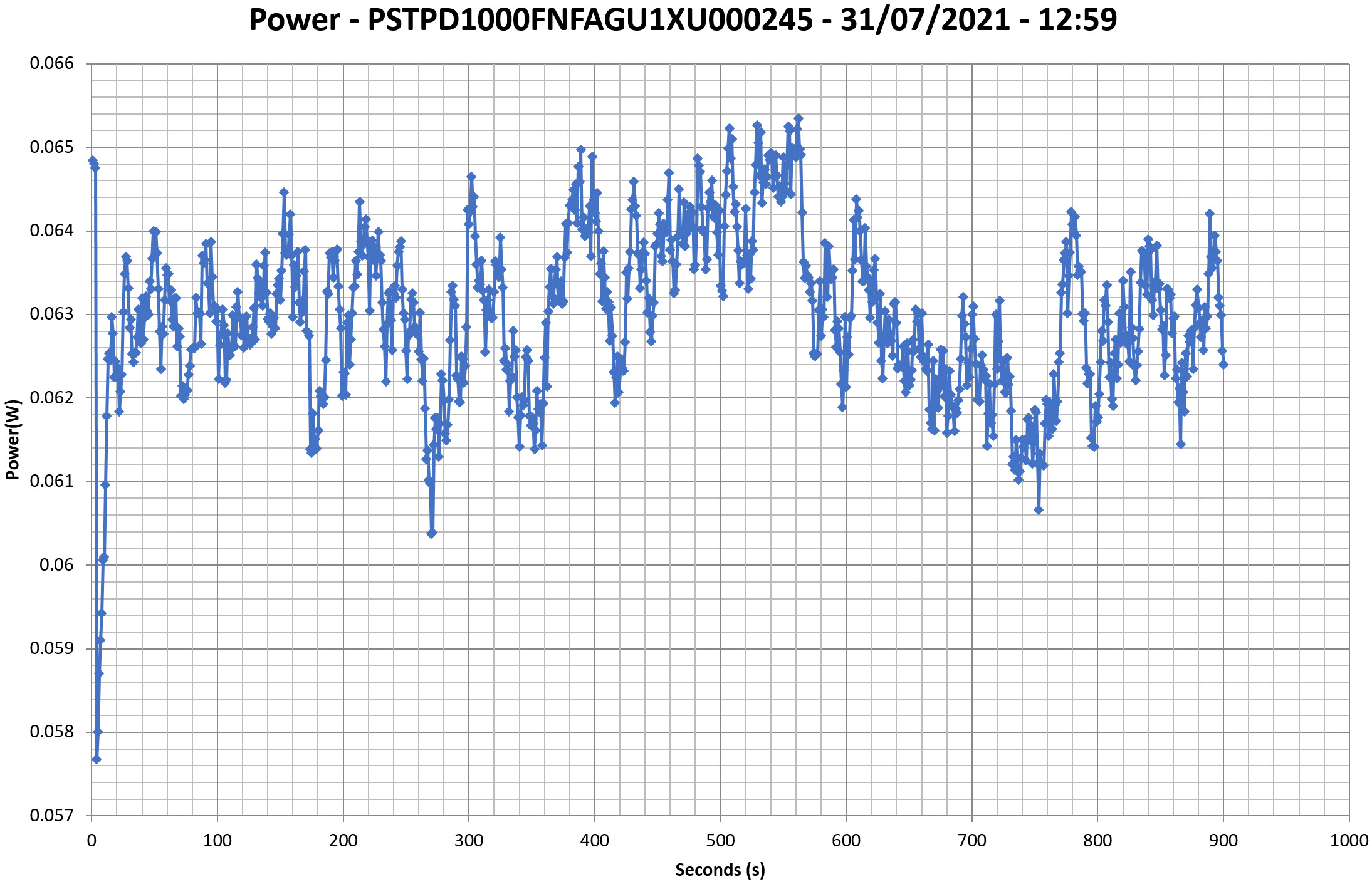

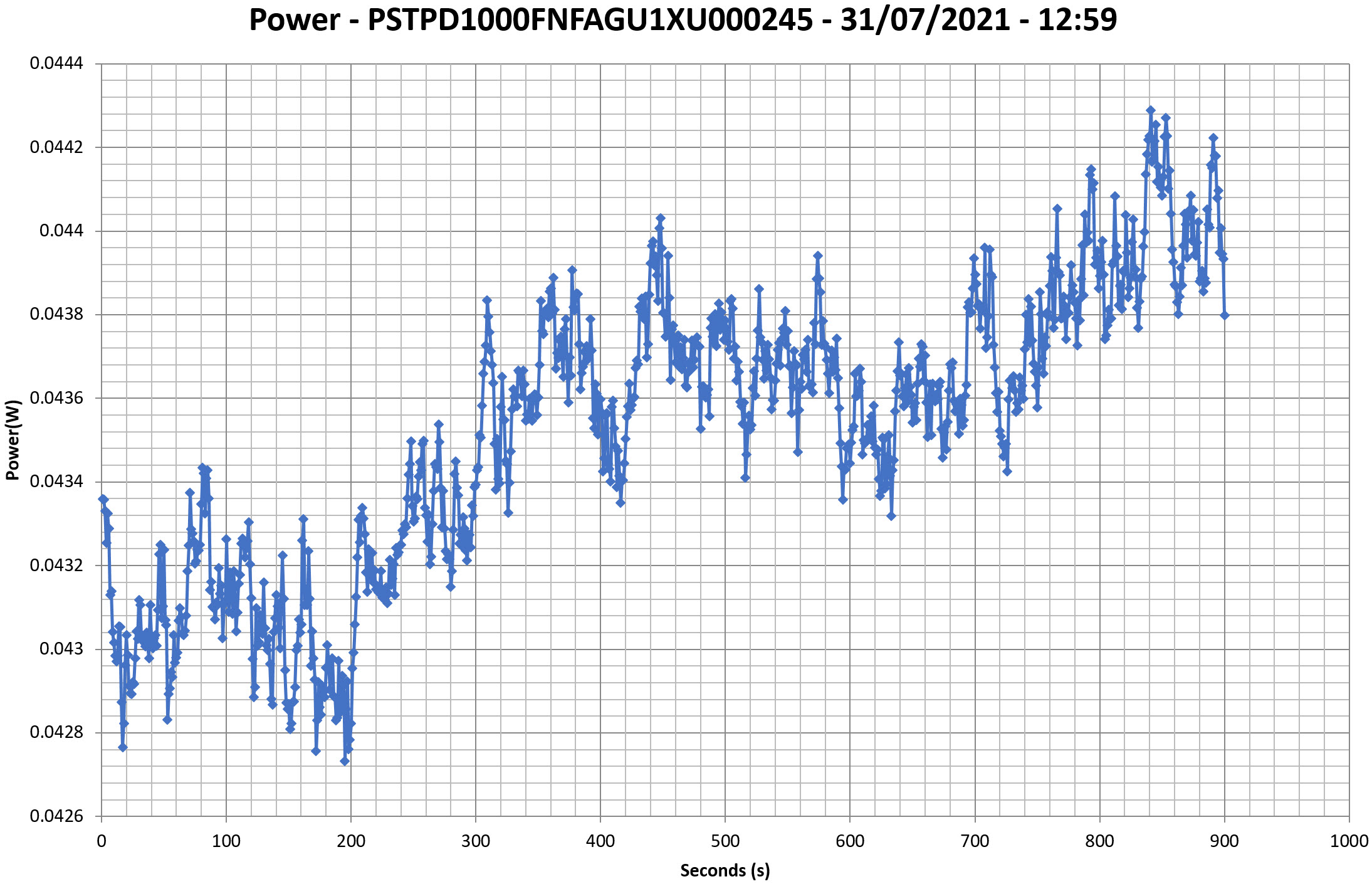

Vampire Power

Graphs

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

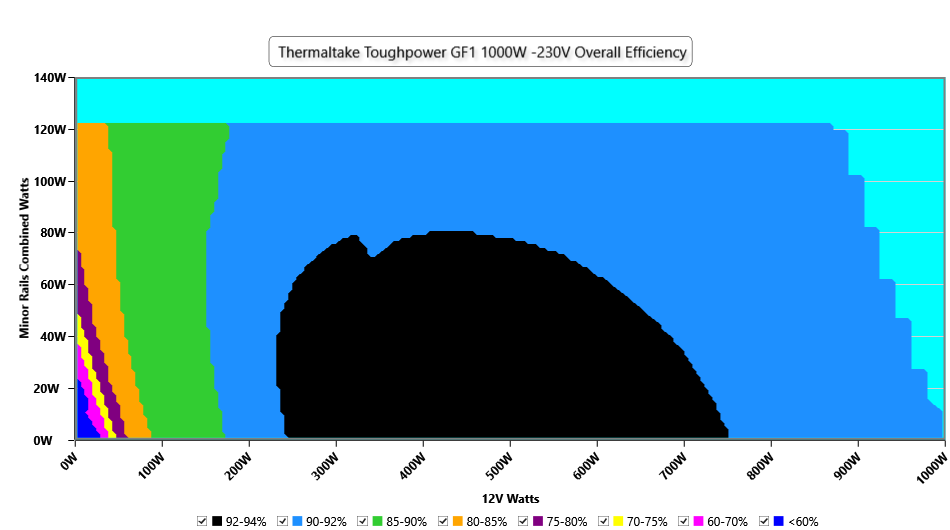

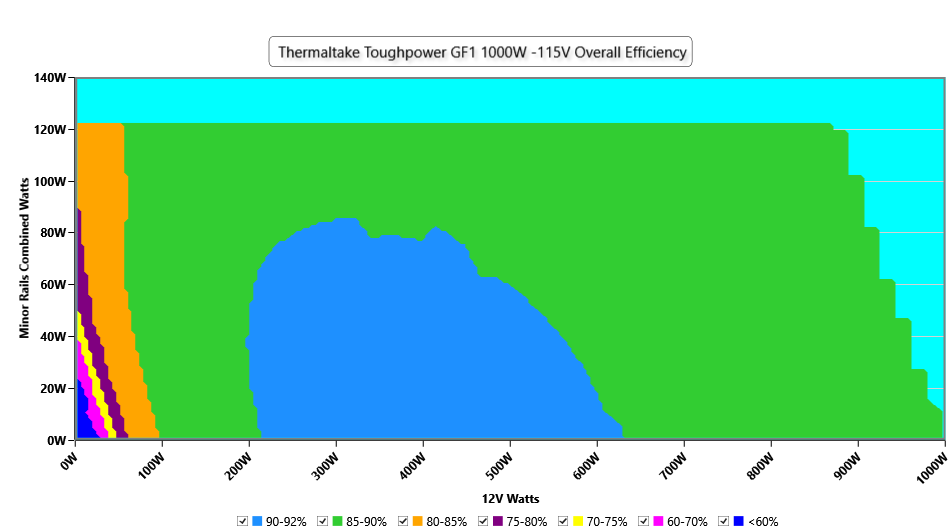

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

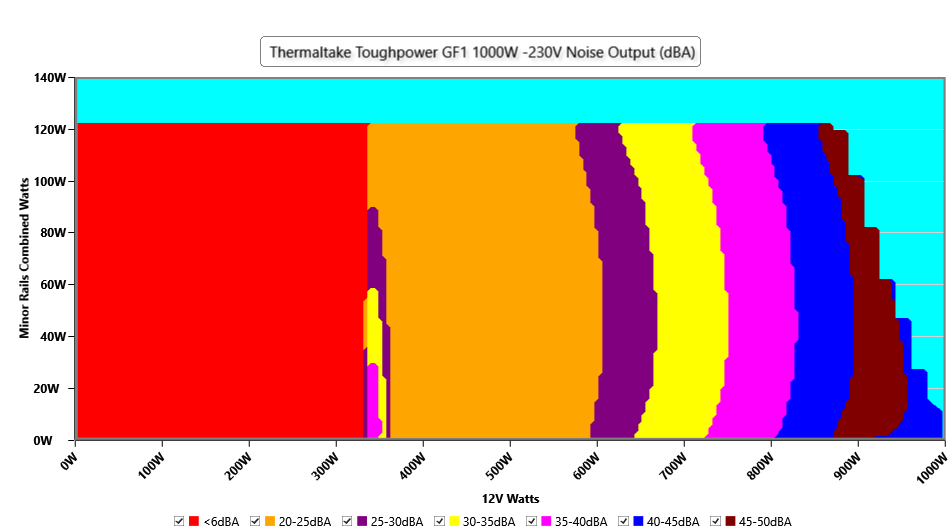

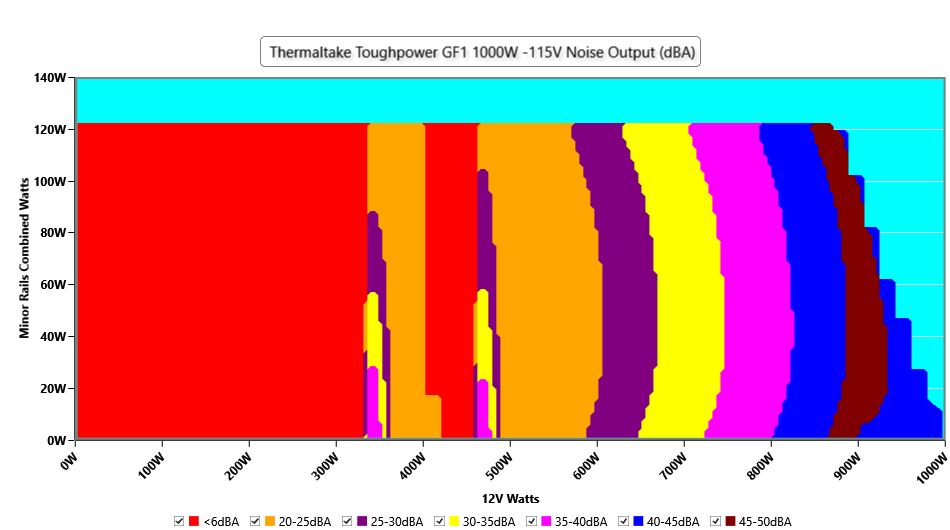

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

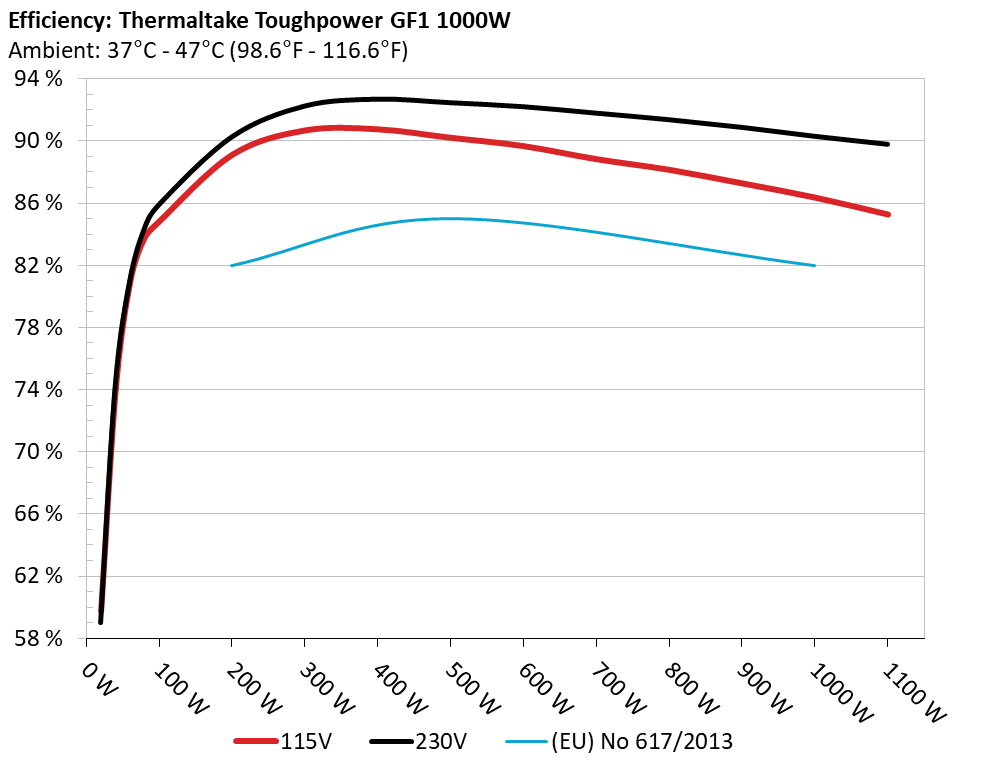

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

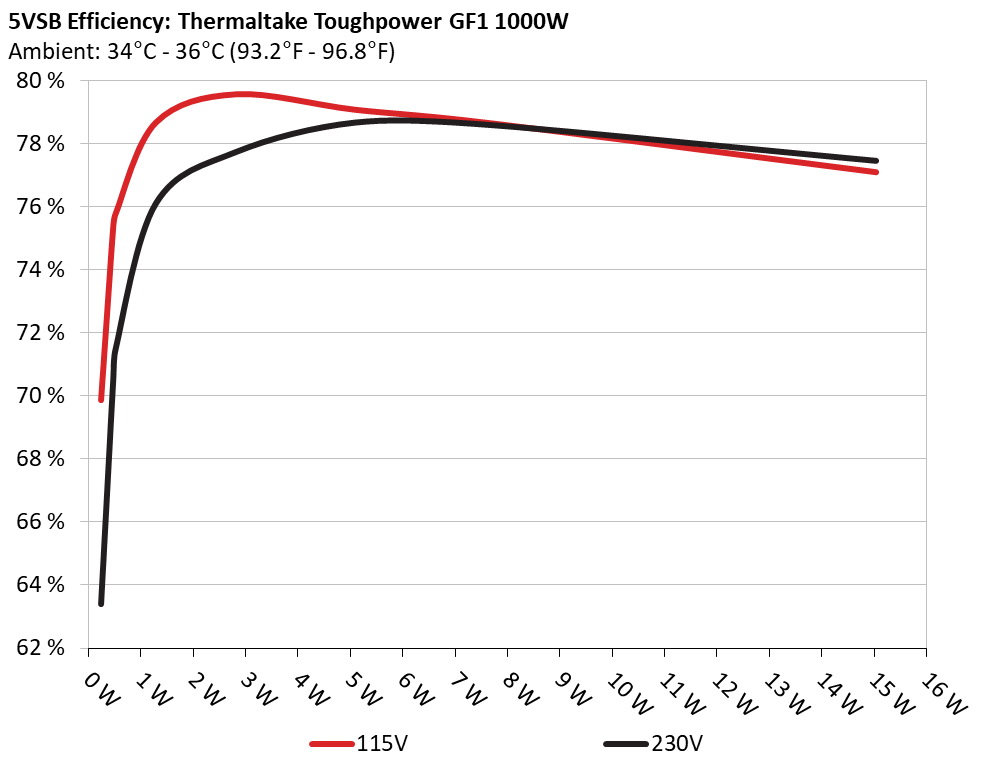

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 69.871% 0.033
5.117V 0.329W 115.13V
2 0.09A 0.461W 75.340% 0.061
5.115V 0.612W 115.12V
3 0.55A 2.805W 79.553% 0.269
5.099V 3.526W 115.13V
4 1A 5.084W 79.064% 0.364
5.083V 6.43W 115.13V
5 1.5A 7.6W 78.650% 0.417
5.066V 9.663W 115.13V
6 3.001A 15.039W 77.088% 0.479
5.012V 19.509W 115.12V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 63.404% 0.011
5.116V 0.363W 230.26V
2 0.09A 0.461W 70.486% 0.02
5.115V 0.654W 230.26V
3 0.55A 2.805W 77.723% 0.103
5.099V 3.609W 230.26V
4 1A 5.084W 78.656% 0.17
5.083V 6.464W 230.26V
5 1.5A 7.599W 78.587% 0.229
5.065V 9.67W 230.26V
6 3.001A 15.038W 77.446% 0.334
5.012V 19.418W 230.26V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.476A 1.985A 1.972A 0.987A 100.032 84.851% 0 <6.0 46.19°C 0.963
12.110V 5.038V 3.347V 5.069V 117.892 40.82°C 115.14V
20% 13.961A 2.98A 2.961A 1.188A 199.998 89.134% 0 <6.0 46.83°C 0.976
12.112V 5.034V 3.344V 5.052V 224.379 40.97°C 115.14V
30% 21.792A 3.479A 3.457A 1.391A 300.071 90.708% 0 <6.0 47.73°C 0.976
12.116V 5.031V 3.341V 5.034V 330.809 41.35°C 115.14V
40% 29.626A 3.978A 3.955A 1.595A 399.894 90.78% 0 <6.0 48.4°C 0.972
12.107V 5.029V 3.338V 5.017V 440.509 41.65°C 115.14V
50% 37.162A 4.976A 4.949A 1.801A 499.627 90.238% 960 27.3 41.95°C 0.975
12.085V 5.026V 3.335V 4.999V 553.68 49.2°C 115.13V
60% 44.792A 5.975A 5.947A 2A 600.119 89.698% 993 28.3 42.48°C 0.978
12.063V 5.023V 3.33V 4.984V 669.041 50.26°C 115.13V
70% 52.300A 6.976A 6.945A 2.216A 699.853 88.86% 1266 35.6 42.87°C 0.98
12.060V 5.019V 3.327V 4.965V 787.592 51.23°C 115.12V
80% 59.899A 7.979A 7.946A 2.324A 799.904 88.173% 1530 41.1 43.59°C 0.982
12.053V 5.016V 3.323V 4.951V 907.2 52.32°C 115.12V
90% 67.824A 8.483A 8.436A 2.432A 899.71 87.305% 1751 45.0 44.54°C 0.984
12.049V 5.012V 3.32V 4.936V 1030.542 53.83°C 115.12V
100% 75.572A 8.988A 8.957A 3.061A 999.721 86.393% 1745 44.6 45.97°C 0.985
12.042V 5.009V 3.316V 4.902V 1157.18 55.8°C 115.11V
110% 83.271A 9.995A 10.055A 3.069A 1100.351 85.298% 1743 44.3 46.64°C 0.987
12.033V 5.005V 3.312V 4.89V 1290.012 57.38°C 115.11V
CL1 0.116A 14.389A 14.31A 0A 121.346 82.461% 840 22.7 42.26°C 0.973
12.083V 5.02V 3.333V 5.09V 147.156 49.4°C 115.15V
CL2 0.116A 23.955A 0A 0A 121.452 80.603% 0 <6.0 51.45°C 0.973
12.087V 5.011V 3.348V 5.096V 150.679 43.45°C 115.15V
CL3 0.116A 0A 23.801A 0A 80.6 74.691% 0 <6.0 53.87°C 0.962
12.105V 5.035V 3.327V 5.094V 107.911 44.91°C 115.15V
CL4 83.012A 0A 0A 0A 1000.252 86.873% 1758 45.4 45.93°C 0.985
12.049V 5.025V 3.329V 5.027V 1151.392 55.75°C 115.11V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.474A 1.985A 1.972A 0.987A 100.026 85.89% 0 <6.0 45.29°C 0.822
12.115V 5.038V 3.347V 5.069V 116.459 40.01°C 230.29V
20% 13.962A 2.98A 2.961A 1.188A 199.986 90.242% 0 <6.0 46.75°C 0.9
12.109V 5.034V 3.344V 5.052V 221.61 40.95°C 230.29V
30% 21.798A 3.479A 3.457A 1.39A 300.052 92.232% 0 <6.0 47.86°C 0.929
12.111V 5.031V 3.341V 5.035V 325.324 41.47°C 230.29V
40% 29.626A 3.978A 3.954A 1.595A 399.853 92.672% 0 <6.0 48.68°C 0.94
12.105V 5.029V 3.338V 5.017V 431.471 41.87°C 230.28V
50% 37.188A 4.975A 4.949A 1.8A 499.599 92.447% 878 24.1 42.24°C 0.949
12.076V 5.026V 3.334V 5.001V 540.415 49.62°C 230.28V
60% 44.751A 5.974A 5.945A 2A 600.066 92.192% 1126 32.0 42.88°C 0.953
12.073V 5.023V 3.33V 4.983V 650.885 50.83°C 230.29V
70% 52.274A 6.975A 6.944A 2.216A 699.819 91.778% 1336 37.2 43.45°C 0.956
12.065V 5.019V 3.327V 4.965V 762.513 51.84°C 230.29V
80% 59.883A 7.978A 7.945A 2.323A 799.84 91.356% 1547 41.2 43.88°C 0.959
12.055V 5.016V 3.323V 4.952V 875.524 52.77°C 230.28V
90% 67.820A 8.482A 8.435A 2.431A 899.618 90.865% 1748 44.8 44.46°C 0.961
12.048V 5.013V 3.32V 4.938V 990.056 53.79°C 230.29V
100% 75.566A 8.987A 8.956A 3.06A 999.634 90.29% 1746 44.7 45.47°C 0.963
12.042V 5.009V 3.316V 4.903V 1107.14 55.38°C 230.28V
110% 83.236A 9.993A 10.053A 3.066A 1100.212 89.779% 1747 44.7 46.54°C 0.965
12.036V 5.005V 3.312V 4.893V 1225.474 57.33°C 230.28V
CL1 0.116A 14.386A 14.309A 0A 121.33 82.899% 840 22.7 42.43°C 0.854
12.086V 5.021V 3.333V 5.091V 146.36 49.61°C 230.28V
CL2 0.116A 23.95A 0A 0A 121.438 81.305% 0 <6.0 51.65°C 0.856
12.095V 5.012V 3.349V 5.096V 149.361 43.92°C 230.28V
CL3 0.116A 0A 23.798A 0A 80.591 75.471% 0 <6.0 53.21°C 0.803
12.113V 5.034V 3.328V 5.094V 106.784 44.7°C 230.28V
CL4 82.980A 0A 0A 0A 1000.131 90.895% 1754 45.1 45.25°C 0.962
12.053V 5.025V 3.329V 5.028V 1100.316 54.51°C 230.28V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.226A 0.496A 0.492A 0.196A 20.012 59.778% 0 <6.0 40.23°C 0.847
12.116V 5.043V 3.352V 5.106V 33.478 36.95°C 115.14V
40W 2.698A 0.694A 0.689A 0.294A 40.013 73.993% 0 <6.0 41.35°C 0.923
12.116V 5.042V 3.351V 5.101V 54.077 37.65°C 115.14V
60W 4.172A 0.893A 0.887A 0.393A 60.014 80.979% 0 <6.0 42.42°C 0.938
12.116V 5.042V 3.35V 5.095V 74.11 38.24°C 115.14V
80W 5.640A 1.091A 1.084A 0.491A 79.981 83.813% 0 <6.0 44.06°C 0.958
12.117V 5.041V 3.35V 5.089V 95.428 39.34°C 115.14V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.226A 0.496A 0.492A 0.196A 20.011 59.026% 0 <6.0 39.89°C 0.53
12.113V 5.043V 3.351V 5.106V 33.902 36.78°C 230.29V
40W 2.700A 0.694A 0.689A 0.294A 40.012 74.232% 0 <6.0 40.7°C 0.652
12.114V 5.042V 3.351V 5.101V 53.9 37.17°C 230.29V
60W 4.172A 0.893A 0.887A 0.393A 60.012 80.984% 0 <6.0 42.82°C 0.727
12.113V 5.041V 3.35V 5.095V 74.103 38.7°C 230.29V
80W 5.642A 1.091A 1.084A 0.491A 79.974 84.346% 0 <6.0 44.61°C 0.78
12.113V 5.04V 3.349V 5.09V 94.816 39.87°C 230.29V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load8.03mV12.67mV14.37mV4.25mVPass
20% Load8.55mV12.61mV12.02mV4.30mVPass
30% Load12.67mV13.43mV12.17mV4.86mVPass
40% Load10.69mV13.33mV12.63mV4.86mVPass
50% Load9.93mV13.64mV15.90mV5.17mVPass
60% Load9.93mV13.69mV15.29mV5.42mVPass
70% Load9.82mV14.51mV15.34mV5.53mVPass
80% Load9.98mV14.40mV15.80mV6.04mVPass
90% Load10.03mV15.68mV17.44mV6.50mVPass
100% Load15.76mV16.16mV19.13mV7.30mVPass
110% Load15.57mV16.86mV19.75mV7.84mVPass
Crossload18.61mV13.42mV13.64mV8.47mVPass
Crossload29.31mV12.62mV14.01mV8.09mVPass
Crossload39.21mV12.56mV12.78mV7.93mVPass
Crossload415.16mV16.33mV19.18mV10.58mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load7.68mV12.36mV11.35mV4.40mVPass
20% Load8.50mV12.62mV11.66mV4.50mVPass
30% Load12.31mV13.59mV14.98mV4.71mVPass
40% Load15.76mV18.85mV12.53mV8.44mVPass
50% Load9.41mV14.45mV14.16mV5.48mVPass
60% Load9.88mV14.25mV14.57mV5.68mVPass
70% Load9.82mV14.86mV15.50mV5.88mVPass
80% Load9.78mV14.55mV25.16mV6.19mVPass
90% Load9.77mV15.02mV16.41mV6.24mVPass
100% Load15.04mV16.87mV19.56mV7.39mVPass
110% Load15.22mV17.09mV19.87mV7.50mVPass
Crossload18.25mV13.97mV13.48mV8.00mVPass
Crossload28.85mV12.51mV12.17mV8.29mVPass
Crossload38.80mV13.07mV12.63mV7.93mVPass
Crossload414.15mV16.81mV18.26mV10.34mVPass

The results above are not used in the certification process

Thermaltake Toughpower GF1 1000W

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
