MiFCOM Performance 450W
Lab IDMC45001879
  • Report: 21PS1879A
  • Receipt Date: Jun 24, 2021
  • Test Date: Jul 26, 2021
  • Report Date: Jul 26, 2021
115V230V
效率評比
115V230V
噪音評比
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

MiFCOM
製造商 (OEM)Casecom
Performance

(Vrms)200-240
(Arms)4
(Hz)47-63
(W)450
ATX12V
120mm Fluid Dynamic Bearing Fan
(KF1225FD15-2P)
✗
Fixed cables

Rail3.3V5V12V5VSB-12V
Max. PowerAmps2020372.50.3
Watts10044412.53.6
Total Max. Power (W)450

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Captive Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (550mm) 1 1 18-22AWG No
4+4 pin EPS12V (600mm) 1 1 18AWG No
6+2 pin PCIe (600mm) 1 1 18AWG No
SATA (500mm+150mm+150mm) 1 3 18AWG No
SATA (510mm+150mm) 1 2 18AWG
4-pin Molex (460mm+150mm+150mm) 1 3 18AWG No
Modular Cables
AC Power Cord (1650mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data -
Manufacturer (OEM) Casecom
PCB Type Single Sided
Primary Side -
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x DM chokes, 1x MOV
Inrush Protection NTC Thermistor MF72-3D13 (3 Ohm)
Bridge Rectifier(s) 1x  GBU606 (600V, 6A @ 110°C)
APFC MOSFETs 1x First Semi FIR13N50F
APFC Boost Diode 1x WeEn BYC8X-600 (600V, 8A)
Bulk Cap(s) 2x Teapo (400V, 180uF each or 360uF combined, 2,000h @ 85°C, LH)
Main Switchers 2x First Semi FIR10N50F
PFC / PWM Combo Controller Champion CM6800TX
Topology Primary side: APFC, Double Forward
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side -
+12V MOSFETs 2x Advanced Power AP9992GP (60V, 115A @ 100°C, Rds(on): 2.99mOhm)
5V & 3.3V DC-DC Converters: 4x Maplesemi SLD80N03T (30V, 48A @ 100°C, Rds(on): 5.5mOhm)
PWM Controller(s): 2x ANPEC APW7073
Filtering Capacitors Electrolytic: 15x Teapo (3,000h @ 105°C, SC)
Polymer: 5x NJcon
Synchronous Rectifier Driver IC Sync Power SP6019
Supervisor IC Grenergy GR8329N (OVP, UVP, OCP, PG, SCP)
Fan Model MIFCOM (Scythe) KF1225FD15-2P (120mm, 12V, 0.15A, Fluid Dynamic Fan)
5VSB Circuit -
Standby PWM Controller Developer MIcroelectronics DP2358

Test Results

Temperature & Compliance Info

(°C /°F)30-32 / 86-89.6
✓
✓

Performance Summary 230V

效率評比BRONZE
噪音評比Standard++
(>1450 load combinations)86.517%
Average Noise Output (>1450 Load Combinations)33.91dBA
(>1450 Load Combinations)0.949
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
0.1315W
12V Ripple (Full Load)46.42mV
5V Ripple (Full Load)18.41mV
3.3V Ripple (Full Load)25.19mV
5VSB Ripple (Full Load)23.15mV
12V Load Regulation2.42%
5V Load Regulation2.09%
3.3V Load Regulation3.40%
5VSB Load Regulation3.43%
Inrush Current86.040A
12V Transient Response (150%)0.00V
5V Transient Response (150%)V
3.3V Transient Response (150%)V
5VSB Transient Response (150%)V
15.80ms
AC Loss to PWR_OK Hold Up Time14.90ms
PWR_OK Inactive to DC Loss Delay0.90ms
PSU Timings: T1 (20% / 100%)76.0ms94.0ms
PSU Timings: T3 (20% / 100%)268.0ms264.0ms
OPP (24.12°C / 0.00°C)124.34%0.00%

Hold-Up Time (ms)15.8
AC Loss to PWR_OK Hold Up Time (ms)14.9
PWR_OK Inactive to DC Loss Delay (ms)0.9

待機電源消耗

Tables 230V

Graphs 230V

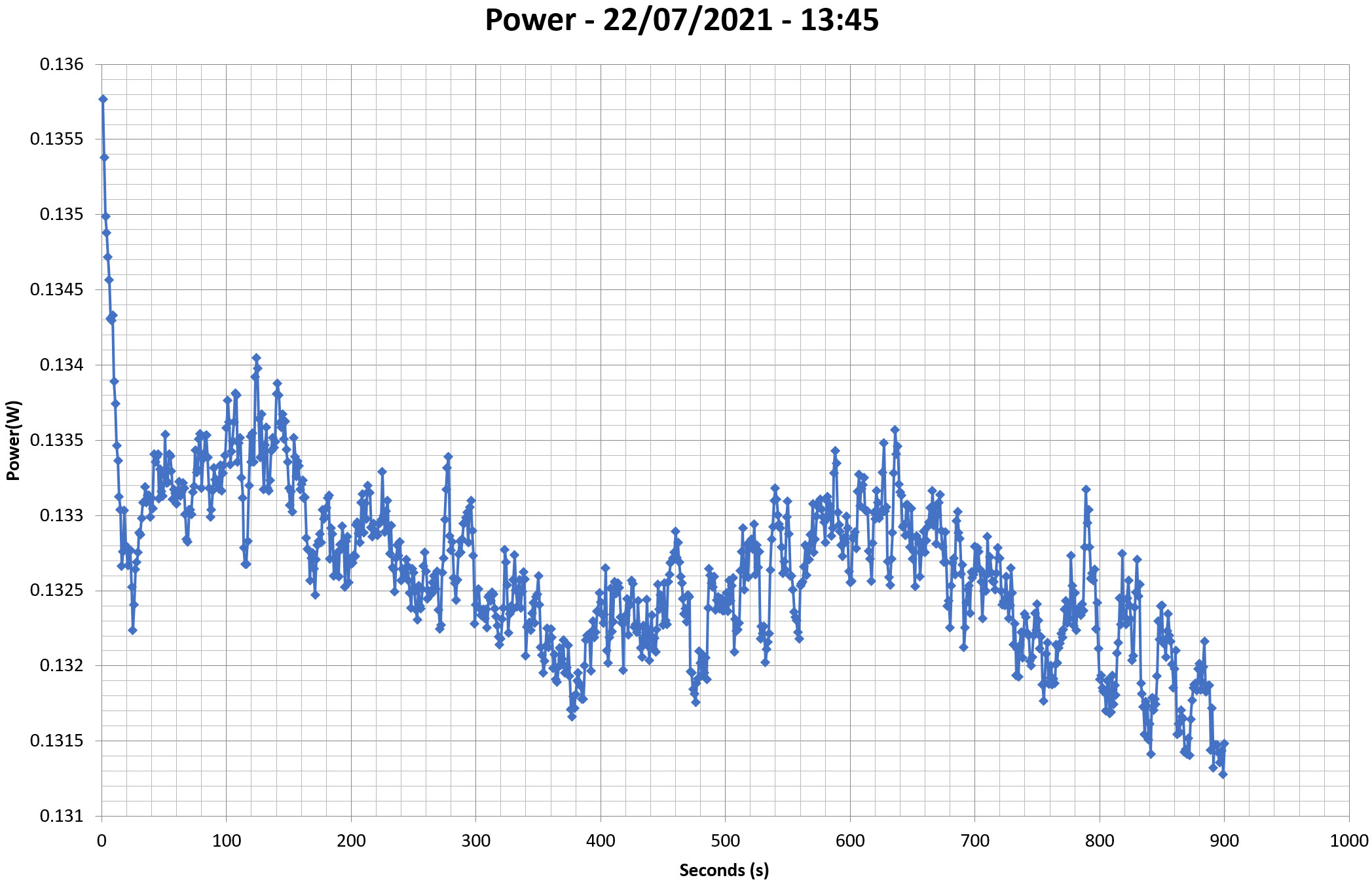

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

230V

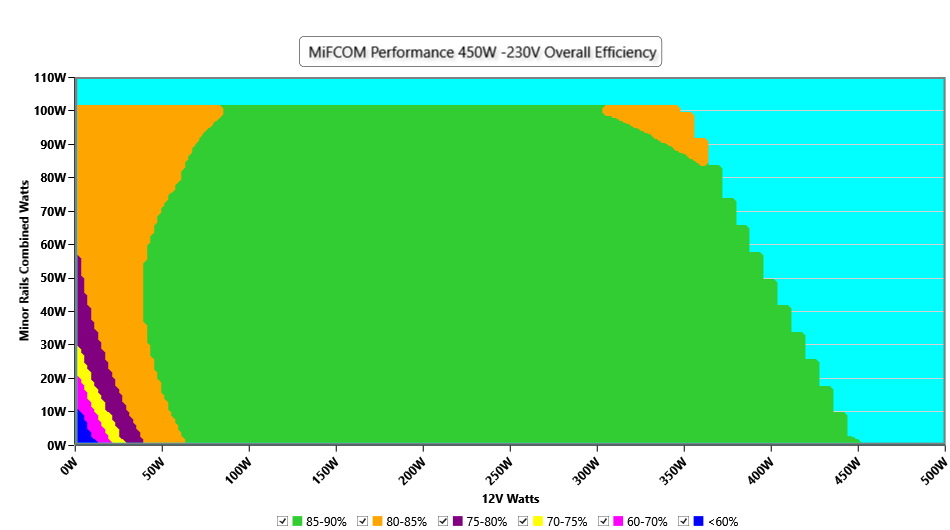

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

230V

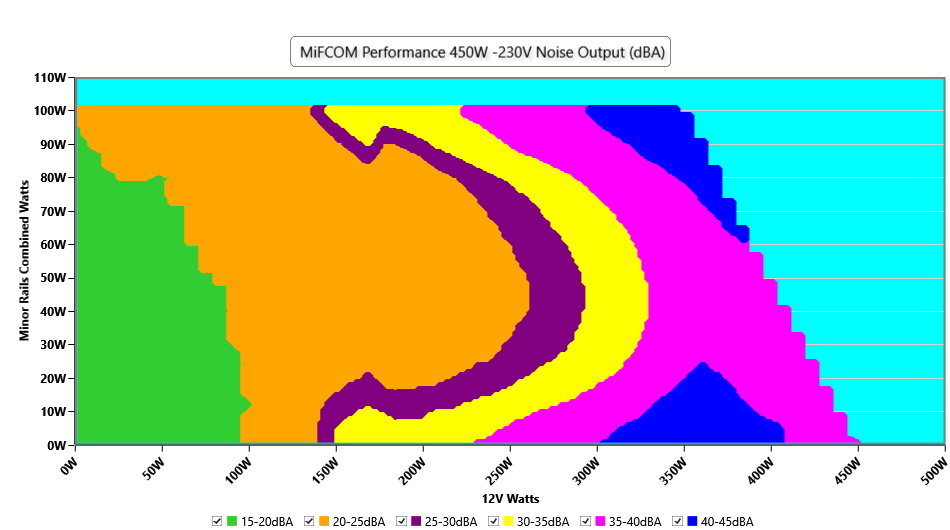

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

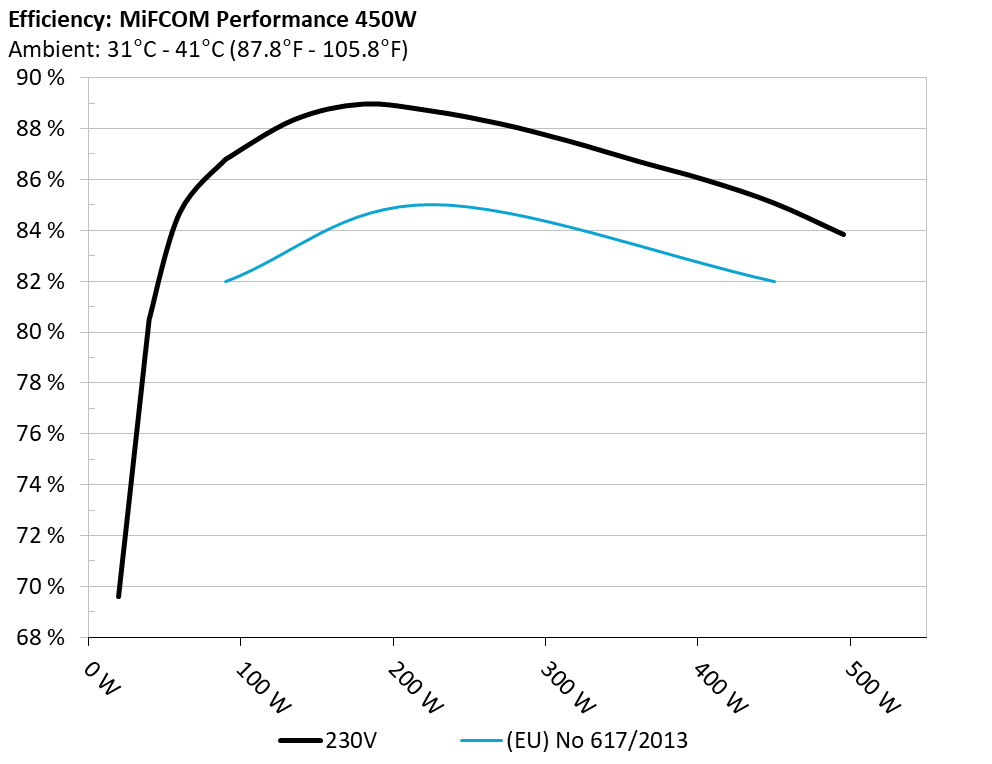

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

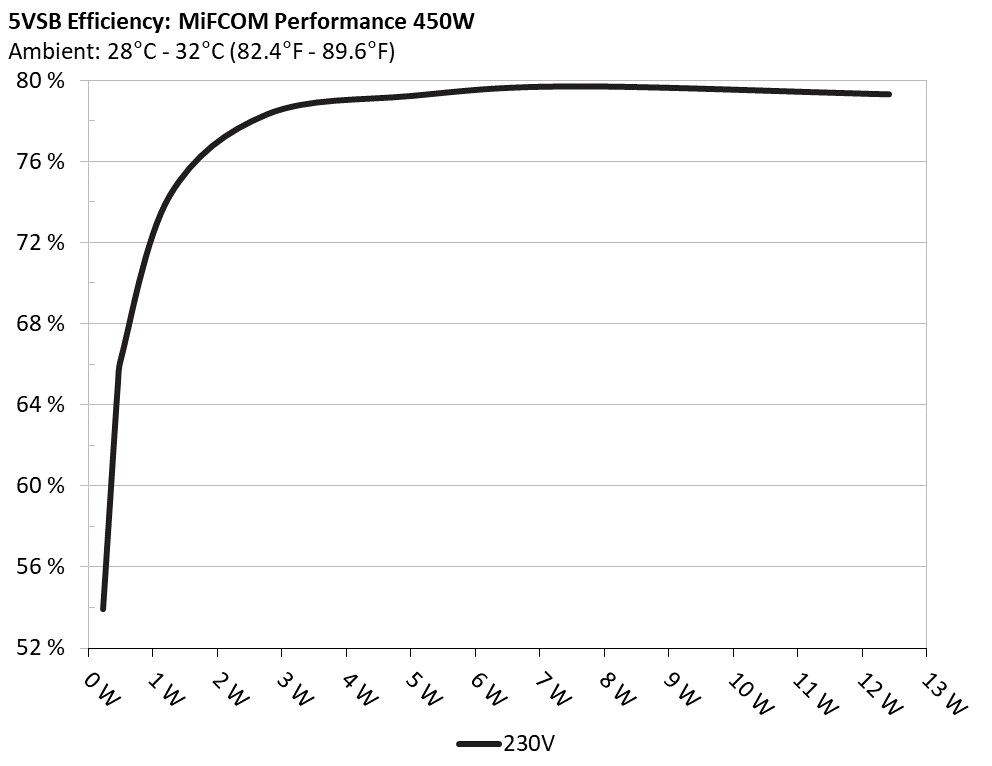

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

230V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.227W 53.94% 0.014
5.041V 0.421W 230.3V
2 0.09A 0.454W 64.921% 0.023
5.039V 0.699W 230.29V
3 0.55A 2.765W 78.298% 0.109
5.025V 3.531W 230.29V
4 1A 5.012W 79.212% 0.177
5.011V 6.327W 230.29V
5 1.5A 7.495W 79.68% 0.233
4.996V 9.406W 230.29V
9 2.501A 12.416W 79.287% 0.305
4.965V 15.66W 230.29V

Supplementary Tests (For Reference)

230V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 1.926A 1.916A 1.96A 1A 45.02 80.496% 677 19.6 34.11°C 0.763
12.158V 5.22V 3.367V 5.001V 55.929 39.12°C 230.3V
20% 4.874A 2.88A 2.951A 1.204A 90.027 86.515% 680 20.0 34.51°C 0.893
12.130V 5.209V 3.356V 4.986V 104.059 40.24°C 230.3V
30% 8.174A 3.366A 3.452A 1.408A 134.977 88.339% 682 20.0 35.41°C 0.932
12.101V 5.2V 3.347V 4.972V 152.794 41.57°C 230.3V
40% 11.502A 3.854A 3.956A 1.614A 180.066 88.953% 687 19.7 35.86°C 0.953
12.072V 5.191V 3.337V 4.958V 202.427 42.41°C 230.3V
50% 14.494A 4.828A 4.963A 1.821A 225.067 88.683% 919 27.9 36.32°C 0.964
12.043V 5.18V 3.325V 4.942V 253.787 43.32°C 230.3V
60% 17.500A 5.808A 5.978A 2A 269.921 88.184% 1147 34.3 36.48°C 0.974
12.014V 5.167V 3.313V 4.927V 306.089 44.45°C 230.29V
70% 20.523A 6.794A 7.001A 2.242A 315.069 87.503% 1395 39.4 37.34°C 0.977
11.984V 5.154V 3.3V 4.909V 360.065 46.01°C 230.3V
80% 23.609A 7.784A 8.032A 2.35A 360.136 86.713% 1516 41.6 37.74°C 0.98
11.953V 5.141V 3.287V 4.895V 415.32 47.01°C 230.3V
90% 27.074A 8.286A 8.546A 2.459A 405.254 85.966% 1519 41.7 38.6°C 0.983
11.920V 5.132V 3.277V 4.881V 471.414 48.51°C 230.3V
100% 30.522A 8.792A 9.099A 2.57A 449.973 85.061% 1519 41.7 39.6°C 0.985
11.885V 5.121V 3.265V 4.866V 528.999 49.82°C 230.29V
110% 33.722A 9.794A 10.244A 2.576A 495.382 83.831% 1519 41.7 40.88°C 0.987
11.848V 5.108V 3.251V 4.854V 590.929 51.69°C 230.29V
CL1 0.116A 11.636A 11.947A 0.001A 101.34 78.936% 1430 40.0 36.02°C 0.915
12.120V 5.176V 3.323V 4.994V 128.382 43.27°C 230.3V
CL2 0.118A 19.318A 0A 0.001A 101.467 76.35% 1234 36.2 37.34°C 0.918
12.109V 5.178V 3.345V 5.007V 132.898 45.86°C 230.3V
CL3 0.115A 0A 19.825A 0A 67.401 70.952% 1271 37.0 38.71°C 0.881
12.153V 5.216V 3.329V 5V 94.995 48.37°C 230.3V
CL4 37.863A 0A 0A 0.001A 449.893 86.909% 1517 41.6 39.66°C 0.984
11.882V 5.167V 3.304V 4.979V 517.663 49.75°C 230.3V

The results above are not used in the certification process

230V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.221A 0.478A 0.489A 0.199A 20.014 69.608% 670 19.0 30.6°C 0.563
12.173V 5.228V 3.376V 5.033V 28.752 33.74°C 230.3V
40W 2.690A 0.67A 0.685A 0.299A 40.015 80.428% 673 19.2 31.57°C 0.732
12.160V 5.226V 3.373V 5.027V 49.753 35.21°C 230.3V
60W 4.161A 0.862A 0.882A 0.399A 60.017 84.68% 673 19.2 32.55°C 0.818
12.148V 5.222V 3.369V 5.02V 70.875 36.72°C 230.3V
80W 5.633A 1.054A 1.079A 0.499A 79.987 86.779% 675 19.3 32.84°C 0.875
12.135V 5.218V 3.365V 5.014V 92.174 37.61°C 230.3V

The results above are not used in the certification process

230V

Test12V5V3.3V5VSBPass/Fail
10% Load12.23mV11.90mV16.11mV9.21mVPass
20% Load13.92mV11.34mV16.16mV9.31mVPass
30% Load14.43mV11.59mV16.67mV9.72mVPass
40% Load17.60mV12.36mV16.93mV10.18mVPass
50% Load18.83mV12.62mV17.90mV11.41mVPass
60% Load20.88mV12.56mV17.90mV11.67mVPass
70% Load23.13mV13.59mV19.07mV12.33mVPass
80% Load27.48mV14.30mV20.66mV13.10mVPass
90% Load34.75mV15.88mV23.68mV13.82mVPass
100% Load46.42mV18.41mV25.19mV23.15mVPass
110% Load51.88mV19.53mV25.50mV24.19mVPass
Crossload128.49mV18.22mV25.25mV20.17mVPass
Crossload233.93mV22.57mV19.89mV19.70mVPass
Crossload315.40mV16.70mV27.26mV17.19mVPass
Crossload438.05mV14.87mV18.79mV18.63mVPass

The results above are not used in the certification process

MiFCOM Performance 450W

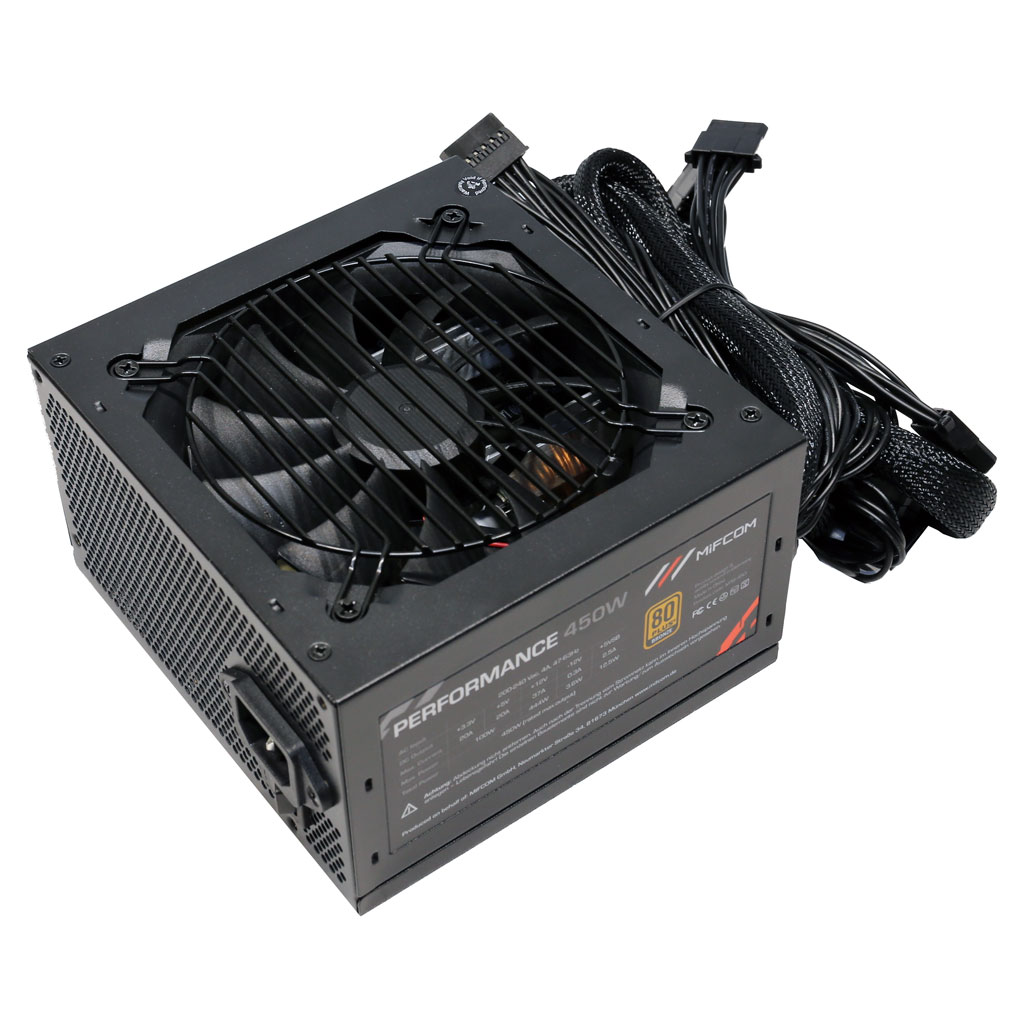

Top side

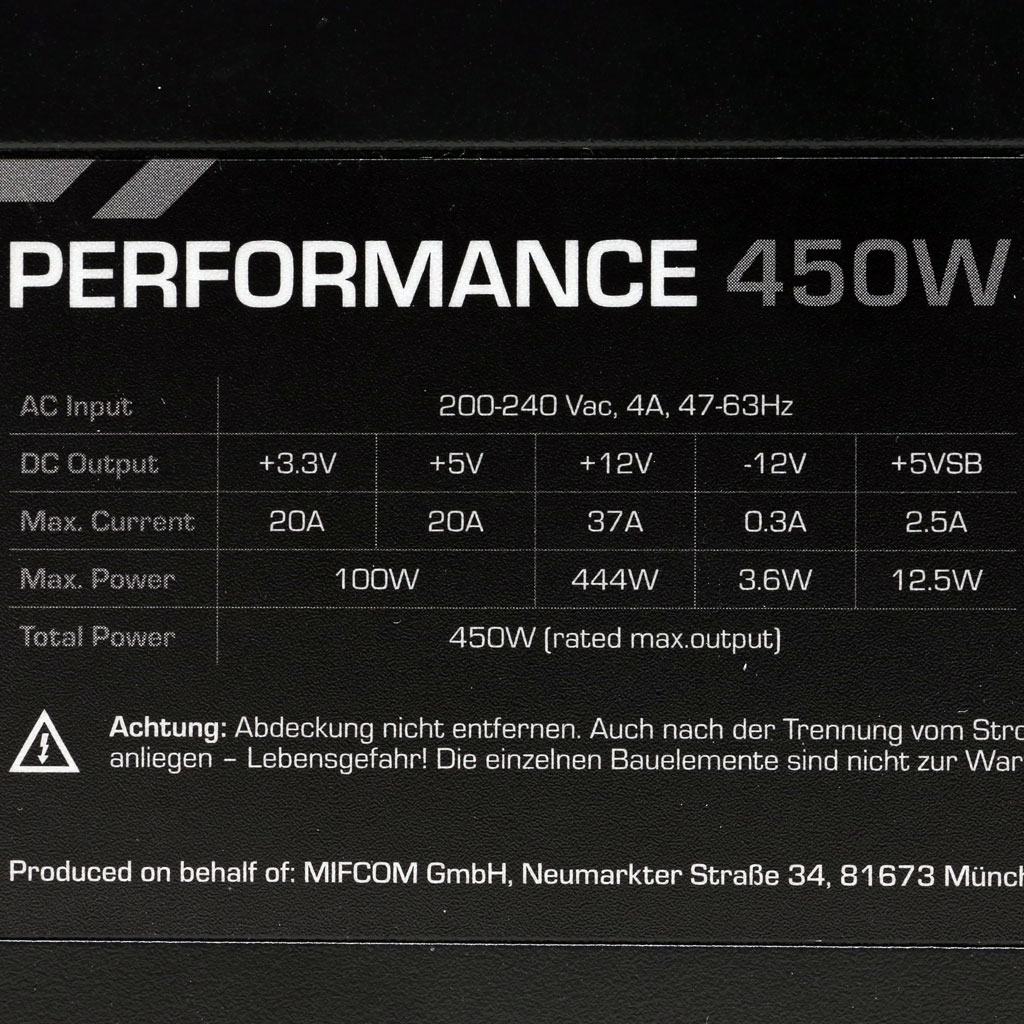

Power specifications label
