CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
MiFCOM Performance 550W
Lab IDMC55001875
  • Report: 21PS1875A
  • Receipt Date: Jun 24, 2021
  • Test Date: Jul 22, 2021
  • Report Date: Jul 23, 2021
115V230V
效率評比
115V230V
噪音評比
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

MiFCOM
製造商 (OEM)Casecom
Performance

(Vrms)200-240
(Arms)4.5
(Hz)47-63
(W)550
ATX12V
120mm Fluid Dynamic Bearing Fan
(KF1225FD15-2P)
✗
Semi Modular

Rail3.3V5V12V5VSB-12V
Max. PowerAmps2020452.50.3
Watts11054012.53.6
Total Max. Power (W)550

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Captive Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (550mm) 1 1 18-22AWG No
4+4 pin EPS12V (600mm) 1 1 18AWG No
Modular Cables
6+2 pin PCIe (600mm+150mm) 1 2 18AWG No
SATA (500mm+150mm+150mm) 2 6 18AWG No
4-pin Molex (450mm+150mm+150mm) 1 3 18AWG No
AC Power Cord (1650mm) - C13 coupler 1 1 18AWG -

Test Results

Temperature & Compliance Info

(°C /°F)30-32 / 86-89.6
✓
✓

Performance Summary 230V

效率評比BRONZE
噪音評比Standard++
(>1450 load combinations)86.827%
Average Noise Output (>1450 Load Combinations)33.64dBA
(>1450 Load Combinations)0.954
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
0.1377W
12V Ripple (Full Load)50.80mV
5V Ripple (Full Load)31.33mV
3.3V Ripple (Full Load)23.11mV
5VSB Ripple (Full Load)24.81mV
12V Load Regulation2.74%
5V Load Regulation2.85%
3.3V Load Regulation4.82%
5VSB Load Regulation4.27%
Inrush Current84.520A
12V Transient Response (150%)0.00V
5V Transient Response (150%)V
3.3V Transient Response (150%)V
5VSB Transient Response (150%)V
15.10ms
AC Loss to PWR_OK Hold Up Time14.30ms
PWR_OK Inactive to DC Loss Delay0.80ms
PSU Timings: T1 (20% / 100%)82.0ms76.0ms
PSU Timings: T3 (20% / 100%)288.0ms278.0ms
OPP (27.83°C / 0.00°C)130.03%0.00%

Hold-Up Time (ms)15.1
AC Loss to PWR_OK Hold Up Time (ms)14.3
PWR_OK Inactive to DC Loss Delay (ms)0.8

待機電源消耗

Tables 230V

Graphs 230V

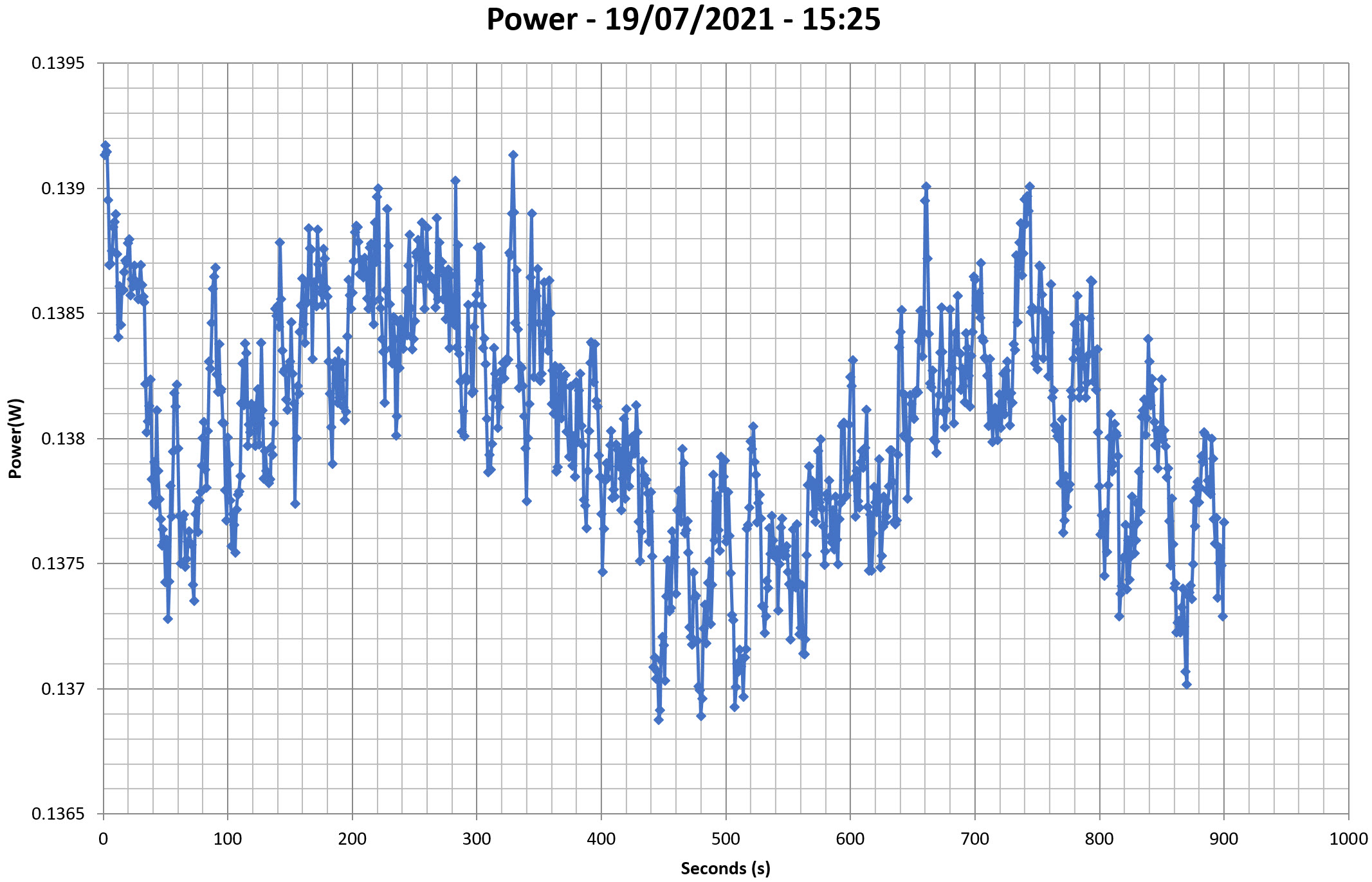

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

230V

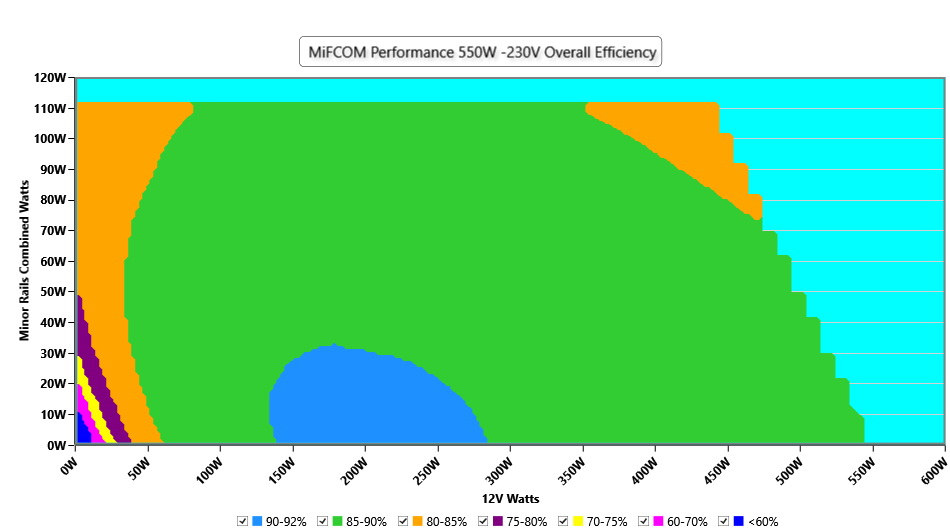

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

230V

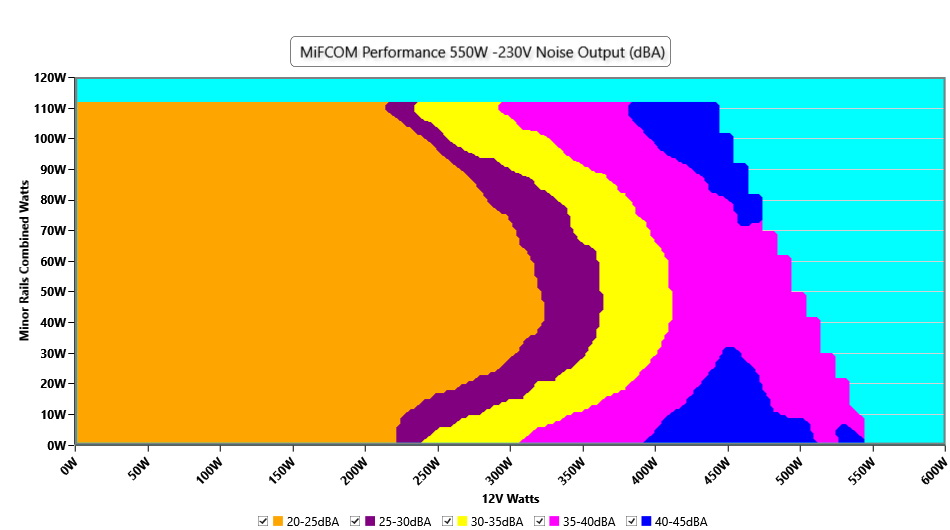

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

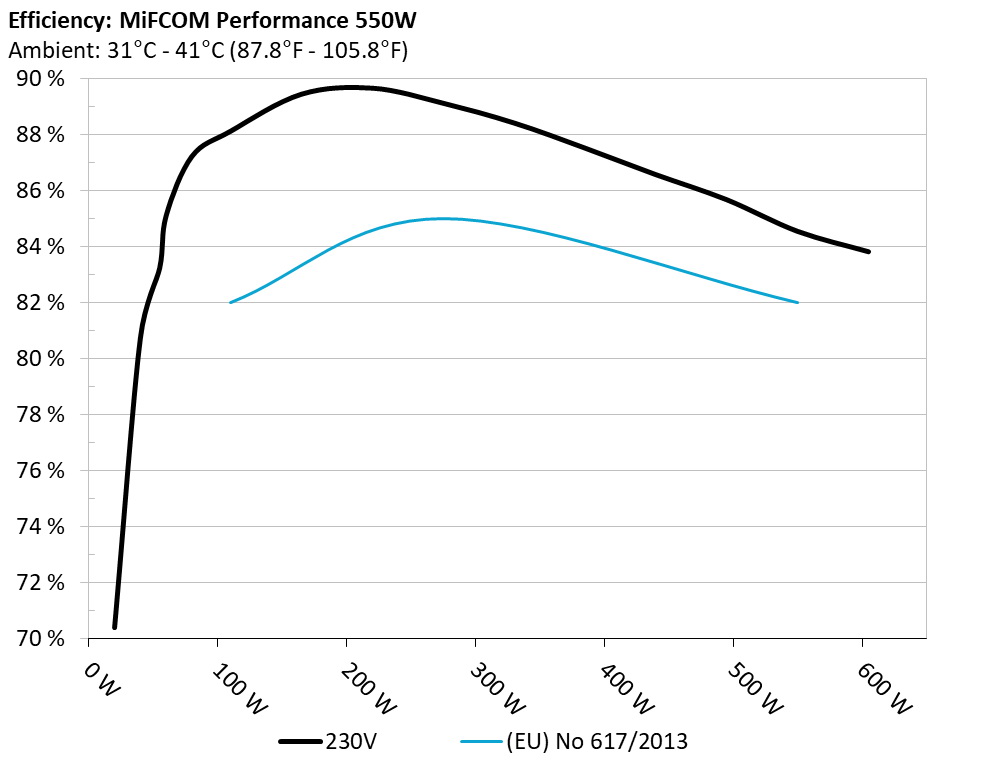

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

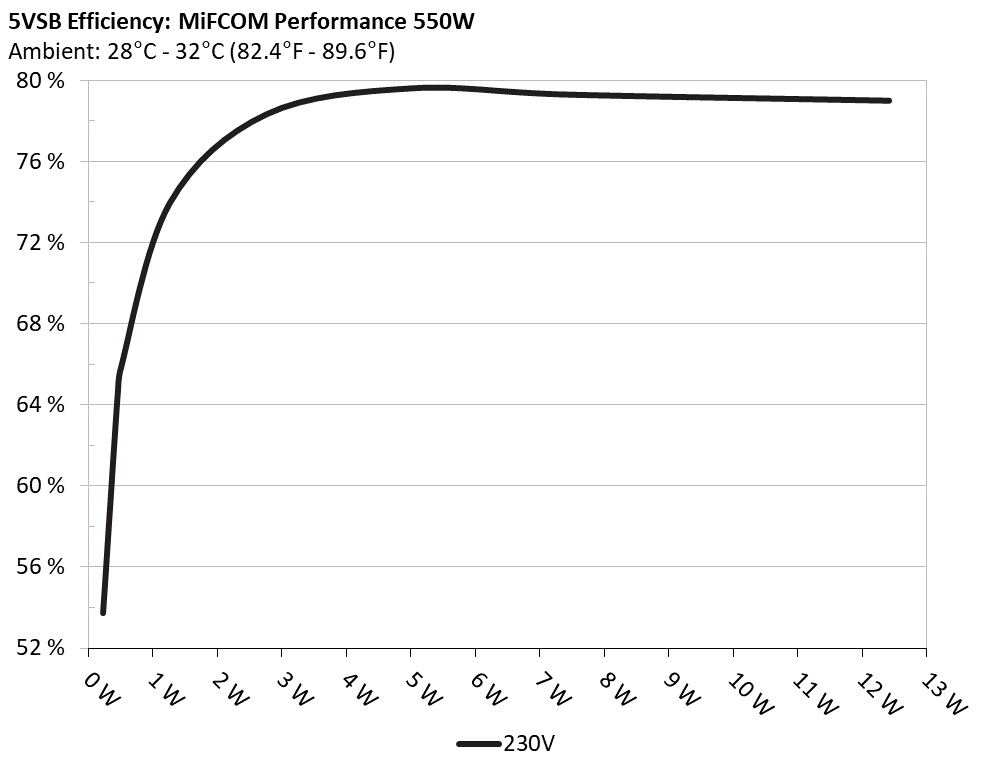

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

230V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.227W 53.739% 0.014
5.039V 0.422W 230.28V
2 0.09A 0.454W 64.561% 0.023
5.038V 0.703W 230.28V
3 0.55A 2.764W 78.335% 0.109
5.024V 3.528W 230.29V
4 1A 5.012W 79.608% 0.177
5.011V 6.296W 230.28V
5 1.5A 7.495W 79.294% 0.235
4.996V 9.452W 230.28V
6 2.501A 12.418W 78.998% 0.307
4.966V 15.719W 230.28V

Supplementary Tests (For Reference)

230V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 2.750A 1.928A 1.964A 1.001A 55.013 83.248% 681 20.0 35.12°C 0.829
12.149V 5.186V 3.36V 4.997V 66.084 40.27°C 230.27V
20% 6.524A 2.901A 2.96A 1.205A 109.966 88.136% 684 19.7 35.46°C 0.911
12.118V 5.171V 3.345V 4.978V 124.768 40.88°C 230.27V
30% 10.666A 3.393A 3.467A 1.411A 164.965 89.46% 685 19.7 36.13°C 0.942
12.086V 5.159V 3.331V 4.961V 184.401 41.85°C 230.27V
40% 14.836A 3.887A 3.978A 1.619A 220.052 89.675% 747 22.0 36.72°C 0.959
12.055V 5.146V 3.318V 4.943V 245.39 43.31°C 230.27V
50% 18.677A 4.873A 4.998A 1.829A 275.05 89.135% 1015 30.9 37.51°C 0.966
12.023V 5.131V 3.301V 4.923V 308.578 44.76°C 230.27V
60% 22.544A 5.867A 6.029A 2A 329.858 88.431% 1258 36.6 37.75°C 0.974
11.988V 5.114V 3.284V 4.903V 373.01 45.81°C 230.27V
70% 26.437A 6.868A 7.072A 2.255A 385.061 87.531% 1456 40.5 38.41°C 0.978
11.951V 5.098V 3.267V 4.88V 439.912 46.79°C 230.27V
80% 30.367A 7.873A 8.123A 2.367A 439.762 86.586% 1440 40.2 38.98°C 0.981
11.915V 5.082V 3.25V 4.861V 507.887 47.68°C 230.27V
90% 34.705A 8.389A 8.656A 2.478A 494.766 85.69% 1329 38.1 39.26°C 0.982
11.879V 5.068V 3.235V 4.845V 577.39 48.61°C 230.27V
100% 39.074A 8.907A 9.227A 2.591A 549.879 84.556% 1494 41.2 40.35°C 0.984
11.841V 5.054V 3.219V 4.825V 650.314 50.42°C 230.27V
110% 42.960A 9.84A 10.252A 2.561A 604.807 83.829% 1526 41.8 41.16°C 0.985
11.848V 5.083V 3.248V 4.881V 721.486 51.93°C 230.28V
CL1 0.115A 12.859A 13.172A 0.001A 111.324 80.421% 968 29.5 37.25°C 0.923
12.136V 5.15V 3.318V 4.996V 138.427 44.28°C 230.27V
CL2 0.115A 19.344A 0A 0.002A 101.444 77.817% 741 21.9 38.03°C 0.92
12.134V 5.171V 3.342V 5.011V 130.362 45.75°C 230.27V
CL3 0.115A 0A 19.83A 0A 67.39 72.457% 963 29.1 39.9°C 0.879
12.173V 5.182V 3.328V 5.005V 93.008 48.44°C 230.27V
CL4 46.369A 0A 0A 0A 549.749 86.465% 1508 41.6 40.25°C 0.983
11.856V 5.117V 3.285V 4.973V 635.812 49.53°C 230.27V

The results above are not used in the certification process

230V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.222A 0.481A 0.489A 0.199A 20.015 70.398% 676 19.3 31.15°C 0.596
12.165V 5.198V 3.374V 5.031V 28.431 34.37°C 230.27V
40W 2.690A 0.674A 0.686A 0.299A 40.013 80.746% 677 19.6 32°C 0.763
12.152V 5.193V 3.369V 5.024V 49.554 35.64°C 230.27V
60W 4.162A 0.867A 0.883A 0.399A 60.012 85.124% 680 20 33.2°C 0.84
12.142V 5.188V 3.363V 5.017V 70.499 37.32°C 230.28V
80W 5.634A 1.061A 1.081A 0.499A 79.975 87.236% 681 20 34.48°C 0.877
12.131V 5.184V 3.359V 5.01V 91.677 39.16°C 230.28V

The results above are not used in the certification process

230V

Test12V5V3.3V5VSBPass/Fail
10% Load15.96mV30.13mV16.00mV11.00mVPass
20% Load14.64mV19.77mV15.65mV11.26mVPass
30% Load14.02mV14.81mV15.85mV9.47mVPass
40% Load15.09mV17.06mV16.52mV9.88mVPass
50% Load19.14mV20.79mV17.64mV10.54mVPass
60% Load19.65mV15.78mV18.05mV11.62mVPass
70% Load23.28mV19.10mV18.10mV12.23mVPass
80% Load31.63mV22.01mV21.32mV14.18mVPass
90% Load36.18mV25.13mV21.68mV15.20mVPass
100% Load50.80mV31.33mV23.11mV24.81mVPass
110% Load66.66mV34.06mV27.23mV27.52mVPass
Crossload128.89mV22.26mV23.52mV24.87mVPass
Crossload229.17mV24.36mV23.88mV26.97mVPass
Crossload313.77mV26.05mV20.15mV18.22mVPass
Crossload441.61mV25.41mV19.18mV17.76mVPass

The results above are not used in the certification process

MiFCOM Performance 550W

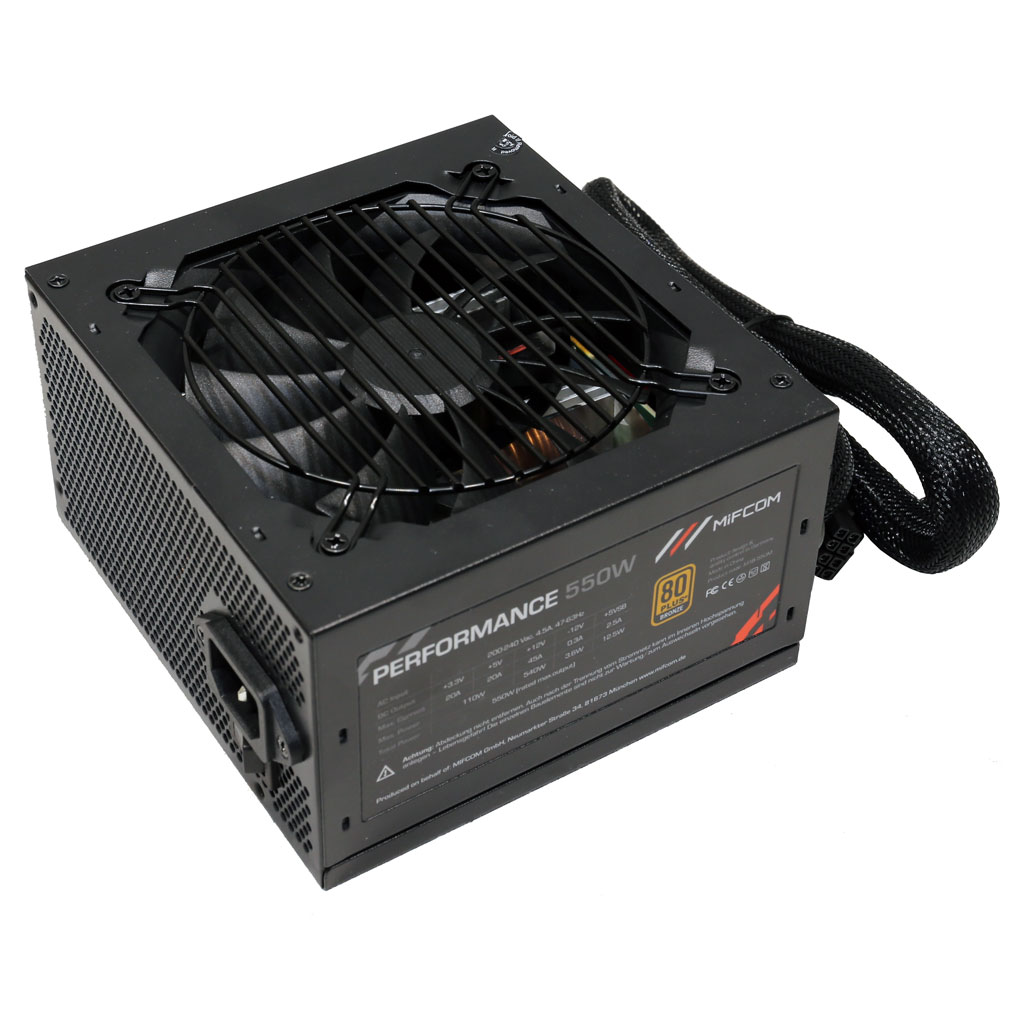

Top side

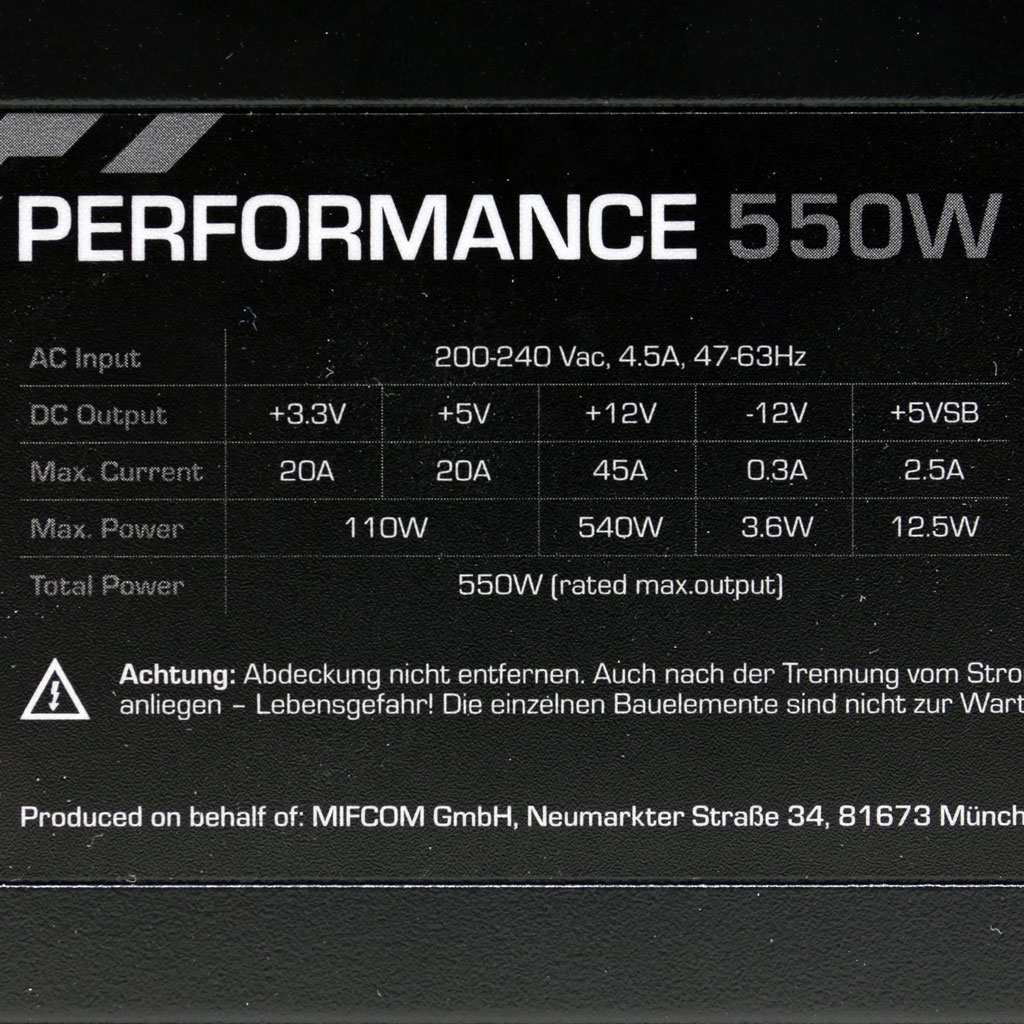

Power specifications label
CYBENETICS提供ETA和LAMBDA自願性認證 方案以推廣高效及靜音之電源供應器
