CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Asus ROG-THOR-1000P2-GAMING
Serial Number
Lab IDAS10001844
  • Report: 21PS1844A
  • Receipt Date: May 8, 2021
  • Test Date: May 11, 2021
  • Report Date: May 12, 2021
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandAsus
Manufacturer (OEM)Seasonic
SeriesRog Thor Platinum
Model NumberRTSS01-1000P2
Serial Number
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)15-7.5
Rated Frequency (Hz)50-60
Rated Power (W)1000
TypeATX12V
Cooling135mm Double Ball Bearing Fan
(CF1325H12D)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps25258330.3
Watts125996153.6
Total Max. Power (W)1000

Test Equipment

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (610mm) 1 1 18-20AWG No
4+4 pin EPS12V (650mm) 2 2 18AWG No
6+2 pin PCIe (680mm) 4 4 18AWG No
6+2 pin PCIe (680mm+70mm) 2 4 18AWG Yes
SATA (350mm+150mm+150mm+150mm) 1 4 18AWG No
SATA (400mm+115mm+115mm+115mm) 2 8 18AWG No
4 pin Molex to SATA 3.3 Adapter (160mm+160mm) 1 2 18AWG No
4 pin Molex (350mm+120mm) 1 2 18AWG No
4 pin Molex (450mm+120mm+120mm) 1 3 18AWG No
FDD Adapter (+110mm) 1 1 22AWG No
RGB Cable (800mm) 1 1 22AWG No
RGB Sync Cable (800mm) 1 1 24AWG No

Parts Description

General Data -
Manufacturer (OEM) Seasonic
PCB Type Double Sided
Primary Side -
Transient Filter 6x Y caps, 3x X caps, 2x CM chokes, 1x MOV, 1x Champion CM02X (Discharge IC)
Inrush Protection NTC Thermistor MF72 5D-20L (5 Ohm) & Relay
Bridge Rectifier(s) 2x Vishay LVB2560 (600V, 25A @ 105°C)
APFC MOSFETs 2x Infineon IPP60R080P7 (600V, 23A @ 100°C, Rds(on): 0.08Ohm)
APFC Boost Diode 1x CREE C3D08060 (600V, 8A @ 152°C)
Bulk Cap(s) 2x Nippon Chemi-Con (420V, 680uF & 390uF each or 1,070uF combined, 2,000h @ 105°C, KHE)
Main Switchers 4x Infineon IPP60R180P7 (600V, 11A @ 100°C, Rds(on): 0.18Ohm)
IC Drivers 2x Silicon Labs Si8230BD
APFC Controller On Semiconductor NCP1654
Resonant Controller Champion CM6901T2X
Current Sensor IC Allegro ACS725T
Topology Primary side: APFC, Full-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side -
+12V MOSFETs 8x Nexperia PSMN1R4-40YLD (40V, 214A @ 100°C, Rds(on): 2.65mOhm)
5V & 3.3V DC-DC Converters
Filtering Capacitors Electrolytic: 2x Nippon Chemi-Con (105°C, W), 8x Nippon Chemi-Con (4-10,000h @ 105°C, KY),2x Rubycon (3-6,000h @ 105°C, ZLQ), 1x Rubycon (3-6,000h @ 105°C, YXG), 1x Rubycon (6-10,000h @ 105°C, ZLJ)
Polymer: 30x FPCAP, 12x NIC
Supervisor IC Weltrend WT7527V (OCP, OVP, UVP, SCP, PG)
Fan Model Champion CF1325H12D (135mm, 12V, 0.60A, Double Ball Bearing Fan)
Fan Controller Atmel SAM4N8
Flash Memory Microchip SST26VF016B
5VSB Circuit -
Rectifier 1x MCC MBR1045ULPS SBR (45V, 10A) & 1x Infineon IPA65R1K5CE FET (650V, 3.3A @ 100°C, Rds(on): 1.5Ohm)
Standby PWM Controller Leadtrend LD7750R

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary 115V

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)26.1
AC Loss to PWR_OK Hold Up Time (ms)22
PWR_OK Inactive to DC Loss Delay (ms)4.1

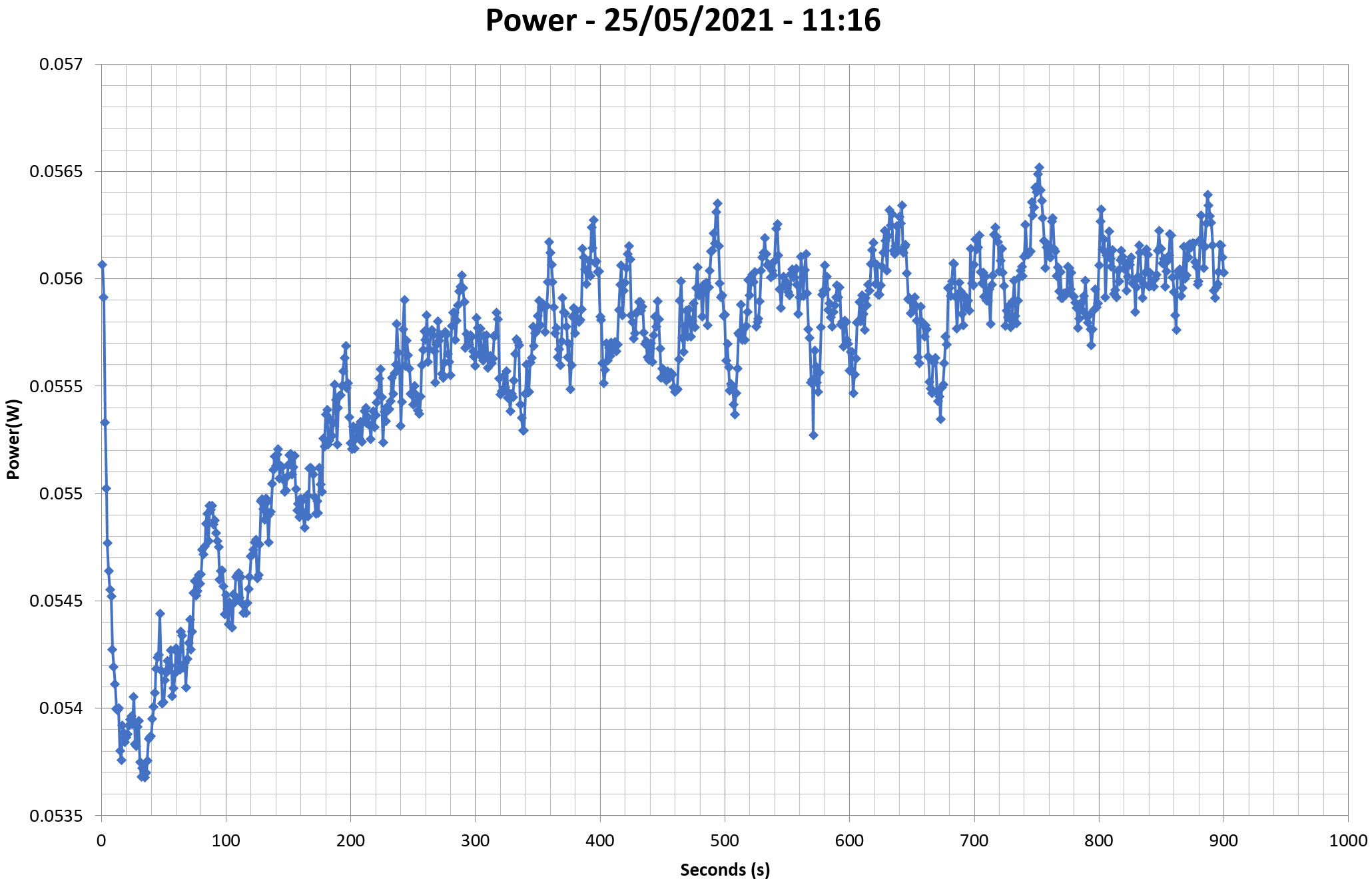

Vampire Power

Graphs 115V

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

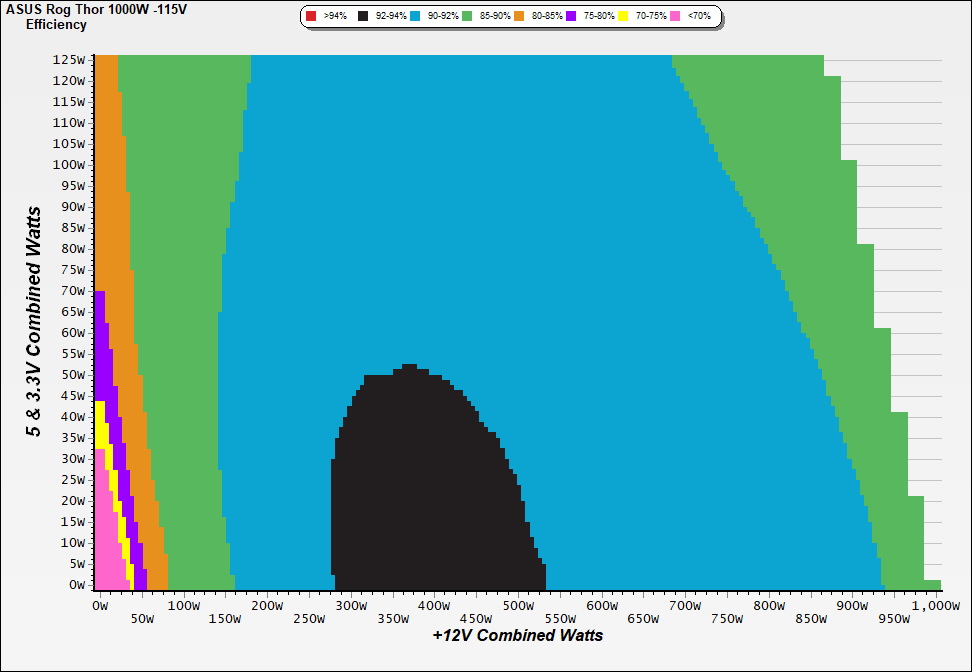

Efficiency Graph

115V

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

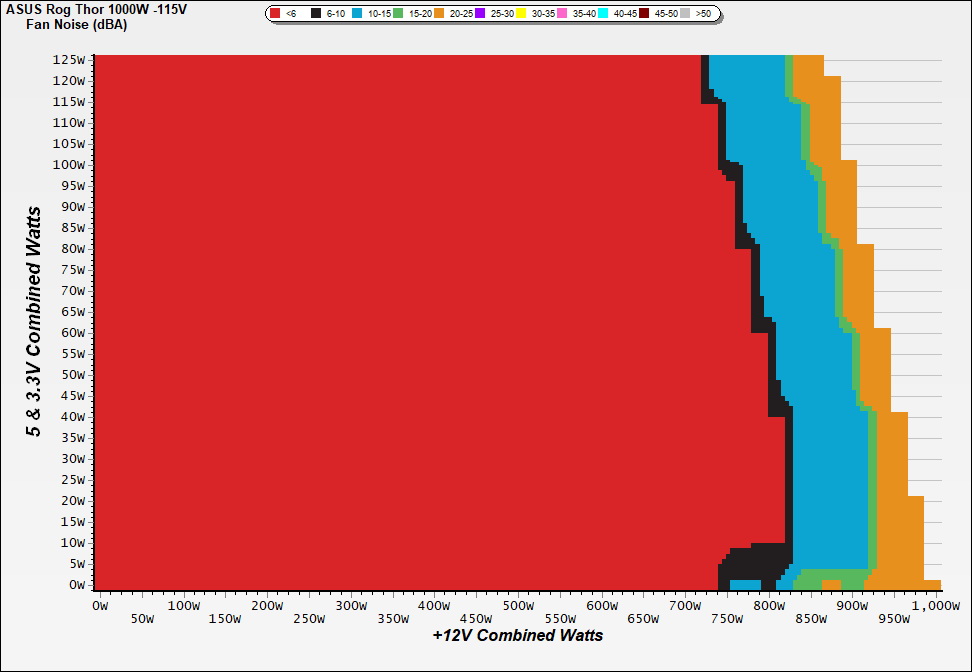

Noise Graph

115V

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

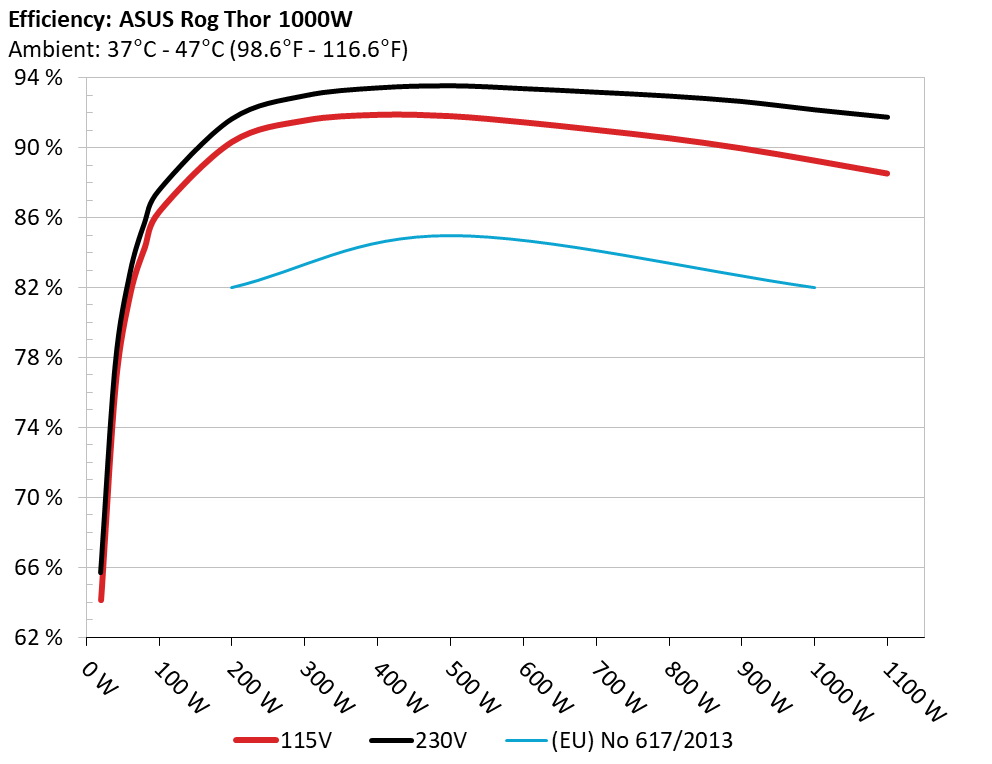

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

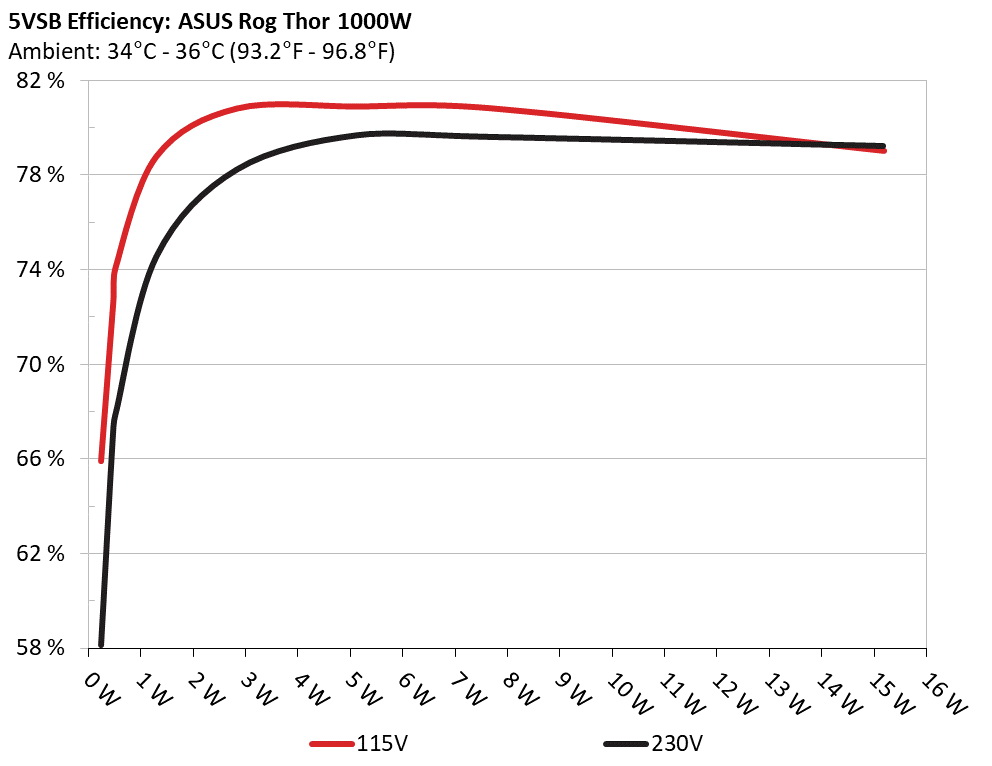

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC) 115V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.232 65.909% 0.036
5.159V 0.352 115.15V
2 0.090A 0.464 72.613% 0.064
5.157V 0.639 115.15V
3 0.550A 2.829 80.805% 0.266
5.144V 3.501 115.17V
4 1.000A 5.129 80.886% 0.361
5.130V 6.341 115.16V
5 1.500A 7.671 80.815% 0.415
5.114V 9.492 115.16V
6 2.999A 15.189 79.015% 0.493
5.065V 19.223 115.15V

Supplementary Tests (For Reference)

Typical Load Tests 115V

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 6.444A 1.956A 1.963A 0.975A 99.978 86.345% 0 <6.0 45.69°C 0.973
12.165V 5.106V 3.363V 5.126V 115.789 40.63°C 115.15V
2 13.904A 2.939A 2.945A 1.174A 199.997 90.337% 0 <6.0 46.76°C 0.983
12.162V 5.104V 3.360V 5.111V 221.389 41.07°C 115.15V
3 21.704A 3.432A 3.440A 1.373A 299.957 91.561% 0 <6.0 47.82°C 0.981
12.159V 5.102V 3.358V 5.096V 327.603 41.60°C 115.15V
4 29.469A 3.923A 3.934A 1.574A 399.433 91.883% 0 <6.0 48.64°C 0.986
12.156V 5.100V 3.356V 5.081V 434.720 41.77°C 115.14V
5 36.951A 4.905A 4.921A 1.777A 499.578 91.810% 0 <6.0 49.61°C 0.990
12.153V 5.098V 3.354V 5.066V 544.141 42.29°C 115.14V
6 44.436A 5.889A 5.910A 1.981A 599.719 91.461% 318 <6.0 42.79°C 0.992
12.150V 5.096V 3.352V 5.049V 655.708 50.73°C 115.14V
7 51.891A 6.874A 6.899A 2.185A 699.442 91.025% 318 <6.0 43.10°C 0.993
12.147V 5.094V 3.350V 5.032V 768.409 51.59°C 115.14V
8 59.417A 7.858A 7.886A 2.392A 799.965 90.549% 476 <6.0 43.45°C 0.994
12.144V 5.092V 3.347V 5.016V 883.457 52.25°C 115.13V
9 67.273A 8.349A 8.365A 2.396A 899.235 89.969% 873 23.4 45.40°C 0.995
12.141V 5.090V 3.345V 5.007V 999.490 54.76°C 115.13V
10 74.968A 8.845A 8.881A 3.016A 999.654 89.267% 1196 33.6 45.63°C 0.995
12.138V 5.087V 3.344V 4.973V 1119.850 55.59°C 115.12V
11 83.229A 8.848A 8.885A 3.022A 1099.668 88.527% 2010 47.9 46.55°C 0.995
12.135V 5.085V 3.342V 4.963V 1242.178 57.27°C 115.12V
CL1 0.117A 15.000A 14.997A 0.000A 128.252 83.328% 0 <6.0 48.66°C 0.975
12.160V 5.102V 3.355V 5.144V 153.912 42.42°C 115.18V
CL2 82.990A 1.000A 0.999A 1.000A 1020.821 89.577% 1193 33.6 45.85°C 0.995
12.138V 5.095V 3.347V 5.050V 1139.602 55.84°C 115.12V

The results above are not used in the certification process

Light Load Tests 115V

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.219A 0.489A 0.492A 0.194A 19.979 64.109% 0 <6.0 0.838
12.158V 5.114V 3.369V 5.159V 31.164 115.16V
2 2.439A 0.978A 0.980A 0.388A 39.967 76.403% 0 <6.0 0.914
12.166V 5.110V 3.365V 5.151V 52.311 115.16V
3 3.662A 1.468A 1.472A 0.583A 60.000 81.614% 0 <6.0 0.938
12.166V 5.108V 3.364V 5.142V 73.517 115.16V
4 4.880A 1.957A 1.962A 0.779A 79.951 84.281% 0 <6.0 0.955
12.164V 5.106V 3.363V 5.134V 94.862 115.15V

The results above are not used in the certification process

Ripple Measurements 115V

Test12V5V3.3V5VSBPass/Fail
10% Load12.10mV8.30mV12.40mV17.70mVPass
20% Load15.20mV8.10mV12.60mV16.90mVPass
30% Load12.70mV8.80mV13.00mV18.00mVPass
40% Load9.50mV9.10mV13.20mV18.50mVPass
50% Load10.40mV8.30mV13.30mV19.50mVPass
60% Load12.00mV8.90mV13.50mV22.10mVPass
70% Load13.10mV8.80mV13.60mV21.50mVPass
80% Load14.00mV8.80mV14.90mV23.30mVPass
90% Load14.30mV10.50mV16.50mV24.70mVPass
100% Load20.60mV11.50mV17.40mV28.80mVPass
110% Load23.30mV12.50mV17.90mV31.20mVPass
Crossload116.40mV8.10mV13.00mV16.30mVPass
Crossload222.40mV9.80mV16.90mV26.10mVPass

The results above are not used in the certification process

Asus ROG-THOR-1000P2-GAMING

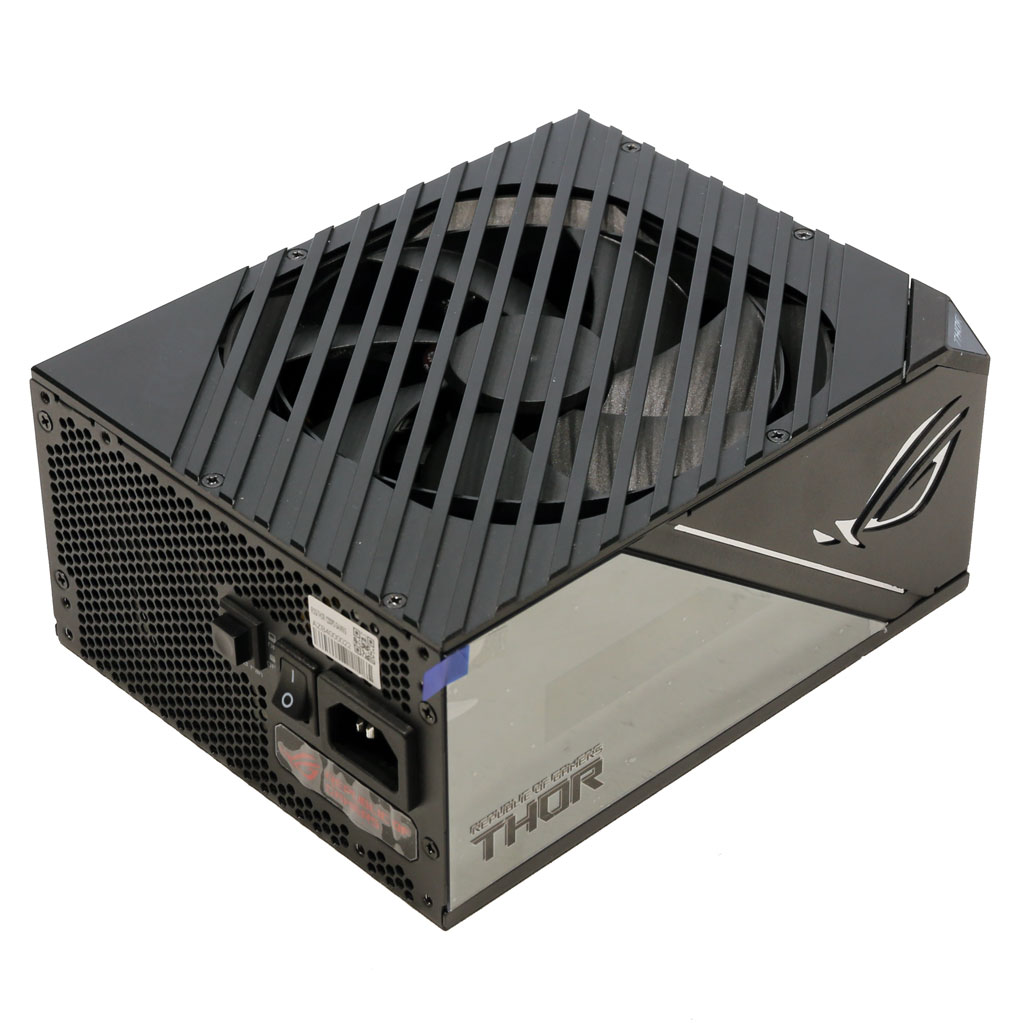

Top side

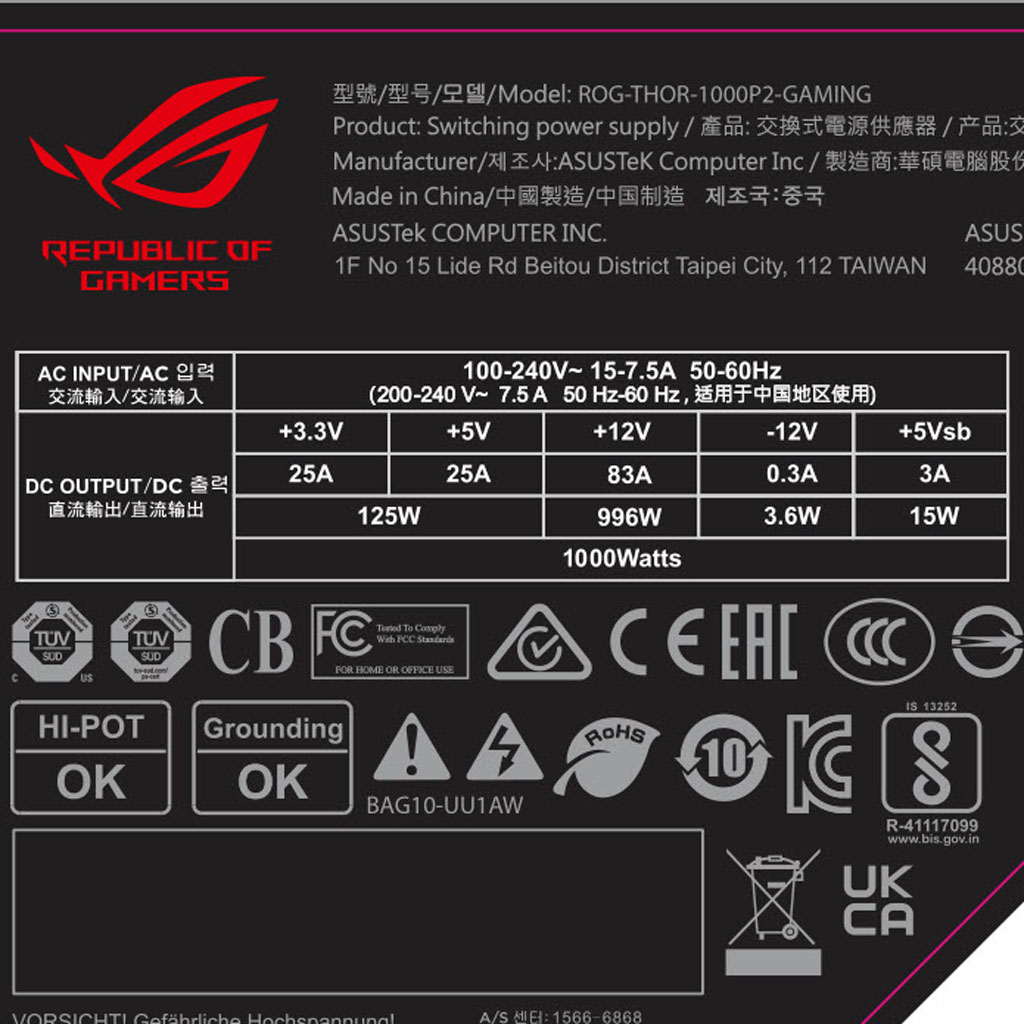

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
