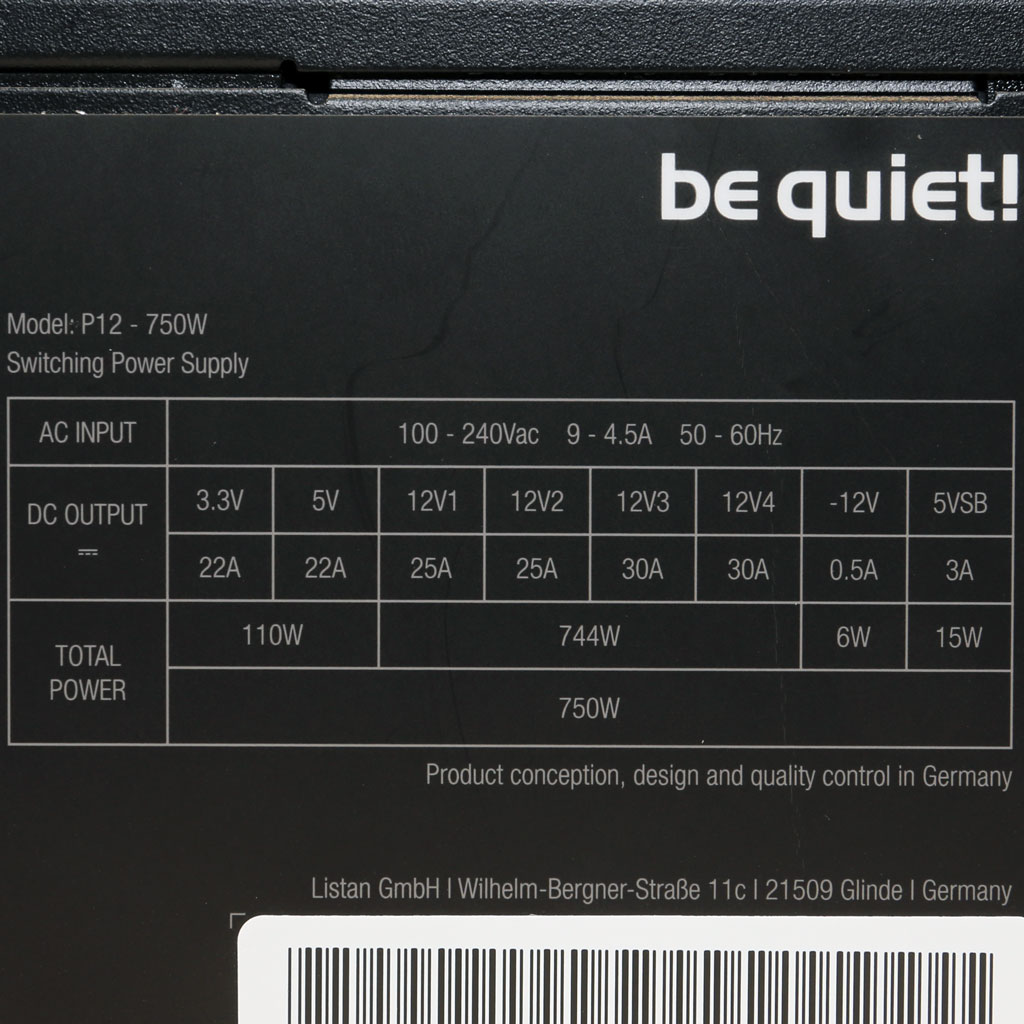

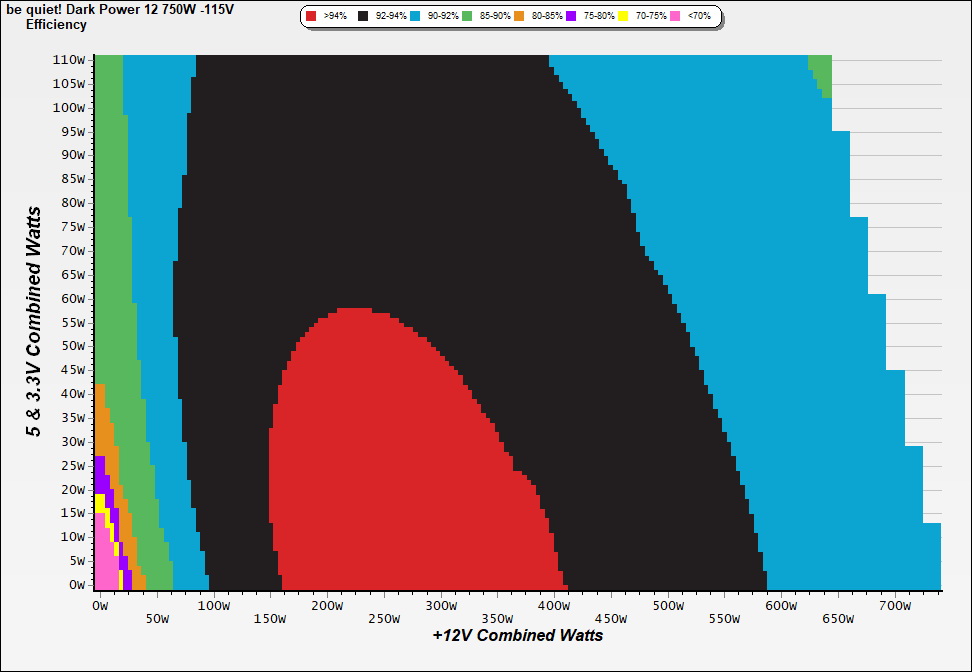

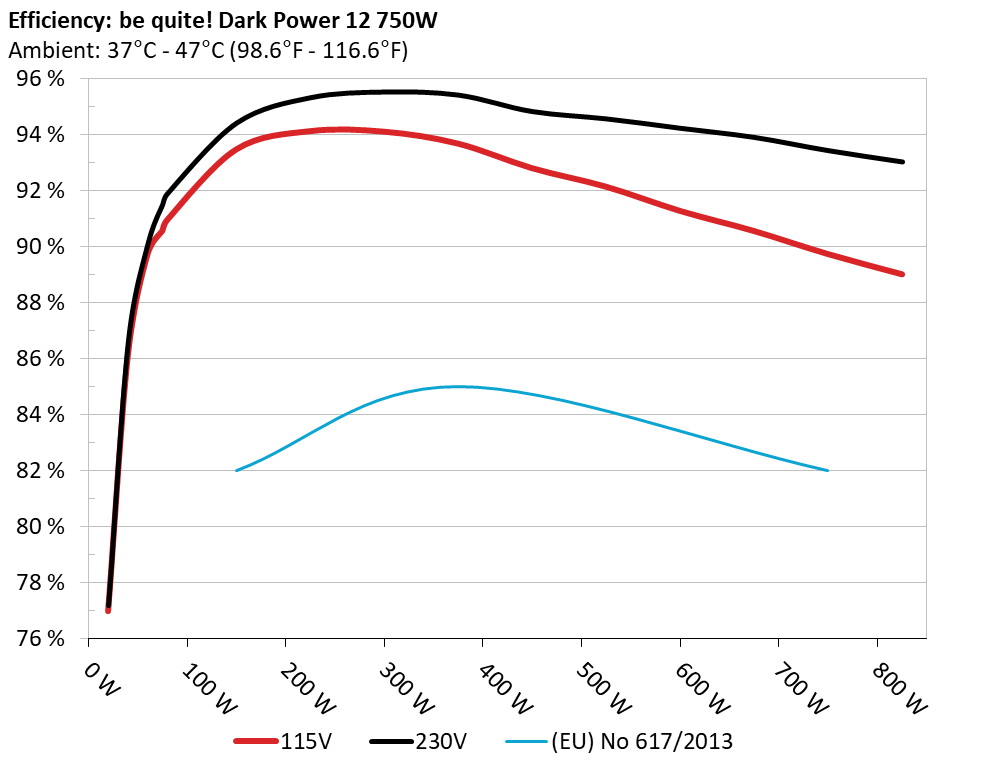

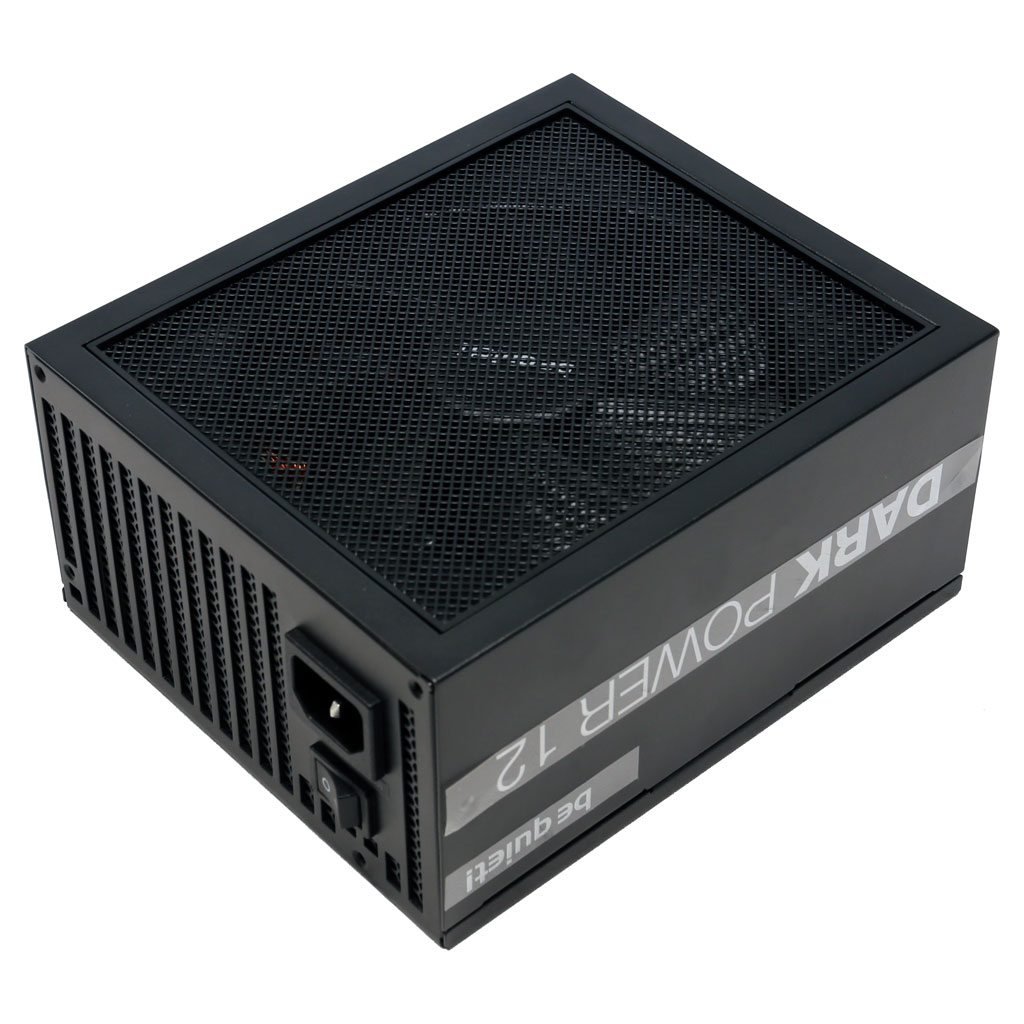

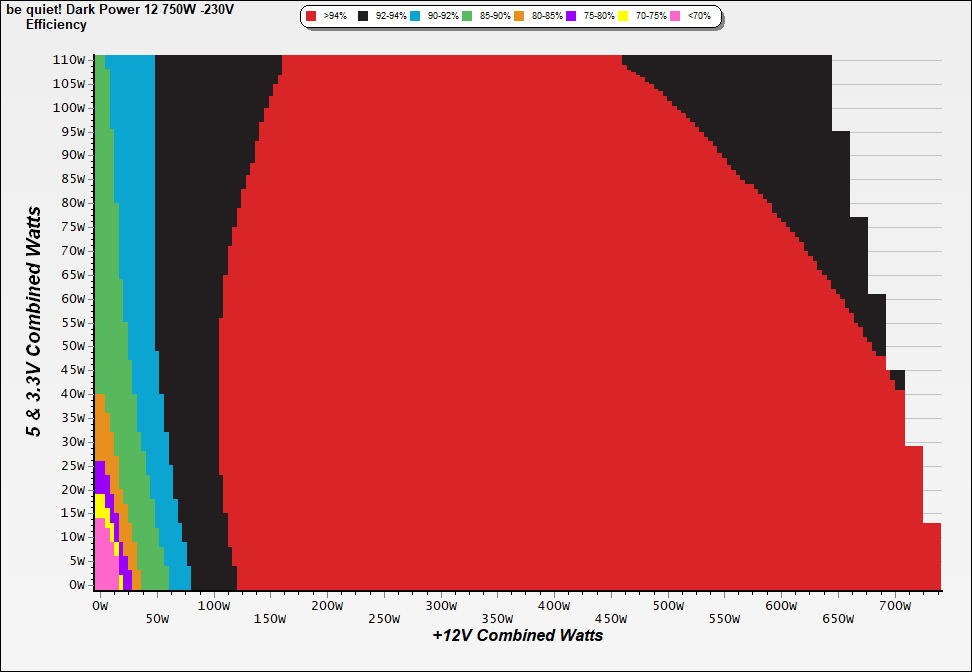

| General Data | - |
| Manufacturer (OEM) | FSP |
| PCB Type | Double Sided |
| Primary Side | - |
| Transient Filter | 4x Y caps, 3x X caps, 2x CM chokes, 1x MOV |
| Inrush Protection | NTC Thermistor SCK-056 (5Ohm) & Relay |
| Rectifier(s) (Standby Mode) | 4x Diodes Incorporated S3M (1000V, 3A @ 75°C) |
| Rectifier(s) | 4x Infineon IPB60R060P7 (600V, 30A @ 100°C, Rds(on): 0.06Ohm) |
| APFC MOSFETs | 2x Infineon IPA60R180P7 (600V, 11A @ 100°C, Rds(on): 0.18Ohm) |
| APFC Boost Diode | 1x Cree C3D06060 (600V, 6A @ 154°C) |
| Bulk Cap(s) | 2x Nippon Chemi-Con (420V, 330uF each or 660uF combined, 2,000h @ 105°C, KMR) |
| Main Switchers | 4x Alpha & Omega AOTF190A60CL (600V, 12A @ 100°C, Rds(on): 0.19Ohm) |
| IC Driver | 2x Silicon Labs Si8233BD |
| APFC Controller | Infineon ICE2PCS02 |
| Resonant Controller | Champion CM6901T2X |
| Topology | Primary side: Bridgeless Design APFC, Full-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters |
| Secondary Side | - |
| +12V MOSFETs | 4x Toshiba TPHR8504PL (40V, 150A, Rds(on): 0.85mOhm) |
| 5V & 3.3V | DC-DC Converters: 6x Infineon BSC0901NS (30V, 94A @ 100°C, Rds(on): 1.9mOhm)
PWM Controller(s): ANPEC APW7159C |
| Filtering Capacitors | Electrolytic: 6x Nippon Chemi-Con (1-5,000h @ 105°C, KZE), 1x Rubycon (4-10,000h @ 105°C, YXF), 2x Rubycon (6-10,000h @ 105°C, ZLH), 1x Rubycon (1-5,000h @ 105°C, ZL), 1x Nippon Chemi-Con (6-10,000h @ 105°C, KZN)
Polymer: 14x United Chemi-Con, 17x FPCAP, 4x no info |

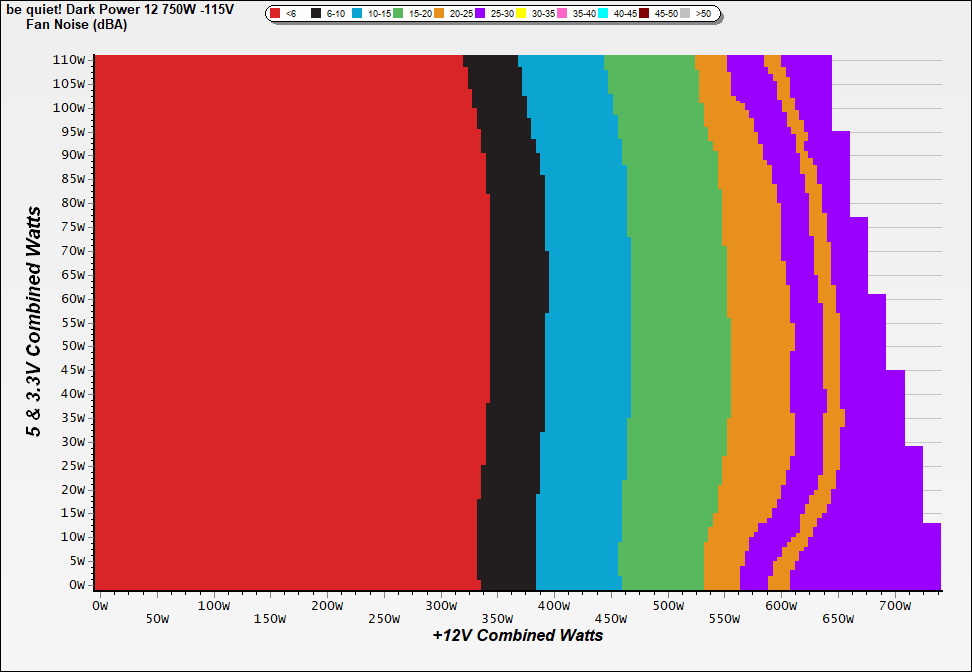

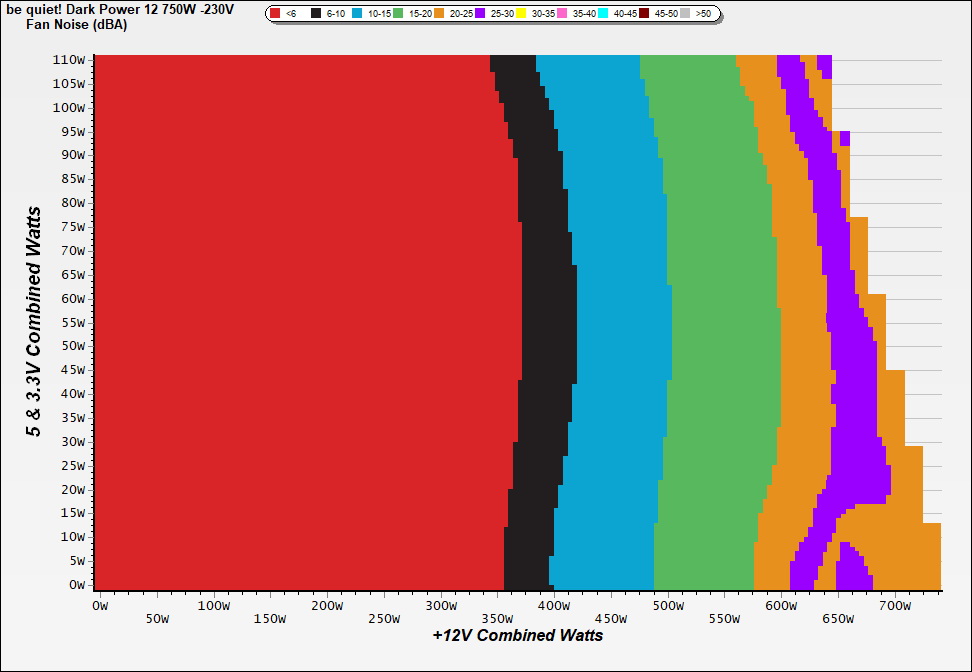

| Supervisor IC | Weltrend WT7527RA (OCP, OVP, UVP, SCP, PG) |
| Fan Controller | APW9010 |
| Fan Model | be quiet! Silent Wings BQSIW3-13525-HF (135mm, 12V, 0.56A, 1800rpm, Fluid Dynamic Bearing Fan) |

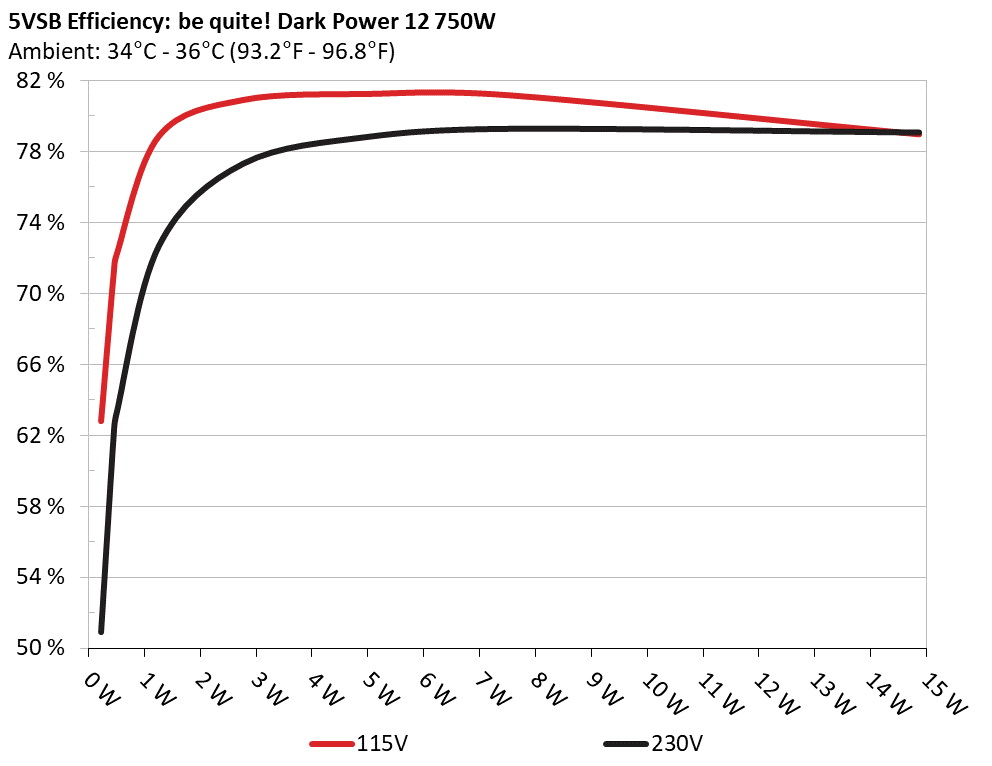

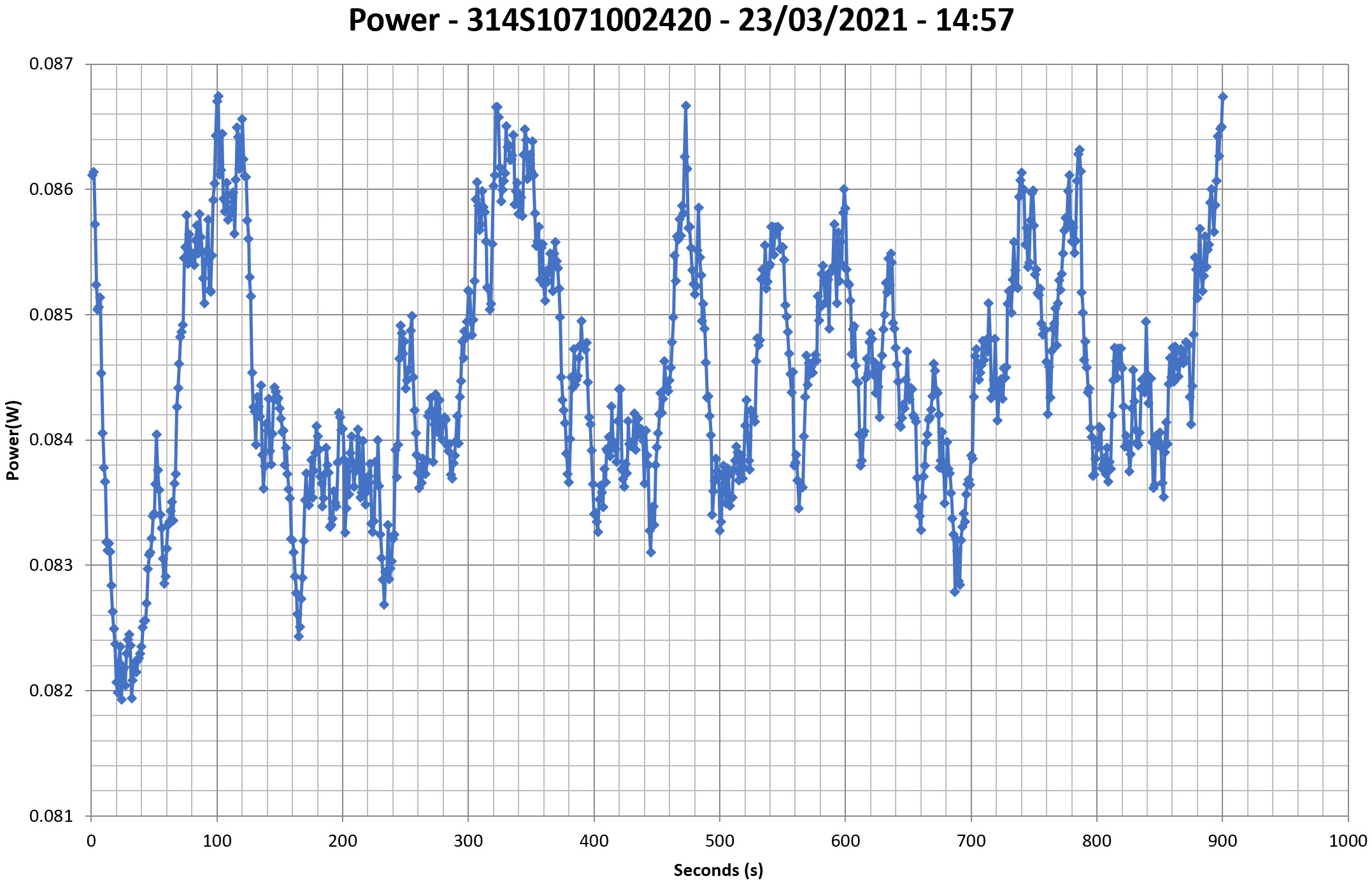

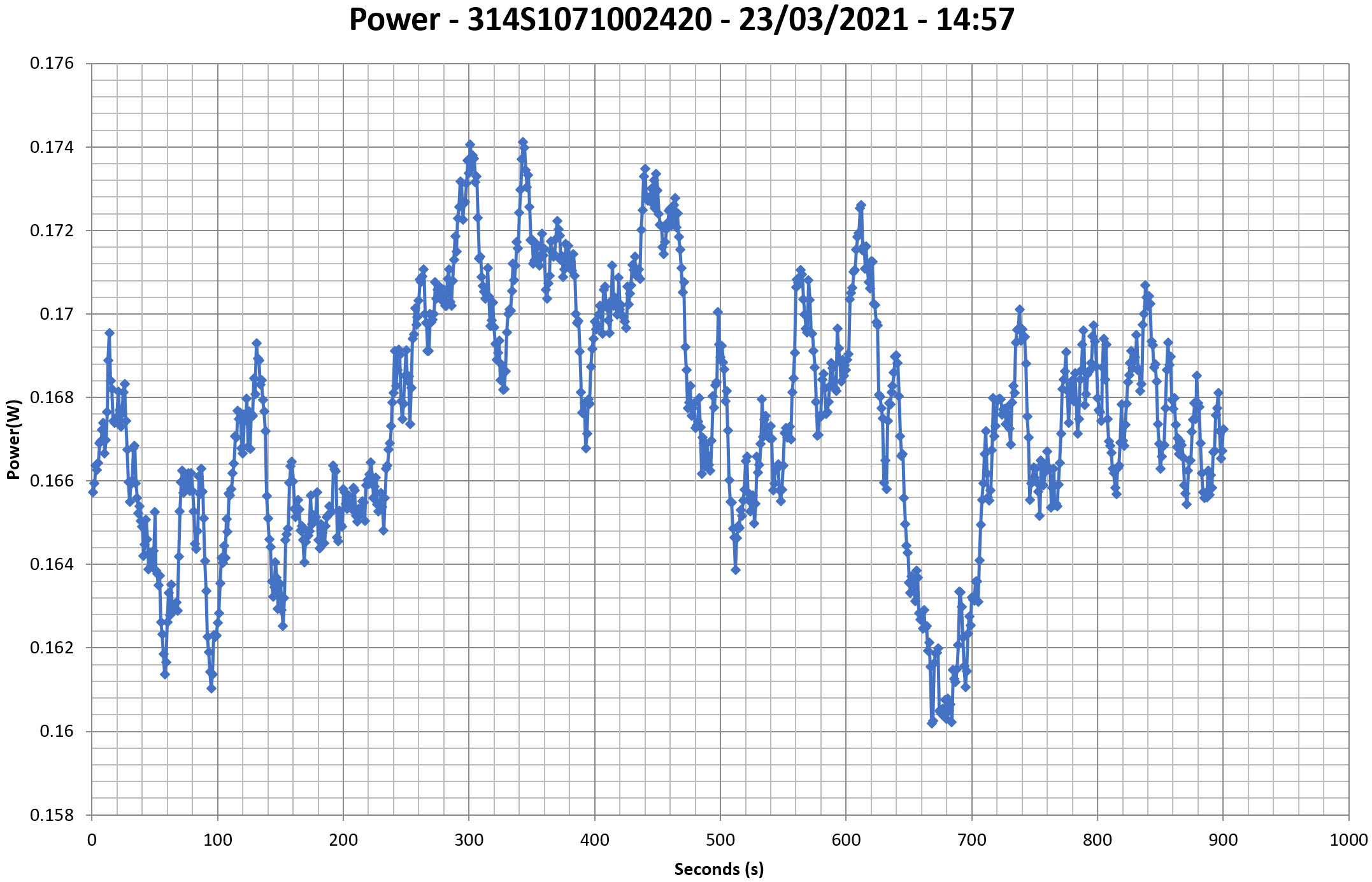

| 5VSB Circuit | - |
| Rectifier | 1x Nexperia PSMN2R0-30YL (30V, 100A @ 100°C, Rds(on): 3.3mOhm) FET, 1x CET CEB04N7G (700V, 4A, Rds(on): 3.3Ohm) FET & 1x P15L50 SBR |
| Standby PWM Controller | Grenery GR8837C |
