ErP Lot 6 2010: ✓
ErP Lot 6 2013: ✓
ErP Lot 3 2014 & CEC: Partially
(EU) No 617/2013 Compliance
✓
ALPM (Alternative Low Power Mode) compatible
✓
Performance Summary 230V
Efficiency Rating
BRONZE
Noise Rating
A-
Average Efficiency (>1450 load combinations)
84.752%
Average Noise Output (>1450 Load Combinations)
29.52dBA
Average PF (>1450 Load Combinations)
0.971
Efficiency With 10W (≤500W) or 2% (>500W) Load
0.000%
Standby Power Consumption
0.2249W
12V Ripple (Full Load)
38.78mV
5V Ripple (Full Load)
19.63mV
3.3V Ripple (Full Load)
23.50mV
5VSB Ripple (Full Load)
15.64mV
12V Load Regulation
0.90%
5V Load Regulation
2.77%
3.3V Load Regulation
1.79%
5VSB Load Regulation
2.68%
Inrush Current
74.830A
12V Transient Response (150%)
0.00V
5V Transient Response (150%)
V
3.3V Transient Response (150%)
V
5VSB Transient Response (150%)
V
Hold-Up Time & Power Ok Signal
8.10ms
AC Loss to PWR_OK Hold Up Time
46.20ms
PWR_OK Inactive to DC Loss Delay
-38.10ms
PSU Timings: T1 (20% / 100%)
58.0ms
54.5ms
PSU Timings: T3 (20% / 100%)
104.5ms
101.0ms
OPP (22.95°C / 0.00°C)
134.22%
0.00%
Hold-Up Time & Power Ok Signal
Hold-Up Time (ms)
8.1
AC Loss to PWR_OK Hold Up Time (ms)
46.2
PWR_OK Inactive to DC Loss Delay (ms)
-38.1
Vampire Power
Tables 230V
Graphs 230V
INFO

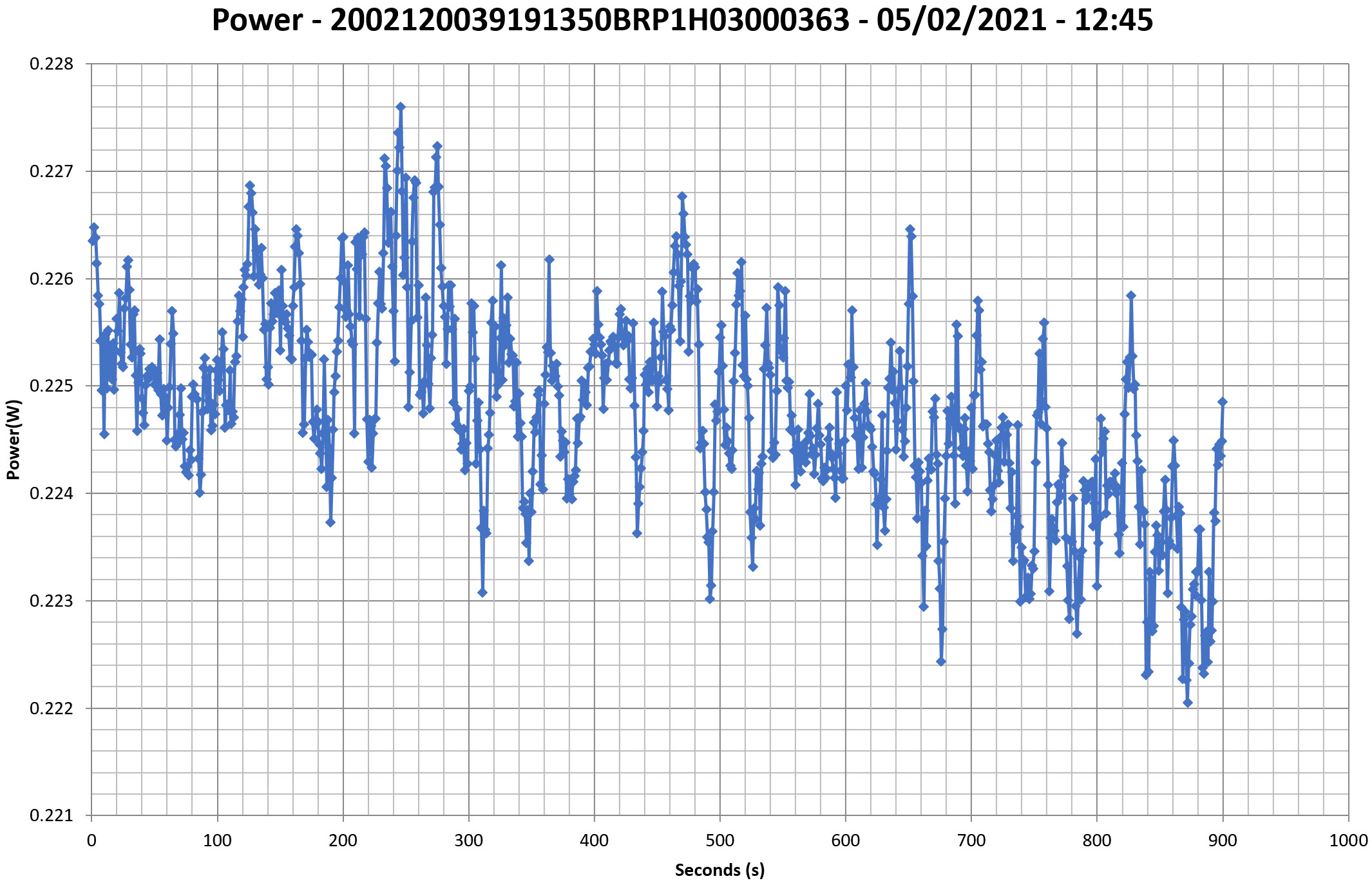

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

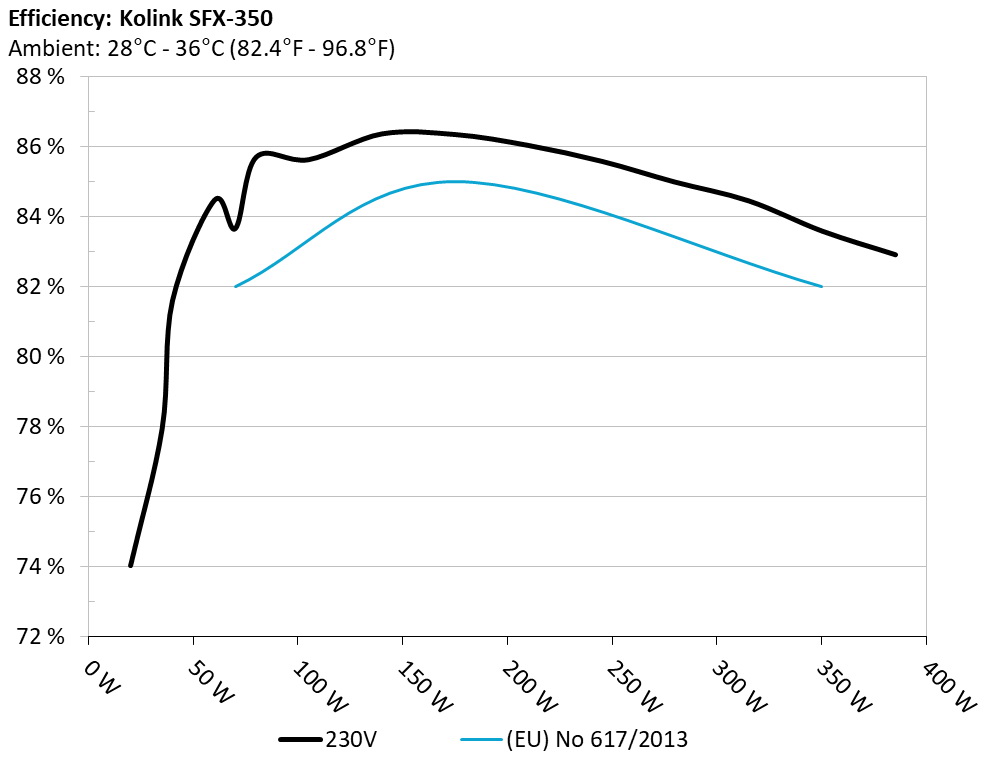

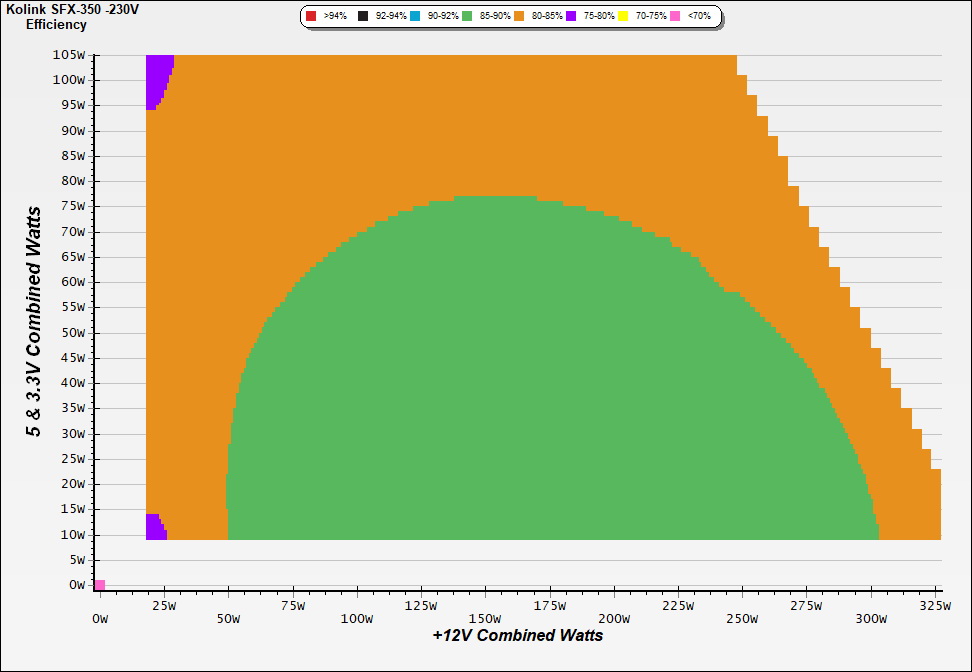

Efficiency Graph
230V
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

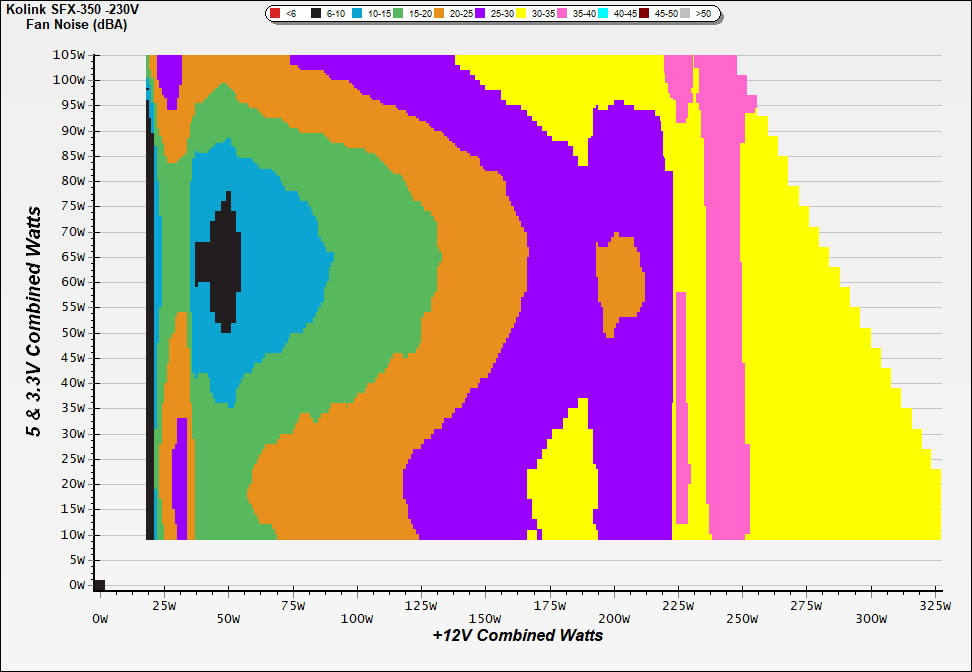

Noise Graph
230V
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails
Indicative Performance
Efficiency under high ambient temperature
INFO
The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

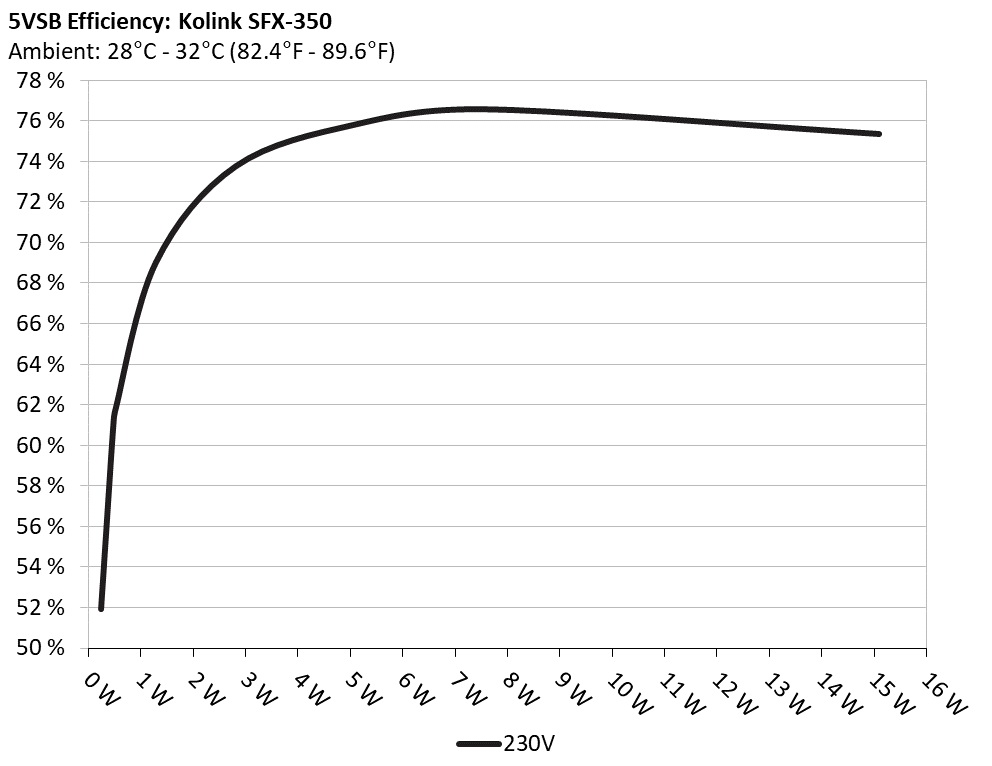

5VSB Efficiency
INFO
This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input
5VSB Efficiency (ERP LOT 3/6 & CEC) 230V
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.045A
0.230
51.919%
0.027
5.123V
0.443
230.26V
2
0.090A
0.461
60.898%
0.046
5.119V
0.757
230.26V
3
0.550A
2.806
73.745%
0.195
5.104V
3.805
230.26V
4
1.000A
5.091
75.804%
0.277
5.092V
6.716
230.26V
5
1.500A
7.616
76.550%
0.328
5.078V
9.949
230.26V
6
2.999A
15.098
75.336%
0.396
5.034V
20.041
230.26V
Supplementary Tests (For Reference)
Typical Load Tests 230V
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
1
1.094A
1.995A
1.973A
0.983A
35.028
77.944%
730
8.1
30.94°C
0.827
12.271V
5.014V
3.345V
5.087V
44.940
34.19°C
230.28V
2
3.188A
3.000A
2.965A
1.182A
70.010
83.670%
751
6.6
31.11°C
0.923
12.268V
5.001V
3.338V
5.076V
83.674
34.82°C
230.29V
3
5.633A
3.501A
3.465A
1.382A
104.998
85.634%
1025
8.6
31.56°C
0.956
12.240V
5.000V
3.332V
5.065V
122.613
35.77°C
230.29V
4
8.085A
4.001A
3.968A
1.583A
139.986
86.373%
1271
16.4
32.28°C
0.968
12.219V
4.997V
3.327V
5.054V
162.071
37.14°C
230.29V
5
10.184A
5.019A
4.971A
1.785A
174.972
86.353%
1543
23.2
33.31°C
0.976
12.222V
4.981V
3.320V
5.042V
202.625
38.67°C
230.30V
6
12.282A
6.046A
5.976A
1.988A
209.956
86.040%
1789
27.9
33.51°C
0.980
12.225V
4.964V
3.313V
5.029V
244.021
39.65°C
230.30V
7
14.385A
7.077A
6.985A
2.192A
245.021
85.585%
1942
30.7
33.69°C
0.980
12.229V
4.947V
3.307V
5.017V
286.289
40.71°C
230.30V
8
16.487A
8.003A
7.995A
2.397A
279.455
84.999%
2146
33.4
33.95°C
0.980
12.228V
4.932V
3.300V
5.005V
328.775
41.92°C
230.30V
9
19.042A
8.625A
8.496A
2.400A
314.923
84.458%
2282
35.0
34.62°C
0.980
12.206V
4.928V
3.295V
4.999V
372.876
43.39°C
230.31V
10
21.369A
9.139A
9.030A
3.016A
349.976
83.593%
2520
37.8
35.14°C
0.980
12.181V
4.923V
3.288V
4.973V
418.667
44.75°C
230.32V
11
24.360A
9.117A
9.042A
3.019A
384.986
82.918%
2658
39.6
35.51°C
0.981
12.122V
4.936V
3.284V
4.968V
464.297
46.23°C
230.32V
CL1
8.000A
12.999A
12.997A
0.000A
205.634
82.821%
2281
35.0
33.77°C
0.980
12.581V
4.778V
3.299V
5.078V
248.288
39.29°C
230.32V
CL2
26.977A
0.999A
1.000A
1.000A
329.322
84.651%
1977
31.0
35.32°C
0.981
11.706V
5.171V
3.312V
5.051V
389.037
45.29°C
230.32V
The results above are not used in the certification process
Light Load Tests 230V
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
PF/AC Volts
1
1.217A
0.493A
0.492A
0.196A
19.978
74.034%
706
8.2
0.713
12.184V
5.066V
3.355V
5.112V
26.985
230.25V
2
2.434A
0.989A
0.985A
0.392A
39.968
81.609%
710
9.0
0.841
12.189V
5.055V
3.350V
5.103V
48.975
230.26V
3
3.654A
1.486A
1.481A
0.589A
60.000
84.478%
717
9.5
0.902
12.192V
5.044V
3.345V
5.095V
71.024
230.26V
4
4.869A
1.986A
1.974A
0.786A
79.951
85.710%
742
7.1
0.932
12.191V
5.036V
3.340V
5.087V
93.281
230.27V
The results above are not used in the certification process
Ripple Measurements 230V
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
7.70mV
11.10mV
14.10mV
10.50mV
Pass
20% Load
8.90mV
9.70mV
15.60mV
11.40mV
Pass
30% Load
8.90mV
8.70mV
15.40mV
12.40mV
Pass
40% Load
10.50mV
7.70mV
15.40mV
13.00mV
Pass
50% Load
12.70mV
8.20mV
16.70mV
13.10mV
Pass
60% Load
14.40mV
9.90mV
17.80mV
13.60mV
Pass
70% Load
25.20mV
28.10mV
21.40mV
19.90mV
Pass
80% Load
19.10mV
11.30mV
21.90mV
15.00mV
Pass
90% Load
21.50mV
11.50mV
21.00mV
14.50mV
Pass
100% Load
38.80mV
19.60mV
23.50mV
15.60mV
Pass
110% Load
44.20mV
22.80mV
23.50mV
15.70mV
Pass
Crossload1
20.90mV
18.70mV
24.00mV
24.90mV
Pass
Crossload2
33.50mV
13.10mV
10.90mV
13.60mV
Pass
The results above are not used in the certification process
Kolink SFX-350

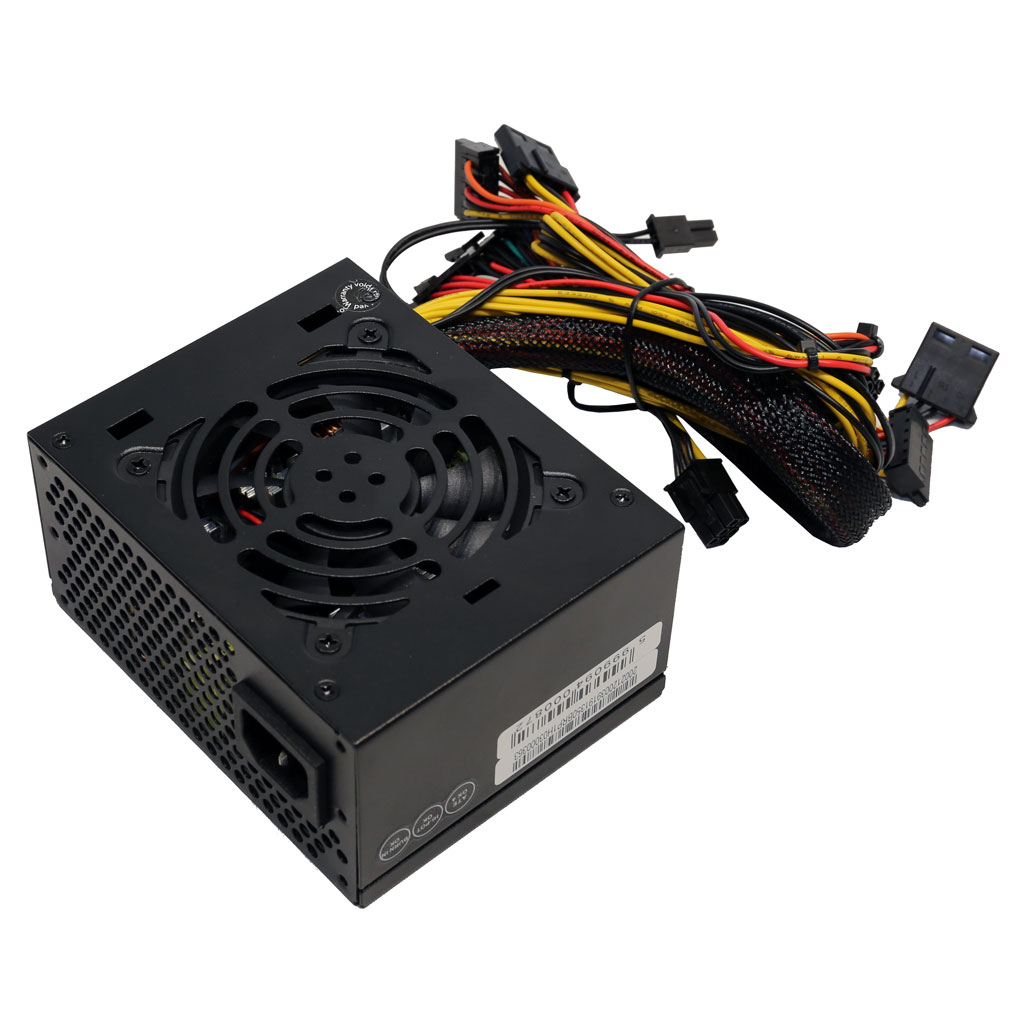

Top side

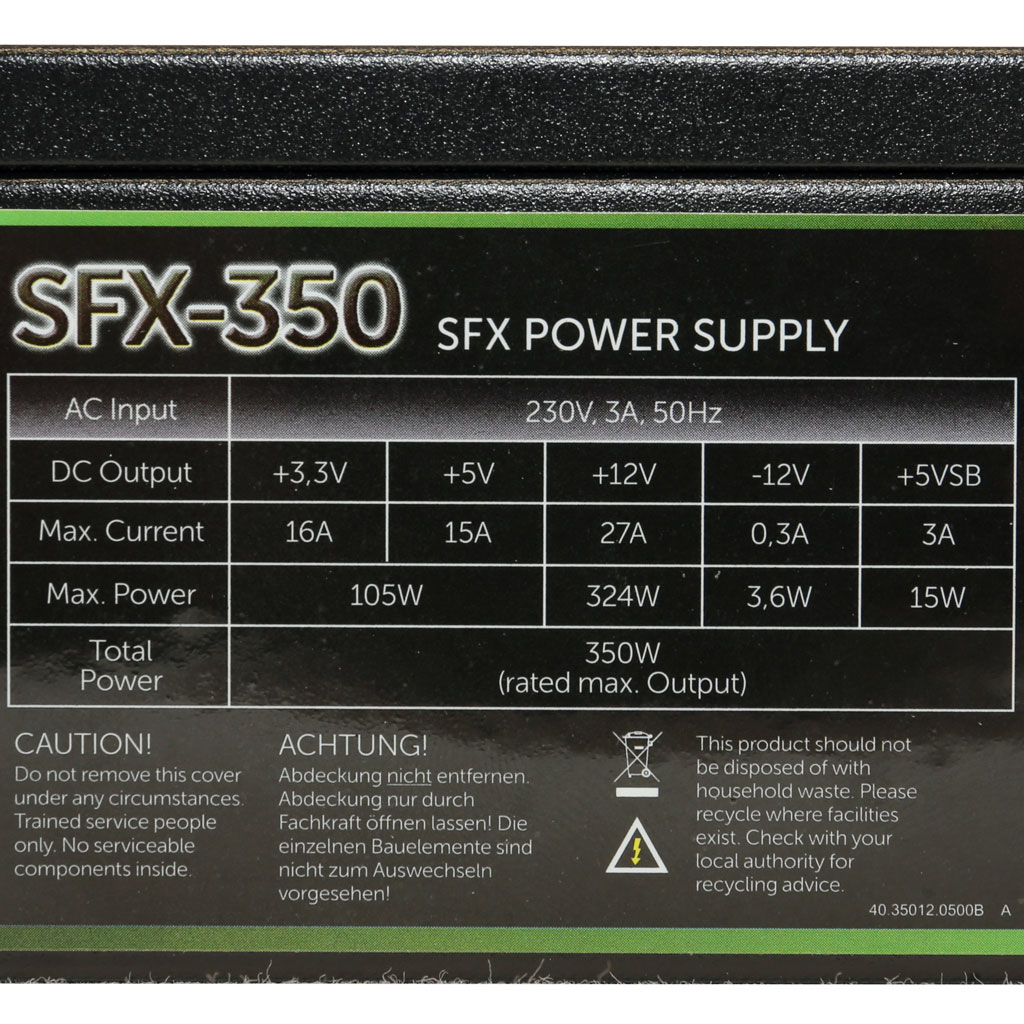

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions: › It should be mentioned that the test results are provided by Cybenetics › The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
