Globe Fan S0921512MB (12V, 0.23A, Fluid Dynamic Bearing)
5VSB Circuit
Rectifier
1x P10V45SP SBR (45V, 10A)
Standby PWM Controller
Sanken STR-A6069H
-12V Circuit
Rectifier
KEC KIA7912PI (-12V, 1A)
Test Results
Temperature & Compliance Info
Temperature Range (°C /°F)
30-32 / 86-89.6
ErP Lot 3/6 Ready
✓
(EU) No 617/2013 Compliance
✓
Performance Summary 115V
Efficiency Rating
GOLD
Noise Rating
Standard++
Average Efficiency (>1450 load combinations)
88.788%
Average Noise Output (>1450 Load Combinations)
30.78dBA
Average PF (>1450 Load Combinations)
0.987
Efficiency With 10W (≤500W) or 2% (>500W) Load
0.000%
Standby Power Consumption
0.0827W
12V Ripple (Full Load)
35.35mV
5V Ripple (Full Load)
36.01mV
3.3V Ripple (Full Load)
36.49mV
5VSB Ripple (Full Load)
32.02mV
12V Load Regulation
0.81%
5V Load Regulation
0.98%
3.3V Load Regulation
1.82%
5VSB Load Regulation
2.51%
Inrush Current
31.479A
Hold-Up Time & Power Ok Signal
Hold-Up Time (ms)
23.7
AC Loss to PWR_OK Hold Up Time (ms)
19.8
PWR_OK Inactive to DC Loss Delay (ms)
3.9
Vampire Power
Tables 115V
Graphs 115V
INFO
This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.
Efficiency Graph
115V
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.
Noise Graph
115V
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.
Indicative Performance
Efficiency under high ambient temperature
INFO

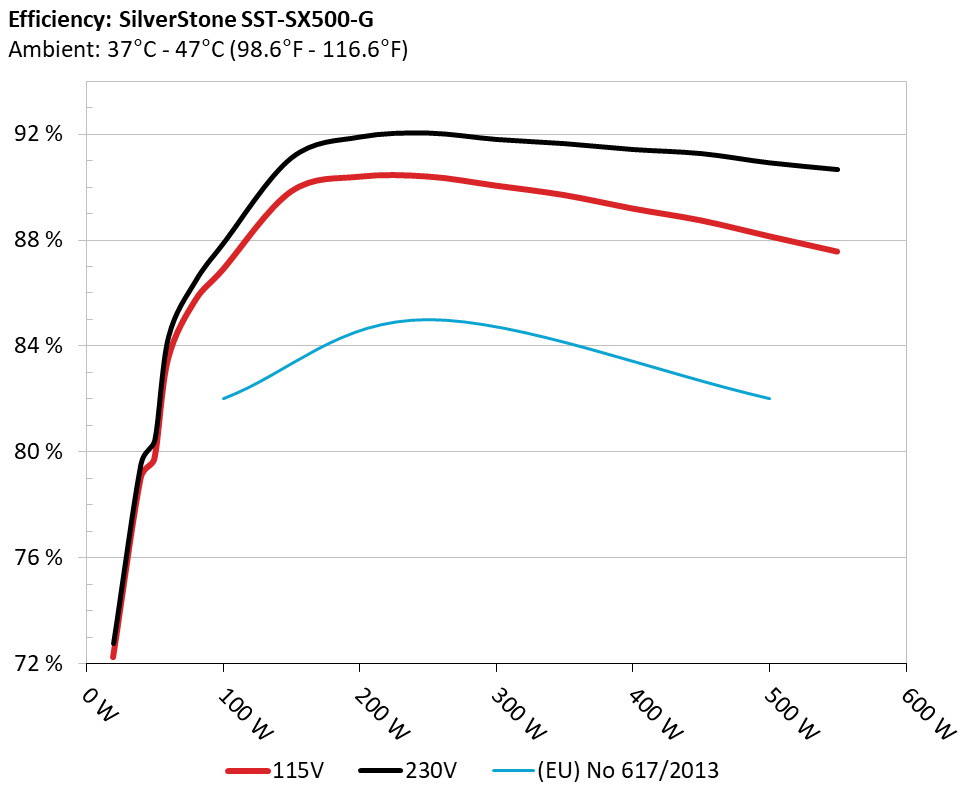

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.
5VSB Efficiency
INFO
This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.
5VSB Efficiency (ERP LOT 3/6 & CEC) 115V
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.042A
0.214
62.941%
0.056
5.112V
0.340
115.13V
2
0.087A
0.447
71.178%
0.099
5.110V
0.628
115.15V
3
0.542A
2.762
78.869%
0.316
5.094V
3.502
115.13V
4
1.002A
5.093
80.116%
0.379
5.081V
6.357
115.14V
5
1.502A
7.607
80.141%
0.412
5.065V
9.492
115.14V
6
2.501A
12.571
78.914%
0.446
5.026V
15.930
115.14V
Supplementary Tests (For Reference)
Typical Load Tests 115V
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
1
2.305A
1.965A
1.970A
0.986A
49.780
79.716%
898
13.2
38.04°C
0.961
12.228V
5.098V
3.344V
5.060V
62.447
48.55°C
115.18V
2
5.642A
2.941A
2.962A
1.186A
99.754
86.861%
898
13.2
38.42°C
0.983
12.213V
5.092V
3.338V
5.047V
114.843
51.11°C
115.18V
3
9.321A
3.443A
3.478A
1.387A
149.888
89.825%
898
13.2
38.85°C
0.987
12.209V
5.087V
3.332V
5.036V
166.867
53.92°C
115.18V
4
13.002A
3.934A
3.967A
1.591A
199.769
90.385%
898
13.2
39.15°C
0.989
12.197V
5.081V
3.326V
5.028V
221.020
57.92°C
115.17V
5
16.353A
4.929A
4.968A
1.794A
249.791
90.392%
898
13.2
40.14°C
0.993
12.187V
5.075V
3.319V
5.013V
276.343
62.69°C
115.17V
6
19.707A
5.914A
5.977A
2.001A
299.727
90.047%
1405
22.9
40.51°C
0.995
12.176V
5.069V
3.312V
4.998V
332.857
64.10°C
115.17V
7
23.074A
6.918A
6.988A
2.204A
349.766
89.690%
1575
25.3
41.24°C
0.996
12.163V
5.064V
3.305V
4.986V
389.971
66.10°C
115.17V
8
26.446A
7.906A
8.006A
2.410A
399.717
89.183%
2048
33.6
42.34°C
0.996
12.151V
5.058V
3.296V
4.977V
448.198
66.99°C
115.17V
9
30.242A
8.413A
8.533A
2.411A
449.745
88.733%
2048
33.6
43.17°C
0.997
12.140V
5.054V
3.293V
4.972V
506.851
70.74°C
115.16V
10
34.006A
8.916A
9.035A
2.515A
499.669
88.137%
2325
37.6
44.23°C
0.997
12.129V
5.050V
3.287V
4.965V
566.922
73.58°C
115.16V
11
38.158A
8.919A
9.045A
2.518A
549.652
87.556%
2375
37.7
46.54°C
0.997
12.119V
5.048V
3.284V
4.960V
627.771
78.87°C
115.16V
CL1
0.098A
13.021A
13.004A
0.005A
110.387
83.444%
898
13.2
44.27°C
0.994
12.226V
5.080V
3.308V
5.073V
132.289
65.89°C
115.19V
CL2
41.619A
1.004A
1.001A
1.002A
518.247
88.692%
2390
37.9
44.19°C
0.997
12.129V
5.074V
3.316V
5.026V
584.321
75.76°C
115.17V
The results above are not used in the certification process
Light Load Tests 115V
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
PF/AC Volts
1
1.195A
0.486A
0.473A
0.196A
19.674
72.238%
898
13.2
0.863
12.226V
5.103V
3.350V
5.093V
27.235
115.18V
2
2.412A
0.980A
0.984A
0.391A
39.765
78.998%
898
13.2
0.946
12.225V
5.100V
3.348V
5.082V
50.337
115.18V
3
3.635A
1.467A
1.494A
0.591A
59.883
83.500%
898
13.2
0.962
12.218V
5.098V
3.344V
5.071V
71.716
115.18V
4
4.848A
1.965A
1.974A
0.786A
79.810
85.718%
898
13.2
0.979
12.216V
5.095V
3.341V
5.065V
93.108
115.18V
The results above are not used in the certification process
Ripple Measurements 115V
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
24.9 mV
17.1 mV
21.9 mV
16.6 mV
Pass
20% Load
36.8 mV
14.3 mV
14.4 mV
15.3 mV
Pass
30% Load
24.2 mV
17.9 mV
15.4 mV
21.2 mV
Pass
40% Load
23.9 mV
21.1 mV
21.4 mV
23.9 mV
Pass
50% Load
23.1 mV
21.7 mV
23.9 mV
20.4 mV
Pass
60% Load
25.8 mV
29.0 mV
28.9 mV
23.8 mV
Pass
70% Load
29.0 mV
27.0 mV
33.1 mV
27.4 mV
Pass
80% Load
30.9 mV
30.2 mV
36.0 mV
30.4 mV
Pass
90% Load
31.7 mV
32.4 mV
30.8 mV
34.3 mV
Pass
100% Load
35.4 mV
36.0 mV
36.5 mV
32.0 mV
Pass
110% Load
37.1 mV
35.0 mV
36.6 mV
34.2 mV
Pass
Crossload 1
32.9 mV
28.1 mV
38.2 mV
30.0 mV
Pass
Crossload 2
34.6 mV
47.7 mV
46.8 mV
28.9 mV
Pass
The results above are not used in the certification process
SilverStone SFX 500W
Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions: › It should be mentioned that the test results are provided by Cybenetics › The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
