ErP Lot 6 2010: ✓
ErP Lot 6 2013: ✓
ErP Lot 3 2014 & CEC: Partially
(EU) No 617/2013 Compliance
✓
Performance Summary 230V
Efficiency Rating
Noise Rating
Standard+
Average Efficiency (>1450 load combinations)
83.902%
Average Noise Output (>1450 Load Combinations)
38.31dBA
Average PF (>1450 Load Combinations)
0.979
Efficiency With 10W (≤500W) or 2% (>500W) Load
0.000%
Standby Power Consumption
0.2288W
12V Ripple (Full Load)
66.32mV
5V Ripple (Full Load)
33.44mV
3.3V Ripple (Full Load)
30.03mV
5VSB Ripple (Full Load)
24.71mV
12V Load Regulation
1.79%
5V Load Regulation
2.76%
3.3V Load Regulation
2.51%
5VSB Load Regulation
3.75%
Inrush Current
73.800A
12V Transient Response (150%)
0.00V
5V Transient Response (150%)
V
3.3V Transient Response (150%)
V
5VSB Transient Response (150%)
V
Hold-Up Time & Power Ok Signal
7.70ms
AC Loss to PWR_OK Hold Up Time
24.90ms
PWR_OK Inactive to DC Loss Delay
-17.20ms
PSU Timings: T1 (20% / 100%)
56.0ms
56.0ms
PSU Timings: T3 (20% / 100%)
284.0ms
284.0ms
OPP (27.40°C / 0.00°C)
126.68%
0.00%
Hold-Up Time & Power Ok Signal
Hold-Up Time (ms)
7.7
AC Loss to PWR_OK Hold Up Time (ms)
24.9
PWR_OK Inactive to DC Loss Delay (ms)
-17.2
Vampire Power
Tables 230V
Graphs 230V
INFO

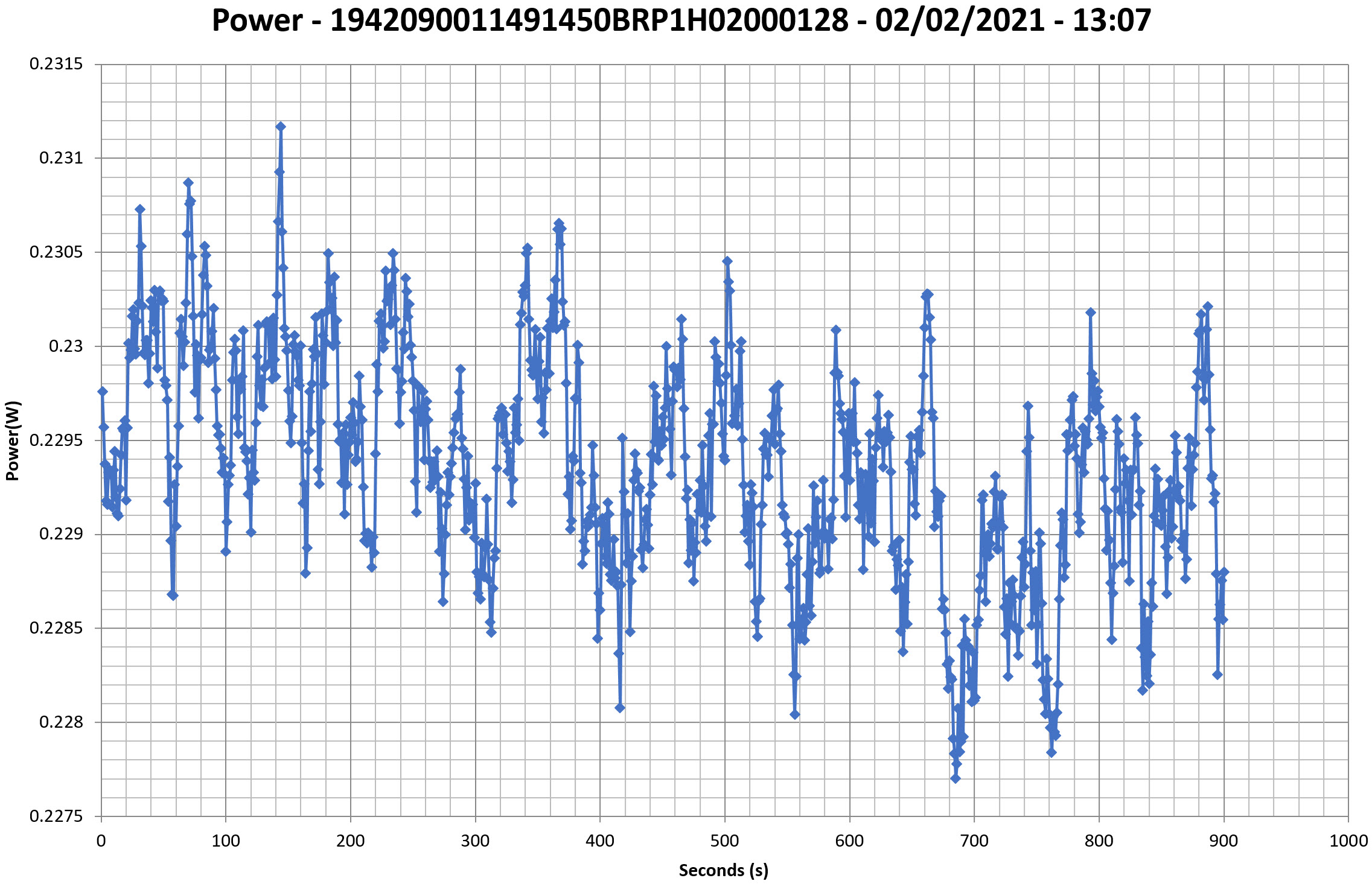

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

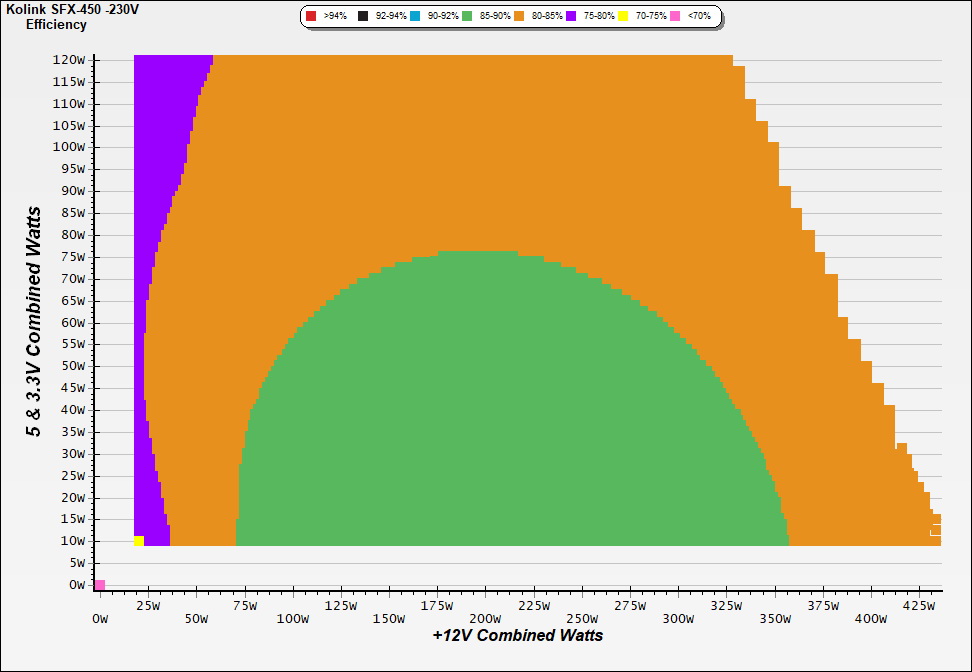

Efficiency Graph
230V
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

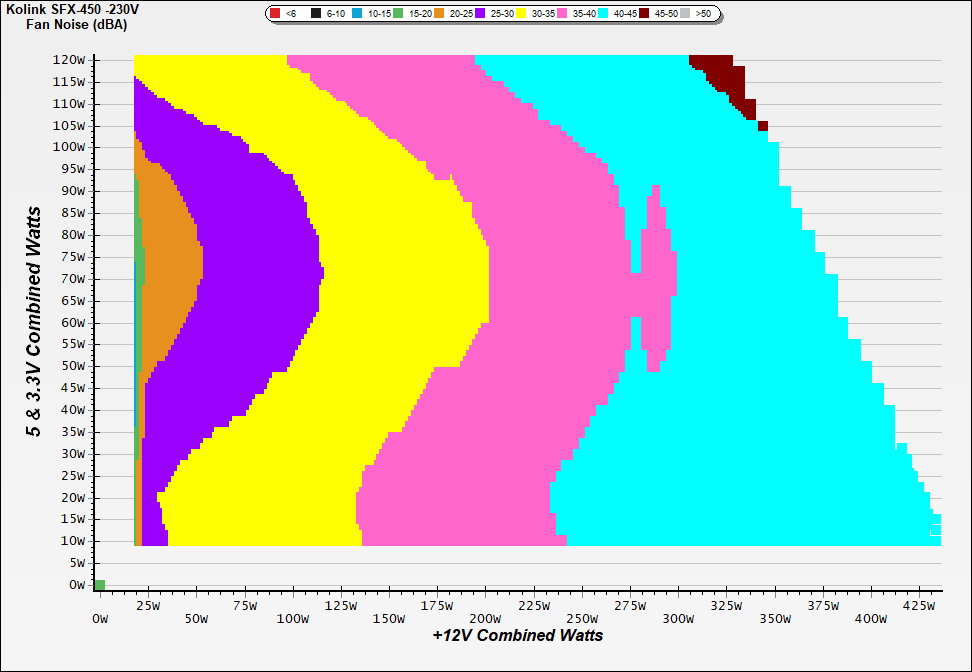

Noise Graph
230V
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails
Indicative Performance

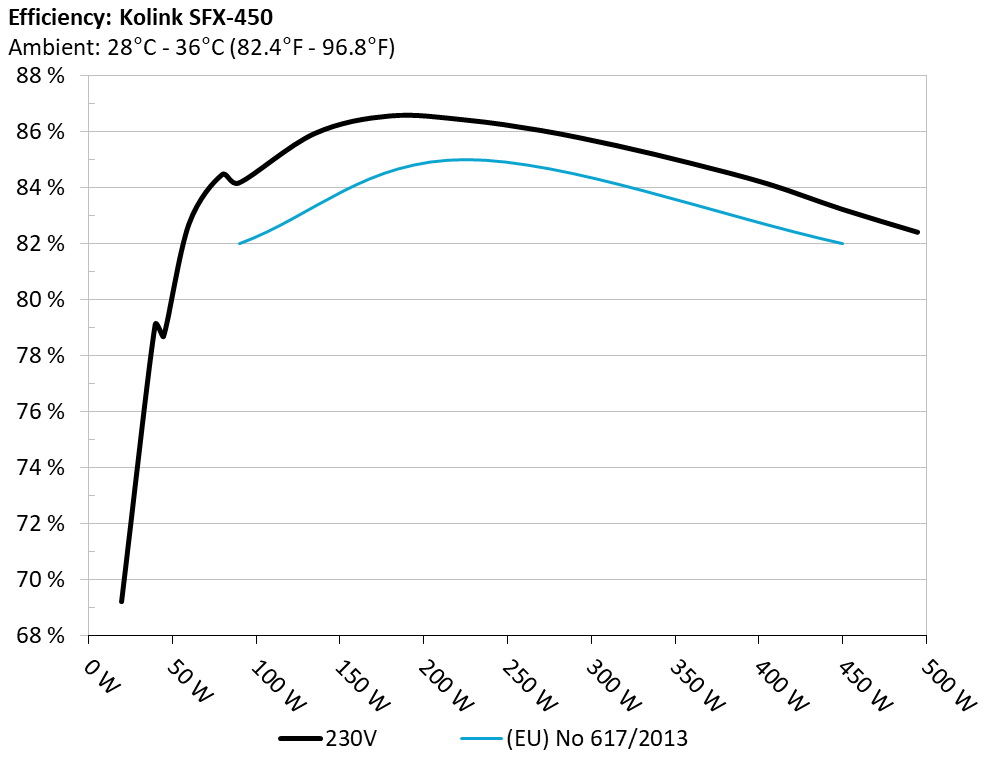

Efficiency under high ambient temperature
INFO
The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

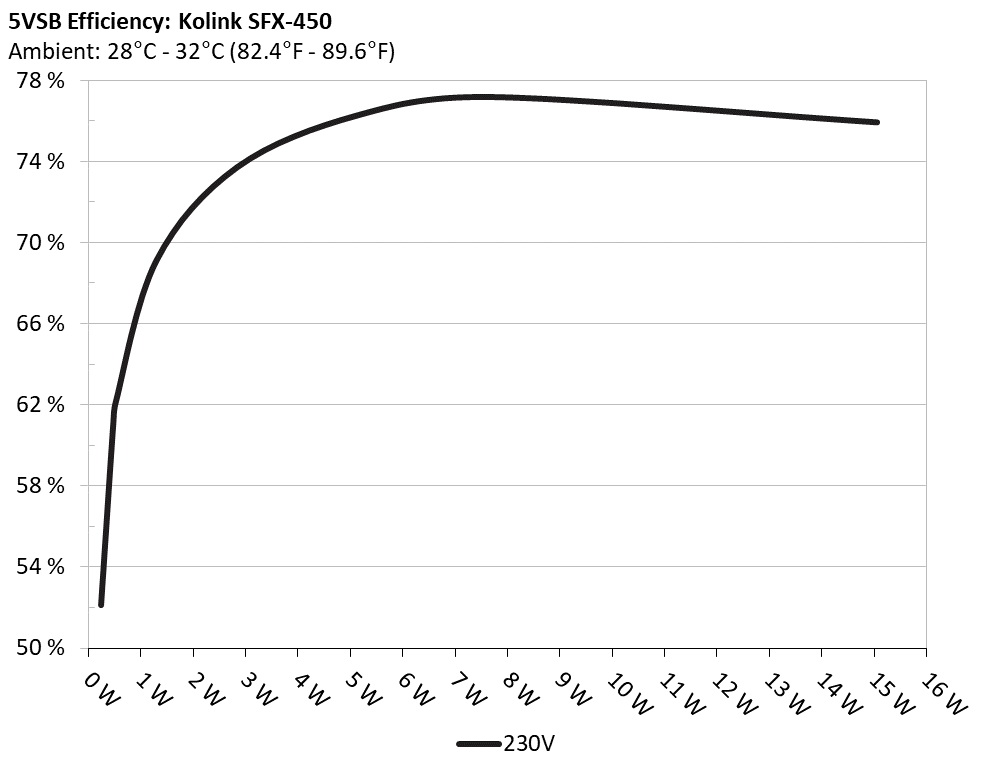

5VSB Efficiency
INFO
This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input
5VSB Efficiency (ERP LOT 3/6 & CEC) 230V
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.045A
0.232
52.135%
0.029
5.159V
0.445
230.35V
2
0.090A
0.464
61.053%
0.049
5.157V
0.760
230.35V
3
0.550A
2.827
73.697%
0.202
5.139V
3.836
230.35V
4
1.000A
5.121
76.251%
0.286
5.120V
6.716
230.34V
5
1.500A
7.662
77.160%
0.337
5.107V
9.930
230.34V
6
3.000A
15.049
75.913%
0.406
5.016V
19.824
230.34V
Supplementary Tests (For Reference)
Typical Load Tests 230V
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
1
1.948A
1.956A
1.973A
0.977A
44.957
78.679%
950
11.2
30.71°C
0.872
11.989V
5.113V
3.345V
5.118V
57.140
35.15°C
230.38V
2
4.938A
2.942A
2.966A
1.176A
90.015
84.170%
1064
13.2
31.08°C
0.946
11.973V
5.098V
3.336V
5.101V
106.944
36.16°C
230.39V
3
8.288A
3.436A
3.471A
1.376A
135.012
85.934%
1380
20.4
31.63°C
0.967
11.940V
5.094V
3.328V
5.086V
157.112
37.56°C
230.40V
4
11.658A
3.929A
3.976A
1.577A
180.006
86.564%
1607
25.4
32.38°C
0.977
11.907V
5.090V
3.319V
5.073V
207.945
38.91°C
230.40V
5
14.670A
4.930A
4.983A
1.780A
224.999
86.417%
2019
31.7
32.88°C
0.983
11.895V
5.072V
3.310V
5.057V
260.363
40.28°C
230.39V
6
17.688A
5.937A
6.000A
1.985A
269.985
86.043%
2260
35.0
33.09°C
0.986
11.882V
5.055V
3.300V
5.040V
313.779
41.19°C
230.38V
7
20.722A
6.947A
7.021A
2.191A
315.056
85.501%
2515
37.9
33.99°C
0.986
11.869V
5.038V
3.291V
5.021V
368.482
42.65°C
230.37V
8
23.748A
7.968A
8.040A
2.404A
360.022
84.860%
2628
39.1
34.83°C
0.987
11.859V
5.021V
3.282V
4.992V
424.253
43.96°C
230.36V
9
27.289A
8.469A
8.553A
2.404A
404.851
84.142%
2903
42.9
35.47°C
0.987
11.813V
5.017V
3.273V
4.993V
481.151
45.43°C
230.35V
10
30.575A
8.980A
9.096A
3.029A
449.680
83.224%
3082
45.5
35.72°C
0.987
11.774V
5.011V
3.264V
4.953V
540.326
46.89°C
230.36V
11
34.574A
8.964A
9.118A
3.032A
494.508
82.405%
3121
46.1
36.02°C
0.986
11.709V
5.019V
3.256V
4.948V
600.095
47.87°C
230.34V
CL1
4.000A
14.000A
14.000A
0.000A
163.252
79.886%
2667
40.1
33.26°C
0.977
12.372V
4.830V
3.296V
5.093V
204.356
40.76°C
230.39V
CL2
36.004A
2.001A
1.999A
1.000A
433.323
84.028%
2780
40.5
35.68°C
0.987
11.423V
5.211V
3.287V
5.051V
515.688
45.62°C
230.35V
The results above are not used in the certification process
Light Load Tests 230V
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
PF/AC Volts
1
1.243A
0.485A
0.493A
0.194A
19.986
69.204%
870
10.0
0.600
11.933V
5.156V
3.355V
5.149V
28.880
230.41V
2
2.486A
0.973A
0.984A
0.389A
39.975
79.093%
919
9.9
0.848
11.936V
5.145V
3.350V
5.139V
50.542
230.39V
3
3.733A
1.460A
1.480A
0.585A
60.004
82.677%
927
10.3
0.908
11.936V
5.134V
3.345V
5.129V
72.576
230.39V
4
4.972A
1.952A
1.978A
0.781A
79.953
84.468%
941
11.1
0.938
11.936V
5.124V
3.340V
5.119V
94.655
230.39V
The results above are not used in the certification process
Ripple Measurements 230V
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
32.70mV
17.60mV
21.50mV
16.30mV
Pass
20% Load
34.60mV
18.20mV
20.60mV
16.60mV
Pass
30% Load
35.60mV
18.00mV
20.30mV
16.80mV
Pass
40% Load
37.30mV
19.00mV
21.30mV
17.00mV
Pass
50% Load
37.20mV
19.30mV
20.60mV
17.00mV
Pass
60% Load
35.80mV
18.50mV
20.70mV
16.70mV
Pass
70% Load
34.20mV
18.40mV
20.90mV
17.40mV
Pass
80% Load
35.00mV
17.80mV
24.90mV
19.10mV
Pass
90% Load
35.80mV
18.00mV
22.80mV
18.50mV
Pass
100% Load
66.30mV
33.40mV
30.00mV
24.70mV
Pass
110% Load
70.10mV
34.40mV
27.90mV
25.70mV
Pass
Crossload1
58.80mV
29.50mV
33.90mV
33.40mV
Pass
Crossload2
61.70mV
28.80mV
22.40mV
20.70mV
Pass
The results above are not used in the certification process
Kolink SFX-450

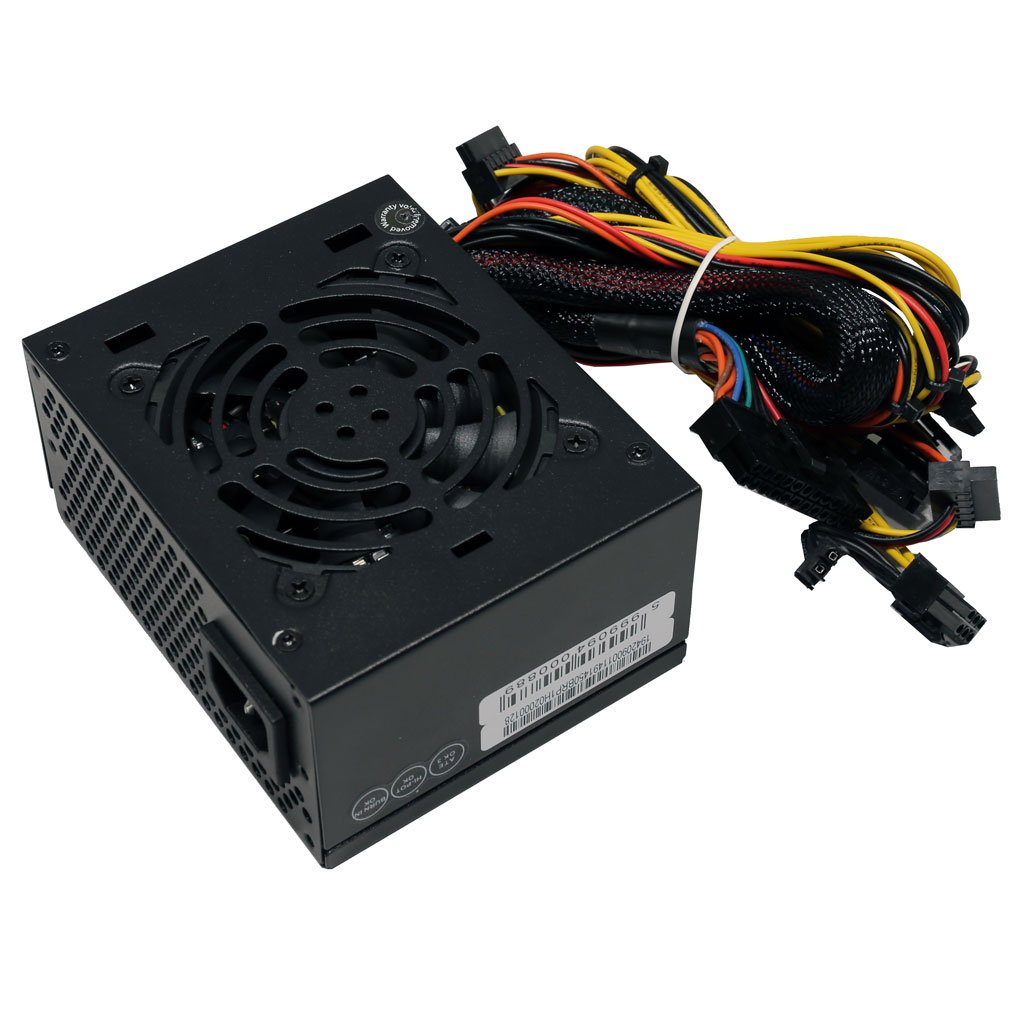

Top side

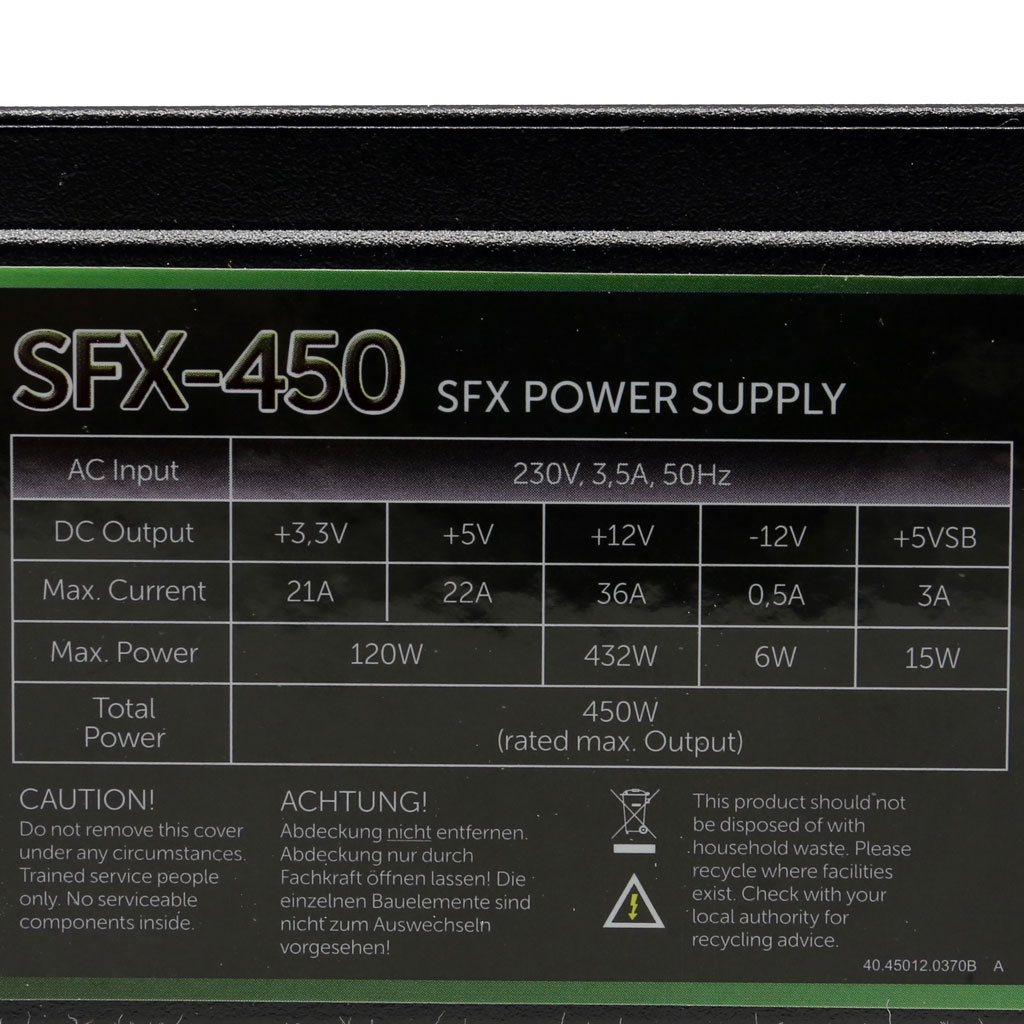

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions: › It should be mentioned that the test results are provided by Cybenetics › The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
