Thermaltake Toughpower PF1 750W (#2)
PSTPD0750FNFAPT1XG000100
Lab IDTT75001768
  • Report: 20PS1768A
  • Receipt Date: Nov 6, 2020
  • Test Date: Dec 18, 2020
  • Report Date: Dec 31, 2020
115V230V
效率評比
115V230V
噪音評比
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

Thermaltake
製造商 (OEM)Jiu Zhou Yang Guang Power Supply (HKC)
Toughpower PF1
TTP-750AH2FKP
PSTPD0750FNFAPT1XG000100

(Vrms)100-240
(Arms)10
(Hz)50-60
(W)750
ATX12V
120mm Hydraulic Bearing Fan
[TT-1225(BDK12025MS)]
✓ (selectable)
Fully Modular

Rail3.3V5V12V5VSB-12V
Max. PowerAmps2020622.50.3
Watts10074412.53.6
Total Max. Power (W)750

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 16-18AWG No
4+4 pin EPS12V (650mm) 2 2 16AWG No
6+2 pin PCIe (500mm+150mm) 2 4 16-18AWG No
SATA (500mm+150mm+150mm) 3 9 18AWG No
4-pin Molex (500mm+150mm+150mm+150mm) 1 4 18AWG No
FDD Adapter (150mm) 1 1 22AWG No
AC Power Cord (1380mm) - C13 coupler 1 1 18AWG -

Test Results

Temperature & Compliance Info

(°C /°F)30-32 / 86-89.6
✓
✓

Performance Summary

Hold-Up Time (ms)19
AC Loss to PWR_OK Hold Up Time (ms)17.3
PWR_OK Inactive to DC Loss Delay (ms)1.7

待機電源消耗

Graphs

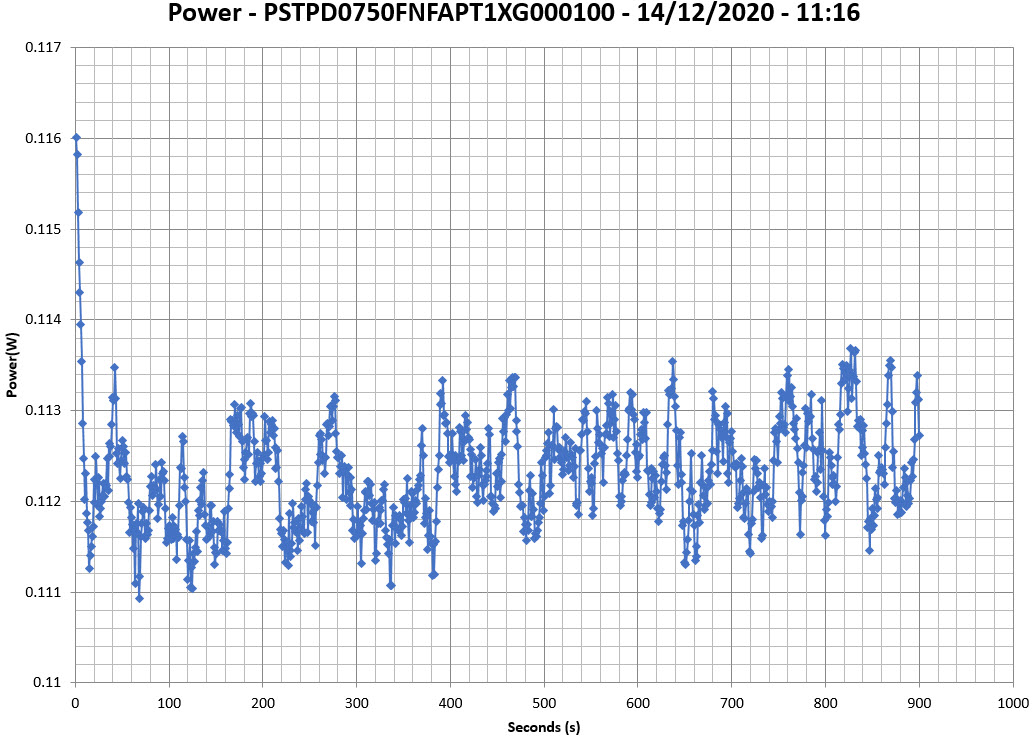

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

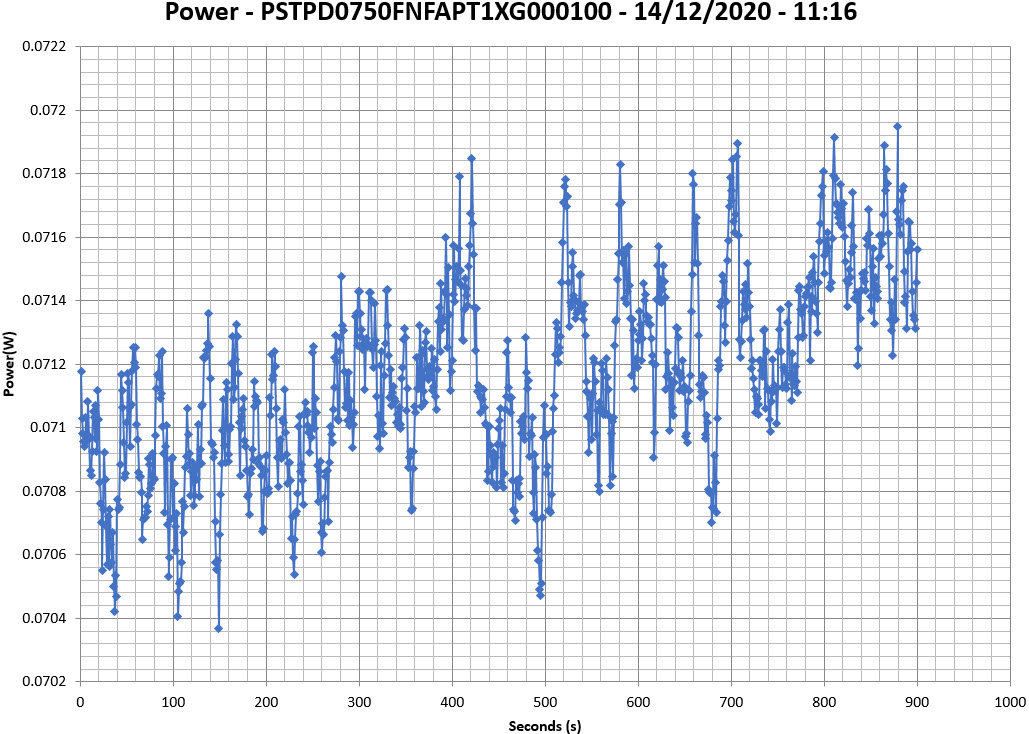

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

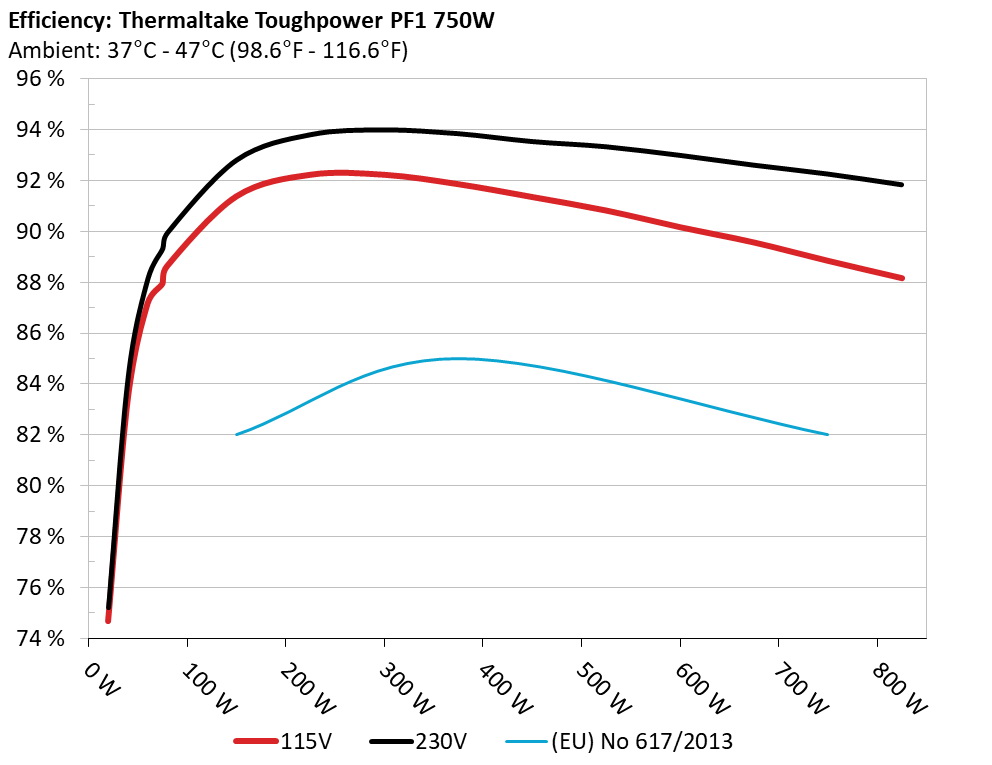

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

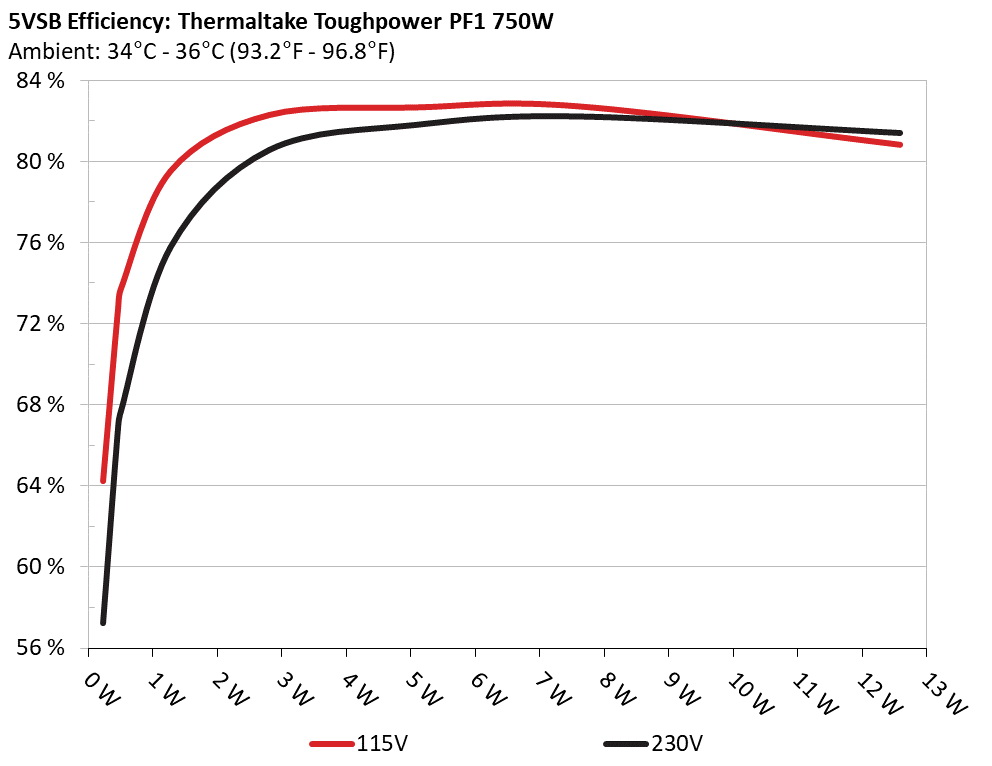

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.230 64.246% 0.035
5.120V 0.358 115.15V
2 0.090A 0.461 72.713% 0.062
5.119V 0.634 115.15V
3 0.550A 2.807 82.293% 0.256
5.103V 3.411 115.14V
4 1.000A 5.088 82.665% 0.348
5.087V 6.155 115.14V
5 1.500A 7.606 82.719% 0.402
5.069V 9.195 115.14V
6 2.501A 12.588 80.827% 0.458
5.034V 15.574 115.14V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.230 57.214% 0.012
5.120V 0.402 230.33V
2 0.090A 0.461 66.812% 0.021
5.118V 0.690 230.33V
3 0.550A 2.807 80.545% 0.099
5.102V 3.485 230.33V
4 1.000A 5.088 81.787% 0.163
5.087V 6.221 230.33V
5 1.500A 7.605 82.198% 0.222
5.069V 9.252 230.33V
6 2.501A 12.588 81.386% 0.303
5.034V 15.467 230.32V

Supplementary Tests (For Reference)

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 4.400A 1.985A 1.978A 0.985A 74.967 87.930% 0 <6.0 44.86°C 0.966
12.126V 5.043V 3.337V 5.078V 85.258 40.22°C 115.14V
2 9.824A 2.974A 2.968A 1.186A 150.056 91.369% 0 <6.0 45.75°C 0.978
12.128V 5.045V 3.337V 5.061V 164.231 40.71°C 115.10V
3 15.575A 3.470A 3.461A 1.388A 225.067 92.219% 0 <6.0 46.87°C 0.983
12.135V 5.046V 3.338V 5.045V 244.057 41.28°C 115.14V
4 21.329A 3.967A 3.956A 1.591A 300.082 92.218% 569 <6.0 42.04°C 0.988
12.137V 5.045V 3.336V 5.029V 325.406 48.26°C 115.12V
5 26.706A 4.958A 4.948A 1.796A 374.727 91.851% 643 7.3 42.65°C 0.991
12.140V 5.045V 3.335V 5.012V 407.974 49.58°C 115.13V
6 32.089A 5.946A 5.939A 2.001A 449.596 91.346% 842 17.5 43.57°C 0.993
12.147V 5.047V 3.335V 4.995V 492.192 50.83°C 115.12V
7 37.508A 6.933A 6.927A 2.211A 524.923 90.814% 866 18.6 43.78°C 0.994
12.152V 5.050V 3.336V 4.977V 578.023 51.65°C 115.16V
8 42.926A 7.923A 7.921A 2.420A 600.228 90.156% 1269 31.5 43.91°C 0.995
12.156V 5.050V 3.334V 4.959V 665.766 52.13°C 115.14V
9 48.745A 8.419A 8.401A 2.425A 674.765 89.558% 1635 39.0 44.06°C 0.996
12.150V 5.049V 3.333V 4.950V 753.440 53.23°C 115.14V
10 54.528A 8.913A 8.914A 2.532A 749.883 88.836% 1808 41.3 45.02°C 0.996
12.153V 5.049V 3.332V 4.937V 844.122 54.88°C 115.15V
11 60.696A 8.917A 8.914A 2.537A 825.097 88.152% 2166 46.1 46.85°C 0.996
12.157V 5.048V 3.332V 4.928V 935.993 57.57°C 115.16V
CL1 0.122A 12.000A 12.000A 0.000A 102.451 86.179% 600 6.5 42.42°C 0.983
12.166V 5.076V 3.338V 5.091V 118.882 49.70°C 115.20V
CL2 62.055A 1.001A 1.000A 1.000A 767.412 89.361% 1814 41.7 44.96°C 0.996
12.151V 5.030V 3.338V 5.009V 858.777 54.71°C 115.12V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 4.403A 1.983A 1.977A 0.985A 74.956 89.310% 0 <6.0 44.71°C 0.747
12.119V 5.042V 3.336V 5.078V 83.928 40.72°C 230.39V
2 9.828A 2.974A 2.968A 1.186A 150.022 92.790% 0 <6.0 45.85°C 0.879
12.120V 5.044V 3.337V 5.061V 161.679 41.05°C 230.37V
3 15.588A 3.469A 3.461A 1.388A 225.024 93.787% 0 <6.0 46.87°C 0.927
12.123V 5.045V 3.336V 5.045V 239.930 41.14°C 230.35V
4 21.335A 3.966A 3.958A 1.591A 300.025 93.972% 352 <6.0 41.43°C 0.950
12.131V 5.044V 3.336V 5.029V 319.269 47.92°C 230.31V
5 26.697A 4.956A 4.947A 1.796A 374.524 93.827% 611 6.7 42.21°C 0.960
12.137V 5.045V 3.335V 5.012V 399.165 49.35°C 230.32V
6 32.092A 5.946A 5.940A 2.000A 449.432 93.518% 839 17.4 42.57°C 0.968
12.141V 5.047V 3.334V 4.995V 480.584 50.51°C 230.33V
7 37.503A 6.935A 6.930A 2.210A 524.780 93.314% 841 17.5 43.32°C 0.977
12.150V 5.049V 3.334V 4.977V 562.378 52.25°C 230.34V
8 42.962A 7.925A 7.922A 2.420A 600.100 92.974% 1062 25.9 43.92°C 0.979
12.143V 5.049V 3.332V 4.960V 645.446 53.05°C 230.37V
9 48.723A 8.417A 8.401A 2.425A 674.632 92.593% 1475 35.9 44.47°C 0.981
12.153V 5.049V 3.333V 4.950V 728.600 54.34°C 230.34V
10 54.517A 8.913A 8.916A 2.532A 749.755 92.243% 1805 41.3 45.17°C 0.982
12.153V 5.049V 3.332V 4.937V 812.806 55.19°C 230.37V
11 60.714A 8.917A 8.914A 2.536A 824.993 91.823% 2146 45.8 46.56°C 0.984
12.152V 5.047V 3.331V 4.929V 898.460 57.37°C 230.39V
CL1 0.118A 11.999A 11.999A 0.000A 102.406 87.503% 596 6.5 42.17°C 0.821
12.159V 5.076V 3.339V 5.091V 117.031 49.71°C 230.39V
CL2 62.023A 1.000A 1.002A 1.000A 767.079 92.762% 1740 40.3 45.60°C 0.983
12.152V 5.026V 3.335V 5.009V 826.936 55.41°C 230.35V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.225A 0.497A 0.494A 0.196A 19.997 74.669% 0 <6.0 0.779
12.117V 5.036V 3.336V 5.114V 26.781 115.16V
2 2.450A 0.992A 0.989A 0.392A 39.987 83.417% 0 <6.0 0.915
12.118V 5.038V 3.336V 5.104V 47.936 115.16V
3 3.677A 1.488A 1.483A 0.589A 60.017 87.158% 0 <6.0 0.956
12.121V 5.040V 3.336V 5.095V 68.860 115.16V
4 4.897A 1.984A 1.977A 0.787A 79.966 88.636% 0 <6.0 0.970
12.123V 5.042V 3.336V 5.084V 90.218 115.14V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.225A 0.495A 0.493A 0.196A 19.988 75.225% 0 <6.0 0.424
12.119V 5.038V 3.337V 5.114V 26.571 230.38V
2 2.449A 0.992A 0.989A 0.392A 39.977 84.304% 0 <6.0 0.572
12.118V 5.040V 3.337V 5.104V 47.420 230.39V
3 3.677A 1.488A 1.483A 0.589A 60.007 88.141% 0 <6.0 0.684
12.118V 5.041V 3.337V 5.094V 68.081 230.39V
4 4.898A 1.983A 1.980A 0.787A 79.956 89.946% 0 <6.0 0.763
12.118V 5.041V 3.336V 5.084V 88.893 230.39V

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load8.62mV5.88mV4.55mV4.74mVPass
20% Load10.40mV6.95mV5.32mV5.76mVPass
30% Load10.20mV7.26mV5.17mV6.07mVPass
40% Load14.00mV8.49mV6.09mV7.04mVPass
50% Load13.69mV9.05mV6.70mV7.95mVPass
60% Load14.06mV10.84mV8.24mV7.90mVPass
70% Load13.89mV10.99mV7.93mV9.08mVPass
80% Load14.56mV12.22mV10.70mV10.20mVPass
90% Load15.58mV13.55mV11.62mV10.81mVPass
100% Load24.42mV16.35mV12.98mV12.71mVPass
110% Load24.94mV16.86mV12.91mV13.28mVPass
Crossload113.92mV11.65mV13.30mV7.84mVPass
Crossload223.61mV15.12mV7.94mV12.50mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load8.41mV5.93mV4.81mV4.69mVPass
20% Load10.50mV6.80mV5.43mV5.71mVPass
30% Load10.54mV7.46mV5.73mV5.97mVPass
40% Load13.96mV7.88mV6.24mV6.83mVPass
50% Load13.65mV9.41mV6.81mV7.34mVPass
60% Load14.93mV10.02mV7.27mV8.26mVPass
70% Load13.19mV11.56mV7.98mV8.87mVPass
80% Load13.86mV12.53mV11.00mV9.69mVPass
90% Load14.61mV13.14mV10.85mV10.14mVPass
100% Load24.42mV16.93mV13.24mV12.10mVPass
110% Load25.72mV17.08mV13.53mV12.98mVPass
Crossload113.25mV10.75mV13.52mV7.44mVPass
Crossload224.85mV14.33mV8.13mV11.39mVPass

The results above are not used in the certification process

Thermaltake Toughpower PF1 750W (#2)

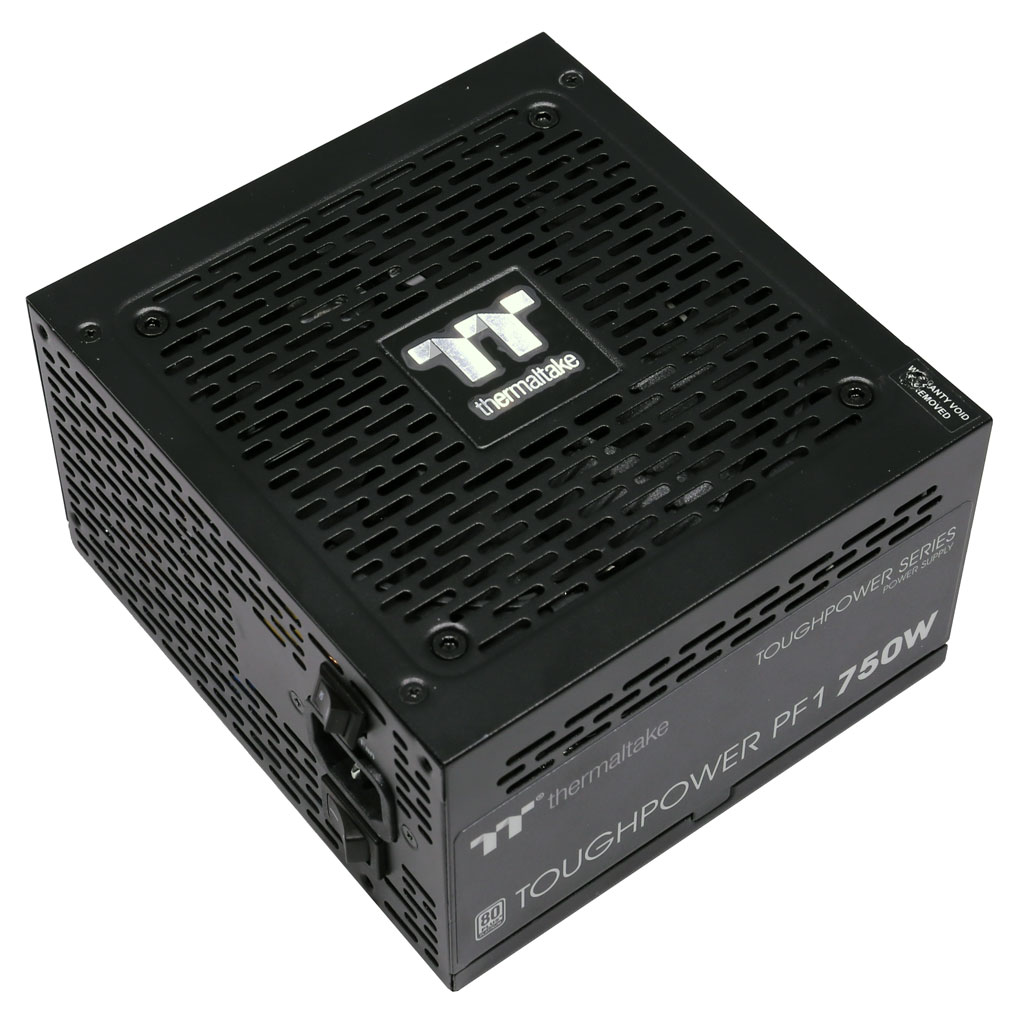

Top side

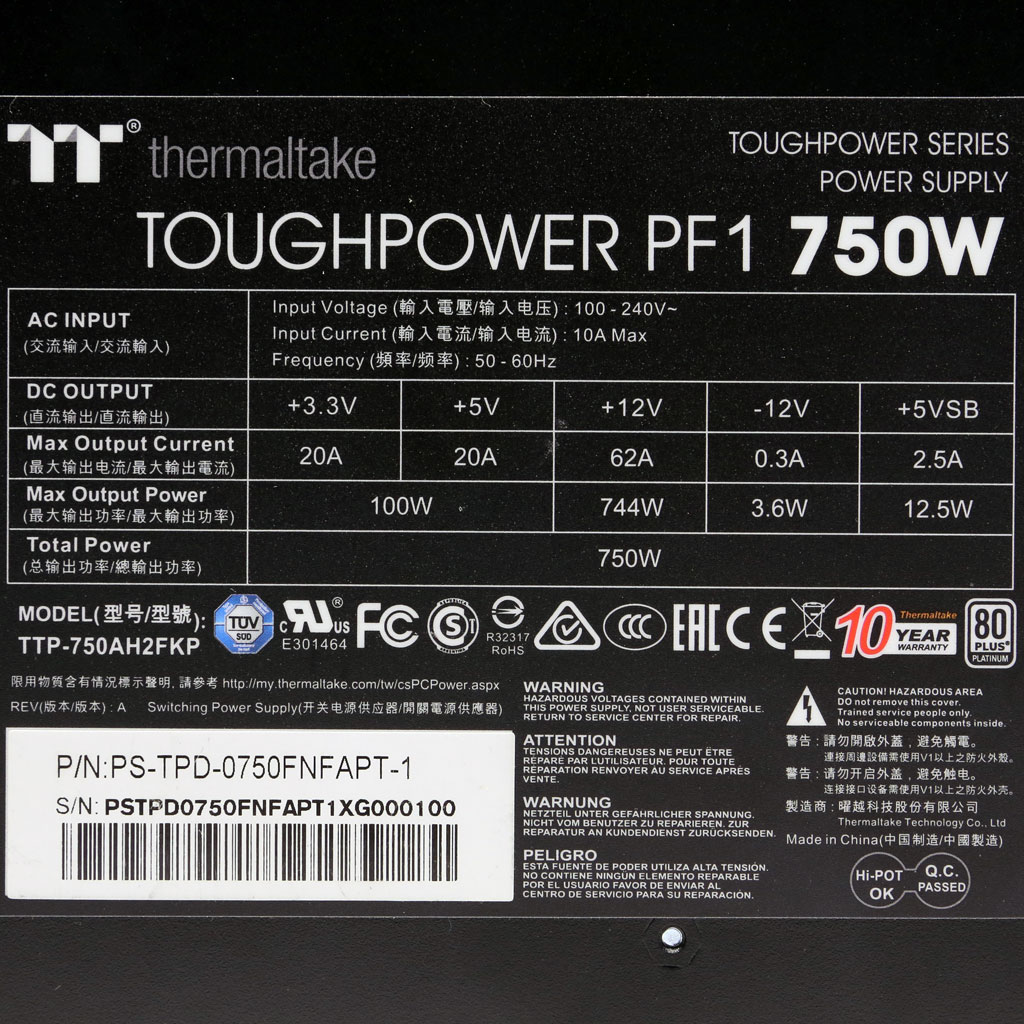

Power specifications label
