Chieftronic Power Up 850W
Serial NumberG201000017602
Lab IDCT85001763
  • Report: 20PS1763A
  • Receipt Date: Nov 27, 2020
  • Test Date: Dec 3, 2020
  • Report Date: Dec 7, 2020
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandChieftronic
Manufacturer (OEM)
SeriesPower Up
Model NumberGPX-850FC
Serial NumberG201000017602
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)12
Rated Frequency (Hz)47-63
Rated Power (W)850
TypeATX12V
Cooling120mm Double Ball-Bearing Fan
(D12BH-12)
Semi-Passive Operation✗
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202070.52.50.3
Watts11084612.53.6
Total Max. Power (W)850

Test Equipment

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (650mm) 1 1 18AWG No
8 pin EPS12V (650mm) / 4+4 pin EPS12V (150mm) 1 1 / 1 18AWG No
6+2 pin PCIe (500mm+150mm) 3 6 18AWG No
SATA (500mm+150mm+150mm) 3 9 18AWG No
SATA (480mm) / 4-pin Molex (+120mm+120mm) / FDD (+120mm) 1 1 / 2 / 1 18-20AWG No
AC Power Cord (1400mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data -
Manufacturer (OEM) CWT
Platform GPX
PCB Type Double Sided
Primary Side -
Transient FilterDis 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV, 1x Power Integrations CAP200DG (Discharge IC)
Inrush Protection NTC Thermistor SCK-055 (5 Ohm) & Relay
Bridge Rectifier(s) 1x  Lite-ON Semiconductor GBU1506 (600V, 15A @ 150°C)
APFC MOSFETs 2x Great Power GP28S506 (500V, 28A @ 150°C, Rds(on): 0.125Ohm)
APFC Boost Diode 1x On Semiconductor FFSP0665A (650V, 6A @ 153°C)
Bulk Cap(s) 1x Elite (400V, 560uF, 2,000h @ 85°C, GM)
Main Switchers 4x Silan Microelectronics SVF20N50F (500V, 12.6A @ 100°C, Rds(on): 0.27Ohm)
APFC Controller Champion CM6500UNX & CM03X Green PFC Controller
Resonant Controller Champion CM6901X
Topology Primary side: APFC, Full-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side -
+12V MOSFETs 6x Infineon IRFH7004PBF (40V, 164A @ 100°C, Rds(on): 1.4mOhm)
5V & 3.3V DC-DC Converters: 4x Sync Power SPN3006 (30V, 57A @ 100°C, Rds(on): 5.5mOhm)
PWM Controllers: ANPEC APW7159C
Filtering Capacitors Electrolytic: 10x Chengx (2-4,000h @ 105°C,GR)
Polymer: 17x APAQ, 3x Elite, 3x Capxon
Supervisor IC Sitronix ST9S429-PG14 (OCP, OVP, UVP, SCP, PG)
Fan Model Yate Loon D12BH-12 (120mm, 12V, 0.60A, Double Ball-Bearing Fan )
5VSB Circuit -
Standby PWM Controller Power Integrations TNY287PG

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)15.1
AC Loss to PWR_OK Hold Up Time (ms)12
PWR_OK Inactive to DC Loss Delay (ms)3.1

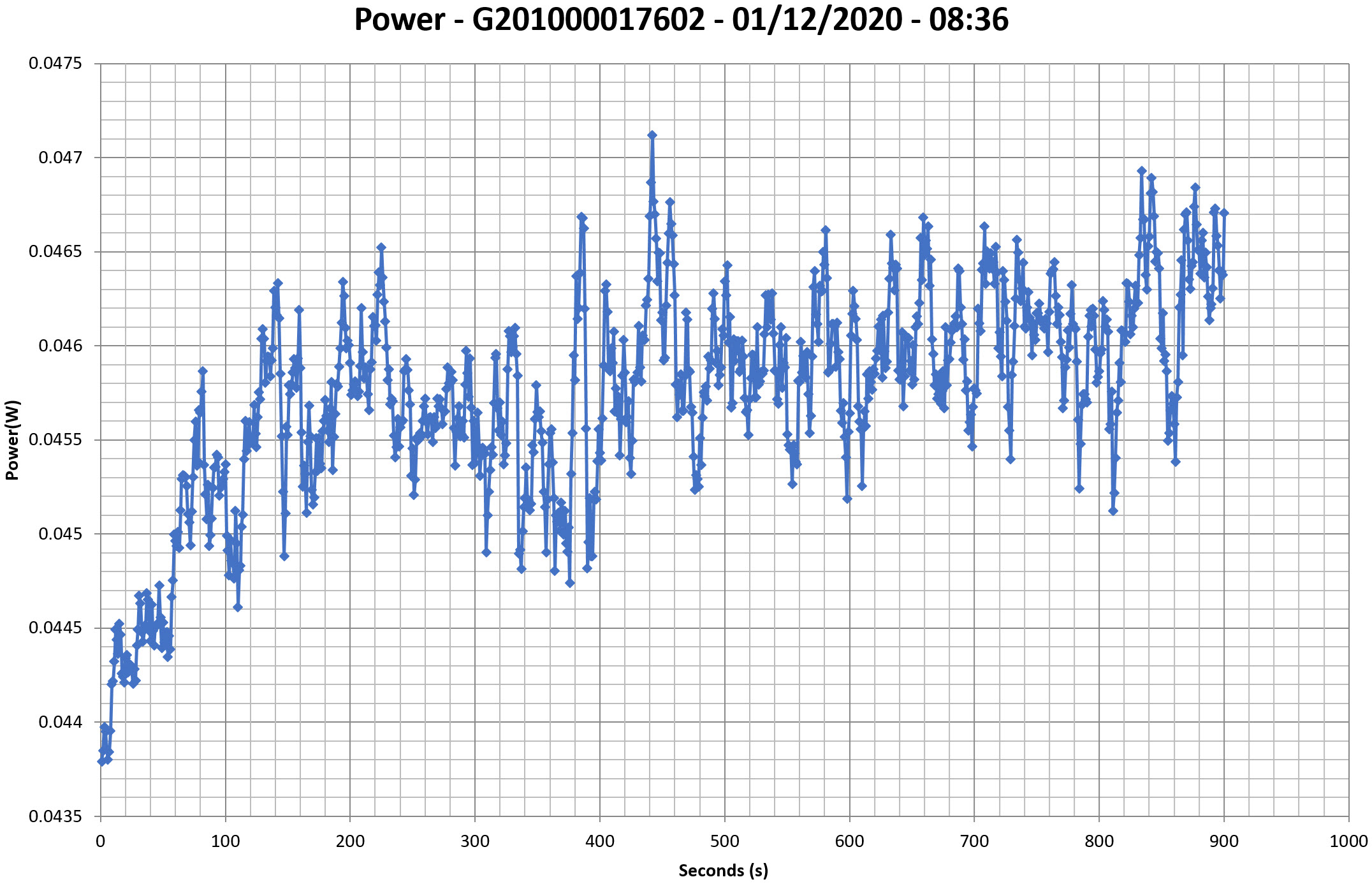

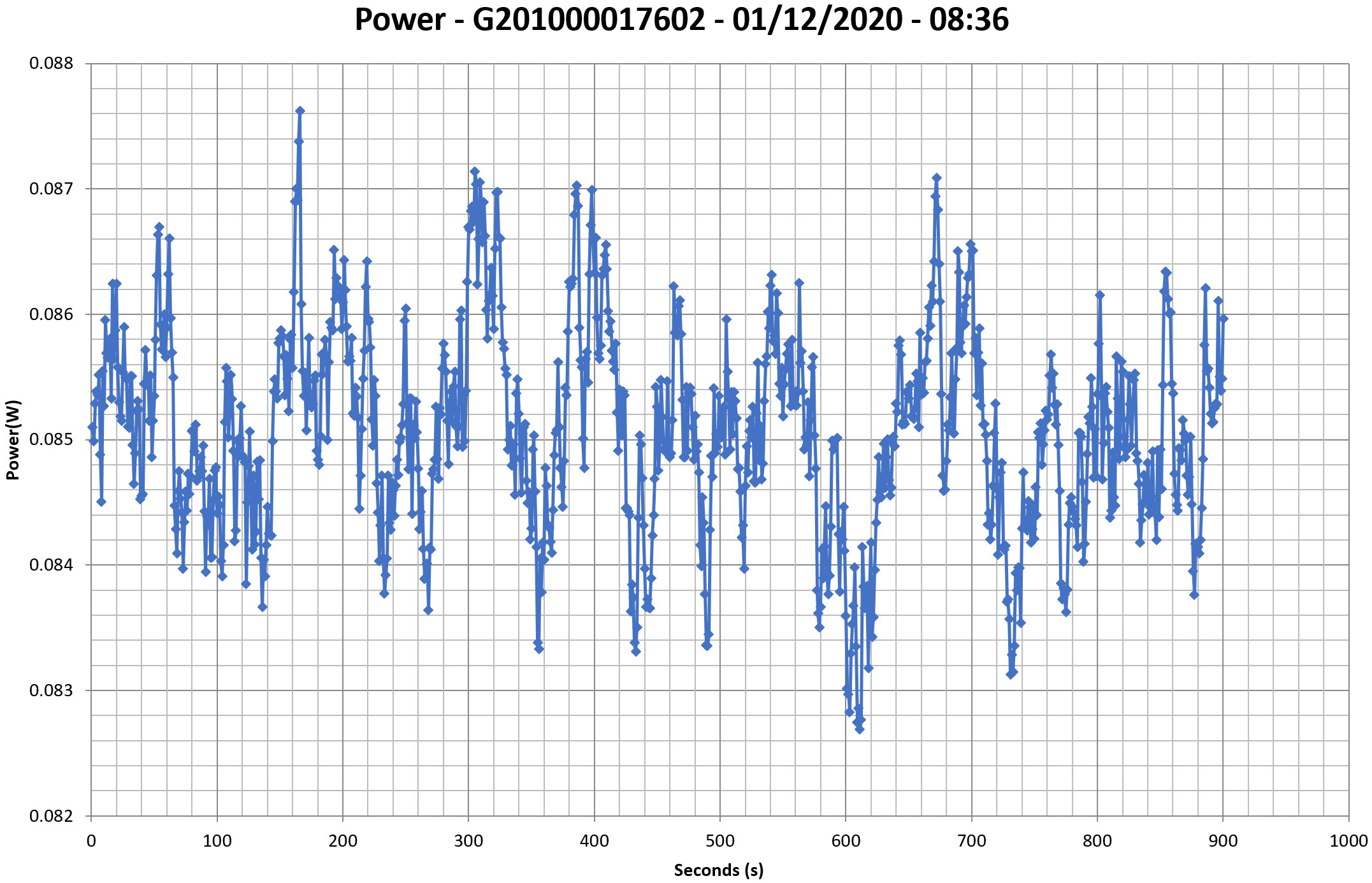

Vampire Power

Graphs

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

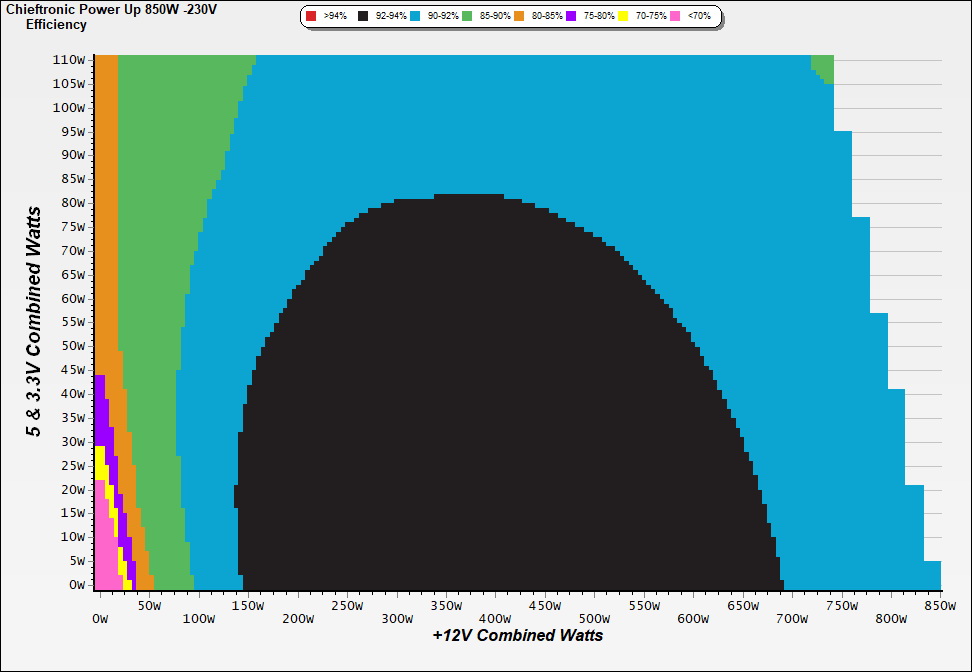

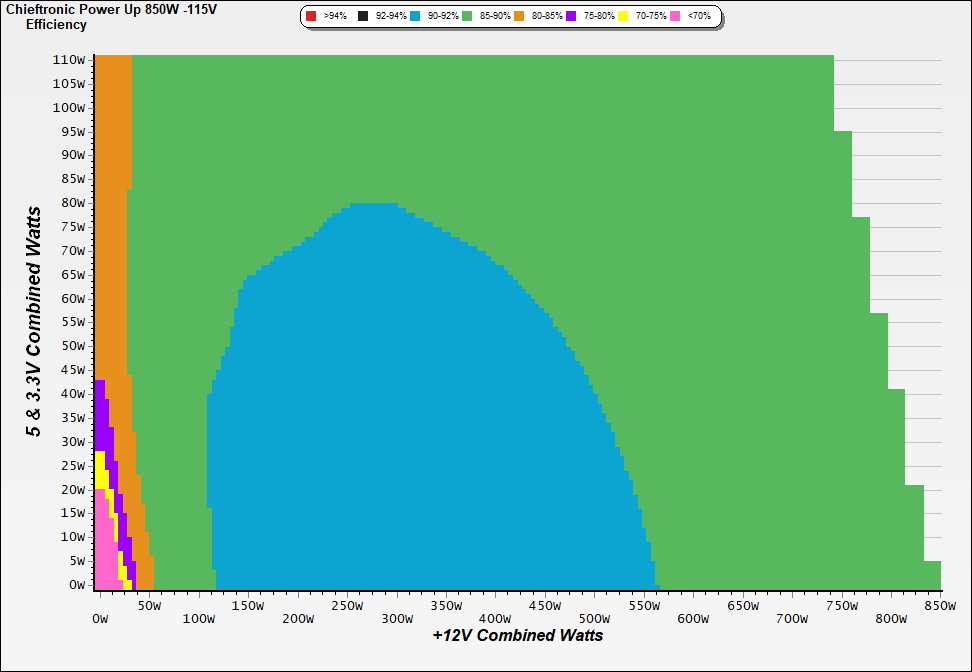

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

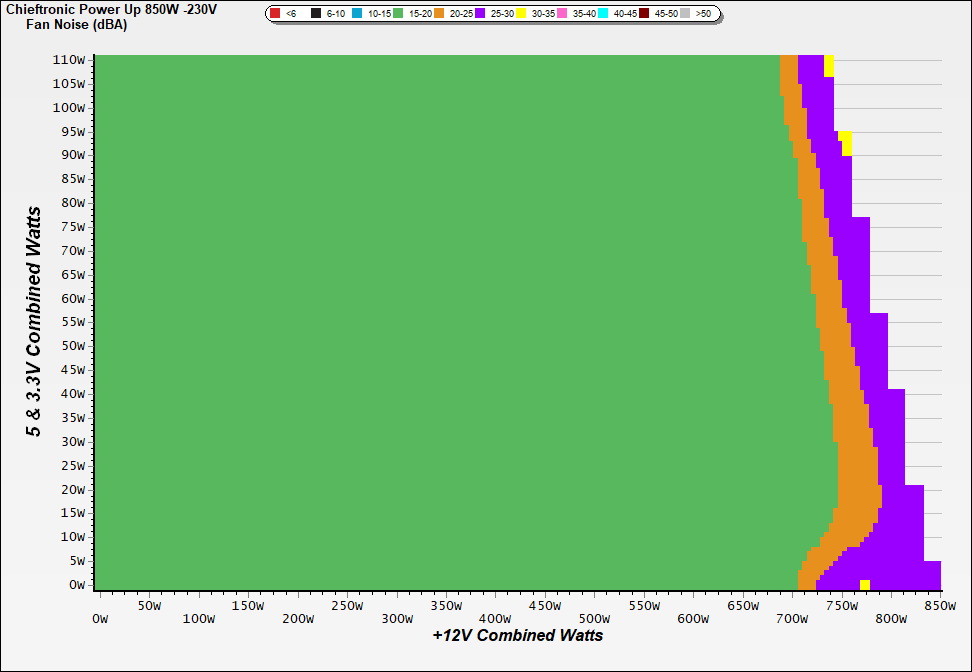

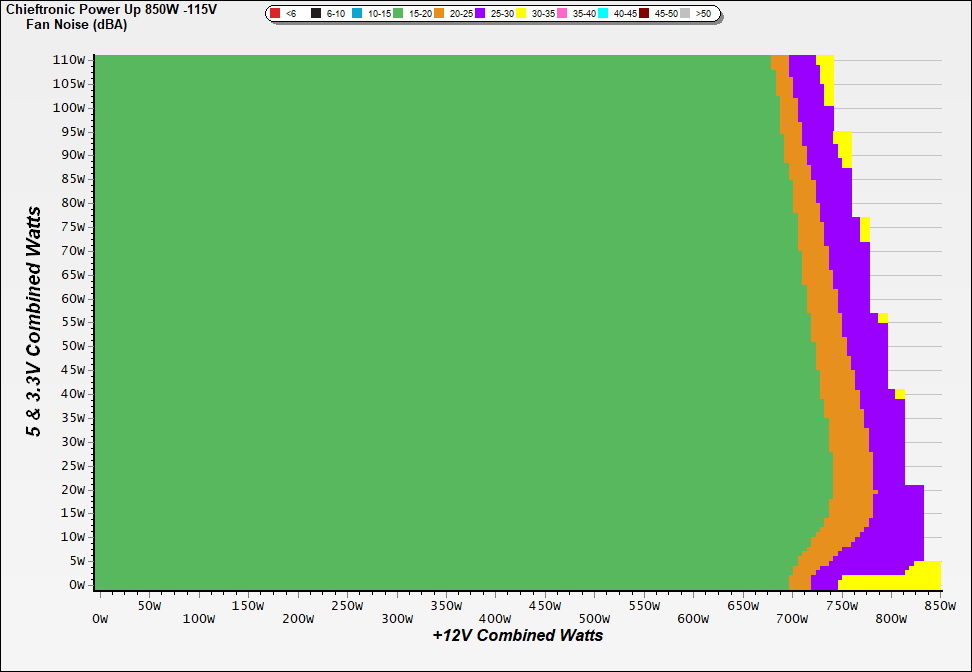

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

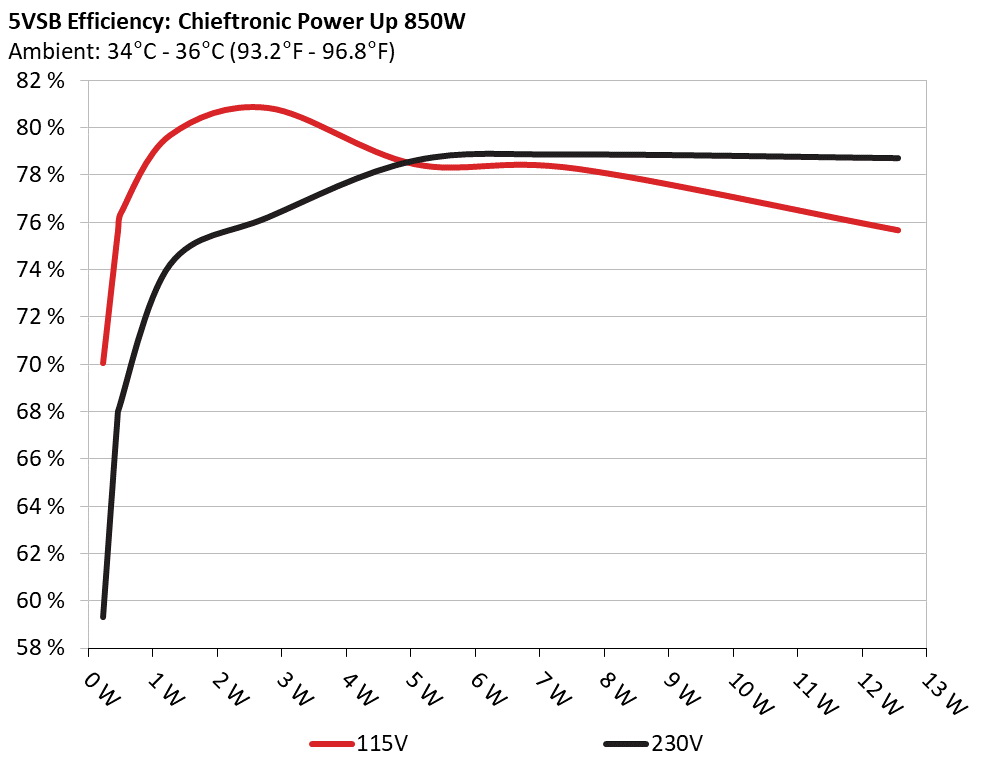

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.229 70.031% 0.031
5.086V 0.327 115.16V
2 0.090A 0.458 75.578% 0.057
5.086V 0.606 115.16V
3 0.550A 2.790 80.823% 0.252
5.074V 3.452 115.16V
4 1.000A 5.063 78.447% 0.351
5.063V 6.454 115.16V
5 1.500A 7.574 78.252% 0.405
5.050V 9.679 115.16V
6 2.499A 12.559 75.652% 0.458
5.026V 16.601 115.16V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.229 59.326% 0.011
5.086V 0.386 230.30V
2 0.090A 0.458 67.953% 0.019
5.086V 0.674 230.31V
3 0.550A 2.791 76.215% 0.099
5.076V 3.662 230.31V
4 1.000A 5.064 78.609% 0.162
5.065V 6.442 230.30V
5 1.500A 7.577 78.861% 0.220
5.051V 9.608 230.30V
6 2.499A 12.563 78.711% 0.299
5.027V 15.961 230.30V

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 5.262A 1.994A 2.014A 0.990A 84.952 86.597% 697 18.3 40.18°C 0.967
12.040V 5.017V 3.275V 5.049V 98.100 43.72°C 115.16V
2 11.556A 2.992A 3.025A 1.192A 170.013 89.993% 697 18.3 40.88°C 0.979
12.038V 5.014V 3.272V 5.036V 188.917 45.21°C 115.16V
3 18.189A 3.492A 3.533A 1.394A 255.011 90.687% 697 18.3 41.21°C 0.981
12.038V 5.012V 3.269V 5.022V 281.198 46.09°C 115.16V
4 24.826A 3.992A 4.043A 1.597A 340.013 90.879% 696 18.3 41.80°C 0.980
12.036V 5.010V 3.267V 5.009V 374.138 47.37°C 115.16V
5 31.101A 4.994A 5.055A 1.803A 424.813 90.390% 696 18.3 42.98°C 0.976
12.035V 5.008V 3.264V 4.993V 469.980 49.22°C 115.16V
6 37.351A 5.993A 6.073A 2.000A 509.298 89.860% 696 18.3 43.24°C 0.977
12.035V 5.008V 3.262V 4.978V 566.768 50.04°C 115.15V
7 43.674A 6.996A 7.088A 2.216A 594.601 89.186% 697 18.3 43.36°C 0.979
12.032V 5.005V 3.259V 4.964V 666.697 51.11°C 115.15V
8 49.993A 7.996A 8.107A 2.426A 679.976 88.141% 692 18.2 43.71°C 0.981
12.033V 5.004V 3.256V 4.947V 771.460 52.41°C 115.15V
9 56.714A 8.497A 8.607A 2.431A 764.882 87.133% 868 23.5 44.28°C 0.984
12.032V 5.002V 3.253V 4.936V 877.834 53.63°C 115.14V
10 63.378A 9.003A 9.135A 2.538A 849.642 85.868% 1438 39.4 45.65°C 0.983
12.030V 4.999V 3.251V 4.925V 989.477 55.84°C 115.14V
11 70.436A 9.007A 9.140A 2.542A 934.406 84.884% 1858 45.3 46.67°C 0.983
12.028V 4.997V 3.249V 4.917V 1100.800 57.56°C 115.14V
CL1 0.117A 12.999A 12.997A 0.000A 109.074 82.218% 694 18.3 42.76°C 0.972
12.047V 5.018V 3.265V 5.051V 132.664 48.92°C 115.18V
CL2 70.496A 0.998A 1.000A 1.000A 861.572 86.323% 1400 37.3 45.67°C 0.985
12.034V 5.004V 3.257V 4.972V 998.074 55.50°C 115.15V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 5.262A 1.991A 2.015A 0.990A 84.952 87.618% 696 18.3 40.23°C 0.810
12.042V 5.018V 3.275V 5.048V 96.957 43.59°C 230.26V
2 11.554A 2.991A 3.025A 1.192A 170.009 91.337% 696 18.3 41.27°C 0.903
12.040V 5.015V 3.272V 5.035V 186.134 45.40°C 230.27V
3 18.189A 3.492A 3.531A 1.394A 255.007 92.402% 695 18.3 41.78°C 0.931
12.038V 5.013V 3.269V 5.021V 275.975 46.32°C 230.27V
4 24.824A 3.992A 4.041A 1.598A 340.013 92.779% 696 18.3 42.33°C 0.944
12.037V 5.011V 3.267V 5.007V 366.476 47.21°C 230.29V
5 31.098A 4.992A 5.056A 1.803A 424.805 92.633% 695 18.3 42.57°C 0.952
12.036V 5.009V 3.264V 4.993V 458.589 48.37°C 230.29V
6 37.354A 5.993A 6.070A 2.000A 509.287 92.390% 695 18.3 42.80°C 0.955
12.034V 5.008V 3.262V 4.978V 551.236 49.53°C 230.30V
7 43.672A 6.995A 7.088A 2.215A 594.620 91.916% 695 18.3 43.12°C 0.957
12.033V 5.006V 3.259V 4.965V 646.920 50.61°C 230.29V
8 49.990A 7.996A 8.105A 2.425A 679.933 91.342% 692 18.2 43.91°C 0.960
12.033V 5.004V 3.256V 4.949V 744.379 52.24°C 230.29V
9 56.710A 8.495A 8.603A 2.429A 764.827 90.781% 898 24.7 44.73°C 0.961
12.032V 5.003V 3.254V 4.939V 842.495 53.90°C 230.29V
10 63.372A 9.000A 9.134A 2.536A 849.557 90.247% 1292 36.9 45.58°C 0.962
12.030V 5.000V 3.251V 4.928V 941.366 55.57°C 230.28V
11 70.436A 9.005A 9.139A 2.539A 934.321 89.753% 1786 43.4 46.80°C 0.963
12.027V 4.997V 3.249V 4.922V 1040.986 57.50°C 230.29V
CL1 0.116A 12.999A 12.996A 0.000A 109.070 83.493% 694 18.3 42.72°C 0.862
12.045V 5.019V 3.265V 5.053V 130.634 48.27°C 230.30V
CL2 70.493A 1.000A 1.000A 1.000A 861.477 90.950% 1298 36.8 45.05°C 0.961
12.033V 5.004V 3.258V 4.974V 947.194 55.45°C 230.29V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.233A 0.498A 0.503A 0.197A 19.979 68.685% 693 18.3 0.833
12.029V 5.019V 3.278V 5.078V 29.088 115.16V
2 2.467A 0.996A 1.006A 0.394A 39.969 79.589% 694 18.3 0.918
12.030V 5.018V 3.277V 5.070V 50.219 115.16V
3 3.702A 1.494A 1.511A 0.593A 60.001 84.069% 696 18.3 0.946
12.035V 5.017V 3.276V 5.063V 71.371 115.16V
4 4.930A 1.993A 2.014A 0.791A 79.952 86.281% 697 18.3 0.967
12.040V 5.017V 3.275V 5.056V 92.665 115.16V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.232A 0.499A 0.503A 0.197A 19.979 68.564% 698 18.6 0.467
12.033V 5.021V 3.279V 5.076V 29.139 230.25V
2 2.466A 0.996A 1.007A 0.394A 39.968 80.058% 697 18.3 0.631
12.032V 5.020V 3.277V 5.069V 49.924 230.26V
3 3.702A 1.494A 1.509A 0.593A 60.000 84.808% 697 18.3 0.735
12.036V 5.019V 3.276V 5.062V 70.748 230.26V
4 4.930A 1.991A 2.015A 0.791A 79.952 87.222% 696 18.3 0.799
12.041V 5.018V 3.276V 5.055V 91.665 230.27V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load16.60mV8.60mV7.50mV6.20mVPass
20% Load19.10mV9.90mV7.40mV13.00mVPass
30% Load20.50mV16.10mV7.40mV7.20mVPass
40% Load13.00mV9.70mV7.70mV13.20mVPass
50% Load11.80mV10.40mV8.20mV9.60mVPass
60% Load11.90mV10.70mV8.60mV11.40mVPass
70% Load11.90mV12.40mV9.30mV12.00mVPass
80% Load12.40mV13.90mV11.00mV11.60mVPass
90% Load13.40mV18.00mV11.60mV13.80mVPass
100% Load22.50mV19.00mV12.80mV12.60mVPass
110% Load23.60mV20.40mV13.10mV13.00mVPass
Crossload124.40mV16.80mV17.60mV5.60mVPass
Crossload220.60mV17.60mV10.60mV13.70mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load17.10mV8.80mV7.30mV6.50mVPass
20% Load22.70mV10.00mV8.10mV7.50mVPass
30% Load24.40mV16.90mV8.90mV13.60mVPass
40% Load16.20mV10.50mV8.70mV9.80mVPass
50% Load15.40mV11.70mV9.00mV9.80mVPass
60% Load12.40mV11.20mV8.80mV11.80mVPass
70% Load17.40mV13.20mV10.00mV12.00mVPass
80% Load13.00mV16.50mV11.40mV11.90mVPass
90% Load13.70mV16.50mV12.80mV12.70mVPass
100% Load21.50mV19.30mV13.60mV12.10mVPass
110% Load23.40mV18.90mV12.90mV13.20mVPass
Crossload123.80mV18.90mV18.40mV5.40mVPass
Crossload221.10mV17.10mV10.40mV15.00mVPass

The results above are not used in the certification process

Chieftronic Power Up 850W

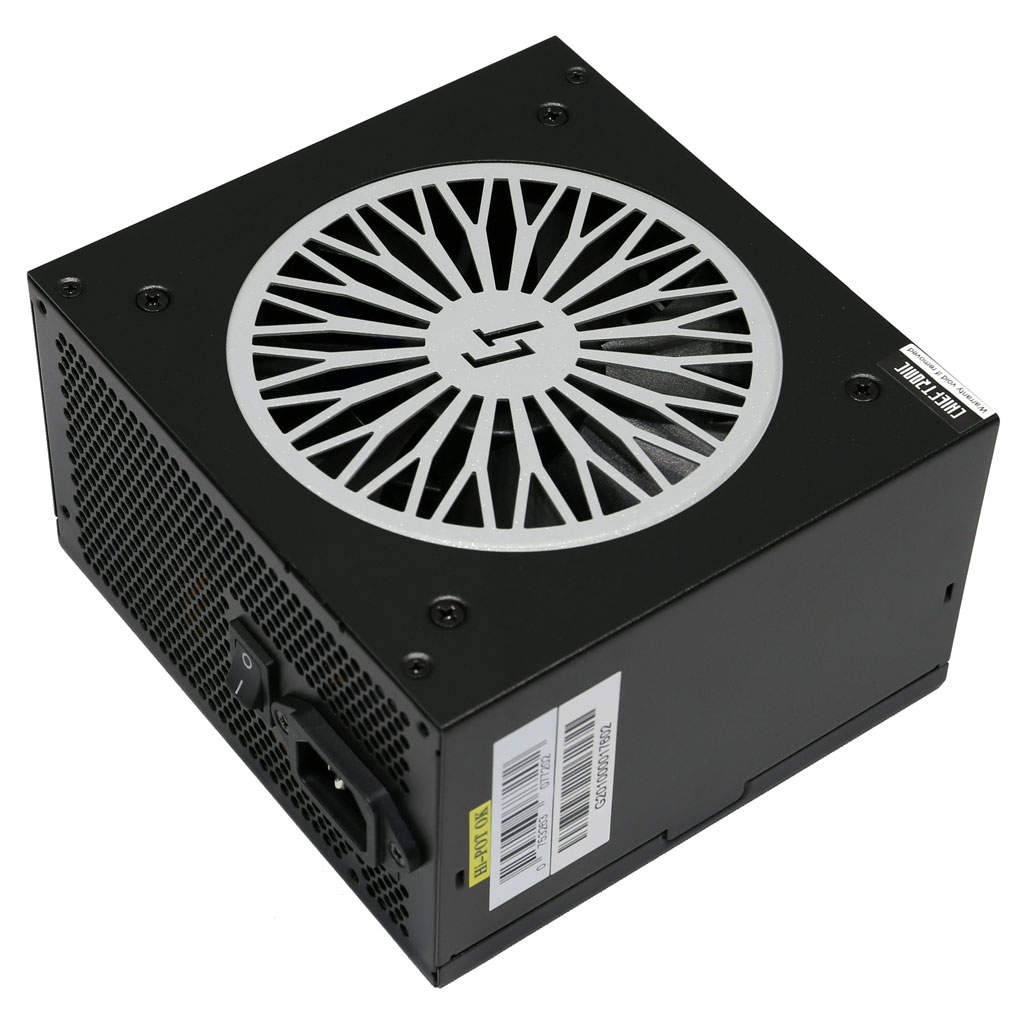

Top side

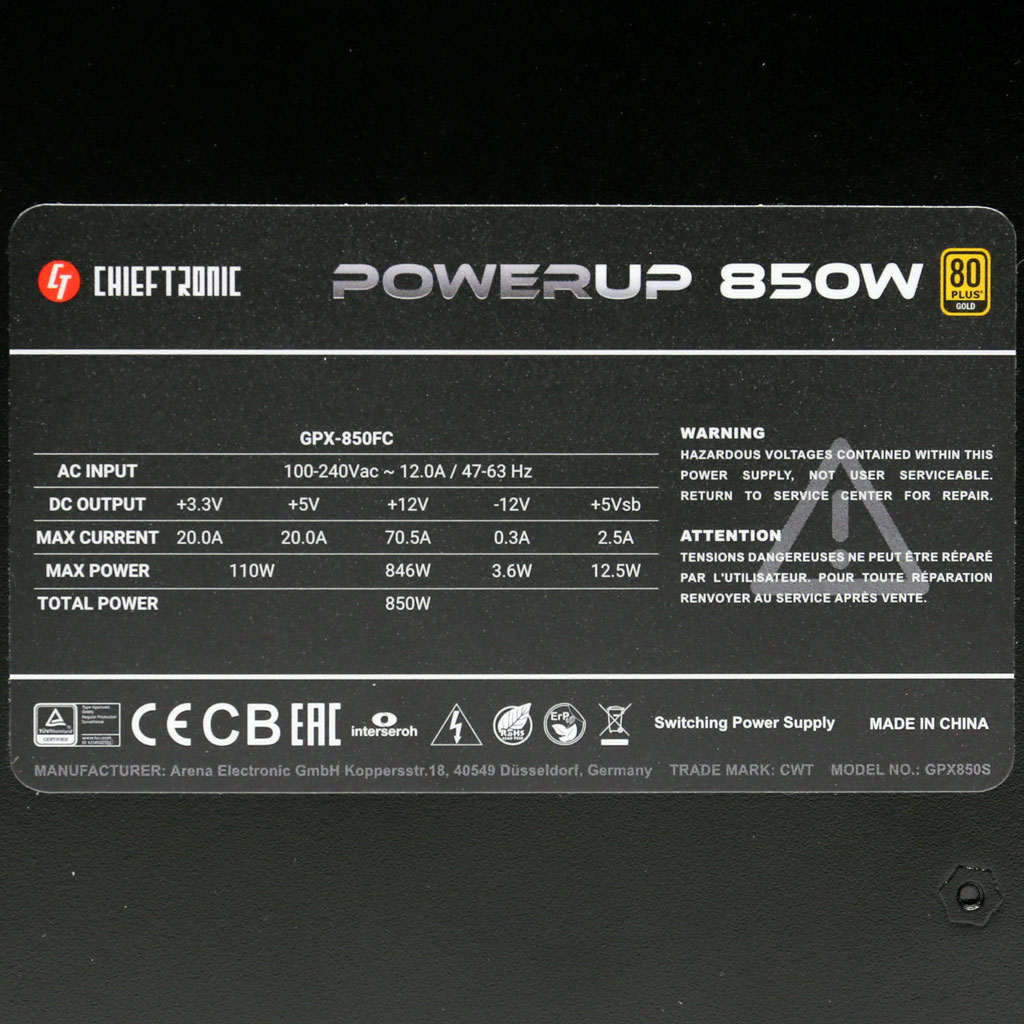

Power specifications label
