CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
FSP Technology Inc. Hydro PTM Pro 1200W
Serial NumberS0301000156
Lab IDFS12001740
  • Report: 20PS1740A
  • Receipt Date: Oct 8, 2020
  • Test Date: Oct 23, 2020
  • Report Date: Oct 29, 2020
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandFSP Technology
Manufacturer (OEM)FSP
SeriesHydro PTM Pro
Model NumberHPT2-1200M
Serial NumberS0301000156
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)9
Rated Frequency (Hz)50-60
Rated Power (W)1200
TypeATX12V
Cooling135mm Fluid Dynamic Bearing Fan
(MGA13512XF-A25)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202010030.3
Watts1201200153.6
Total Max. Power (W)1200

Test Equipment

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 16-22AWG No
4+4 pin EPS12V (700mm) 1 1 16AWG No
8 pin EPS12V (700mm) / 4+4 pin EPS12V (150mm) 1 2 18AWG No
6+2 pin PCIe (650mm+150mm) 2 4 18AWG No
6+2 pin PCIe (500mm+150mm) 2 4 18AWG No
SATA (510mm+160mm+160mm+160mm) 2 8 18AWG No
SATA (510mm+160mm) / 4-pin Molex (+160mm+160mm) 2 4 / 4 18AWG No
SATA (510mm+160mm) / 4-pin Molex (+160mm) / FDD (+160mm) 1 2 / 1 / 1 18-22AWG No
AC Power Cord (1440mm) - C13 coupler 1 1 16AWG -

Parts Description

General Data -
Manufacturer (OEM) FSP
PCB Type Double Sided
Primary Side -
Transient Filter 4x Y caps, 3x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor SCK-056 (5 Ohm) & Relay
Bridge Rectifier(s) 2x  HY GBJ2506P (600V, 25A @ 100°C)
APFC MOSFETs 3x Infineon IPA60R120P7 (650V, 16A @ 100°C, Rds(on): 0.12Ohm)
APFC Boost Diode 2x Infineon IDH08G65C6 (650V, 8A @ 145°C)
Bulk Cap(s) 2x Hitachi (450V, 560uF each or 1.120uF combined, 2,000h @ 105°C, HU)
Main Switchers 4x STMicroelectronics STF26NM60N (600V, 12.6A @ 100°C, Rds(on): 0.165Ohm)
IC Driver 2x Silicon Labs Si8233BD
APFC Controller Infineon ICE2PCS02G
Resonant Controller Champion CM6901T2X
Topology Primary side: APFC, Full-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side -
+12V MOSFETs 8x
5V & 3.3V DC-DC Converters: 6x Infineon BSC0901NS (30V, 94A @ 100°C, Rds(on): 1.9mOhm)
PWM Controllers: ANPEC APW7159C
Filtering Capacitors Electrolytic: 4x Nippon Chemi-Con (1-5,000h @ 105°C, KZE), 2x Rubycon (4-10,000h @ 105°C, YXF), 1x Rubycon (6-10,000h @ 105°C, ZLH), 1x Rubycon (4-10,000h @ 105°C, YXH), 2x Rubycon (3-6,000h @ 105°C, YXG)
Polymer: 31x United Chemi-Con
Supervisor IC SITI PS223H (OCP, OTP, OVP, UVP, SCP, PG)
Fan Controller APW9010
Fan Model Protechnic Electric MGA13512XF-A25 (135mm, 12V, 0.38A, Fluid Dynamic Bearing Fan)
5VSB Circuit -
Rectifier 1x International Rectifier IRF1018ESPbF FET (60V, 56A @ 100°C, Rds(on): 8.4mOhm)
Standby PWM Controller Power Integrations INN2603K

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)24.5
AC Loss to PWR_OK Hold Up Time (ms)21.3
PWR_OK Inactive to DC Loss Delay (ms)3.2

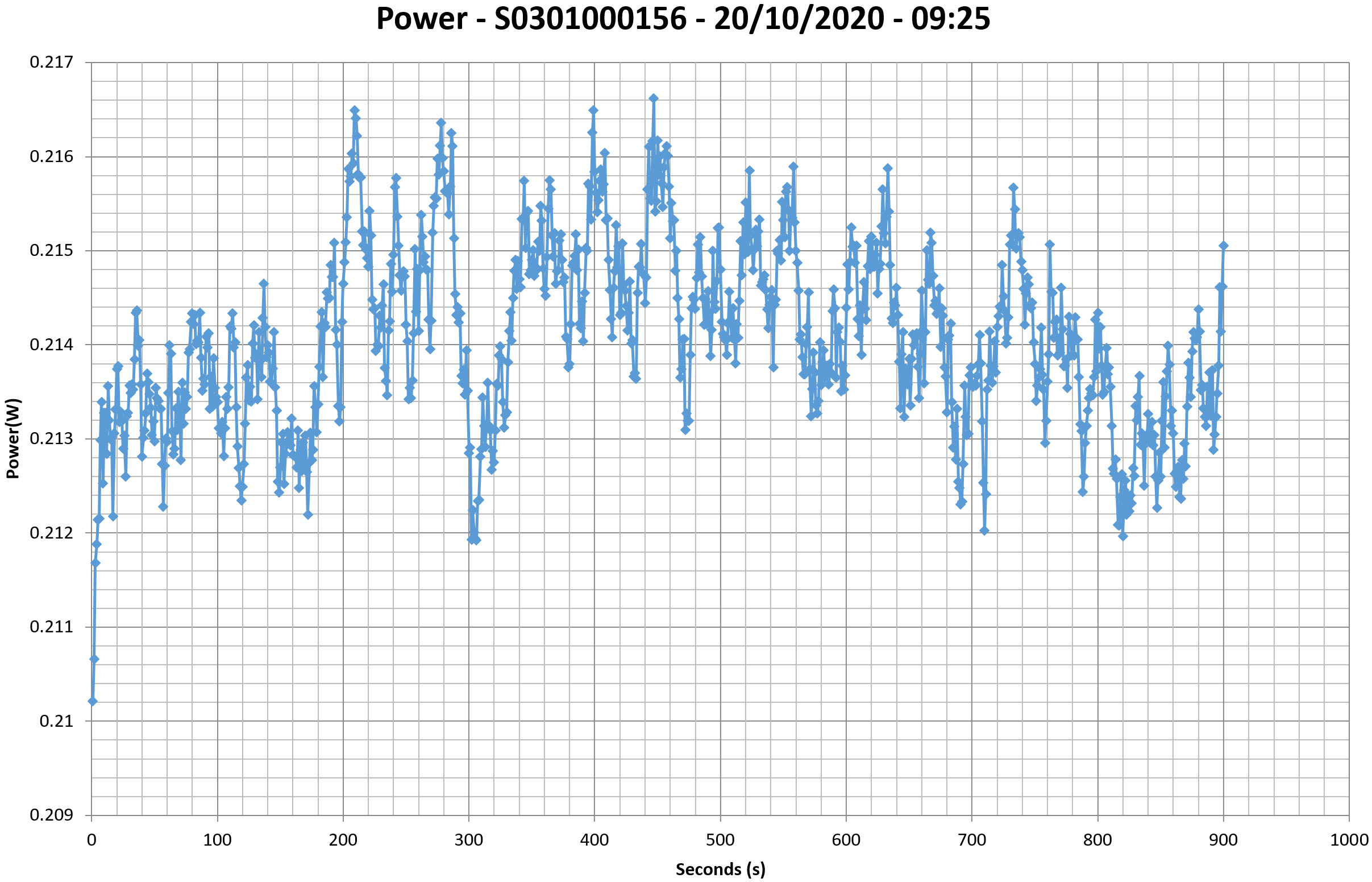

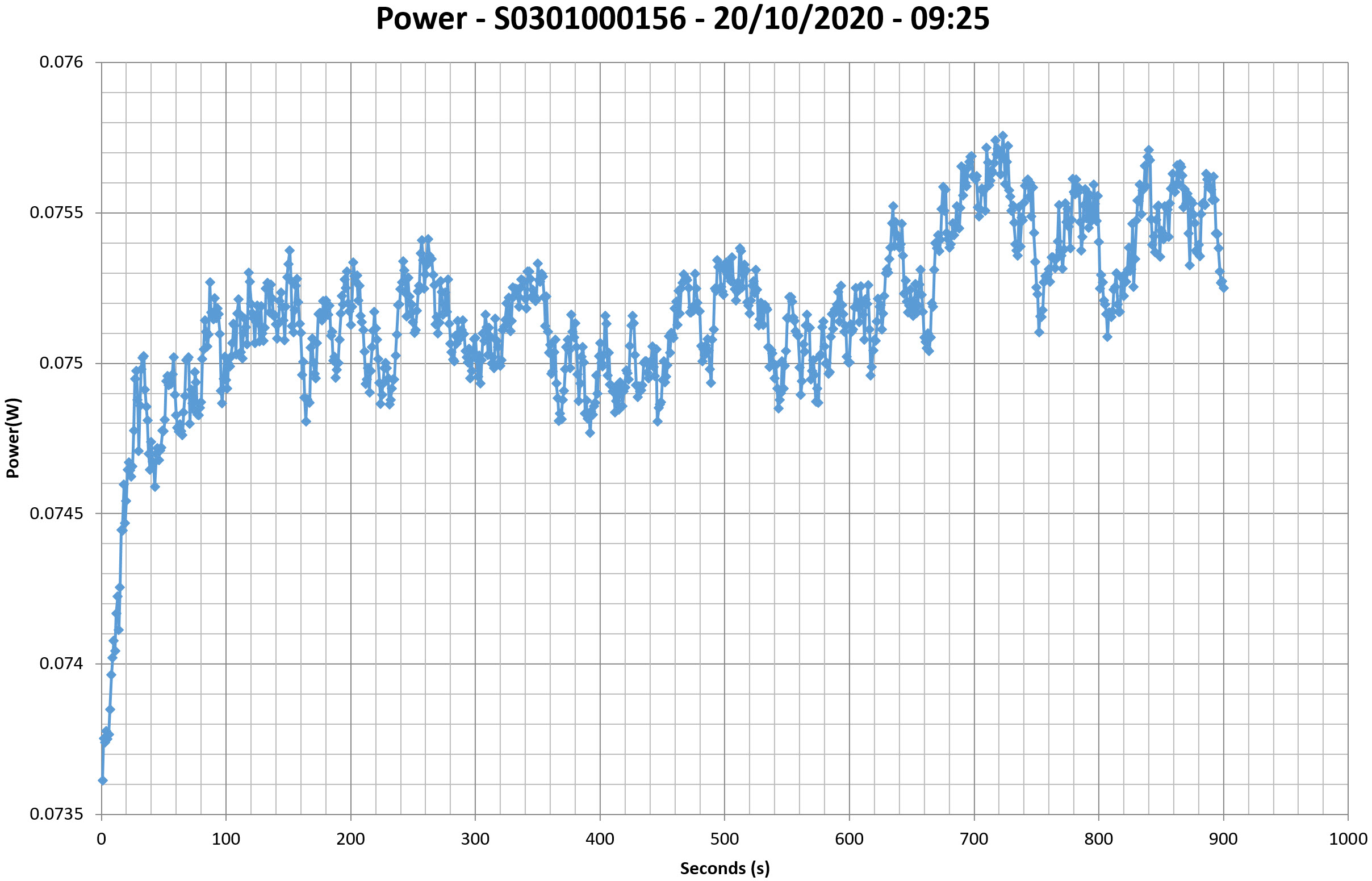

Vampire Power

Graphs

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

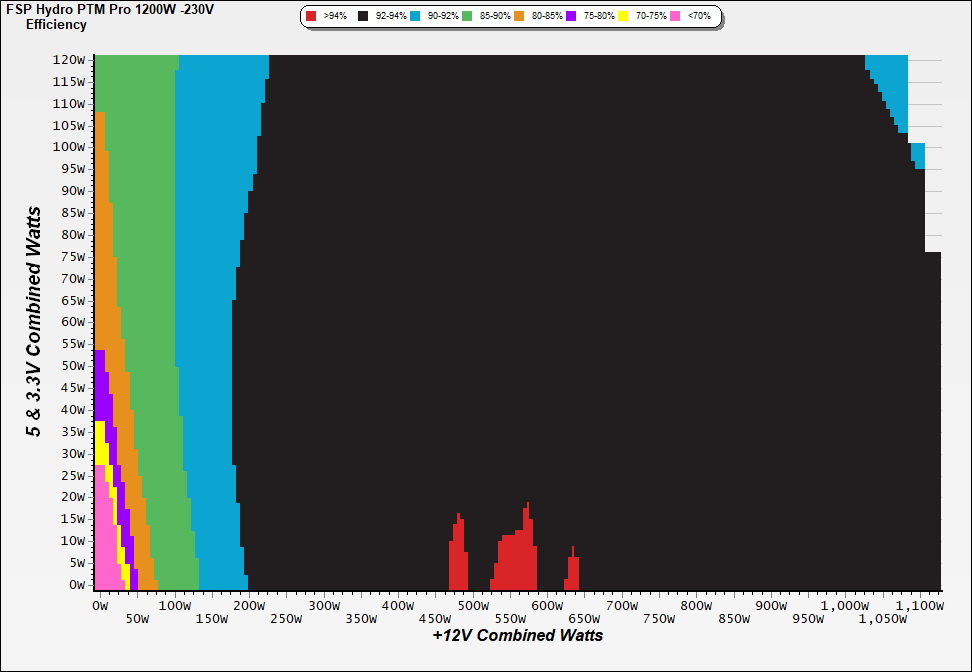

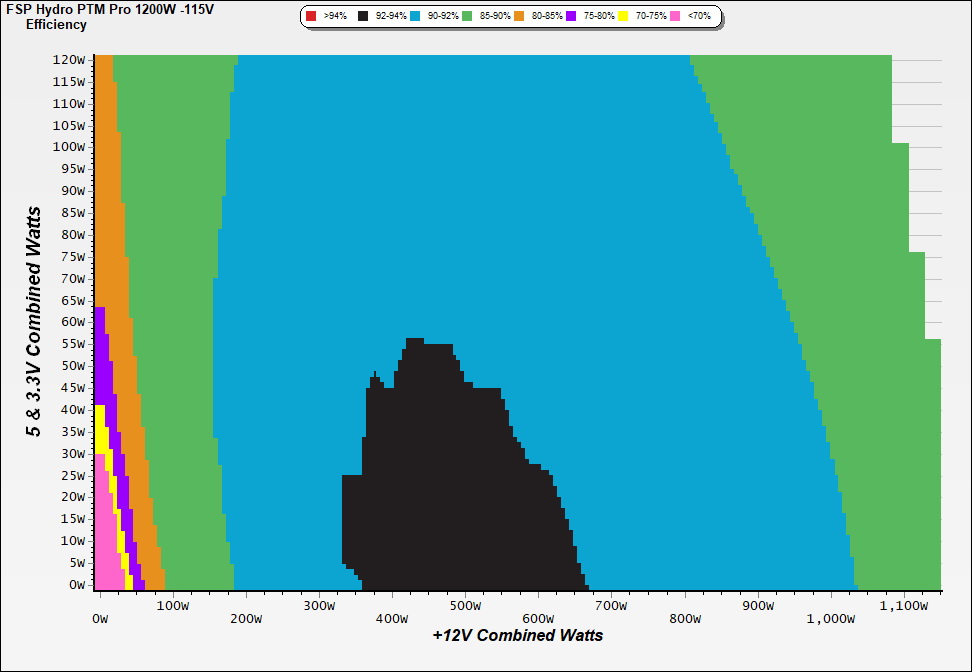

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

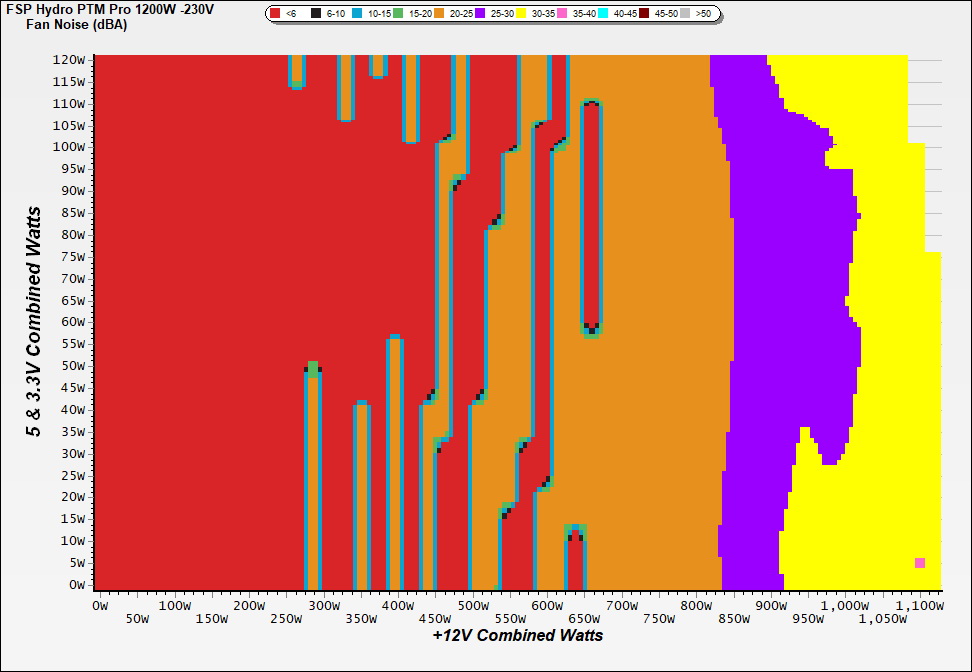

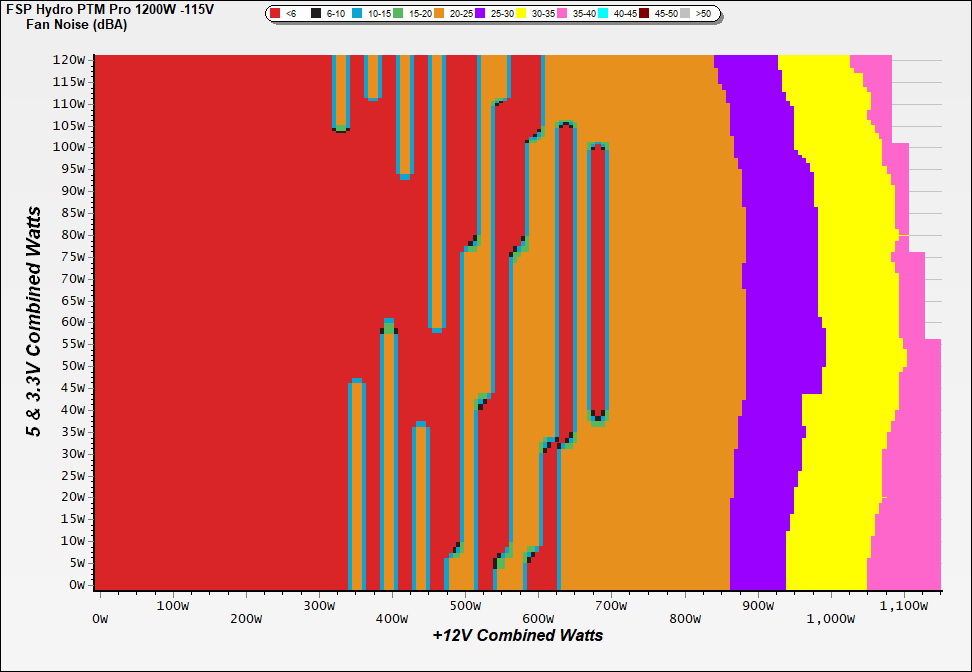

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

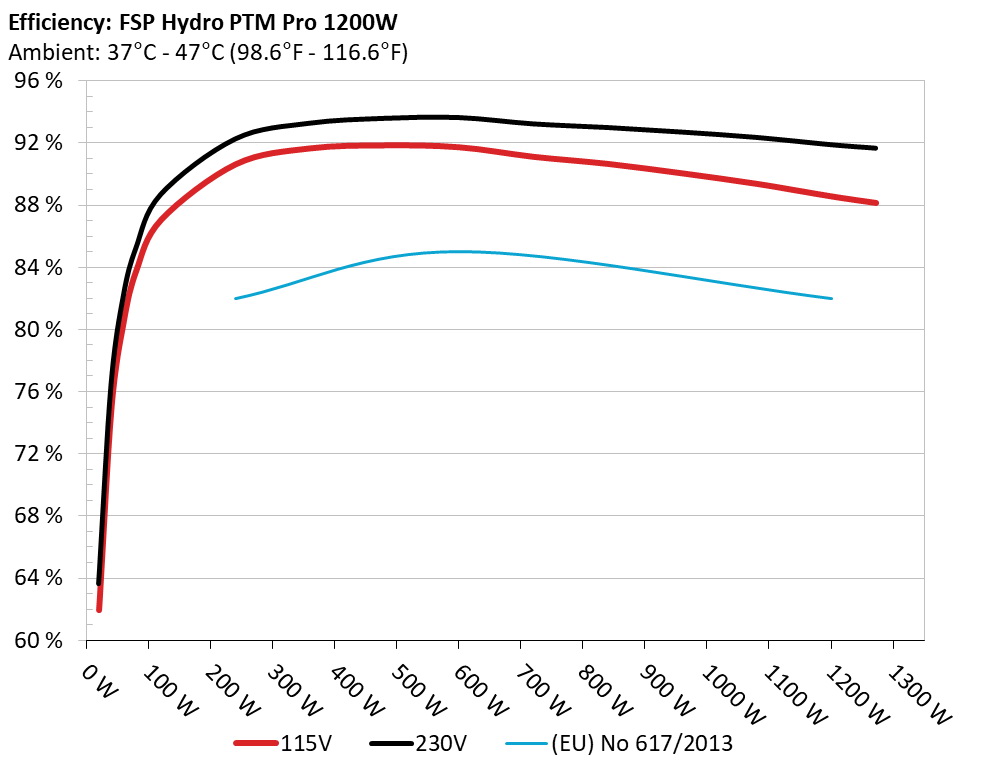

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

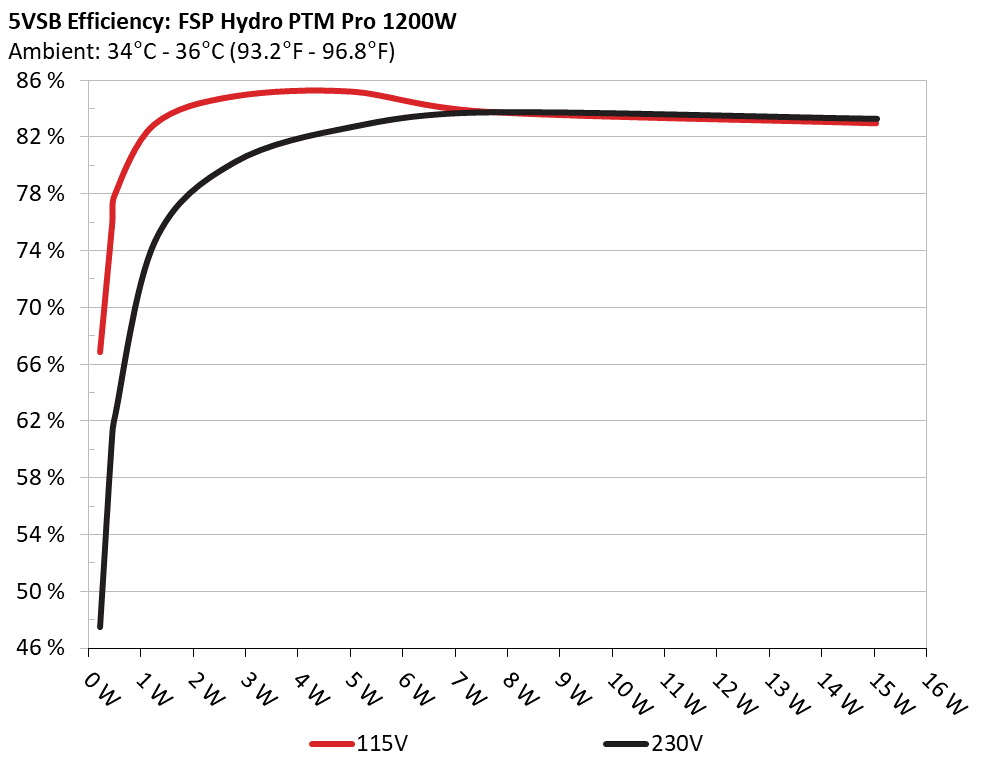

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.228 66.862% 0.026
5.078V 0.341 115.12V
2 0.090A 0.457 75.788% 0.046
5.078V 0.603 115.12V
3 0.550A 2.786 84.836% 0.215
5.066V 3.284 115.18V
4 1.000A 5.052 85.165% 0.316
5.052V 5.932 115.18V
5 1.500A 7.576 83.759% 0.384
5.051V 9.045 115.18V
6 3.000A 15.040 82.938% 0.466
5.014V 18.134 115.18V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.228 47.500% 0.011
5.080V 0.480 230.28V
2 0.090A 0.457 60.933% 0.017
5.079V 0.750 230.29V
3 0.550A 2.786 80.196% 0.077
5.068V 3.474 230.27V
4 1.000A 5.058 82.715% 0.130
5.059V 6.115 230.27V
5 1.500A 7.569 83.719% 0.181
5.046V 9.041 230.27V
6 2.999A 15.053 83.267% 0.290
5.019V 18.078 230.28V

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 8.137A 1.991A 1.978A 0.991A 119.985 87.066% 0 <6.0 36.03°C 0.972
12.091V 5.024V 3.335V 5.046V 137.809 40.20°C 115.17V
2 17.307A 2.988A 2.972A 1.192A 240.014 90.633% 0 <6.0 45.64°C 0.992
12.083V 5.019V 3.330V 5.033V 264.820 40.98°C 115.16V
3 26.756A 3.486A 3.474A 1.393A 359.113 91.654% 0 <6.0 46.82°C 0.993
12.075V 5.015V 3.325V 5.026V 391.815 41.48°C 115.16V
4 36.330A 3.994A 3.975A 1.595A 479.533 91.854% 790 22.3 41.62°C 0.995
12.065V 5.010V 3.321V 5.016V 522.058 47.76°C 115.16V
5 45.567A 4.996A 4.976A 1.799A 599.674 91.733% 792 22.3 42.06°C 0.996
12.052V 5.004V 3.316V 5.003V 653.715 48.76°C 115.15V
6 54.799A 6.002A 5.980A 2.000A 719.782 91.119% 975 29.2 42.42°C 0.996
12.044V 4.999V 3.311V 4.990V 789.932 50.40°C 115.14V
7 64.020A 7.012A 6.989A 2.210A 839.538 90.664% 1263 36.0 43.48°C 0.996
12.034V 4.994V 3.306V 4.976V 925.992 51.73°C 115.13V
8 73.325A 8.003A 7.997A 2.418A 959.904 90.050% 1468 40.2 43.66°C 0.996
12.023V 4.988V 3.301V 4.963V 1065.966 52.65°C 115.13V
9 82.990A 8.530A 8.495A 2.422A 1079.289 89.379% 1749 44.8 44.25°C 0.995
12.011V 4.982V 3.296V 4.955V 1207.546 53.71°C 115.12V
10 92.503A 9.041A 9.021A 3.042A 1199.730 88.571% 2068 49.2 45.48°C 0.995
12.000V 4.977V 3.292V 4.931V 1354.539 55.80°C 115.12V
11 98.550A 9.045A 9.028A 3.044A 1271.698 88.151% 2157 49.7 45.52°C 0.994
11.994V 4.975V 3.289V 4.927V 1442.643 56.46°C 115.11V
CL1 0.100A 14.000A 14.000A 0.000A 117.913 83.686% 782 22.2 42.37°C 0.973
12.086V 5.011V 3.325V 5.057V 140.899 49.17°C 115.17V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 8.134A 1.990A 1.979A 0.991A 119.992 88.685% 0 <6.0 42.80°C 0.859
12.096V 5.026V 3.336V 5.046V 135.301 39.58°C 230.34V
2 17.303A 2.988A 2.972A 1.192A 240.023 92.256% 0 <6.0 44.06°C 0.941
12.086V 5.020V 3.331V 5.033V 260.171 40.10°C 230.34V
3 26.747A 3.489A 3.474A 1.393A 359.108 93.268% 0 <6.0 45.30°C 0.966
12.078V 5.016V 3.326V 5.027V 385.029 41.01°C 230.33V
4 36.323A 3.992A 3.974A 1.595A 479.480 93.581% 792 22.3 44.33°C 0.977
12.066V 5.011V 3.322V 5.016V 512.371 49.44°C 230.33V
5 45.560A 4.996A 4.974A 1.799A 599.636 93.632% 794 22.4 42.33°C 0.982
12.053V 5.004V 3.317V 5.004V 640.419 48.35°C 230.33V
6 54.791A 6.003A 5.981A 2.000A 719.755 93.225% 898 26.2 43.45°C 0.985
12.045V 4.999V 3.312V 4.990V 772.061 50.35°C 230.33V
7 64.012A 7.012A 6.986A 2.210A 839.496 92.994% 1181 34.6 43.45°C 0.986
12.035V 4.993V 3.307V 4.977V 902.741 51.23°C 230.33V
8 73.320A 8.002A 7.992A 2.417A 959.820 92.698% 1311 37.4 43.92°C 0.986
12.023V 4.987V 3.302V 4.964V 1035.427 52.47°C 230.33V
9 82.987A 8.530A 8.491A 2.421A 1079.256 92.357% 1638 43.3 44.43°C 0.985
12.011V 4.982V 3.298V 4.956V 1168.572 54.06°C 230.33V
10 92.502A 9.042A 9.018A 3.041A 1199.711 91.887% 1988 47.9 46.62°C 0.984
12.000V 4.976V 3.293V 4.932V 1305.642 57.15°C 230.33V
11 98.557A 9.048A 9.023A 3.045A 1271.688 91.663% 2111 49.3 47.18°C 0.984
11.993V 4.974V 3.290V 4.927V 1387.348 58.05°C 230.33V
CL1 0.101A 14.001A 14.000A 0.000A 117.944 85.207% 849 25.0 42.11°C 0.864
12.087V 5.011V 3.326V 5.056V 138.421 48.55°C 230.34V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.226A 0.498A 0.494A 0.197A 19.979 61.952% 0 <6.0 0.821
12.095V 5.026V 3.338V 5.068V 32.249 115.17V
2 2.453A 0.995A 0.989A 0.395A 39.969 74.961% 0 <6.0 0.906
12.094V 5.026V 3.338V 5.062V 53.320 115.17V
3 3.684A 1.492A 1.483A 0.593A 60.001 80.584% 0 <6.0 0.938
12.094V 5.026V 3.337V 5.056V 74.458 115.17V
4 4.908A 1.990A 1.978A 0.792A 79.954 83.791% 0 <6.0 0.956
12.093V 5.025V 3.336V 5.054V 95.421 115.17V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.225A 0.497A 0.496A 0.197A 19.982 63.627% 0 <6.0 0.428
12.104V 5.030V 3.340V 5.068V 31.405 230.34V
2 2.452A 0.994A 0.988A 0.395A 39.972 76.449% 0 <6.0 0.594
12.102V 5.029V 3.339V 5.062V 52.286 230.34V
3 3.682A 1.493A 1.482A 0.593A 60.004 82.185% 0 <6.0 0.705
12.100V 5.028V 3.338V 5.056V 73.011 230.34V
4 4.906A 1.989A 1.977A 0.792A 79.955 85.223% 0 <6.0 0.777
12.099V 5.027V 3.337V 5.053V 93.819 230.34V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 7.1 mV 6.8 mV 17.1 mV 13.7 mV Pass
20% Load 10.0 mV 7.6 mV 17.3 mV 20.3 mV Pass
30% Load 11.0 mV 8.9 mV 17.3 mV 23.0 mV Pass
40% Load 12.0 mV 9.0 mV 17.7 mV 22.4 mV Pass
50% Load 12.8 mV 10.0 mV 19.8 mV 23.7 mV Pass
60% Load 10.5 mV 10.3 mV 20.6 mV 24.3 mV Pass
70% Load 12.0 mV 10.8 mV 21.1 mV 30.4 mV Pass
80% Load 12.4 mV 11.1 mV 22.7 mV 33.1 mV Pass
90% Load 13.3 mV 11.9 mV 23.2 mV 33.7 mV Pass
100% Load 22.8 mV 12.6 mV 26.1 mV 36.1 mV Pass
106% Load 23.1 mV 12.5 mV 27.4 mV 35.3 mV Pass
Crossload 1 12.3 mV 12.9 mV 20.9 mV 13.1 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 6.7 mV 6.7 mV 17.2 mV 13.3 mV Pass
20% Load 8.0 mV 7.5 mV 17.6 mV 16.0 mV Pass
30% Load 10.3 mV 9.1 mV 17.8 mV 23.3 mV Pass
40% Load 11.0 mV 9.6 mV 18.3 mV 21.5 mV Pass
50% Load 12.1 mV 9.0 mV 18.7 mV 23.1 mV Pass
60% Load 10.1 mV 10.4 mV 20.5 mV 27.0 mV Pass
70% Load 11.9 mV 10.8 mV 20.8 mV 27.6 mV Pass
80% Load 13.0 mV 10.9 mV 22.7 mV 30.8 mV Pass
90% Load 14.6 mV 11.7 mV 23.9 mV 32.9 mV Pass
100% Load 23.3 mV 12.1 mV 25.5 mV 33.8 mV Pass
106% Load 24.6 mV 12.5 mV 26.5 mV 34.9 mV Pass
Crossload 1 12.0 mV 12.6 mV 20.4 mV 12.9 mV Pass

The results above are not used in the certification process

FSP Technology Inc. Hydro PTM Pro 1200W

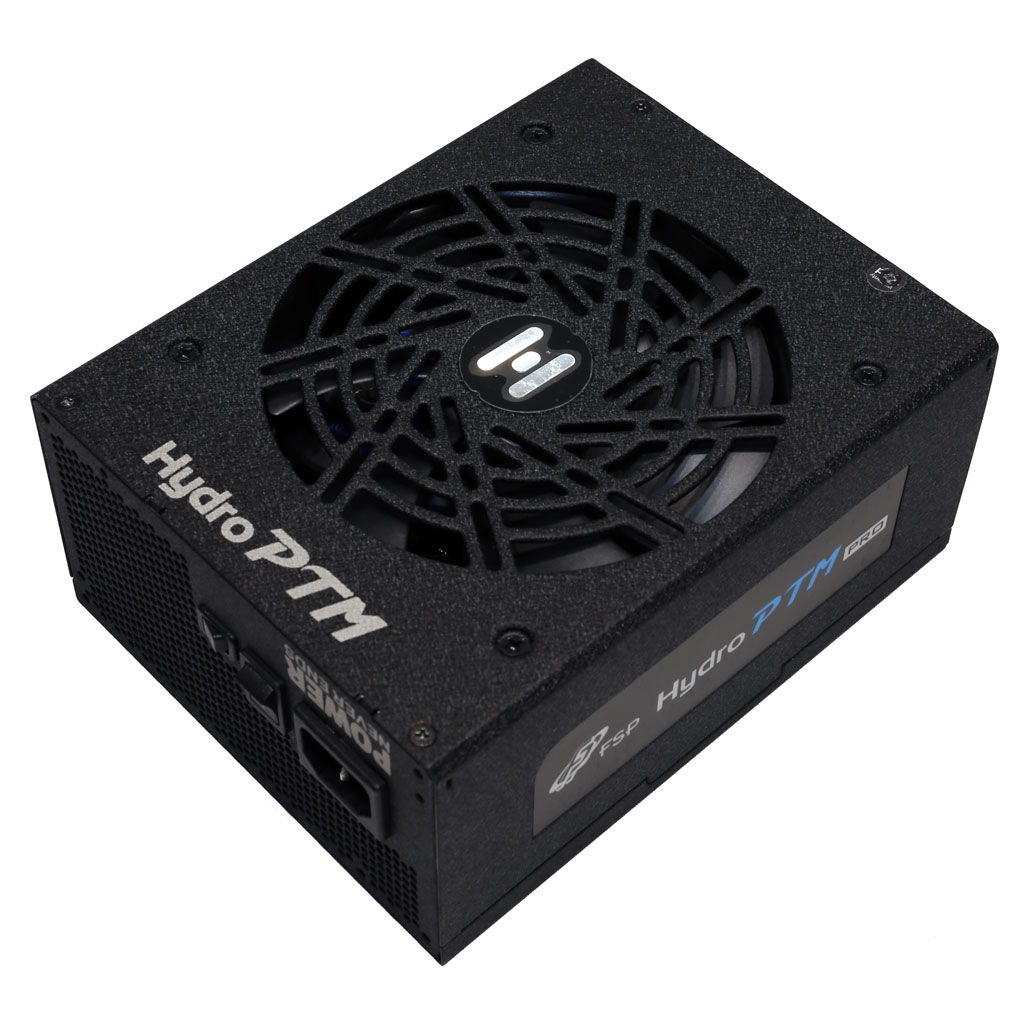

Top side

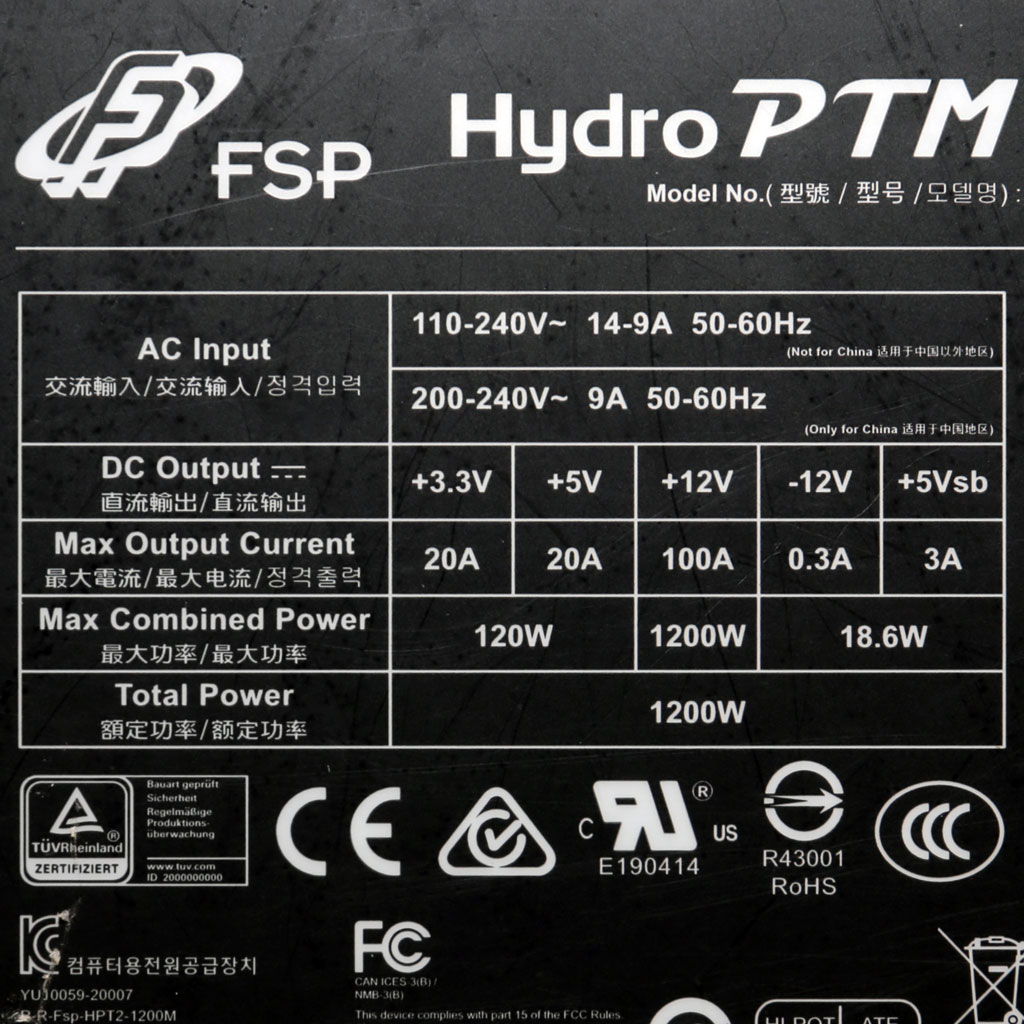

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
