Thermaltake Smart BM2 650W
Serial NumberPSSPD0650MNFABE1XL001243
Lab IDTT65001725
  • Report: 20PS1725A
  • Receipt Date: Aug 25, 2020
  • Test Date: Dec 11, 2020
  • Report Date: Nov 9, 2021
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandThermaltake
Manufacturer (OEM)Channel Well Technology
SeriesSmart BM2
Model NumberSPD-0650MNFABE-1
Serial NumberPSSPD0650MNFABE1XL001243
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)10
Rated Frequency (Hz)47-63
Rated Power (W)650
TypeATX12V
Cooling140mm Rifle Bearing Fan
(TT-1425 DF1402512SEMN)
Semi-Passive Operation✗
Cable DesignSemi Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps2020542.50.3
Watts11064812.53.6
Total Max. Power (W)650

Test Equipment

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Captive Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (580mm) 1 1 18AWG No
8 pin EPS12V (650mm) / 4+4 pin EPS12V (+150mm) 1 1 / 1 18AWG No
Modular Cables
6+2 pin PCIe (500mm+150mm) 2 4 18AWG No
SATA (500mm+150mm+150mm) 2 6 18AWG No
4-pin Molex (500mm+150mm+150mm+150mm) / FDD (+150mm) 1 4 / 1 18-20AWG No
AC Power Cord (1380mm) - C13 coupler 1 1 18AWG -

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)9.3
AC Loss to PWR_OK Hold Up Time (ms)7.9
PWR_OK Inactive to DC Loss Delay (ms)1.4

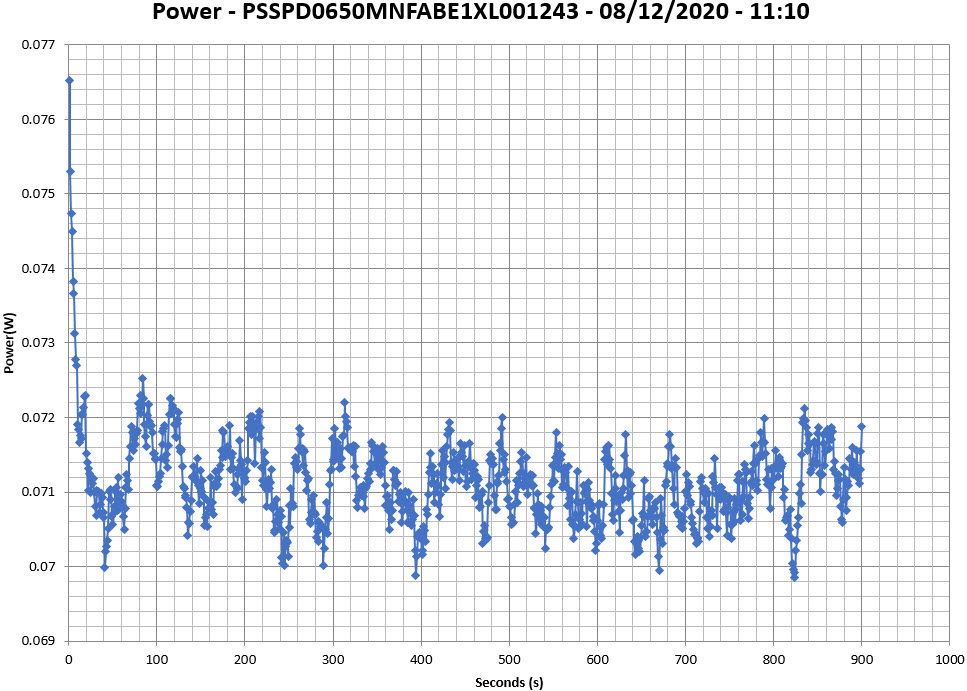

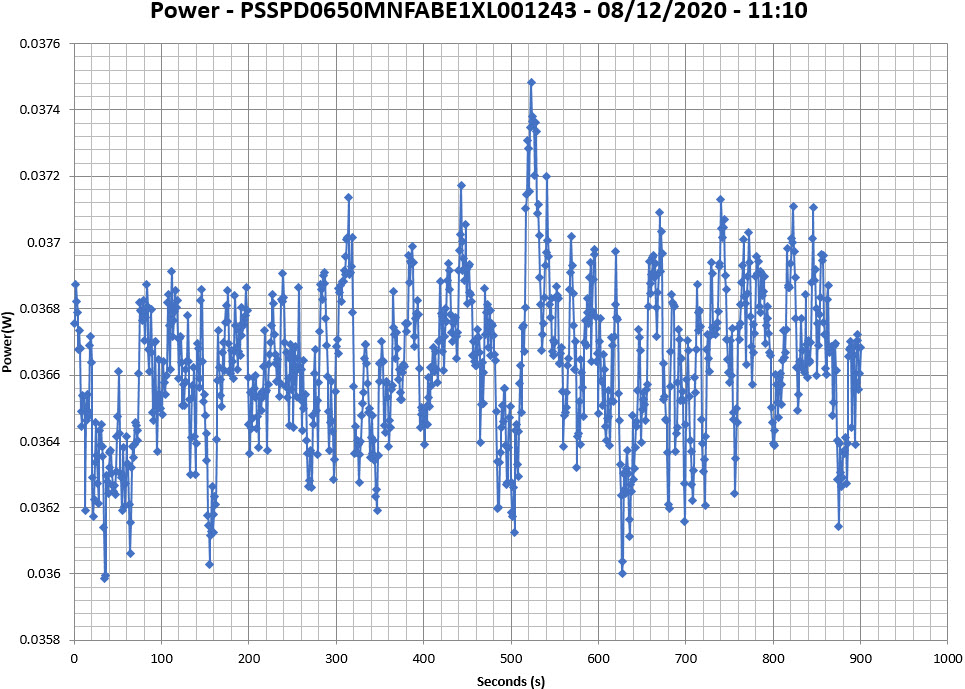

Vampire Power

Graphs

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

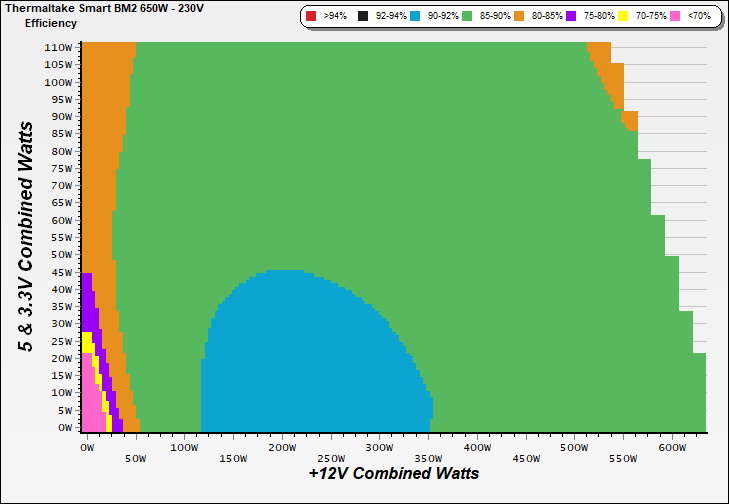

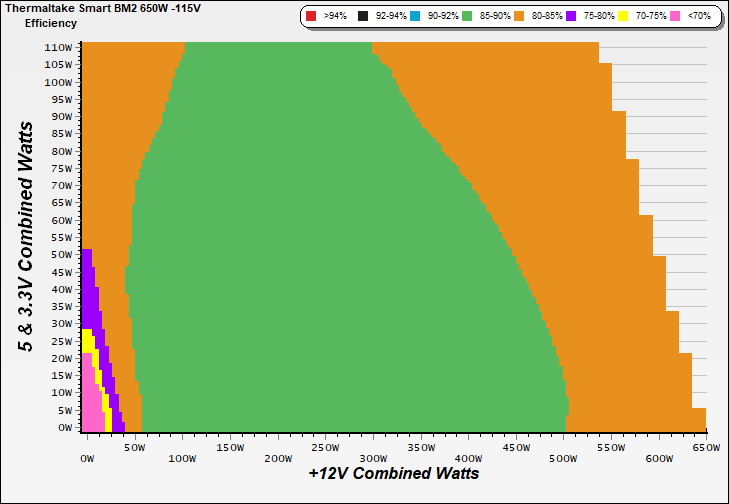

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

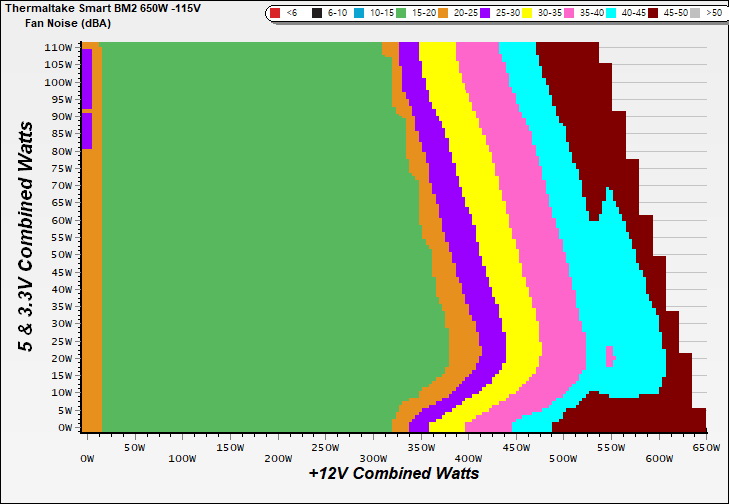

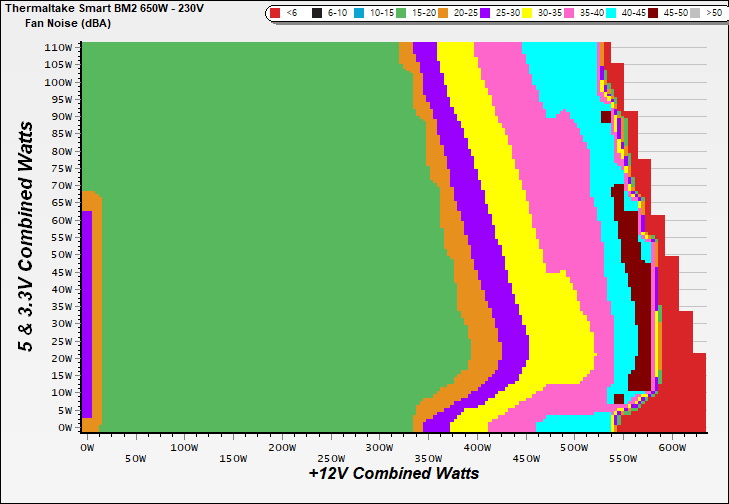

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

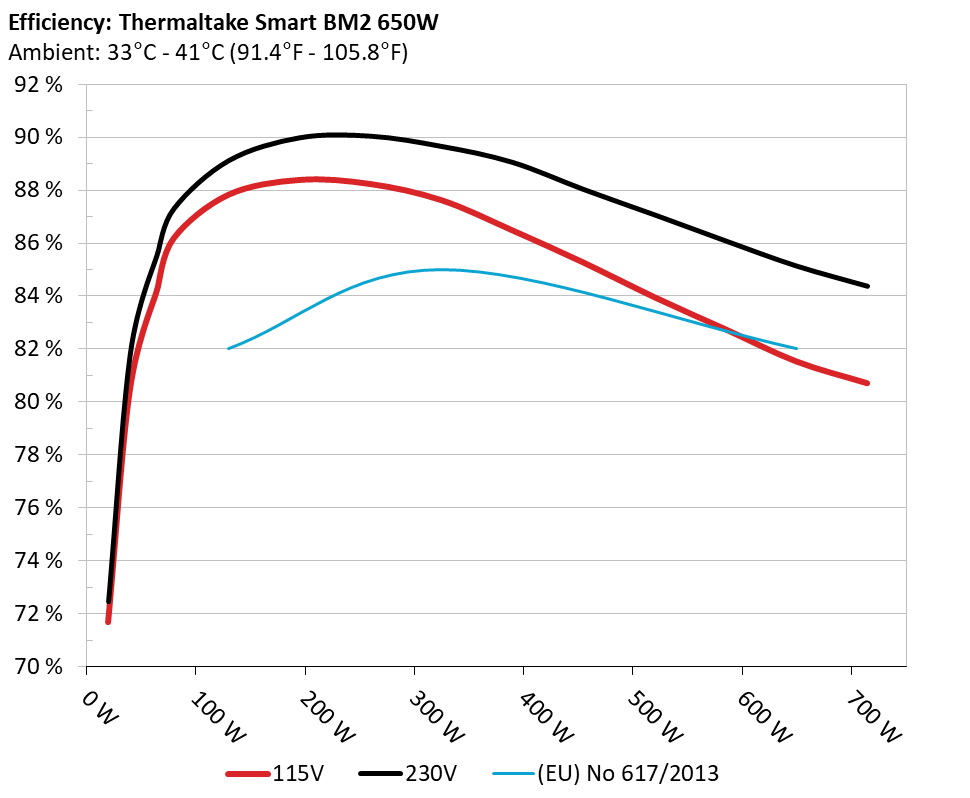

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

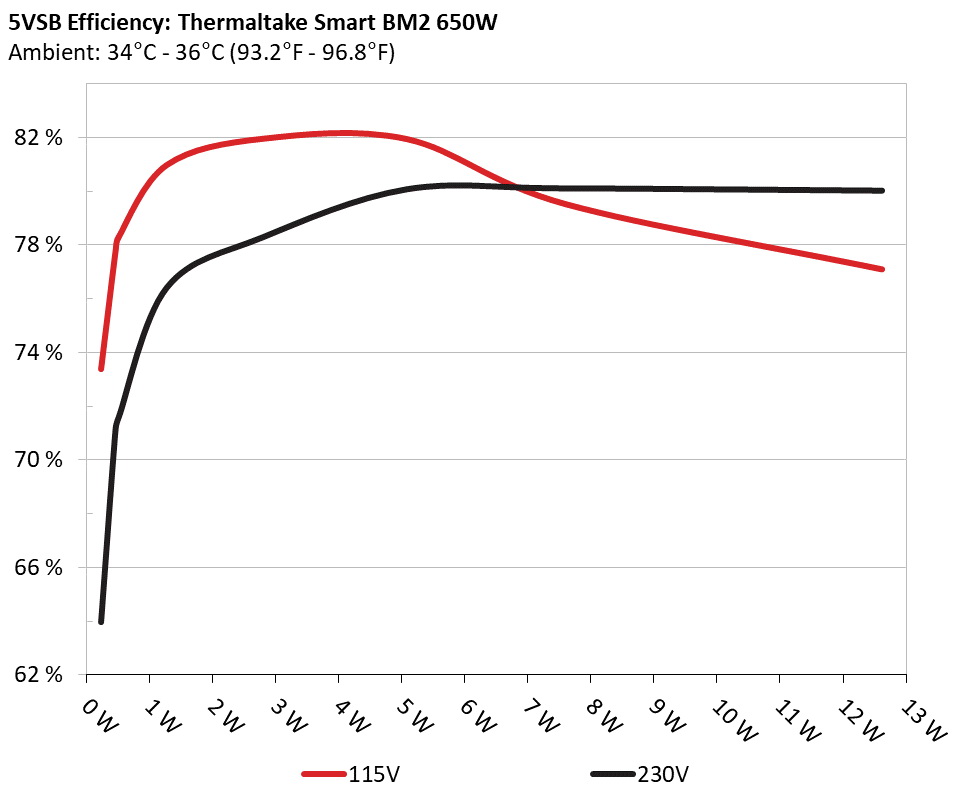

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.229 73.397% 0.037
5.094V 0.312 115.15V
2 0.090A 0.458 77.759% 0.069
5.093V 0.589 115.15V
3 0.550A 2.797 81.951% 0.275
5.084V 3.413 115.15V
4 1.000A 5.077 81.940% 0.356
5.076V 6.196 115.15V
5 1.500A 7.599 79.521% 0.405
5.065V 9.556 115.15V
6 2.501A 12.617 77.102% 0.463
5.046V 16.364 115.12V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.229 63.966% 0.013
5.093V 0.358 230.39V
2 0.090A 0.458 71.118% 0.023
5.093V 0.644 230.39V
3 0.550A 2.797 78.282% 0.119
5.085V 3.573 230.37V
4 1.000A 5.077 80.066% 0.187
5.076V 6.341 230.38V
5 1.500A 7.599 80.099% 0.242
5.065V 9.487 230.38V
6 2.501A 12.619 80.014% 0.310
5.047V 15.771 230.37V

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.570A 1.987A 1.990A 0.988A 64.962 84.173% 698 19.3 35.23°C 0.965
12.147V 5.034V 3.317V 5.063V 77.177 41.51 °C 115.10V
2 8.170A 2.983A 2.987A 1.188A 130.027 87.822% 700 19.4 35.54°C 0.980
12.132V 5.030V 3.315V 5.050V 148.057 41.9 °C 115.09V
3 13.121A 3.482A 3.487A 1.390A 195.033 88.382% 704 19.6 36.58 °C 0.986
12.117V 5.027V 3.313V 5.037V 220.671 43.24 °C 115.09V
4 18.083A 3.982A 3.987A 1.592A 260.037 88.230% 708 19.7 36.86 °C 0.989
12.101V 5.024V 3.311V 5.025V 294.726 44.10 °C 115.08V
5 22.720A 4.980A 4.986A 1.796A 325.072 87.617% 711 19.8 37.01°C 0.990
12.085V 5.022V 3.310V 5.011V 371.015 44.32°C 115.10V
6 27.321A 5.979A 5.985A 2.000A 389.495 86.488% 1074 31.2 38.37 °C 0.991
12.068V 5.020V 3.309V 4.996V 450.346 46.09 °C 115.13V
7 32.009A 6.980A 6.988A 2.208A 454.834 85.267% 1465 40.5 38.66°C 0.992
12.051V 5.016V 3.307V 4.982V 533.421 46.42°C 115.12V
8 36.706A 7.982A 7.990A 2.415A 520.137 83.951% 1843 47.5 38.80 °C 0.993
12.034V 5.013V 3.304V 4.969V 619.575 47.64 °C 115.09V
9 41.818A 8.484A 8.479A 2.419A 585.057 82.741% 2104 49.3 39.31°C 0.993
12.018V 5.010V 3.302V 4.961V 707.095 48.4°C 115.06V
10 46.883A 8.990A 9.000A 2.526A 649.803 81.528% 2100 49.3 39.84°C 0.994
12.000V 5.006V 3.300V 4.949V 797.027 49.9°C 115.07V
11 52.349A 8.995A 9.004A 2.529A 714.597 80.706% 2095 49.3 39.70°C 0.994
11.985V 5.004V 3.299V 4.942V 885.433 50.94 °C 115.10V
CL1 0.117A 13.000A 13.000A 0.001A 109.674 80.032% 716 20.0 38.03°C 0.979
12.128V 5.020V 3.308V 5.045V 137.038 45.25 °C 115.11V
CL2 54.003A 1.000A 1.000A 0.002A 656.707 83.195% 1596 43.1 37.02 °C 0.994
12.006V 5.011V 3.306V 5.017V 789.362 46.1°C 115.11V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.570A 1.987A 1.990A 0.988A 64.964 85.645% 697 19.3 35.43°C 0.859
12.146V 5.034V 3.317V 5.062V 75.853 39.8°C 230.27V
2 8.172A 2.983A 2.988A 1.188A 130.037 89.105% 697 19.3 35.59°C 0.934
12.130V 5.031V 3.314V 5.051V 145.936 40.22°C 230.30V
3 13.124A 3.483A 3.488A 1.390A 195.047 89.968% 698 19.3 36.03°C 0.958
12.115V 5.027V 3.312V 5.038V 216.795 41.84°C 230.32V
4 18.087A 3.983A 3.989A 1.592A 260.059 90.025% 700 19.4 37.24°C 0.970
12.099V 5.024V 3.310V 5.026V 288.875 43.07°C 230.31V
5 22.725A 4.985A 4.987A 1.796A 325.099 89.638% 703 19.5 38.11°C 0.976
12.083V 5.017V 3.309V 5.012V 362.681 44.43 °C 230.37V
6 27.328A 5.980A 5.986A 2.001A 389.571 89.041% 708 19.7 38.42°C 0.980
12.067V 5.018V 3.309V 4.998V 437.520 45.86°C 230.33V
7 32.015A 6.979A 6.989A 2.208A 454.894 88.015% 1116 32.5 39.26°C 0.983
12.050V 5.017V 3.306V 4.984V 516.836 47.13°C 230.33V
8 36.712A 7.981A 7.991A 2.415A 520.186 87.053% 1438 39.7 39.76°C 0.984
12.034V 5.014V 3.304V 4.970V 597.553 48.31°C 230.33V
9 41.823A 8.489A 8.480A 2.419A 585.106 86.071% 1856 47.7 40.14°C 0.986
12.017V 5.007V 3.302V 4.963V 679.795 49.75°C 230.32V
10 46.884A 8.988A 9.000A 2.525A 649.848 85.130% 2109 49.3 40.37°C 0.987
12.001V 5.008V 3.300V 4.952V 763.358 50.87°C 230.32V
11 52.357A 8.993A 9.005A 2.529A 714.656 84.369% 2106 49.3 40.71°C 0.988
11.984V 5.005V 3.298V 4.944V 847.057 52.17°C 230.33V
CL1 0.117A 13.001A 13.000A 0.001A 109.701 81.211% 712 19.9 40.19 °C 0.929
12.128V 5.022V 3.308V 5.047V 135.082 46.68°C 230.24V
CL2 54.011A 1.000A 1.000A 1.000A 661.596 86.378% 1938 47.6 39.68°C 0.987
12.003V 5.011V 3.306V 4.998V 765.932 49.89°C 230.29V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.221A 0.496A 0.497A 0.197A 19.997 71.682% 695 19.2 0.896
12.158V 5.038V 3.320V 5.086V 27.897 115.13V
2 2.443A 0.993A 0.994A 0.394A 39.987 80.475% 695 19.2 0.947
12.153V 5.037V 3.319V 5.079V 49.689 115.09V
3 3.668A 1.490A 1.492A 0.592A 60.014 84.261% 698 19.3 0.961
12.148V 5.035V 3.318V 5.072V 71.224 115.07V
4 4.888A 1.987A 1.990A 0.790A 79.961 86.176% 698 19.3 0.970
12.144V 5.033V 3.317V 5.065V 92.788 115.09V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.221A 0.496A 0.497A 0.197A 19.991 72.476% 697 19.3 0.613
12.157V 5.038V 3.320V 5.085V 27.583 230.30V
2 2.442A 0.993A 0.994A 0.394A 39.981 81.846% 697 19.3 0.773
12.152V 5.037V 3.319V 5.079V 48.849 230.29V
3 3.668A 1.490A 1.492A 0.592A 60.011 85.632% 700 19.4 0.845
12.147V 5.035V 3.318V 5.071V 70.080 230.25V
4 4.888A 1.987A 1.990A 0.790A 79.962 87.300% 696 19.2 0.887
12.142V 5.034V 3.317V 5.064V 91.595 230.25V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load6.85mV6.60mV5.37mV9.89mVPass
20% Load6.90mV6.91mV5.48mV10.81mVPass
30% Load7.92mV7.31mV6.04mV11.78mVPass
40% Load9.04mV7.77mV6.30mV13.56mVPass
50% Load9.35mV7.77mV6.55mV14.89mVPass
60% Load11.90mV8.23mV7.11mV17.84mVPass
70% Load13.38mV8.49mV7.42mV24.22mVPass
80% Load16.80mV8.69mV12.23mV23.19mVPass
90% Load21.91mV10.23mV13.15mV23.81mVPass
100% Load33.23mV12.18mV14.97mV28.76mVPass
110% Load43.26mV14.53mV17.26mV27.80mVPass
Crossload18.52mV11.63mV16.54mV12.42mVPass
Crossload236.56mV9.69mV8.28mV19.65mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load6.64mV6.44mV5.27mV10.61mVPass
20% Load7.41mV6.96mV5.53mV10.81mVPass
30% Load8.12mV7.93mV12.54mV22.59mVPass
40% Load8.43mV7.62mV6.40mV13.10mVPass
50% Load8.78mV7.93mV6.55mV15.29mVPass
60% Load12.21mV7.87mV7.11mV16.42mVPass
70% Load14.66mV8.23mV7.17mV24.63mVPass
80% Load16.09mV10.38mV12.64mV22.43mVPass
90% Load22.17mV10.64mV13.31mV24.06mVPass
100% Load31.20mV12.58mV14.94mV25.42mVPass
110% Load39.73mV14.74mV16.98mV25.41mVPass
Crossload19.09mV11.18mV16.13mV12.22mVPass
Crossload235.98mV11.12mV9.84mV18.56mVPass

The results above are not used in the certification process

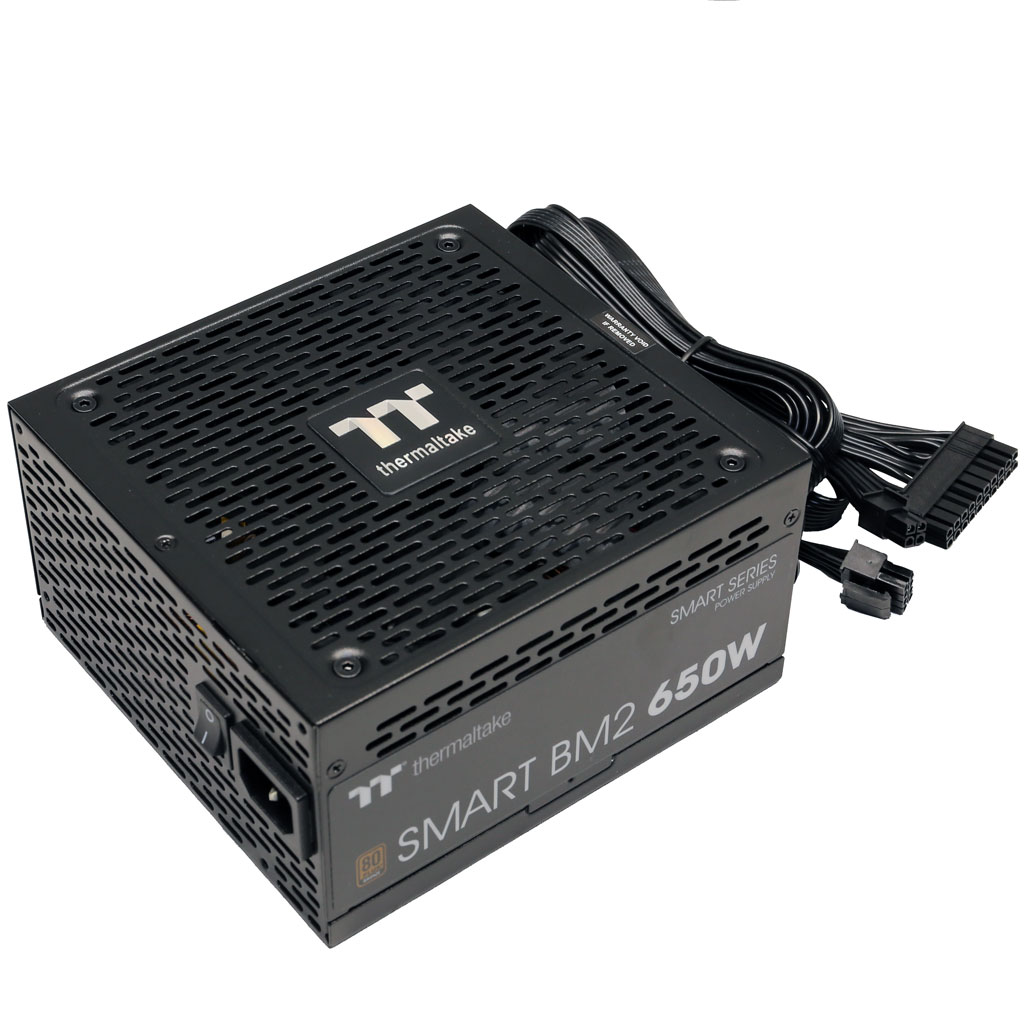

Thermaltake Smart BM2 650W

Top side

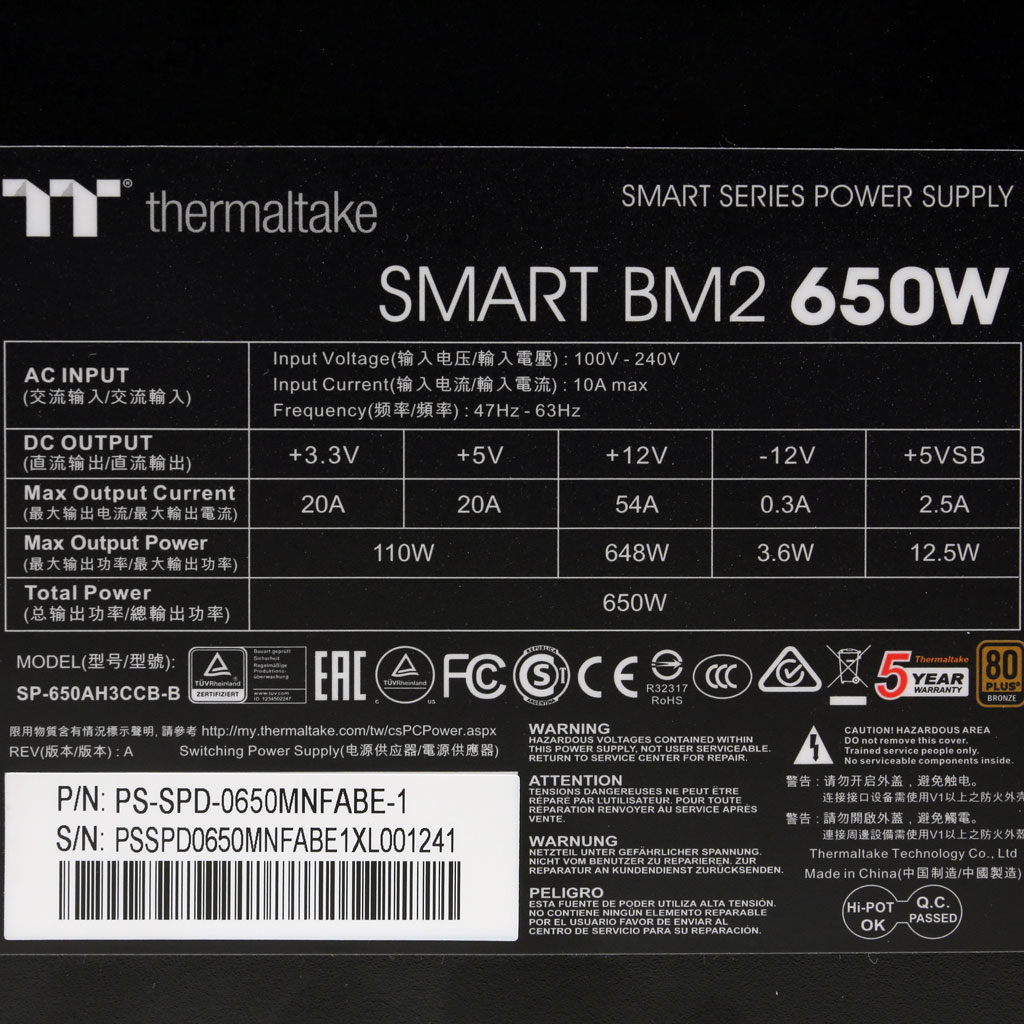

Power specifications label
