CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
SilverStone Decathlon DA1650 (#2)
Serial NumberDEDAK650G02080085
Lab IDSL16501722
  • Report: 20PS1722A
  • Receipt Date: Sep 22, 2020
  • Test Date: Sep 29, 2020
  • Report Date: Oct 5, 2020
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandSilverStone
Manufacturer (OEM)High Power
SeriesDecathlon
Model NumberDA1650-G
Serial NumberDEDAK650G02080085
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)20
Rated Frequency (Hz)50-60
Rated Power (W)1650
TypeATX12V
Cooling135mm Fluid Dynamic Bearing Fan
(RL4Z S1352512HH)
Semi-Passive Operation✓
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps2525137.530.3
Watts1301650153.6
Total Max. Power (W)1650

Test Equipment

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (610mm) / 6 pin sense wires (640mm) 1 1 / 1 16-22AWG No
4+4 pin EPS12V (750mm) 2 2 16AWG No
6+2 pin PCIe (610mm+150mm) 4 8 16-18AWG No
8 pin PCIe (610mm) 4 4 16AWG No
SATA (600mm+150mm+150mm+150mm) 4 16 18AWG No
4-pin Molex (600mm+150mm+150mm) 1 3 18AWG No
4-pin Molex (600mm+150mm+150mm) / FDD (+150mm) 1 3 / 1 18-22AWG No
FDD Adapter (105mm) 1 1 22AWG No
AC Power Cord (1680mm) - C19 coupler 1 1 16AWG -

Parts Description

General Data -
Manufacturer (OEM) High Power
PCB Type Double Sided
Primary Side -
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor (SCK-057) (5Ohm) & Relay
Bridge Rectifier(s) 2x HY GBJ5006 (600V, 50A @ 100°C)
APFC MOSFETs 2x Infineon IPW60R060P7 (650V, 30A @ 100°C, Rds(on): 0.06Ohm)
APFC Boost Diode 2x Infineon IDH06G65C5 (650V, 6A @ 145°C)
Hold-up Cap(s) 2x Nippon Chemi-Con (400V, 820uF, 105°C, CE)
Main Switchers 2x Infineon IPW60R080P7 (650V, 23A @ 100°C, Rds(on): 0.08Ohm)
APFC Controller Infineon ICE3PCS01G
Resonant Controller Champion CM6901X
Topology Primary side: Interleaved APFC, Half-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side -
+12V MOSFETs 10x Toshiba TPHR8504PL (40V, 150A @ 175°C, Rds(on): 0.85mOhm)
5V & 3.3V DC-DC Converters: 8x Infineon BSC0906NS (30V, 40A @ 100°C, Rds(on): 4.5mOhm)
PWM Controllers: ANPEC APW7159C
Filtering Capacitors Electrolytic: 3x Nippon Chemi-Con (105°C, W), 11x Nippon Chemi-Con (4-10,000h @ 105°C, KY)
Polymer: 23x FPCAP, 6x United Chemi-Con
Supervisor IC SITI PS232S (OCP, OVP, UVP, SCP, PG)
Micro Controller STC15W408AS
Fan Model Globe Fan RL4Z S1352512HH (135mm, 12V, 0.45A, Fluid Dynamic Bearing Fan)
5VSB Circuit -
Rectifier 1x PFC P10V45SP SBR (45V, 10A) & 2x Infineon BSC0906NS (30V, 40A @ 100°C, Rds(on): 4.5mOhm)
Standby PWM Controller Excelliance MOS EM8569D

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)11.1
AC Loss to PWR_OK Hold Up Time (ms)11.7
PWR_OK Inactive to DC Loss Delay (ms)-0.6

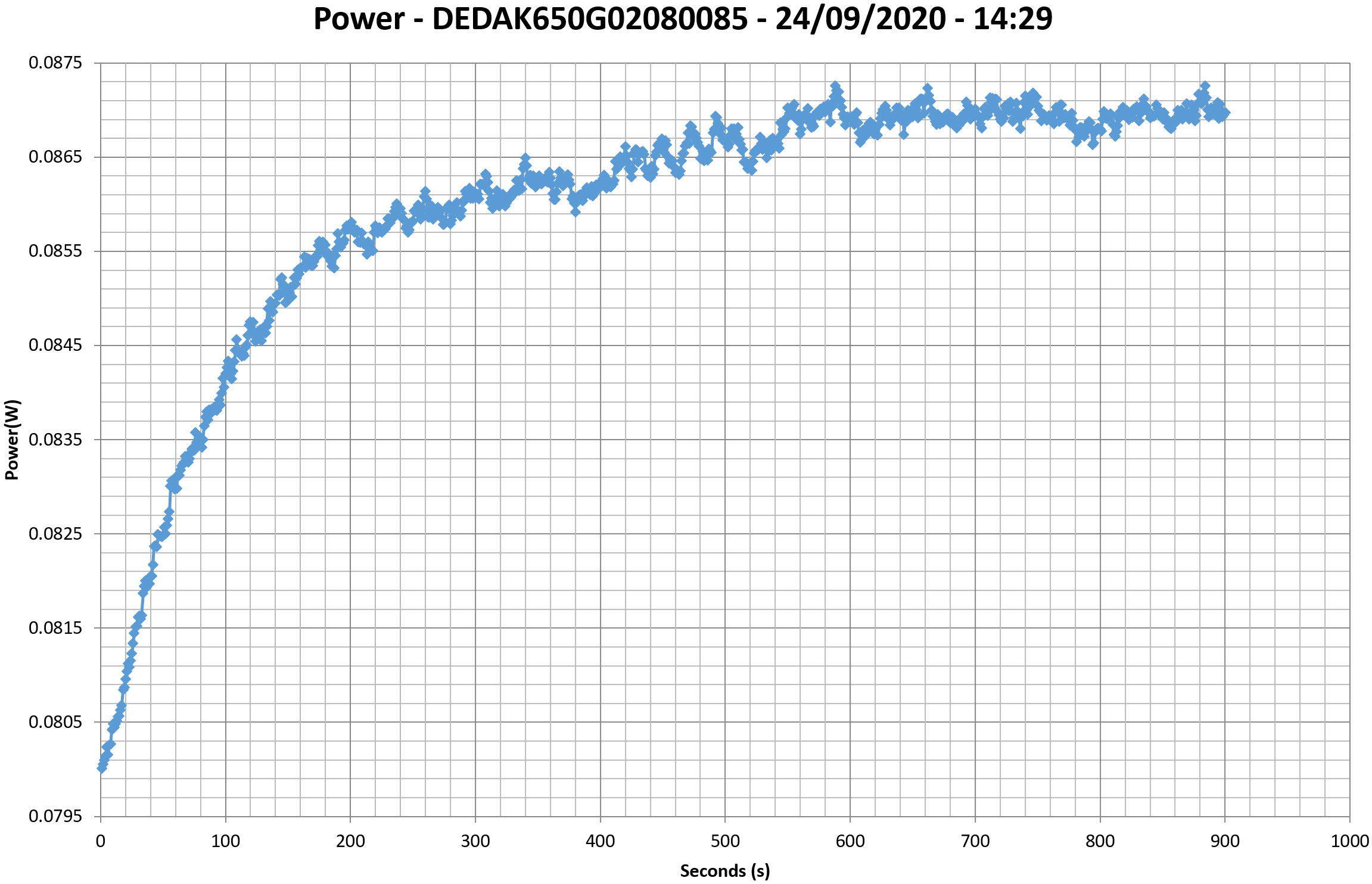

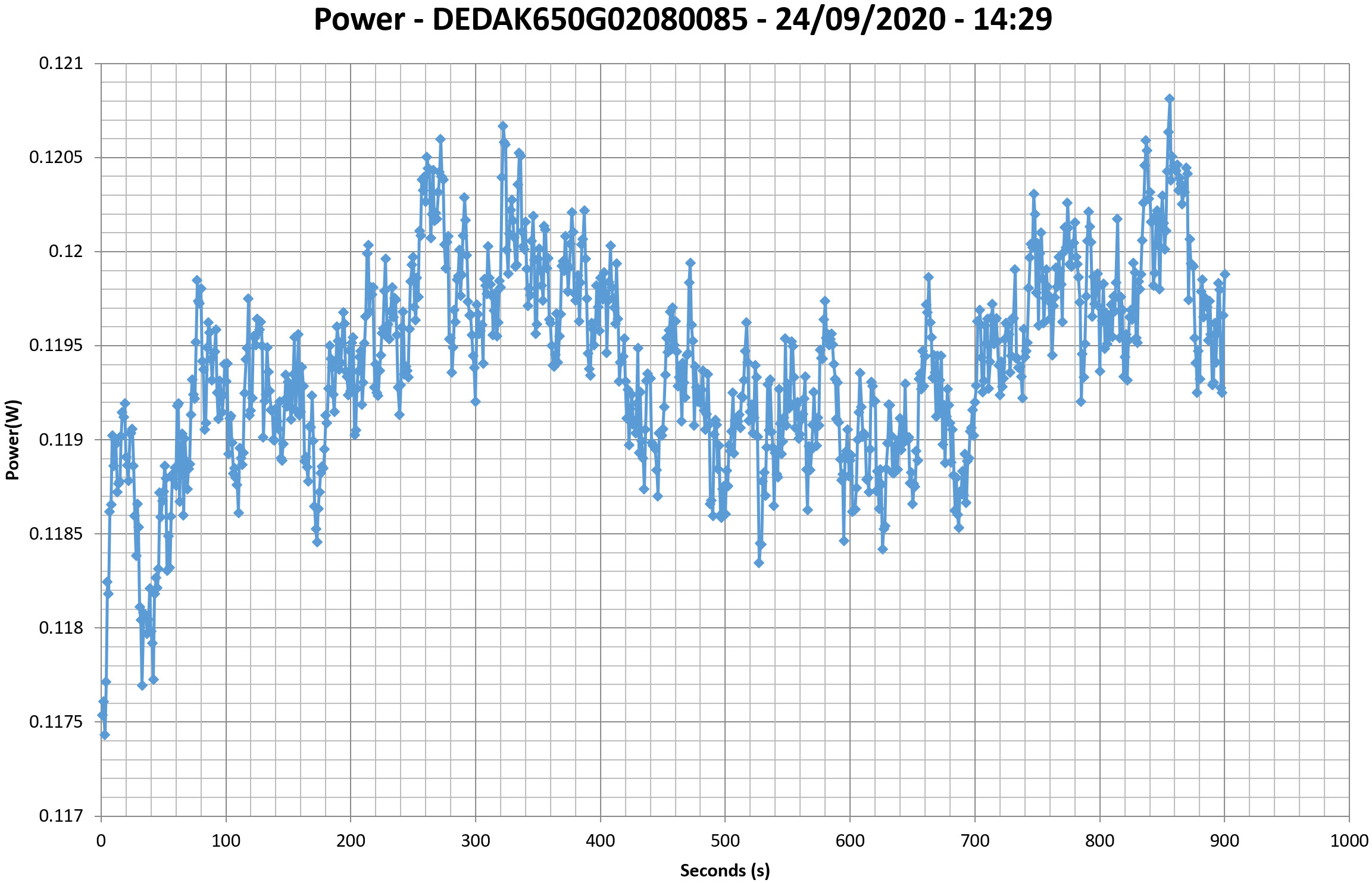

Vampire Power

Graphs

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

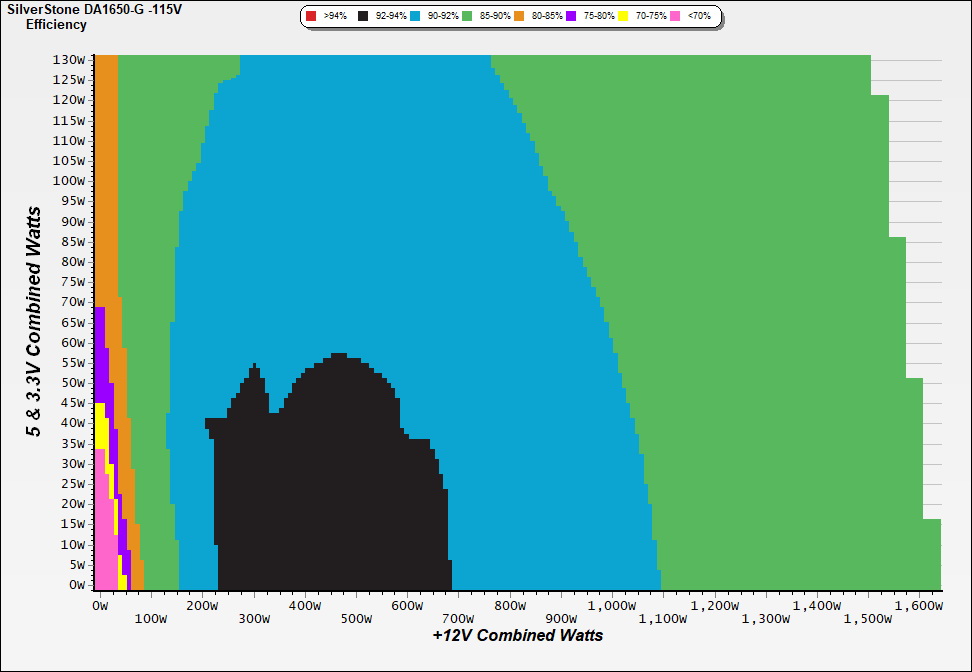

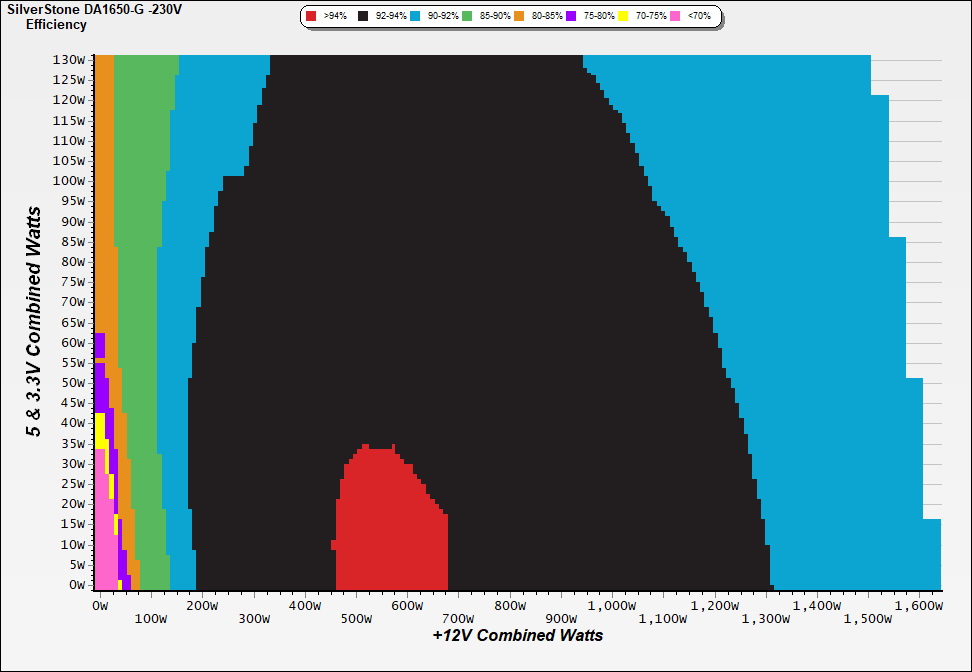

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

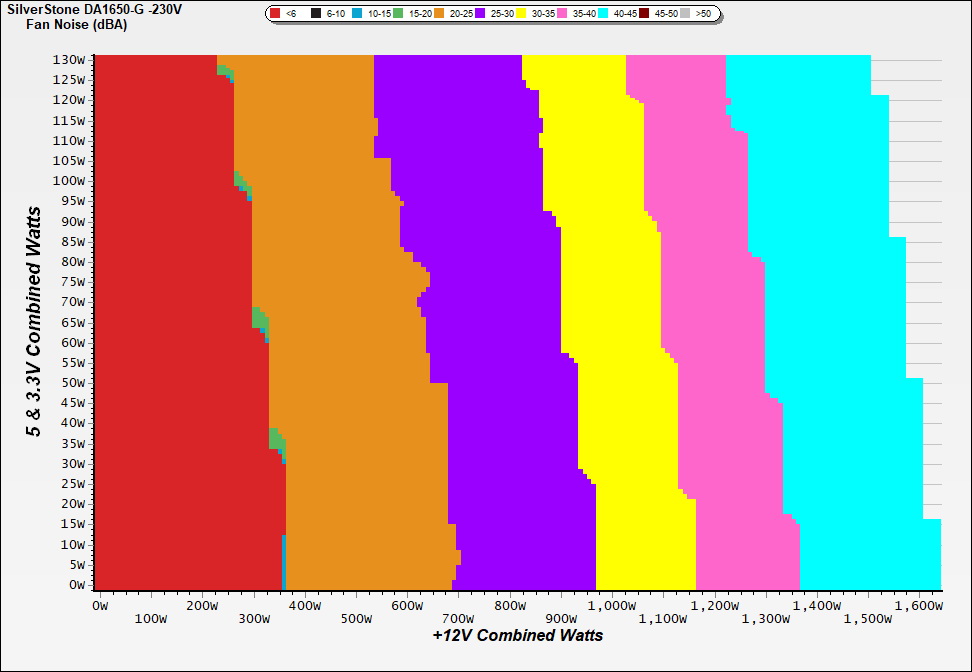

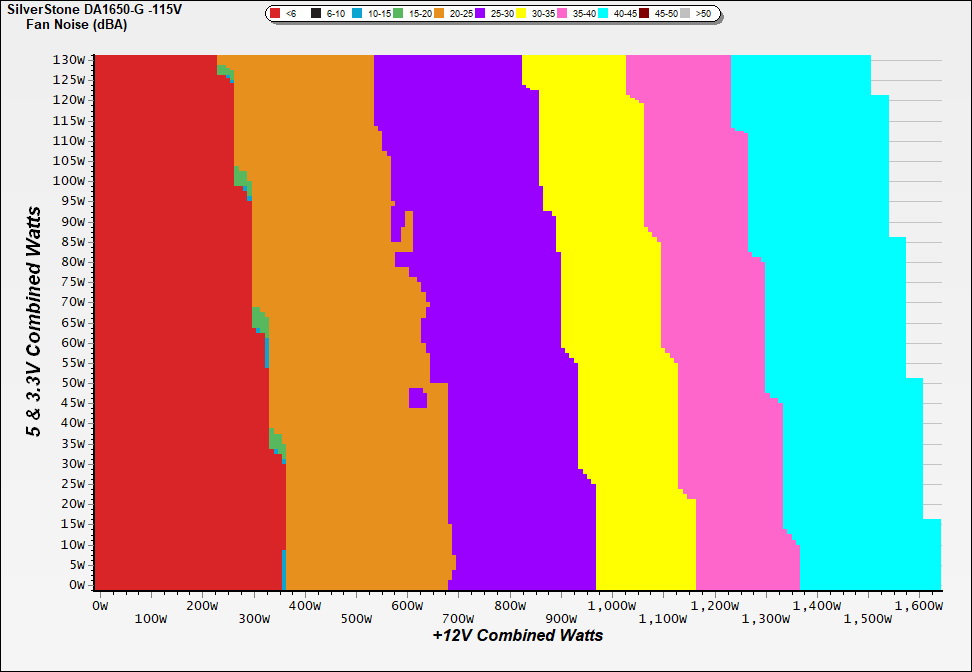

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

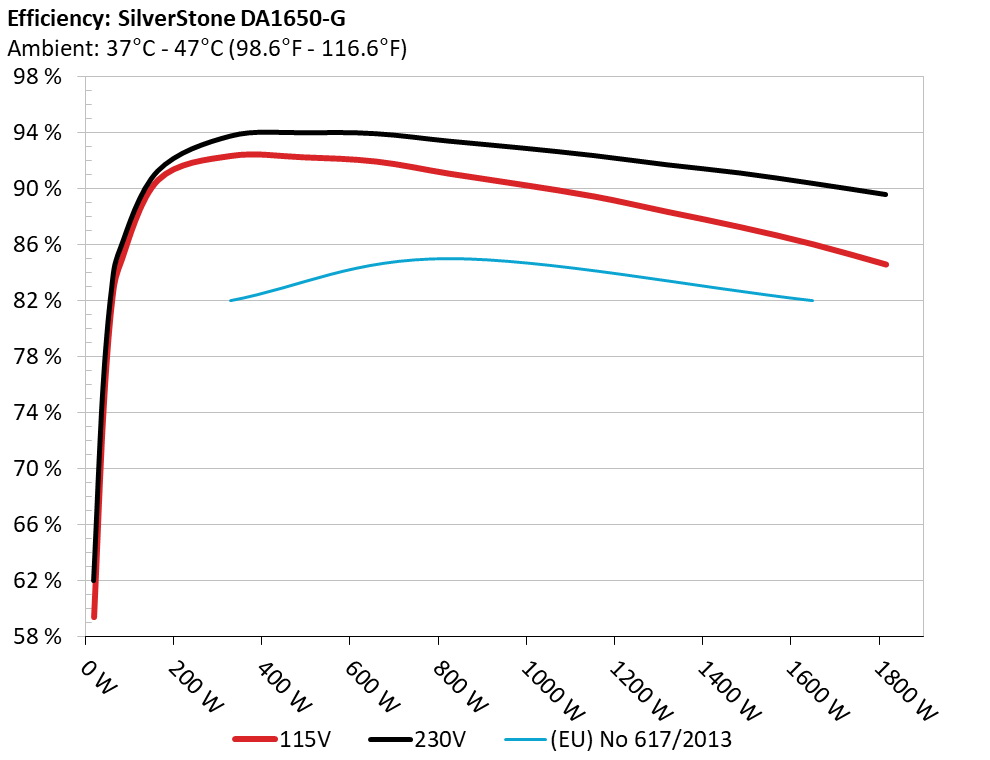

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

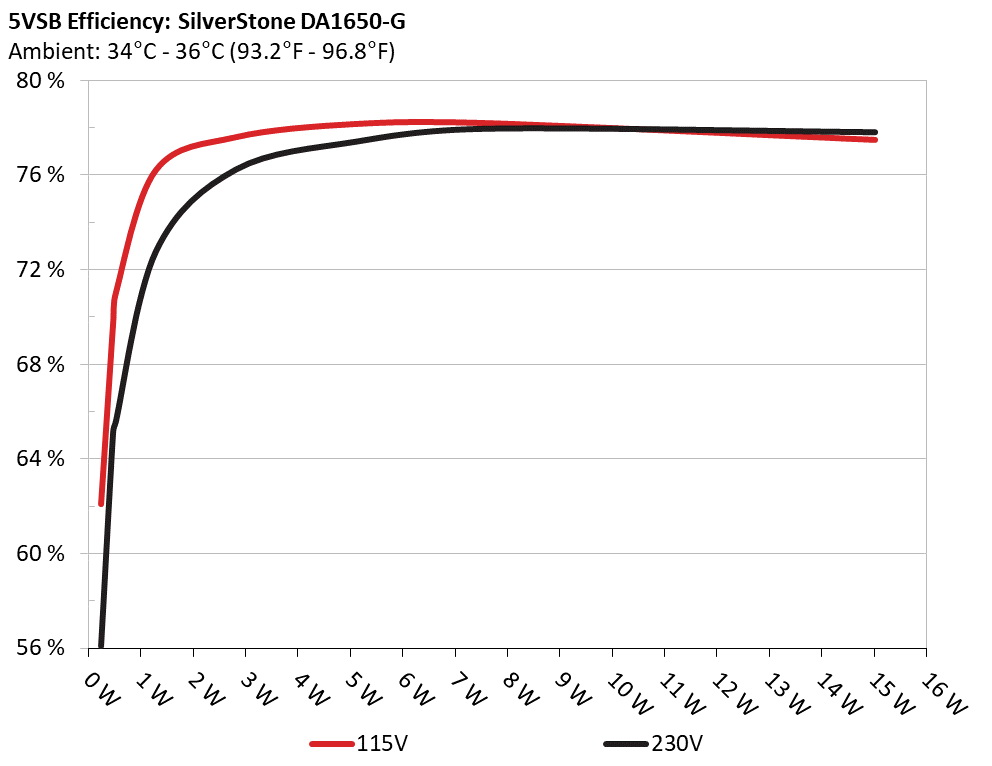

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231 62.097% 0.052
5.119V 0.372 115.12V
2 0.090A 0.461 69.743% 0.089
5.119V 0.661 115.13V
3 0.550A 2.806 77.600% 0.305
5.101V 3.616 115.13V
4 1.000A 5.085 78.159% 0.377
5.084V 6.506 115.13V
5 1.500A 7.598 78.193% 0.418
5.065V 9.717 115.13V
6 3.000A 15.010 77.487% 0.470
5.003V 19.371 115.13V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.046A 0.231 56.068% 0.178
5.063V 0.412 230.25V
2 0.090A 0.461 65.113% 0.030
5.120V 0.708 230.24V
3 0.550A 2.807 76.215% 0.139
5.103V 3.683 230.25V
4 1.000A 5.086 77.389% 0.216
5.086V 6.572 230.25V
5 1.500A 7.600 77.941% 0.273
5.067V 9.751 230.26V
6 3.000A 15.017 77.792% 0.359
5.005V 19.304 230.24V

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 11.953A 1.995A 1.996A 1.005A 165.049 90.637% 0 <6.0 40.31°C 0.989
12.001V 5.011V 3.309V 4.975V 182.098 44.27°C 115.12V
2 24.940A 2.997A 2.997A 1.209A 330.064 92.359% 0 <6.0 40.99°C 0.997
11.995V 5.006V 3.304V 4.965V 357.372 45.66°C 115.11V
3 38.204A 3.499A 3.502A 1.413A 494.548 92.260% 740 20.5 41.03°C 0.998
12.001V 5.003V 3.300V 4.954V 536.039 46.47°C 115.10V
4 51.583A 4.004A 4.006A 1.619A 659.754 91.957% 829 24.3 41.66°C 0.999
11.991V 5.000V 3.295V 4.943V 717.457 47.70°C 115.09V
5 64.685A 5.008A 5.004A 1.826A 825.113 91.088% 914 27.3 42.21°C 0.999
11.975V 4.993V 3.298V 4.930V 905.840 49.13°C 115.09V
6 77.710A 6.016A 6.017A 2.000A 989.457 90.300% 1093 32.6 42.81°C 0.999
11.965V 4.988V 3.292V 4.921V 1095.750 50.95°C 115.08V
7 90.650A 7.027A 7.030A 2.242A 1154.934 89.448% 1097 32.6 43.38°C 0.999
11.978V 4.983V 3.287V 4.908V 1291.182 52.46°C 115.07V
8 103.712A 8.005A 8.048A 2.452A 1320.195 88.352% 1390 39.4 43.57°C 0.999
11.975V 4.977V 3.280V 4.896V 1494.250 54.07°C 115.06V
9 117.182A 8.550A 8.522A 2.453A 1485.310 87.259% 1614 43.9 44.41°C 0.999
11.971V 4.973V 3.286V 4.893V 1702.195 55.71°C 115.06V
10 130.596A 9.051A 9.056A 3.084A 1650.098 86.028% 1608 43.7 45.09°C 0.999
11.948V 4.974V 3.281V 4.865V 1918.099 57.31°C 115.05V
11 144.236A 9.052A 9.060A 3.087A 1814.927 84.588% 1607 43.7 46.80°C 0.999
11.961V 4.973V 3.278V 4.861V 2145.603 60.55°C 115.03V
CL1 0.099A 16.003A 16.000A 0.000A 133.667 82.422% 0 <6.0 42.80°C 0.984
11.998V 4.978V 3.301V 5.054V 162.174 49.83°C 115.14V
CL2 137.509A 1.000A 1.001A 1.000A 1659.880 86.237% 1605 43.7 45.91°C 0.999
11.975V 4.983V 3.292V 4.932V 1924.795 57.98°C 115.04V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 11.951A 1.995A 1.997A 1.005A 165.065 91.249% 0 <6.0 40.08°C 0.920
12.004V 5.012V 3.308V 4.976V 180.896 44.20°C 230.27V
2 24.952A 3.002A 2.997A 1.211A 330.082 93.751% 0 <6.0 40.89°C 0.963
11.990V 4.998V 3.304V 4.956V 352.085 46.04°C 230.27V
3 38.195A 3.498A 3.504A 1.413A 494.591 93.988% 740 20.5 41.04°C 0.983
12.005V 5.003V 3.299V 4.954V 526.228 47.02°C 230.26V
4 51.608A 4.001A 3.994A 1.619A 659.780 93.917% 827 24.3 41.39°C 0.991
11.986V 5.000V 3.305V 4.943V 702.515 48.43°C 230.26V
5 64.710A 5.008A 5.005A 1.826A 825.088 93.387% 916 27.3 42.01°C 0.994
11.970V 4.993V 3.297V 4.930V 883.517 49.59°C 230.25V
6 77.728A 6.014A 6.016A 2.000A 989.427 92.902% 1096 32.6 42.52°C 0.997
11.962V 4.988V 3.292V 4.921V 1065.020 50.76°C 230.25V
7 90.814A 7.025A 7.030A 2.243A 1154.976 92.350% 1099 32.7 43.56°C 0.998
11.957V 4.983V 3.286V 4.907V 1250.657 52.54°C 230.24V
8 103.906A 8.003A 8.024A 2.452A 1320.127 91.695% 1391 39.4 43.62°C 0.998
11.952V 4.978V 3.290V 4.896V 1439.692 53.59°C 230.24V
9 117.318A 8.544A 8.518A 2.452A 1485.046 91.111% 1608 43.7 44.89°C 0.994
11.955V 4.975V 3.287V 4.896V 1629.924 55.40°C 230.24V
10 130.626A 9.050A 9.055A 3.085A 1650.039 90.368% 1608 43.7 45.15°C 0.993
11.945V 4.973V 3.280V 4.864V 1825.902 56.89°C 230.25V
11 144.450A 9.045A 9.067A 3.085A 1814.895 89.572% 1607 43.7 46.64°C 0.993
11.943V 4.977V 3.276V 4.865V 2026.183 59.58°C 230.25V
CL1 0.103A 16.004A 16.001A 0.000A 133.690 83.329% 0 <6.0 42.80°C 0.909
11.996V 4.977V 3.300V 5.054V 160.437 50.64°C 230.26V
CL2 137.484A 1.001A 1.001A 1.000A 1659.035 90.520% 1609 43.7 45.12°C 0.999
11.971V 4.983V 3.291V 4.932V 1832.778 56.27°C 230.24V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.235A 0.497A 0.496A 0.200A 19.994 59.343% 0 <6.0 0.875
12.027V 5.011V 3.325V 5.004V 33.692 115.12V
2 2.470A 0.998A 0.992A 0.401A 39.983 73.433% 0 <6.0 0.934
12.020V 5.005V 3.323V 4.992V 54.448 115.12V
3 3.708A 1.497A 1.491A 0.601A 60.013 81.772% 0 <6.0 0.959
12.019V 5.010V 3.319V 4.990V 73.391 115.12V
4 4.941A 1.997A 1.991A 0.803A 79.964 84.700% 0 <6.0 0.968
12.015V 5.006V 3.316V 4.980V 94.408 115.12V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.235A 0.499A 0.495A 0.200A 20.002 61.968% 0 <6.0 0.505
12.029V 5.012V 3.324V 5.004V 32.278 230.29V
2 2.472A 0.998A 0.995A 0.401A 39.993 75.217% 0 <6.0 0.659
12.010V 5.007V 3.322V 4.993V 53.170 230.29V
3 3.713A 1.498A 1.496A 0.602A 60.023 82.662% 0 <6.0 0.746
12.007V 5.002V 3.308V 4.982V 72.613 230.29V
4 4.946A 1.998A 1.990A 0.803A 79.970 85.682% 0 <6.0 0.817
12.003V 5.008V 3.315V 4.981V 93.333 230.29V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load8.60mV10.70mV15.90mV4.40mVPass
20% Load9.40mV11.50mV16.50mV6.30mVPass
30% Load10.20mV12.10mV17.70mV8.60mVPass
40% Load11.10mV10.90mV15.90mV8.80mVPass
50% Load11.30mV11.70mV18.40mV9.70mVPass
60% Load12.10mV13.20mV20.30mV13.90mVPass
70% Load14.10mV16.50mV20.70mV13.60mVPass
80% Load16.70mV17.60mV25.40mV18.50mVPass
90% Load16.30mV16.90mV25.90mV23.00mVPass
100% Load22.60mV17.70mV32.00mV21.20mVPass
110% Load24.80mV15.90mV31.60mV20.40mVPass
Crossload112.80mV12.30mV20.50mV4.70mVPass
Crossload222.80mV15.60mV29.10mV20.20mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load8.30mV10.20mV15.20mV4.30mVPass
20% Load9.00mV12.60mV16.10mV6.10mVPass
30% Load9.70mV11.10mV16.50mV8.30mVPass
40% Load10.00mV10.50mV17.70mV8.50mVPass
50% Load11.00mV10.70mV18.80mV9.90mVPass
60% Load12.30mV13.00mV19.50mV13.20mVPass
70% Load12.90mV11.40mV19.00mV13.30mVPass
80% Load14.30mV16.00mV23.90mV20.30mVPass
90% Load15.70mV16.80mV27.00mV22.70mVPass
100% Load21.60mV17.00mV32.00mV21.40mVPass
110% Load22.30mV14.60mV28.70mV20.10mVPass
Crossload113.00mV12.70mV21.90mV4.70mVPass
Crossload220.70mV15.20mV30.90mV21.40mVPass

The results above are not used in the certification process

SilverStone Decathlon DA1650 (#2)

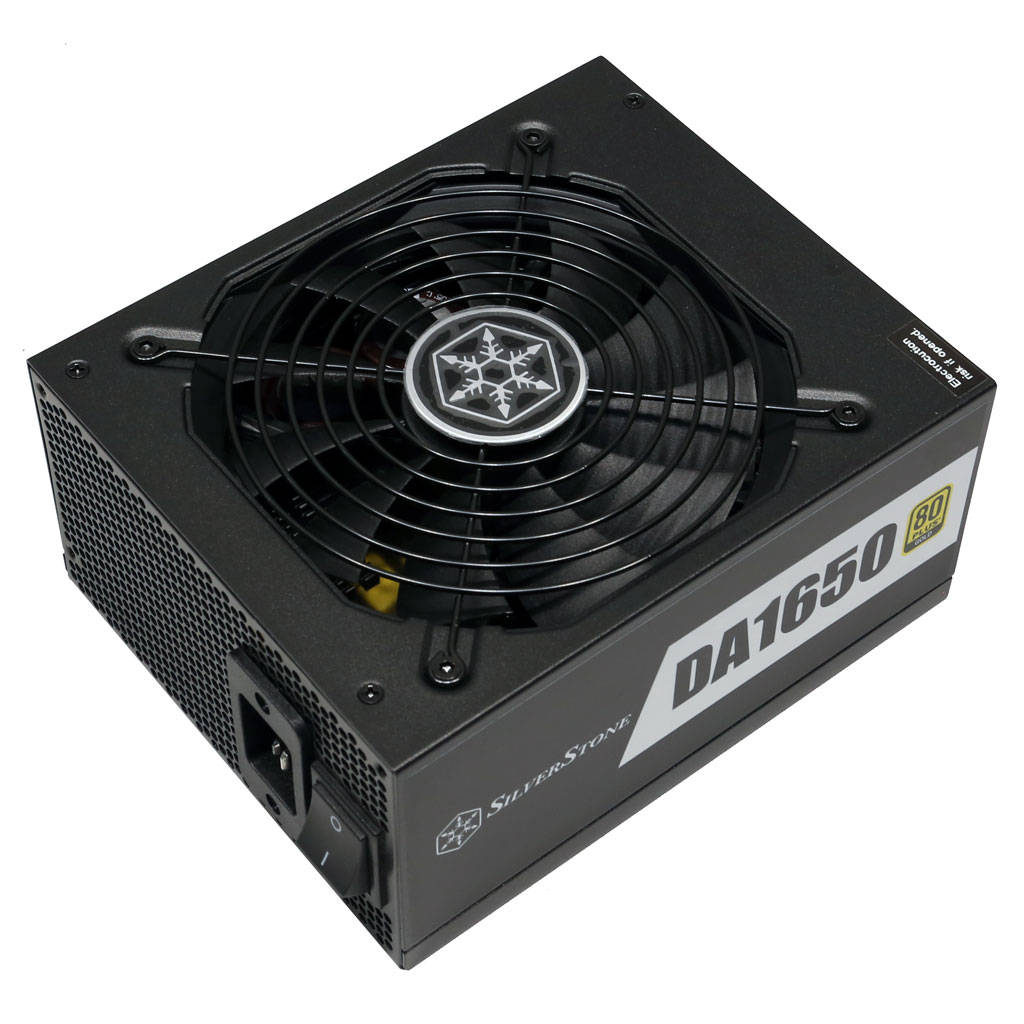

Top side

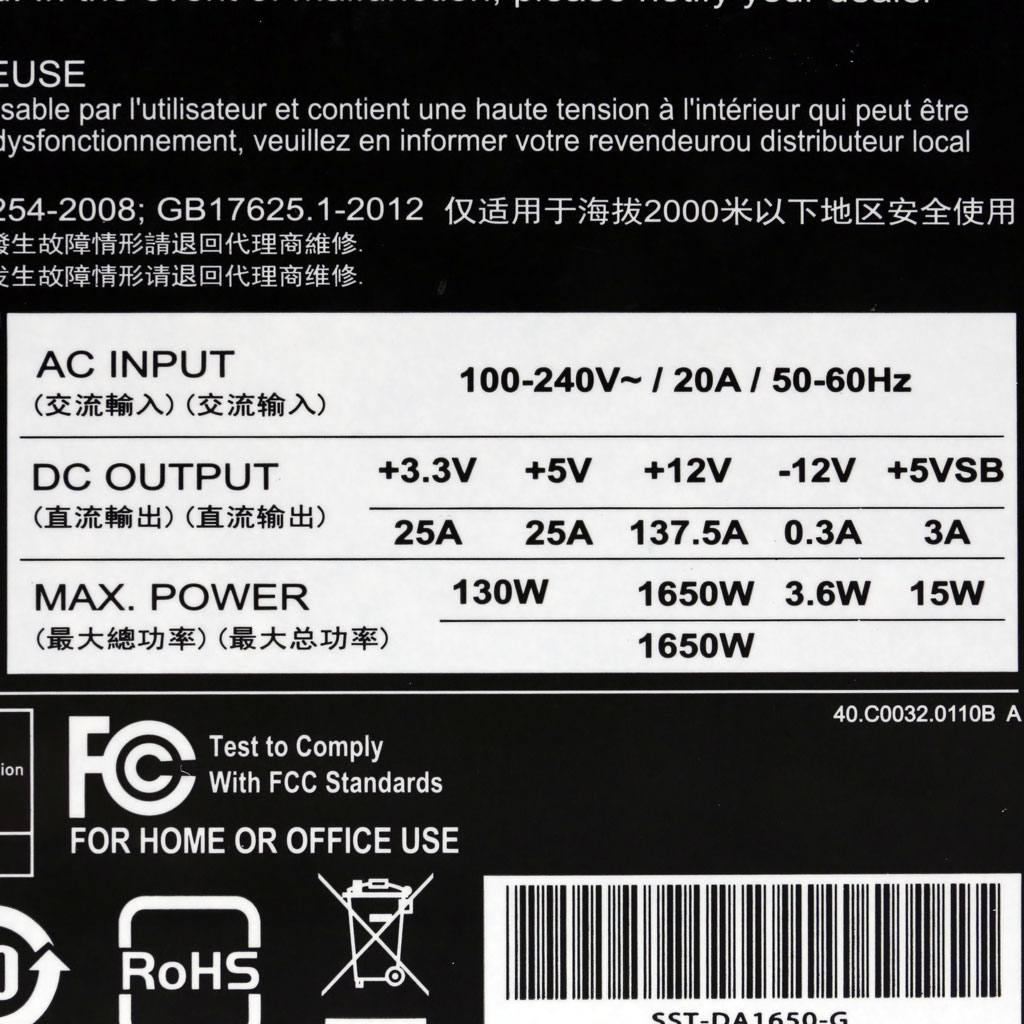

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
