Thermaltake Toughpower PF1 650W
Serial NumberPSTPD0650FNFAPEXD000041
Lab IDTT65001711
  • Report: 20PS1711A
  • Receipt Date: Jul 28, 2020
  • Test Date: Sep 3, 2020
  • Report Date: Sep 14, 2020
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandThermaltake
Manufacturer (OEM)Jiu Zhou Yang Guang Power Supply (HKC)
SeriesToughpower PF1
Model NumberTTP-650AH2FKP
Serial NumberPSTPD0650FNFAPEXD000041
DUT NotesToughpower PF1

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)10
Rated Frequency (Hz)50-60
Rated Power (W)650
TypeATX12V
Cooling120mm Hydraulic Bearing Fan
[TT-1225(XW12025MS)]
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps2020542.50.3
Watts10064812.53.6
Total Max. Power (W)650

Test Equipment

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 16-18AWG No
4+4 pin EPS12V (650mm) 2 2 16AWG No
6+2 pin PCIe (500mm+150mm) 2 4 16-18AWG No
SATA (480mm+150mm+150mm) 3 9 18AWG No
4-pin Molex (480mm+150mm+150mm+150mm) 1 4 18AWG No
FDD Adapter (+100mm) 1 1 22AWG No
AC Power Cord (1400mm) - C13 coupler 1 1 18AWG -

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)22.8
AC Loss to PWR_OK Hold Up Time (ms)20.1
PWR_OK Inactive to DC Loss Delay (ms)2.7

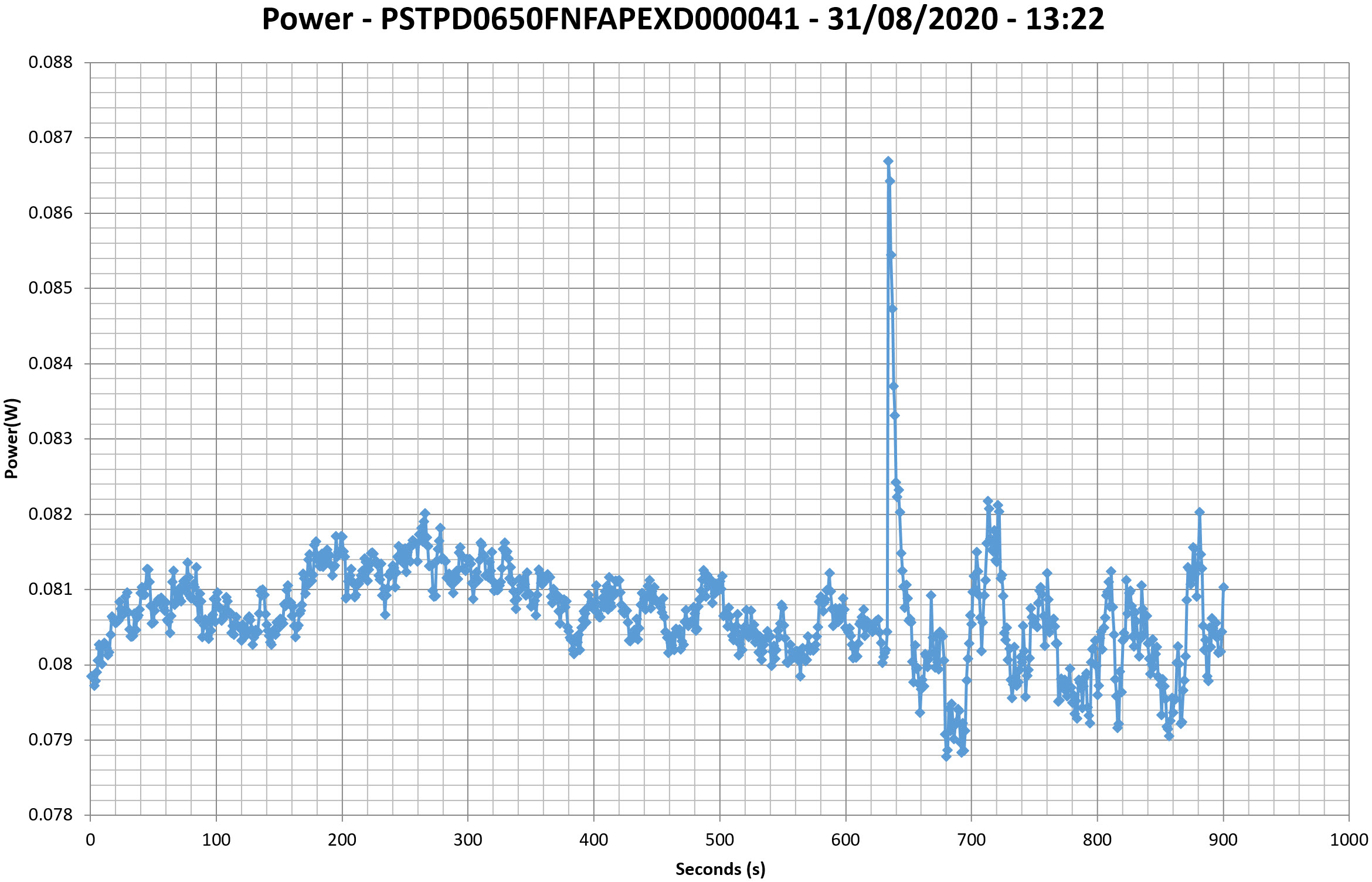

Vampire Power

Graphs

INFO

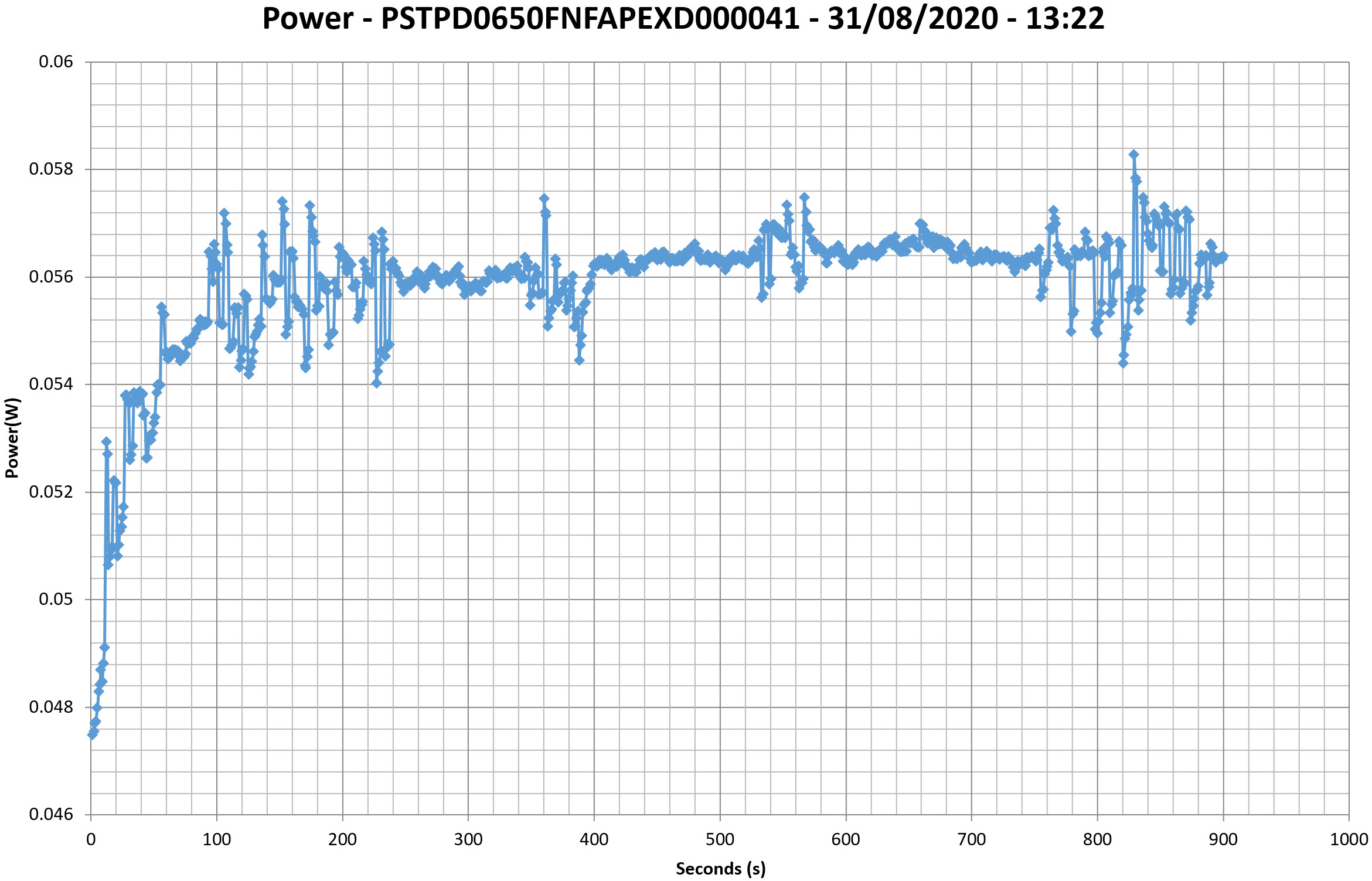

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

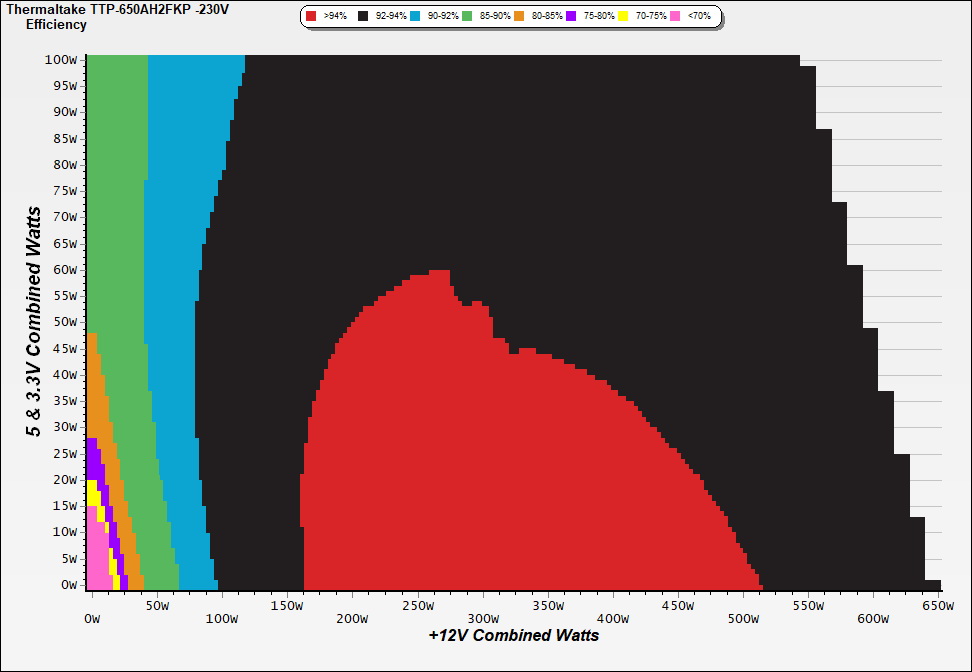

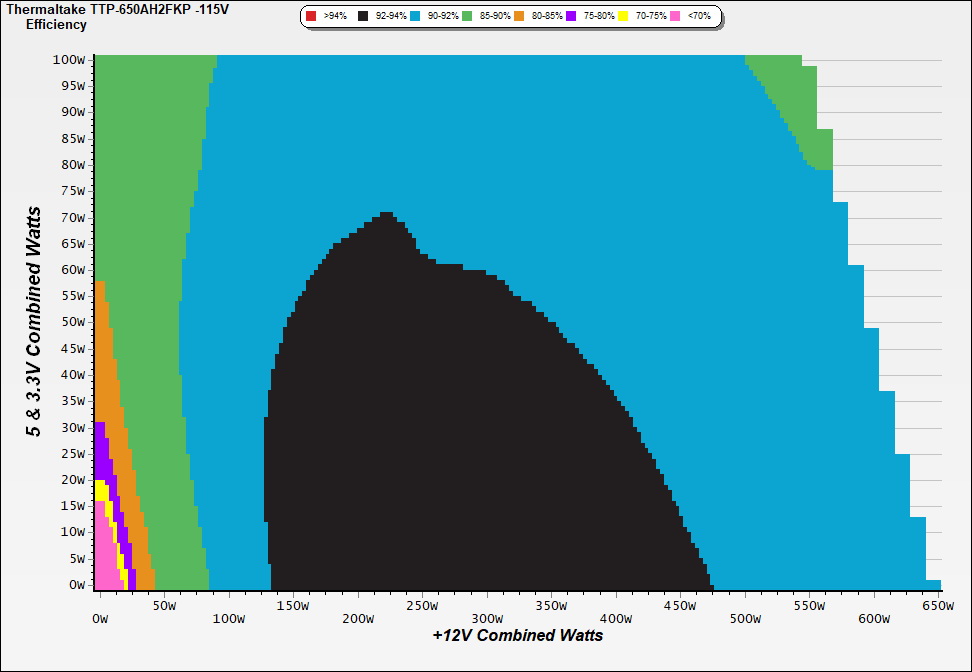

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

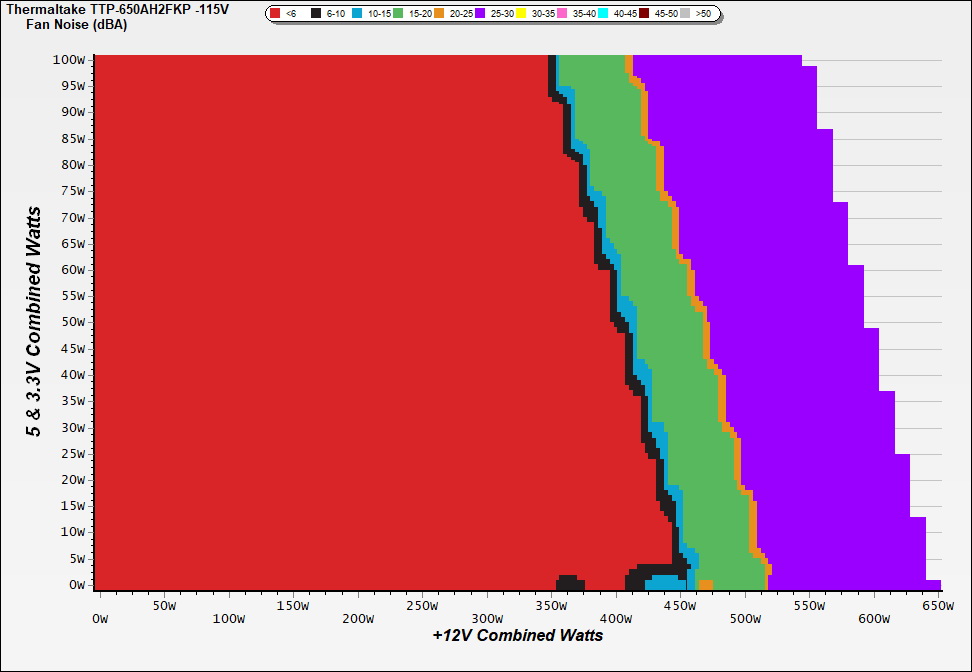

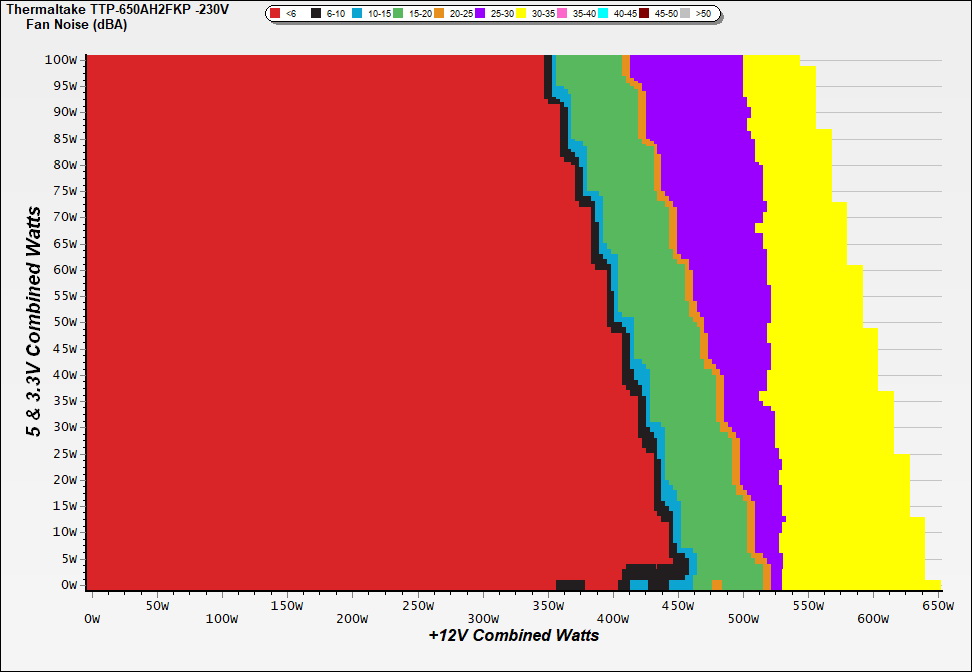

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

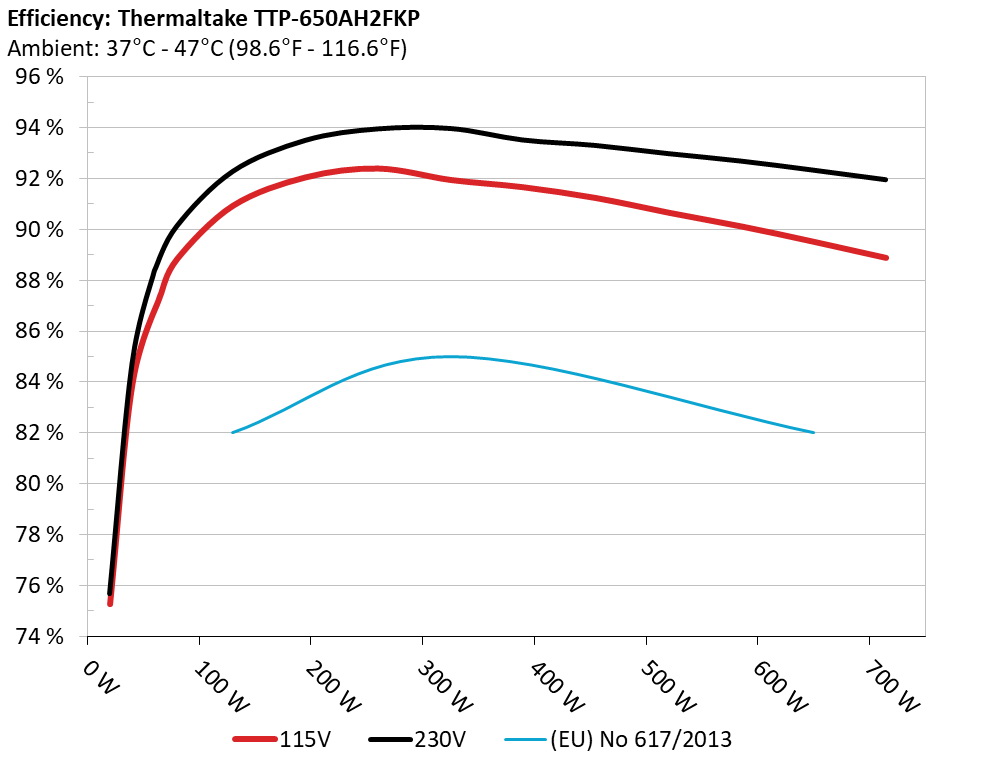

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

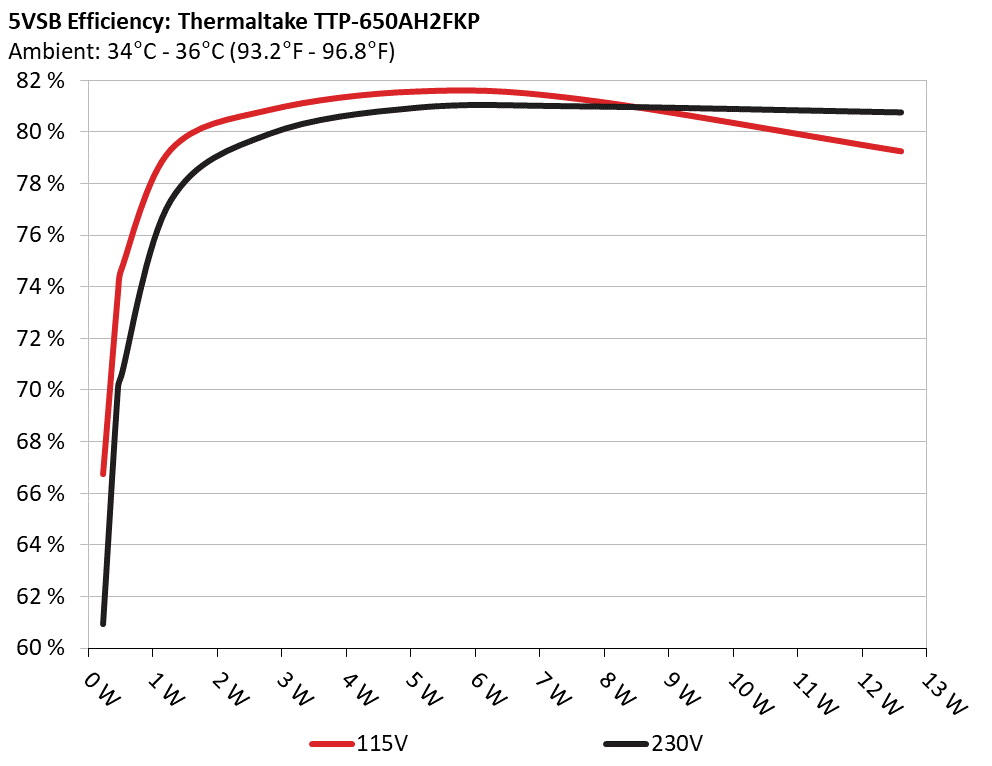

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231 66.763% 0.039
5.133V 0.346 115.16V
2 0.090A 0.462 73.802% 0.069
5.131V 0.626 115.16V
3 0.550A 2.813 80.857% 0.272
5.115V 3.479 115.16V
4 1.000A 5.099 81.571% 0.352
5.100V 6.251 115.16V
5 1.500A 7.622 81.275% 0.395
5.082V 9.378 115.16V
6 2.499A 12.611 79.255% 0.441
5.046V 15.912 115.16V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231 60.950% 0.013
5.132V 0.379 230.31V
2 0.090A 0.462 70.106% 0.022
5.131V 0.659 230.32V
3 0.550A 2.813 79.937% 0.111
5.115V 3.519 230.31V
4 1.000A 5.099 80.949% 0.179
5.099V 6.299 230.31V
5 1.500A 7.623 81.001% 0.235
5.082V 9.411 230.31V
6 2.499A 12.610 80.766% 0.303
5.046V 15.613 230.31V

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.578A 1.969A 1.978A 0.983A 64.957 87.184% 0 <6.0 45.46°C 0.943
12.119V 5.074V 3.338V 5.088V 74.506 40.46°C 115.15V
2 8.177A 2.958A 2.970A 1.183A 130.014 90.915% 0 <6.0 46.57°C 0.973
12.120V 5.072V 3.335V 5.072V 143.006 40.57°C 115.14V
3 13.111A 3.451A 3.467A 1.384A 195.009 92.030% 0 <6.0 47.85°C 0.981
12.124V 5.071V 3.332V 5.057V 211.898 41.35°C 115.14V
4 18.041A 3.946A 3.966A 1.587A 260.009 92.375% 0 <6.0 49.45°C 0.987
12.128V 5.070V 3.329V 5.041V 281.470 41.85°C 115.14V
5 22.603A 4.934A 4.962A 1.792A 325.047 91.927% 566 <6.0 42.33°C 0.991
12.146V 5.068V 3.326V 5.023V 353.593 50.66°C 115.16V
6 27.143A 5.922A 5.960A 1.997A 389.429 91.644% 819 16.3 42.42°C 0.992
12.144V 5.067V 3.322V 5.007V 424.935 51.24°C 115.16V
7 31.744A 6.911A 6.961A 2.204A 454.763 91.219% 822 16.8 43.21°C 0.994
12.149V 5.065V 3.319V 4.990V 498.541 52.49°C 115.16V
8 36.331A 7.903A 7.964A 2.413A 520.058 90.640% 1048 25.4 43.30°C 0.994
12.156V 5.064V 3.315V 4.972V 573.764 53.03°C 115.16V
9 41.349A 8.396A 8.451A 2.417A 584.969 90.102% 1452 35.3 44.09°C 0.995
12.152V 5.062V 3.313V 4.964V 649.233 54.68°C 115.16V
10 46.283A 8.895A 8.974A 2.524A 649.687 89.501% 1795 41.1 45.69°C 0.995
12.153V 5.060V 3.310V 4.951V 725.903 56.89°C 115.15V
11 51.630A 8.897A 8.977A 2.528A 714.500 88.867% 2152 45.9 46.60°C 0.996
12.150V 5.058V 3.308V 4.944V 804.007 58.50°C 115.14V
CL1 0.102A 12.000A 11.999A 0.000A 101.953 85.941% 575 <6.0 42.93°C 0.972
12.172V 5.075V 3.318V 5.100V 118.631 51.22°C 115.18V
CL2 54.018A 1.001A 0.999A 1.000A 669.677 90.129% 1451 35.3 45.99°C 0.995
12.149V 5.063V 3.326V 5.021V 743.023 56.65°C 115.15V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.578A 1.971A 1.977A 0.983A 64.955 88.357% 0 <6.0 45.20°C 0.728
12.117V 5.073V 3.339V 5.088V 73.514 40.06°C 230.32V
2 8.179A 2.957A 2.969A 1.183A 130.005 92.260% 0 <6.0 46.32°C 0.874
12.117V 5.072V 3.335V 5.072V 140.912 40.44°C 230.31V
3 13.140A 3.452A 3.468A 1.384A 195.008 93.482% 0 <6.0 47.45°C 0.926
12.097V 5.069V 3.332V 5.058V 208.605 41.17°C 230.32V
4 18.070A 3.948A 3.966A 1.587A 260.006 93.933% 0 <6.0 48.21°C 0.949
12.108V 5.068V 3.329V 5.043V 276.799 41.42°C 230.32V
5 22.624A 4.932A 4.962A 1.791A 325.044 93.949% 565 <6.0 42.62°C 0.962
12.135V 5.069V 3.326V 5.024V 345.979 50.18°C 230.33V
6 27.148A 5.923A 5.959A 1.997A 389.380 93.500% 817 16.2 42.94°C 0.970
12.140V 5.066V 3.322V 5.008V 416.447 51.48°C 230.33V
7 31.743A 6.913A 6.961A 2.204A 454.730 93.283% 822 16.8 43.04°C 0.976
12.148V 5.065V 3.319V 4.990V 487.471 52.47°C 230.32V
8 36.353A 7.901A 7.963A 2.413A 520.016 92.962% 1047 25.3 43.63°C 0.980
12.148V 5.063V 3.315V 4.973V 559.385 53.63°C 230.33V
9 41.361A 8.397A 8.454A 2.417A 584.948 92.669% 1448 35.2 44.05°C 0.982
12.148V 5.061V 3.312V 4.964V 631.221 54.73°C 230.33V
10 46.297A 8.894A 8.972A 2.524A 649.662 92.314% 1725 40.0 45.81°C 0.984
12.149V 5.060V 3.310V 4.952V 703.754 57.19°C 230.33V
11 51.615A 8.897A 8.976A 2.528A 714.477 91.937% 2155 45.9 46.62°C 0.985
12.153V 5.059V 3.308V 4.944V 777.134 58.28°C 230.33V
CL1 0.101A 12.001A 12.000A 0.000A 101.939 87.230% 574 <6.0 42.28°C 0.846
12.171V 5.075V 3.317V 5.100V 116.862 50.58°C 230.34V
CL2 54.012A 1.002A 1.000A 1.000A 669.449 93.023% 1449 35.3 45.90°C 0.984
12.146V 5.061V 3.326V 5.022V 719.659 57.63°C 230.34V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.225A 0.494A 0.494A 0.195A 19.986 75.260% 0 <6.0 0.773
12.106V 5.074V 3.341V 5.123V 26.556 115.17V
2 2.450A 0.986A 0.988A 0.391A 39.975 83.911% 0 <6.0 0.896
12.112V 5.074V 3.340V 5.113V 47.640 115.15V
3 3.678A 1.478A 1.482A 0.588A 60.007 87.388% 0 <6.0 0.937
12.115V 5.074V 3.339V 5.103V 68.667 115.15V
4 4.899A 1.971A 1.977A 0.785A 79.958 88.819% 0 <6.0 0.956
12.117V 5.074V 3.337V 5.093V 90.024 115.14V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.225A 0.493A 0.492A 0.195A 19.984 75.671% 0

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load6.20mV6.70mV8.60mV4.30mVPass
20% Load8.30mV7.40mV8.70mV4.20mVPass
30% Load8.40mV8.40mV9.10mV4.90mVPass
40% Load8.30mV9.20mV9.50mV5.60mVPass
50% Load11.60mV11.20mV10.40mV5.80mVPass
60% Load12.00mV12.70mV11.30mV6.60mVPass
70% Load12.10mV13.70mV12.90mV8.10mVPass
80% Load11.80mV14.60mV13.70mV8.20mVPass
90% Load12.60mV15.90mV14.40mV8.90mVPass
100% Load18.50mV17.10mV14.30mV11.10mVPass
110% Load19.50mV17.70mV15.70mV13.30mVPass
Crossload112.00mV10.50mV13.80mV6.20mVPass
Crossload217.80mV14.90mV11.50mV10.00mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load5.90mV6.60mV8.80mV4.40mVPass
20% Load8.10mV7.30mV9.40mV4.40mVPass
30% Load8.30mV8.10mV9.30mV4.60mVPass
40% Load8.80mV8.90mV10.10mV5.50mVPass
50% Load11.20mV9.80mV9.70mV6.10mVPass
60% Load11.70mV12.60mV11.10mV6.30mVPass
70% Load11.10mV13.40mV12.60mV7.40mVPass
80% Load10.70mV14.80mV13.90mV8.40mVPass
90% Load12.30mV15.10mV13.90mV8.70mVPass
100% Load17.70mV16.70mV14.60mV9.90mVPass
110% Load19.30mV17.40mV15.60mV10.60mVPass
Crossload111.90mV11.10mV14.70mV6.50mVPass
Crossload217.50mV14.90mV12.10mV9.40mVPass

The results above are not used in the certification process

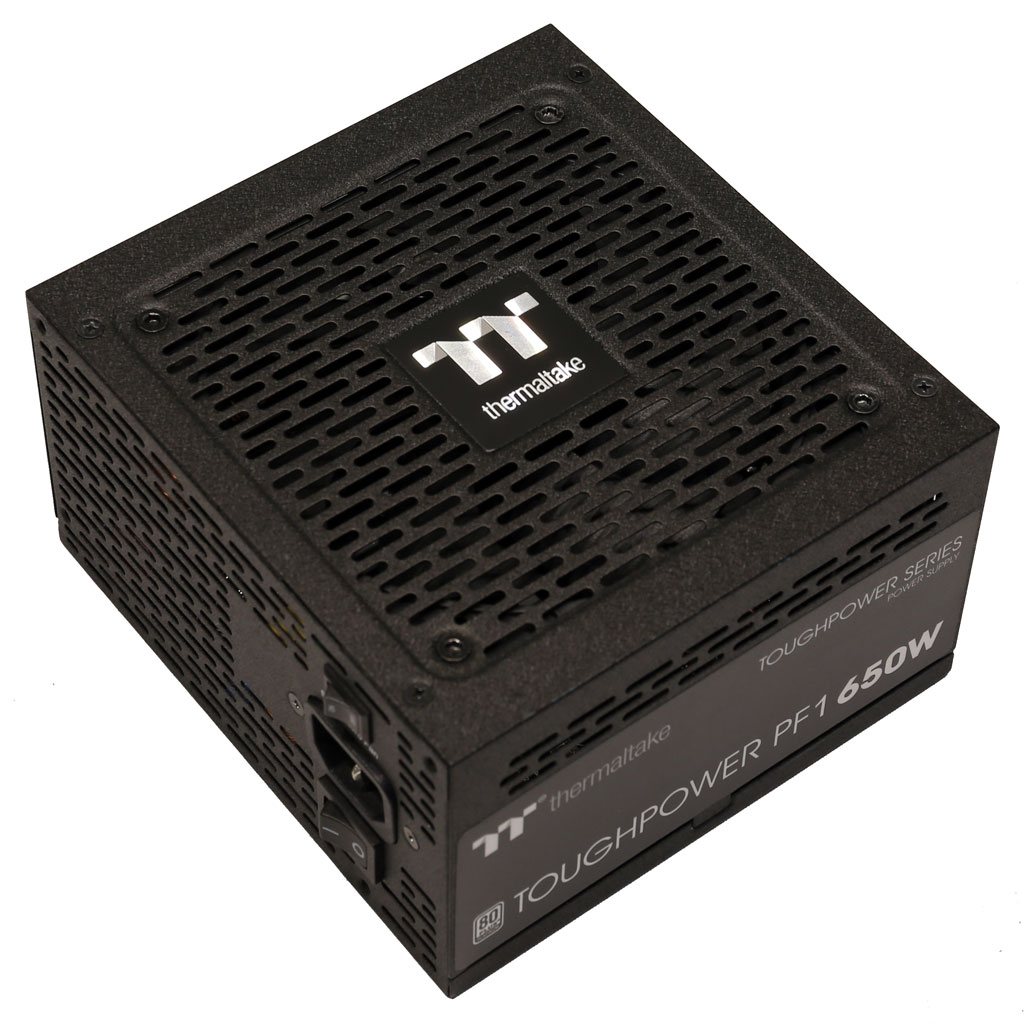

Thermaltake Toughpower PF1 650W

Top side

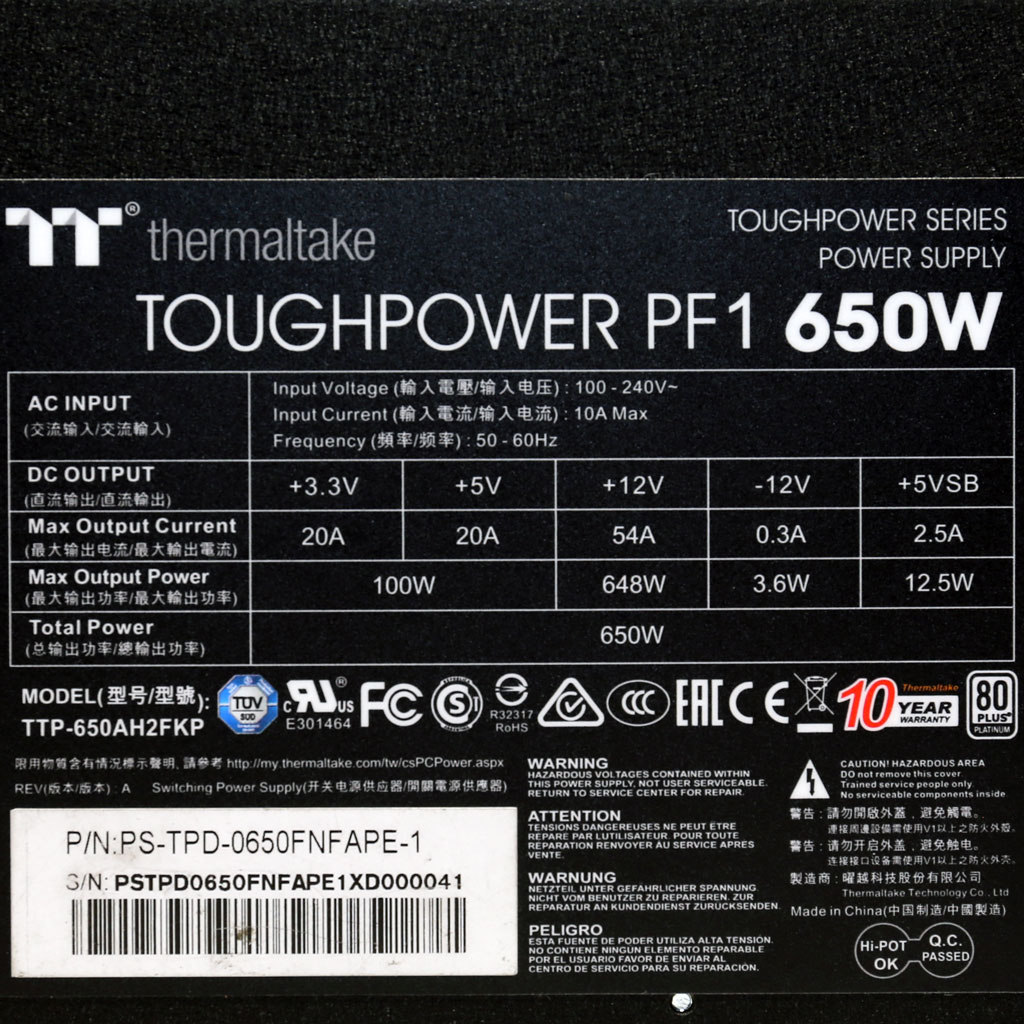

Power specifications label
