CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Chieftec Force 650W
1952110047791650BRR1H16002383
Lab IDCF65001699
  • Report: 20PS1699A
  • Receipt Date: Jul 31, 2020
  • Test Date: Aug 4, 2020
  • Report Date: Aug 4, 2020
115V230V
效率評比
115V230V
噪音評比
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

Chieftec
製造商 (OEM)
Force
CPS-650S
1952110047791650BRR1H16002383

(Vrms)230
(Arms)6.3
(Hz)50
(W)650
ATX12V
120mm Sleeve Bearing Fan
(PY-1225M12S)
✗
Fixed cables

Rail3.3V5V12V5VSB-12V
Max. PowerAmps222248.752.50.3
Watts12058512.53.6
Total Max. Power (W)650

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Native Cables
Description Cable Count Connector Count (Total) Gauge In Cable Caps
ATX connector 20+4 pin (480mm) 1 1 18-22AWG No
4 pin EPS12V (580mm) / 4 pinEPS12V (+160mm) 1 1 18AWG No
6+2 pin PCIe (530mm+160mm) 1 2 18AWG No
SATA (430mm+160mm+160mm) / 4-pin Molex (+160mm) 2 6 / 2 18AWG No
Modular Cables
AC Power Cord (1380mm) - C13 coupler 1 1 18AWG -

Test Results

Temperature & Compliance Info

(°C /°F)30-32 / 86-89.6
✓
✓

Performance Summary 230V

效率評比BRONZE
噪音評比Standard+
(>1450 load combinations)84.872%
Average Noise Output (>1450 Load Combinations)38.95dBA
(>1450 Load Combinations)0.978
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
0.1018W
12V Ripple (Full Load)37.02mV
5V Ripple (Full Load)25.15mV
3.3V Ripple (Full Load)60.51mV
5VSB Ripple (Full Load)48.14mV
12V Load Regulation2.58%
5V Load Regulation2.50%
3.3V Load Regulation2.90%
5VSB Load Regulation4.53%
Inrush Current80.370A
12V Transient Response (150%)0.00V
5V Transient Response (150%)V
3.3V Transient Response (150%)V
5VSB Transient Response (150%)V
10.90ms
AC Loss to PWR_OK Hold Up Time11.90ms
PWR_OK Inactive to DC Loss Delay-1.00ms
PSU Timings: T1 (20% / 100%)96.0ms51.0ms
PSU Timings: T3 (20% / 100%)341.0ms342.0ms
OPP (25.00°C / 0.00°C)122.91%0.00%

Hold-Up Time (ms)10.9
AC Loss to PWR_OK Hold Up Time (ms)11.9
PWR_OK Inactive to DC Loss Delay (ms)-1

待機電源消耗

Tables 230V

Graphs 230V

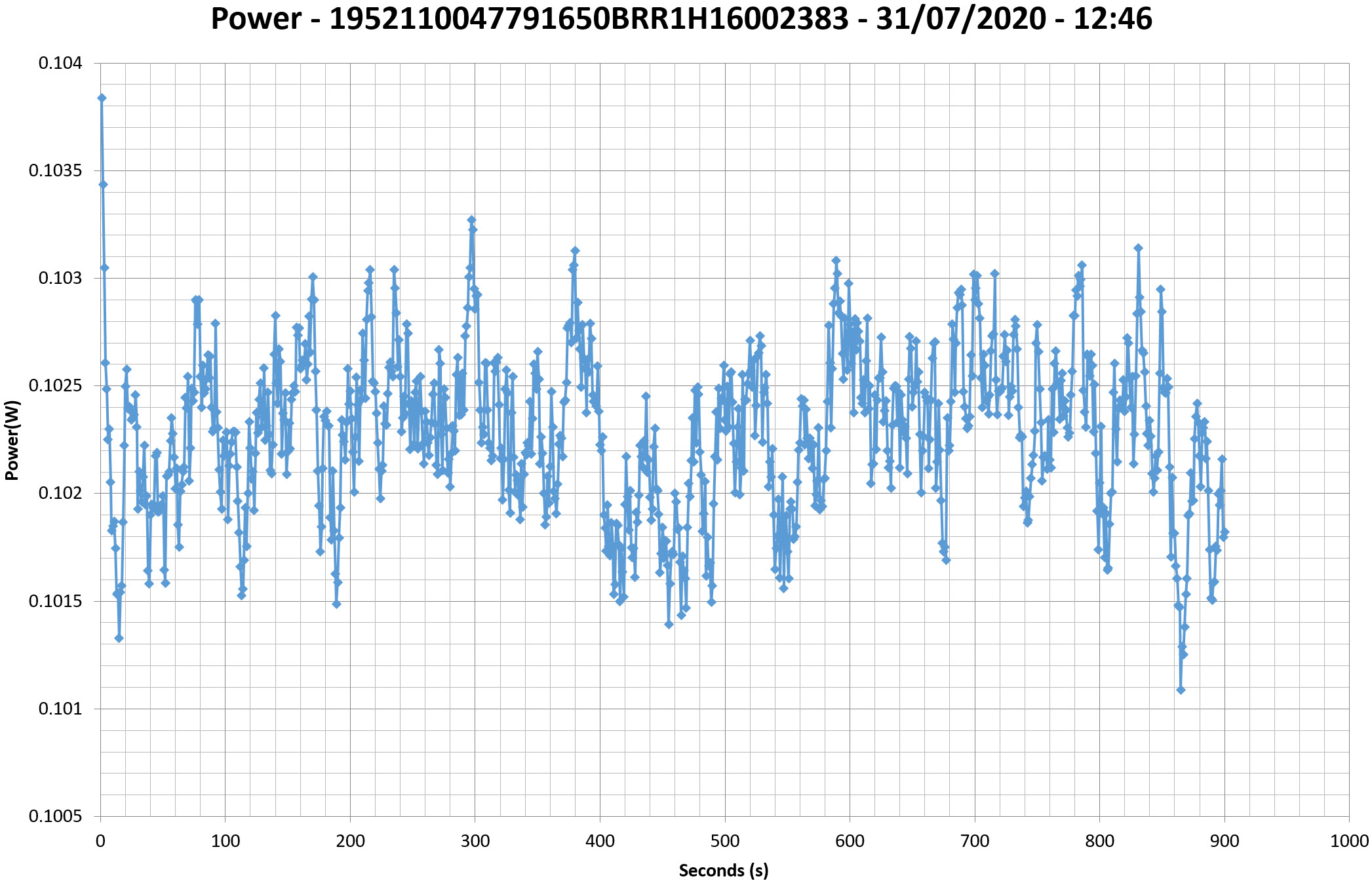

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

230V

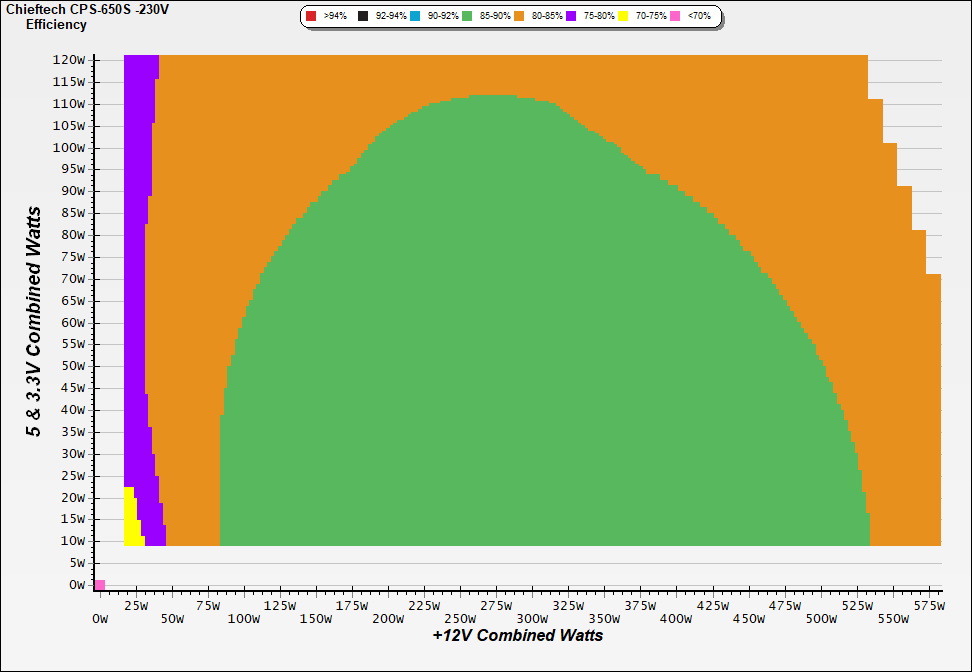

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

230V

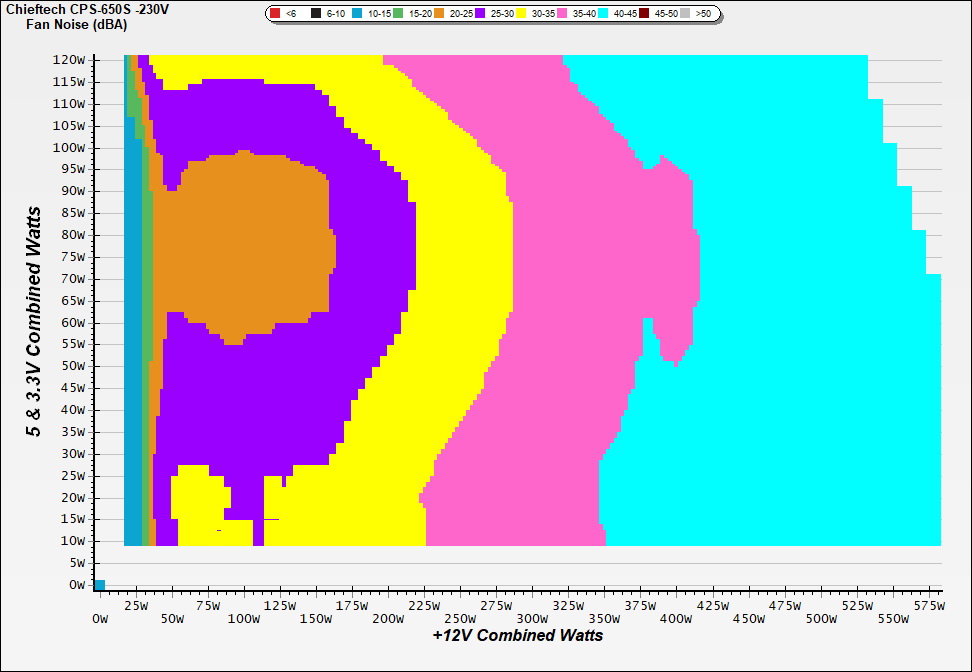

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

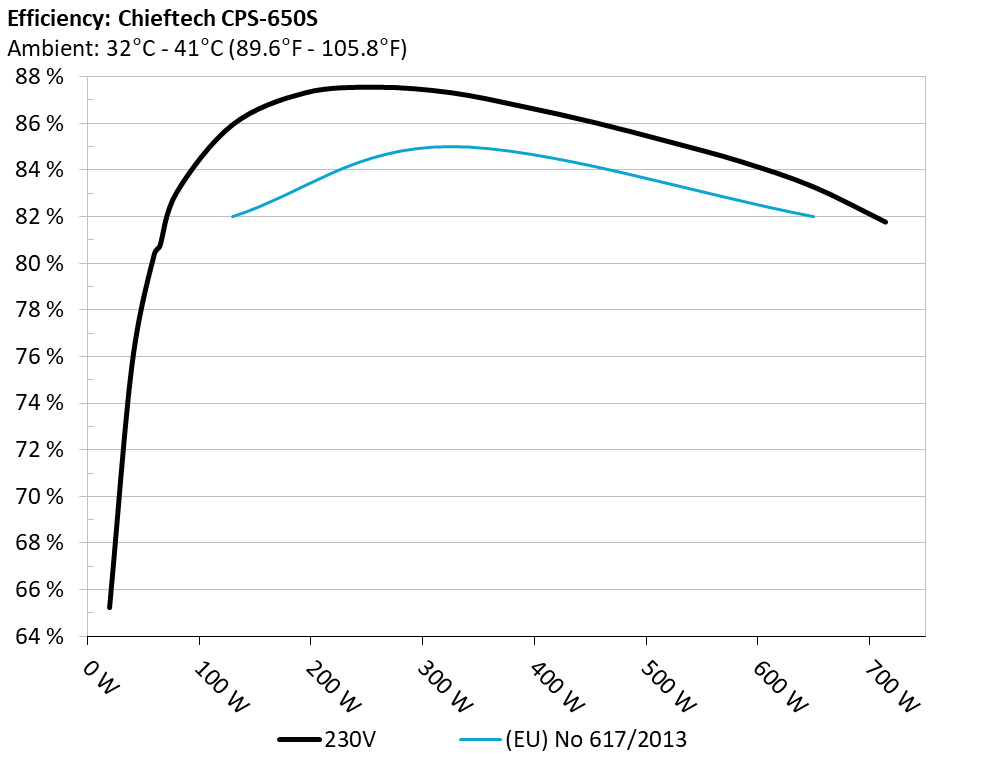

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

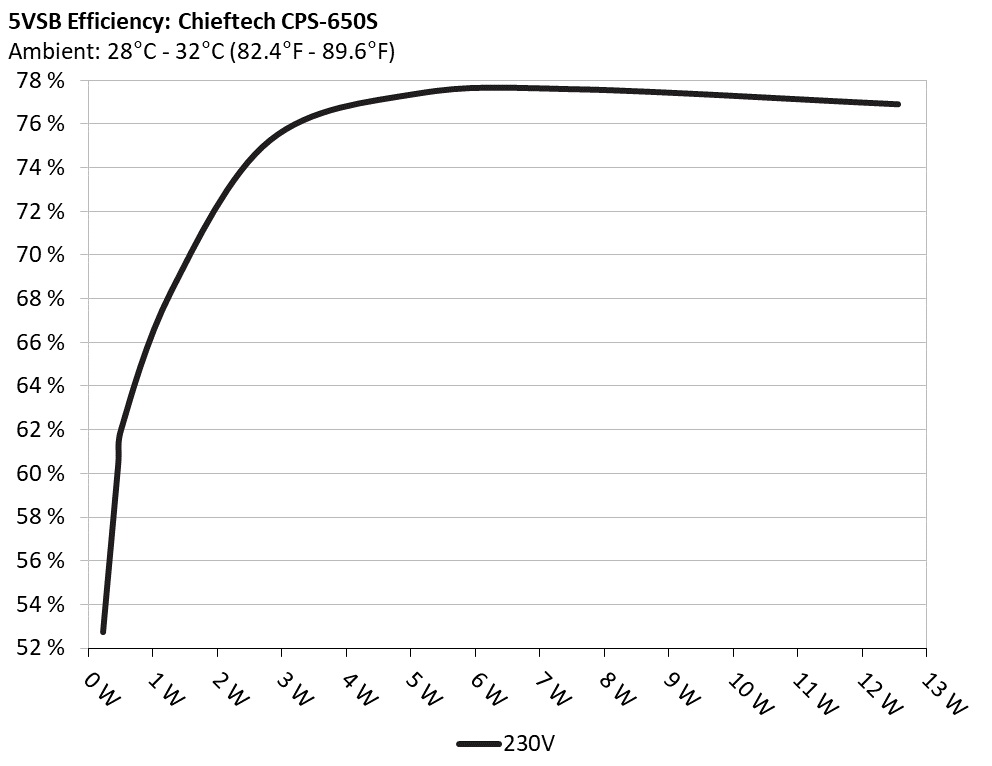

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

230V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.232 52.727% 0.022
5.155V 0.440 230.30V
2 0.090A 0.464 60.338% 0.039
5.153V 0.769 230.29V
3 0.550A 2.820 75.260% 0.162
5.129V 3.747 230.29V
4 1.000A 5.105 77.395% 0.234
5.105V 6.596 230.28V
5 1.500A 7.617 77.590% 0.284
5.078V 9.817 230.29V
6 2.499A 12.551 76.906% 0.337
5.022V 16.320 230.29V

Supplementary Tests (For Reference)

230V

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.578A 1.936A 1.957A 0.982A 64.956 80.728% 601 12.8 34.22°C 0.887
12.117V 5.168V 3.371V 5.091V 80.463 36.56°C 230.29V
2 8.196A 2.911A 2.946A 1.184A 130.005 85.928% 616 13.4 34.79°C 0.950
12.092V 5.152V 3.360V 5.070V 151.296 37.75°C 230.30V
3 13.210A 3.403A 3.447A 1.387A 195.001 87.293% 878 24.2 35.15°C 0.971
12.033V 5.140V 3.351V 5.049V 223.387 39.50°C 230.30V
4 18.234A 3.892A 3.952A 1.591A 259.997 87.534% 1096 29.8 35.66°C 0.979
11.999V 5.140V 3.341V 5.028V 297.025 40.47°C 230.30V
5 22.938A 4.885A 4.953A 1.798A 325.023 87.305% 1290 34.2 36.14°C 0.984
11.968V 5.119V 3.330V 5.006V 372.286 41.47°C 230.30V
6 27.590A 5.879A 5.967A 2.000A 389.346 86.714% 1601 39.4 36.30°C 0.988
11.945V 5.104V 3.320V 4.983V 449.000 42.88°C 230.30V
7 32.388A 6.888A 6.982A 2.218A 454.687 86.014% 1755 41.6 37.38°C 0.990
11.905V 5.083V 3.308V 4.959V 528.617 44.79°C 230.29V
8 37.150A 7.890A 8.006A 2.431A 520.008 85.207% 1876 43.3 37.56°C 0.991
11.887V 5.071V 3.297V 4.936V 610.290 46.49°C 230.29V
9 42.385A 8.377A 8.518A 2.437A 584.927 84.349% 1941 44.4 38.23°C 0.992
11.854V 5.073V 3.287V 4.924V 693.463 47.80°C 230.29V
10 47.649A 8.882A 9.065A 2.548A 649.648 83.272% 1952 44.5 39.04°C 0.992
11.804V 5.067V 3.276V 4.905V 780.151 49.66°C 230.30V
11 53.462A 8.876A 9.092A 2.554A 714.472 81.756% 1946 44.5 40.57°C 0.993
11.733V 5.070V 3.267V 4.893V 873.908 52.37°C 230.30V
CL1 0.100A 14.002A 13.998A 0.002A 113.578 76.230% 2043 45.8 36.31°C 0.952
12.716V 4.686V 3.335V 5.110V 148.994 41.93°C 230.31V
CL2 48.724A 1.002A 1.000A 1.000A 576.162 84.600% 1885 43.3 40.00°C 0.992
11.546V 5.264V 3.306V 5.014V 681.040 50.21°C 230.30V

The results above are not used in the certification process

230V

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.227A 0.480A 0.488A 0.195A 19.984 65.239% 587 12.1 0.541
12.091V 5.203V 3.380V 5.142V 30.632 230.28V
2 2.453A 0.963A 0.978A 0.390A 39.974 75.627% 590 12.2 0.761
12.095V 5.195V 3.376V 5.128V 52.857 230.29V
3 3.681A 1.448A 1.468A 0.587A 60.006 80.394% 594 12.2 0.877
12.103V 5.181V 3.373V 5.114V 74.640 230.30V
4 4.904A 1.934A 1.959A 0.784A 79.957 83.023% 598 12.4 0.897
12.104V 5.171V 3.369V 5.100V 96.307 230.30V

The results above are not used in the certification process

230V

Test12V5V3.3V5VSBPass/Fail
10% Load12.40mV8.80mV16.20mV10.50mVPass
20% Load15.20mV11.10mV20.00mV13.70mVPass
30% Load18.20mV13.80mV24.40mV17.10mVPass
40% Load17.50mV13.50mV25.40mV19.40mVPass
50% Load19.60mV14.40mV33.00mV22.60mVPass
60% Load22.30mV16.30mV38.20mV27.60mVPass
70% Load26.30mV19.00mV44.60mV34.30mVPass
80% Load31.70mV21.50mV52.10mV39.50mVFail
90% Load35.40mV22.90mV57.90mV45.50mVFail
100% Load37.00mV25.20mV60.50mV48.10mVFail
110% Load37.30mV30.10mV64.10mV52.40mVFail
Crossload125.80mV80.00mV45.00mV19.90mVFail
Crossload235.40mV28.80mV58.30mV47.70mVFail

The results above are not used in the certification process

Chieftec Force 650W

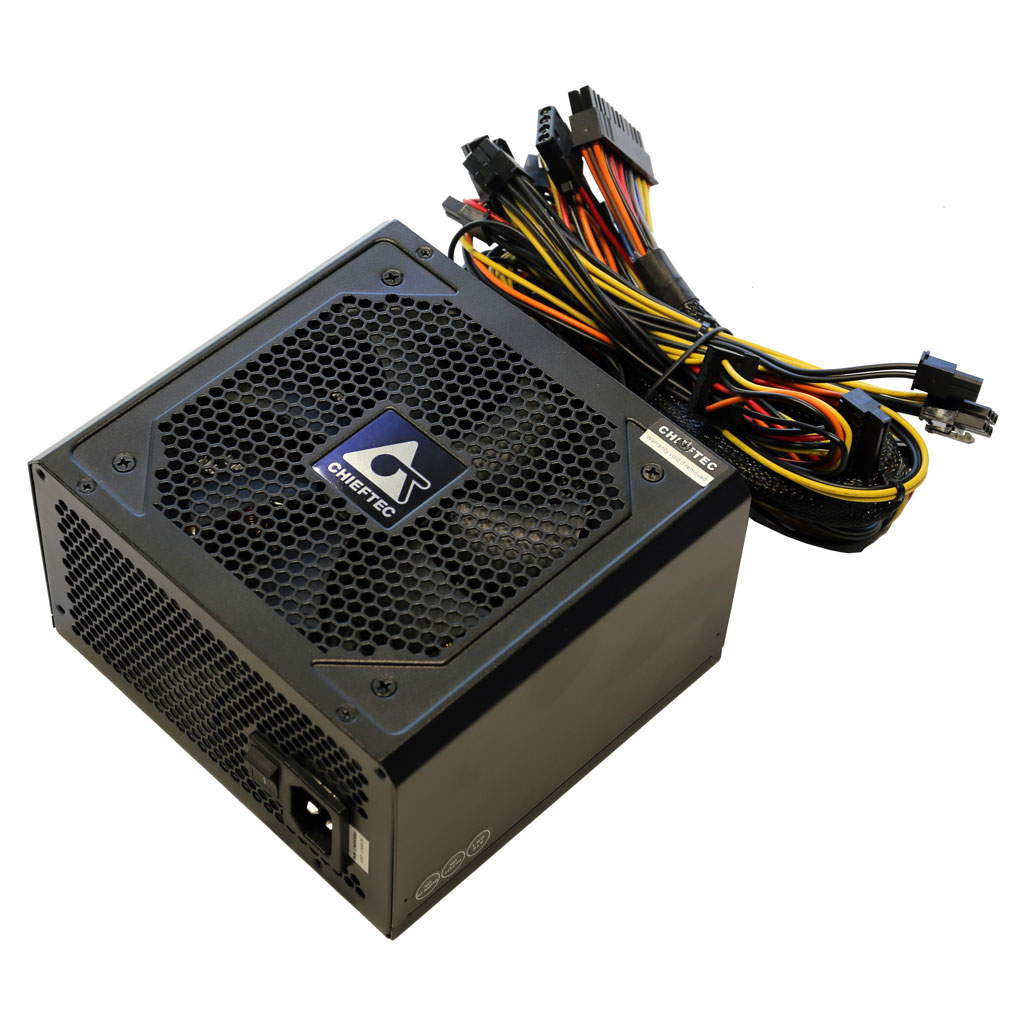

Top side

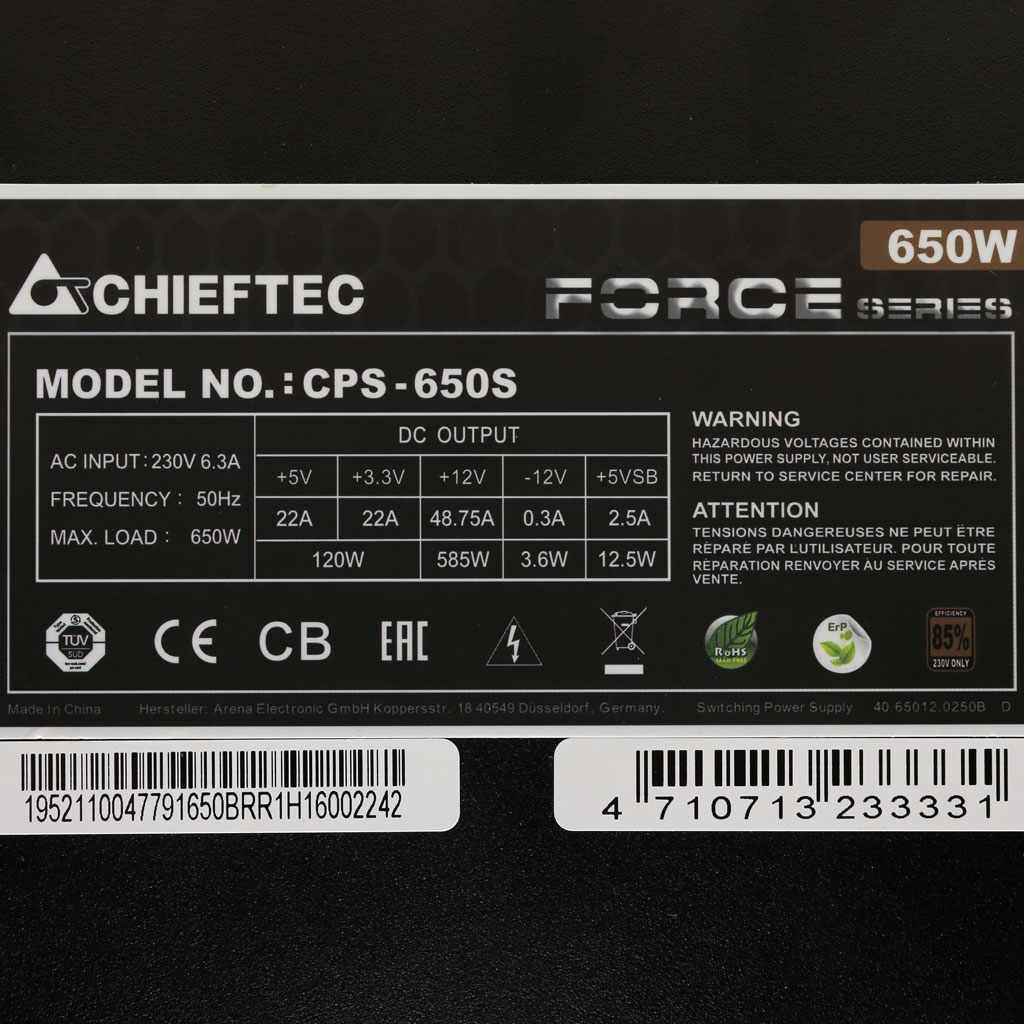

Power specifications label
CYBENETICS提供ETA和LAMBDA自願性認證 方案以推廣高效及靜音之電源供應器
