Cybenetics Test - be quiet! System Power 9 600W

CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

be quiet! System Power 9 600W

Serial Number247H0140008828

Lab IDBQ60001687

Report: 20PS1687A
Receipt Date: Jul 16, 2020
Test Date: Jul 20, 2020
Report Date: Jul 20, 2020

	115V	230V
Efficiency Rating

115V	230V
		Noise Rating

Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

Brand	be quiet!
Manufacturer (OEM)	HEC
Series	System Power 9
Model Number	S9-600
Serial Number	247H0140008828
DUT Notes

DUT Specifications

Rated Voltage (Vrms)	200-240
Rated Current (Arms)	6
Rated Frequency (Hz)	50
Rated Power (W)	600
Type	ATX12V
Cooling	120mm Sleeve Bearing Fan (D12SH-12)
Semi-Passive Operation	✗
Cable Design	Fixed cables

Power Specifications

Rail		3.3V	5V	12V	5VSB	-12V
Max. Power	Amps	24	15	28	3	0.3
Max. Power	Watts	120		576	15	3.6
Total Max. Power (W)		600

Test Equipment

Electronic Loads	Chroma 63601-5 x4 Chroma 63600-2 x2 63640-80-80 x20 63610-80-20 x2
AC Sources	Chroma 6530, Keysight AC6804B
Power Analyzers	N4L PPA1530 x2
Sound Analyzer	Bruel & Kjaer 2270 G4
Microphone	Bruel & Kjaer Type 4955-A
Data Loggers	Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer	UNI-T UT372 x2
Digital Multimeter	Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS	CyberPower OLS3000E 3kVA x2
Transformer	3kVA x2
Testing Methodology	Cybenetics PSU Test Protocol

Cables and Connectors

Native Cables
Description	Cable Count	Connector Count (Total)	Gauge	In Cable Caps
ATX connector 20+4 pin (540mm)	1	1	18-20AWG	No
4+4 pin EPS12V (580mm)	1	1	18AWG	No
6+2 pin PCIe (480mm+150mm)	2	4	18AWG	No
SATA (350mm+120mm+120mm) / 4-pin Molex (+120mm)	1	3 / 1	18AWG	No
SATA (540mm+120mm+120mm) / 4-pin Molex (+120mm)	1	3 / 1	18AWG	No
Modular Cables
AC Power Cord (1380mm) - C13 coupler	1	1	18AWG	-

Parts Description

General Data

Manufacturer (OEM)

HEC

PCB Type

Single Sided

Primary Side

Transient Filter

4x Y caps, 2x X caps, 2x CM chokes, 1x MOV, 1x CAP200DG (Discharge IC)

Inrush Protection

NTC Thermistor SCK-1R55

Bridge Rectifier(s)

1x GBU606 (600V, 2.9A @ 100°C (without heatsink))

APFC MOSFETs

2x Great Power GPT13N50D (500V, 13A, Rds(on): 0.49Ohm)

APFC Boost Diode

1x WeEn BYC8X-600 (600V, 8A)

Bulk Cap(s)

1x Teapo (400V, 470uF, 2,000h @ 85°C, LH)

Main Switchers

2x Infineon IPA50R280CE (500V, 11.4A @ 100°C, Rds(on): 0.28Ohm)

Combo PFC/PWM Controller

Champion CM6800TX

Topology

Primary side: APFC, Double-Forward
Secondary side: Passive Rectification & DC-DC converters

Secondary Side

+12V SBRs

4x PSM40U60CTR

5V & 3.3V

DC-DC Converters: 6x Potens PDD3906 (30V, 51A @ 100°C, Rds(on): 6mOhm)
PWM Controllers: 2x ANPEC APW7164

Filtering Capacitors

Electrolytic: 15x Teapo (1-3,000h @ 105°C, SC), 2x Nichicon (4-10,000h @ 105°C, HE), 2x Teapo (1,000h @ 105°C, SEK)
Polymer: 2x Teapo

Supervisor IC

Weltrend WT7527V (OCP, OVP, UVP, SCP, PG)

Fan Model

Yate Loon D12SH-12 (120mm, 12V, 0.30A, Sleeve Bearing Fan)

5VSB Circuit

Rectifier

1x MOSPEC S10M60C SBR (60V, 10A)

Standby PWM Controller

Power Integrations TNY289PG

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)	30-32 / 86-89.6
ErP Lot 3/6 Ready	✓
(EU) No 617/2013 Compliance	✓

Performance Summary 230V

Efficiency Rating	SILVER
Noise Rating	A-
Average Efficiency (>1450 load combinations)	87.019%
Average Noise Output (>1450 Load Combinations)	27.70dBA
Average PF (>1450 Load Combinations)	0.973
Efficiency With 10W (≤500W) or 2% (>500W) Load	0.000%
Standby Power Consumption	0.1427W
12V Ripple (Full Load)	63.89mV
5V Ripple (Full Load)	38.41mV
3.3V Ripple (Full Load)	24.71mV
5VSB Ripple (Full Load)	18.09mV
12V Load Regulation	1.74%
5V Load Regulation	2.72%
3.3V Load Regulation	2.99%
5VSB Load Regulation	2.93%
Inrush Current	79.650A
Hold-Up Time & Power Ok Signal	18.60ms
AC Loss to PWR_OK Hold Up Time	16.30ms
PWR_OK Inactive to DC Loss Delay	2.30ms
PSU Timings: T1 (20% / 100%)	56.0ms	56.0ms
PSU Timings: T3 (20% / 100%)	324.0ms	324.0ms
OPP (0.00°C / 0.00°C)	126.66%	0.00%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)	18.6
AC Loss to PWR_OK Hold Up Time (ms)	16.3
PWR_OK Inactive to DC Loss Delay (ms)	2.3

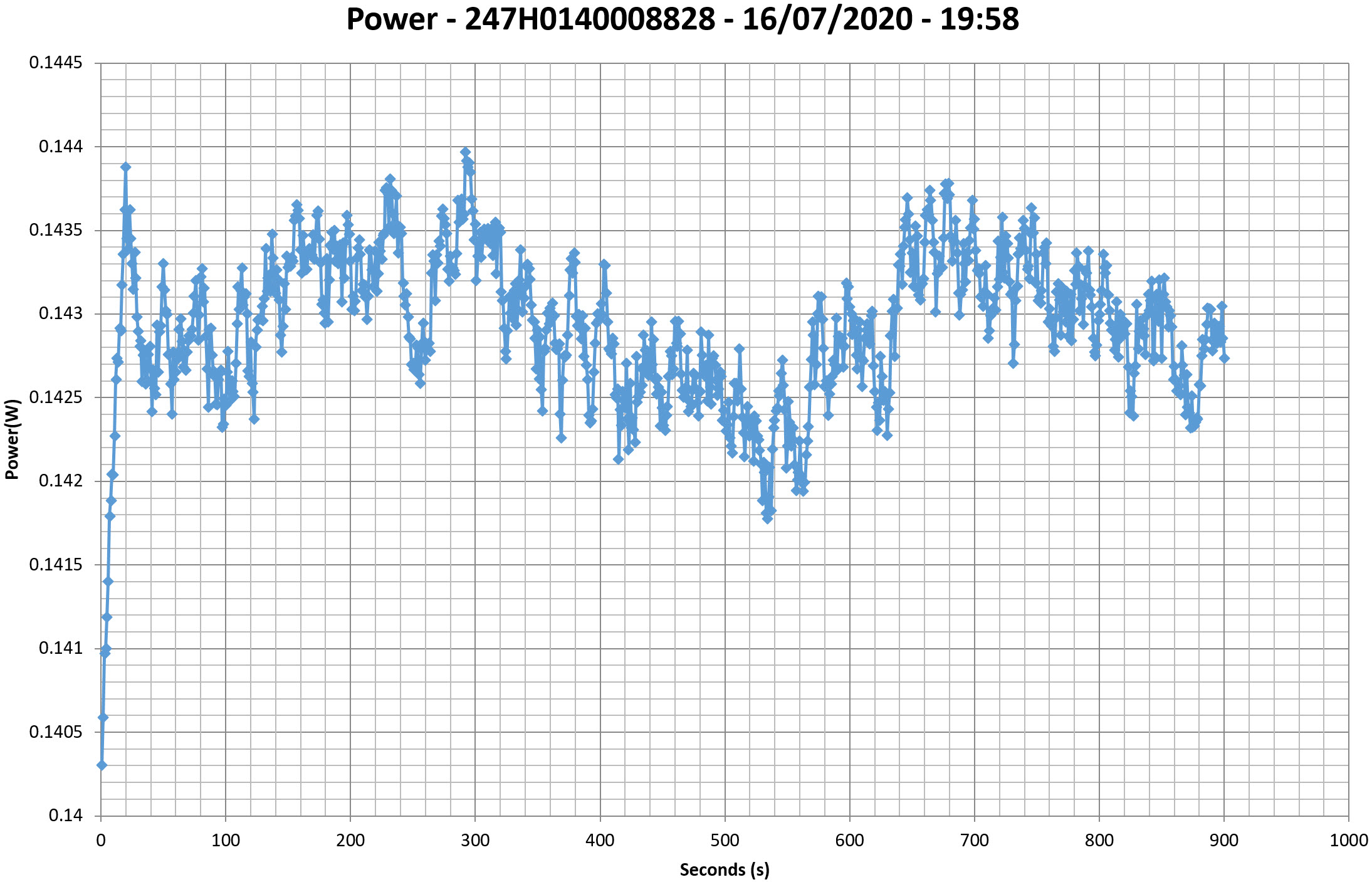

Vampire Power

Tables 230V

Graphs 230V

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

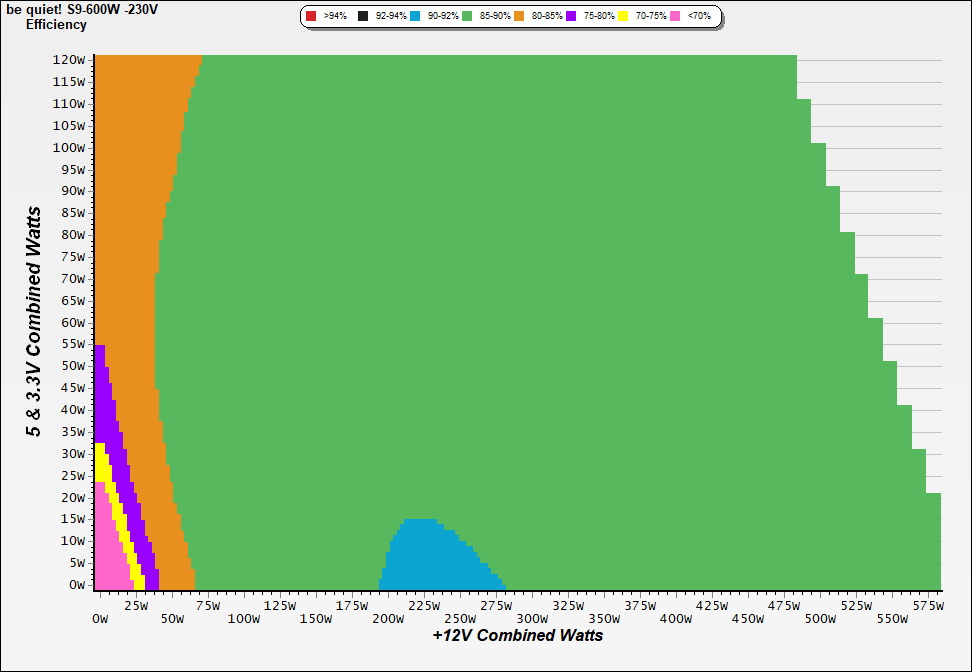

Efficiency Graph

230V

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

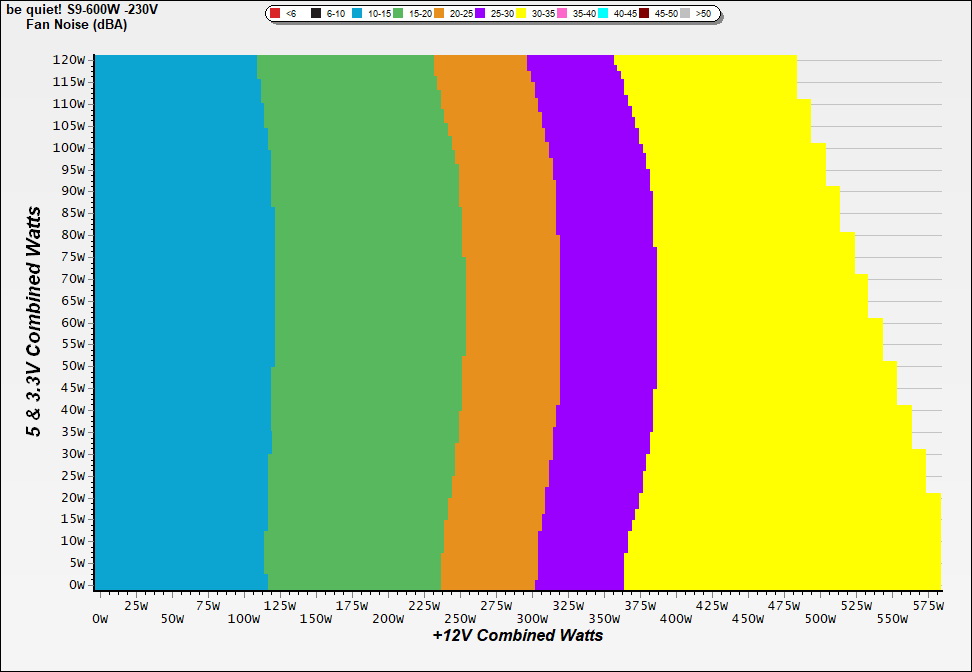

Noise Graph

230V

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

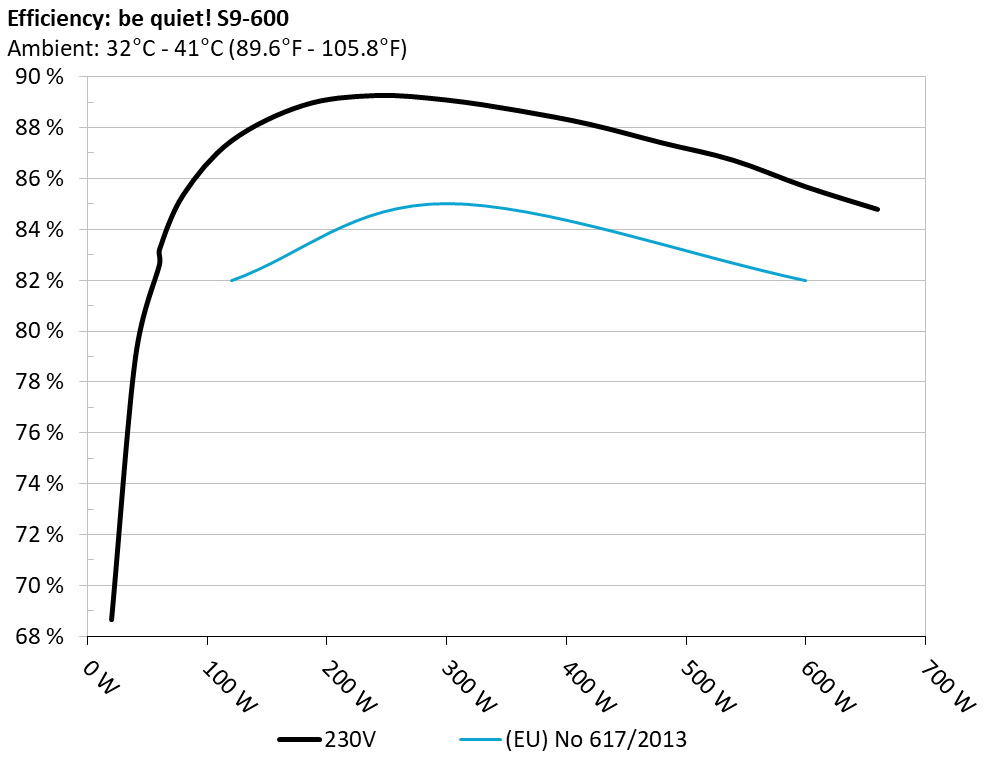

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

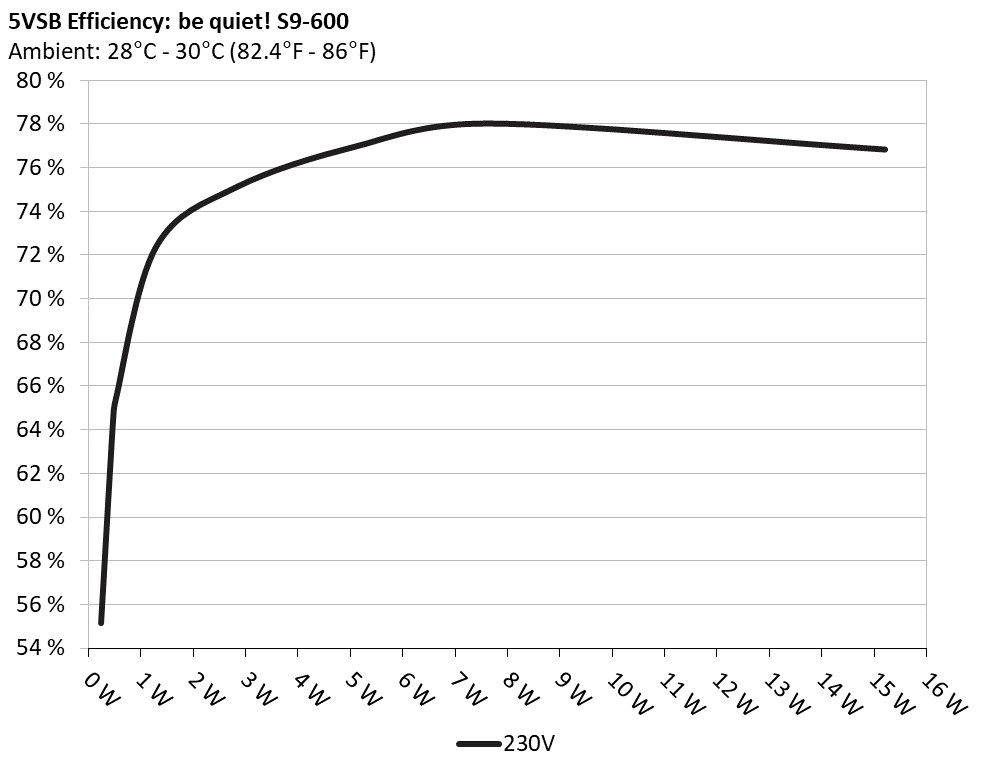

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC) 230V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.231	55.131%	0.018
1	5.125V	0.419	55.131%	230.25V
2	0.090A	0.461	64.476%	0.030
2	5.123V	0.715	64.476%	230.25V
3	0.550A	2.813	75.093%	0.141
3	5.113V	3.746	75.093%	230.25V
4	1.000A	5.106	76.967%	0.211
4	5.105V	6.634	76.967%	230.25V
5	1.500A	7.646	78.012%	0.260
5	5.097V	9.801	78.012%	230.25V
6	3.000A	15.212	76.821%	0.332
6	5.070V	19.802	76.821%	230.25V

Supplementary Tests (For Reference)

Typical Load Tests 230V

Test #	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
1	3.154A	1.974A	1.960A	0.981A	60.010	82.636%	524	13.2	34.24°C	0.877
1	12.175V	5.066V	3.372V	5.097V	72.620	82.636%	524	13.2	38.28°C	230.27V
2	7.333A	2.970A	2.946A	1.180A	120.035	87.492%	532	13.5	34.68°C	0.950
2	12.155V	5.051V	3.361V	5.084V	137.196	87.492%	532	13.5	39.39°C	230.26V
3	11.867A	3.472A	3.445A	1.381A	180.034	88.891%	552	13.6	35.22°C	0.971
3	12.133V	5.040V	3.352V	5.072V	202.533	88.891%	552	13.6	40.59°C	230.26V
4	16.422A	3.977A	3.948A	1.582A	240.039	89.280%	648	16.8	35.76°C	0.980
4	12.108V	5.029V	3.343V	5.059V	268.861	89.280%	648	16.8	42.19°C	230.24V
5	20.649A	4.988A	4.953A	1.784A	300.072	89.101%	788	19.4	36.62°C	0.985
5	12.086V	5.013V	3.332V	5.045V	336.778	89.101%	788	19.4	44.19°C	230.25V
6	24.884A	6.005A	5.964A	1.988A	360.033	88.685%	939	25.0	36.89°C	0.988
6	12.065V	4.997V	3.320V	5.030V	405.970	88.685%	939	25.0	45.01°C	230.25V
7	29.112A	7.029A	6.982A	2.194A	419.655	88.142%	1078	28.5	37.11°C	0.990
7	12.041V	4.981V	3.309V	5.015V	476.110	88.142%	1078	28.5	46.20°C	230.25V
8	33.432A	8.003A	8.009A	2.401A	479.883	87.417%	1227	33.3	37.43°C	0.992
8	12.017V	4.964V	3.296V	5.000V	548.960	87.417%	1227	33.3	47.35°C	230.25V
9	38.111A	8.587A	8.521A	2.406A	539.470	86.732%	1382	35.4	38.28°C	0.993
9	11.990V	4.951V	3.286V	4.990V	621.996	86.732%	1382	35.4	48.77°C	230.24V
10	42.642A	9.118A	9.071A	3.021A	599.898	85.688%	1618	39.1	39.89°C	0.993
10	11.964V	4.937V	3.275V	4.967V	700.096	85.688%	1618	39.1	51.20°C	230.24V
11	47.751A	9.133A	9.097A	3.027A	659.908	84.800%	1753	41.2	40.79°C	0.994
11	11.941V	4.928V	3.265V	4.957V	778.194	84.800%	1753	41.2	52.59°C	230.24V
CL1	0.105A	14.004A	13.999A	0.000A	117.435	80.648%	924	24.5	36.63°C	0.954
CL1	12.148V	4.967V	3.329V	5.084V	145.615	80.648%	924	24.5	44.73°C	230.26V
CL2	48.008A	1.000A	1.001A	1.000A	587.952	86.933%	1536	38.4	39.35°C	0.993
CL2	11.969V	5.008V	3.307V	5.025V	676.324	86.933%	1536	38.4	51.09°C	230.23V

The results above are not used in the certification process

Light Load Tests 230V

Test #	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	PF/AC Volts
1	1.218A	0.491A	0.490A	0.195A	20.000	68.653%	514	12.2	0.661
1	12.191V	5.083V	3.382V	5.120V	29.132	68.653%	514	12.2	230.28V
2	2.437A	0.985A	0.977A	0.391A	39.990	78.985%	514	12.2	0.809
2	12.183V	5.077V	3.378V	5.112V	50.630	78.985%	514	12.2	230.28V
3	3.660A	1.480A	1.467A	0.588A	60.021	83.217%	518	13.0	0.876
3	12.176V	5.071V	3.374V	5.105V	72.126	83.217%	518	13.0	230.27V
4	4.879A	1.975A	1.958A	0.785A	79.972	85.378%	522	13.1	0.911
4	12.169V	5.064V	3.369V	5.098V	93.668	85.378%	522	13.1	230.27V

The results above are not used in the certification process

Ripple Measurements 230V

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	12.70mV	22.10mV	12.70mV	6.90mV	Pass
20% Load	14.90mV	22.60mV	12.30mV	9.00mV	Pass
30% Load	16.00mV	23.40mV	13.00mV	9.20mV	Pass
40% Load	17.80mV	23.70mV	12.50mV	9.00mV	Pass
50% Load	20.30mV	24.90mV	14.30mV	9.70mV	Pass
60% Load	24.30mV	26.80mV	15.50mV	11.30mV	Pass
70% Load	28.20mV	28.50mV	17.70mV	13.90mV	Pass
80% Load	33.00mV	30.60mV	19.00mV	17.70mV	Pass
90% Load	39.00mV	32.80mV	20.00mV	17.80mV	Pass
100% Load	63.90mV	38.40mV	24.70mV	18.10mV	Pass
110% Load	75.30mV	41.50mV	26.30mV	19.50mV	Pass
Crossload1	23.10mV	35.60mV	20.10mV	9.20mV	Pass
Crossload2	58.30mV	31.50mV	21.60mV	15.20mV	Pass

The results above are not used in the certification process

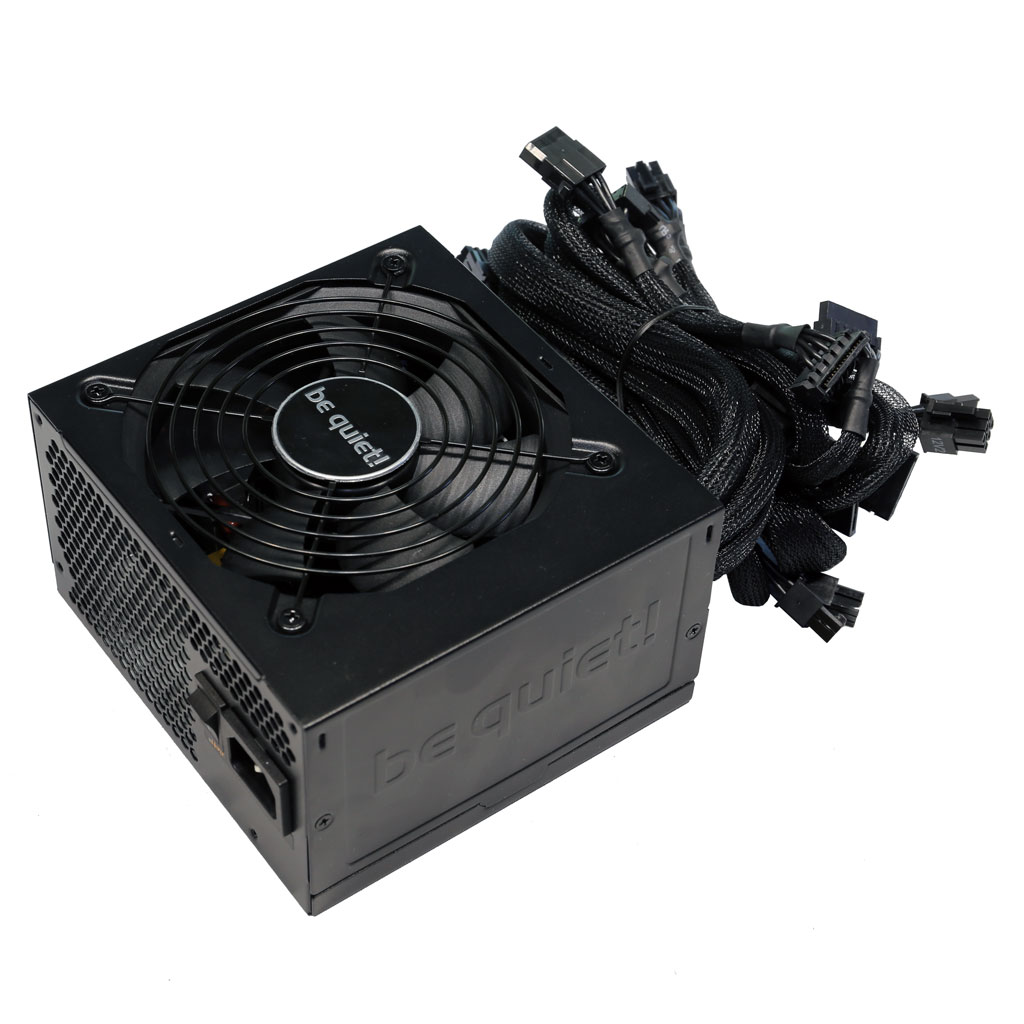

be quiet! System Power 9 600W

Top side

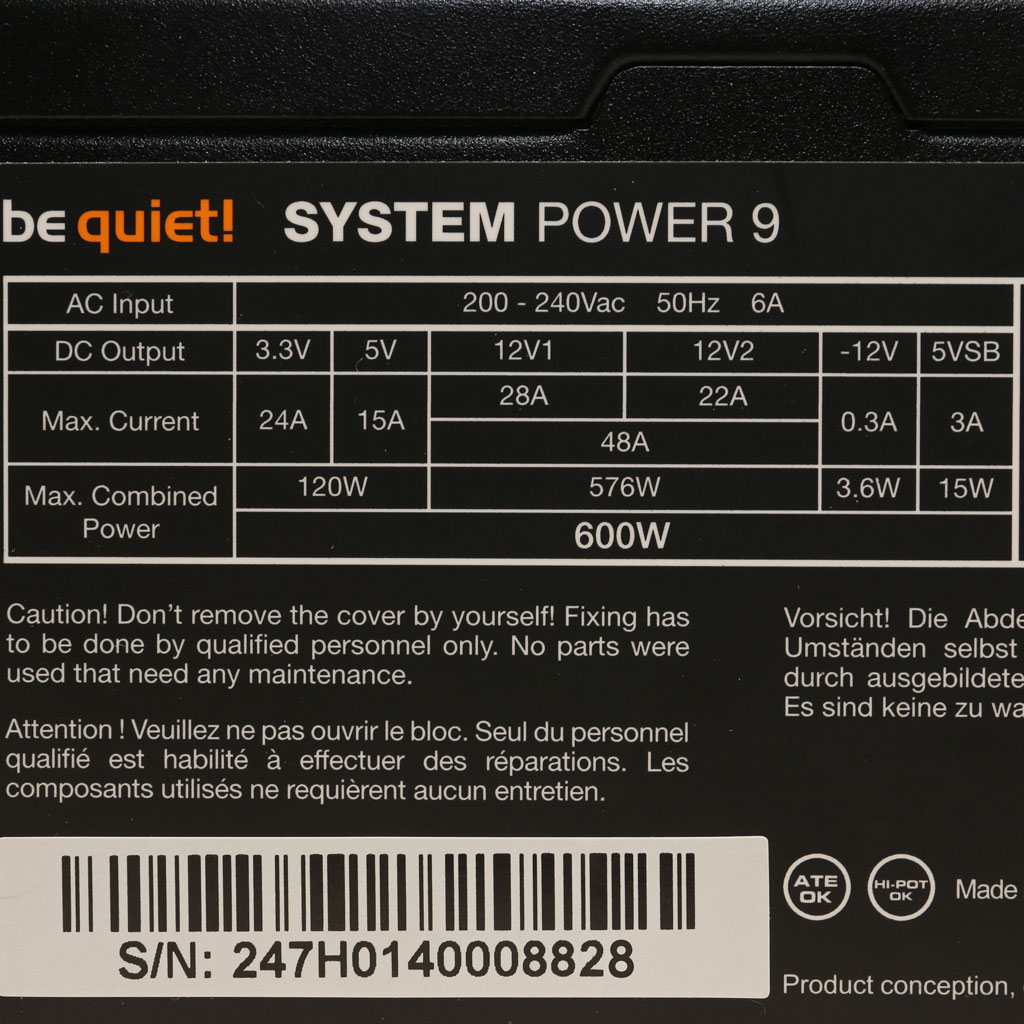

Power specifications label
