Cougar VTE Bronze 600W
Serial NumberZBJ01VE60003061
Lab IDCG60001686
  • Report: 20PS1686A
  • Receipt Date: Jul 16, 2020
  • Test Date: Jul 20, 2020
  • Report Date: Jul 21, 2020
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandCougar
Manufacturer (OEM)HEC
SeriesVTE Bronze
Model NumberCGR BS-600
Serial NumberZBJ01VE60003061
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)10-6
Rated Frequency (Hz)50-60
Rated Power (W)600
TypeATX12V
Cooling120mm Rifle Bearing Fan
(EJA 1202512SEHN)
Semi-Passive Operation✗
Cable DesignFixed cables

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps1620452.50.3
Watts15054012.53.6
Total Max. Power (W)600

Test Equipment

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Native Cables
Description Cable Count Connector Count (Total) Gauge In Cable Caps
ATX connector 20+4 pin (450mm) 1 1 18-22AWG No
4+4 pin EPS12V (610mm) 1 1 18AWG No
6+2 pin PCIe (460mm+120mm) 1 2 18AWG No
SATA (450mm+120mm+120mm) / 4-pin Molex (+120mm) 2 6 / 2 18AWG No
Modular Cables
AC Power Cord (1080mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data -
Manufacturer (OEM) HEC
PCB Type Single Sided
Primary Side -
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes
Inrush Protection NTC Thermistor Cantherm MF72 2.5D15
Bridge Rectifier(s) 1x  GBJ 1506 (600V, 15A @ 100°C)
APFC MOSFETs 2x China Wind CWS20N60AF (600V, 13A @ 100°C, Rds(on): 0.19Ohm)
APFC Boost Diode 1x STMicroelectronics STTH8S06D (600V, 8A)
Bulk Cap(s) 1x CapXon (420V, 270uF, 2,000h @ 85°C, LS)
Main Switchers 2x China Wind CWS20N60AF (600V, 13A @ 100°C, Rds(on): 0.19Ohm)
Combo PFC/PWM Controller Champion CM6800UX & CM03X Green PFC Controller
Topology Primary side: APFC, Double-Forward
Secondary side: Passive Rectification & DC-DC converters
Secondary Side -
+12V & 5V SBRs 2x MHCHXM MBR4E60
2x MHCHXM MBR3E60
2x MHCHXM MBR3E45
3.3V DC-DC Converters: 2x China Resources Microelectronics (Chongqing) CRTD045N03L (30V, 72A @ 100°C, Rds(on): 4.5mOhm)
PWM Controllers: ANPEC APW7073
Filtering Capacitors Electrolytic: 10x CapXon (2-5,000h @ 105°C, KF), 2x CapXon (2,000h @ 105°C, KM)
Polymer: 2x CapXon
Supervisor IC EST EST7627A (OCP, OVP, UVP, SCP, PG)
Fan Model EJA 1202512SEHN (120mm, 12V, 0.32A, Rifle Bearing Fan)
5VSB Circuit -
Standby PWM Controller Power Integrations TNY288PG

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 ReadyErP Lot 6 2010: ✓
ErP Lot 6 2013: Partially
ErP Lot 3 2014 & CEC: ✗
(EU) No 617/2013 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)11.5
AC Loss to PWR_OK Hold Up Time (ms)9.3
PWR_OK Inactive to DC Loss Delay (ms)2.2

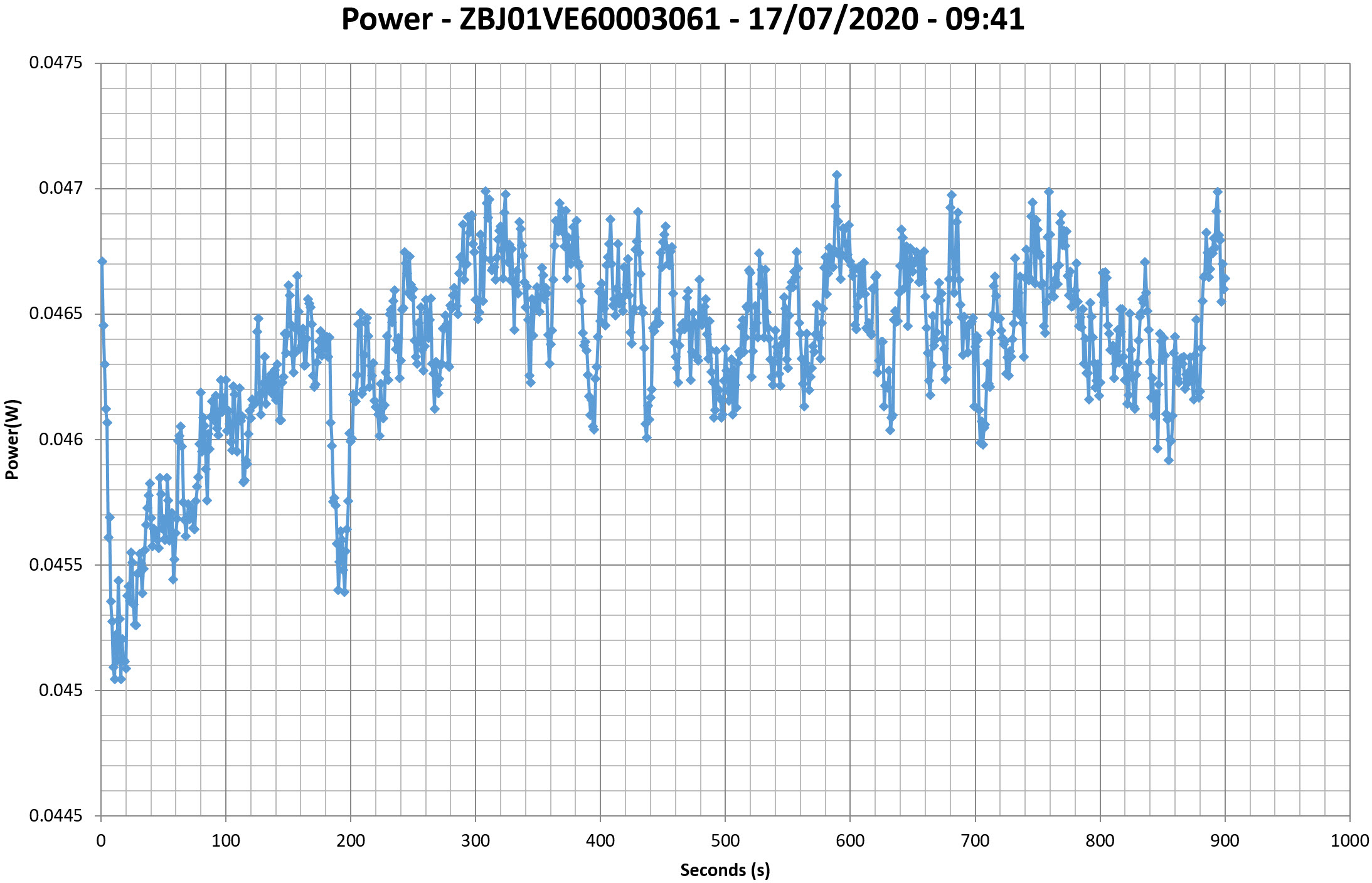

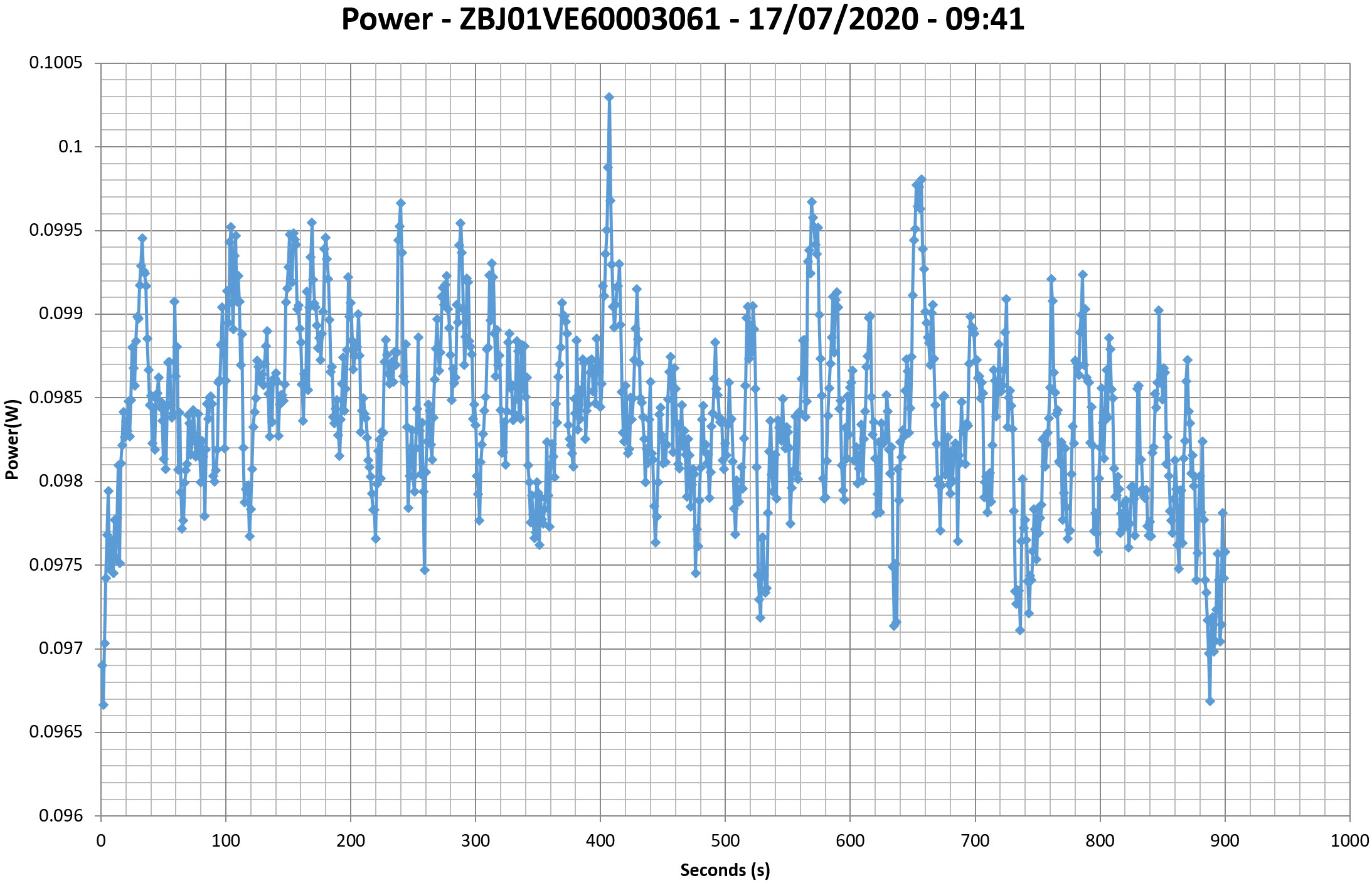

Vampire Power

Graphs

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

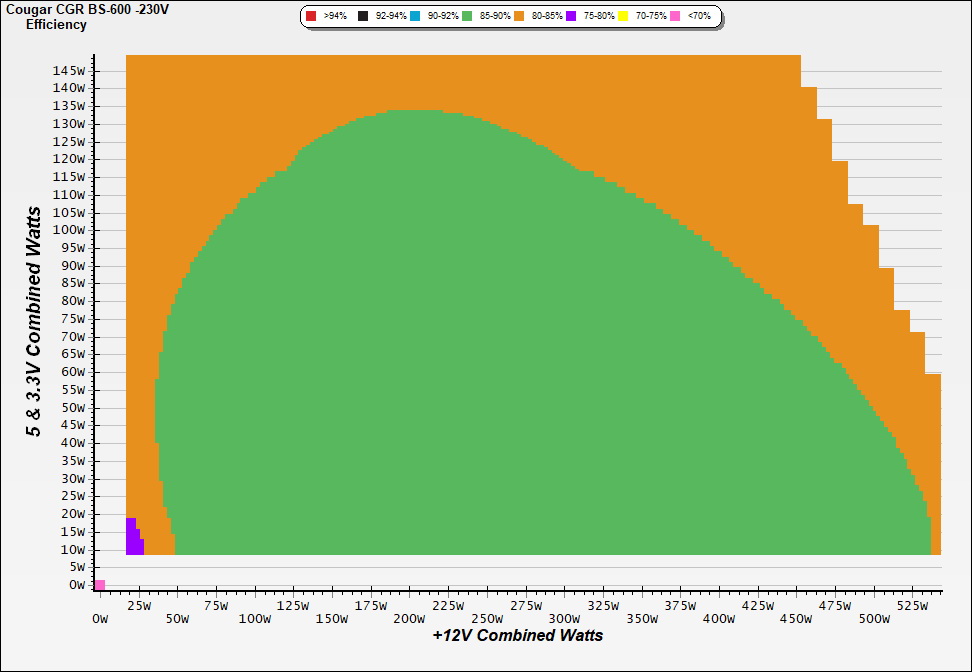

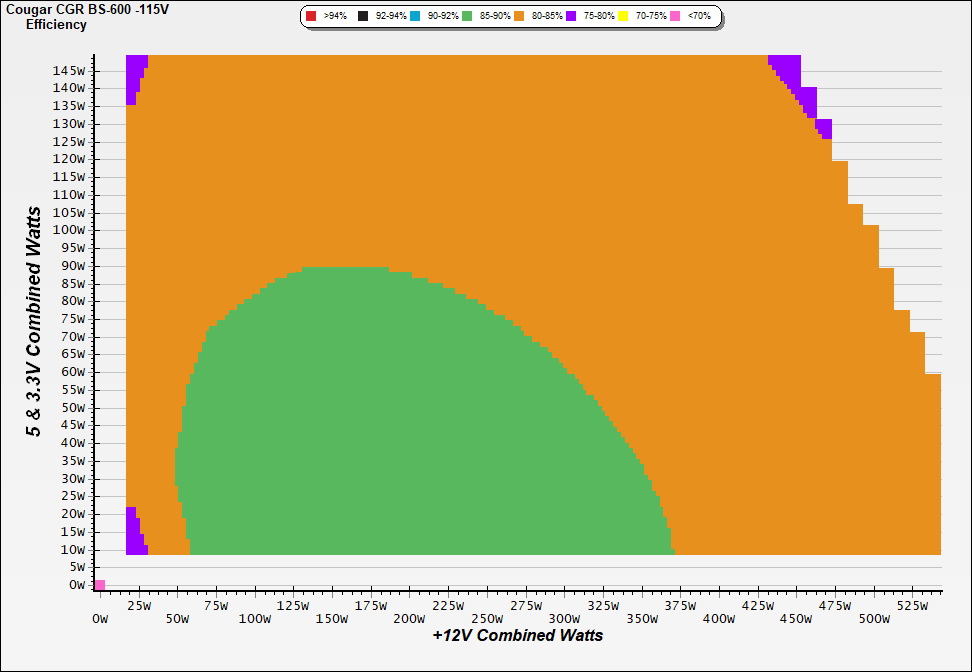

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

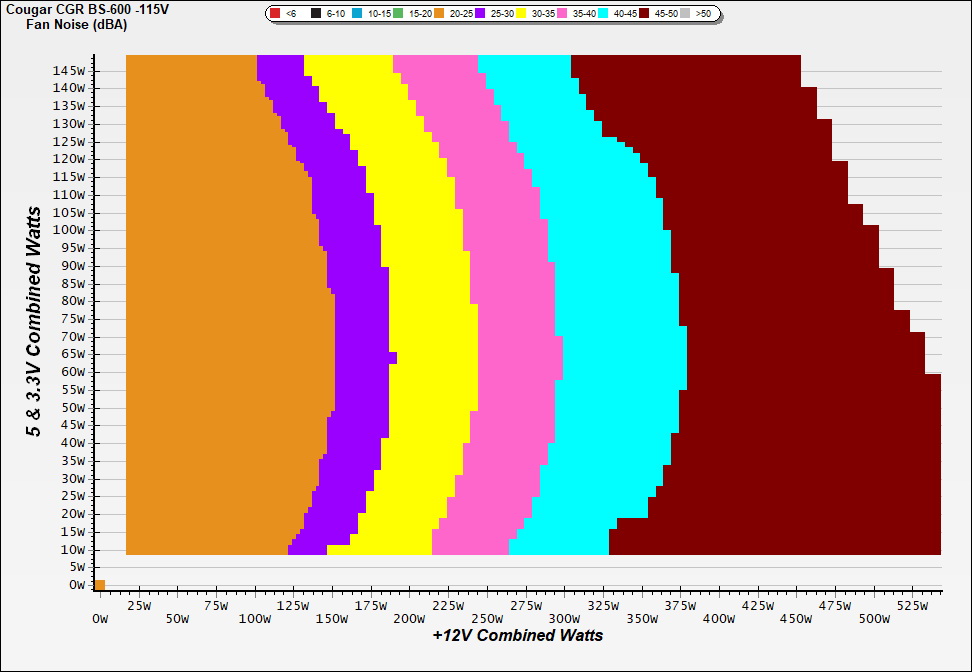

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

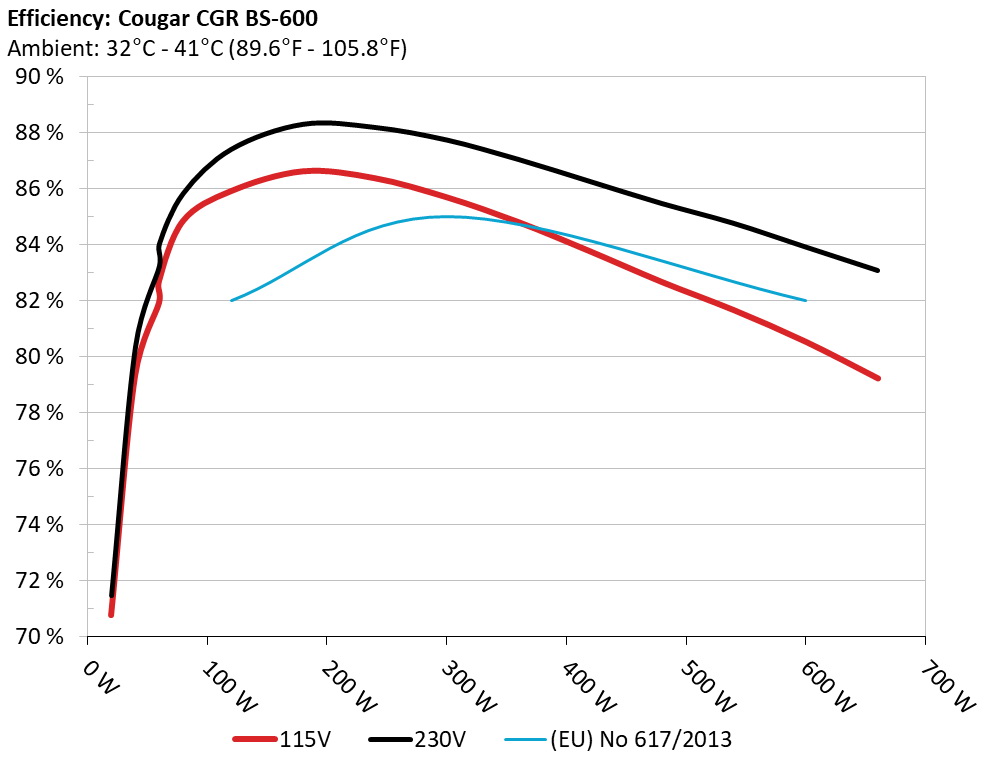

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

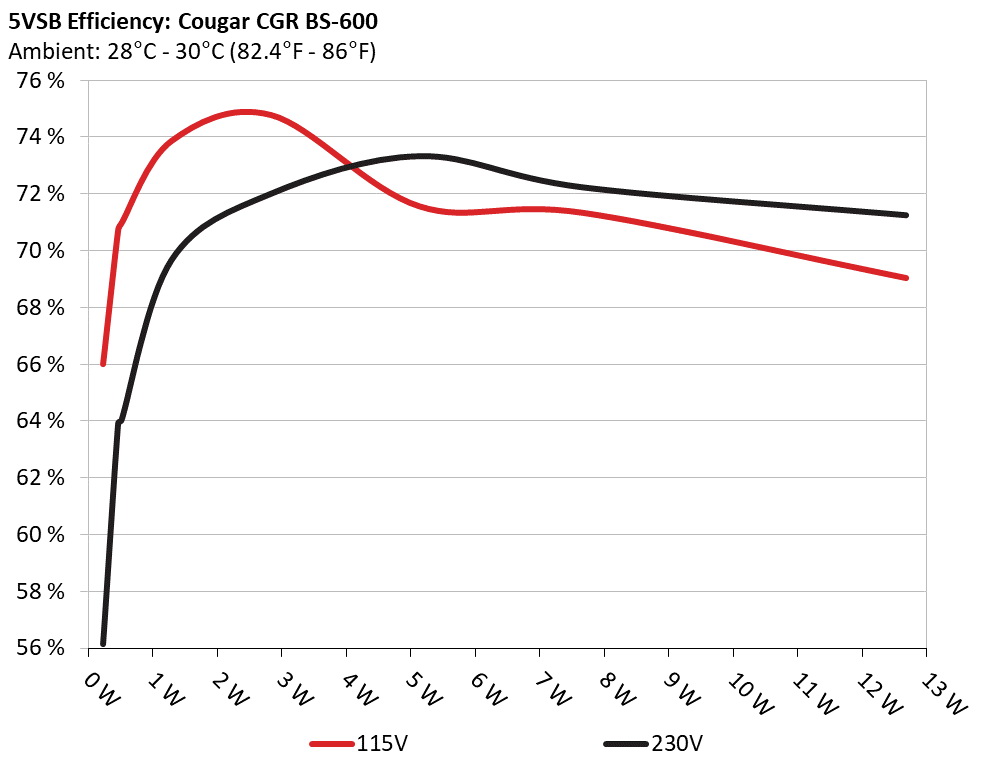

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.233 66.006% 0.084
5.181V 0.353 115.15V
2 0.090A 0.466 70.713% 0.145
5.179V 0.659 115.15V
3 0.550A 2.839 74.770% 0.342
5.160V 3.797 115.15V
4 1.000A 5.142 71.556% 0.385
5.141V 7.186 115.15V
5 1.500A 7.680 71.329% 0.408
5.119V 10.767 115.14V
6 2.500A 12.687 69.034% 0.439
5.074V 18.378 115.14V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.233 56.145% 0.031
5.181V 0.415 230.42V
2 0.090A 0.466 63.923% 0.054
5.179V 0.729 230.42V
3 0.550A 2.839 72.019% 0.215
5.160V 3.942 230.42V
4 1.000A 5.142 73.342% 0.283
5.141V 7.011 230.42V
5 1.500A 7.680 72.242% 0.321
5.119V 10.631 230.41V
6 2.500A 12.689 71.262% 0.359
5.075V 17.806 230.40V

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.125A 1.979A 1.952A 0.975A 60.001 81.937% 855 21.1 34.13°C 0.971
12.290V 5.053V 3.378V 5.128V 73.228 37.52°C 115.12V
2 7.268A 2.978A 2.944A 1.175A 120.017 85.927% 856 21.1 34.96°C 0.981
12.259V 5.042V 3.363V 5.109V 139.674 39.06°C 115.10V
3 11.789A 3.472A 3.441A 1.375A 180.018 86.635% 859 20.9 35.63°C 0.986
12.212V 5.042V 3.355V 5.091V 207.789 40.83°C 115.09V
4 16.343A 3.969A 3.942A 1.577A 240.022 86.390% 1140 30.0 35.70°C 0.988
12.165V 5.041V 3.349V 5.072V 277.834 41.66°C 115.08V
5 20.567A 4.972A 4.947A 1.782A 300.054 85.707% 1436 36.8 36.30°C 0.989
12.133V 5.029V 3.337V 5.052V 350.092 42.76°C 115.08V
6 24.816A 5.980A 5.954A 1.988A 360.008 84.819% 1748 42.0 36.96°C 0.989
12.097V 5.019V 3.324V 5.032V 424.441 44.30°C 115.07V
7 29.063A 6.991A 6.974A 2.196A 419.642 83.778% 2038 47.2 37.49°C 0.990
12.061V 5.008V 3.312V 5.011V 500.897 46.11°C 115.05V
8 33.410A 8.001A 8.005A 2.406A 480.135 82.670% 2174 47.6 37.77°C 0.990
12.025V 4.996V 3.298V 4.990V 580.784 47.19°C 115.06V
9 38.160A 8.513A 8.517A 2.412A 539.481 81.679% 2166 47.5 38.62°C 0.990
11.975V 4.993V 3.288V 4.977V 660.489 48.72°C 115.05V
10 43.029A 9.015A 9.066A 2.522A 600.199 80.536% 2164 47.5 39.74°C 0.991
11.922V 4.992V 3.276V 4.958V 745.253 50.62°C 115.04V
11 48.312A 9.005A 9.088A 2.528A 660.239 79.230% 2159 47.6 40.58°C 0.989
11.861V 4.998V 3.268V 4.946V 833.318 52.28°C 115.05V
CL1 0.117A 18.001A 18.001A 0.001A 146.955 77.391% 1888 43.9 36.05°C 0.984
12.530V 4.798V 3.284V 5.114V 189.886 42.03°C 115.13V
CL2 44.970A 0.999A 1.000A 1.000A 539.427 81.978% 2139 47.9 39.03°C 0.990
11.694V 5.170V 3.329V 5.054V 658.013 50.59°C 115.05V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.125A 1.979A 1.955A 0.976A 60.009 83.237% 857 21.1 35.58°C 0.909
12.288V 5.053V 3.379V 5.127V 72.094 39.02°C 230.37V
2 7.274A 2.976A 2.941A 1.175A 120.041 87.418% 860 20.9 35.96°C 0.956
12.254V 5.043V 3.365V 5.107V 137.319 40.17°C 230.37V
3 11.793A 3.472A 3.442A 1.376A 180.048 88.314% 862 20.9 36.83°C 0.971
12.210V 5.041V 3.356V 5.088V 203.872 41.75°C 230.36V
4 16.348A 3.971A 3.942A 1.579A 240.056 88.202% 1208 31.5 36.91°C 0.978
12.163V 5.039V 3.349V 5.069V 272.166 42.43°C 230.36V
5 20.579A 4.974A 4.946A 1.783A 300.093 87.752% 1468 37.4 37.55°C 0.982
12.128V 5.028V 3.336V 5.049V 341.978 43.73°C 230.36V
6 24.827A 5.981A 5.960A 1.990A 360.054 87.057% 1780 43.6 37.64°C 0.984
12.093V 5.017V 3.324V 5.027V 413.586 44.80°C 230.35V
7 29.080A 6.994A 6.979A 2.198A 419.769 86.270% 2049 46.7 38.74°C 0.986
12.058V 5.006V 3.311V 5.006V 486.578 47.52°C 230.34V
8 33.420A 8.004A 8.008A 2.407A 480.217 85.477% 2180 47.8 39.54°C 0.986
12.024V 4.994V 3.297V 4.986V 561.809 49.26°C 230.34V
9 38.178A 8.514A 8.519A 2.413A 539.542 84.778% 2167 47.5 39.61°C 0.987
11.971V 4.993V 3.287V 4.973V 636.418 50.08°C 230.32V
10 43.039A 9.021A 9.068A 2.524A 600.253 83.924% 2166 47.5 40.40°C 0.988
11.920V 4.990V 3.276V 4.955V 715.232 51.52°C 230.32V
11 48.334A 9.010A 9.091A 2.530A 660.274 83.085% 2161 47.6 40.98°C 0.989
11.856V 4.997V 3.267V 4.942V 794.696 52.84°C 230.31V
CL1 0.118A 17.999A 18.000A 0.001A 146.900 78.892% 1781 43.6 37.68°C 0.969
12.529V 4.795V 3.284V 5.114V 186.203 43.58°C 230.35V
CL2 45.009A 1.002A 1.000A 1.000A 539.759 85.090% 2138 47.9 40.64°C 0.987
11.691V 5.170V 3.325V 5.054V 634.339 51.83°C 230.31V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.209A 0.492A 0.486A 0.193A 19.991 70.767% 853 21.2 0.933
12.276V 5.087V 3.392V 5.171V 28.249 115.15V
2 2.418A 0.985A 0.975A 0.388A 39.980 79.333% 853 21.2 0.957
12.278V 5.075V 3.385V 5.159V 50.395 115.14V
3 3.630A 1.480A 1.466A 0.583A 60.009 82.727% 853 21.2 0.970
12.275V 5.065V 3.380V 5.146V 72.539 115.14V
4 4.838A 1.976A 1.956A 0.779A 79.958 84.859% 854 21.2 0.974
12.270V 5.057V 3.376V 5.134V 94.225 115.12V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.210A 0.492A 0.486A 0.193A 19.998 71.455% 861 20.9 0.722
12.271V 5.088V 3.393V 5.170V 27.987 230.37V
2 2.418A 0.986A 0.975A 0.388A 39.988 80.350% 859 20.9 0.857
12.275V 5.075V 3.387V 5.158V 49.767 230.37V
3 3.632A 1.481A 1.463A 0.583A 60.018 84.042% 858 20.9 0.908
12.272V 5.065V 3.381V 5.145V 71.414 230.37V
4 4.839A 1.977A 1.956A 0.780A 79.966 85.842% 858 20.9 0.932
12.267V 5.057V 3.377V 5.132V 93.155 230.37V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load14.20mV8.50mV15.90mV12.10mVPass
20% Load16.00mV9.50mV16.50mV13.10mVPass
30% Load17.30mV10.20mV16.50mV15.80mVPass
40% Load18.20mV10.80mV17.70mV16.50mVPass
50% Load21.50mV12.40mV18.10mV17.70mVPass
60% Load24.70mV13.50mV18.70mV21.30mVPass
70% Load30.70mV14.60mV19.40mV22.60mVPass
80% Load36.00mV16.10mV25.40mV23.70mVPass
90% Load39.10mV17.50mV26.80mV24.80mVPass
100% Load45.70mV20.00mV28.70mV28.70mVPass
110% Load51.90mV21.30mV29.70mV30.60mVPass
Crossload126.30mV17.40mV34.50mV17.10mVPass
Crossload254.20mV14.20mV20.10mV25.20mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load14.10mV8.30mV14.80mV11.90mVPass
20% Load14.90mV9.00mV15.50mV12.70mVPass
30% Load17.10mV9.70mV15.90mV15.40mVPass
40% Load18.00mV10.60mV16.50mV16.60mVPass
50% Load21.10mV11.50mV17.30mV17.50mVPass
60% Load24.40mV12.60mV18.00mV20.80mVPass
70% Load29.20mV13.70mV18.90mV22.30mVPass
80% Load35.30mV15.90mV25.60mV23.80mVPass
90% Load38.10mV17.10mV27.00mV24.60mVPass
100% Load47.90mV20.00mV29.30mV28.20mVPass
110% Load53.00mV21.70mV32.10mV30.10mVPass
Crossload126.00mV17.00mV35.50mV17.40mVPass
Crossload252.60mV12.60mV20.50mV25.20mVPass

The results above are not used in the certification process

Cougar VTE Bronze 600W

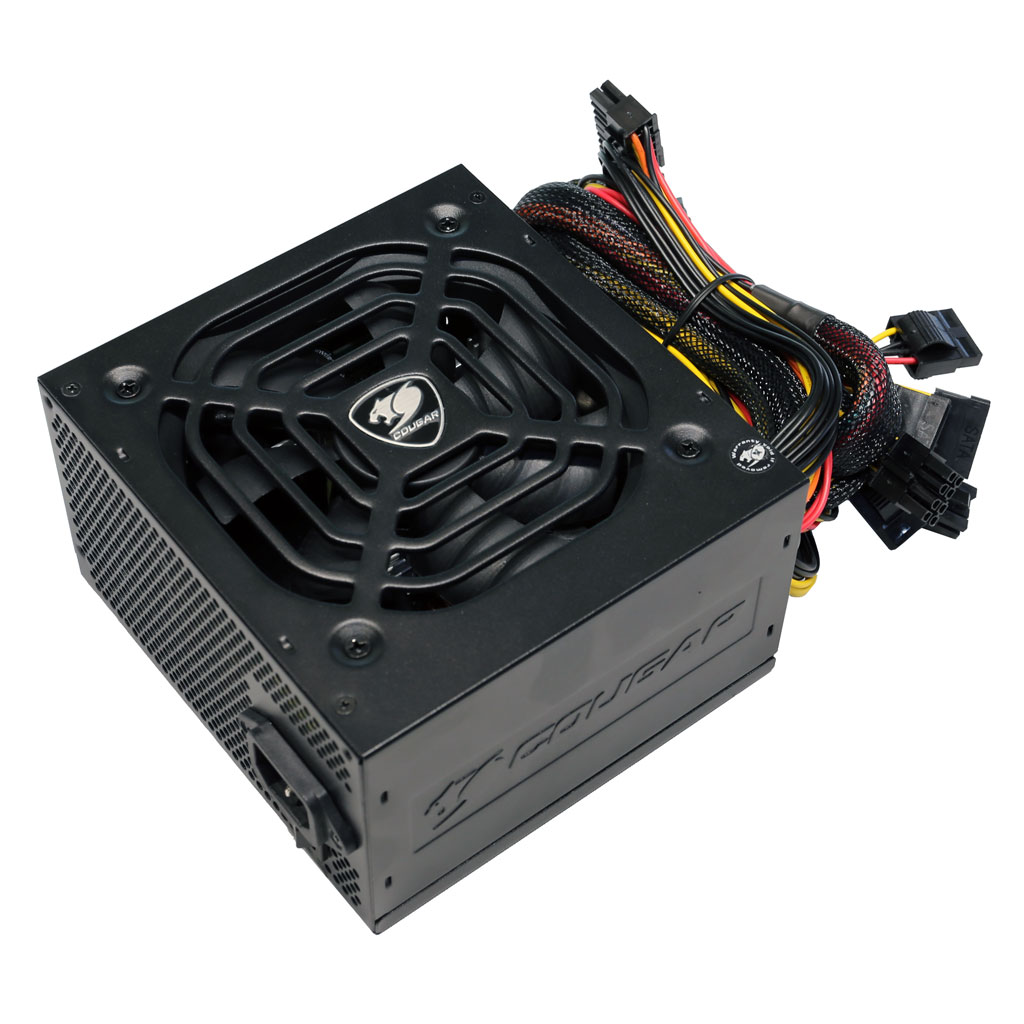

Top side

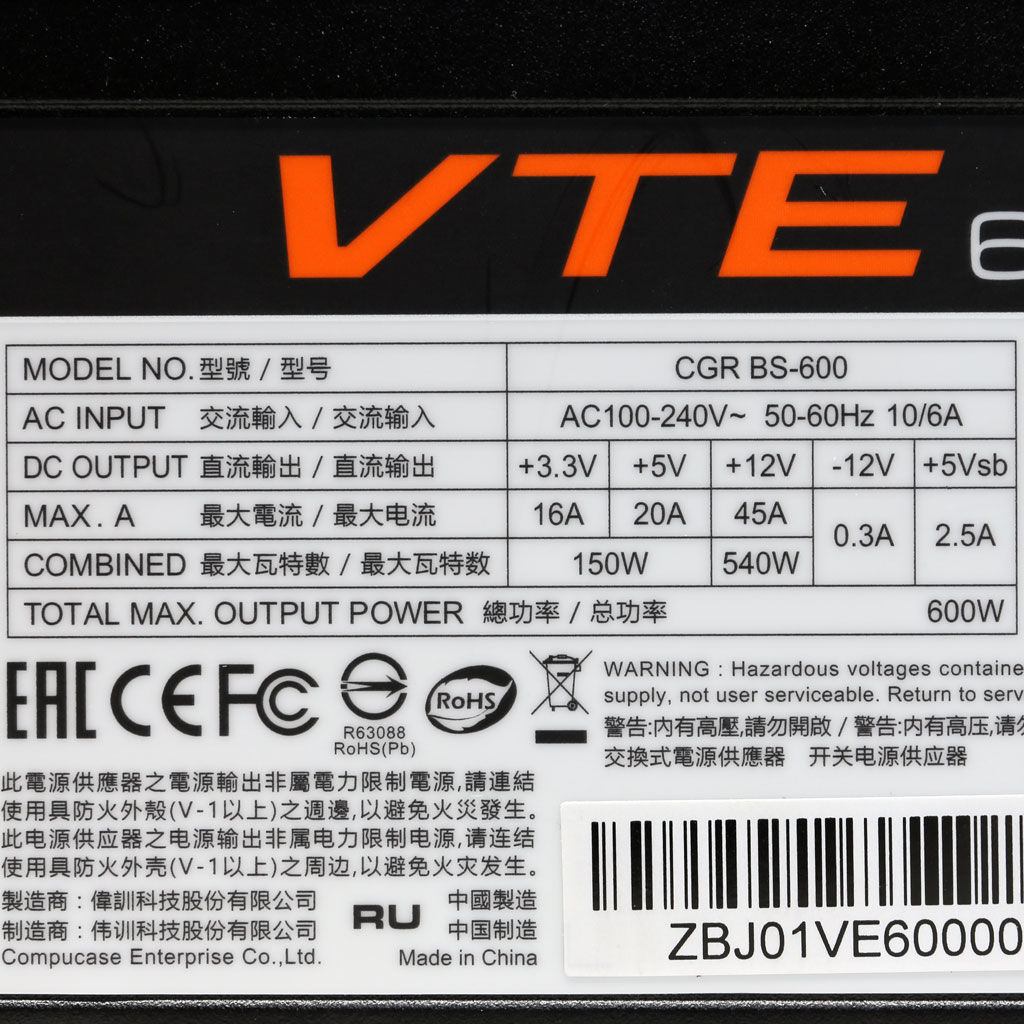

Power specifications label
