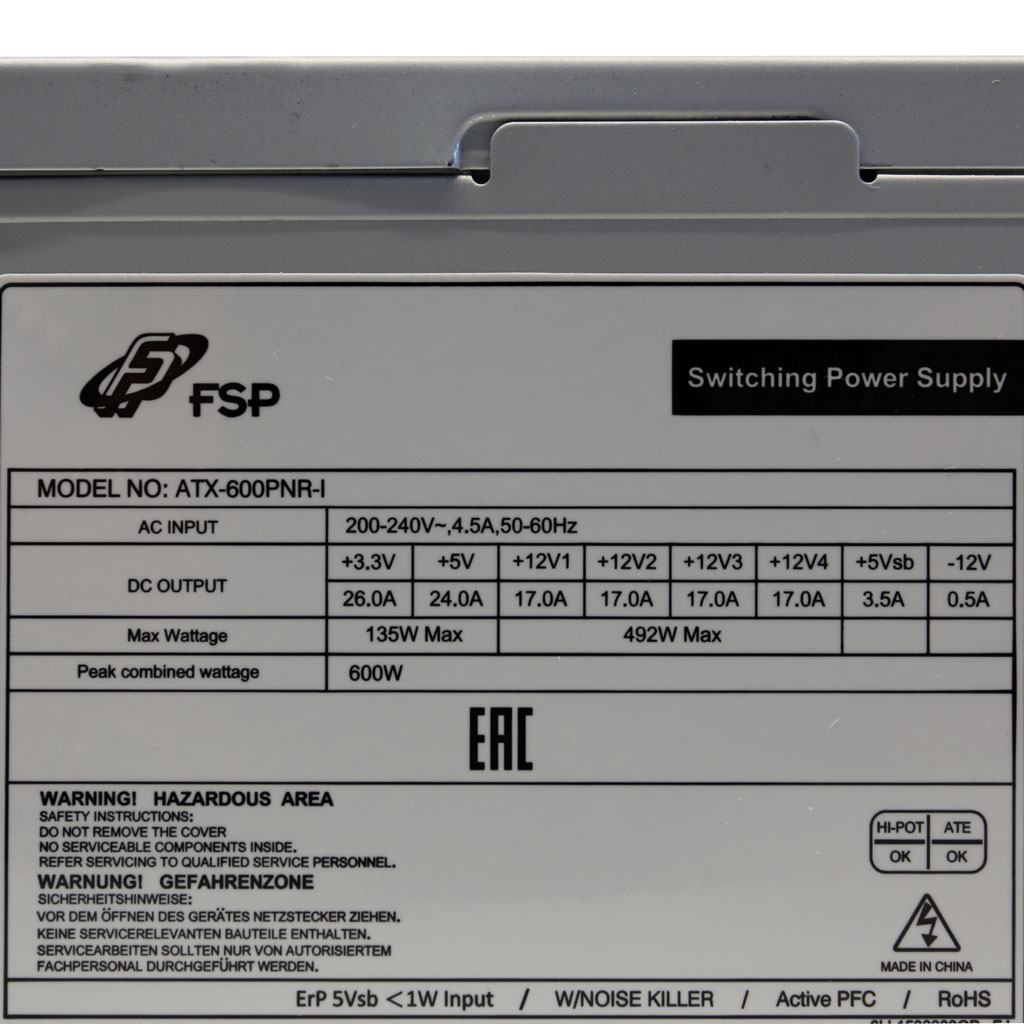

ErP Lot 6 2010: ✓
ErP Lot 6 2013: Partially
ErP Lot 3 2014 & CEC: Partially
✓
Performance Summary 230V
效率評比
噪音評比
Standard
(>1450 load combinations)
83.548%
Average Noise Output (>1450 Load Combinations)
42.22dBA
(>1450 Load Combinations)
0.940
Efficiency With 10W (≤500W) or 2% (>500W) Load
0.000%
0.2393W
12V Ripple (Full Load)
102.56mV
5V Ripple (Full Load)
15.49mV
3.3V Ripple (Full Load)
41.76mV
5VSB Ripple (Full Load)
34.47mV
12V Load Regulation
1.30%
5V Load Regulation
1.79%
3.3V Load Regulation
2.82%
5VSB Load Regulation
1.86%
Inrush Current
81.260A
12V Transient Response (150%)
0.00V
5V Transient Response (150%)
V
3.3V Transient Response (150%)
V
5VSB Transient Response (150%)
V
13.50ms
AC Loss to PWR_OK Hold Up Time
10.10ms
PWR_OK Inactive to DC Loss Delay
3.40ms
PSU Timings: T1 (20% / 100%)
54.0ms
54.0ms
PSU Timings: T3 (20% / 100%)
272.0ms
272.0ms
OPP (0.00°C / 0.00°C)
90.00%
0.00%
Hold-Up Time (ms)
13.5
AC Loss to PWR_OK Hold Up Time (ms)
10.1
PWR_OK Inactive to DC Loss Delay (ms)
3.4
待機電源消耗
Tables 230V
Graphs 230V

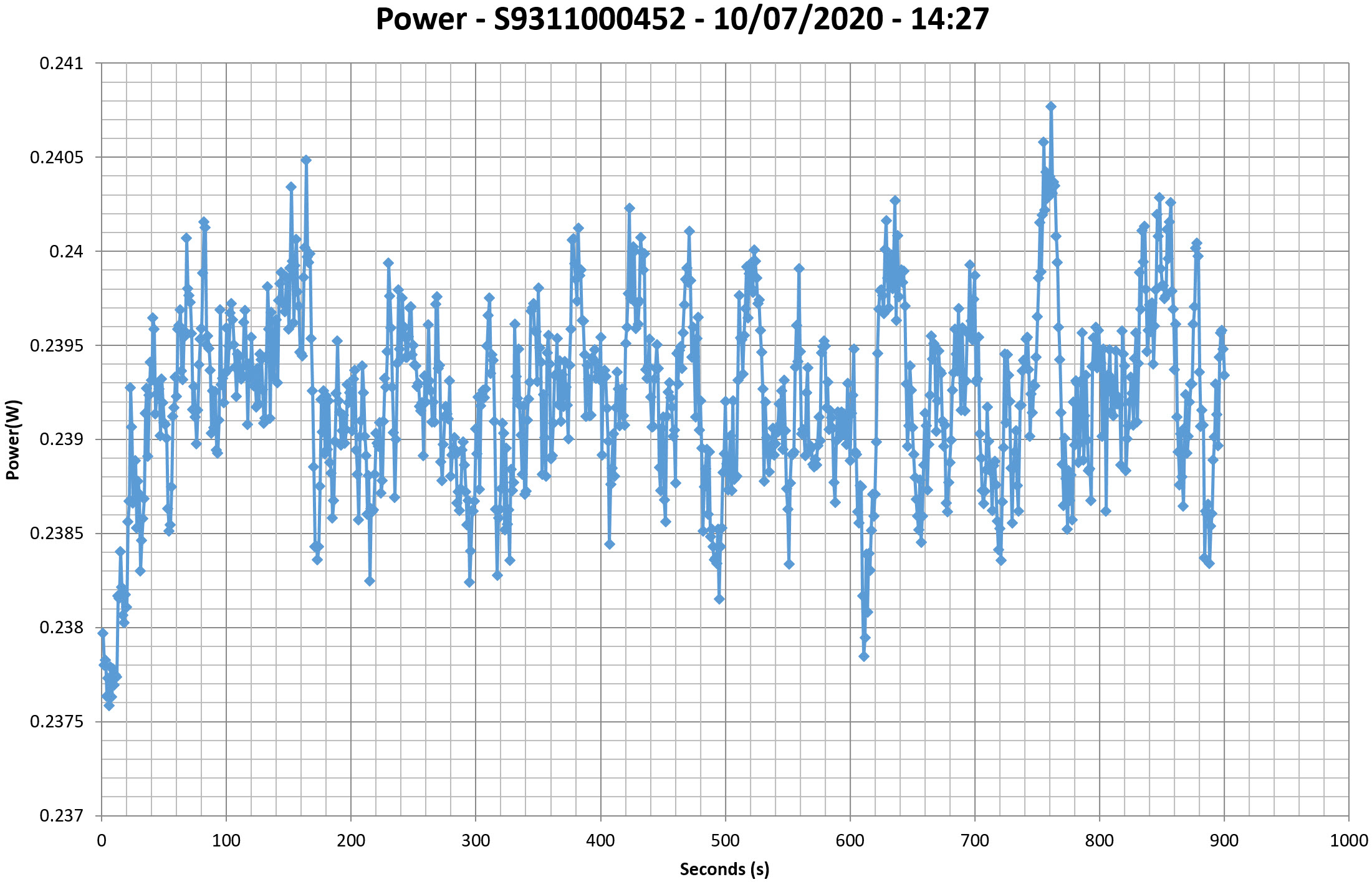

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing
230V

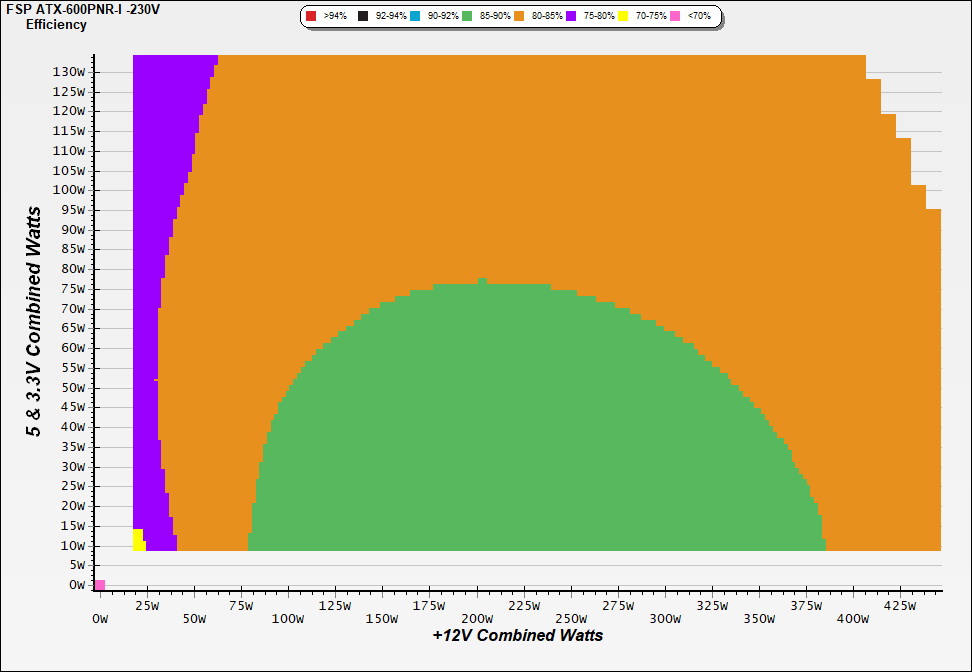

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations
230V

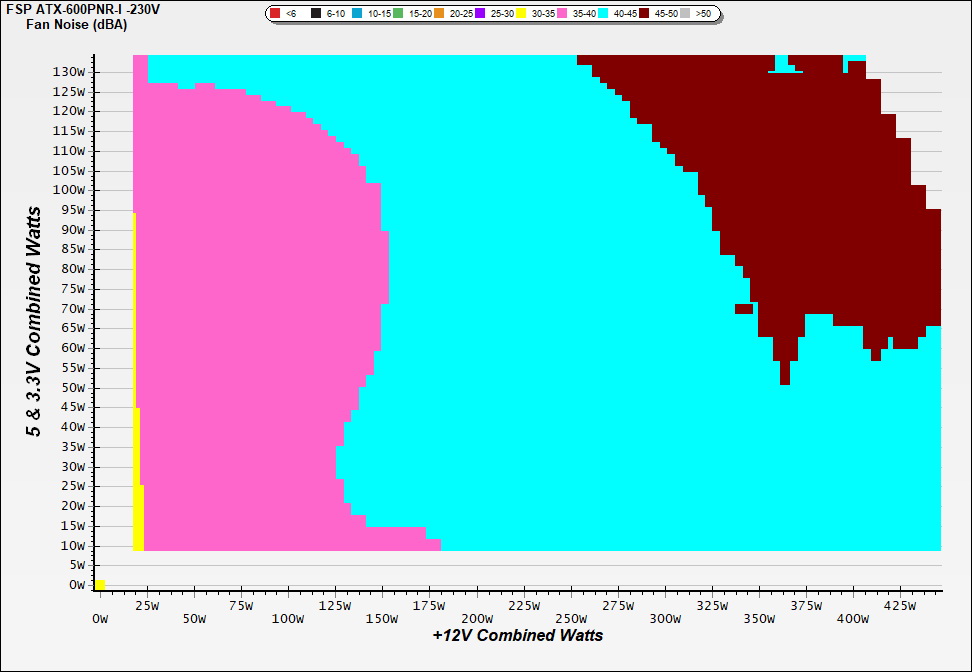

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails
Indicative Performance

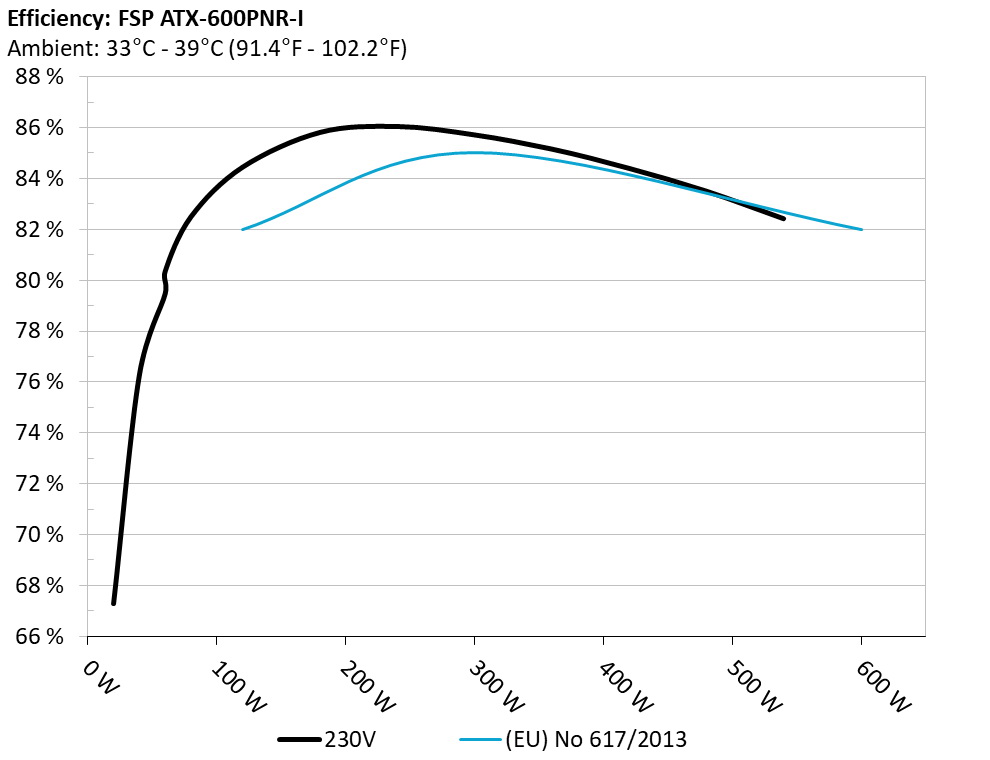

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

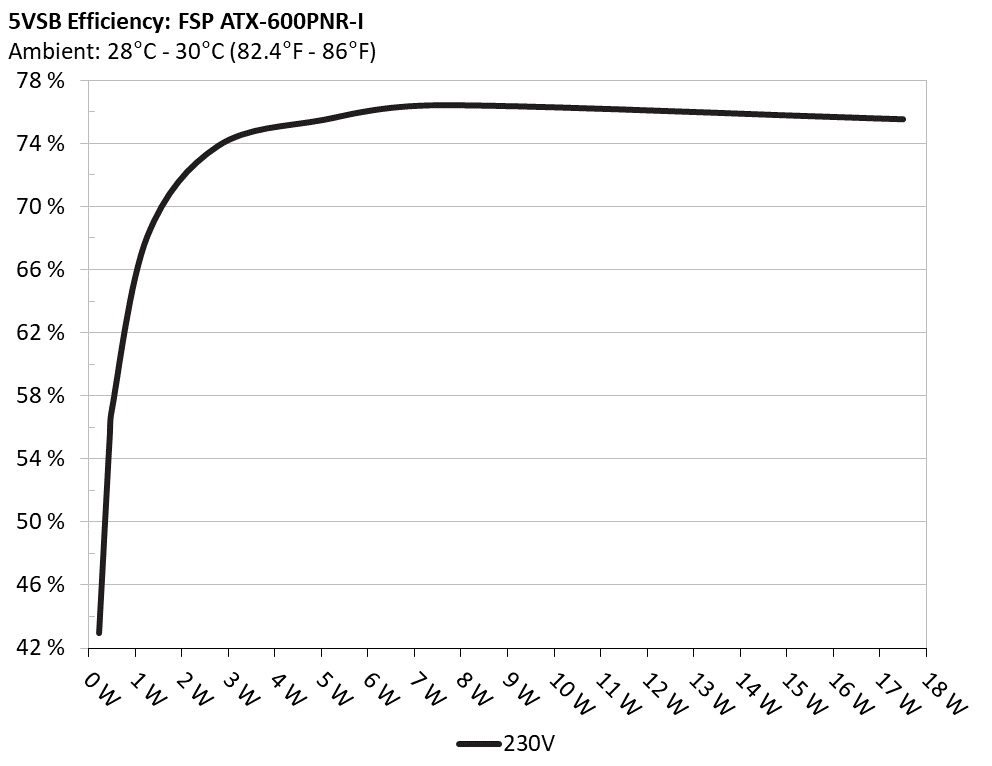

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input
230V
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.045A
0.228
42.938%
0.033
5.054V
0.531
230.34V
2
0.090A
0.455
55.353%
0.051
5.054V
0.822
230.34V
3
0.550A
2.776
73.810%
0.188
5.046V
3.761
230.33V
4
1.000A
5.040
75.472%
0.261
5.039V
6.678
230.33V
5
1.500A
7.547
76.402%
0.306
5.030V
9.878
230.33V
6
3.501A
17.486
75.511%
0.373
4.995V
23.157
230.31V
Supplementary Tests (For Reference)
230V
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
1
3.134A
2.006A
1.921A
0.994A
60.008
79.474%
1510
34.5
35.76°C
0.883
12.255V
4.988V
3.432V
5.032V
75.506
38.97°C
230.34V
2
7.285A
3.013A
2.894A
1.195A
120.041
84.443%
1640
37.2
36.09°C
0.919
12.235V
4.981V
3.421V
5.022V
142.156
39.86°C
230.35V
3
11.812A
3.514A
3.388A
1.397A
180.046
85.809%
1811
38.9
36.55°C
0.935
12.189V
4.982V
3.412V
5.013V
209.821
40.99°C
230.36V
4
16.367A
4.016A
3.881A
1.599A
240.055
86.043%
1905
41.4
36.80°C
0.946
12.149V
4.982V
3.402V
5.004V
278.995
41.82°C
230.37V
5
20.557A
5.031A
4.868A
1.802A
300.094
85.711%
2011
42.1
37.42°C
0.953
12.141V
4.971V
3.390V
4.994V
350.123
43.13°C
230.37V
6
24.739A
6.055A
5.862A
2.001A
360.022
85.154%
2043
42.4
37.55°C
0.959
12.136V
4.957V
3.378V
4.984V
422.791
43.99°C
230.38V
7
28.906A
7.085A
6.867A
2.212A
419.787
84.398%
2067
43.0
38.08°C
0.963
12.131V
4.943V
3.365V
4.973V
497.391
45.13°C
230.39V
8
33.159A
8.002A
7.878A
2.419A
479.741
83.500%
2087
43.6
39.00°C
0.966
12.120V
4.930V
3.351V
4.963V
574.538
46.99°C
230.41V
9
37.790A
8.632A
8.389A
2.421A
539.623
82.420%
2099
45.0
39.32°C
0.969
12.096V
4.925V
3.338V
4.957V
654.722
48.47°C
230.42V
CL1
0.118A
16.001A
16.000A
0.001A
129.303
75.193%
2191
44.5
37.11°C
0.925
13.406V
4.604V
3.378V
5.023V
171.962
43.47°C
230.39V
CL2
41.021A
0.999A
1.001A
1.000A
490.536
83.215%
2023
41.9
39.01°C
0.966
11.630V
5.097V
3.369V
4.998V
589.480
48.50°C
230.43V
The results above are not used in the certification process
230V
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
PF/AC Volts
1
1.215A
0.499A
0.481A
0.198A
19.996
67.295%
1317
31.7
0.757
12.213V
5.014V
3.441V
5.051V
29.714
230.36V
2
2.430A
0.997A
0.960A
0.397A
39.986
76.276%
1383
32.7
0.841
12.219V
5.006V
3.437V
5.045V
52.423
230.36V
3
3.645A
1.502A
1.442A
0.595A
60.016
80.352%
1515
34.7
0.882
12.224V
5.000V
3.433V
5.040V
74.691
230.34V
4
4.854A
2.003A
1.926A
0.795A
79.965
82.493%
1557
36.3
0.901
12.228V
4.994V
3.429V
5.034V
96.935
230.34V
The results above are not used in the certification process
230V
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
19.0 mV
6.9 mV
9.8 mV
18.4 mV
Pass
20% Load
22.3 mV
7.3 mV
11.0 mV
19.5 mV
Pass
30% Load
28.3 mV
8.2 mV
13.6 mV
20.1 mV
Pass
40% Load
36.8 mV
8.9 mV
17.0 mV
23.2 mV
Pass
50% Load
46.1 mV
10.3 mV
19.3 mV
24.5 mV
Pass
60% Load
57.3 mV
11.1 mV
22.7 mV
25.9 mV
Pass
70% Load
71.5 mV
13.3 mV
25.7 mV
32.0 mV
Pass
80% Load
86.3 mV
14.7 mV
38.7 mV
34.8 mV
Pass
90% Load
102.6 mV
15.5 mV
41.8 mV
37.5 mV
Pass
Crossload 1
14.9 mV
39.3 mV
26.6 mV
11.8 mV
Pass
Crossload 2
104.1 mV
19.6 mV
29.8 mV
34.9 mV
Pass
The results above are not used in the certification process
