CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Thermaltake TR2 S 600W
PSTRS0600NPCWEU2UV000574
Lab IDTT60001678
  • Report: 20PS1678A
  • Receipt Date: Jul 3, 2020
  • Test Date: Jul 8, 2020
  • Report Date: Jul 14, 2020
115V230V
效率評比
115V230V
噪音評比
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

Thermaltake
製造商 (OEM)Jiu Zhou Yang Guang Power Supply (HKC)
TR2 S Series
TRS-600AH2NK
PSTRS0600NPCWEU2UV000574

(Vrms)230
(Arms)8
(Hz)50-60
(W)600
ATX12V
120mm Sleeve Bearing Fan
[TT-1225 (AV-F12025MS)]
✗
Fixed cables

Rail3.3V5V12V5VSB-12V
Max. PowerAmps2217422.50.5
Watts10550412.56
Total Max. Power (W)600

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Native Cables
Description Cable Count Connector Count (Total) Gauge In Cable Caps
ATX connector 20+4 pin (520mm) 1 1 18-22AWG No
4+4 pin EPS12V (620mm) 1 1 18AWG No
6+2 pin PCIe (520mm+150mm) 1 2 18-20AWG No
SATA (520mm+150mm) / 4-pin Molex (+150mm) 2 4 / 2 18-20AWG No
SATA (520mm) / 4-pin Molex (+150mm+150mm) / FDD (+150mm) 1 1 / 2 / 1 18-22AWG No
Modular Cables
AC Power Cord (1400mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data -
Manufacturer (OEM) HKC
PCB Type Single Sided
Primary Side -
Transient Filter 6x Y caps, 2x X caps, 3x CM chokes, 1x MOV
Inrush Protection NTC Thermistor MF72-1.5D13
Bridge Rectifier(s) 1x GBU1006 (600V, 10A @ 100°C)
APFC MOSFET 1x Silan Microelectronics SVF20N50F (500V, 12.6A @ 100°C, Rds(on): 0.27Ohm)
APFC Boost Diode 1x Champion CMPFCD86 (600V, 8A @ 140°C)
Bulk Cap(s) 1x Chengx (420V, 330uF, 2,000h @ 85°C, AP)
Main Switchers 2x Maplesemi SLF18N50C (500V, 10.8A @ 100°C, Rds(on): 0.283Ohm)
Combo PFC/PWM Controller Champion CM6800UX
Topology Primary side: APFC, Double Forward
Secondary side: Passive Rectification & Group Regulation
Secondary Side -
+12V SBRs 4x Chongqing Pingwei Enterprise PS30U60CTR (60V, 30A @ 90°C)
5V & 3.3V SBRs 1x Chongqing Pingwei Enterprise PS30U45CTR (45V, 30A @ 90°C) & 1x Silan Microelectronics SBD30C45PS (45V, 30A)
Filtering Capacitors Electrolytic: 12x Chengx (2-4,000h @ 105°C, GR), 1x CapXon (2-5,000h @ 105°C, KF)
Supervisor IC Sitronix ST9S313-DAG (OVP, UVP, SCP)
Fan Model Thermaltake TT-1225 (AV-F12025MS) (120mm, 12V, 0.30A, Sleeve Bearing Fan)
5VSB Circuit -
Standby PWM Controller Excelliance MOS Corp. EM8564A

Test Results

Temperature & Compliance Info

(°C /°F)30-32 / 86-89.6
✓
✓

Performance Summary 230V

效率評比BRONZE
噪音評比Standard++
(>1450 load combinations)84.762%
Average Noise Output (>1450 Load Combinations)34.75dBA
(>1450 Load Combinations)0.961
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
0.1385W
12V Ripple (Full Load)41.72mV
5V Ripple (Full Load)18.23mV
3.3V Ripple (Full Load)31.86mV
5VSB Ripple (Full Load)22.35mV
12V Load Regulation1.30%
5V Load Regulation3.27%
3.3V Load Regulation3.58%
5VSB Load Regulation4.12%
Inrush Current79.830A
14.30ms
AC Loss to PWR_OK Hold Up Time14.30ms
PWR_OK Inactive to DC Loss Delay0.00ms
PSU Timings: T1 (20% / 100%)47.0ms46.0ms
PSU Timings: T3 (20% / 100%)289.0ms289.0ms
OPP (0.00°C / 0.00°C)117.23%0.00%

Hold-Up Time (ms)14.3
AC Loss to PWR_OK Hold Up Time (ms)14.3
PWR_OK Inactive to DC Loss Delay (ms)0

待機電源消耗

Tables 230V

Graphs 230V

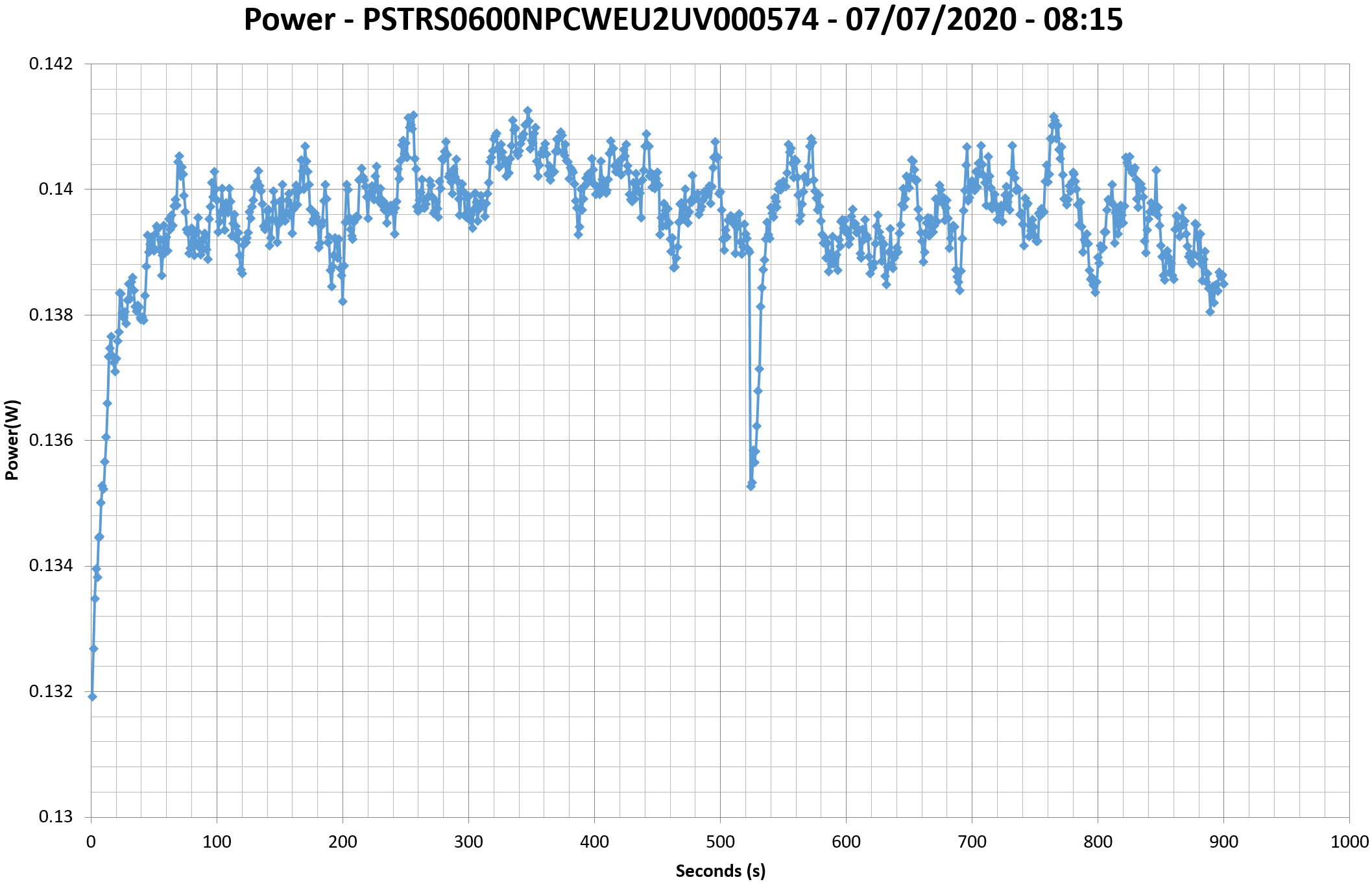

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

230V

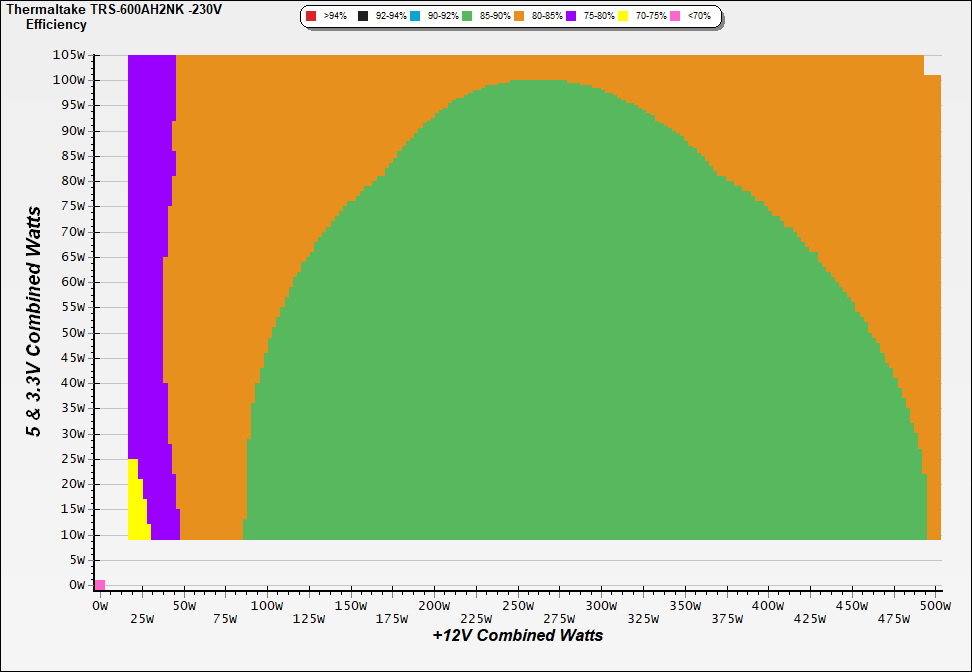

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

230V

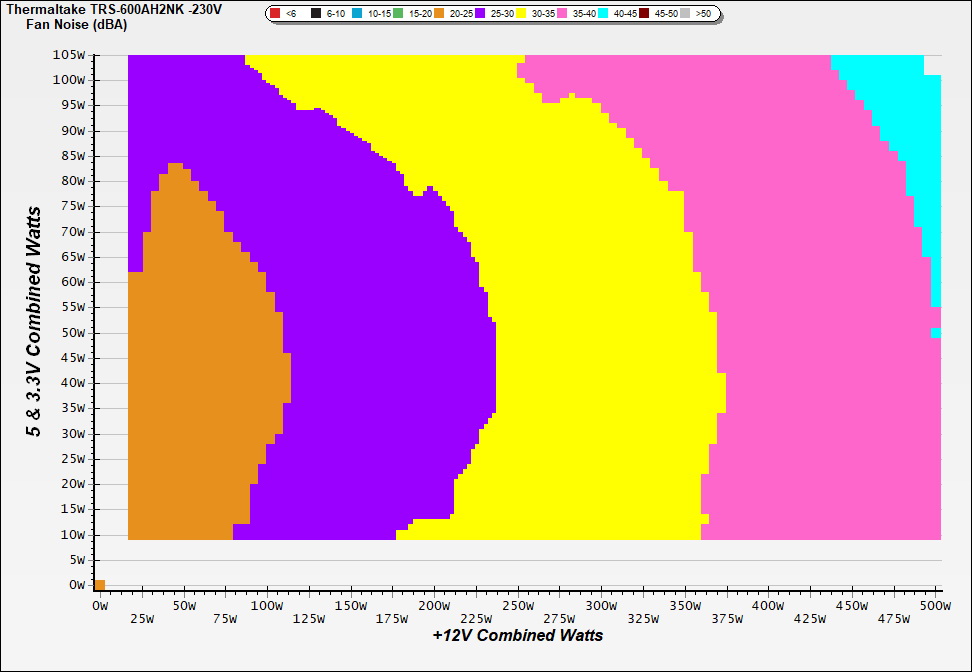

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

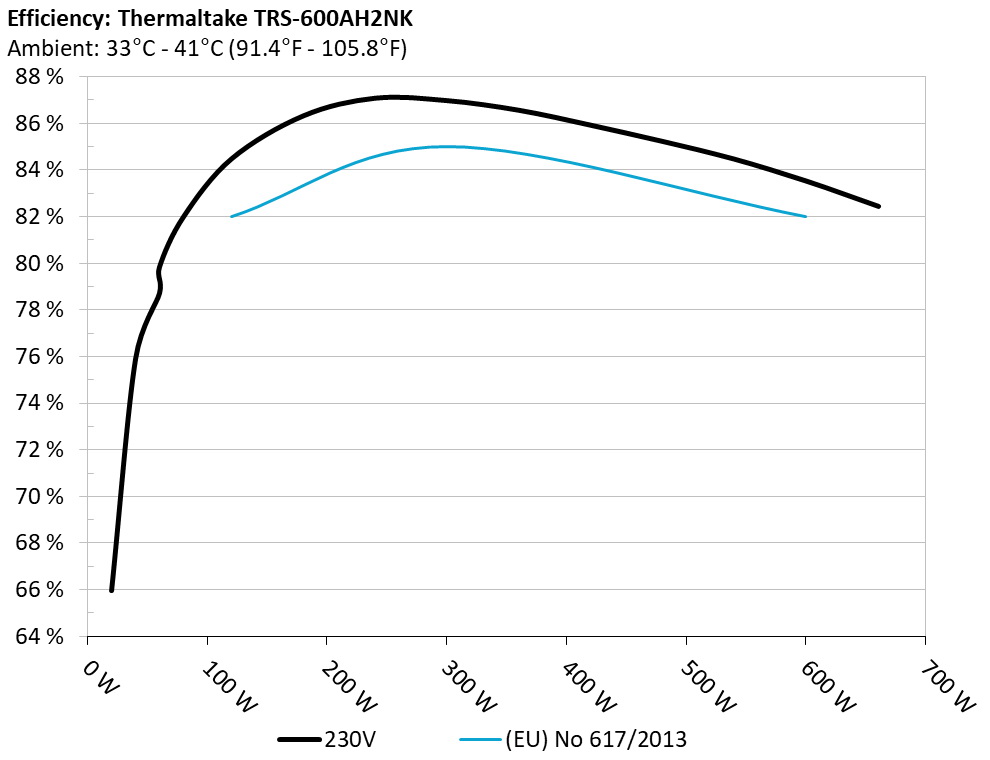

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

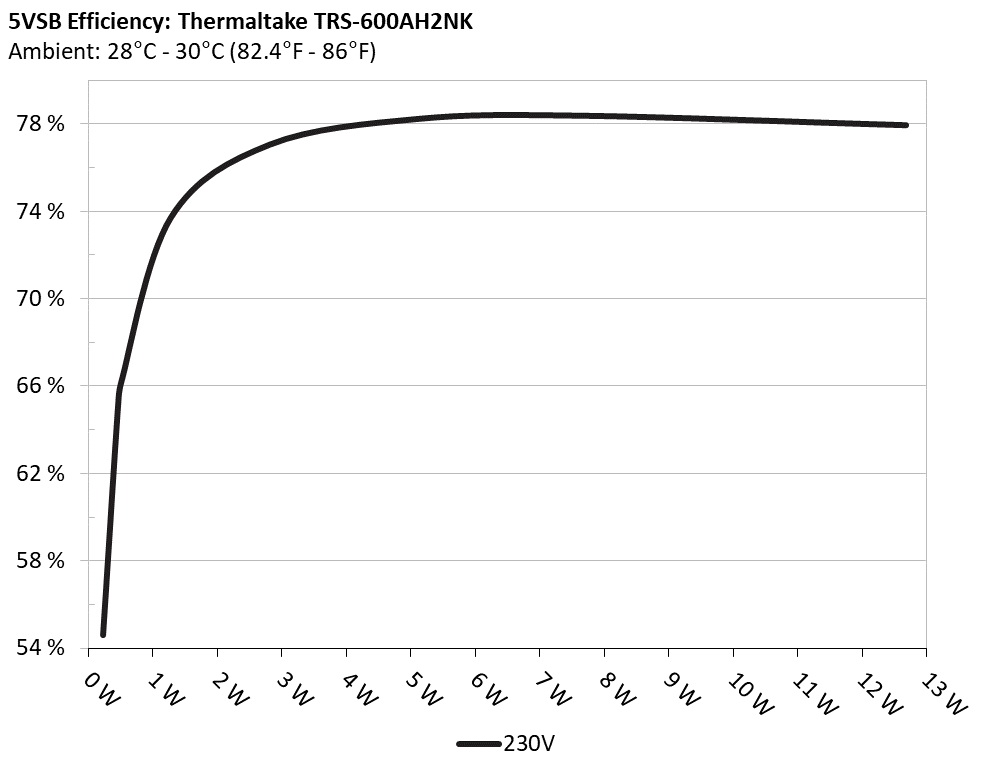

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

230V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231 54.610% 0.026
5.133V 0.423 230.37V
2 0.090A 0.462 65.070% 0.043
5.132V 0.710 230.37V
3 0.550A 2.817 77.073% 0.184
5.121V 3.655 230.36V
4 1.000A 5.112 78.249% 0.257
5.110V 6.533 230.36V
5 1.500A 7.649 78.395% 0.302
5.098V 9.757 230.36V
6 2.500A 12.685 77.961% 0.348
5.073V 16.271 230.36V

Supplementary Tests (For Reference)

230V

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.188A 1.935A 1.953A 0.982A 60.008 78.732% 1058 24.3 35.46°C 0.885
12.049V 5.167V 3.378V 5.092V 76.218 38.27°C 230.38V
2 7.411A 2.913A 2.942A 1.183A 120.042 84.496% 1080 24.8 36.10°C 0.934
12.028V 5.150V 3.365V 5.072V 142.069 39.62°C 230.39V
3 12.000A 3.405A 3.445A 1.386A 180.047 86.343% 1243 29.8 36.25°C 0.952
11.999V 5.141V 3.353V 5.053V 208.525 40.24°C 230.38V
4 16.576A 3.900A 3.950A 1.589A 240.055 87.102% 1458 34.0 36.69°C 0.960
11.996V 5.130V 3.342V 5.035V 275.601 41.26°C 230.37V
5 20.773A 4.894A 4.956A 1.796A 300.094 86.999% 1551 36.1 37.41°C 0.967
12.015V 5.109V 3.329V 5.013V 344.938 42.64°C 230.39V
6 25.010A 5.898A 5.972A 2.001A 360.041 86.585% 1709 38.2 38.50°C 0.970
12.005V 5.088V 3.315V 4.992V 415.825 44.53°C 230.38V
7 29.235A 6.909A 6.998A 2.214A 419.797 85.946% 1845 40.0 38.67°C 0.972
11.995V 5.068V 3.302V 4.969V 488.444 45.19°C 230.39V
8 33.541A 7.928A 8.032A 2.427A 480.267 85.244% 1909 41.3 38.85°C 0.975
11.981V 5.046V 3.287V 4.947V 563.405 46.26°C 230.39V
9 38.275A 8.441A 8.552A 2.435A 539.601 84.492% 1966 42.5 39.69°C 0.978
11.942V 5.036V 3.275V 4.930V 638.639 47.93°C 230.42V
10 43.123A 8.957A 9.108A 2.547A 600.334 83.541% 1970 42.6 39.92°C 0.979
11.899V 5.025V 3.261V 4.909V 718.607 48.95°C 230.44V
11 48.441A 8.958A 9.139A 2.555A 660.383 82.460% 1970 42.6 40.85°C 0.981
11.832V 5.026V 3.250V 4.894V 800.852 51.66°C 230.40V
CL1 0.118A 13.001A 13.000A 0.001A 106.430 74.011% 2075 44.7 37.38°C 0.937
13.350V 4.738V 3.327V 5.061V 143.803 42.38°C 230.41V
CL2 42.029A 0.999A 1.001A 1.000A 493.816 85.434% 1885 41.2 40.04°C 0.976
11.427V 5.242V 3.311V 5.000V 578.007 48.73°C 230.40V

The results above are not used in the certification process

230V

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.229A 0.481A 0.487A 0.195A 19.998 65.970% 1028 24.1 0.716
12.083V 5.195V 3.390V 5.124V 30.314 230.39V
2 2.458A 0.964A 0.974A 0.391A 39.988 75.913% 1031 24.3 0.830
12.079V 5.188V 3.386V 5.114V 52.676 230.39V
3 3.691A 1.448A 1.465A 0.588A 60.017 79.854% 1036 24.6 0.882
12.073V 5.181V 3.380V 5.103V 75.158 230.39V
4 4.930A 1.933A 1.956A 0.786A 79.965 82.008% 1047 24.8 0.910
12.042V 5.170V 3.375V 5.093V 97.509 230.38V

The results above are not used in the certification process

230V

Test12V5V3.3V5VSBPass/Fail
10% Load10.20mV6.80mV7.30mV6.30mVPass
20% Load12.00mV6.00mV7.50mV6.40mVPass
30% Load14.60mV6.50mV7.60mV6.40mVPass
40% Load16.50mV7.40mV8.20mV6.30mVPass
50% Load19.10mV7.80mV9.40mV6.50mVPass
60% Load22.30mV9.30mV10.10mV11.50mVPass
70% Load26.70mV10.00mV11.80mV13.50mVPass
80% Load29.60mV11.20mV21.10mV16.00mVPass
90% Load33.40mV13.60mV25.00mV19.90mVPass
100% Load41.70mV18.20mV31.90mV22.40mVPass
110% Load47.40mV21.00mV37.20mV34.30mVPass
Crossload112.20mV51.10mV22.40mV12.20mVFail
Crossload239.40mV13.80mV20.60mV14.00mVPass

The results above are not used in the certification process

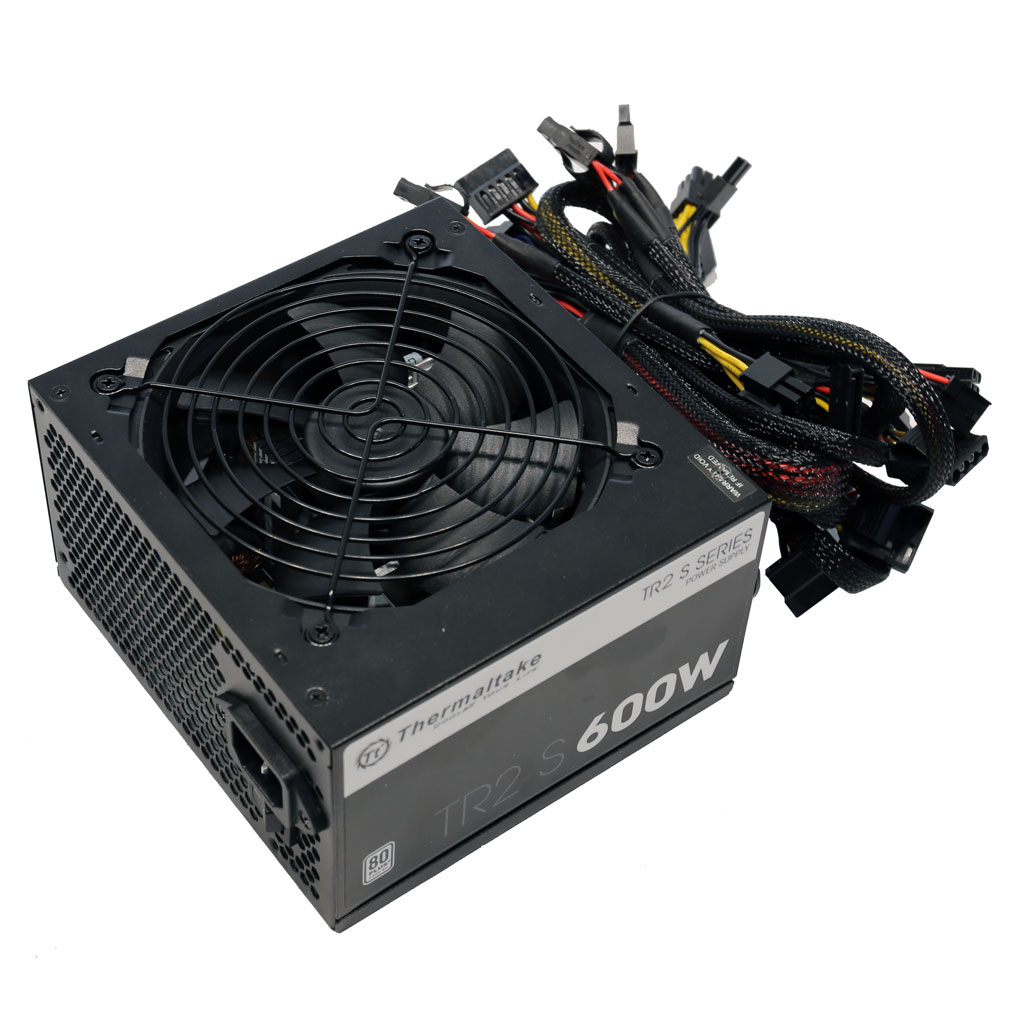

Thermaltake TR2 S 600W

Top side

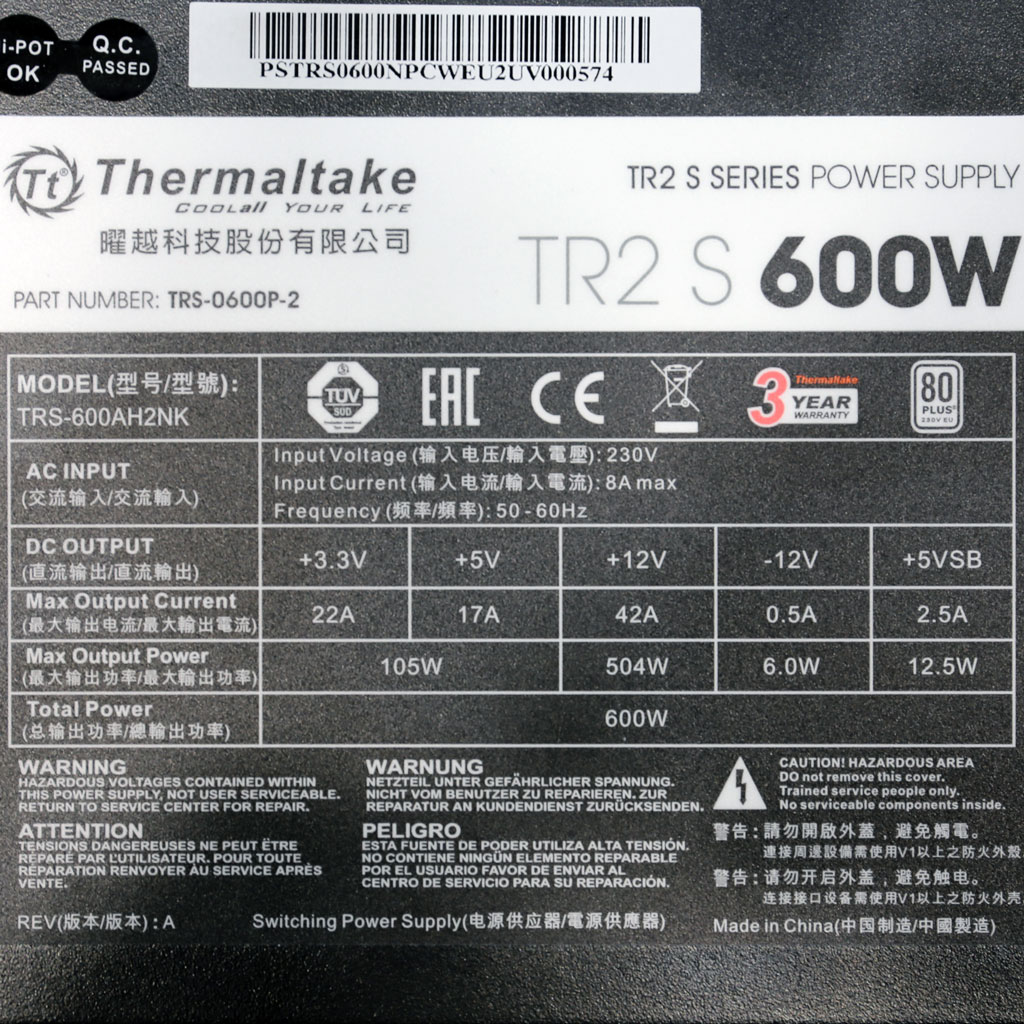

Power specifications label
CYBENETICS提供ETA和LAMBDA自願性認證 方案以推廣高效及靜音之電源供應器
