SilverStone Strider Titanium 1300W
Serial NumberDB17250295STK30TIO
Lab IDSL13001661
  • Report: 20PS1661A
  • Receipt Date: Feb 2, 2018
  • Test Date: Jun 3, 2020
  • Report Date: Feb 18, 2020
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandSilverStone
Manufacturer (OEM)Enhance Electronics
SeriesStrider Titanium
Model NumberST1300-TI
Serial NumberDB17250295STK30TIO
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)15-7.5
Rated Frequency (Hz)50-60
Rated Power (W)1300
TypeATX12V
Cooling140mm Double Ball-Bearing Fan
(D14BH-12)
Semi-Passive Operation✓
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps252210830.3
Watts1201300153.6
Total Max. Power (W)1300

Test Equipment

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (550mm) 1 1 16-22AWG No
4+4 pin EPS12V (750mm) 1 1 16AWG No
4+4 pin EPS12V (550mm) 1 1 16AWG No
6+2 pin PCIe (550mm) 8 8 16AWG No
SATA (600mm+140mm+140mm140mm) 4 16 18AWG No
4 pin Molex (600mm+150mm+150mm) 2 6 18AWG No
FDD Adapter (+120mm) 1 1 22AWG No
AC Power Cord (1380mm) - C19 coupler 1 1 16AWG -

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 ReadyErP Lot 3/6 2010: ✓
ErP Lot 3/6 2013: ✓
ErP Lot 3/6 2014, CEC: Partially
(EU) No 617/2013 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)10.8
AC Loss to PWR_OK Hold Up Time (ms)13.3
PWR_OK Inactive to DC Loss Delay (ms)-2.5

Vampire Power

Graphs

INFO

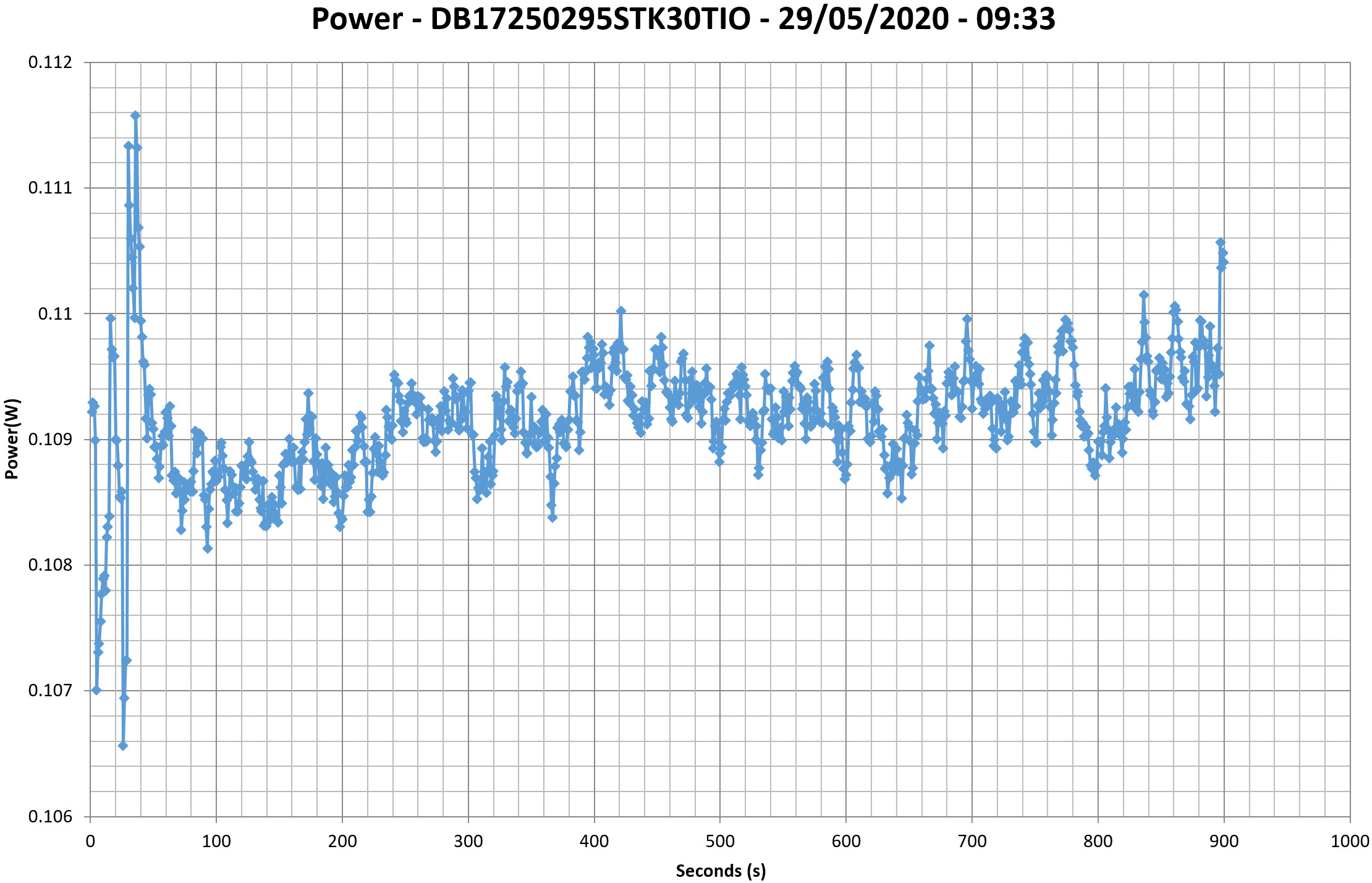

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

INFO

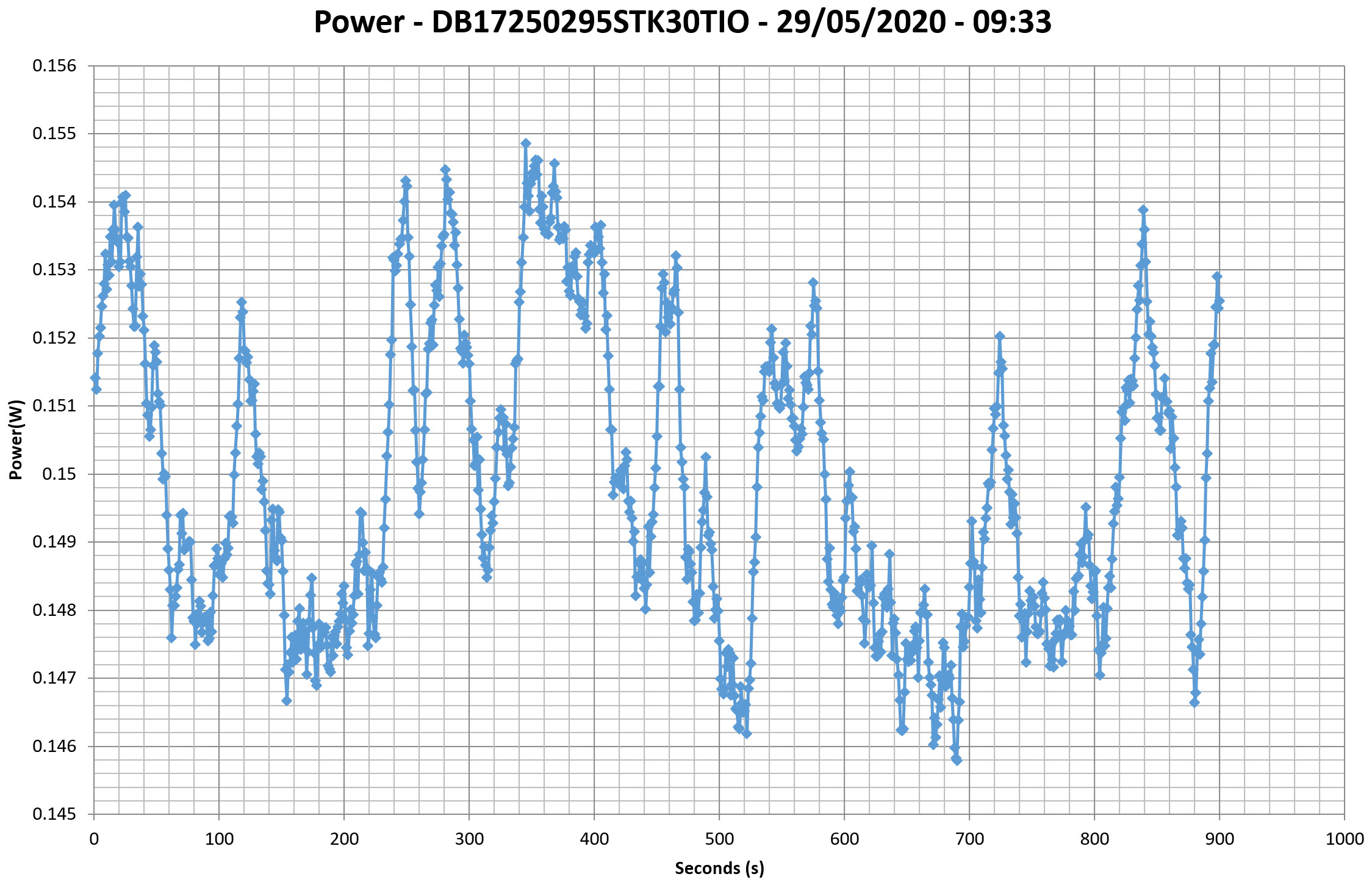

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

Efficiency Graph

INFO

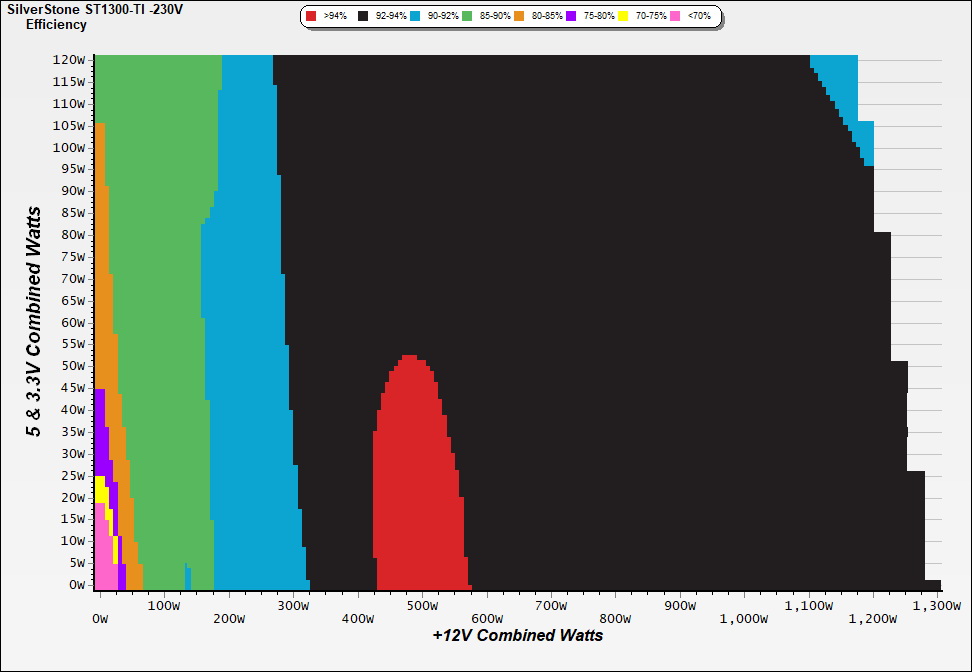

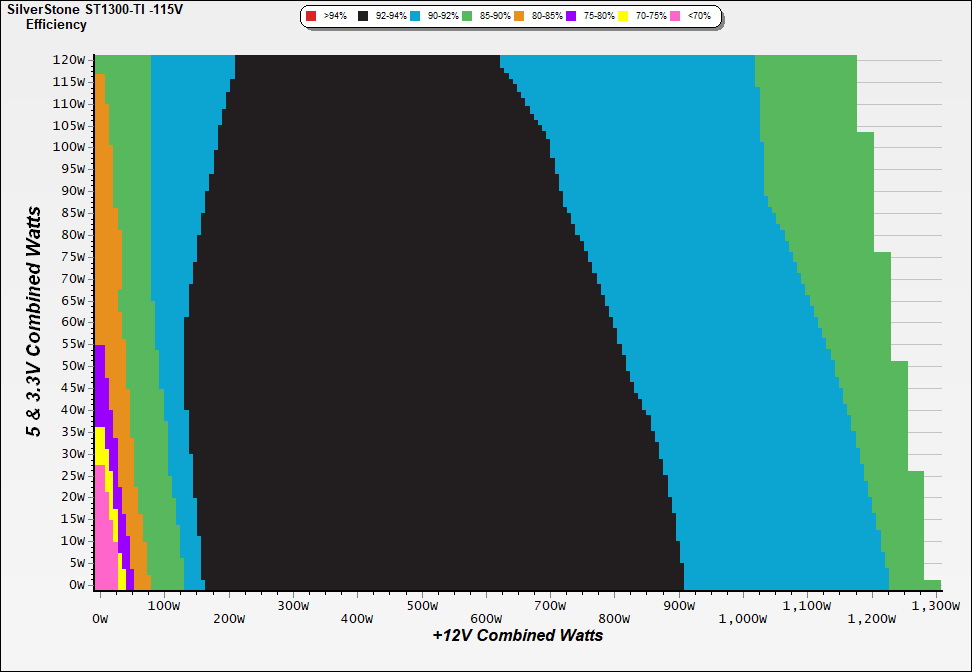

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

INFO

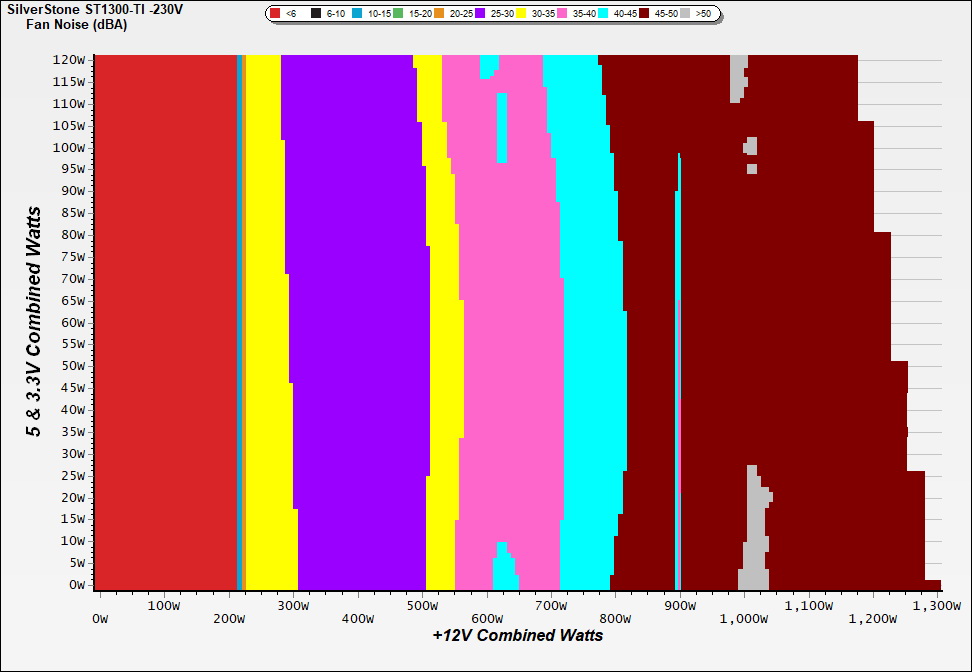

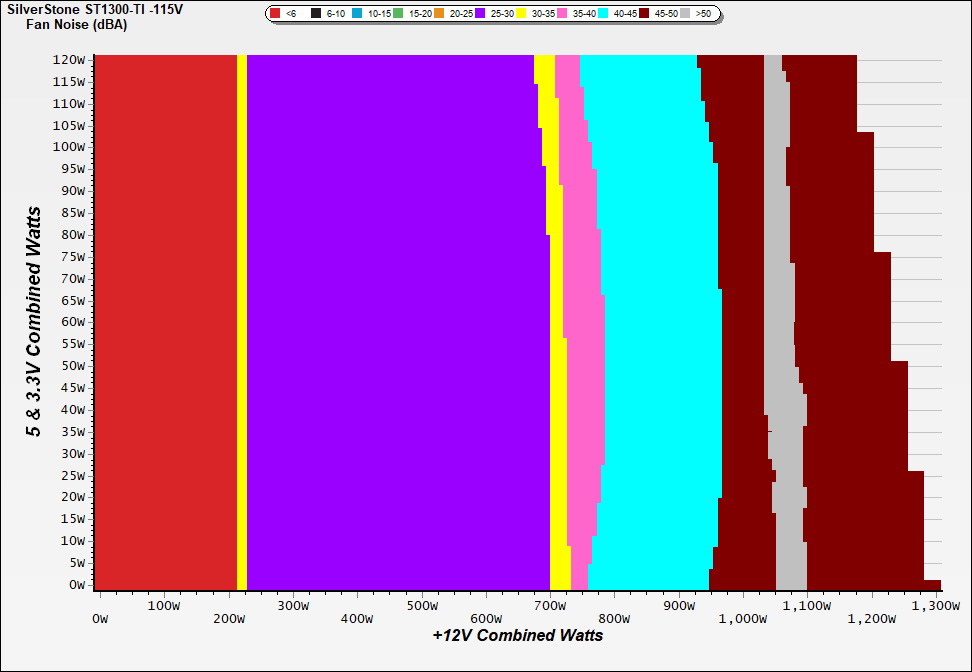

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

Efficiency under high ambient temperature

INFO

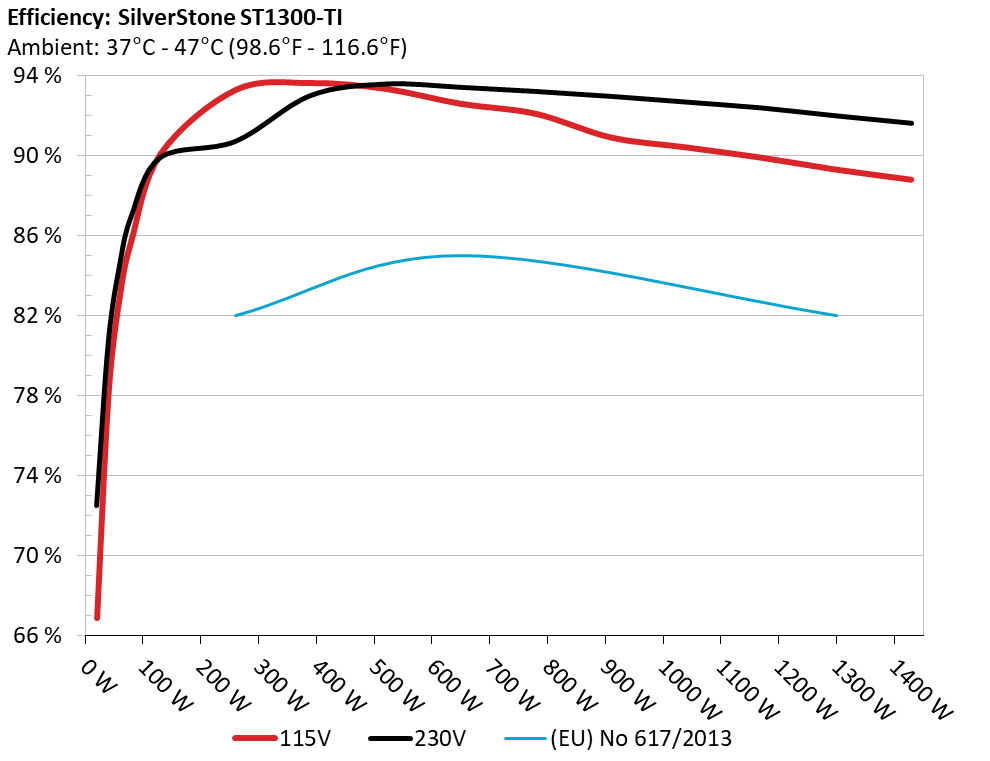

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

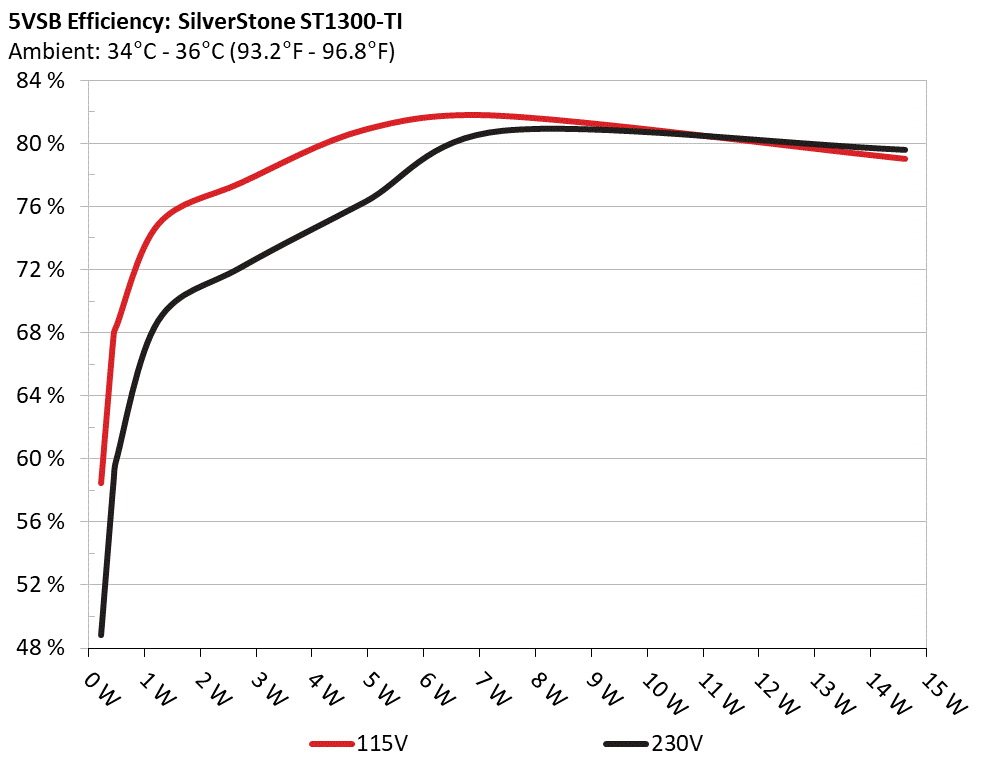

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.225 58.442% 0.018
5.004V 0.385 115.16V
2 0.090A 0.450 67.873% 0.031
5.002V 0.663 115.14V
3 0.550A 2.740 77.511% 0.161
4.982V 3.535 115.16V
4 1.000A 4.962 80.880% 0.257
4.963V 6.135 115.16V
5 1.500A 7.412 81.738% 0.339
4.941V 9.068 115.16V
6 2.999A 14.613 79.011% 0.479
4.872V 18.495 115.16V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.225 48.807% 0.007
5.005V 0.461 230.27V
2 0.090A 0.450 58.670% 0.011
5.003V 0.767 230.29V
3 0.550A 2.740 72.162% 0.054
4.982V 3.797 230.29V
4 1.000A 4.962 76.315% 0.092
4.963V 6.502 230.29V
5 1.500A 7.412 80.811% 0.127
4.941V 9.172 230.30V
6 2.999A 14.618 79.601% 0.230
4.874V 18.364 230.27V

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 8.968A 1.969A 1.980A 0.991A 129.971 90.089% 0 <6.0 43.17°C 0.948
12.085V 5.079V 3.330V 5.045V 144.270 40.01°C 115.12V
2 18.988A 2.963A 2.987A 1.194A 259.998 93.286% 928 27.8 40.76°C 0.975
12.065V 5.063V 3.316V 5.026V 278.711 44.02°C 115.12V
3 29.343A 3.465A 3.496A 1.398A 389.460 93.631% 934 27.9 41.24°C 0.982
12.044V 5.051V 3.304V 5.007V 415.952 44.99°C 115.11V
4 39.780A 3.972A 4.011A 1.604A 519.450 93.342% 987 29.9 41.53°C 0.986
12.022V 5.038V 3.292V 4.988V 556.502 45.54°C 115.11V
5 49.908A 4.980A 5.038A 1.812A 649.612 92.593% 1701 44.5 42.45°C 0.988
12.004V 5.022V 3.276V 4.968V 701.577 46.81°C 115.10V
6 60.019A 5.996A 6.076A 2.000A 779.642 92.093% 1897 47.3 42.53°C 0.989
11.995V 5.005V 3.260V 4.948V 846.584 47.22°C 115.10V
7 70.043A 7.018A 7.123A 2.232A 909.836 90.907% 2078 50.2 43.30°C 0.990
12.003V 4.988V 3.244V 4.927V 1000.841 48.45°C 115.10V
8 80.010A 8.002A 8.176A 2.446A 1039.741 90.412% 2064 49.9 43.58°C 0.992
12.018V 4.972V 3.228V 4.907V 1150.005 49.29°C 115.09V
9 90.330A 8.569A 8.706A 2.450A 1169.701 89.899% 2058 49.7 44.49°C 0.993
12.036V 4.959V 3.216V 4.897V 1301.130 50.67°C 115.08V
10 100.344A 9.099A 9.270A 3.088A 1299.750 89.299% 2056 49.6 45.76°C 0.993
12.059V 4.946V 3.204V 4.857V 1455.507 52.16°C 115.07V
11 110.917A 9.114A 9.294A 3.094A 1429.684 88.795% 2057 49.7 46.16°C 0.994
12.081V 4.938V 3.195V 4.847V 1610.088 53.84°C 115.07V
CL1 0.100A 13.999A 13.997A 0.000A 117.142 81.997% 2029 49.2 43.89°C 0.948
12.092V 5.018V 3.264V 5.108V 142.862 48.03°C 115.13V
CL2 108.331A 1.001A 0.999A 1.000A 1322.415 89.636% 2054 49.6 44.19°C 0.993
12.085V 5.006V 3.262V 4.965V 1475.324 51.72°C 115.07V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 8.975A 1.969A 1.982A 0.991A 129.983 89.895% 0 <6.0 44.20°C 0.835
12.076V 5.079V 3.331V 5.045V 144.595 40.13°C 230.30V
2 19.004A 2.963A 2.984A 1.194A 260.014 90.704% 1134 33.6 41.75°C 0.918
12.056V 5.064V 3.316V 5.027V 286.663 46.56°C 230.30V
3 29.368A 3.464A 3.495A 1.398A 389.518 92.989% 1536 41.9 41.85°C 0.944
12.036V 5.051V 3.304V 5.008V 418.888 47.29°C 230.30V
4 39.787A 3.970A 4.012A 1.604A 519.528 93.571% 1708 44.7 42.30°C 0.957
12.022V 5.038V 3.292V 4.988V 555.224 48.26°C 230.30V
5 49.919A 4.979A 5.037A 1.812A 649.686 93.409% 1965 48.1 42.36°C 0.966
12.003V 5.022V 3.276V 4.968V 695.529 49.42°C 230.30V
6 60.020A 5.995A 6.075A 2.000A 779.707 93.201% 2075 50.1 43.35°C 0.971
11.996V 5.005V 3.260V 4.949V 836.587 50.82°C 230.31V
7 70.054A 7.018A 7.123A 2.232A 909.907 92.955% 2063 49.9 43.44°C 0.975
12.002V 4.989V 3.244V 4.928V 978.864 51.67°C 230.31V
8 80.025A 8.003A 8.173A 2.445A 1039.832 92.670% 2057 49.7 44.26°C 0.979
12.017V 4.972V 3.228V 4.907V 1122.078 52.83°C 230.31V
9 90.357A 8.573A 8.706A 2.451A 1169.679 92.380% 2106 50.8 45.06°C 0.981
12.032V 4.958V 3.216V 4.896V 1266.166 54.33°C 230.32V
10 100.357A 9.101A 9.276A 3.090A 1299.821 91.981% 2081 50.2 45.27°C 0.983
12.058V 4.945V 3.203V 4.855V 1413.134 55.24°C 230.32V
11 110.855A 9.120A 9.301A 3.097A 1429.832 91.614% 2072 50.1 46.96°C 0.985
12.089V 4.935V 3.193V 4.844V 1560.717 57.62°C 230.32V
CL1 0.101A 14.002A 13.999A 0.000A 117.258 81.808% 2040 49.2 42.69°C 0.834
12.084V 5.022V 3.266V 5.114V 143.334 49.56°C 230.36V
CL2 108.344A 1.000A 1.002A 1.000A 1323.222 92.255% 2061 49.8 45.07°C 0.984
12.091V 5.005V 3.261V 4.963V 1434.308 55.21°C 230.33V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.226A 0.491A 0.493A 0.197A 19.976 66.852% 0 <6.0 0.814
12.090V 5.095V 3.347V 5.088V 29.881 115.13V
2 2.455A 0.982A 0.985A 0.394A 39.966 78.112% 0 <6.0 0.884
12.087V 5.091V 3.342V 5.078V 51.165 115.13V
3 3.686A 1.475A 1.483A 0.592A 59.999 83.065% 0 <6.0 0.913
12.085V 5.086V 3.338V 5.068V 72.231 115.13V
4 4.912A 1.968A 1.980A 0.791A 79.952 85.799% 0 <6.0 0.922
12.083V 5.082V 3.333V 5.057V 93.185 115.12V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.227A 0.488A 0.493A 0.197A 19.979 72.506% 0 <6.0 0.348
12.093V 5.097V 3.348V 5.091V 27.555 230.31V
2 2.454A 0.982A 0.987A 0.394A 39.968 80.594% 0 <6.0 0.551
12.089V 5.092V 3.343V 5.080V 49.592 230.31V
3 3.686A 1.474A 1.484A 0.592A 60.001 84.556% 0 <6.0 0.669
12.086V 5.087V 3.338V 5.068V 70.960 230.30V
4 4.912A 1.967A 1.981A 0.791A 79.953 86.967% 0 <6.0 0.741
12.083V 5.082V 3.334V 5.058V 91.935 230.30V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load44.90mV7.90mV11.30mV4.10mVPass
20% Load19.90mV11.00mV12.70mV5.30mVPass
30% Load17.00mV10.60mV13.70mV5.50mVPass
40% Load18.50mV11.70mV15.60mV5.70mVPass
50% Load18.80mV11.30mV16.70mV5.20mVPass
60% Load19.20mV12.30mV17.90mV5.40mVPass
70% Load21.40mV14.00mV19.30mV6.40mVPass
80% Load21.90mV15.30mV24.00mV7.00mVPass
90% Load22.90mV16.20mV26.40mV7.30mVPass
100% Load29.10mV18.60mV26.00mV7.90mVPass
110% Load29.60mV19.20mV25.40mV8.20mVPass
Crossload157.50mV14.20mV20.70mV6.10mVPass
Crossload228.10mV15.60mV19.40mV7.30mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load8.90mV9.30mV11.70mV4.40mVPass
20% Load16.10mV10.60mV14.00mV5.70mVPass
30% Load26.40mV10.10mV16.60mV5.20mVPass
40% Load17.90mV11.00mV15.60mV5.60mVPass
50% Load18.30mV11.80mV16.30mV5.30mVPass
60% Load19.70mV13.50mV19.10mV5.80mVPass
70% Load21.20mV14.20mV19.20mV6.00mVPass
80% Load21.50mV15.00mV23.60mV7.10mVPass
90% Load21.80mV15.80mV26.30mV7.20mVPass
100% Load27.30mV17.70mV27.50mV7.40mVPass
110% Load27.90mV17.60mV25.00mV7.40mVPass
Crossload112.90mV12.70mV19.20mV5.60mVPass
Crossload226.30mV15.20mV18.30mV6.50mVPass

The results above are not used in the certification process

SilverStone Strider Titanium 1300W

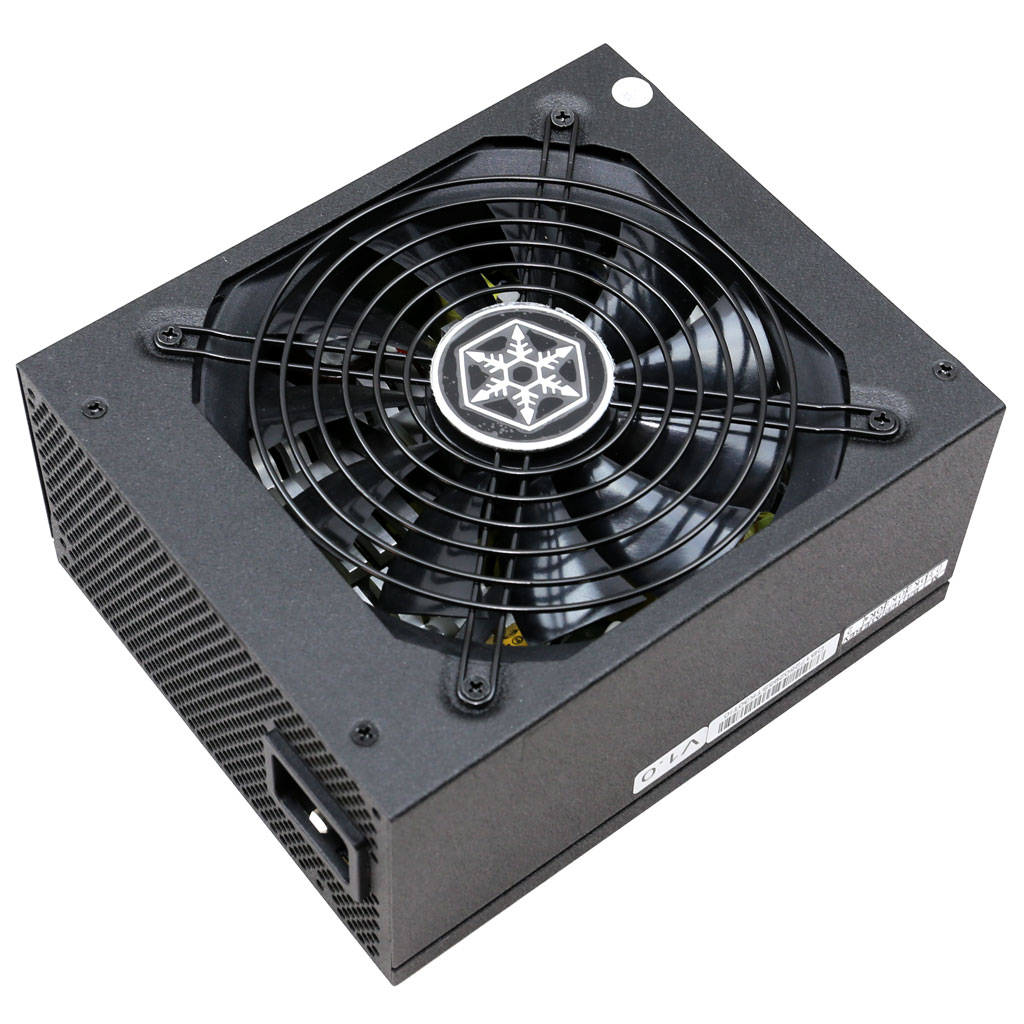

Top side

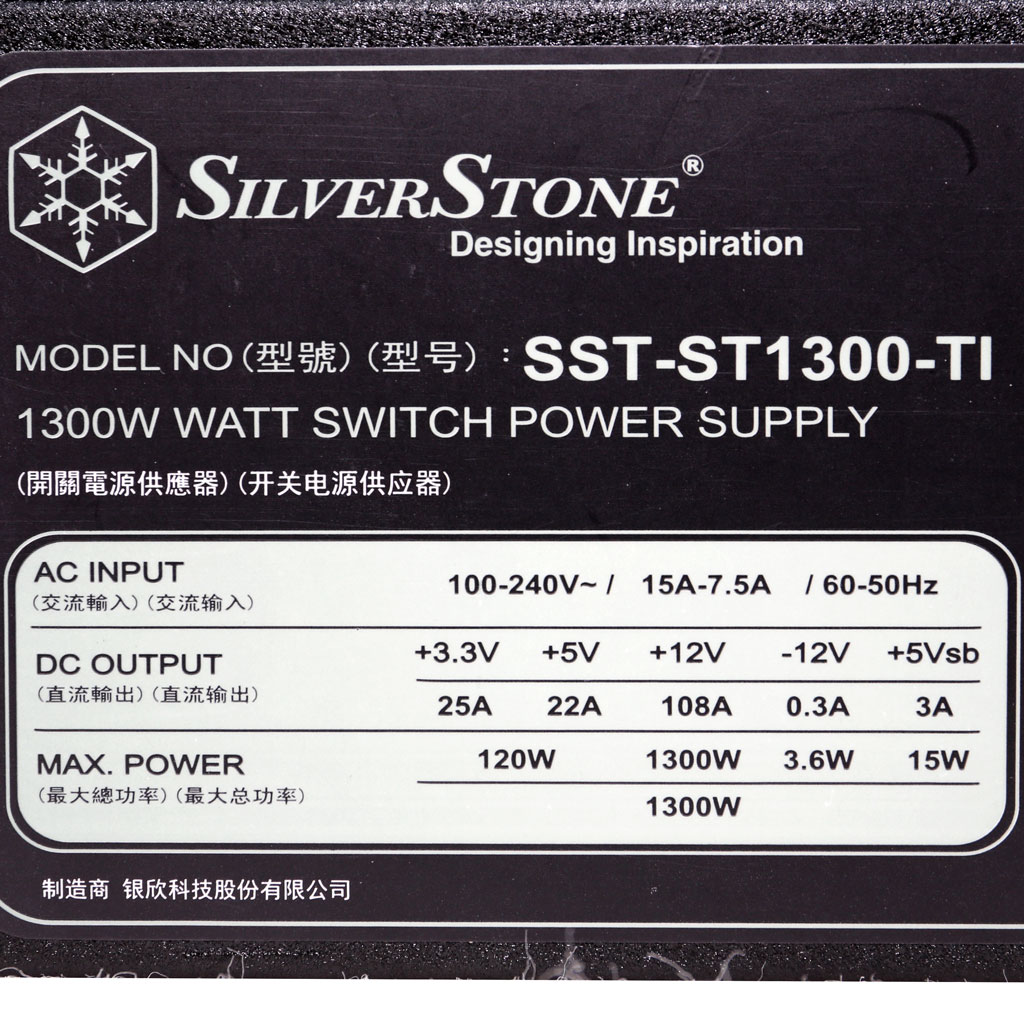

Power specifications label
