CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
SilverStone Strider Titanium 1100W
Serial NumberDB17250307STK10TI0
Lab IDSL11001660
  • Report: 20PS1660A
  • Receipt Date: Mar 2, 2018
  • Test Date: May 28, 2020
  • Report Date: Jun 19, 2020
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandSilverStone
Manufacturer (OEM)Enhance Electronics
SeriesStrider Titanium
Model NumberST1100-TI
Serial NumberDB17250307STK10TI0
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)12-6
Rated Frequency (Hz)50-60
Rated Power (W)1100
TypeATX12V
Cooling140mm Double Ball-Bearing Fan
(D14BH-12)
Semi-Passive Operation✓
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps25229230.3
Watts1201100153.6
Total Max. Power (W)1100

Test Equipment

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (550mm) 1 1 16-22AWG No
4+4 pin EPS12V (750mm) 1 1 16AWG No
4+4 pin EPS12V (550mm) 1 1 16AWG No
6+2 pin PCIe (550mm) 8 8 16AWG No
SATA (600mm+140mm+140mm140mm) 4 16 18AWG No
4 pin Molex (600mm+150mm+150mm) 2 6 18AWG No
FDD Adapter (+120mm) 1 1 22AWG No
AC Power Cord (1380mm) - C19 coupler 1 1 16AWG -

Parts Description

General Data
Manufacturer (OEM) Enhance Electronics
Primary Side
Transient Filter 6x Y caps, 4x X caps, 2x CM chokes, 1x MOV, 1x CM02X
Inrush Protection NTC Thermistor & Relay
Bridge Rectifier(s) 2x
APFC MOSFETS 2x Infineon IPP60R190C6 (650V, 12.8A @ 100°C, 0.19Ohm)
APFC Boost Diode 2x CREE C3D08060A (600V, 8A @ 152°C)
Hold-up Cap(s) 2x Nippon Chemi-Con (420V, 470uF, 2000h @ 105°C, KMQ)
Main Switchers 4x Infineon IPP60R190C6 (650V, 12.8A @ 100°C, 0.19Ohm)
Driver ICs 2x Silicon Labs Si8230BD
APFC Controller Champion CM6502S & CM03X Green PFC controller
LLC Resonant Controller Champion CM6901T6X
Topology Primary side: Full-Bridge & LLC Resonant Controller
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS 8x Infineon BSC014N04LS (40V, 100A @ 100°C, 1.4mOhm)
5V & 3.3V 2x DC-DC Converters
Filtering Capacitors Electrolytics: 5x Rubycon (6-10,000h @ 105°C, ZLH), 8x Suncon (105°C), 1x Nippon Chemi-Con (4000-1000h @105°C, KY)
Polymers: Unicon (UPH, 2,000h @ 125°C)
Supervisor IC SITI PS223 (OVP, UVP, OCP, SCP, OTP)
Fan Model Yate Loon D14BH (140mm, 12V, 0.7A, 2800 RPM, 140 CFM, 48.5 dBA, Double Ball Bearing)
5VSB Circuit
Rectifier 1x PFR10V45CT SBR (45V, 10A)
Standby PWM Controller Sanken STR-A6062H

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 ReadyErP Lot 3/6 2010: ✓
ErP Lot 3/6 2013: ✓
ErP Lot 3/6 2014, CEC: Partially
(EU) No 617/2013 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)10.8
AC Loss to PWR_OK Hold Up Time (ms)14.2
PWR_OK Inactive to DC Loss Delay (ms)-3.4

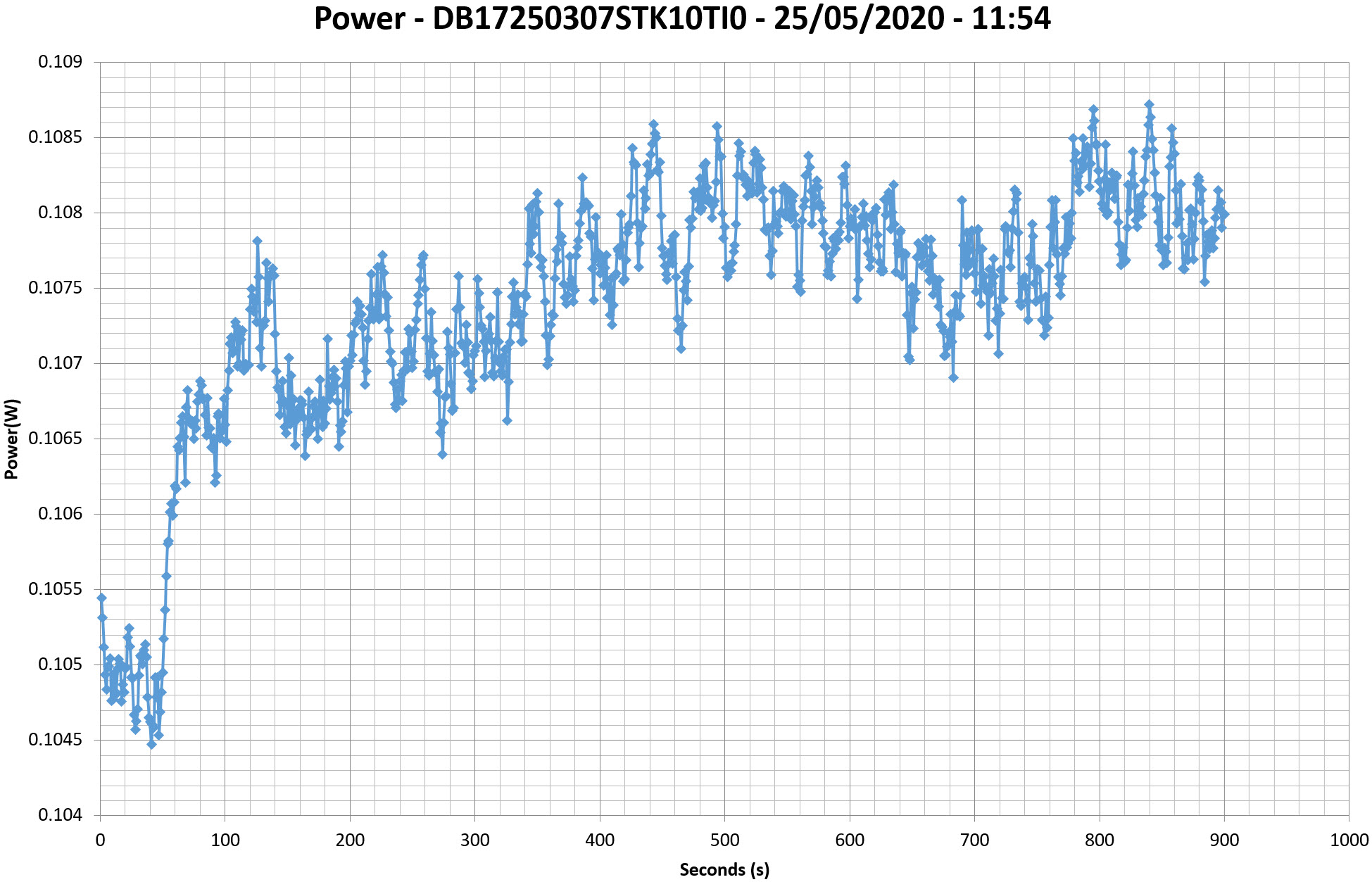

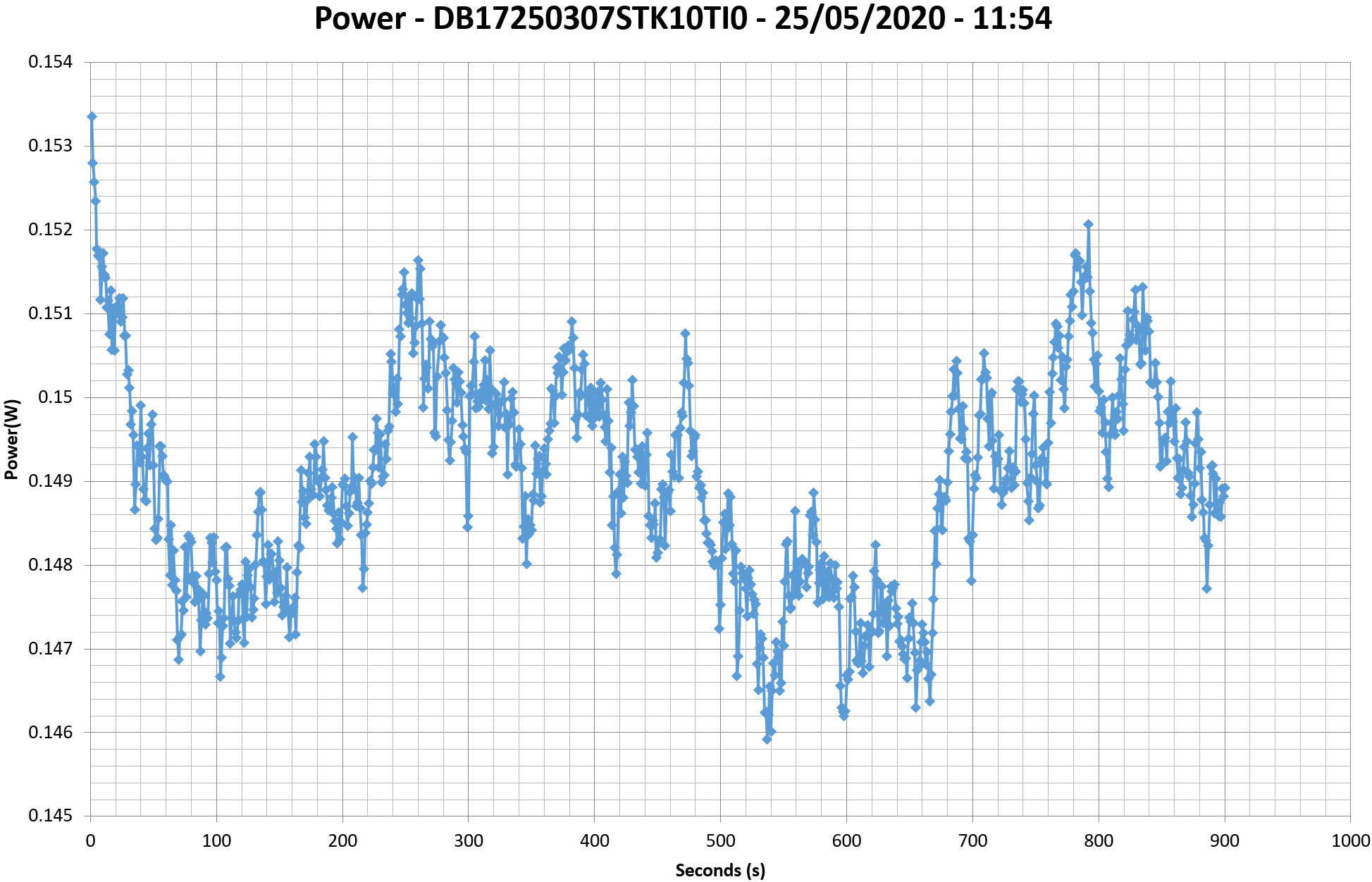

Vampire Power

Graphs

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

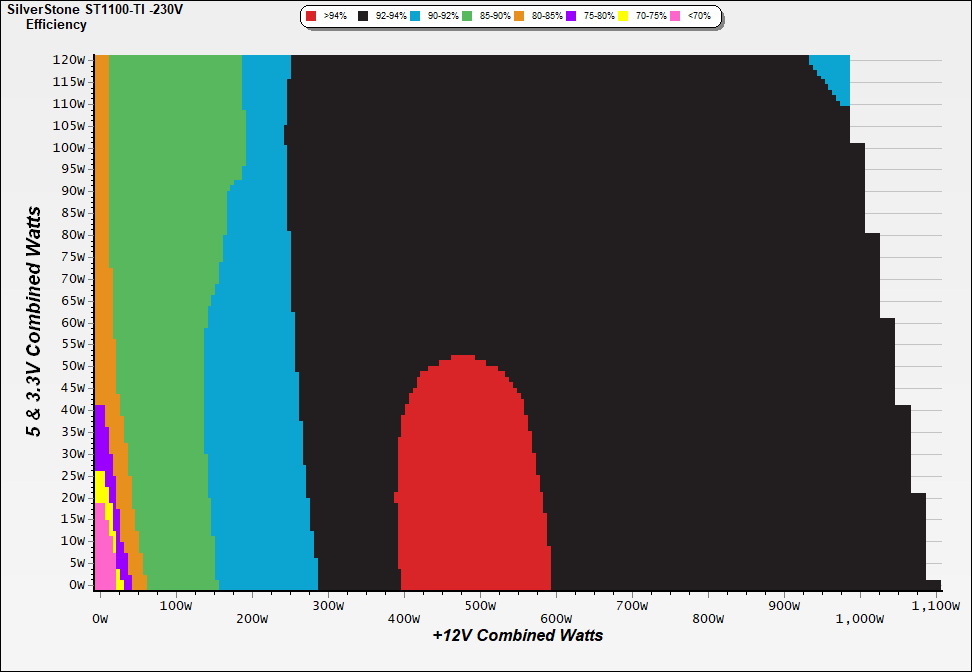

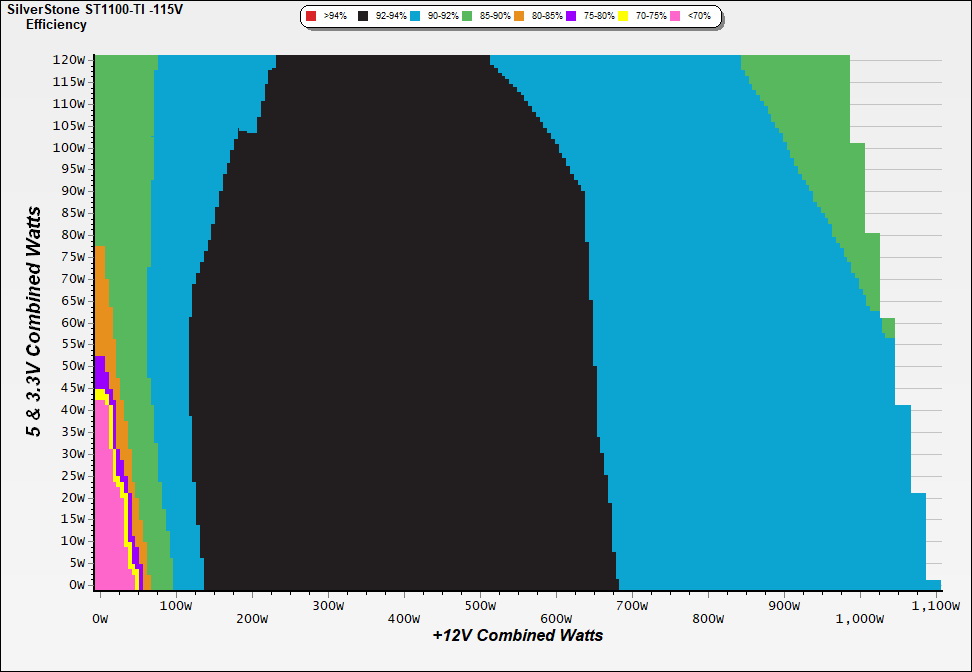

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

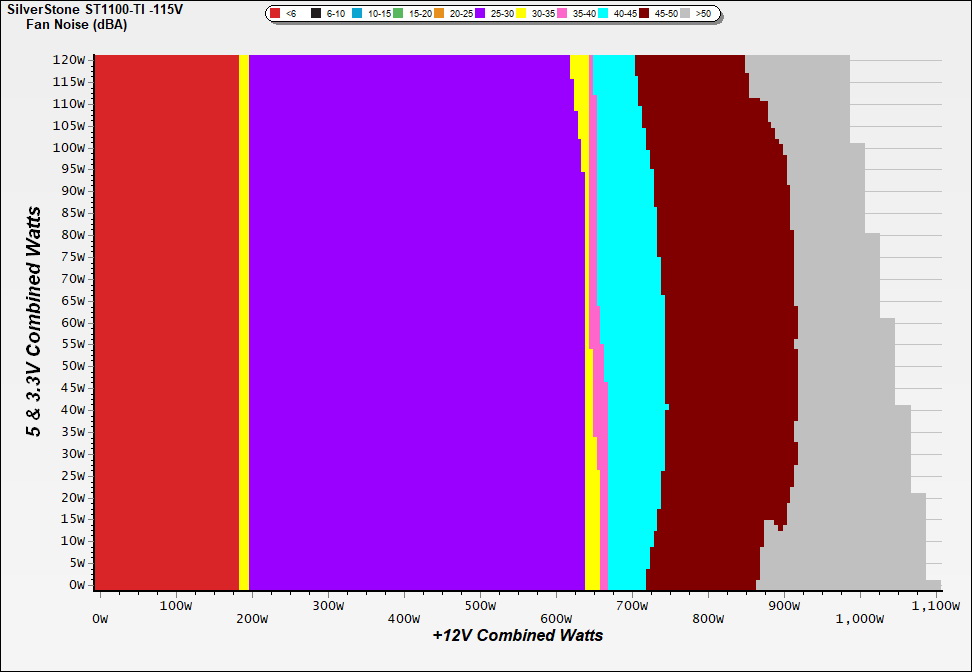

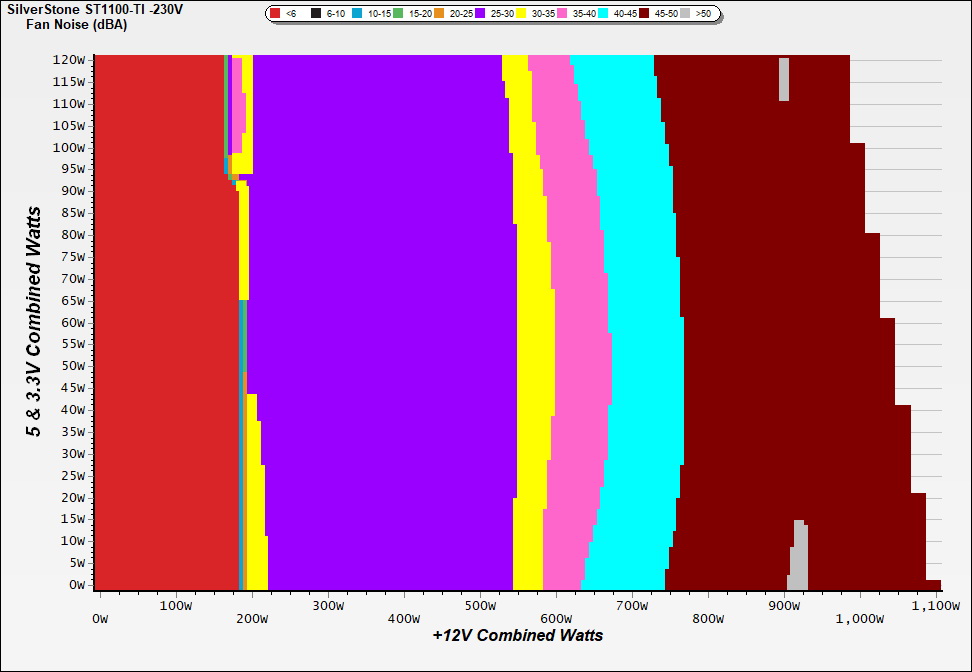

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

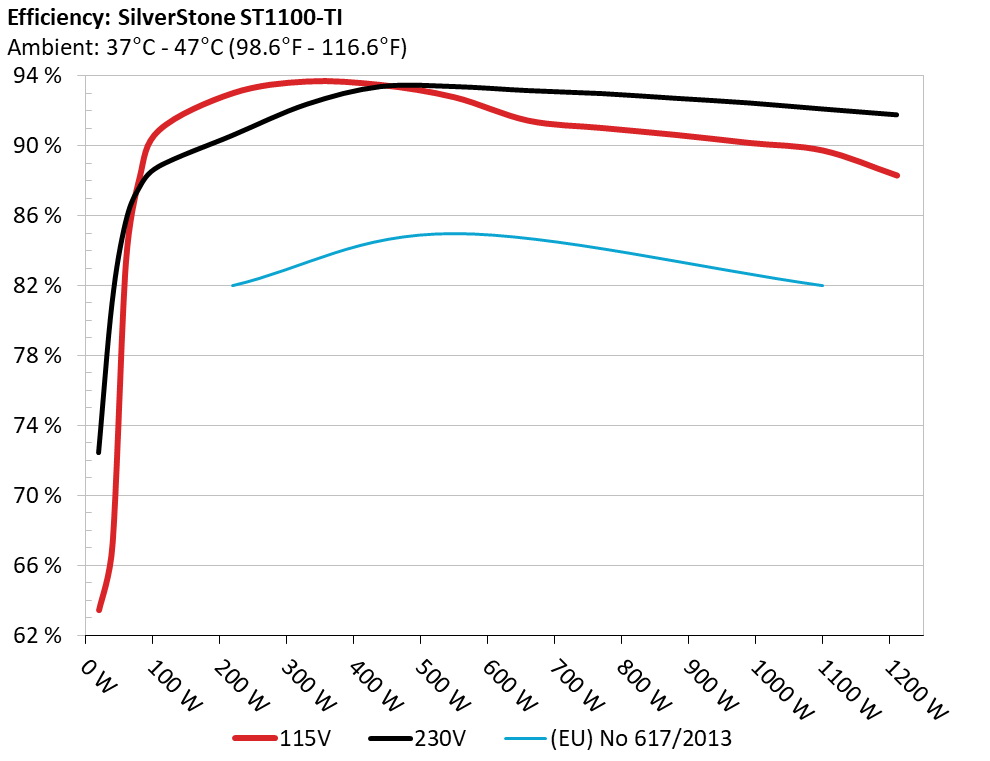

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

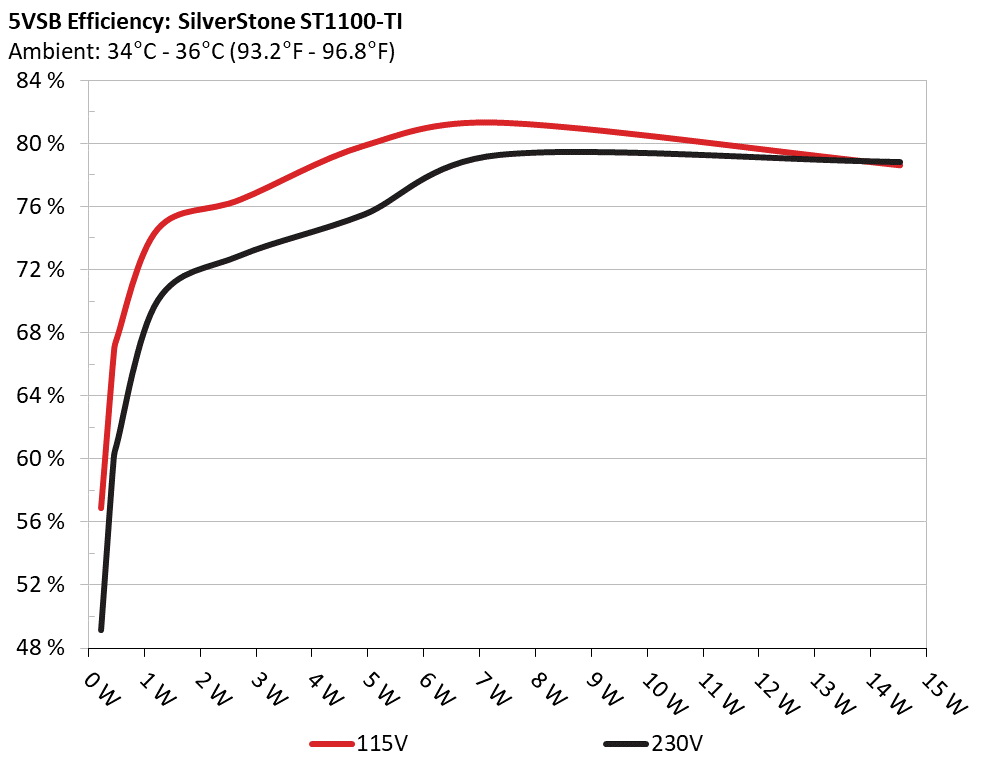

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.224 56.853% 0.019
4.971V 0.394 115.13V
2 0.090A 0.447 66.518% 0.032
4.969V 0.672 115.13V
3 0.550A 2.722 76.439% 0.161
4.949V 3.561 115.12V
4 1.000A 4.930 79.851% 0.256
4.929V 6.174 115.13V
5 1.500A 7.363 81.314% 0.335
4.908V 9.055 115.13V
6 3.000A 14.519 78.609% 0.479
4.839V 18.470 115.13V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.224 49.123% 0.007
4.971V 0.456 230.26V
2 0.090A 0.447 59.920% 0.011
4.969V 0.746 230.26V
3 0.550A 2.722 72.917% 0.054
4.949V 3.733 230.26V
4 1.000A 4.930 75.509% 0.092
4.929V 6.529 230.26V
5 1.500A 7.362 79.298% 0.128
4.907V 9.284 230.26V
6 3.001A 14.523 78.839% 0.232
4.840V 18.421 230.26V

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 7.278A 1.981A 1.987A 0.998A 110.016 90.912% 0 <6.0 43.29°C 0.946
12.149V 5.046V 3.320V 5.012V 121.014 39.82°C 115.13V
2 15.596A 2.981A 2.997A 1.202A 220.061 93.019% 941 28.1 40.97°C 0.975
12.129V 5.030V 3.304V 4.992V 236.577 44.83°C 115.12V
3 24.275A 3.488A 3.511A 1.408A 330.057 93.678% 943 28.1 41.00°C 0.983
12.111V 5.018V 3.292V 4.973V 352.330 45.37°C 115.12V
4 32.963A 3.995A 4.025A 1.615A 439.787 93.483% 974 29.0 41.61°C 0.988
12.092V 5.006V 3.279V 4.954V 470.446 46.46°C 115.12V
5 41.367A 5.012A 5.058A 1.824A 549.898 92.778% 1541 42.1 42.45°C 0.990
12.072V 4.990V 3.263V 4.935V 592.700 48.20°C 115.11V
6 49.800A 6.035A 6.100A 2.000A 659.872 91.443% 2042 49.2 42.60°C 0.992
12.053V 4.972V 3.245V 4.916V 721.625 49.32°C 115.11V
7 58.272A 7.067A 7.164A 2.249A 770.194 91.023% 2090 50.5 43.40°C 0.992
12.031V 4.955V 3.225V 4.892V 846.151 50.73°C 115.11V
8 66.753A 8.004A 8.231A 2.464A 879.779 90.630% 2082 50.3 43.62°C 0.992
12.012V 4.939V 3.208V 4.872V 970.738 51.73°C 115.11V
9 75.640A 8.632A 8.762A 2.469A 989.973 90.167% 2083 50.3 44.82°C 0.992
11.997V 4.926V 3.195V 4.862V 1097.927 53.64°C 115.11V
10 84.281A 9.163A 9.337A 3.113A 1100.002 89.732% 2080 50.2 45.45°C 0.993
11.987V 4.913V 3.181V 4.821V 1225.869 55.10°C 115.10V
11 97.557A 9.188A 9.376A 3.123A 1210.270 88.306% 2033 49.3 46.85°C 0.994
11.486V 4.900V 3.168V 4.805V 1370.534 57.68°C 115.10V
CL1 0.096A 14.003A 13.999A 0.000A 116.705 83.220% 2073 50.1 42.11°C 0.956
12.148V 4.986V 3.266V 5.084V 140.237 48.41°C 115.13V
CL2 91.683A 1.000A 0.999A 1.000A 1113.169 90.152% 2082 50.3 45.28°C 0.993
11.998V 4.980V 3.246V 4.933V 1234.773 55.75°C 115.10V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 7.286A 1.981A 1.988A 0.998A 110.029 88.848% 0 <6.0 44.03°C 0.812
12.137V 5.047V 3.319V 5.012V 123.839 40.55°C 230.29V
2 15.608A 2.983A 3.000A 1.202A 220.085 90.626% 956 28.2 40.97°C 0.914
12.120V 5.030V 3.303V 4.993V 242.851 45.16°C 230.29V
3 24.297A 3.489A 3.512A 1.408A 330.083 92.395% 1537 41.9 41.49°C 0.944
12.101V 5.018V 3.290V 4.974V 357.251 46.30°C 230.29V
4 32.969A 3.997A 4.029A 1.615A 439.874 93.408% 1628 43.9 41.84°C 0.959
12.092V 5.006V 3.277V 4.954V 470.915 47.32°C 230.29V
5 41.378A 5.014A 5.062A 1.825A 549.996 93.413% 1856 46.8 42.00°C 0.968
12.071V 4.989V 3.260V 4.934V 588.782 48.29°C 230.28V
6 49.813A 6.038A 6.107A 2.000A 659.952 93.181% 2070 50.1 42.85°C 0.975
12.051V 4.972V 3.243V 4.915V 708.249 49.63°C 230.28V
7 58.276A 7.069A 7.162A 2.249A 770.255 93.010% 2084 50.3 43.09°C 0.978
12.031V 4.955V 3.226V 4.893V 828.145 50.34°C 230.28V
8 66.754A 8.003A 8.228A 2.464A 879.851 92.743% 2073 50.1 43.44°C 0.981
12.013V 4.939V 3.209V 4.872V 948.699 51.57°C 230.28V
9 75.645A 8.634A 8.762A 2.470A 990.047 92.474% 2070 50.1 44.76°C 0.984
11.997V 4.925V 3.196V 4.862V 1070.619 53.69°C 230.28V
10 84.256A 9.167A 9.338A 3.114A 1100.057 92.126% 2065 49.9 45.30°C 0.986
11.991V 4.912V 3.181V 4.820V 1194.084 54.83°C 230.28V
11 93.442A 9.183A 9.368A 3.120A 1210.117 91.794% 2064 49.9 46.62°C 0.987
11.990V 4.903V 3.172V 4.810V 1318.290 57.30°C 230.28V
CL1 0.102A 14.004A 14.001A 0.000A 116.691 81.206% 2054 49.6 42.36°C 0.843
12.136V 4.985V 3.260V 5.083V 143.698 48.77°C 230.29V
CL2 91.700A 1.000A 0.998A 1.000A 1113.735 92.518% 2060 49.8 44.94°C 0.986
12.002V 4.979V 3.247V 4.932V 1203.798 54.73°C 230.27V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.223A 0.493A 0.493A 0.198A 20.001 63.469% 0 <6.0 0.818
12.150V 5.062V 3.338V 5.055V 31.513 115.14V
2 2.444A 0.989A 0.989A 0.397A 39.990 67.212% 0 <6.0 0.895
12.148V 5.057V 3.333V 5.045V 59.498 115.14V
3 3.666A 1.485A 1.487A 0.596A 60.020 83.350% 0 <6.0 0.924
12.157V 5.053V 3.328V 5.034V 72.010 115.13V
4 4.885A 1.981A 1.986A 0.797A 79.970 88.103% 0 <6.0 0.931
12.153V 5.048V 3.323V 5.023V 90.769 115.13V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.222A 0.493A 0.496A 0.198A 20.000 72.461% 0 <6.0 0.347
12.150V 5.063V 3.337V 5.056V 27.601 230.29V
2 2.444A 0.988A 0.991A 0.397A 39.991 81.012% 0 <6.0 0.543
12.147V 5.059V 3.332V 5.046V 49.364 230.29V
3 3.670A 1.484A 1.488A 0.596A 60.023 85.614% 0 <6.0 0.659
12.145V 5.054V 3.327V 5.035V 70.109 230.29V
4 4.890A 1.981A 1.987A 0.796A 79.975 87.582% 0 <6.0 0.737
12.142V 5.049V 3.321V 5.024V 91.314 230.29V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load14.30mV9.70mV12.60mV4.10mVPass
20% Load13.20mV10.90mV13.70mV5.80mVPass
30% Load14.60mV11.70mV14.10mV6.10mVPass
40% Load15.50mV12.10mV15.30mV6.20mVPass
50% Load19.80mV11.10mV15.80mV5.40mVPass
60% Load15.80mV10.50mV16.00mV4.90mVPass
70% Load17.50mV11.30mV17.40mV5.20mVPass
80% Load17.60mV11.70mV19.00mV5.40mVPass
90% Load18.60mV12.40mV21.70mV5.70mVPass
100% Load24.20mV13.30mV21.00mV6.20mVPass
110% Load513.20mV20.70mV26.30mV14.40mVFail
Crossload120.20mV13.50mV18.10mV5.30mVPass
Crossload223.50mV12.10mV19.20mV6.50mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load7.30mV10.20mV14.10mV4.30mVPass
20% Load10.70mV11.20mV15.30mV5.50mVPass
30% Load10.30mV10.60mV16.50mV4.70mVPass
40% Load15.40mV10.80mV16.30mV4.70mVPass
50% Load14.60mV11.10mV17.50mV5.30mVPass
60% Load15.80mV11.30mV17.40mV5.30mVPass
70% Load16.50mV11.60mV18.80mV5.20mVPass
80% Load17.30mV12.20mV21.90mV5.70mVPass
90% Load17.50mV12.20mV22.90mV5.70mVPass
100% Load23.80mV14.80mV24.40mV6.50mVPass
110% Load25.30mV14.60mV23.60mV6.70mVPass
Crossload19.70mV13.30mV20.40mV5.40mVPass
Crossload223.30mV11.90mV20.50mV6.40mVPass

The results above are not used in the certification process

SilverStone Strider Titanium 1100W

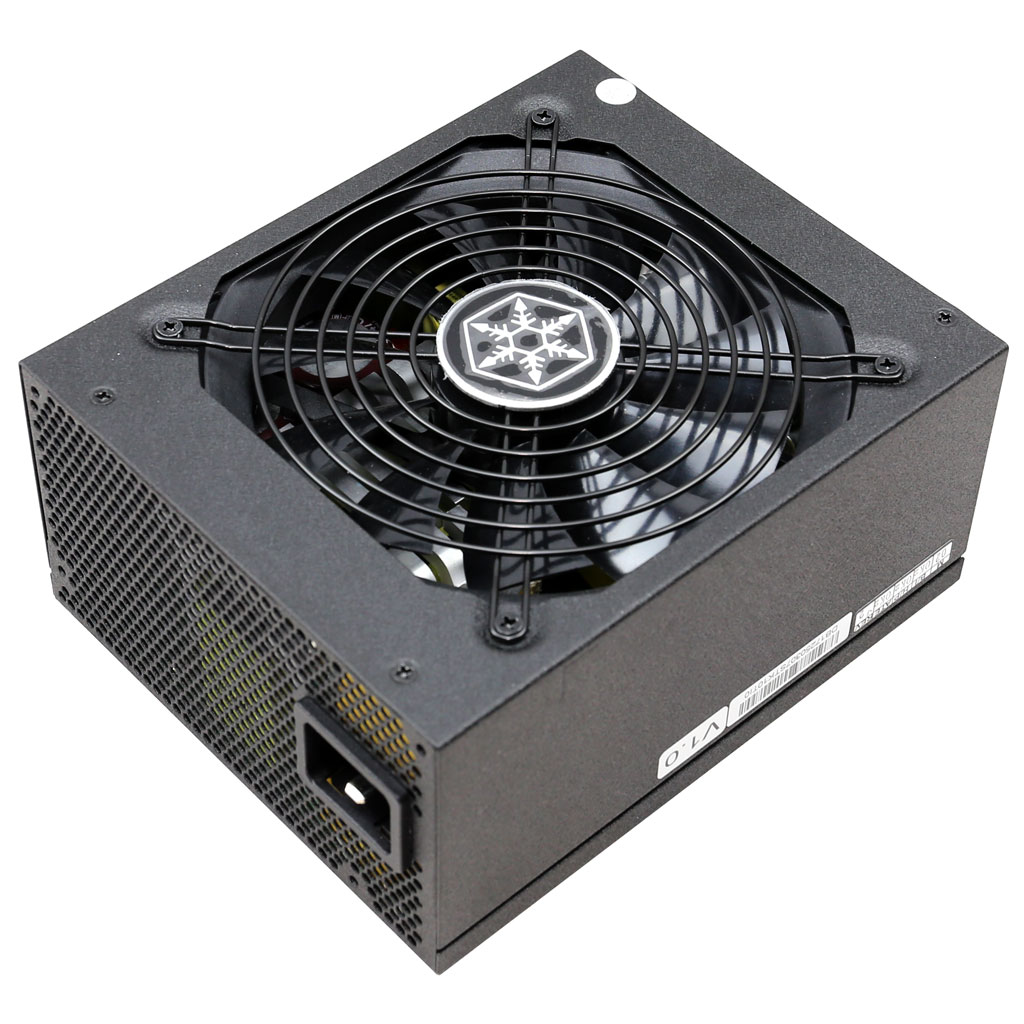

Top side

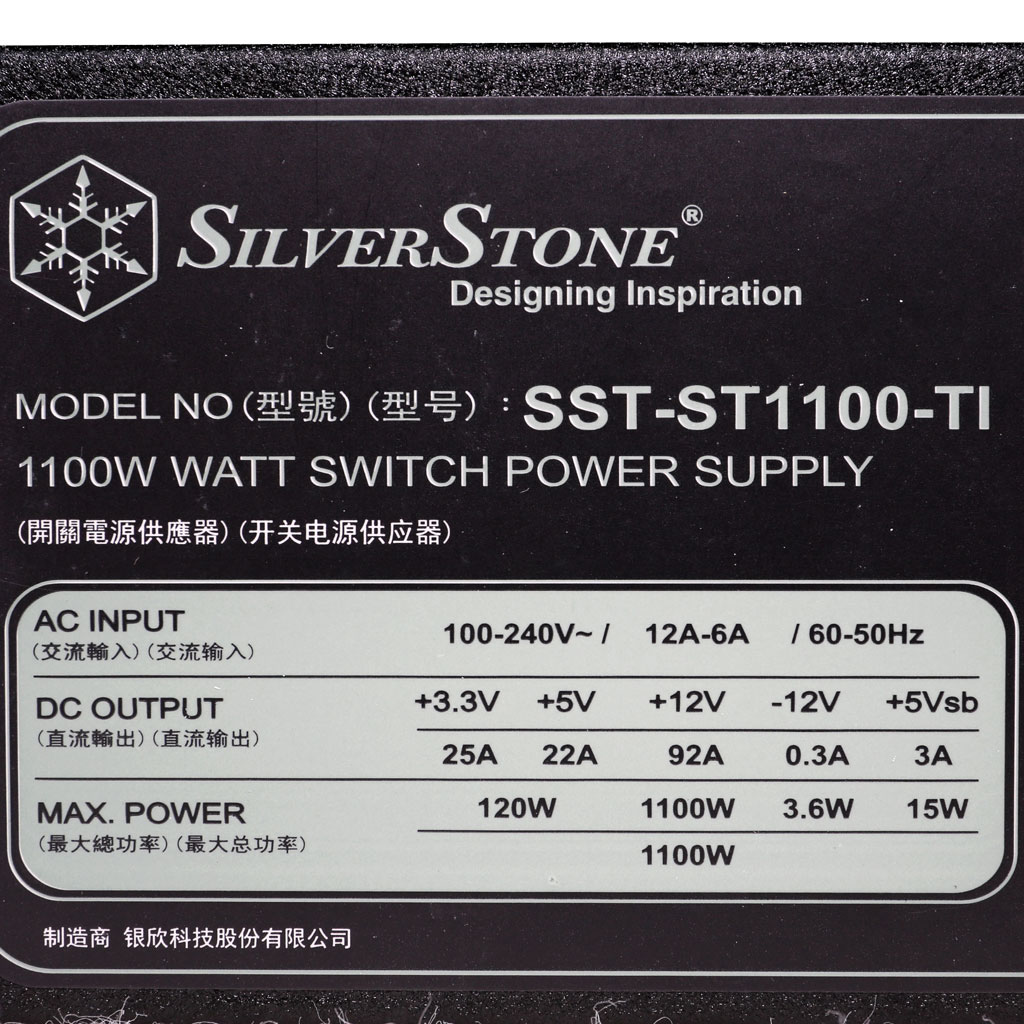

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
