CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Antec Signature Platinum 1300W
Serial NumberSP1300GSN200200023
Lab IDAN13001657
  • Report: 20PS1657A
  • Receipt Date: May 14, 2020
  • Test Date: May 21, 2020
  • Report Date: Jun 1, 2020
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandAntec
Manufacturer (OEM)Seasonic
SeriesSignature Platinum
Model NumberX8000A506-18
Serial NumberSP1300GSN200200023
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)15-7.5
Rated Frequency (Hz)50-60
Rated Power (W)1300
TypeATX12V
Cooling135mm Fluid Dynamic Bearing Fan
(HA13525H12F-Z)
Semi-Passive Operation✗
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps252510830.3
Watts1251296153.6
Total Max. Power (W)1300

Test Equipment

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 18-22AWG Yes
4+4 pin EPS12V (650mm) 2 2 18AWG Yes
6+2 pin PCIe (670mm+70mm) 6 12 18AWG Yes
SATA (400mm+115mm+115mm+115mm) 2 8 18AWG No
SATA (350mm+150mm+150mm+150mm) 1 4 18AWG No
4-pin Molex (450mm+120mm+120mm) 1 3 18AWG No
4-pin Molex (350mm+120mm) 1 2 18AWG No
FDD Adapter (105mm) 1 1 22AWG No
4 pin Molex to SATA 3.3V Adapter (150mm+150mm) 1 1 18AWG No
OC Link Cable (460mm) 1 1 24AWG No
AC Power Cord (1400mm) - C13 coupler 1 1 14AWG -

Parts Description

General Data -
Manufacturer (OEM) Seasonic
PCB Type Double Sided
Primary Side -
Transient Filter 6x Y caps, 3x X caps, 2x CM chokes, 1x MOV, 1x CMD02X (Discharge IC)
Inrush Protection NTC Thermistor (MF72 5D-20) & Relay
Bridge Rectifier(s) 2x Vishay LVB2560 (600V, 25A @ 105°C)
APFC MOSFETs 2x Infineon IPP60R099C6 (650V, 24A @ 100°C, Rds(on): 0.099Ohm)
APFC Boost Diode 1x STMicro STPSC10H065D (650V, 10A @ 135°C)
Hold-up Cap(s) 1x Rubycon (400V, 820uF, 3,000h @ 105°C, MXK) & 1x Rubycon (400V, 470uF, 2,000h @ 105°C, MXH)
Main Switchers 4x Infineon IPP50R199CP (550V, 11A @ 100°C, Rds(on): 0.199Ohm)
IC Driver 2x Silicon Labs Si8230BD
APFC Controller ON Semiconductor NPC1654
Resonant Controller Champion CM6901T6X
Topology Primary side: APFC, Full-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side -
+12V MOSFETs 8x Nexperia PSMN1R0-40YLD (40V, 198A @ 100°C, Rds(on): 1.93mOhm)
5V & 3.3V DC-DC Converters: 6x Nexperia PSMN4R0-30YLD (30V, 67V @ 100°C, Rds(on): 6.6mOhm)
PWM Controllers: Anpec APW7159
Filtering Capacitors Electrolytic: 4x Nippon Chemi-Con (105°C, W), 2x Nippon Chemi-Con (4-10,000h @ 105°C, KY), 1x Nippon Chemi-Con (4-10,000h @ 105°C, KYB), 1x Nippon Chemi-Con (5-6,000h @ 105°C, KZH), 1x Nippon Chemi-Con (1-5,000h @ 105°C, KZE), 1x Rubycon (3-6,000h @ 105°C, YXG)
Polymer: 19x FPCAP, 14x NIC, 7x United Chemi-Con
Supervisor IC Weltrend WT7527V (OVP, UVP, OCP, SCP, PG )
Fan Model Hong Hua HA13525H12F-Z (135mm, 12V, 0.50A, Fluid Dynamic Bearing Fan)
5VSB Circuit -
Rectifier 1x STMicroelectronics STF6N65K3 FET (650V, 3A @ 100°C, 1.3Ohm)
Standby PWM Controller Leadtrend LD7750R
-12V Circuit -
Buck Converter Lite-On LSP5523 (3A max output current )

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)21
AC Loss to PWR_OK Hold Up Time (ms)17.7
PWR_OK Inactive to DC Loss Delay (ms)3.3

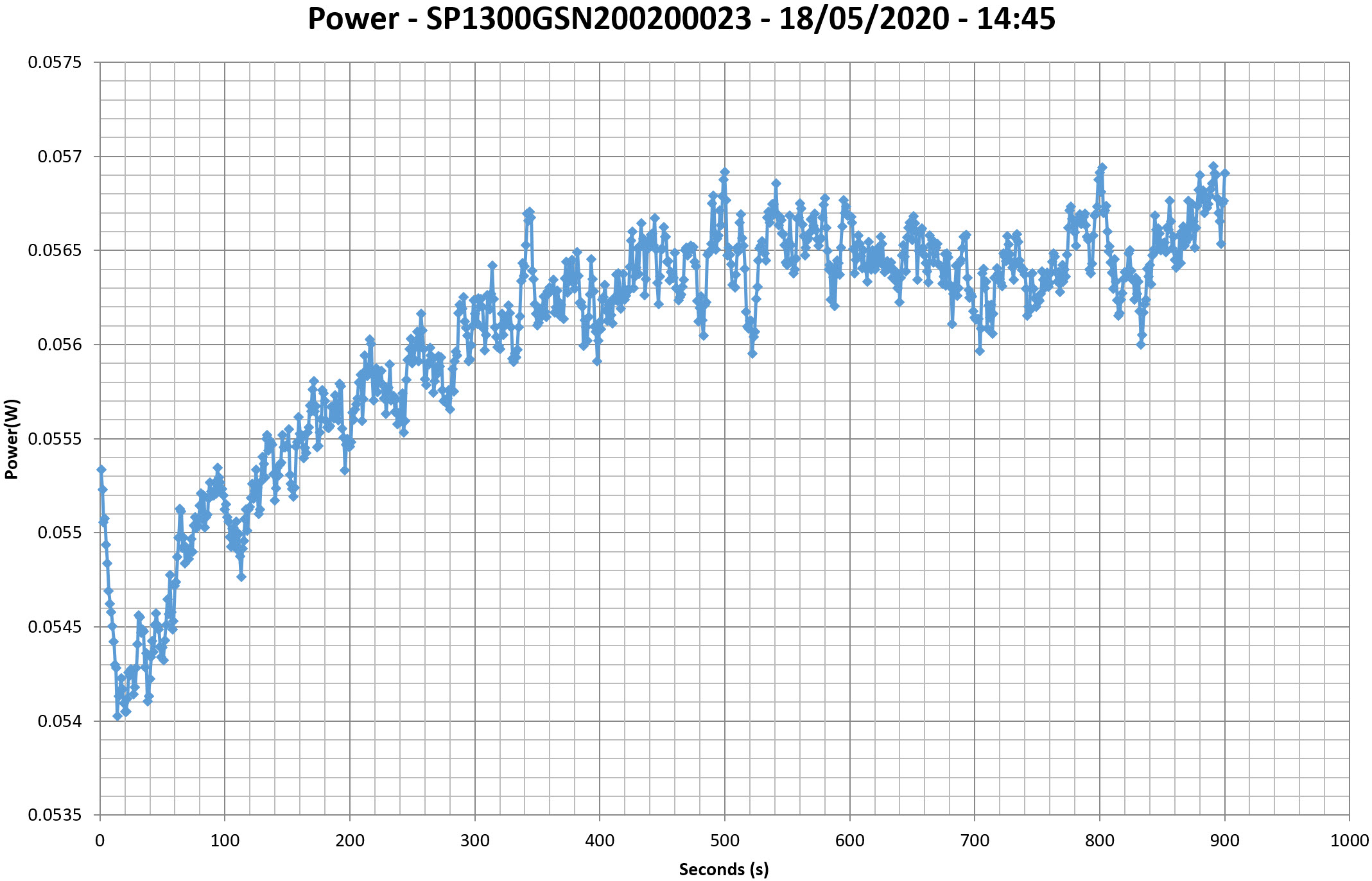

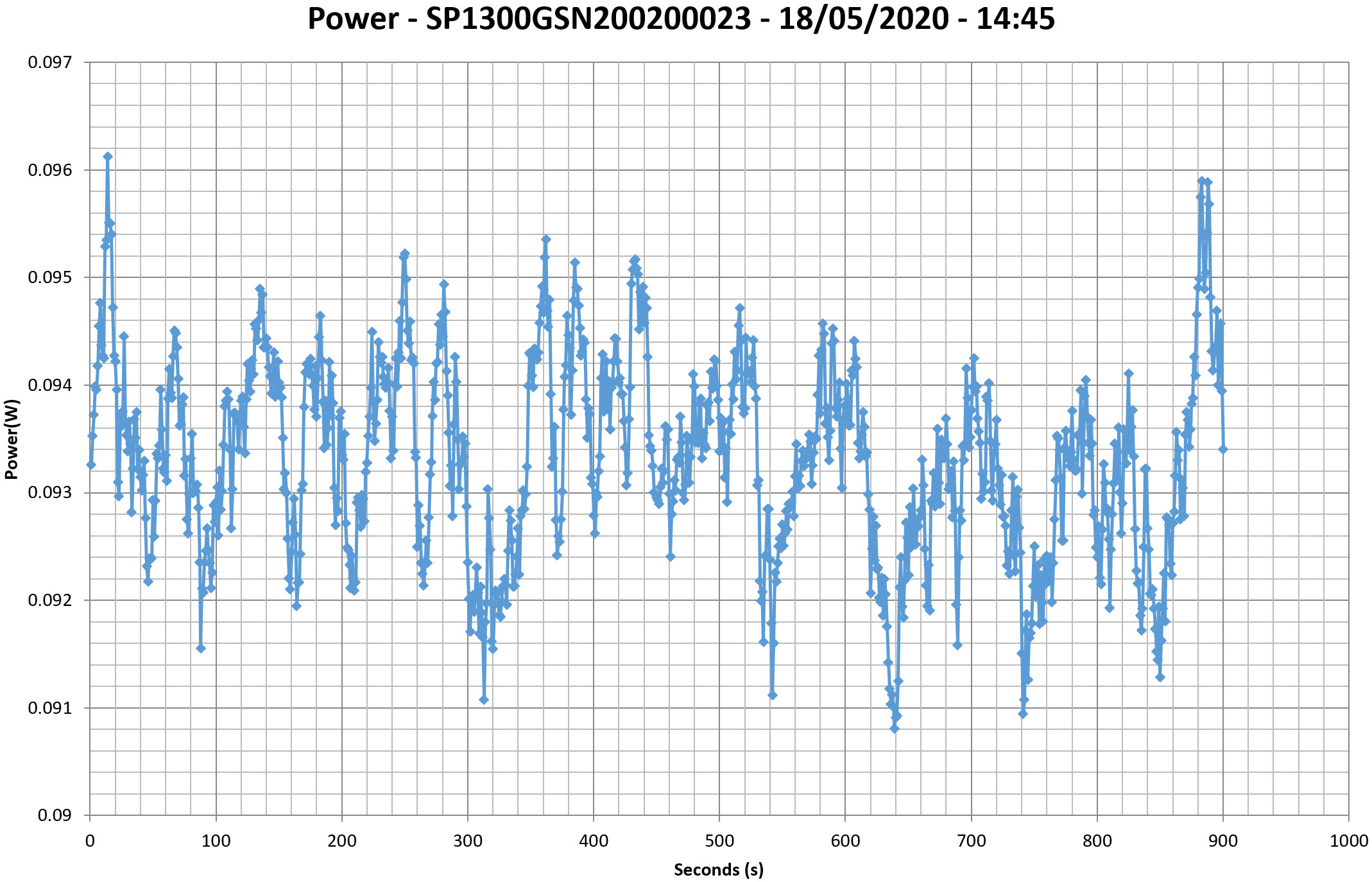

Vampire Power

Graphs

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

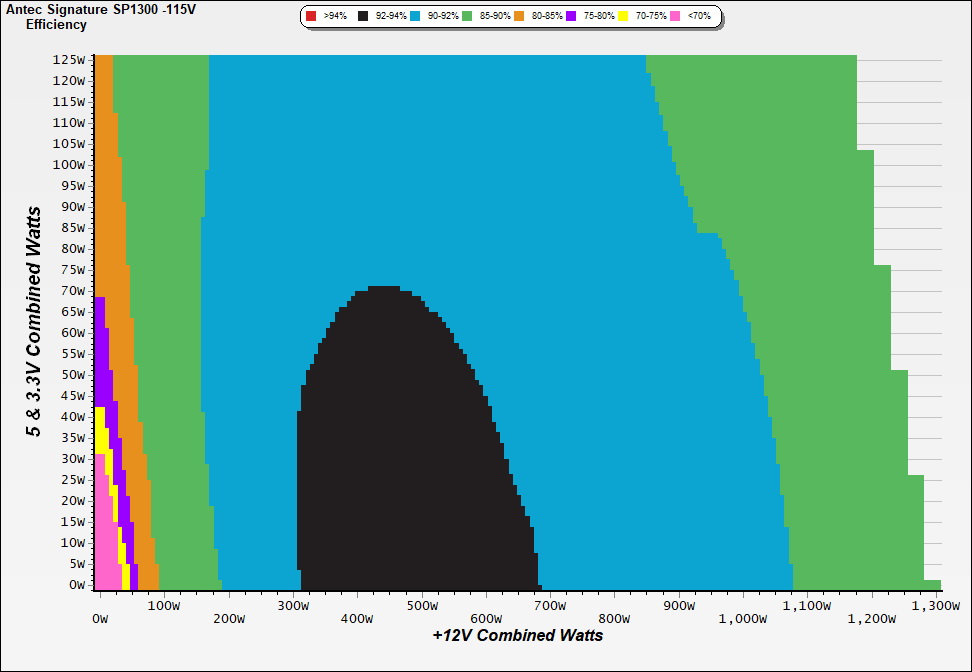

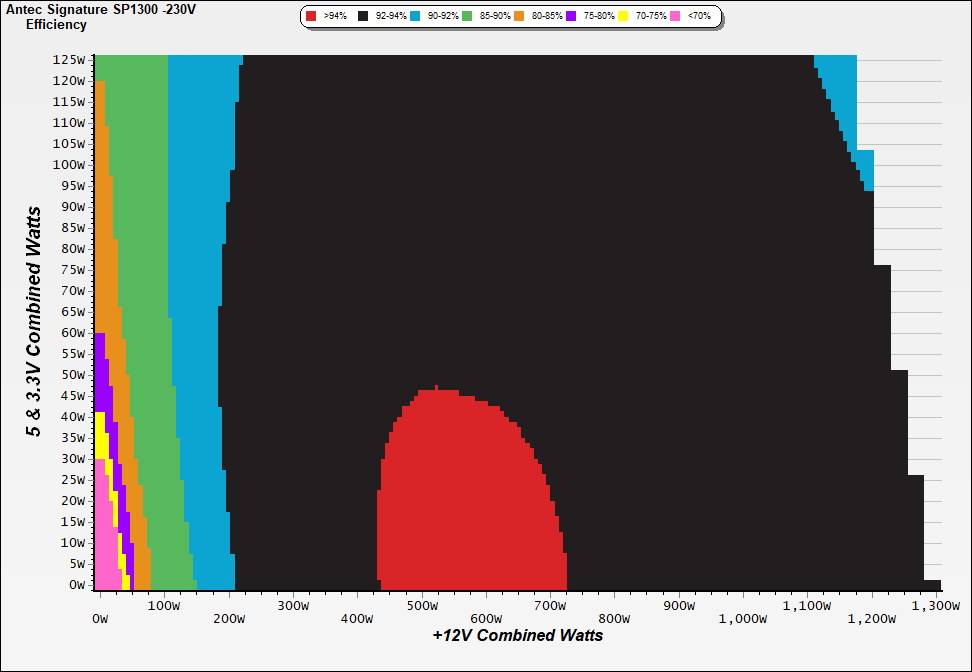

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

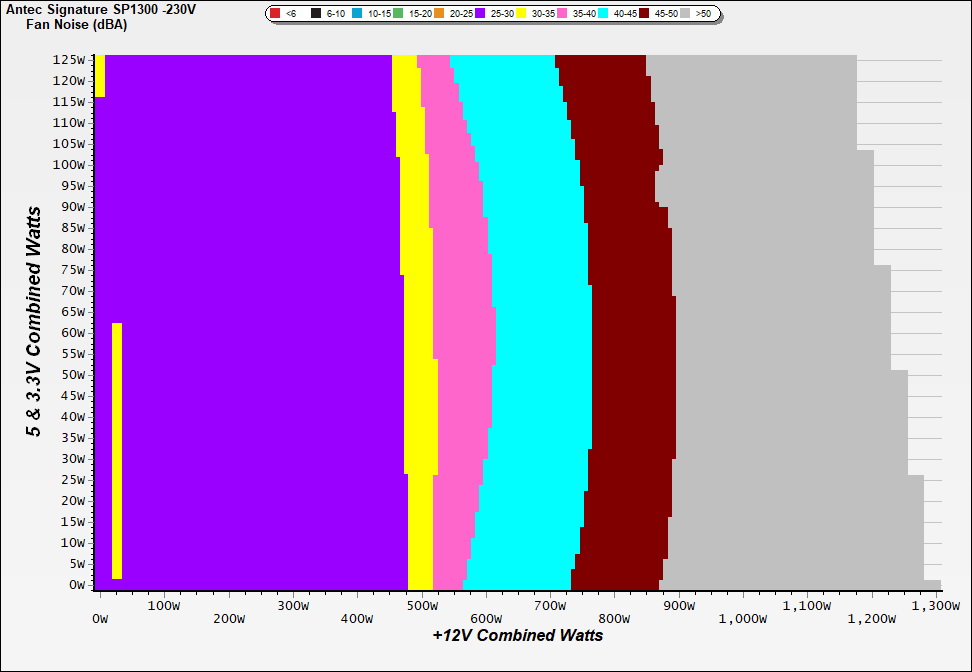

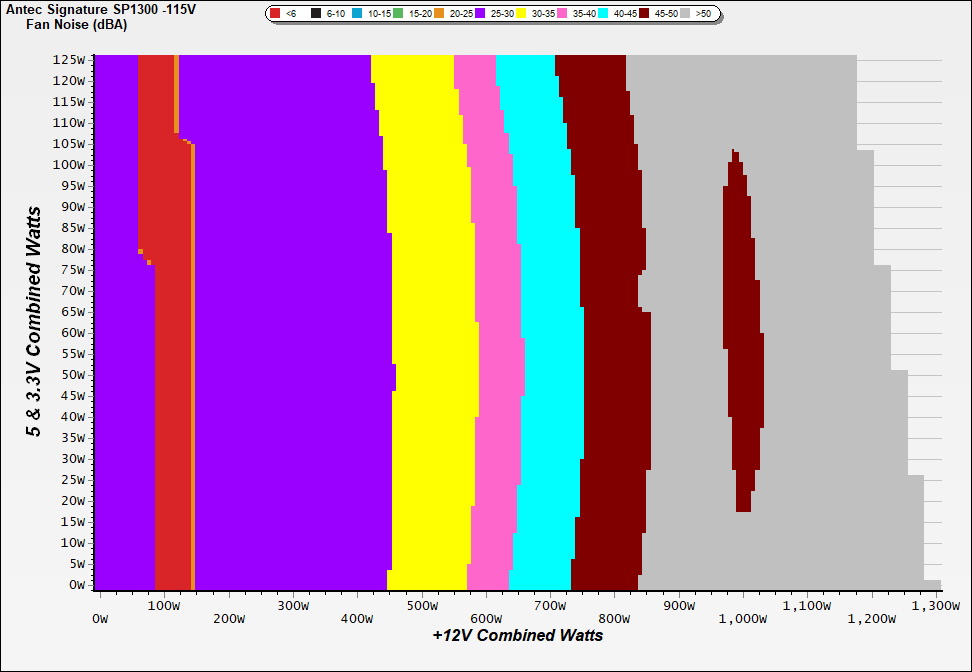

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

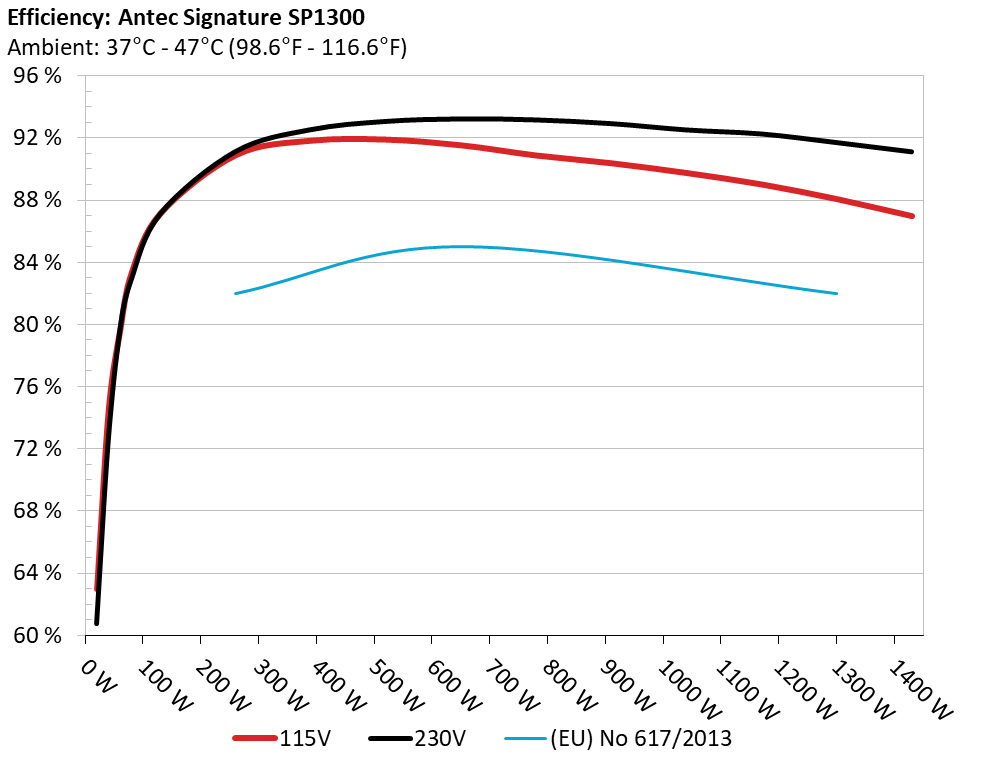

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

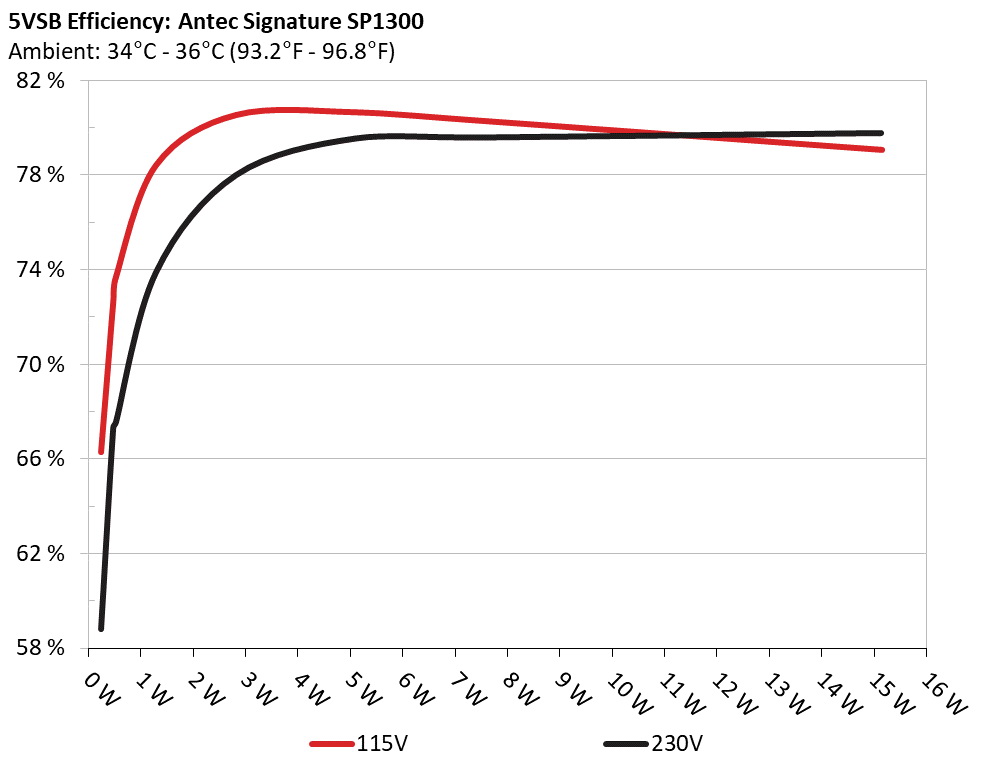

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.230 66.282% 0.036
5.119V 0.347 115.16V
2 0.090A 0.461 72.598% 0.065
5.118V 0.635 115.16V
3 0.550A 2.809 80.533% 0.269
5.107V 3.488 115.16V
4 1.000A 5.096 80.646% 0.362
5.097V 6.319 115.16V
5 1.500A 7.626 80.265% 0.415
5.084V 9.501 115.16V
6 2.999A 15.143 79.059% 0.487
5.049V 19.154 115.16V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.230 58.824% 0.012
5.119V 0.391 230.28V
2 0.090A 0.461 67.299% 0.022
5.118V 0.685 230.28V
3 0.550A 2.808 77.978% 0.107
5.107V 3.601 230.29V
4 1.000A 5.096 79.526% 0.174
5.096V 6.408 230.28V
5 1.500A 7.626 79.570% 0.234
5.084V 9.584 230.29V
6 2.999A 15.140 79.751% 0.337
5.048V 18.984 230.29V

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 8.804A 1.955A 1.964A 0.982A 129.982 87.170% 867 30.4 40.86°C 0.985
12.311V 5.113V 3.362V 5.089V 149.114 45.01°C 115.16V
2 18.613A 2.936A 2.947A 1.182A 260.008 90.917% 882 30.8 41.41°C 0.985
12.309V 5.110V 3.359V 5.075V 285.983 46.11°C 115.15V
3 28.723A 3.427A 3.440A 1.383A 389.515 91.844% 965 34.1 41.51°C 0.991
12.306V 5.107V 3.357V 5.061V 424.106 46.47°C 115.15V
4 38.877A 3.920A 3.934A 1.585A 519.511 91.915% 1386 42.8 41.82°C 0.994
12.303V 5.104V 3.355V 5.048V 565.206 47.82°C 115.14V
5 48.709A 4.902A 4.924A 1.788A 649.632 91.549% 1814 48.5 42.29°C 0.996
12.300V 5.101V 3.352V 5.034V 709.604 48.77°C 115.13V
6 58.550A 5.886A 5.912A 1.992A 779.796 90.895% 2259 53.6 42.85°C 0.997
12.297V 5.098V 3.349V 5.020V 857.911 49.81°C 115.13V
7 68.384A 6.872A 6.903A 2.196A 909.892 90.392% 2315 53.7 43.85°C 0.998
12.295V 5.095V 3.347V 5.006V 1006.608 51.32°C 115.11V
8 78.231A 7.859A 7.894A 2.403A 1040.027 89.765% 2314 53.7 43.92°C 0.998
12.292V 5.092V 3.344V 4.992V 1158.616 52.15°C 115.11V
9 88.460A 8.354A 8.378A 2.407A 1169.763 89.031% 2311 53.7 44.28°C 0.998
12.291V 5.089V 3.341V 4.984V 1313.890 53.17°C 115.10V
10 98.468A 8.850A 8.894A 3.024A 1299.777 88.083% 2313 53.7 45.86°C 0.998
12.289V 5.086V 3.339V 4.959V 1475.626 55.19°C 115.09V
11 109.069A 8.854A 8.897A 3.029A 1429.819 86.989% 2315 53.7 46.89°C 0.998
12.287V 5.083V 3.337V 4.950V 1643.680 56.81°C 115.08V
CL1 0.100A 15.001A 14.997A 0.000A 128.081 82.077% 2290 53.7 42.80°C 0.987
12.318V 5.104V 3.353V 5.103V 156.049 49.31°C 115.17V
CL2 108.016A 1.000A 0.999A 1.000A 1340.532 88.128% 2307 53.7 46.07°C 0.998
12.286V 5.092V 3.345V 5.013V 1521.123 56.49°C 115.09V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 8.801A 1.957A 1.962A 0.983A 129.985 87.127% 2002 50.6 40.02°C 0.882
12.315V 5.112V 3.362V 5.088V 149.190 44.83°C 230.33V
2 18.606A 2.937A 2.948A 1.182A 260.012 91.132% 2274 53.6 40.36°C 0.951
12.314V 5.108V 3.358V 5.074V 285.313 45.45°C 230.33V
3 28.717A 3.428A 3.443A 1.383A 389.535 92.539% 2273 53.6 40.77°C 0.971
12.309V 5.106V 3.356V 5.061V 420.943 46.48°C 230.33V
4 38.866A 3.922A 3.935A 1.585A 519.533 93.073% 2315 53.7 42.09°C 0.980
12.307V 5.102V 3.354V 5.048V 558.202 48.20°C 230.32V
5 48.690A 4.904A 4.925A 1.788A 649.641 93.237% 2311 53.7 42.10°C 0.987
12.305V 5.099V 3.351V 5.034V 696.761 48.89°C 230.32V
6 58.526A 5.889A 5.914A 1.992A 779.796 93.171% 2316 53.7 42.82°C 0.989
12.302V 5.096V 3.348V 5.020V 836.955 50.24°C 230.32V
7 68.356A 6.875A 6.906A 2.197A 909.892 92.935% 2315 53.7 43.46°C 0.990
12.300V 5.093V 3.345V 5.006V 979.065 51.49°C 230.32V
8 78.198A 7.861A 7.896A 2.403A 1040.006 92.526% 2315 53.7 43.59°C 0.991
12.297V 5.090V 3.343V 4.992V 1124.012 52.11°C 230.32V
9 88.438A 8.355A 8.379A 2.407A 1169.756 92.269% 2319 53.8 44.47°C 0.991
12.294V 5.088V 3.341V 4.983V 1267.764 53.28°C 230.31V
10 98.429A 8.852A 8.894A 3.025A 1299.775 91.713% 2318 53.7 45.97°C 0.992
12.294V 5.084V 3.338V 4.958V 1417.223 55.13°C 230.32V
11 109.023A 8.855A 8.901A 3.030A 1429.795 91.119% 2314 53.7 46.67°C 0.993
12.292V 5.081V 3.336V 4.950V 1569.155 56.58°C 230.31V
CL1 0.100A 15.001A 14.998A 0.000A 128.039 83.328% 2297 53.7 42.11°C 0.887
12.321V 5.102V 3.352V 5.102V 153.656 48.22°C 230.34V
CL2 108.001A 1.000A 1.000A 1.000A 1340.671 91.921% 2316 53.7 45.55°C 0.992
12.289V 5.090V 3.344V 5.013V 1458.498 55.54°C 230.31V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.204A 0.489A 0.489A 0.196A 19.977 62.961% 0 <6.0 0.851
12.311V 5.122V 3.369V 5.115V 31.729 115.14V
2 2.410A 0.978A 0.980A 0.391A 39.970 74.432% 840 29.3 0.927
12.311V 5.117V 3.365V 5.109V 53.700 115.16V
3 3.619A 1.467A 1.470A 0.588A 60.002 79.651% 843 29.5 0.952
12.311V 5.115V 3.364V 5.102V 75.331 115.16V
4 4.822A 1.953A 1.962A 0.785A 79.955 83.337% 851 29.8 0.971
12.312V 5.114V 3.363V 5.096V 95.942 115.16V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.204A 0.488A 0.490A 0.196A 19.982 60.754% 1455 43.8 0.545
12.318V 5.119V 3.367V 5.115V 32.890 230.34V
2 2.409A 0.978A 0.980A 0.391A 39.970 72.447% 1853 49.0 0.689
12.318V 5.114V 3.364V 5.109V 55.171 230.33V
3 3.618A 1.466A 1.471A 0.588A 60.001 79.559% 1669 46.8 0.763
12.316V 5.113V 3.363V 5.102V 75.417 230.33V
4 4.819A 1.956A 1.963A 0.785A 79.953 82.898% 1793 48.4 0.815
12.316V 5.113V 3.362V 5.096V 96.447 230.33V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load8.80mV7.40mV11.50mV4.90mVPass
20% Load11.70mV7.20mV12.80mV5.10mVPass
30% Load9.40mV7.60mV12.80mV5.70mVPass
40% Load7.20mV7.60mV13.40mV6.50mVPass
50% Load7.30mV8.30mV14.70mV6.70mVPass
60% Load8.60mV8.60mV15.20mV7.40mVPass
70% Load8.60mV8.90mV17.20mV8.00mVPass
80% Load9.10mV10.70mV18.20mV8.90mVPass
90% Load15.60mV11.80mV19.20mV9.50mVPass
100% Load27.00mV13.60mV20.40mV12.10mVPass
110% Load27.50mV13.20mV21.70mV12.70mVPass
Crossload116.00mV10.90mV20.20mV7.50mVPass
Crossload226.00mV8.70mV15.00mV11.20mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load14.50mV4.60mV6.40mV3.40mVPass
20% Load15.50mV4.10mV6.50mV3.50mVPass
30% Load12.70mV4.90mV7.30mV3.60mVPass
40% Load9.00mV4.50mV7.20mV3.80mVPass
50% Load8.30mV4.70mV7.40mV4.00mVPass
60% Load8.90mV4.90mV8.10mV4.20mVPass
70% Load9.30mV5.30mV8.30mV4.50mVPass
80% Load14.80mV6.60mV9.70mV4.90mVPass
90% Load18.00mV8.60mV10.80mV5.00mVPass
100% Load27.70mV8.50mV11.30mV6.70mVPass
110% Load27.60mV9.00mV11.20mV6.60mVPass
Crossload118.10mV7.50mV11.10mV4.60mVPass
Crossload225.80mV5.10mV8.50mV5.70mVPass

The results above are not used in the certification process

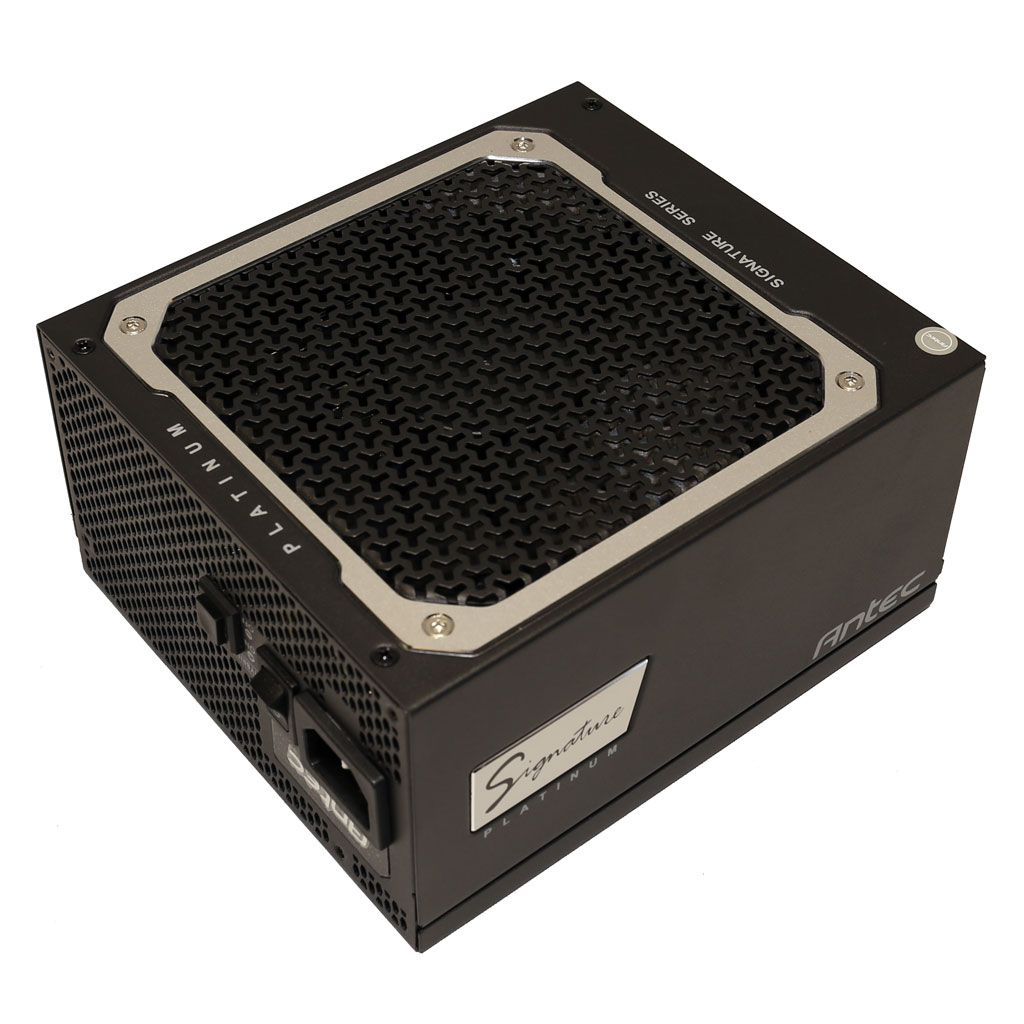

Antec Signature Platinum 1300W

Top side

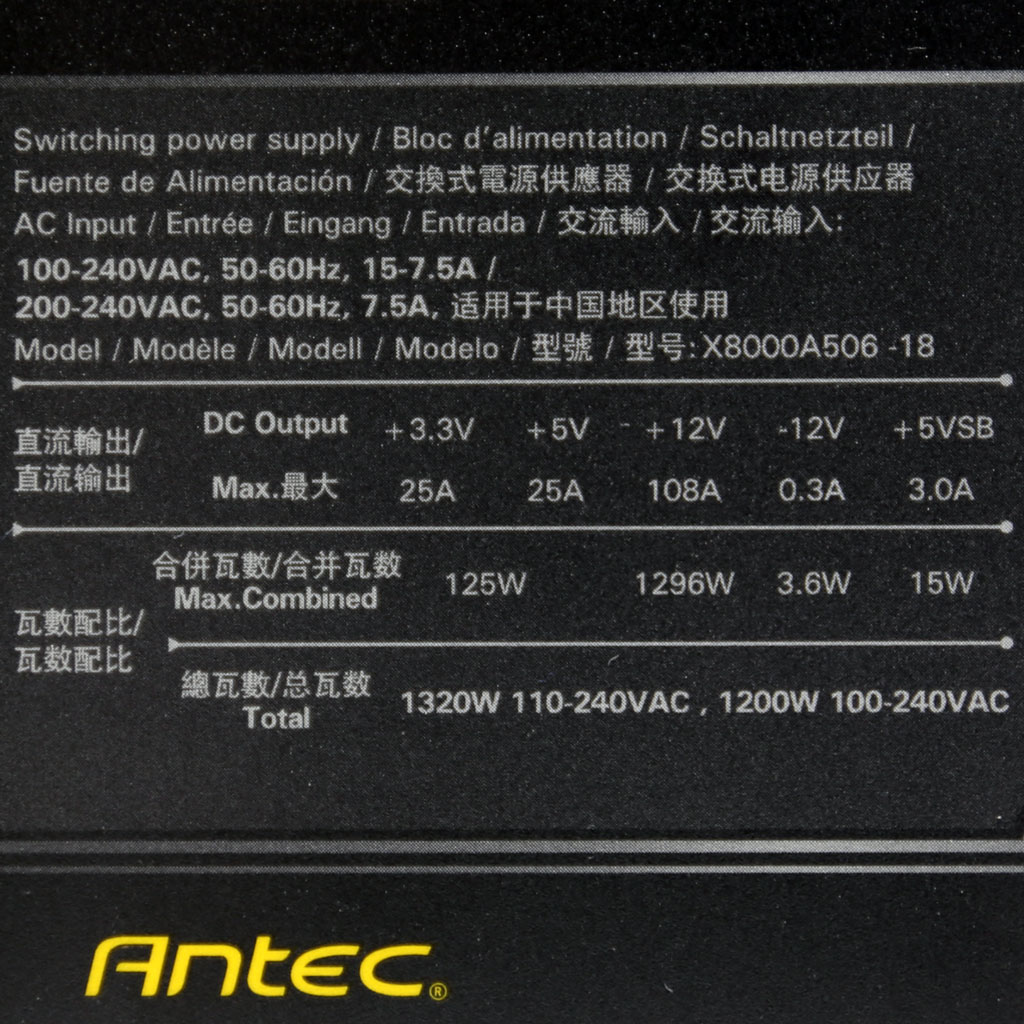

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
