CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Chieftronic PowerPlay 1050W
Serial NumberG190300026291
Lab IDCT10501627
  • Report: 20PS1627A
  • Receipt Date: Mar 9, 2020
  • Test Date: Mar 20, 2020
  • Report Date: Mar 31, 2020
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandChieftronic
Manufacturer (OEM)Channel Well Technology
SeriesPowerPlay
Model NumberGPU-1050FC
Serial NumberG190300026291
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)13
Rated Frequency (Hz)47-63
Rated Power (W)1050
TypeATX12V
Cooling140mm Sleeve Bearing Fan
(HA1425L12F-Z)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps222283.3330.3
Watts120999.96153.6
Total Max. Power (W)1050

Test Equipment

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 16AWG No
8 pin EPS12V (600mm) / 4+4 pin EPS12V (150mm) 1 1 / 1 16-18AWG No
6+2 pin PCIe (600mm+150mm) 4 8 16-18AWG No
SATA (800mm+150mm+150mm) 3 9 18AWG No
4-pin Molex (700mm+150mm+150mm) / FDD (+150mm) 1 3 / 1 18-20AWG No
AC Power Cord (1400mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data -
Manufacturer (OEM) CWT
PCB Type Double  Sided
Primary Side -
Transient Filter 6x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor (SCK-085) & Relay
Bridge Rectifier(s) 2x GBJ2506P (600V, 25A @ 100°C)
APFC MOSFETs 2x ISC TK25A60X5 (600V, 25A @ 25°C, 0.14Ohm), 1x Sync Power SPN5003 FET (for reduced no-load consumption)
APFC Boost Diode 2x ON Semiconductor FFSP0665A (650V, 6A @ 153°C)
Hold-up Cap(s) 2x Nichicon (400V, 680uF & 560uF each or 1,240uF combined, 2,000h @ 105°C, GG)
Main Switchers 4x (550V, 15A @ 100°C, 0.14Ohm)
IC Drivers 2x Silicon Labs Si8233BD
Digital  Controllers 2x Texas Instruments UCD3138A
Topology Primary side: Semi-Digital, Interleaved PFC, Full-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side -
+12V MOSFETs 8x Infineon BSC014N06NS (60V, 100A @ 100°C, 1.45mOhm)
5V & 3.3V DC-DC Converters: 4x UBIQ QM3006D (30V, 57A @ 100°C, 5.5mOhm)
Filtering Capacitors Electrolytic: 4x Nichicon (2-5,000h @ 105°C, HD), 1x Nichicon (4-10,000h @ 105°C, HE), 8x Nippon Chemi-Con (4-10,000h @ 105°C, KY), 1x Nippon Chemi-Con(4-10,000h @ 105°C, KYA), 1x Rubycon (3-6,000 @ 105°C, YXG)
Polymer: 5x Elite, 5x APAQ, 19x Su'scon, 8x NIC
Supervisor IC Weltrend WT7502 ( OVP, UVP, SCP, PG)
Fan Model Hong Hua HA1425L12F-Z (140mm, 12V, 0.22A, Sleeve Bearing Fan)
5VSB Circuit -
Rectifier UTC 4N65L (650V, 4A, 2.5Ohm) & PS1045L SBR (45V, 10A)
Standby PWM Controller On-Bright OB5282

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)19.7
AC Loss to PWR_OK Hold Up Time (ms)18.5
PWR_OK Inactive to DC Loss Delay (ms)1.2

Vampire Power

Graphs

INFO

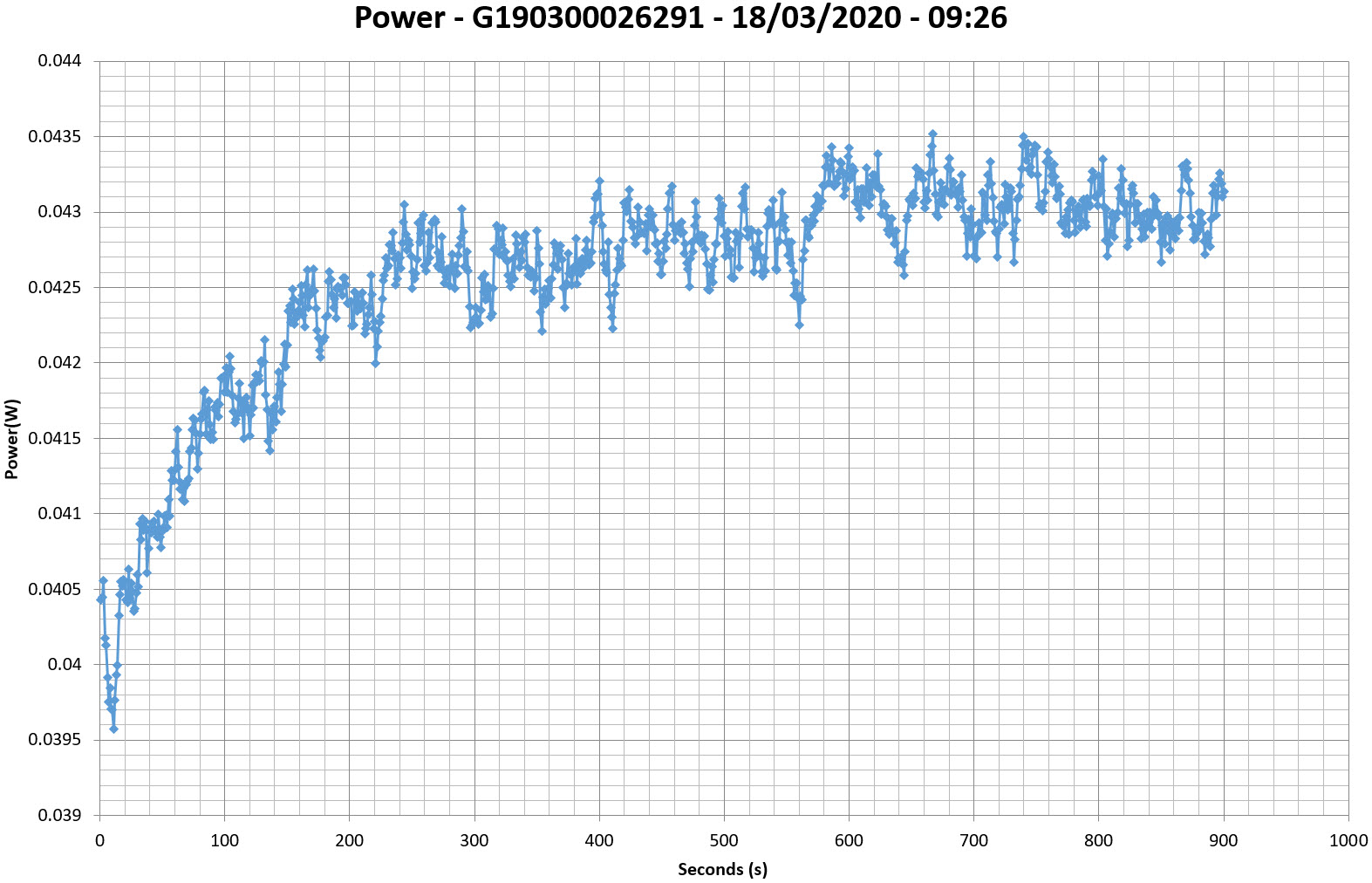

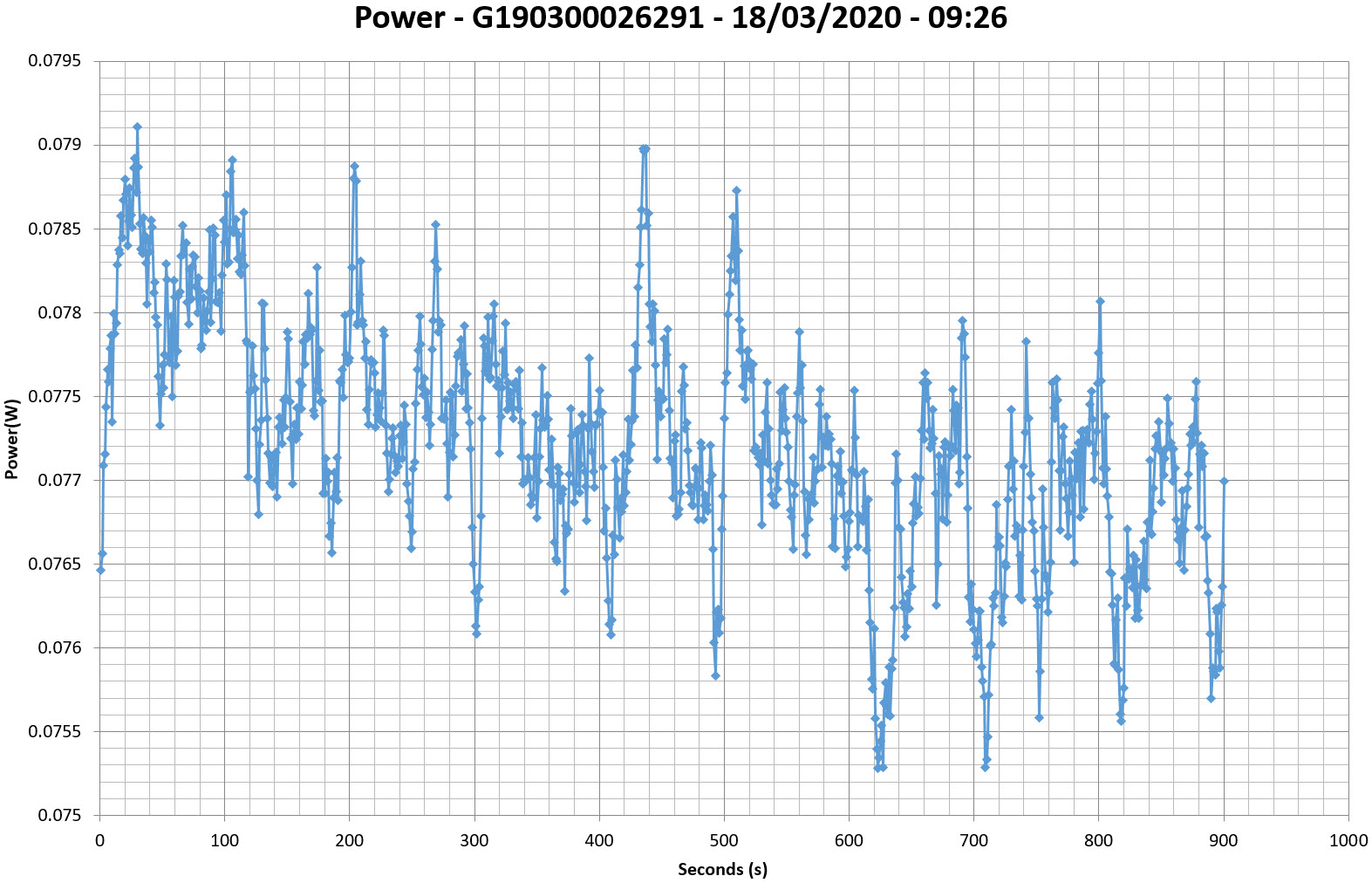

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

Efficiency Graph

INFO

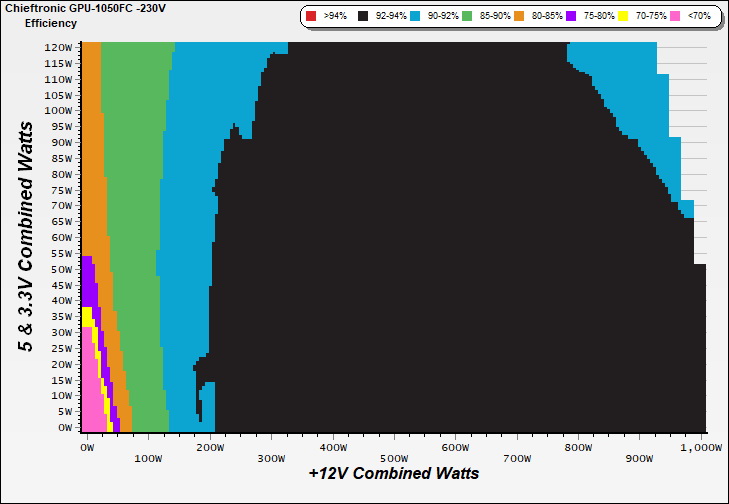

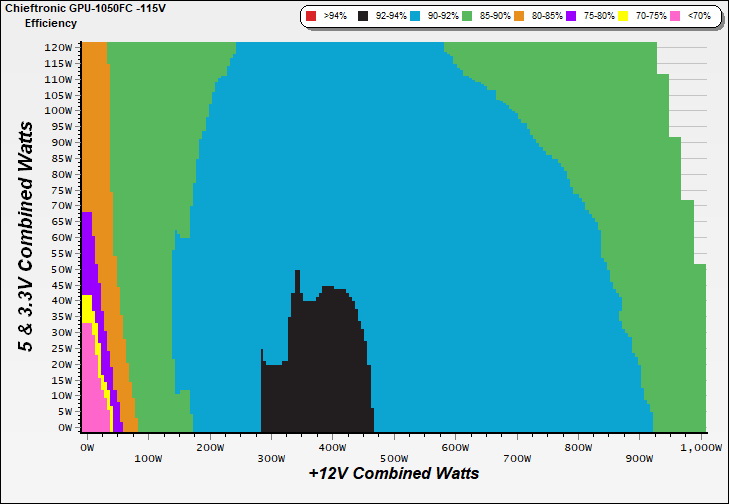

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

INFO

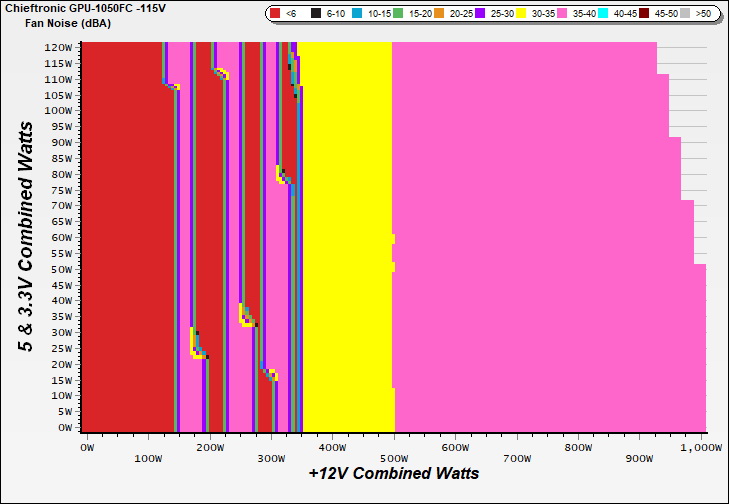

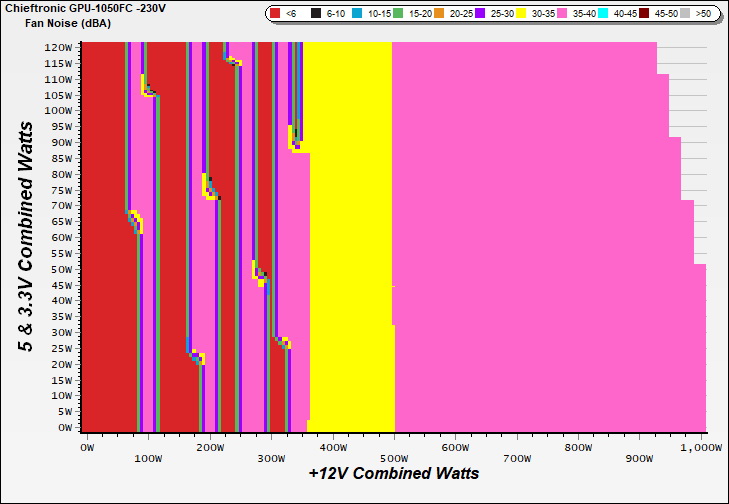

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

Efficiency under high ambient temperature

INFO

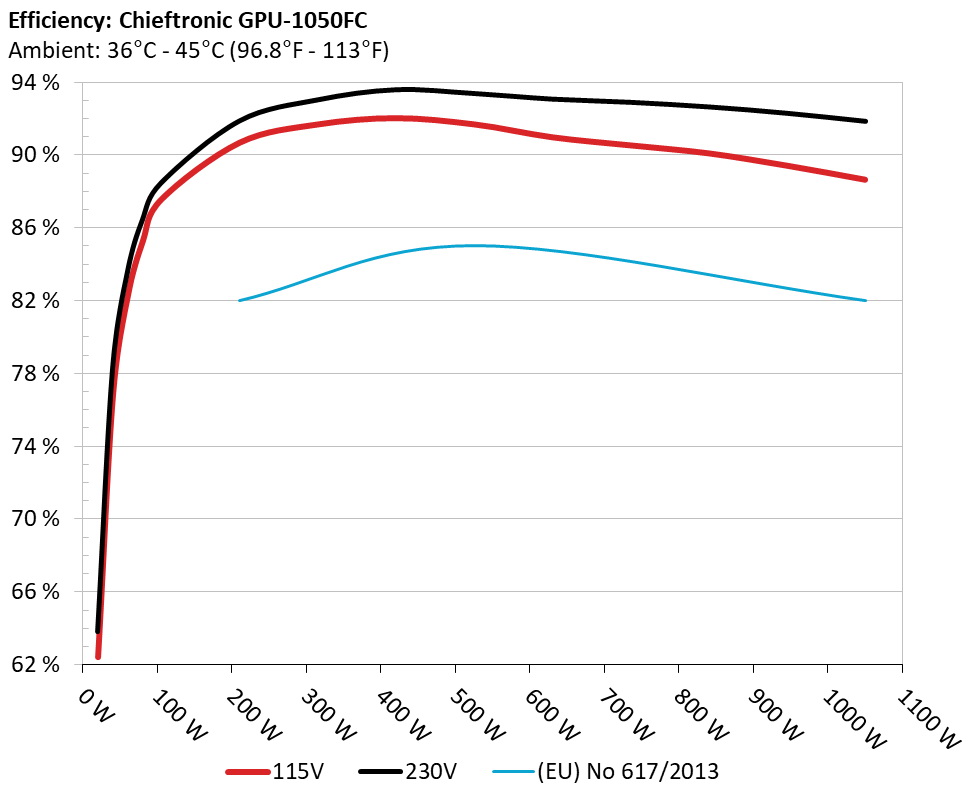

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

5VSB Efficiency

INFO

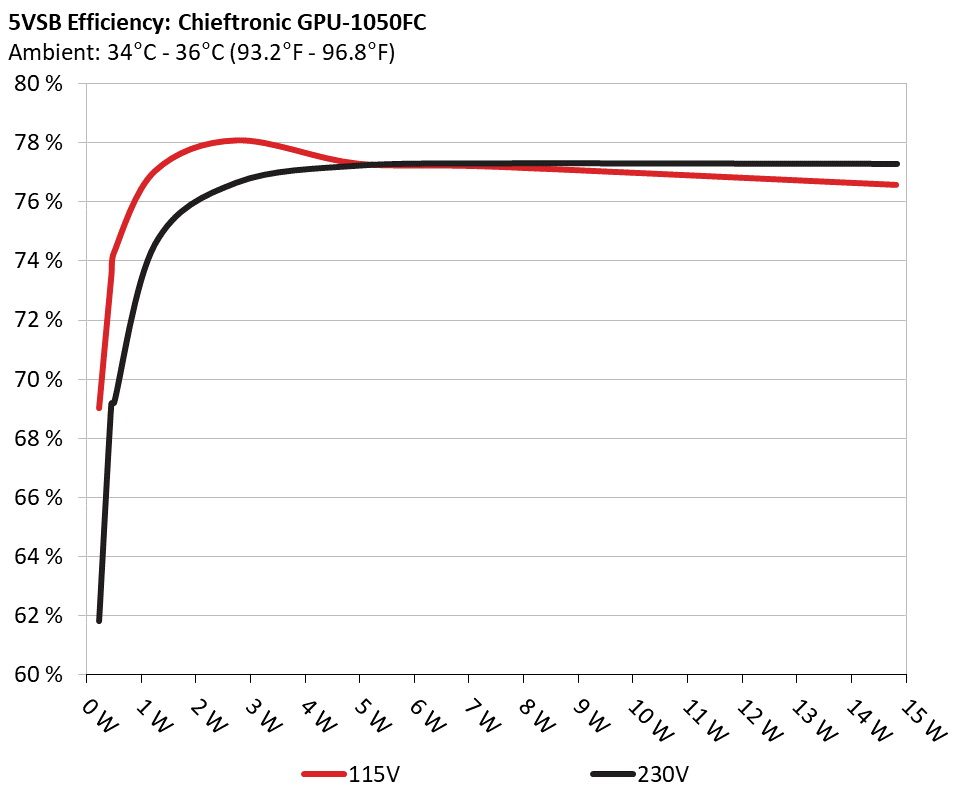

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.225 69.018% 0.027
4.992V 0.326 115.16V
2 0.090A 0.449 73.486% 0.050
4.991V 0.611 115.16V
3 0.550A 2.742 78.075% 0.236
4.984V 3.512 115.16V
4 1.000A 4.977 77.283% 0.342
4.976V 6.440 115.16V
5 1.500A 7.453 77.185% 0.405
4.968V 9.656 115.15V
6 3.001A 14.824 76.570% 0.483
4.940V 19.360 115.15V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.225 61.813% 0.009
4.995V 0.364 230.19V
2 0.090A 0.449 69.183% 0.016
4.993V 0.649 230.22V
3 0.550A 2.741 76.671% 0.085
4.984V 3.575 230.20V
4 1.000A 4.977 77.247% 0.145
4.976V 6.443 230.20V
5 1.500A 7.453 77.321% 0.202
4.968V 9.639 230.20V
6 3.001A 14.826 77.303% 0.315
4.941V 19.179 230.20V

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 6.954A 1.968A 2.001A 0.988A 105.042 87.569% 0 <6.0 42.88°C 0.978
11.999V 5.080V 3.299V 5.063V 119.953 39.03°C 115.12V
2 14.937A 2.956A 3.003A 1.187A 210.043 90.686% 1396 37.1 40.26°C 0.993
11.993V 5.076V 3.296V 5.056V 231.615 44.59°C 115.11V
3 23.271A 3.452A 3.508A 1.387A 315.061 91.688% 1399 37.2 41.10°C 0.996
11.989V 5.073V 3.293V 5.048V 343.622 45.84°C 115.09V
4 31.582A 3.946A 4.010A 1.587A 419.741 92.033% 1403 37.3 41.99°C 0.997
11.986V 5.069V 3.291V 5.041V 456.078 47.39°C 115.15V
5 39.573A 4.936A 5.020A 1.788A 525.073 91.694% 1407 37.4 42.30°C 0.997
11.992V 5.066V 3.288V 5.035V 572.637 48.76°C 115.15V
6 47.484A 5.928A 6.028A 1.990A 629.623 90.986% 1411 37.4 42.69°C 0.997
12.000V 5.062V 3.285V 5.028V 691.999 49.90°C 115.13V
7 55.501A 6.922A 7.043A 2.191A 734.973 90.539% 1414 37.5 43.14°C 0.998
11.997V 5.058V 3.282V 5.021V 811.772 51.34°C 115.17V
8 63.533A 7.916A 8.053A 2.394A 840.313 90.099% 1415 37.5 43.96°C 0.999
11.992V 5.055V 3.279V 5.014V 932.654 52.76°C 115.17V
9 71.982A 8.415A 8.546A 2.395A 945.218 89.423% 1416 37.5 44.41°C 0.999
11.985V 5.052V 3.276V 5.012V 1057.021 53.84°C 115.18V
10 80.174A 8.916A 9.073A 3.003A 1050.040 88.654% 1421 37.5 45.29°C 0.999
11.978V 5.048V 3.274V 4.996V 1184.422 55.50°C 115.15V
CL1 0.118A 14.001A 14.000A 0.000A 118.363 81.299% 1397 37.1 42.57°C 0.983
11.995V 5.073V 3.280V 5.091V 145.589 48.57°C 115.15V
CL2 83.370A 1.000A 1.001A 1.000A 1012.490 89.649% 1415 37.5 45.38°C 0.999
11.984V 5.055V 3.287V 5.039V 1129.397 55.75°C 115.19V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 6.952A 1.970A 2.001A 0.988A 105.027 88.451% 0 <6.0 44.10°C 0.798
11.999V 5.080V 3.299V 5.062V 118.740 40.03°C 230.26V
2 14.935A 2.955A 3.006A 1.187A 210.023 91.858% 1394 37.1 40.35°C 0.891
11.993V 5.076V 3.296V 5.055V 228.640 45.06°C 230.27V
3 23.262A 3.450A 3.508A 1.387A 315.036 93.016% 1399 37.2 41.10°C 0.938
11.993V 5.073V 3.293V 5.048V 338.690 46.38°C 230.28V
4 31.570A 3.946A 4.011A 1.587A 419.663 93.575% 1402 37.3 41.84°C 0.953
11.988V 5.069V 3.291V 5.041V 448.476 47.72°C 230.25V
5 39.555A 4.936A 5.018A 1.788A 525.008 93.369% 1403 37.3 42.69°C 0.969
11.996V 5.066V 3.288V 5.035V 562.295 49.22°C 230.32V
6 47.479A 5.927A 6.031A 1.989A 629.563 93.059% 1411 37.4 43.26°C 0.976
12.000V 5.062V 3.285V 5.028V 676.519 50.83°C 230.25V
7 55.494A 6.921A 7.038A 2.191A 734.930 92.883% 1412 37.4 43.49°C 0.985
11.998V 5.059V 3.282V 5.021V 791.245 51.48°C 230.27V
8 63.531A 7.916A 8.051A 2.394A 840.284 92.630% 1419 37.5 43.61°C 0.986
11.992V 5.055V 3.279V 5.015V 907.141 52.69°C 230.28V
9 71.966A 8.416A 8.548A 2.395A 945.173 92.280% 1418 37.5 44.87°C 0.987
11.987V 5.051V 3.276V 5.012V 1024.247 55.22°C 230.29V
10 80.158A 8.916A 9.076A 3.003A 1050.009 91.840% 1418 37.5 45.43°C 0.989
11.980V 5.048V 3.273V 4.996V 1143.306 56.96°C 230.31V
CL1 0.116A 14.002A 14.002A 0.000A 118.351 82.289% 1400 37.3 42.15°C 0.819
11.995V 5.073V 3.280V 5.091V 143.823 49.45°C 230.31V
CL2 83.349A 1.001A 0.999A 1.000A 1012.401 92.538% 1413 37.5 45.63°C 0.988
11.986V 5.054V 3.286V 5.038V 1094.038 56.35°C 230.30V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.236A 0.491A 0.499A 0.197A 19.989 62.425% 0 <6.0 0.803
12.009V 5.084V 3.303V 5.082V 32.021 115.12V
2 2.473A 0.983A 1.000A 0.394A 39.979 76.813% 0 <6.0 0.918
12.002V 5.083V 3.301V 5.077V 52.047 115.13V
3 3.713A 1.476A 1.499A 0.592A 60.009 82.277% 0 <6.0 0.952
12.001V 5.082V 3.300V 5.072V 72.935 115.12V
4 4.947A 1.968A 2.000A 0.789A 79.959 85.262% 0 <6.0 0.968
12.000V 5.081V 3.299V 5.068V 93.780 115.12V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.235A 0.491A 0.499A 0.197A 19.983 63.807% 0 <6.0 0.448
12.014V 5.084V 3.302V 5.081V 31.318 230.23V
2 2.472A 0.983A 0.998A 0.394A 39.972 78.232% 0 <6.0 0.554
12.007V 5.083V 3.301V 5.077V 51.094 230.23V
3 3.712A 1.475A 1.498A 0.592A 60.004 83.565% 0 <6.0 0.622
12.005V 5.082V 3.300V 5.072V 71.805 230.25V
4 4.945A 1.968A 2.001A 0.790A 79.955 86.414% 0 <6.0 0.670
12.002V 5.081V 3.299V 5.067V 92.525 230.27V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load7.90mV4.70mV11.00mV4.10mVPass
20% Load14.10mV5.00mV11.30mV4.80mVPass
30% Load9.90mV5.40mV11.60mV5.50mVPass
40% Load12.00mV6.30mV11.70mV6.20mVPass
50% Load10.50mV7.50mV13.80mV6.90mVPass
60% Load10.60mV9.10mV12.70mV7.40mVPass
70% Load11.70mV10.50mV13.20mV8.10mVPass
80% Load14.70mV10.50mV19.20mV10.20mVPass
90% Load15.70mV10.20mV17.70mV11.30mVPass
100% Load21.70mV13.30mV18.30mV11.70mVPass
110% Load0.00mV0.00mV0.00mV0.00mVPass
Crossload112.80mV6.00mV17.70mV5.30mVPass
Crossload221.60mV12.90mV15.50mV10.80mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load9.70mV4.60mV11.40mV4.90mVPass
20% Load22.90mV5.60mV11.20mV5.50mVPass
30% Load9.70mV5.60mV11.60mV6.00mVPass
40% Load11.70mV6.10mV11.70mV7.10mVPass
50% Load10.20mV6.70mV11.80mV7.30mVPass
60% Load10.80mV7.40mV12.20mV7.80mVPass
70% Load12.20mV8.80mV14.80mV9.10mVPass
80% Load13.90mV9.50mV19.20mV10.50mVPass
90% Load15.90mV10.00mV16.80mV10.70mVPass
100% Load23.30mV10.80mV17.70mV12.20mVPass
110% Load0.00mV0.00mV0.00mV0.00mVPass
Crossload116.10mV6.50mV17.10mV5.70mVPass
Crossload220.20mV9.50mV14.30mV11.10mVPass

The results above are not used in the certification process

Chieftronic PowerPlay 1050W

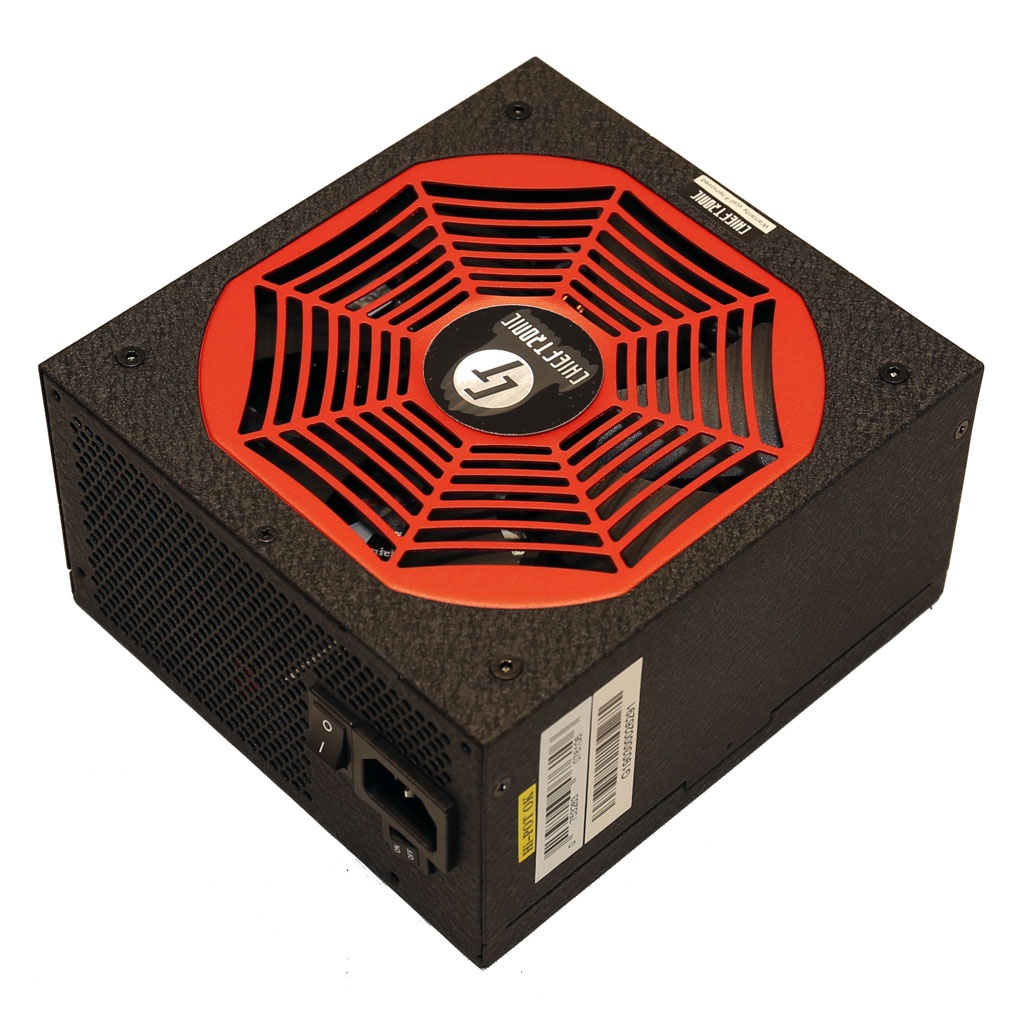

Top side

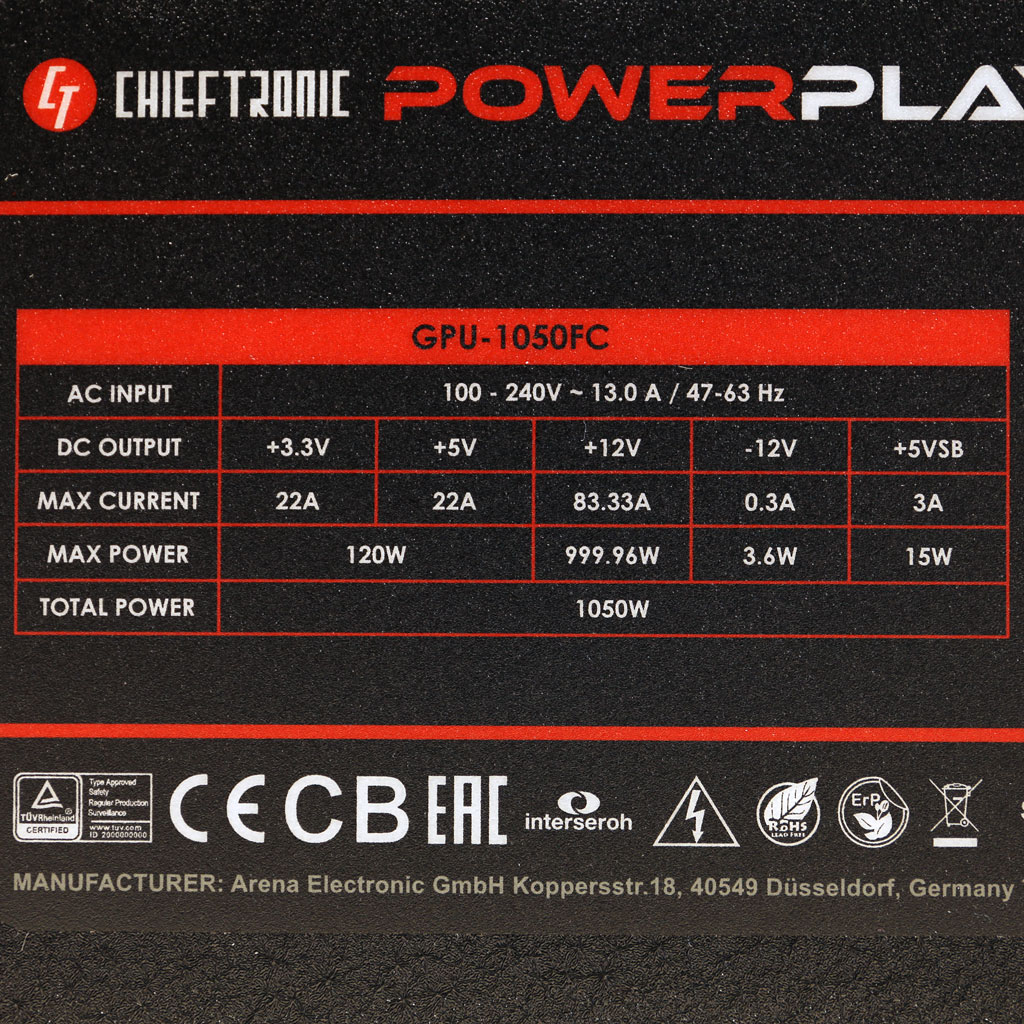

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
