Thermaltake Toughpower GF1 650W
Serial Number
Lab IDTT20650003
  • Report: 20PS1578A
  • Receipt Date: Jan 2, 2020
  • Test Date: Jan 23, 2020
  • Report Date: Jan 27, 2020
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandThermaltake
Manufacturer (OEM)Channel Well Technology
SeriesToughpower GF1
Model NumberTPD-0650FNFAGU-1
Serial Number
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)10
Rated Frequency (Hz)50-60
Rated Power (W)650
TypeATX12V
Cooling
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 20 20 54 2.5 0.3
Watts 100 648 12.5 3.6
Total Max. Power (W) 650

Test Equipment

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (590mm) 1 1 16-18AWG No
4+4 pin EPS12V (650mm) 2 2 16AWG No
6+2 pin PCIe (500mm+140mm) 2 4 16-18AWG No
SATA (510mm+145mm+145mm) 3 9 18AWG No
4-pin Molex (500mm+145mm+145mm+145mm) 1 3 18AWG No
FDD Adapter (115mm) 1 1 22AWG No

Parts Description

General Data -
Manufacturer (OEM) CWT
PCB Type Double Sided
Primary Side -
Transient Filter 6x Y caps, 2x X caps, 2x CM chokes
Inrush Protection NTC Thermistor (MSR 15D2R5) & Relay
Bridge Rectifier(s) 2x GBU1506L (600V, 15A @ 100°C)
APFC MOSFETs 2x Champion GP28S50GN220 (500V, 28A, 0.125Ohm)
APFC Boost Diode 1x Global Power Tech. G3S06008J (600V, 8A @ 150°C)
Hold-up Cap(s) 2x Rubycon (420V, 270uF each or 540uF combined, 3,000h @ 105°C, MXK)
Main Switchers 2x NCE Power NCE65TF130F (650V, 18A @ 100°C, 0.13Ohm)
APFC Controller Champion CM6500UNX
Resonant Controller Champion CM6901X
Topology Primary side: Half-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side -
+12V MOSFETs 8x Advanced Power AP4N1R8CMT-A (45V, 180A @ 25°C, 1.8mOhm)
5V & 3.3V DC-DC Converters: 4x Advanced Power AP4024GEMT-HF (30V, 60A @ 25°C, 4.5mOhm)
PWM Controllers: 2x ANPEC APW7164
Filtering Capacitors Electrolytic: 6x Chengx (2-4,000h @ 105°C, GR)
Polymer: 7x Teapo
Supervisor IC Weltrend WT7502V (OVP, UVP, SCP, PG)
Fan Model BOK BDM12025S (120mm, 12V, 0.30A, Rifle Bearing Fan)
5VSB Circuit -
Rectifier 1x SB1045L SBR (45V, 10A)
Standby PWM Controller PN8140

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)18.2
AC Loss to PWR_OK Hold Up Time (ms)16.8
PWR_OK Inactive to DC Loss Delay (ms)1.4

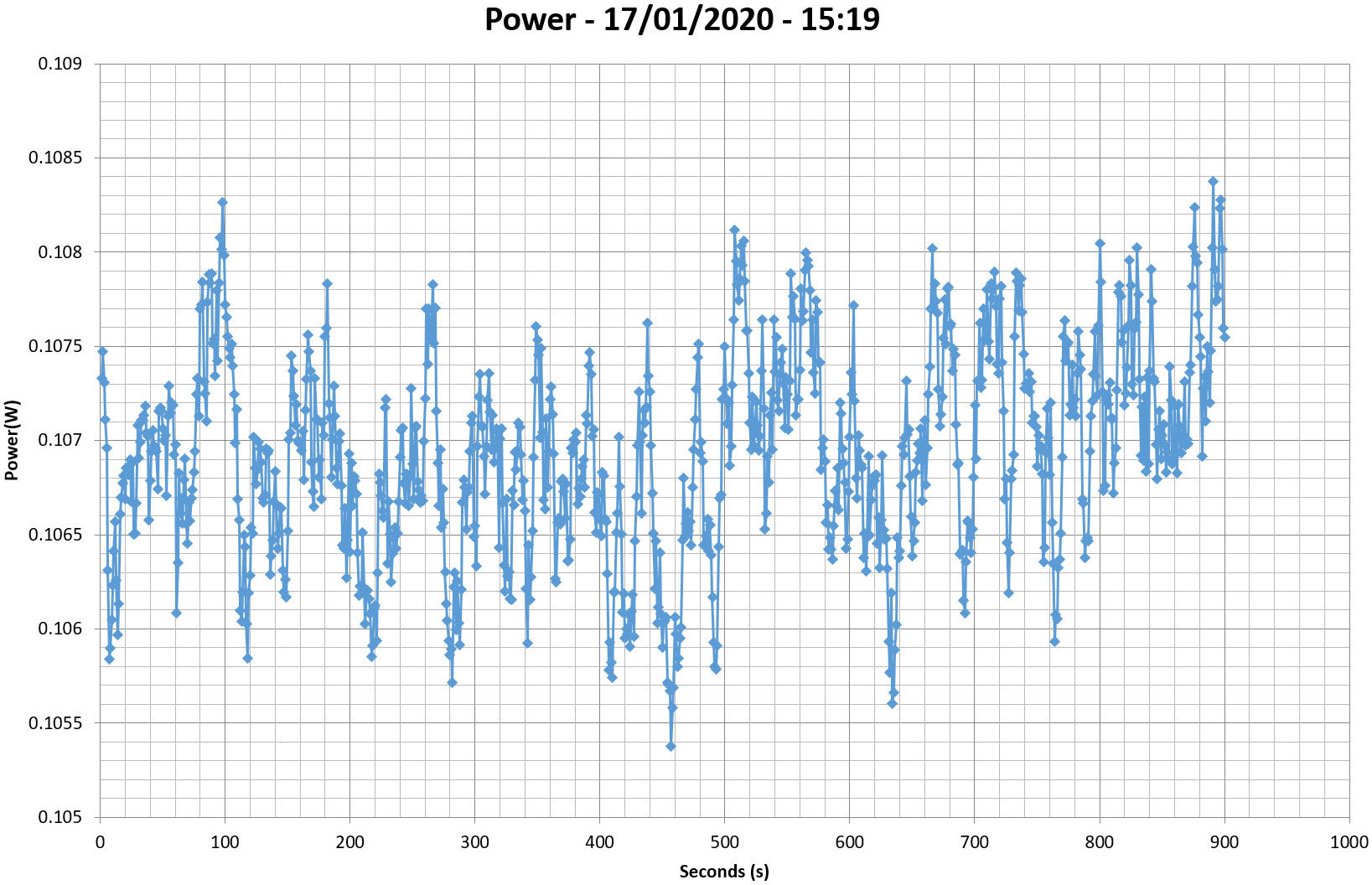

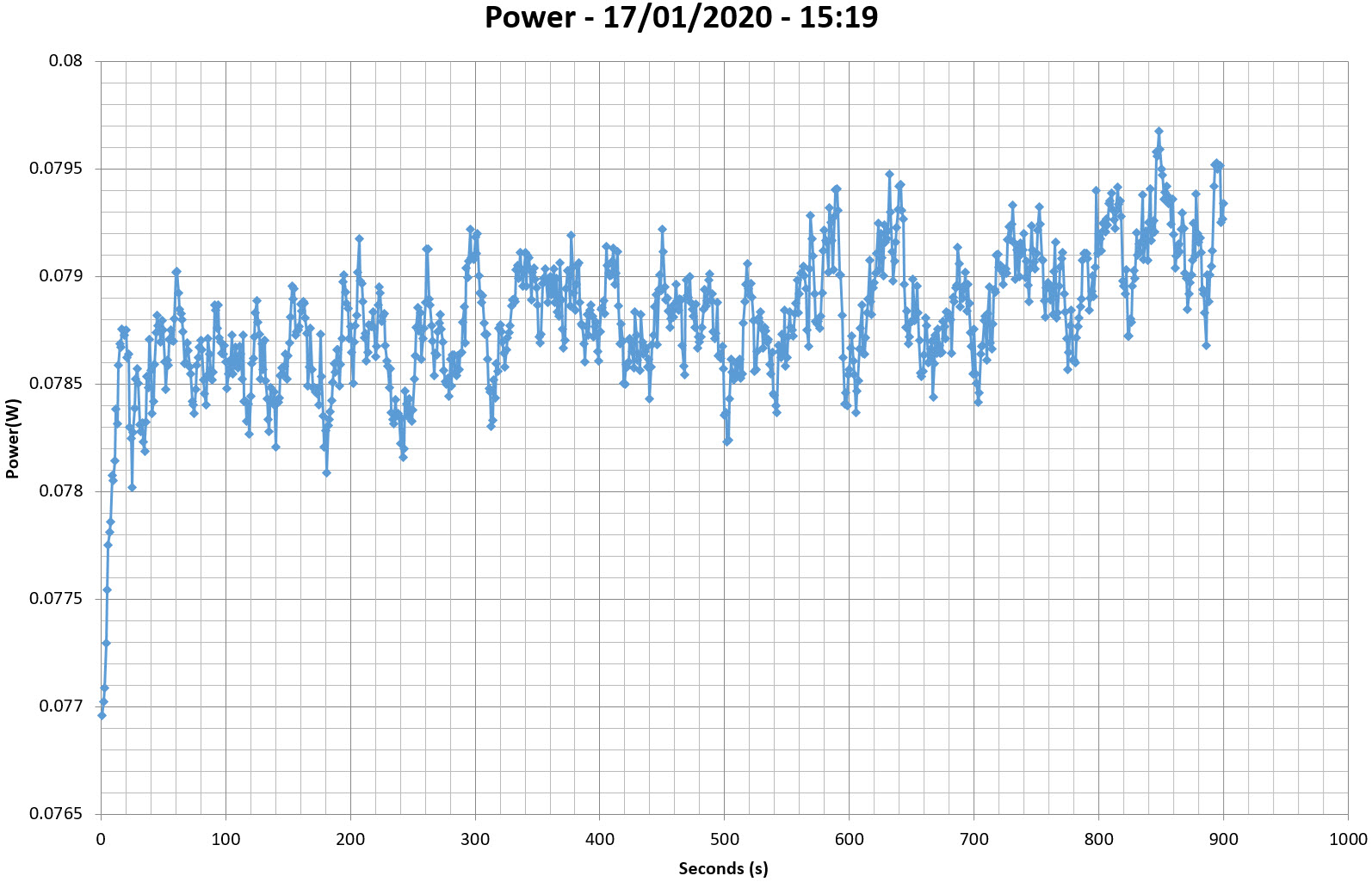

Vampire Power

Graphs

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

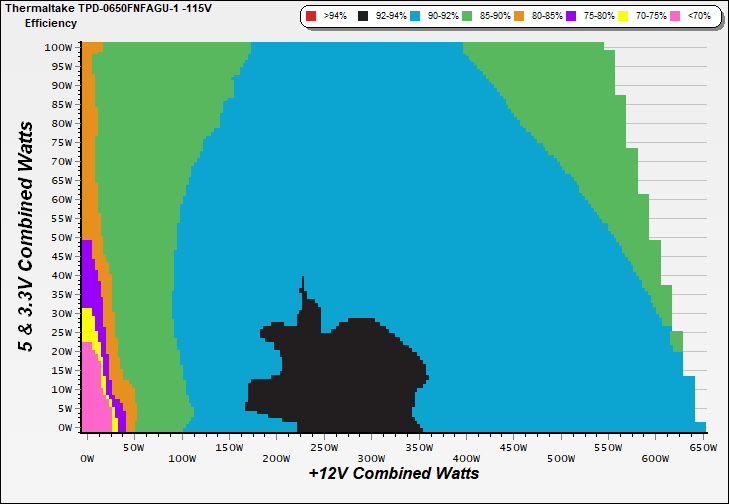

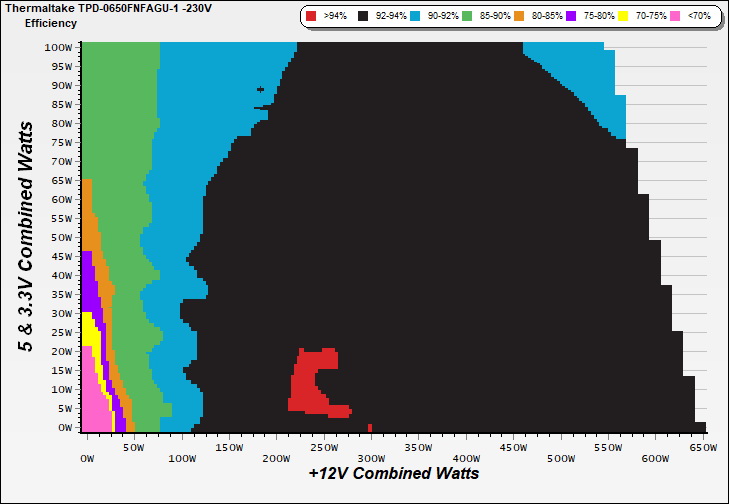

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

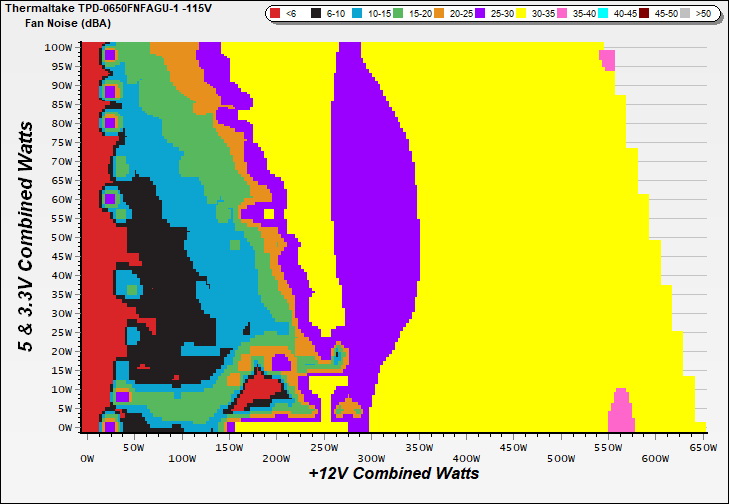

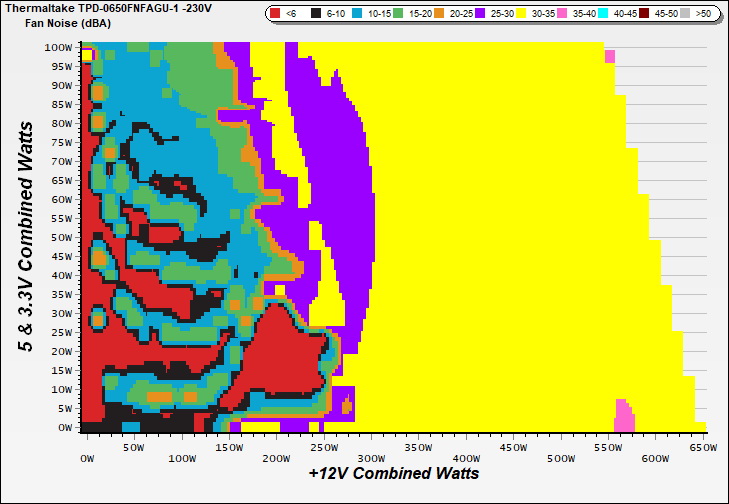

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

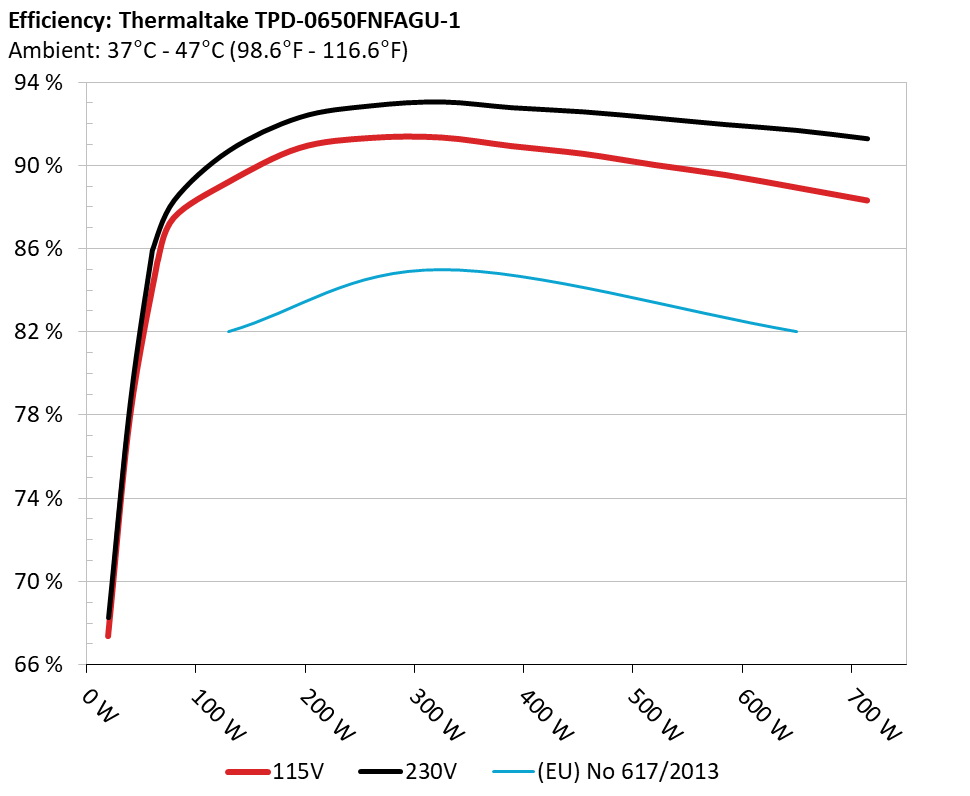

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

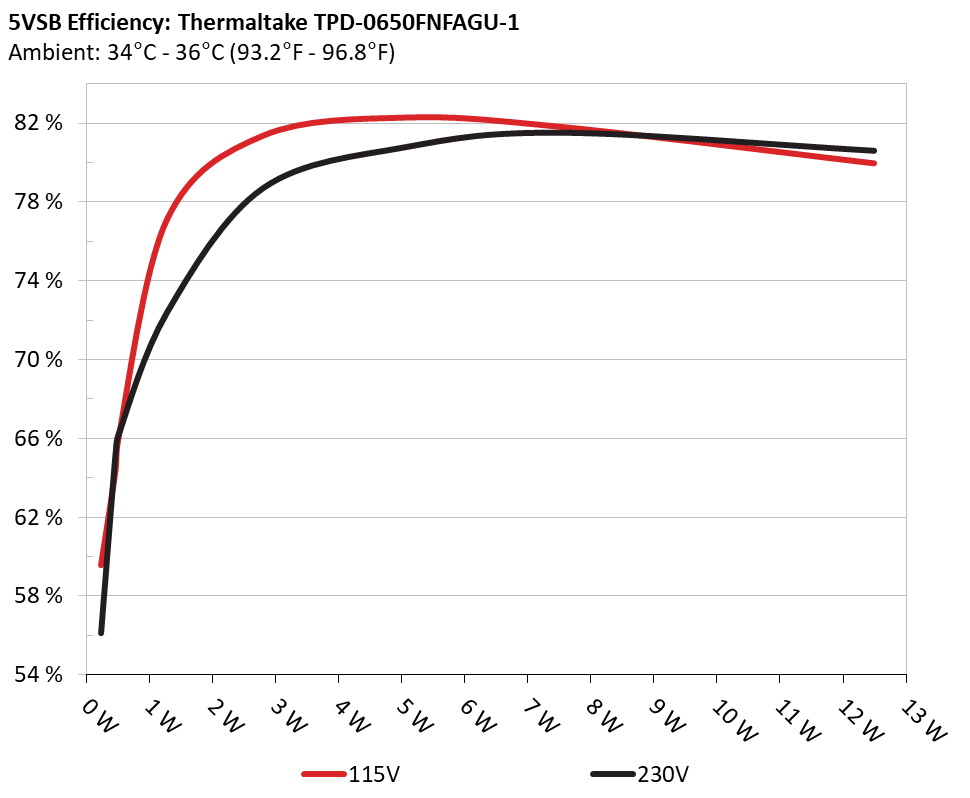

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.230 59.585% 0.044
5.115V 0.386 115.15V
2 0.090A 0.460 64.426% 0.080
5.114V 0.714 115.15V
3 0.550A 2.801 81.353% 0.270
5.091V 3.443 115.15V
4 1.000A 5.071 82.268% 0.347
5.070V 6.164 115.14V
5 1.500A 7.568 81.781% 0.390
5.045V 9.254 115.14V
6 2.501A 12.486 79.951% 0.435
4.993V 15.617 115.14V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.230 56.098% 0.014
5.117V 0.410 230.32V
2 0.090A 0.460 65.248% 0.024
5.115V 0.705 230.32V
3 0.550A 2.801 78.702% 0.114
5.092V 3.559 230.31V
4 1.000A 5.071 80.787% 0.180
5.070V 6.277 230.33V
5 1.500A 7.569 81.510% 0.234
5.045V 9.286 230.32V
6 2.500A 12.486 80.596% 0.303
4.994V 15.492 230.31V

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.591A 1.982A 1.983A 0.990A 64.961 84.906% 1317 31.8 40.27°C 0.955
12.073V 5.046V 3.330V 5.054V 76.509 45.51°C 115.17V
2 8.212A 2.970A 2.980A 1.192A 130.027 89.199% 1343 32.4 40.66°C 0.977
12.070V 5.051V 3.325V 5.032V 145.771 46.25°C 115.15V
3 13.174A 3.465A 3.478A 1.397A 195.029 90.839% 1345 32.4 41.16°C 0.986
12.067V 5.052V 3.321V 5.013V 214.698 47.70°C 115.14V
4 18.138A 3.959A 3.980A 1.603A 260.033 91.322% 1397 33.3 41.21°C 0.991
12.064V 5.053V 3.318V 4.994V 284.742 48.19°C 115.14V
5 22.760A 4.943A 4.980A 1.811A 325.066 91.342% 1508 35.3 42.19°C 0.993
12.063V 5.060V 3.313V 4.971V 355.879 49.62°C 115.13V
6 27.333A 5.926A 5.988A 2.000A 389.352 90.927% 1565 36.2 42.36°C 0.995
12.060V 5.064V 3.308V 4.949V 428.202 50.65°C 115.17V
7 31.987A 6.906A 6.996A 2.233A 454.780 90.558% 1618 37.1 43.41°C 0.996
12.057V 5.069V 3.303V 4.926V 502.200 52.22°C 115.15V
8 36.639A 7.882A 8.009A 2.448A 520.085 90.022% 1728 39.4 43.56°C 0.996
12.055V 5.075V 3.296V 4.903V 577.732 52.80°C 115.15V
9 41.694A 8.372A 8.502A 2.454A 585.001 89.540% 1778 39.7 44.48°C 0.997
12.052V 5.077V 3.293V 4.891V 653.342 54.20°C 115.12V
10 46.684A 8.859A 9.029A 2.566A 649.746 88.935% 1846 40.3 45.65°C 0.997
12.050V 5.080V 3.289V 4.873V 730.582 56.04°C 115.14V
11 52.075A 8.863A 9.034A 2.571A 714.564 88.315% 1847 40.3 46.86°C 0.997
12.047V 5.078V 3.288V 4.864V 809.108 57.68°C 115.14V
CL1 0.116A 11.999A 11.999A 0.000A 102.252 83.957% 1436 34.2 42.21°C 0.973
12.069V 5.117V 3.288V 5.071V 121.791 49.85°C 115.15V
CL2 54.009A 1.000A 1.000A 1.000A 664.078 89.747% 1685 38.3 45.18°C 0.997
12.049V 5.024V 3.323V 4.976V 739.948 56.03°C 115.13V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.591A 1.981A 1.984A 0.990A 64.961 85.927% 1306 31.7 40.07°C 0.721
12.072V 5.048V 3.330V 5.054V 75.600 45.36°C 230.35V
2 8.213A 2.968A 2.980A 1.192A 130.029 90.708% 1335 32.1 40.25°C 0.879
12.069V 5.054V 3.324V 5.034V 143.349 45.86°C 230.35V
3 13.175A 3.463A 3.479A 1.397A 195.034 92.319% 1374 32.9 41.81°C 0.932
12.066V 5.055V 3.321V 5.014V 211.260 47.86°C 230.36V
4 18.139A 3.956A 3.978A 1.603A 260.042 92.870% 1441 34.4 42.14°C 0.953
12.064V 5.058V 3.318V 4.994V 280.005 48.72°C 230.36V
5 22.764A 4.939A 4.983A 1.811A 325.080 93.058% 1481 35.1 42.30°C 0.967
12.061V 5.064V 3.313V 4.972V 349.330 49.57°C 230.36V
6 27.340A 5.918A 5.989A 2.001A 389.410 92.780% 1578 36.5 42.97°C 0.974
12.059V 5.070V 3.307V 4.951V 419.713 51.31°C 230.36V
7 31.993A 6.897A 6.998A 2.233A 454.833 92.583% 1627 37.3 43.84°C 0.977
12.056V 5.077V 3.302V 4.927V 491.271 52.55°C 230.37V
8 36.648A 7.874A 8.006A 2.447A 520.132 92.285% 1671 38.2 44.02°C 0.980
12.053V 5.082V 3.297V 4.905V 563.617 53.56°C 230.33V
9 41.702A 8.361A 8.503A 2.453A 585.067 91.971% 1800 40.0 44.68°C 0.983
12.051V 5.085V 3.293V 4.892V 636.140 54.80°C 230.36V
10 46.693A 8.851A 9.029A 2.564A 649.821 91.692% 1786 39.8 45.66°C 0.985
12.049V 5.085V 3.290V 4.877V 708.703 56.18°C 230.38V
11 52.087A 8.854A 9.031A 2.570A 714.650 91.292% 1848 40.3 46.61°C 0.987
12.046V 5.084V 3.288V 4.865V 782.816 57.51°C 230.37V
CL1 0.117A 12.001A 12.000A 0.000A 102.361 85.291% 1471 34.8 42.93°C 0.843
12.068V 5.124V 3.288V 5.070V 120.014 49.39°C 230.39V
CL2 54.018A 1.000A 1.002A 1.000A 664.134 92.439% 1755 39.5 45.44°C 0.985
12.048V 5.023V 3.322V 4.974V 718.460 56.23°C 230.37V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.229A 0.496A 0.494A 0.196A 19.993 67.357% 398 8.1 0.778
12.080V 5.038V 3.336V 5.102V 29.682 115.18V
2 2.459A 0.993A 0.988A 0.393A 39.983 77.897% 844 19.1 0.916
12.072V 5.040V 3.334V 5.089V 51.328 115.18V
3 3.691A 1.488A 1.484A 0.591A 60.013 85.342% 659 12.8 0.948
12.074V 5.043V 3.332V 5.075V 70.321 115.18V
4 4.917A 1.983A 1.983A 0.790A 79.961 87.477% 1048 25.3 0.973
12.072V 5.044V 3.329V 5.062V 91.408 115.17V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.229A 0.496A 0.495A 0.196A 19.990 68.288% 572 11.0 0.430
12.075V 5.039V 3.336V 5.102V 29.273 230.36V
2 2.459A 0.992A 0.989A 0.393A 39.980 78.662% 811 17.9 0.576
12.071V 5.041V 3.334V 5.089V 50.825 230.35V
3 3.691A 1.487A 1.485A 0.591A 60.009 85.744% 1283 31.1 0.691
12.073V 5.044V 3.332V 5.075V 69.986 230.35V
4 4.917A 1.982A 1.983A 0.790A 79.958 88.325% 1082 26.3 0.775
12.071V 5.047V 3.329V 5.062V 90.527 230.35V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 21.7 mV 5.9 mV 10.0 mV 3.5 mV Pass
20% Load 23.0 mV 6.6 mV 9.8 mV 3.5 mV Pass
30% Load 17.1 mV 7.2 mV 10.3 mV 4.4 mV Pass
40% Load 15.0 mV 8.4 mV 11.2 mV 5.4 mV Pass
50% Load 13.1 mV 9.7 mV 12.5 mV 6.1 mV Pass
60% Load 14.9 mV 10.5 mV 12.4 mV 6.8 mV Pass
70% Load 14.0 mV 11.9 mV 13.8 mV 7.3 mV Pass
80% Load 14.6 mV 12.5 mV 16.4 mV 8.1 mV Pass
90% Load 13.4 mV 12.2 mV 16.8 mV 8.5 mV Pass
100% Load 22.0 mV 13.5 mV 19.2 mV 10.3 mV Pass
110% Load 22.3 mV 14.3 mV 18.8 mV 10.6 mV Pass
Crossload 1 28.7 mV 10.3 mV 19.5 mV 8.3 mV Pass
Crossload 2 22.2 mV 11.7 mV 12.8 mV 10.0 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 20.3 mV 5.7 mV 9.6 mV 3.5 mV Pass
20% Load 21.8 mV 7.0 mV 10.2 mV 3.6 mV Pass
30% Load 17.1 mV 6.9 mV 10.0 mV 4.5 mV Pass
40% Load 14.7 mV 8.2 mV 11.0 mV 5.2 mV Pass
50% Load 13.4 mV 9.5 mV 11.1 mV 6.0 mV Pass
60% Load 15.9 mV 10.9 mV 12.3 mV 6.4 mV Pass
70% Load 13.7 mV 11.8 mV 13.1 mV 6.8 mV Pass
80% Load 13.5 mV 12.0 mV 17.7 mV 7.5 mV Pass
90% Load 13.8 mV 11.9 mV 19.5 mV 8.5 mV Pass
100% Load 23.3 mV 13.8 mV 18.3 mV 9.7 mV Pass
110% Load 23.7 mV 13.9 mV 19.3 mV 10.5 mV Pass
Crossload 1 26.5 mV 10.4 mV 18.8 mV 8.3 mV Pass
Crossload 2 22.7 mV 11.2 mV 12.1 mV 9.2 mV Pass

The results above are not used in the certification process

Thermaltake Toughpower GF1 650W

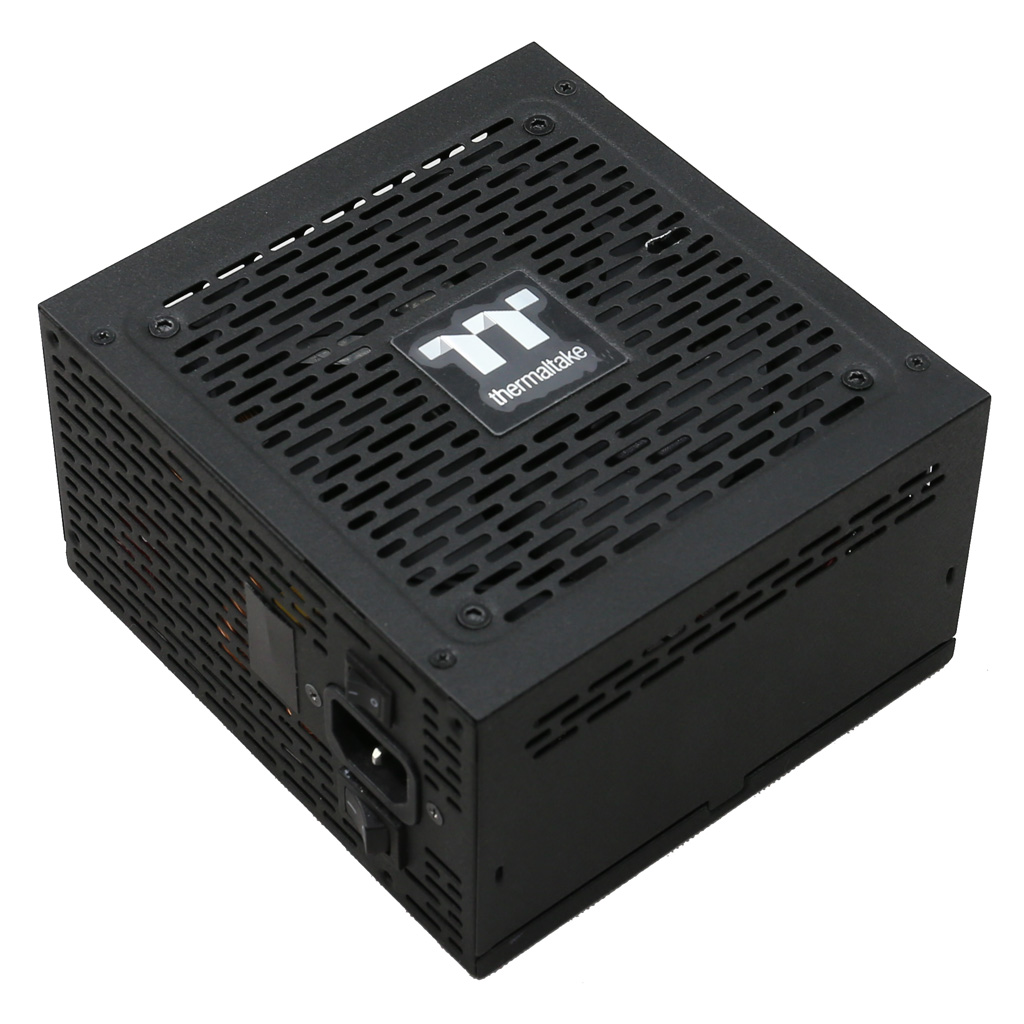

Top side

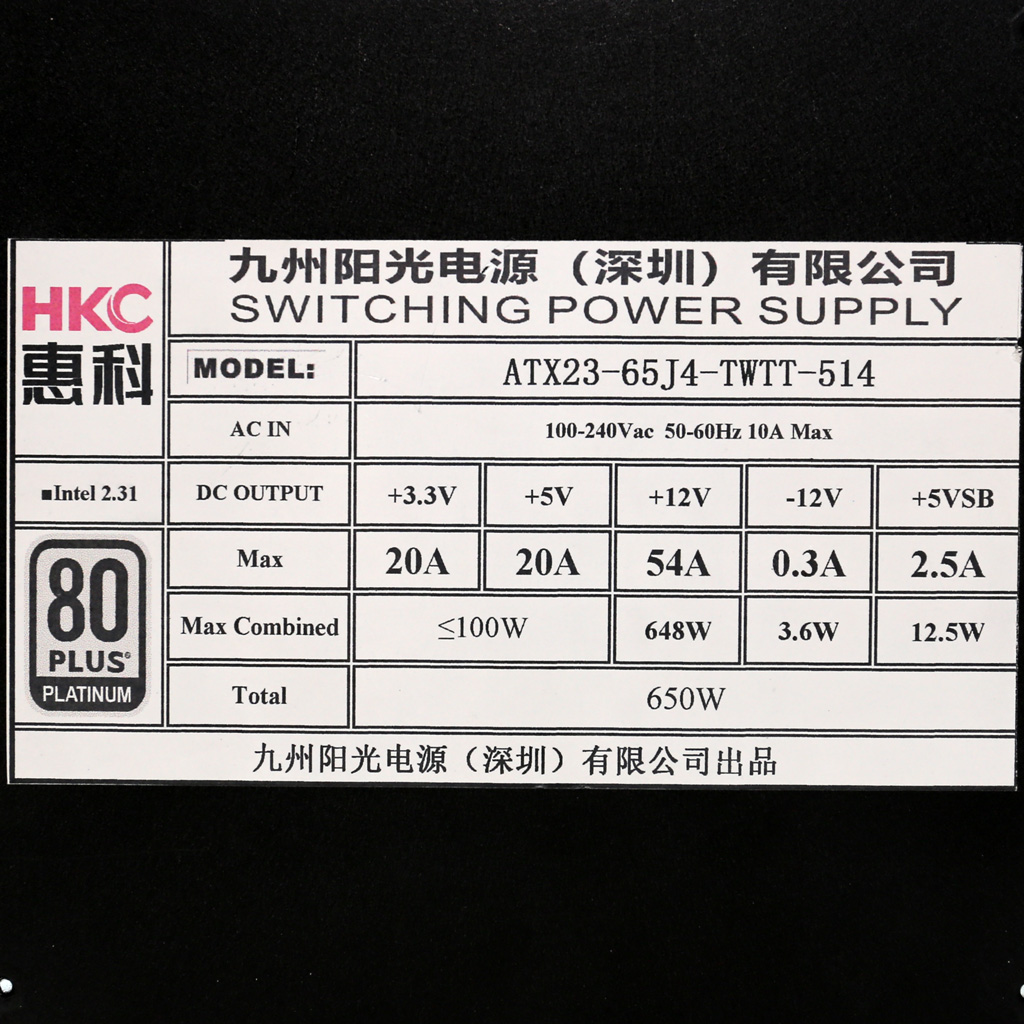

Power specifications table
