Aerocool ACP-850FP7
Serial NumberD170400607
Lab ID151
  • Report:
  • Receipt Date: Jul 20, 2018
  • Test Date: Jul 29, 2018
  • Report Date: Jul 31, 2018
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandAerocool
Manufacturer (OEM)Andyson
SeriesProject 7
Model Number
Serial NumberD170400607
DUT NotesRetested on 7/28/17

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)12-6
Rated Frequency (Hz)50-60
Rated Power (W)850
TypeATX12V
Cooling140mm Fluid Dynamic Bearing Fan
(CD1425M12F)
Semi-Passive Operation✓
Cable DesignFully Modular

Power Specifications

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 20 20 70 3 0.5
Watts 120 840 15 6
Total Max. Power (W) 850

Test Equipment

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, Chroma 61604
Power Analyzers N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge
ATX connector 20+4 pin (600mm) 1 1 16-20AWG
8 pin EPS12V (700mm) 1 1 16AWG
4+4 pin EPS12V (700mm) 1 1 16AWG
6+2 pin PCIe (600mm+150mm) / 6+2 pin PCIe (600mm) 2 / 2 4 / 2 18AWG
SATA (600mm+150mm+150mm+150) 2 8 18AWG
SATA (600mm+150mm) / 4 pin Molex (+150mm+150mm) 1 2 / 2 18AWG
4 pin Molex (600mm+150mm+150mm+150mm) 1 4 18AWG
FDD Adapter (+200mm) 1 1 20AWG
GRB DC Adapter (720mm+110mm) 1 2 28AWG

Parts Description

General Data
Manufacturer (OEM) Andyson
Primary Side
Transient Filter 4x Y caps, 3x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor & Diode
Bridge Rectifier(s) 2x GBU1506L (600V, 15A @ 100°C)
APFC MOSFETS 2x Infineon IPP50R140CP
(550V, 15A @ 100°C, 0.14 Ohm)
APFC Boost Diode 1x CREE C3D10060A (600V, 14A @ 135°C)
Hold-up Cap(s) 2x Hitachi (420V, 470uF each or 940uF combined, 2000h @ 105°C, HU)
Main Switchers 2x Infineon IPP50R140CP
(550V, 15A @ 100°C, 0.14 Ohm)
Driver IC: Silicon Labs Si8230BD
APFC Controller Champion CM6502S
APFC Controller Champion CM6901
Topology Primary side: Half-Bridge & LLC Resonant Controller
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS 8x Infineon BSC010N04LS (40V, 100A @ 100°C, 1.0 mOhm)
5V & 3.3V DC-DC Converters: 2x CSD86350Q5D power blocks
PWM Controller: 2x Anpec APW7073
Filtering Capacitors Electrolytics: Nippon Chemi-Con (105°C, KY, KZE), 1x Nichicon (4-10,000h, 105°C, HE)
Polymers: 1x Nippon Chemi-Con, 6x FPCAP
Supervisor IC SITI PS223 (OVP, UVP, OCP, SCP, OTP )
Fan Model 140mm LED fan (12V, 0.24A, 1623RPM, FDB)
5VSB Circuit
FET / Rectifier 1x APEC AP92U03GM / PFR10V45CT (45V, 5x 2A, 0.4V @ 125°C)
Driver IC: MIC4426
Standby PWM Controller Sanken STR-A6069H
-12V Circuit
Rectifier KODENSHI AUK SN7912PI (-12V, 2.2A @ 25°C)

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 ReadyErP Lot 3/6 2010: ✓
ErP Lot 3/6 2013: ✓
ErP Lot 3/6 2014, CEC: Partially
(EU) No 617/2013 Compliance✓

Performance Summary 115V

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms) 19.51
AC Loss to PWR_OK Hold Up Time  (ms) 17.60
PWR_OK Inactive to DC Loss Delay (ms) 1.91

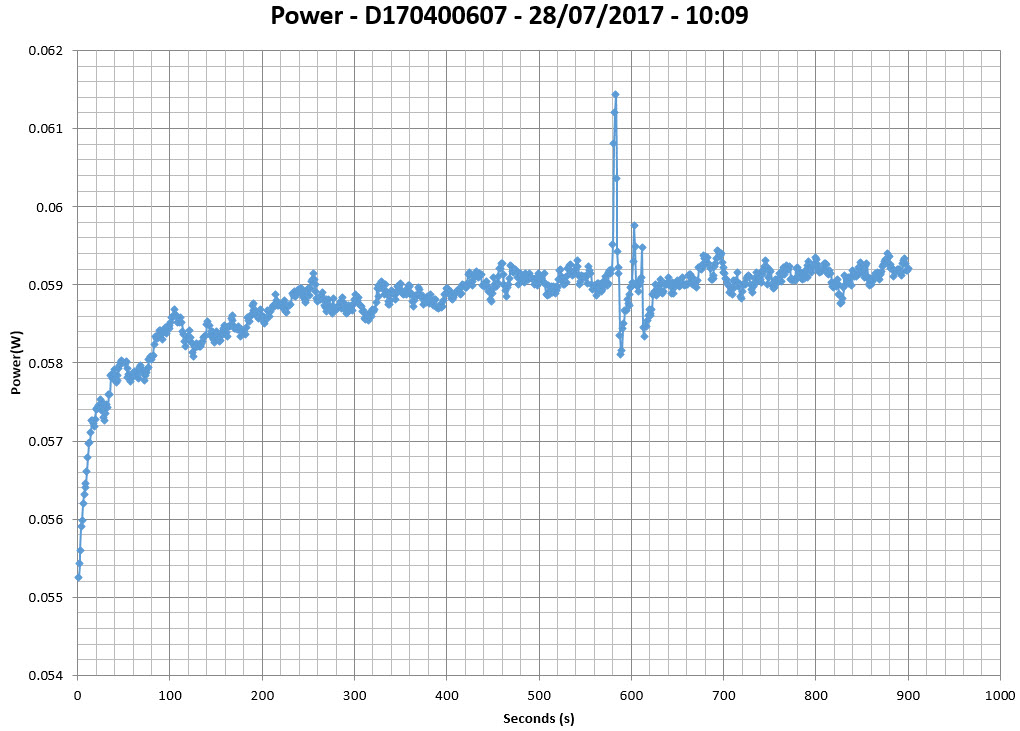

Vampire Power

Graphs 115V

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

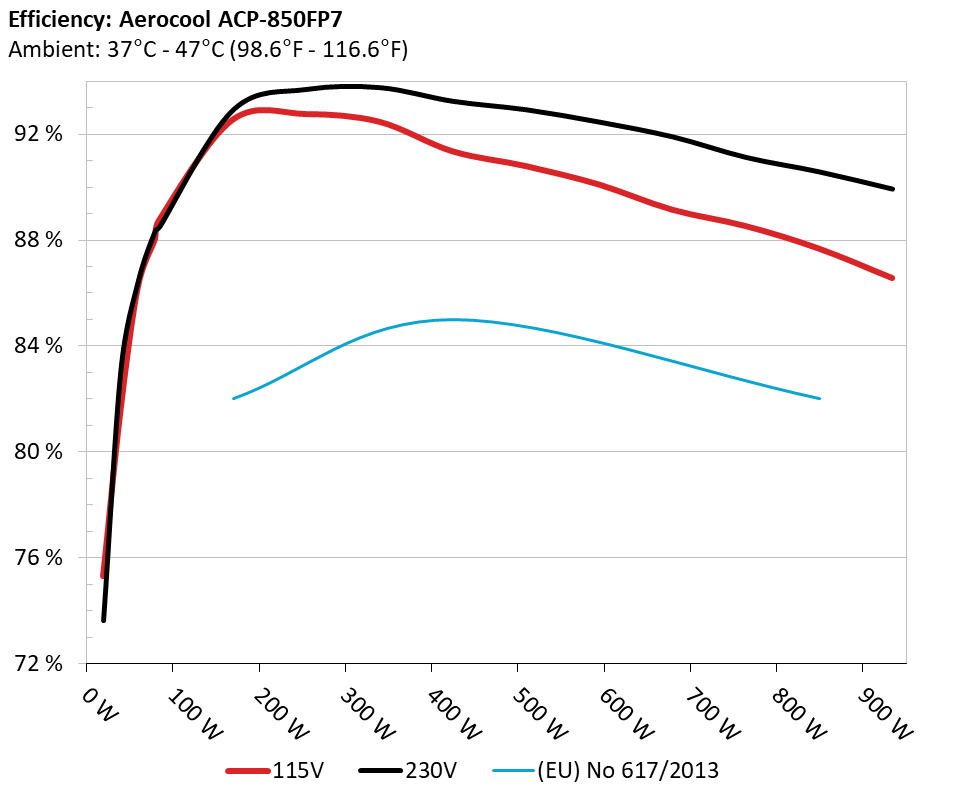

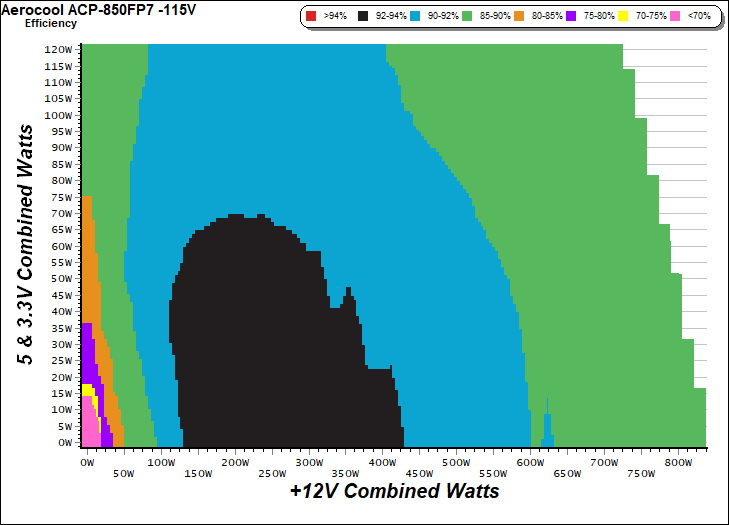

Efficiency Graph

115V

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

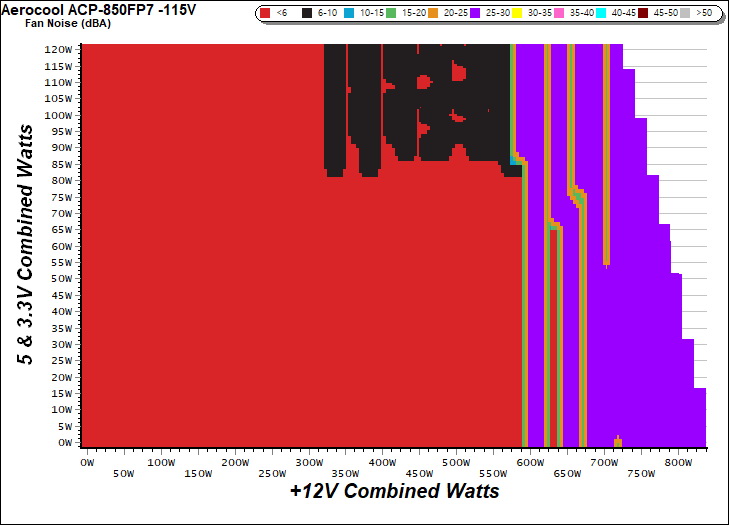

Noise Graph

115V

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

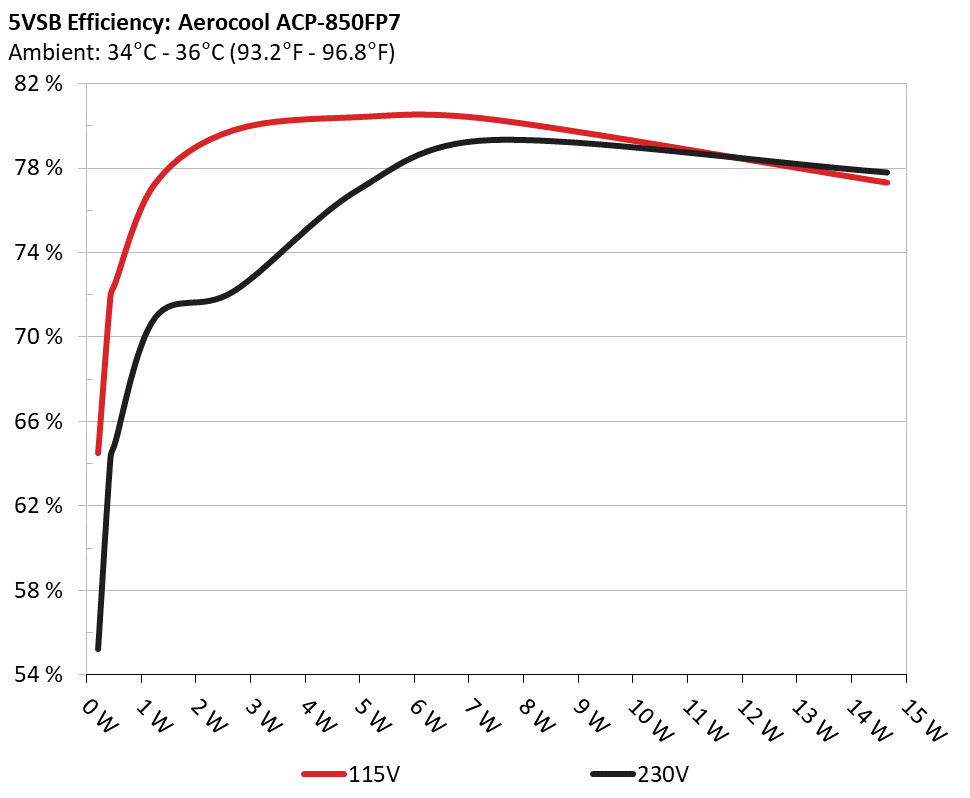

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC) 115V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.042A 0.207 64.486% 0.024
4.988V 0.321 115.18V
2 0.087A 0.433 71.927% 0.045
4.987V 0.602 115.18V
3 0.542A 2.694 79.822% 0.214
4.971V 3.375 115.17V
4 1.002A 4.964 80.441% 0.313
4.955V 6.171 115.17V
5 1.501A 7.414 80.334% 0.374
4.938V 9.229 115.17V
6 3.001A 14.658 77.331% 0.457
4.884V 18.955 115.17V

Supplementary Tests (For Reference)

Typical Load Tests 115V

Load Regulation & Efficiency Tests
Aerocool ACP-850FP7 -115V
Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 5.184A 1.976A 1.954A 0.990A 84.747 88.776% 0 <6.0 44.13°C 0.938
12.188V 5.058V 3.372V 5.031V 95.462 38.41°C 115.21V
2 11.385A 2.960A 2.937A 1.190A 169.602 92.562% 0 <6.0 44.76°C 0.972
12.188V 5.057V 3.368V 5.026V 183.231 38.65°C 115.23V
3 17.962A 3.467A 3.445A 1.391A 254.857 92.779% 0 <6.0 45.65°C 0.977
12.179V 5.055V 3.365V 5.018V 274.693 38.86°C 115.23V
4 24.531A 3.956A 3.924A 1.595A 339.711 92.488% 0 <6.0 47.32°C 0.983
12.170V 5.053V 3.361V 5.010V 367.302 39.27°C 115.23V
5 30.765A 4.960A 4.912A 1.795A 424.648 91.370% 395 6.5 41.06°C 0.988
12.161V 5.049V 3.357V 5.004V 464.756 55.50°C 115.21V
6 37.017A 5.946A 5.904A 2.000A 509.595 90.812% 395 6.5 41.64°C 0.991
12.151V 5.047V 3.353V 4.998V 561.155 56.73°C 115.21V
7 43.272A 6.944A 6.896A 2.200A 594.507 90.112% 395 6.5 42.67°C 0.993
12.142V 5.043V 3.349V 4.993V 659.741 60.74°C 115.21V
8 49.545A 7.937A 7.891A 2.405A 679.459 89.160% 1025 27.8 44.25°C 0.994
12.132V 5.040V 3.344V 4.985V 762.067 62.96°C 115.21V
9 56.257A 8.446A 8.409A 2.405A 764.566 88.544% 1025 27.8 44.63°C 0.995
12.122V 5.036V 3.341V 4.985V 863.487 63.53°C 115.21V
10 62.717A 8.942A 8.896A 3.020A 849.340 87.693% 1045 28.2 45.35°C 0.995
12.112V 5.035V 3.338V 4.965V 968.538 64.52°C 115.21V
11 69.767A 8.946A 8.905A 3.020A 934.250 86.579% 1410 36.4 46.57°C 0.996
12.105V 5.034V 3.335V 4.963V 1079.074 65.86°C 115.21V
CL1 0.097A 14.027A 14.004A 0.004A 118.996 86.427% 395 6.5 43.80°C 0.958
12.196V 5.049V 3.354V 5.101V 137.684 57.24°C 115.22V
CL2 69.934A 1.004A 1.002A 1.001A 861.033 87.731% 1045 28.2 46.16°C 0.995
12.120V 5.040V 3.348V 5.012V 981.447 63.92°C 115.22V

The results above are not used in the certification process

Light Load Tests 115V

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) Fan Noise (dB[A]) PF/AC Volts
1 1.196A 0.493A 0.471A 0.195A 19.647 75.302% 0 | 6 0.800
12.192V 5.054V 3.372V 5.048V 26.091 115.21V
2 2.418A 0.981A 0.976A 0.395A 39.722 81.536% 0 | 6 0.885
12.190V 5.058V 3.373V 5.045V 48.717 115.21V
3 3.644A 1.478A 1.479A 0.593A 59.873 86.238% 0 | 6 0.921
12.190V 5.058V 3.372V 5.042V 69.428 115.21V
4 4.857A 1.976A 1.954A 0.790A 79.760 88.051% 0 | 6 0.934
12.188V 5.058V 3.372V 5.036V 90.584 115.21V

The results above are not used in the certification process

Ripple Measurements 115V

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 5.6 mV 7.2 mV 6.7 mV 10.8 mV Pass
20% Load 10.5 mV 7.9 mV 7.1 mV 14.8 mV Pass
30% Load 11.6 mV 9.3 mV 7.9 mV 15.0 mV Pass
40% Load 13.0 mV 9.9 mV 9.7 mV 15.9 mV Pass
50% Load 15.6 mV 10.2 mV 9.1 mV 17.5 mV Pass
60% Load 17.4 mV 11.2 mV 10.6 mV 19.8 mV Pass
70% Load 19.6 mV 12.8 mV 12.3 mV 20.1 mV Pass
80% Load 22.6 mV 12.7 mV 13.0 mV 21.9 mV Pass
90% Load 24.3 mV 14.2 mV 12.9 mV 23.9 mV Pass
100% Load 27.2 mV 15.6 mV 14.1 mV 25.8 mV Pass
110% Load 30.4 mV 16.2 mV 16.3 mV 29.6 mV Pass
Crossload 1 21.4 mV 9.4 mV 9.0 mV 13.7 mV Pass
Crossload 2 27.6 mV 15.6 mV 13.4 mV 25.9 mV Pass

The results above are not used in the certification process

Aerocool ACP-850FP7

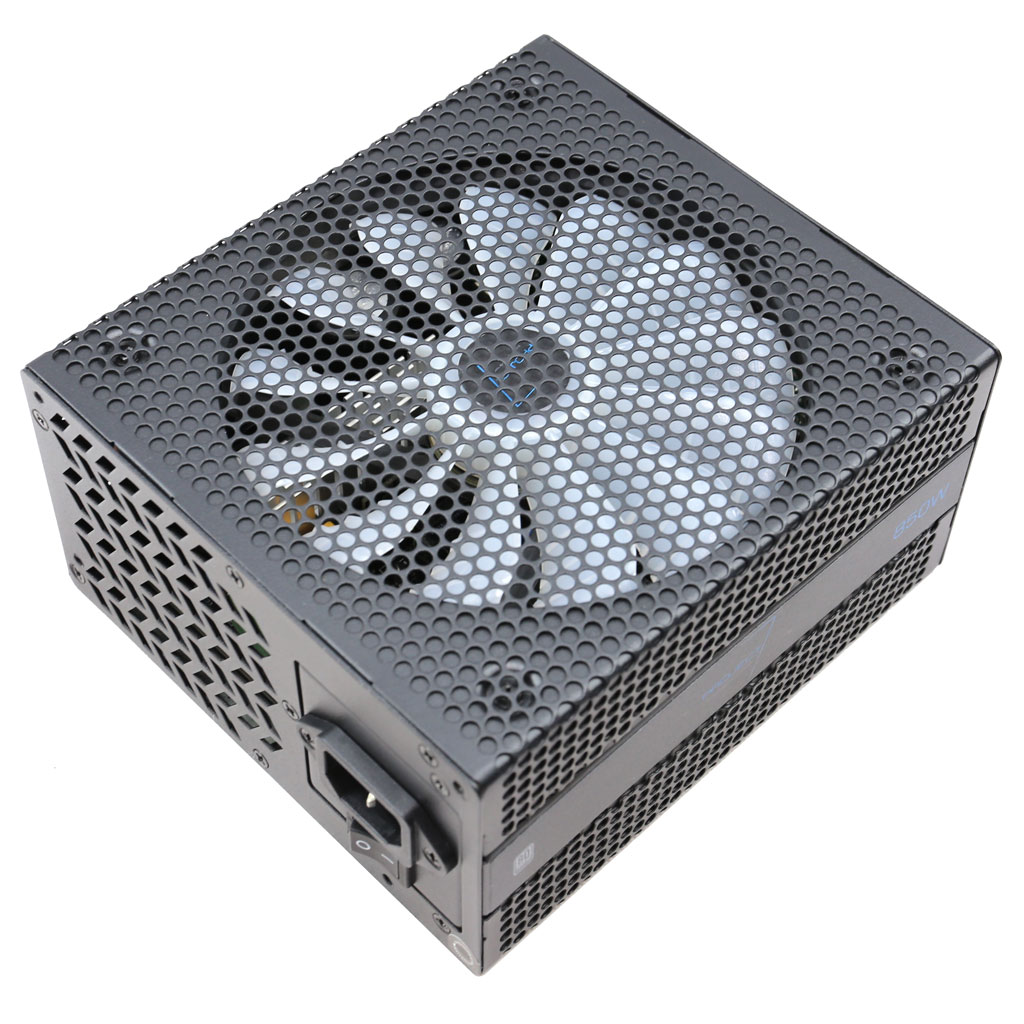

Top side

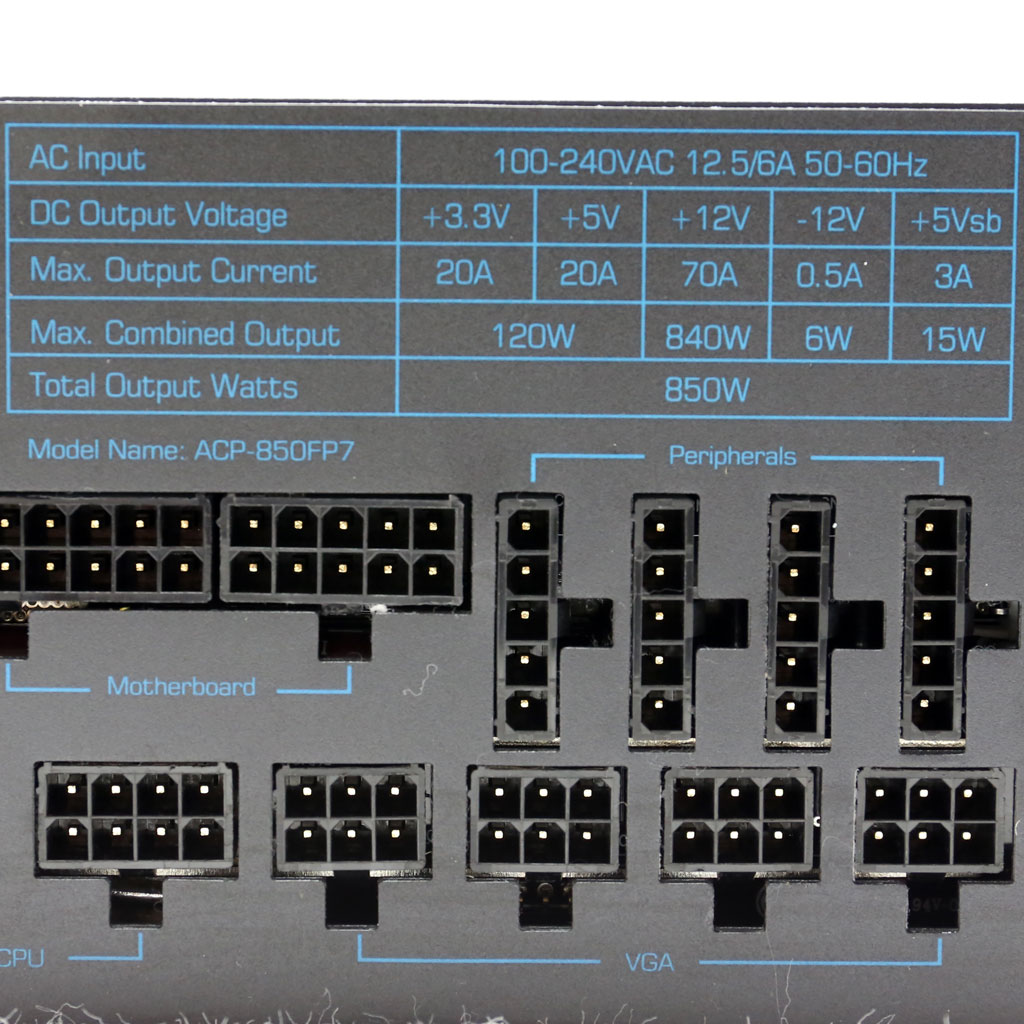

Power specifications label
