In Win Classic 900W
Serial Number66367000600019
Lab ID123
  • Report:
  • Receipt Date: Jun 6, 2018
  • Test Date: Jun 10, 2018
  • Report Date: Jun 13, 2018
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandInWin
Manufacturer (OEM)In Win
SeriesClassic
Model NumberC900
Serial Number66367000600019
DUT NotesEdited on 05/23/2018

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)6-10
Rated Frequency (Hz)50-60
Rated Power (W)900
TypeATX12V
Cooling120mm Hypro Bearing Fan
(ADDA AD1212DX-A70GL)
Semi-Passive Operation✗
Cable DesignFully Modular

Power Specifications

Rail 3.3V 5V 12V1 12V2 12V3 12V4 5VSB -12V
Max. Power Amps 20 20 25 25 25 25 3 0.3
Watts 100 900 15 3.6
Total Max. Power (W) 900

Test Equipment

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, Chroma 61604
Power Analyzers N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (640mm) 1 1 16-22AWG No
4+4 pin EPS12V (650mm) 2 2 18AWG No
6+2 pin PCIe (610mm) 4 4 18AWG No
SATA (600mm+105mm+105mm) 3 9 18AWG No
4 pin Molex (600mm+105mm+105mm) / FDD (+105mm) 2 6 / 2 18-22AWG No
AC Power Cord (1670mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data
Manufacturer (OEM) In Win
Primary Side
Transient Filter 6x Y caps, 3x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor & Relay
Bridge Rectifier(s) 2x Shindengen LL15XB60 (600 V, 15 A @ 124 °C)
APFC MOSFETS 2x Infineon IPP60R125P6 (650 V, 19 A @ 100 °C, 0.125 Ohm @ 25 °C)
APFC Boost Diode 1x CREE C3D10060A (600 V, 10 A @ 153 °C)
Hold-up Cap(s) 2x Nippon Chemi-Con (420 V, 390 uF each or 780 uF combined, 105 °C, )
Main Switchers 2x Infineon IPW60R160P6
(650 V, 15 A @ 100 °C, 0.16 Ohm @ 25 °C)
APFC Controller On Semiconductor NCP1654
Switching Controller Champion CM6901
Topology Primary side: Half-Bridge & LLC Resonant Converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS 4x Alpha & Omega AON6590 (40 V, 100 A @ 100 °C, 1.55 mOhm @ 125 °C)
5V & 3.3V DC-DC Converters: 8x  D528 (GA5G13) FETs
PWM Controller: ANPEC APW7160A
Filtering Capacitors Electrolytics: Nippon Chemi-Con (105 °C, KY, KZE) Polymers: Nippon Chemi-Con
Supervisor IC SITI PS223 (OVP, UVP, OCP, SCP, OTP )
Fan Model ADDA AD1212DX-A70GL (120 mm, 12 V, 0.13 A, Hypro Bearing)
5VSB Circuit
Rectifier Taiwan Semiconductor TSF20U45C (45 V, 20 A)
Standby PWM Controller Excelliance MOS EM8569D
-12V Circuit
PWM Controller ANPEC APW7174


Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 ReadyErP Lot 6 2010: ✓
ErP Lot 6 2013: Partially
ErP Lot 3 2014: ✓
(EU) No 617/2013 Compliance✓

Performance Summary 115V

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)12.6
AC Loss to PWR_OK Hold Up Time (ms)11.3
PWR_OK Inactive to DC Loss Delay (ms)1.3

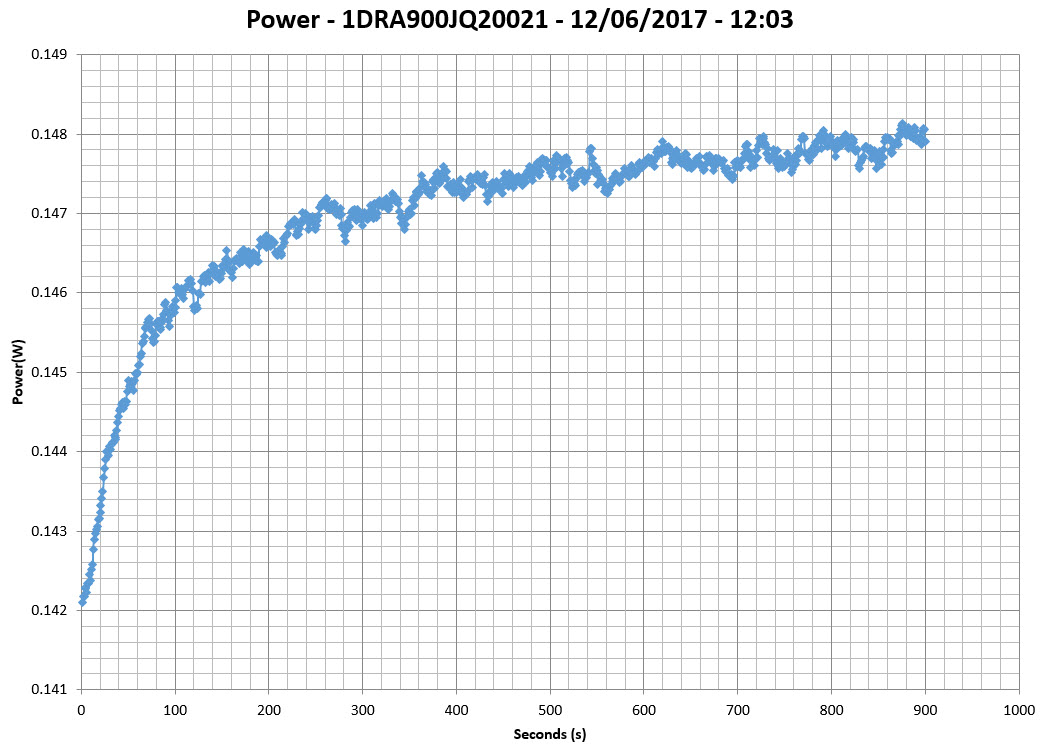

Vampire Power

Graphs 115V

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

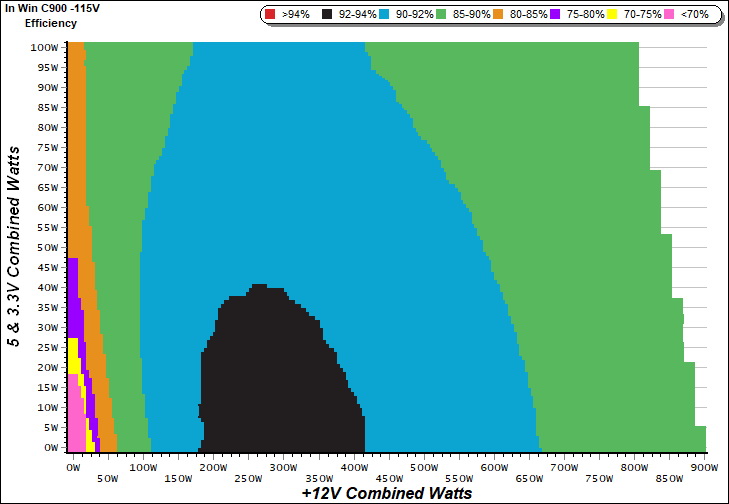

Efficiency Graph

115V

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

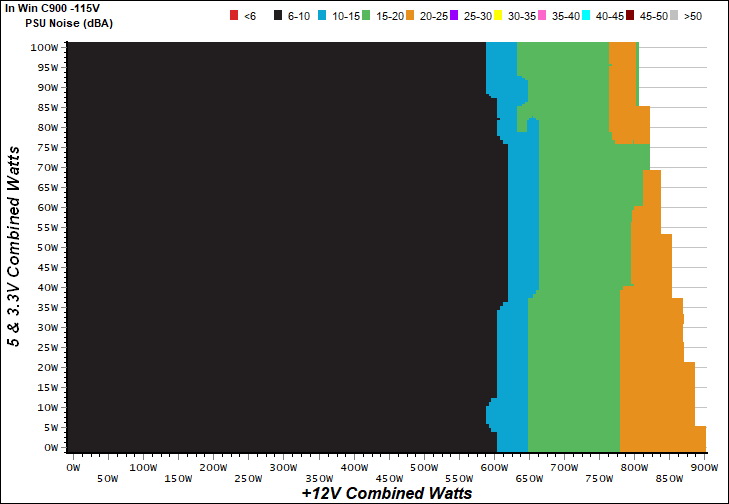

Noise Graph

115V

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

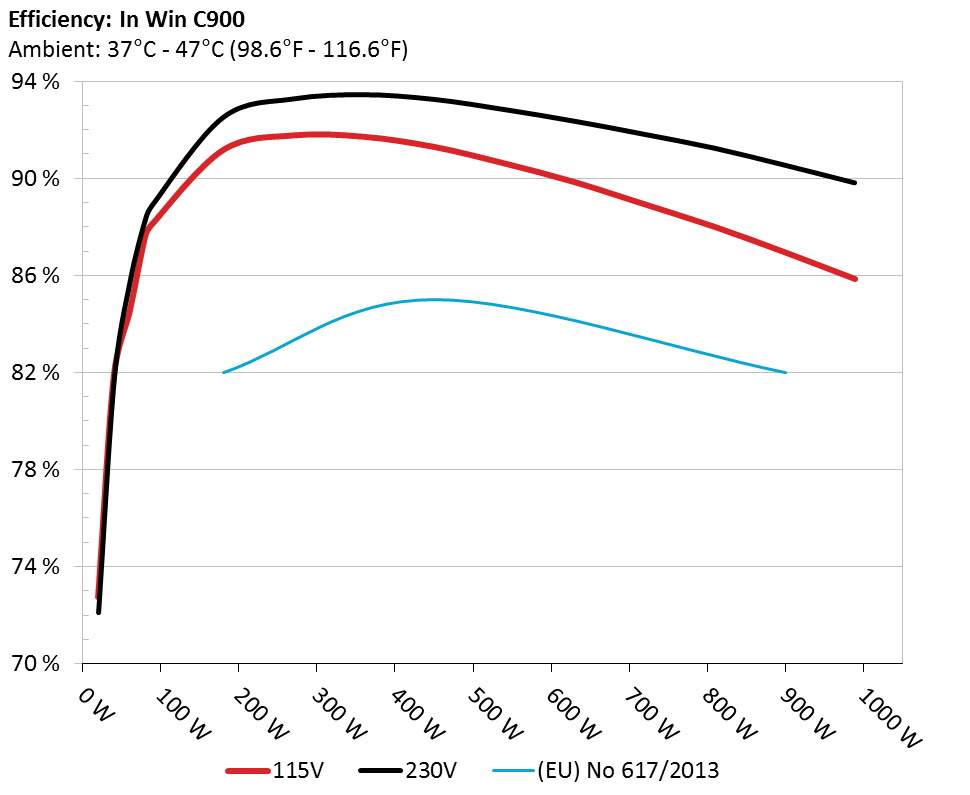

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

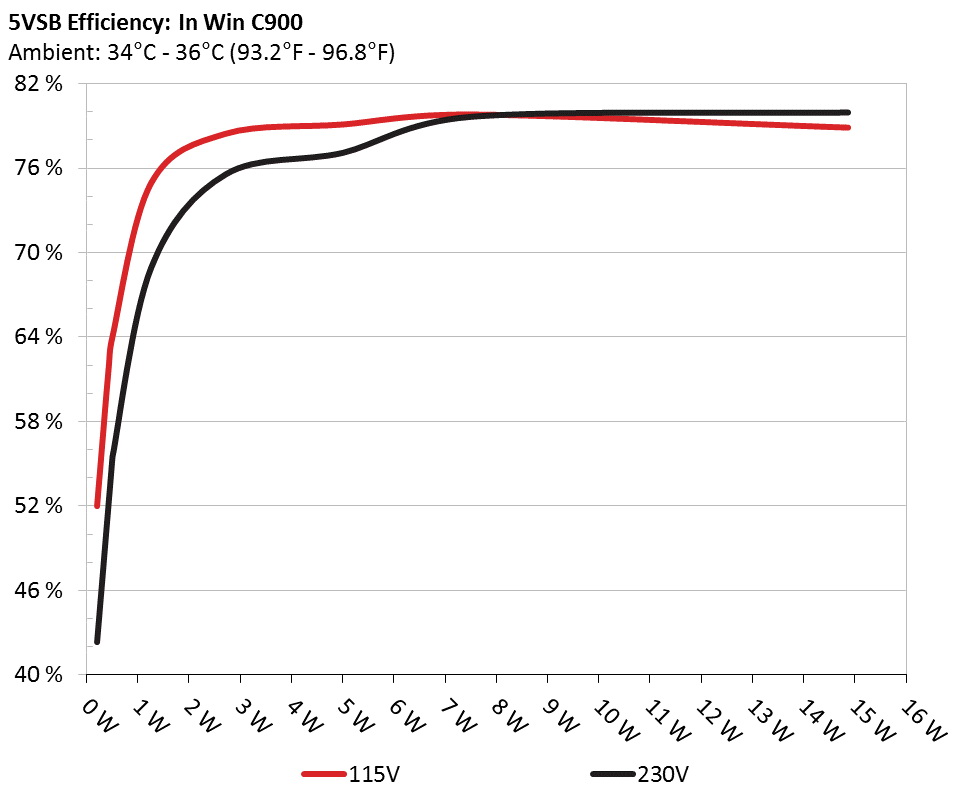

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC) 115V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.042A 0.209 51.990% 0.042
5.032V 0.402 115.16V
2 0.087A 0.437 61.898% 0.073
5.030V 0.706 115.18V
3 0.542A 2.718 78.464% 0.271
5.018V 3.464 115.16V
4 1.002A 5.014 79.123% 0.365
5.005V 6.337 115.17V
5 1.501A 7.495 79.827% 0.415
4.992V 9.389 115.17V
6 3.001A 14.861 78.897% 0.477
4.952V 18.836 115.17V

Supplementary Tests (For Reference)

Typical Load Tests 115V

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 5.520A 1.964A 1.969A 1.000A 89.779 88.160% 276 6.7 38.42°C 0.980
12.357V 5.102V 3.348V 4.995V 101.836 43.33°C 115.19V
2 12.109A 2.948A 2.964A 1.201A 179.600 91.175% 267 6.7 38.72°C 0.982
12.286V 5.083V 3.336V 4.981V 196.980 44.64°C 115.18V
3 19.090A 3.457A 3.487A 1.405A 269.808 91.782% 365 7.4 39.12°C 0.990
12.244V 5.069V 3.324V 4.968V 293.965 46.35°C 115.19V
4 26.084A 3.955A 3.979A 1.614A 359.639 91.726% 505 9.1 39.66°C 0.994
12.211V 5.055V 3.314V 4.953V 392.080 47.38°C 115.20V
5 32.765A 4.971A 4.997A 1.820A 449.606 91.308% 640 15.4 40.15°C 0.995
12.181V 5.036V 3.300V 4.939V 492.407 48.42°C 115.19V
6 39.475A 5.978A 6.019A 2.029A 539.495 90.631% 795 20.4 40.89°C 0.996
12.152V 5.018V 3.288V 4.924V 595.266 49.62°C 115.19V
7 46.217A 7.010A 7.052A 2.241A 629.478 89.861% 988 29.1 41.76°C 0.997
12.125V 4.999V 3.275V 4.906V 700.500 50.90°C 115.20V
8 52.990A 8.041A 8.093A 2.451A 719.332 88.945% 1168 30.6 42.98°C 0.997
12.097V 4.977V 3.262V 4.890V 808.740 52.45°C 115.20V
9 60.213A 8.568A 8.645A 2.455A 809.284 88.015% 1177 31.0 43.77°C 0.997
12.070V 4.962V 3.249V 4.882V 919.481 54.15°C 115.20V
10 67.216A 9.104A 9.178A 3.088A 899.136 86.967% 1187 31.2 45.36°C 0.997
12.043V 4.945V 3.235V 4.854V 1033.882 57.34°C 115.20V
11 74.847A 9.129A 9.217A 3.094A 989.031 85.868% 1187 31.2 46.80°C 0.997
12.016V 4.931V 3.222V 4.845V 1151.806 60.48°C 115.21V
CL1 0.098A 12.013A 12.004A 0.004A 101.400 83.595% 1190 31.3 44.51°C 0.978
12.335V 5.020V 3.322V 5.005V 121.299 51.23°C 115.20V
CL2 74.948A 1.004A 1.002A 1.002A 915.976 87.343% 1187 31.2 46.01°C 0.997
12.046V 5.008V 3.256V 4.923V 1048.713 57.96°C 115.21V

The results above are not used in the certification process

Light Load Tests 115V

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.175A 0.483A 0.474A 0.196A 19.627 72.765% 288 6.7 0.808
12.420V 5.121V 3.359V 5.025V 26.973 115.19V
2 2.378A 0.971A 0.981A 0.396A 39.692 81.853% 285 6.7 0.918
12.407V 5.116V 3.355V 5.017V 48.492 115.19V
3 3.584A 1.461A 1.489A 0.595A 59.847 84.496% 283 6.7 0.944
12.396V 5.108V 3.352V 5.009V 70.828 115.20V
4 4.788A 1.960A 1.969A 0.798A 79.767 87.597% 278 6.7 0.973
12.365V 5.102V 3.349V 5.000V 91.061 115.19V

The results above are not used in the certification process

Ripple Measurements 115V

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 20.4 mV 13.9 mV 14.2 mV 6.8 mV Pass
20% Load 30.0 mV 20.7 mV 17.6 mV 15.4 mV Pass
30% Load 20.4 mV 17.6 mV 17.4 mV 9.0 mV Pass
40% Load 19.8 mV 18.1 mV 20.5 mV 9.7 mV Pass
50% Load 21.1 mV 19.8 mV 22.3 mV 10.4 mV Pass
60% Load 21.0 mV 21.3 mV 27.3 mV 11.7 mV Pass
70% Load 22.5 mV 23.2 mV 28.5 mV 12.5 mV Pass
80% Load 23.0 mV 25.0 mV 31.5 mV 13.6 mV Pass
90% Load 25.2 mV 27.1 mV 32.8 mV 15.9 mV Pass
100% Load 26.9 mV 31.5 mV 40.9 mV 20.1 mV Pass
110% Load 28.0 mV 32.5 mV 41.3 mV 21.2 mV Pass
Crossload 1 27.3 mV 20.5 mV 17.7 mV 14.4 mV Pass
Crossload 2 26.3 mV 28.2 mV 39.3 mV 17.1 mV Pass

The results above are not used in the certification process

In Win Classic 900W

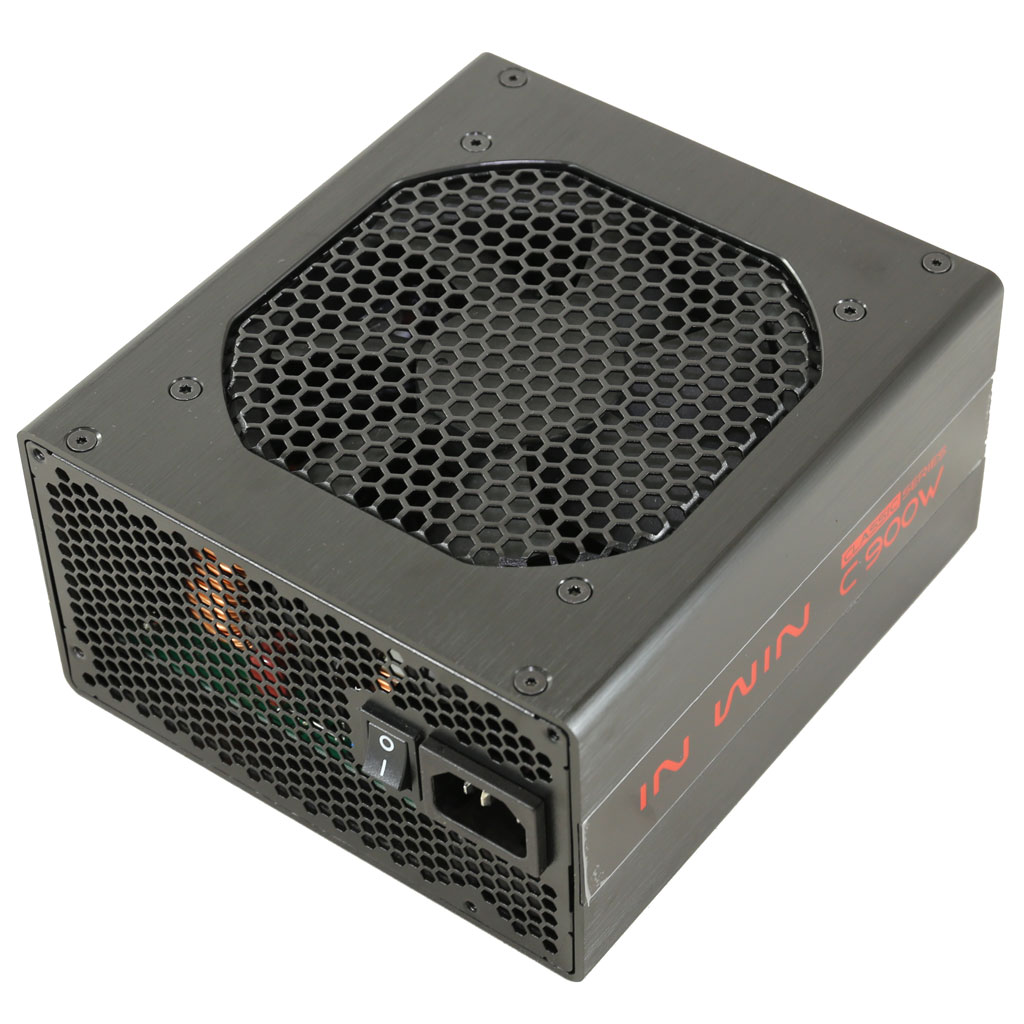

Top side

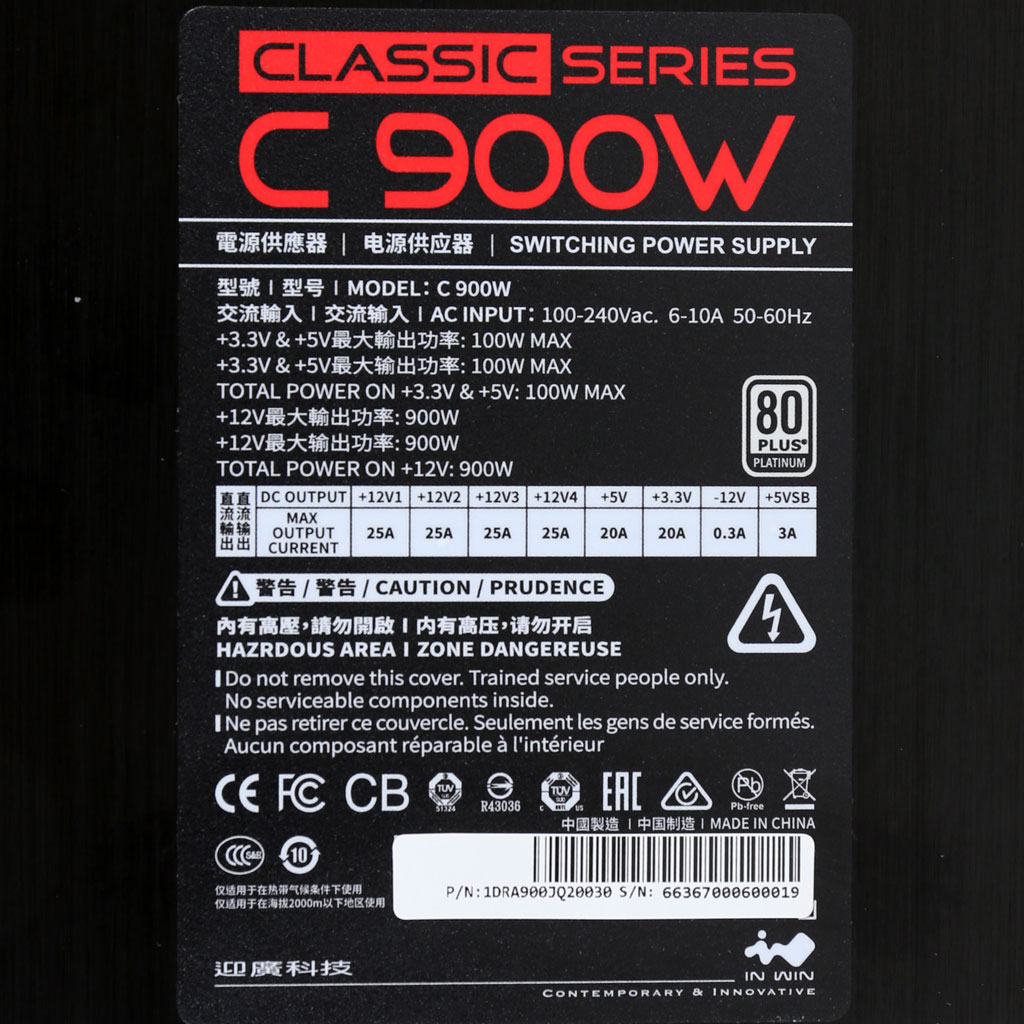

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
