ErP Lot 6 2010: ✓
ErP Lot 6 2013: ✓
ErP Lot 3 2014: Partially
(EU) No 617/2013 Compliance
✓
Performance Summary 115V
Efficiency Rating
BRONZE
Noise Rating
Standard++
Average Efficiency (>1450 load combinations)
84.903%
Average Noise Output (>1450 Load Combinations)
32.45dBA
Average PF (>1450 Load Combinations)
0.988
Efficiency With 10W (≤500W) or 2% (>500W) Load
0.000%
Standby Power Consumption
0.0823W
12V Ripple (Full Load)
50.15mV
5V Ripple (Full Load)
32.72mV
3.3V Ripple (Full Load)
40.76mV
5VSB Ripple (Full Load)
29.73mV
12V Load Regulation
1.22%
5V Load Regulation
2.03%
3.3V Load Regulation
2.46%
5VSB Load Regulation
3.19%
Inrush Current
84.834A
Hold-Up Time & Power Ok Signal
Hold-Up Time (ms)
16.8
AC Loss to PWR_OK Hold Up Time (ms)
16.3
PWR_OK Inactive to DC Loss Delay (ms)
0.5
Vampire Power
Tables 115V
Graphs 115V
INFO

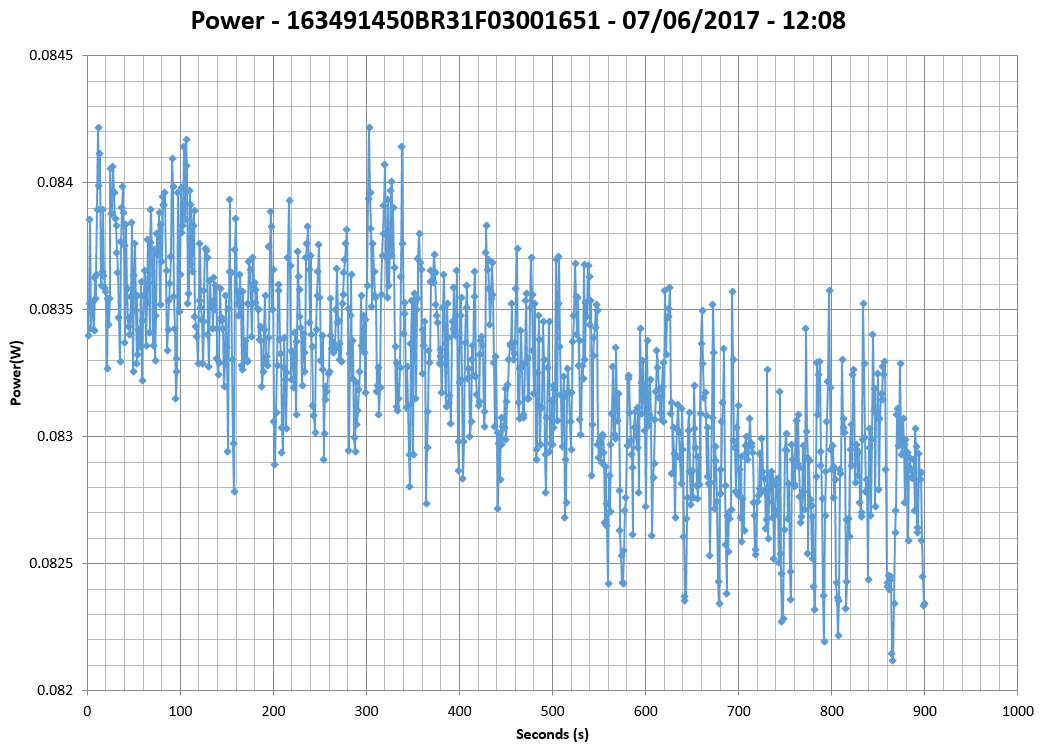

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

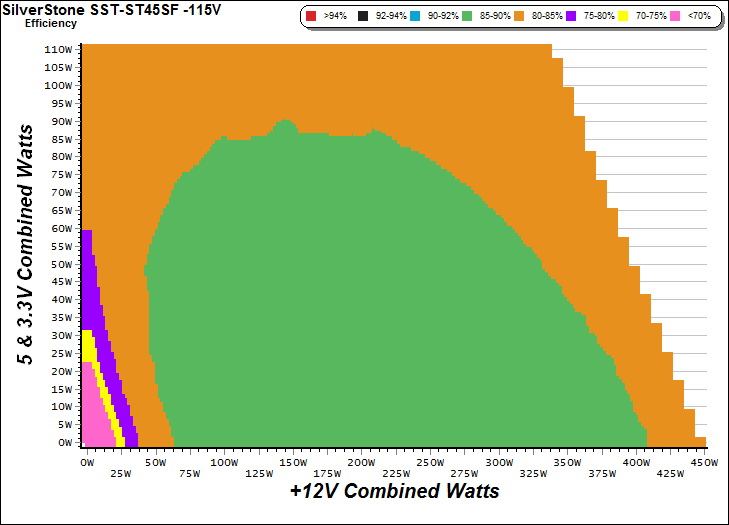

Efficiency Graph
115V
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

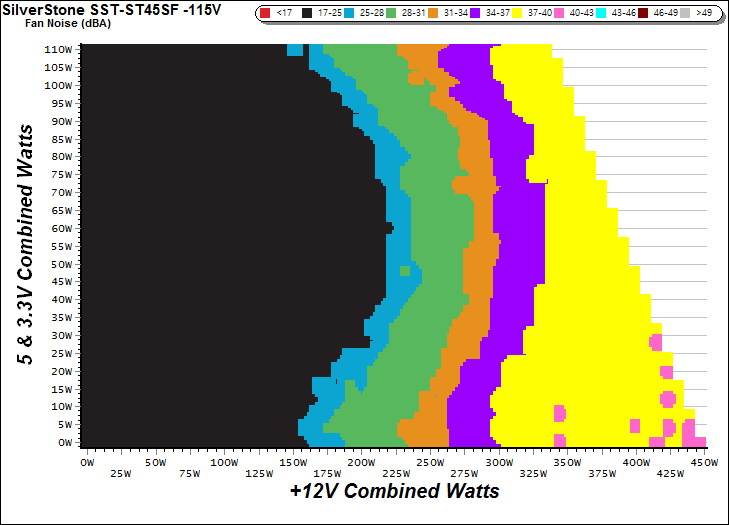

Noise Graph
115V
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.
Indicative Performance
Efficiency under high ambient temperature
INFO
The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

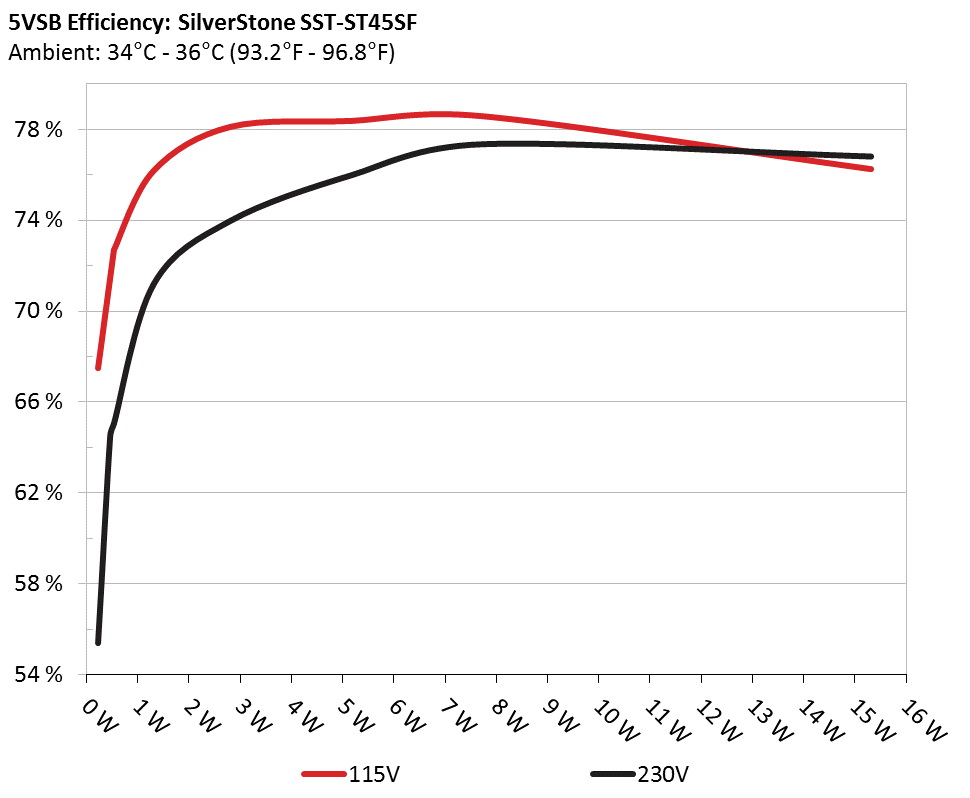

5VSB Efficiency
INFO
This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.
5VSB Efficiency (ERP LOT 3/6 & CEC) 115V
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.042A
0.216
67.500%
0.054
5.179V
0.320
115.18V
2
0.087A
0.450
72.698%
0.100
5.179V
0.619
115.18V
3
0.542A
2.800
78.103%
0.307
5.167V
3.585
115.17V
4
1.002A
5.165
78.364%
0.359
5.155V
6.591
115.17V
5
1.501A
7.722
78.571%
0.386
5.143V
9.828
115.17V
6
3.002A
15.311
76.246%
0.427
5.101V
20.081
115.17V
Supplementary Tests (For Reference)
Typical Load Tests 115V
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
Fan Noise (dB[A])
Temps (In/Out)
PF/AC Volts
1
1.911A
1.966A
1.956A
0.971A
44.777
80.270%
1050
17.5
38.14°C
0.964
12.148V
5.076V
3.368V
5.144V
55.783
41.06°C
115.19V
2
4.853A
2.959A
2.945A
1.166A
89.742
85.431%
1050
17.5
38.42°C
0.981
12.133V
5.065V
3.359V
5.130V
105.046
41.55°C
115.19V
3
8.153A
3.464A
3.459A
1.365A
134.904
86.886%
1050
17.5
38.94°C
0.985
12.119V
5.058V
3.351V
5.117V
155.265
42.09°C
115.20V
4
11.450A
3.963A
3.944A
1.565A
179.761
86.936%
1250
19.0
39.65°C
0.988
12.103V
5.049V
3.344V
5.102V
206.775
43.06°C
115.20V
5
14.418A
4.969A
4.946A
1.766A
224.784
86.555%
1640
24.5
40.61°C
0.990
12.088V
5.036V
3.334V
5.088V
259.702
44.17°C
115.20V
6
17.393A
5.973A
5.954A
1.970A
269.756
86.010%
2050
29.8
41.51°C
0.991
12.072V
5.024V
3.323V
5.073V
313.633
45.17°C
115.20V
7
20.374A
6.987A
6.968A
2.170A
314.751
85.591%
2350
35.0
42.17°C
0.995
12.057V
5.013V
3.315V
5.059V
367.737
46.56°C
115.20V
8
23.365A
7.999A
7.985A
2.375A
359.696
84.762%
2675
37.5
43.04°C
0.995
12.040V
5.002V
3.305V
5.044V
424.360
47.64°C
115.19V
9
26.797A
8.516A
8.523A
2.380A
404.724
83.969%
2750
40.5
43.86°C
0.993
12.022V
4.990V
3.296V
5.035V
481.992
48.58°C
115.18V
10
29.978A
9.046A
9.030A
2.995A
449.577
82.823%
2765
41.1
44.96°C
0.991
12.004V
4.979V
3.288V
5.005V
542.814
49.82°C
115.18V
11
33.771A
9.061A
9.050A
3.000A
494.522
81.766%
2785
41.5
45.63°C
0.987
11.986V
4.972V
3.282V
4.996V
604.800
50.69°C
115.19V
CL1
0.098A
13.019A
13.003A
0.004A
109.720
79.906%
1680
25.3
42.86°C
0.983
12.112V
5.012V
3.327V
5.131V
137.311
47.03°C
115.20V
CL2
37.472A
1.004A
1.002A
1.002A
463.530
83.791%
2750
40.5
44.22°C
0.991
12.011V
5.022V
3.316V
5.079V
553.198
48.14°C
115.18V
The results above are not used in the certification process
Light Load Tests 115V
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
Fan Noise (dB[A])
PF/AC Volts
1
1.200A
0.493A
0.472A
0.191A
19.680
70.896%
1050
17.5
0.920
12.159V
5.089V
3.375V
5.170V
27.759
115.19V
2
2.427A
0.981A
0.975A
0.386A
39.757
80.149%
1050
17.5
0.959
12.152V
5.082V
3.371V
5.162V
49.604
115.19V
3
3.659A
1.467A
1.482A
0.581A
59.877
83.819%
1050
17.5
0.974
12.145V
5.078V
3.367V
5.153V
71.436
115.19V
4
4.876A
1.974A
1.959A
0.775A
79.770
85.319%
1050
17.5
0.979
12.138V
5.071V
3.363V
5.144V
93.496
115.19V
The results above are not used in the certification process
Ripple Measurements 115V
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
13.3 mV
10.8 mV
17.0 mV
7.7 mV
Pass
20% Load
21.4 mV
13.8 mV
18.7 mV
10.0 mV
Pass
30% Load
17.5 mV
16.0 mV
21.3 mV
11.5 mV
Pass
40% Load
20.2 mV
17.4 mV
25.0 mV
13.4 mV
Pass
50% Load
24.9 mV
19.8 mV
26.0 mV
14.2 mV
Pass
60% Load
26.8 mV
21.1 mV
24.9 mV
17.3 mV
Pass
70% Load
29.6 mV
23.6 mV
28.6 mV
19.7 mV
Pass
80% Load
35.6 mV
25.6 mV
36.7 mV
23.9 mV
Pass
90% Load
41.3 mV
28.1 mV
41.4 mV
25.1 mV
Pass
100% Load
50.2 mV
32.7 mV
40.8 mV
29.7 mV
Pass
110% Load
60.3 mV
32.7 mV
42.5 mV
31.1 mV
Pass
Crossload 1
23.7 mV
33.2 mV
37.5 mV
29.3 mV
Pass
Crossload 2
51.8 mV
18.8 mV
32.6 mV
11.9 mV
Pass
The results above are not used in the certification process
SilverStone SFX 450W

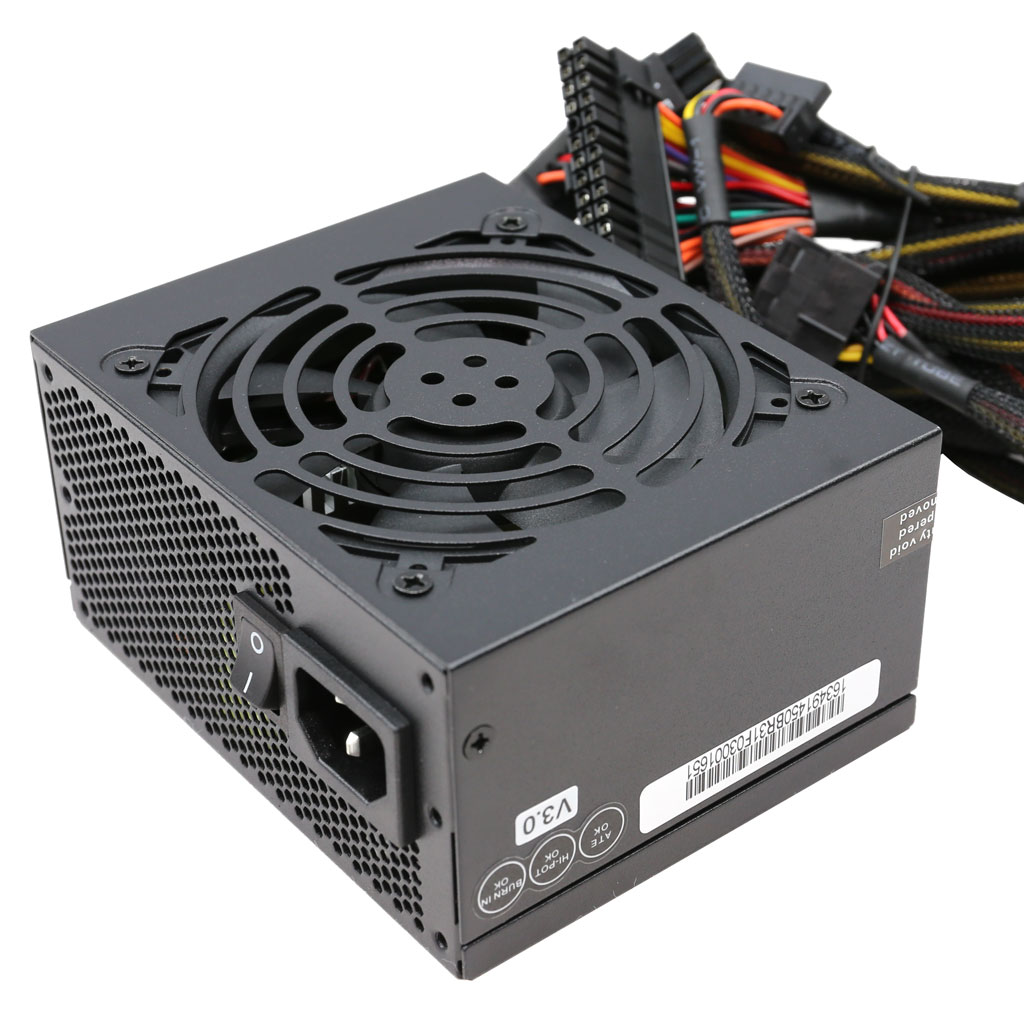

Top side

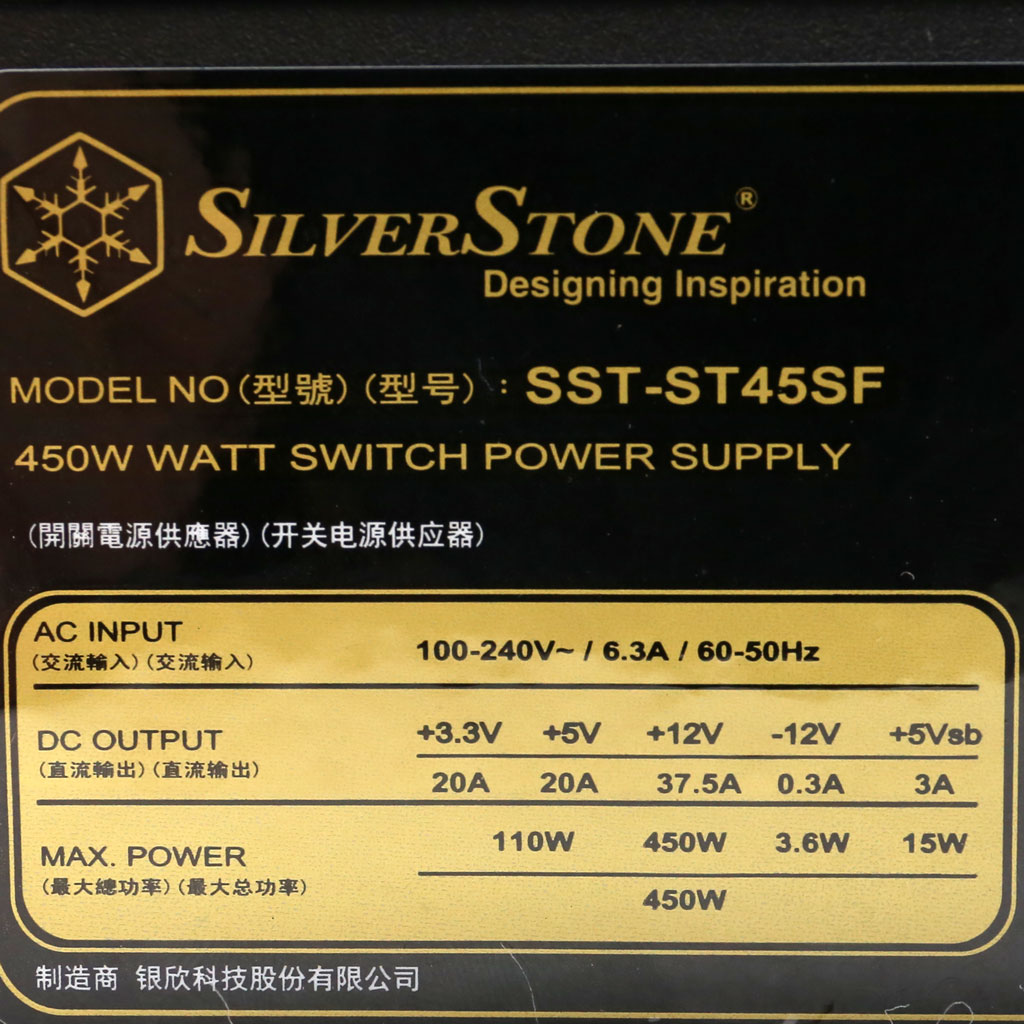

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions: › It should be mentioned that the test results are provided by Cybenetics › The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
