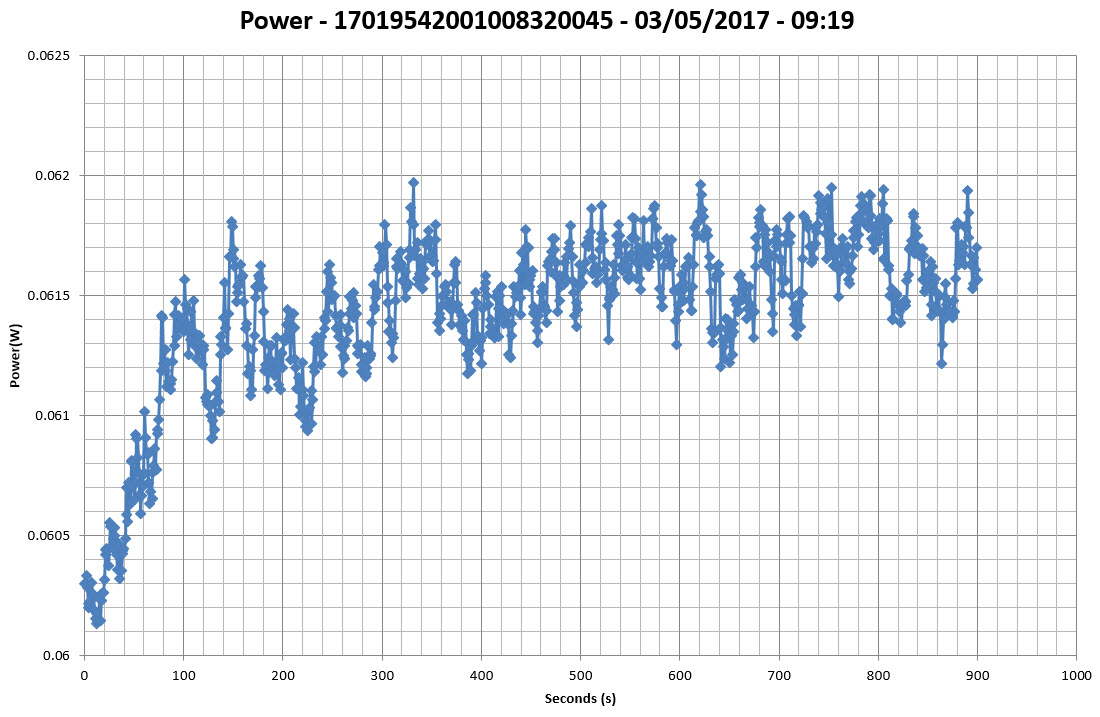

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.
115V

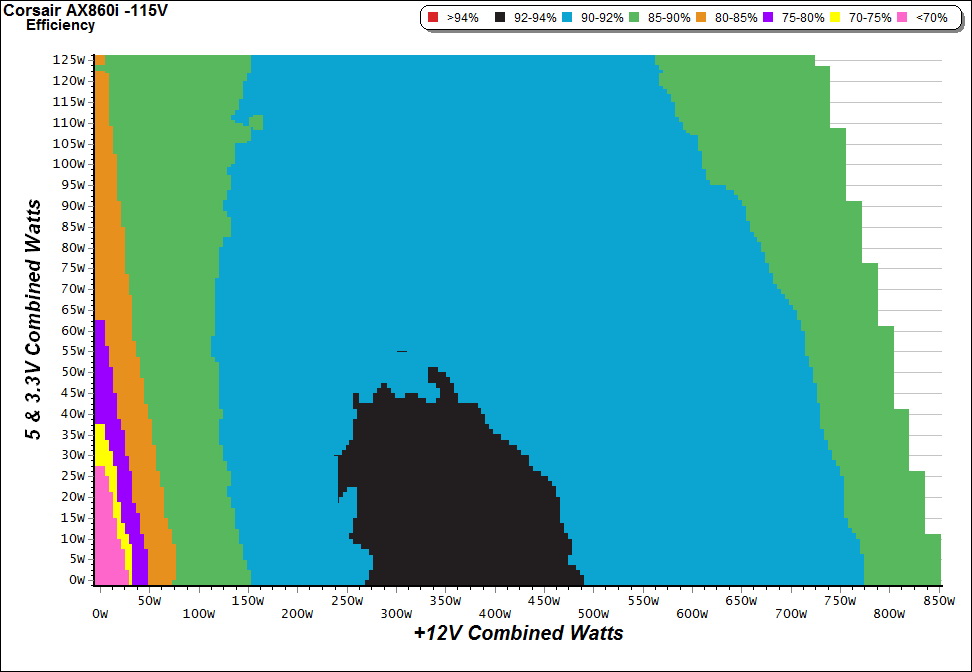

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.
115V

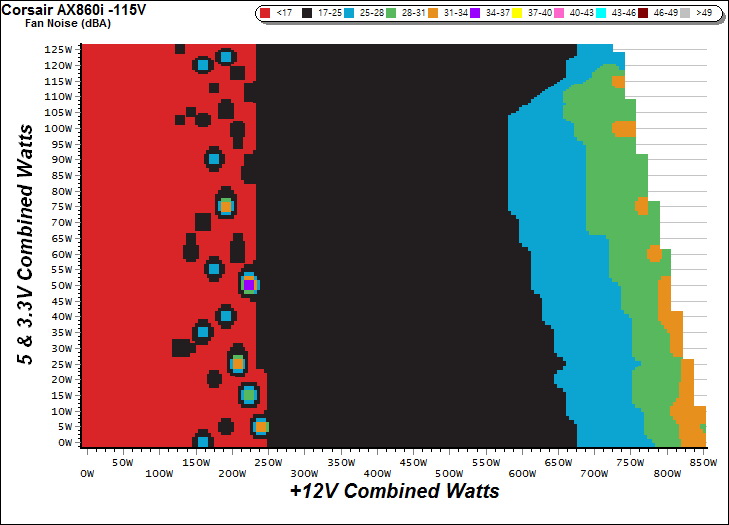

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.
Indicative Performance

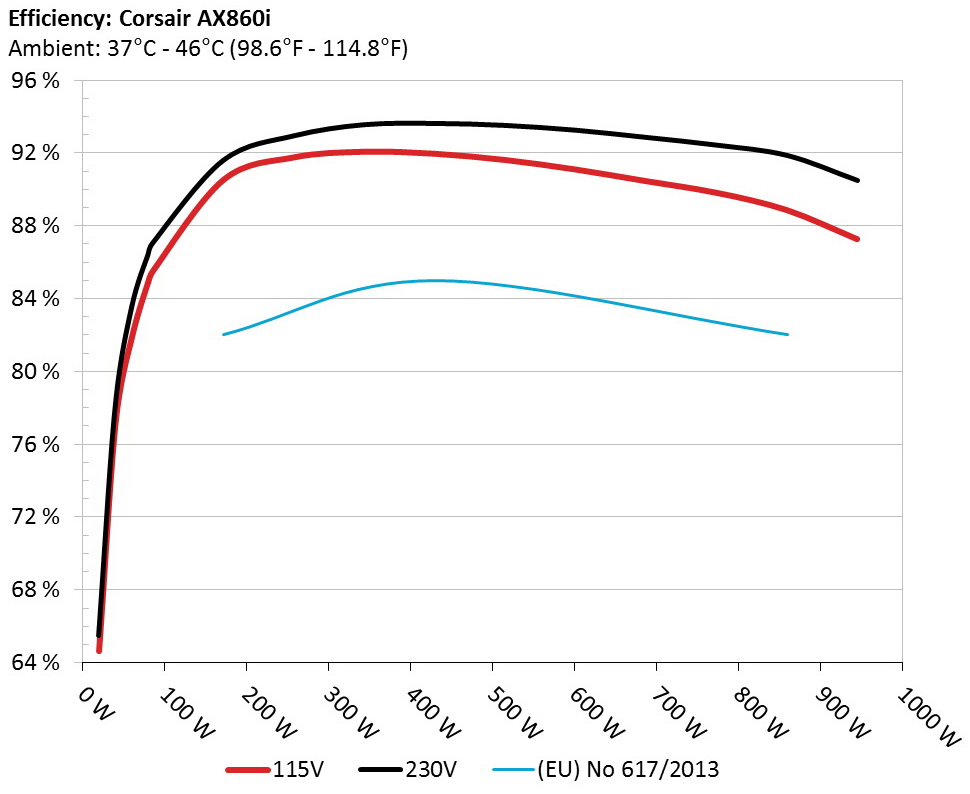

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

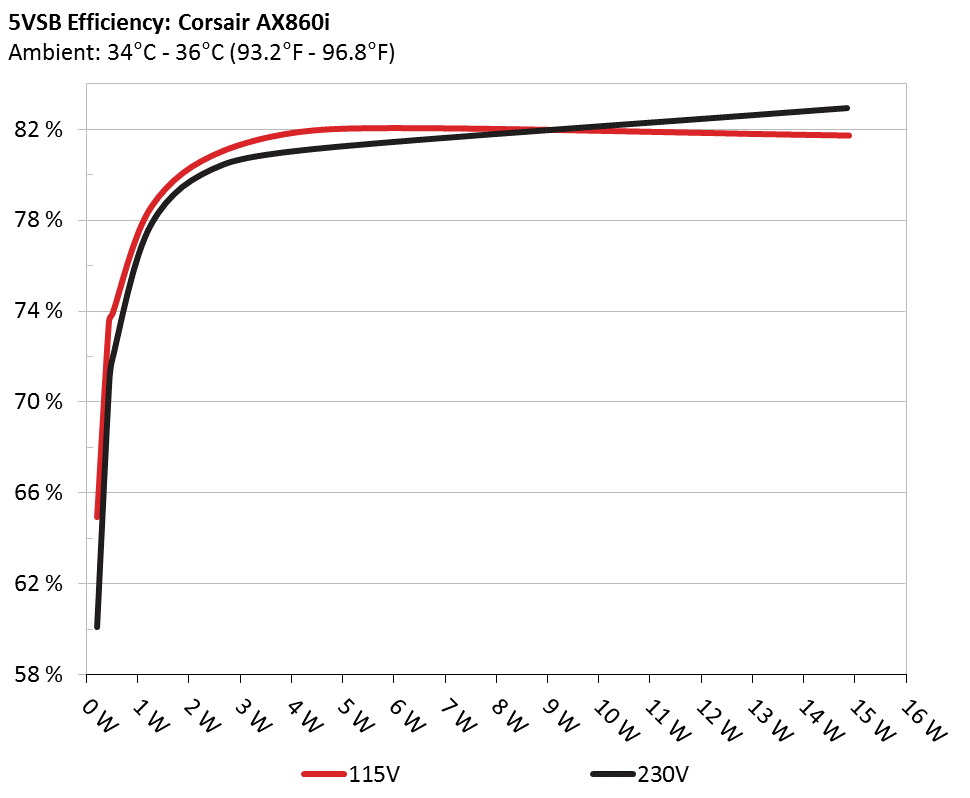

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.
115V
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.042A
0.211
64.923%
0.046
5.048V
0.325
115.08V
2
0.088A
0.442
73.544%
0.083
5.046V
0.601
115.09V
3
0.532A
2.676
78.892%
0.325
5.031V
3.392
115.09V
4
3.001A
14.844
81.727%
0.527
4.946V
18.163
115.08V
Supplementary Tests (For Reference)
115V
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
Fan Noise (dB[A])
Temps (In/Out)
PF/AC Volts
1
5.340A
2.004A
2.001A
1.006A
85.820
85.542%
0
0
46.15°C
0.943
12.024V
4.999V
3.294V
4.973V
100.325
42.79°C
115.12V
2
11.722A
3.002A
3.009A
1.205A
171.657
90.515%
300
17.5
41.43°C
0.982
12.013V
4.988V
3.287V
4.960V
189.645
48.79°C
115.12V
3
18.425A
3.510A
3.519A
1.411A
257.934
91.749%
350
17.6
40.09°C
0.991
12.039V
4.993V
3.293V
4.962V
281.129
50.02°C
115.13V
4
25.116A
4.007A
4.003A
1.611A
343.748
92.055%
418
17.7
40.18°C
0.995
12.047V
4.993V
3.293V
4.958V
373.415
49.24°C
115.13V
5
31.486A
4.991A
5.014A
1.810A
429.631
91.947%
512
17.9
40.75°C
0.996
12.043V
5.003V
3.289V
4.964V
467.256
50.80°C
115.13V
6
37.856A
6.007A
6.011A
2.014A
515.641
91.603%
656
18.4
41.39°C
0.997
12.042V
4.996V
3.293V
4.953V
562.893
56.30°C
115.13V
7
44.226A
7.016A
7.008A
2.224A
601.563
91.081%
736
19.1
42.35°C
0.998
12.040V
4.988V
3.296V
4.941V
660.467
54.97°C
115.13V
8
50.591A
8.016A
8.022A
2.426A
687.507
90.444%
1048
26.1
42.54°C
0.998
12.040V
4.991V
3.290V
4.943V
760.148
53.87°C
115.14V
9
57.398A
8.527A
8.556A
2.429A
773.545
89.802%
1312
32.3
43.49°C
0.998
12.038V
4.984V
3.284V
4.937V
861.394
54.51°C
115.14V
10
63.945A
9.054A
9.050A
3.049A
859.331
88.856%
1660
38.7
44.77°C
0.998
12.036V
4.974V
3.280V
4.910V
967.103
56.01°C
115.15V
11
71.069A
9.058A
9.049A
3.054A
945.269
87.261%
1900
42.0
46.11°C
0.998
12.038V
4.973V
3.282V
4.910V
1083.272
59.24°C
115.15V
CL1
0.099A
15.020A
15.003A
0.004A
125.684
84.900%
0
0
43.66°C
0.972
12.013V
4.988V
3.303V
5.012V
148.037
54.26°C
115.14V
CL2
71.536A
1.003A
1.005A
1.001A
874.279
89.170%
1264
31.5
44.62°C
0.998
12.036V
4.983V
3.290V
4.962V
980.466
57.29°C
115.16V
The results above are not used in the certification process
115V
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
Fan Noise (dB[A])
PF/AC Volts
1
1.213A
0.493A
0.482A
0.195A
19.638
64.658%
0
0
0.777
12.037V
5.011V
3.302V
5.003V
30.372
115.10V
2
2.455A
0.991A
1.000A
0.401A
39.805
77.192%
0
0
0.848
12.033V
5.008V
3.299V
4.995V
51.566
115.11V
3
3.696A
1.488A
1.513A
0.601A
59.893
81.898%
0
0
0.904
12.029V
5.004V
3.298V
4.988V
73.131
115.12V
4
4.928A
2.002A
1.999A
0.802A
79.855
84.931%
0
0
0.935
12.026V
5.000V
3.295V
4.980V
94.023
115.12V
The results above are not used in the certification process
115V
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
4.4 mV
4.7 mV
7.1 mV
3.6 mV
Pass
20% Load
16.8 mV
5.1 mV
7.5 mV
4.4 mV
Pass
30% Load
8.1 mV
6.7 mV
7.2 mV
6.7 mV
Pass
40% Load
10.3 mV
10.2 mV
7.8 mV
8.9 mV
Pass
50% Load
11.5 mV
11.3 mV
7.5 mV
10.4 mV
Pass
60% Load
13.1 mV
13.1 mV
8.9 mV
12.3 mV
Pass
70% Load
15.9 mV
12.2 mV
8.3 mV
11.0 mV
Pass
80% Load
16.5 mV
9.2 mV
8.7 mV
7.3 mV
Pass
90% Load
19.6 mV
9.9 mV
9.4 mV
7.8 mV
Pass
100% Load
21.5 mV
11.4 mV
10.8 mV
9.3 mV
Pass
110% Load
26.3 mV
20.1 mV
12.9 mV
17.8 mV
Pass
Crossload 1
13.4 mV
5.8 mV
8.1 mV
4.5 mV
Pass
Crossload 2
22.2 mV
11.9 mV
11.3 mV
9.3 mV
Pass
The results above are not used in the certification process
