InWin Neptune AN140
序号
Lab IDIW14000050
  • Report: 24FN50A
  • Receipt Date: -
  • Test Date: -
  • Report Date: -
Airflow Rating
Static Pressure Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

Fan Testing Instrument Technical Specifications

Manufacturer Long Win Science & Technology Corporation
模式l Number LW-9266
Air Flow Rate 2.4 – 250 CFM
Accuracy of Air Flow Rage < 3.5% INFS
Repeatability error < 2%
Static pressure 0-20mmAq (100mmAq with the high static pressure throttle device)
Overall Dimensions 0.7 (W) x 2.2 (L) x 1.6 (H) m
Power Source 220VAC, 5A, Single Phase, 50/60Hz
Based on Standards ISO 5801-2007, AMCA 210-0, ASHRAE 51-2007, IEC 61591-2005, GB/T 1236-200

Test Equipment

测试 Environment Hemi-Anechoic Chamber with 6 dB(A) noise floor
Conditions 25(±2) degrees Celsius, 40-50% humidity
Sound Analyzer Bruel & Kjaer 2270-S G4 & 2250-L G4
Microphone Bruel & Kjaer Type 4955-A
Mic Calibrator Bruel & Kjaer Type 4231
Data Logger Picoscope TC-08

Technical Specifications Table

品牌名称InWin
型号Neptune AN140
Max Speed (RPM)1790
Max Airflow (CFM)84.67
Max Static Pressure (mmAq)1.67
Max 风扇噪音 Level (dBA)32.40
Fan Bearing TypeSleeve
Fan ConnectorPWM
Fan Max Current (A)0.20
Fan Weight (gr)207
Dimensions (W x H x D)140x140x25
Fan daisy-chain connectorv
Cable length (mm)150

Pressure and Airflow

PQ Chart All Speed

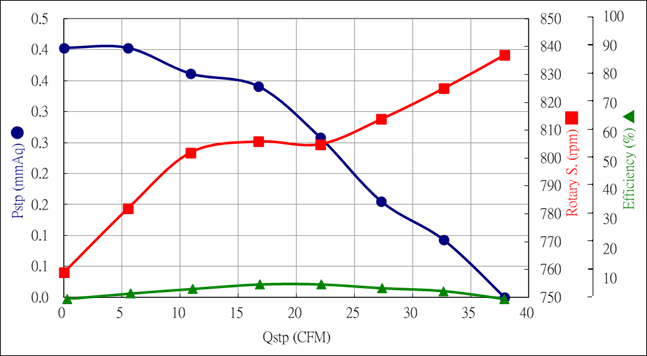

PQ Chart 10% Speed

PQ Chart 20% Speed

PQ Chart 30% Speed

PQ Chart 40% Speed

PQ Chart 50% Speed

PQ Chart 60% Speed

PQ Chart 70% Speed

PQ Chart 80% Speed

PQ Chart 90% Speed

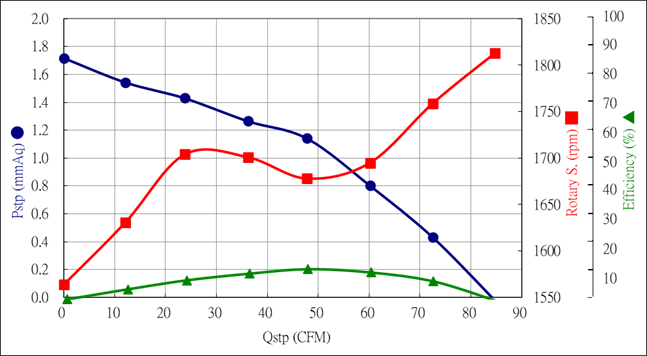

PQ Chart 100% Speed

General Performance

Fan Percentage RPM LongWin

Fan Percentage CFM

Fan Percentage Pressure

Fan Percentage Power

Fan Percentage Amps

Fan Percentage Noise

Fan Speed Noise

Fan Noise Speed

InWin Neptune AN140
