CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

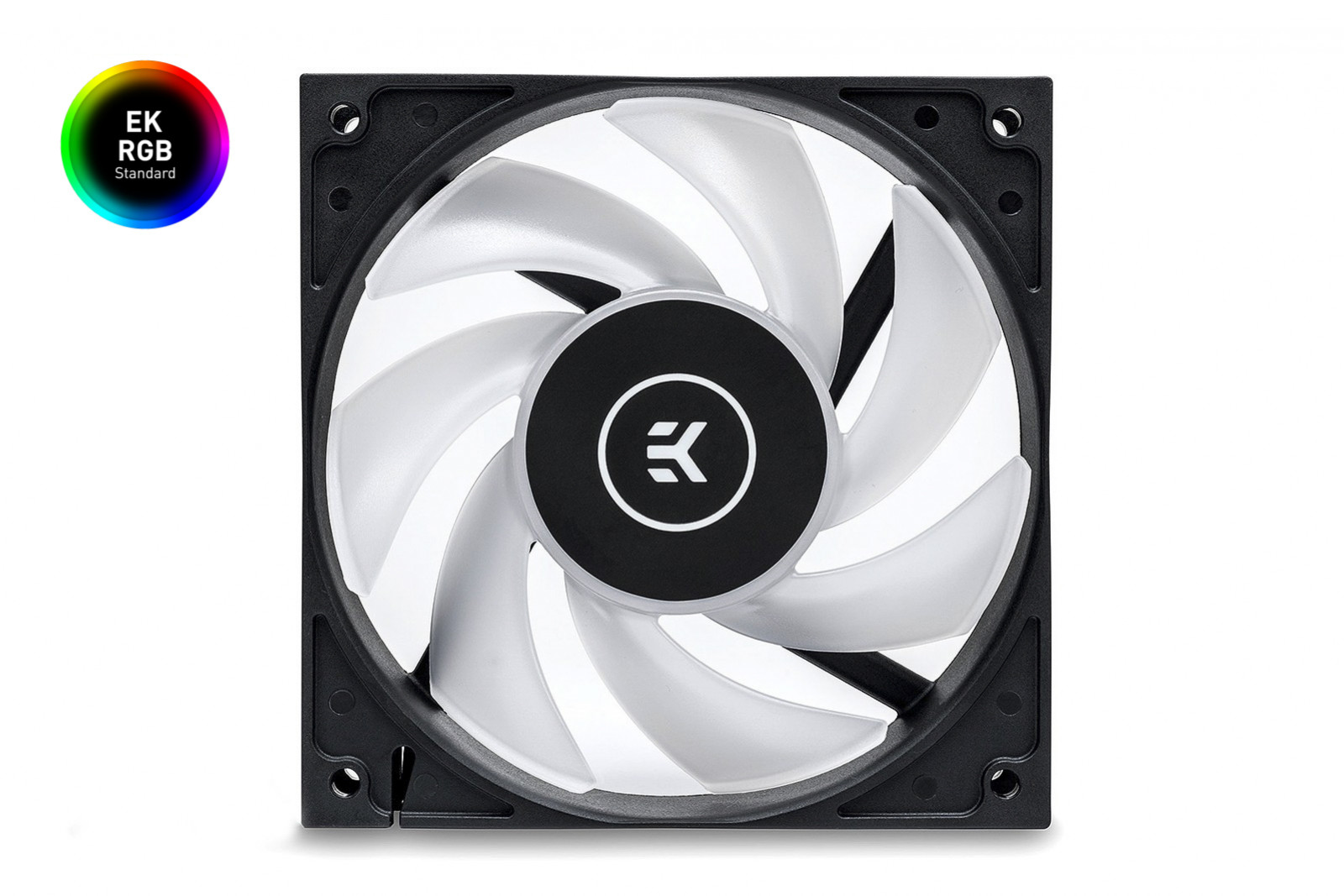

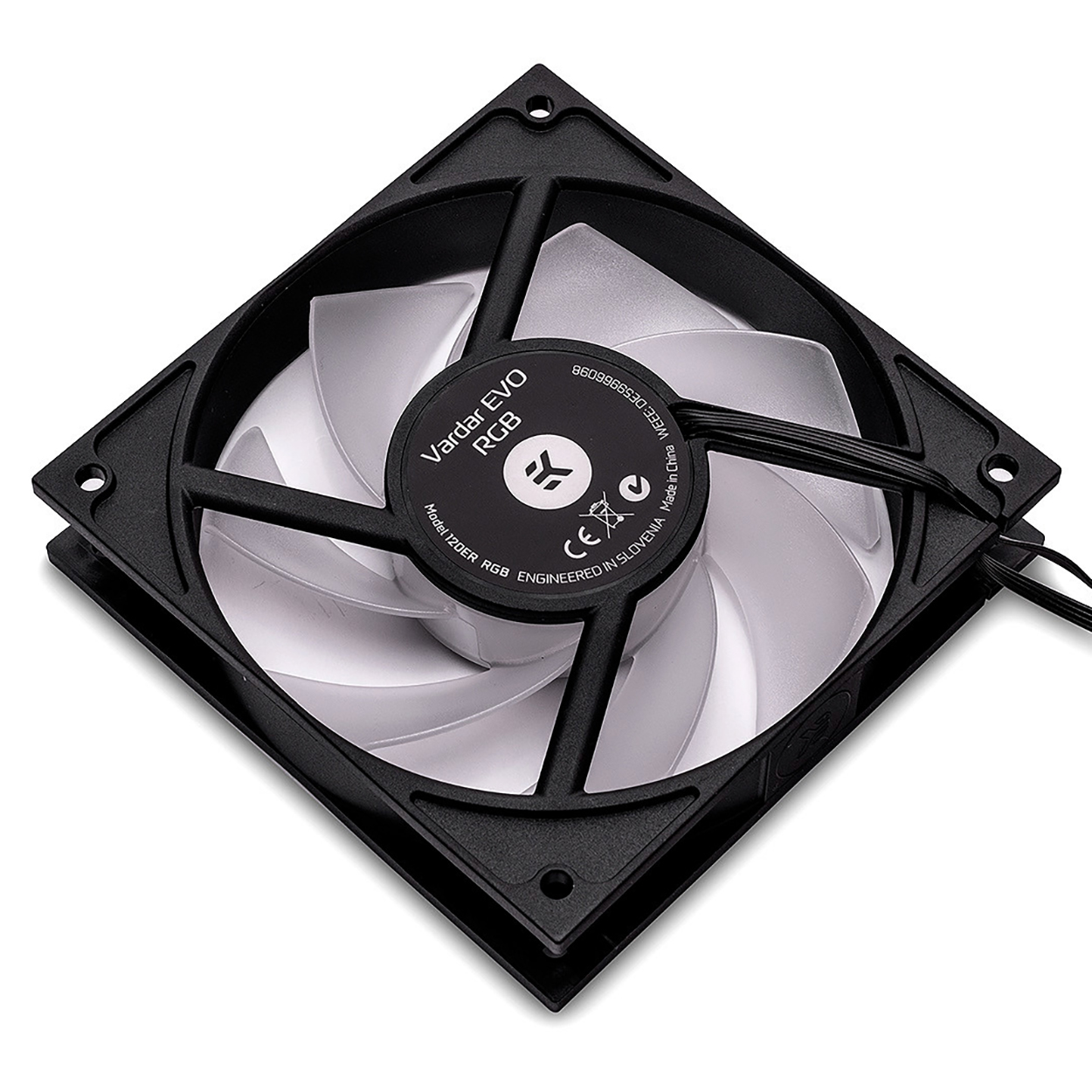

EKWB Vardar EVO 120ER
Lab IDEK12000025
  • Report: 24FN25A
  • Receipt Date: -
  • Test Date: -
  • Report Date: -
Airflow Rating
Static Pressure Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

Fan Testing Instrument Technical Specifications

Manufacturer Long Win Science & Technology Corporation
Model Number LW-9266
Air Flow Rate 2.4 – 250 CFM
Accuracy of Air Flow Rage < 3.5% INFS
Repeatability error < 2%
Static pressure 0-20mmAq (100mmAq with the high static pressure throttle device)
Overall Dimensions 0.7 (W) x 2.2 (L) x 1.6 (H) m
Power Source 220VAC, 5A, Single Phase, 50/60Hz
Based on Standards ISO 5801-2007, AMCA 210-0, ASHRAE 51-2007, IEC 61591-2005, GB/T 1236-200

Test Equipment

Test Environment Hemi-Anechoic Chamber with 6 dB(A) noise floor
Conditions 25(±2) degrees Celsius, 40-50% humidity
Sound Analyzer Bruel & Kjaer 2270-S G4 & 2250-L G4
Microphone Bruel & Kjaer Type 4955-A
Mic Calibrator Bruel & Kjaer Type 4231
Data Logger Picoscope TC-08

Technical Specifications Table

EKWB
ModellVardar EVO 120ER
Max Speed (RPM)2165
Max Airflow (CFM)69.86
Max Static Pressure (mmAq)3.07
Max Fan Noise Level (dBA)38.10
Fan Bearing TypeTwo Ball
Fan ConnectorPWM
Fan Max Current (A)0.21
Fan Weight (gr)230
Dimensions (W x H x D)120 x 120 x 25
Fan daisy-chain connector✗
Cable length (mm)0

Pressure and Airflow

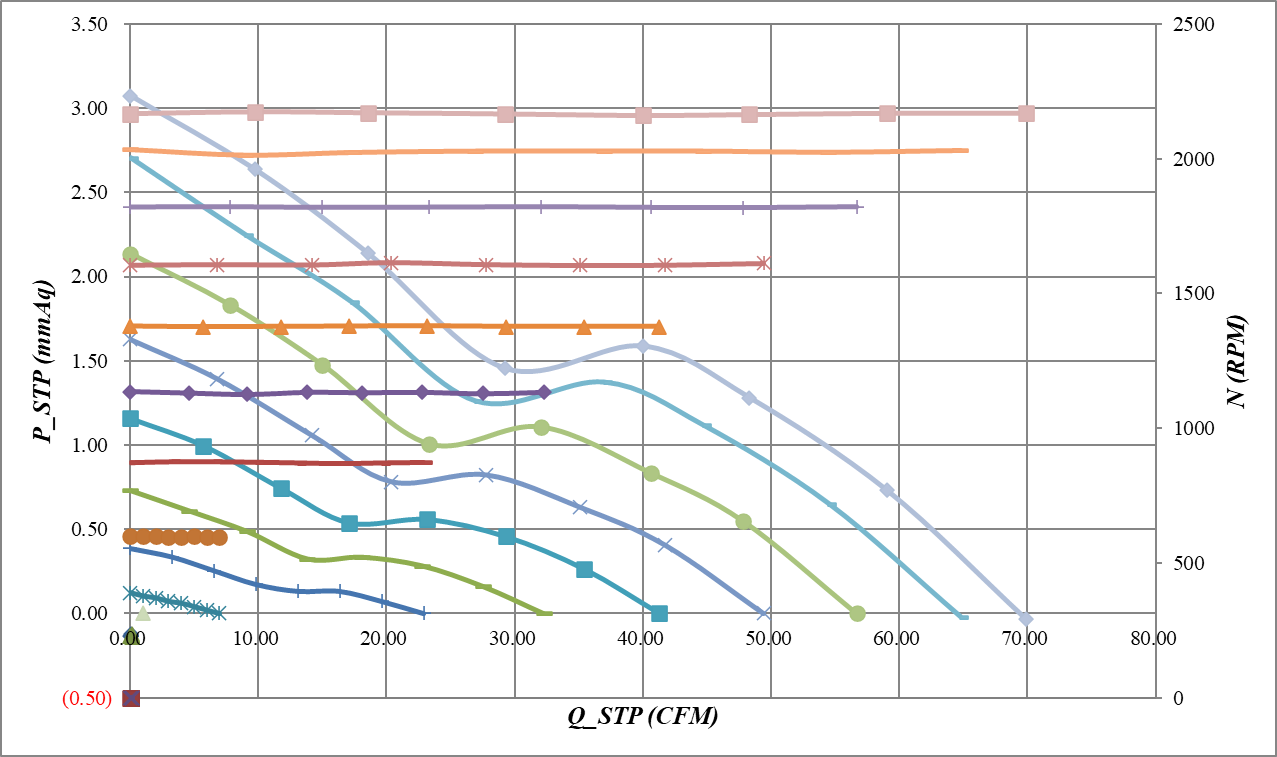

PQ Chart All Speed

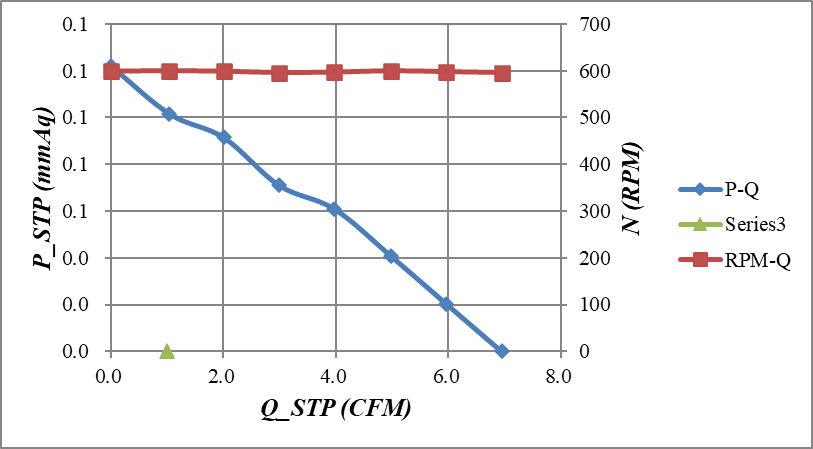

PQ Chart 30% Speed

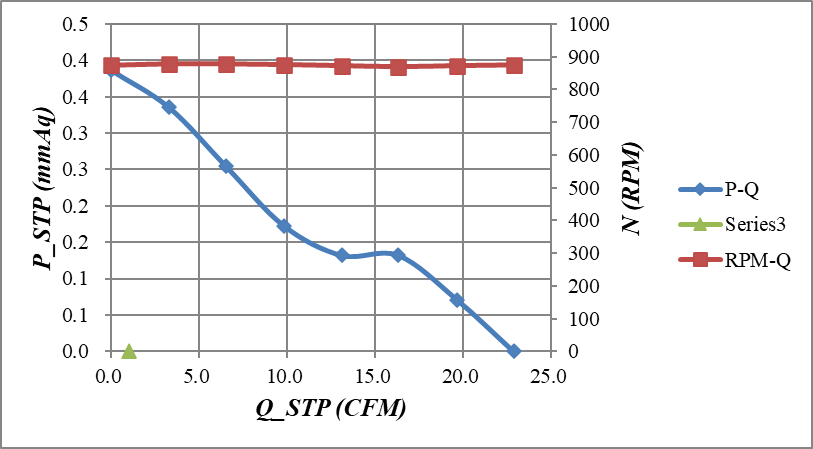

PQ Chart 40% Speed

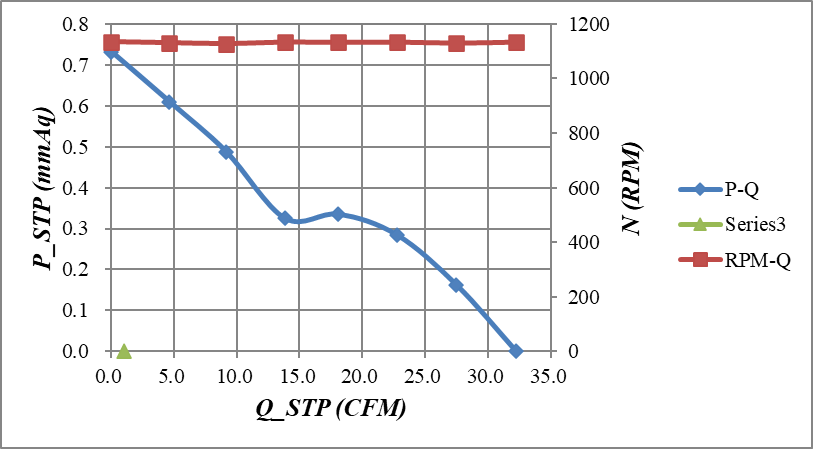

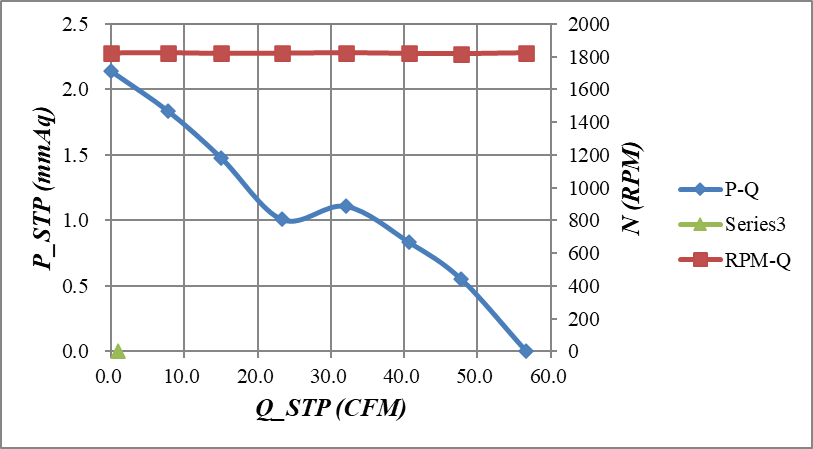

PQ Chart 50% Speed

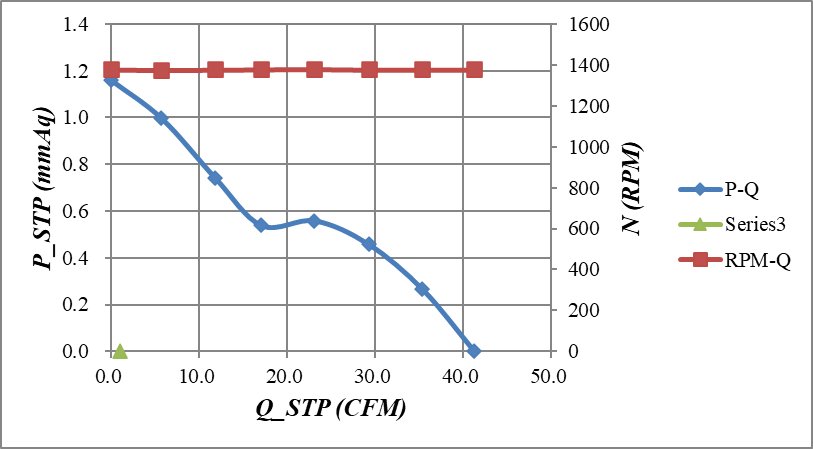

PQ Chart 60% Speed

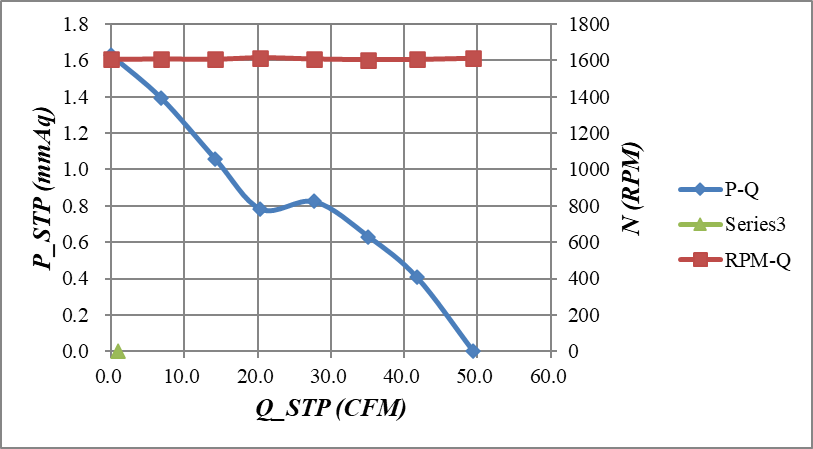

PQ Chart 70% Speed

PQ Chart 80% Speed

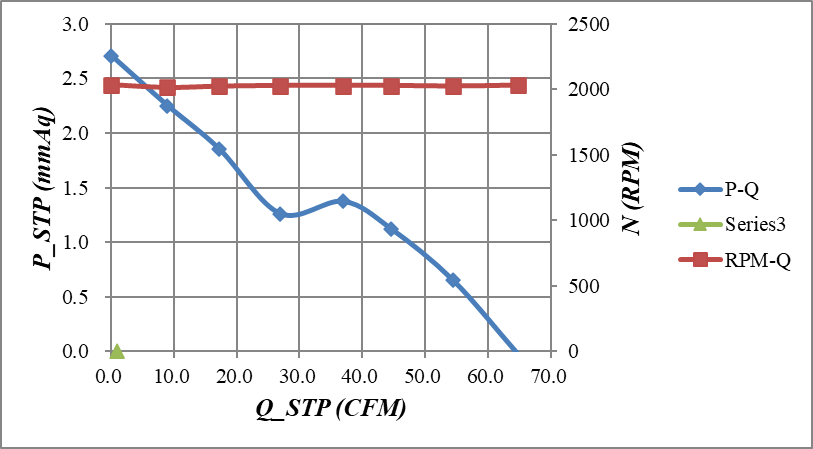

PQ Chart 90% Speed

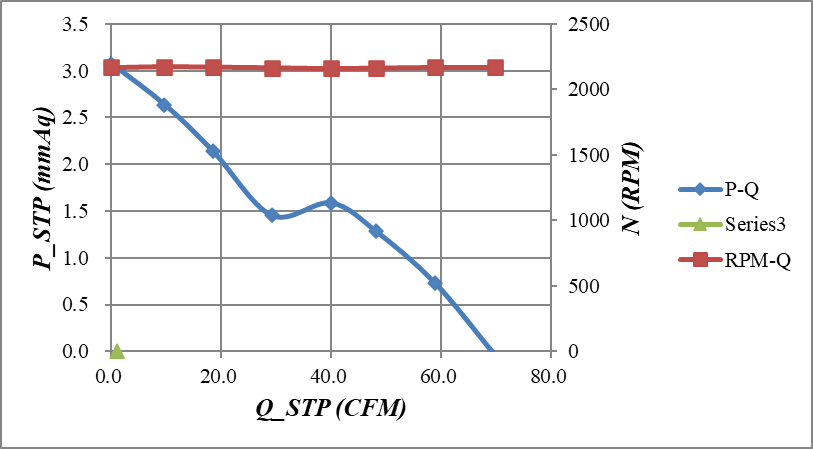

PQ Chart 100% Speed

General Performance

Fan Percentage RPM LongWin

Fan Percentage CFM

Fan Percentage Pressure

Fan Percentage Power

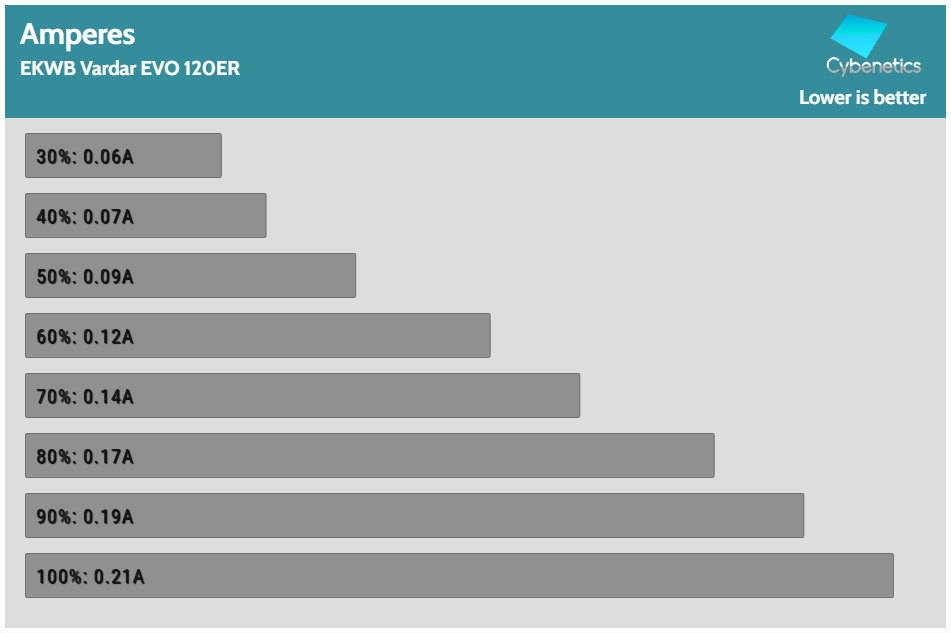

Fan Percentage Amps

Fan Percentage Noise

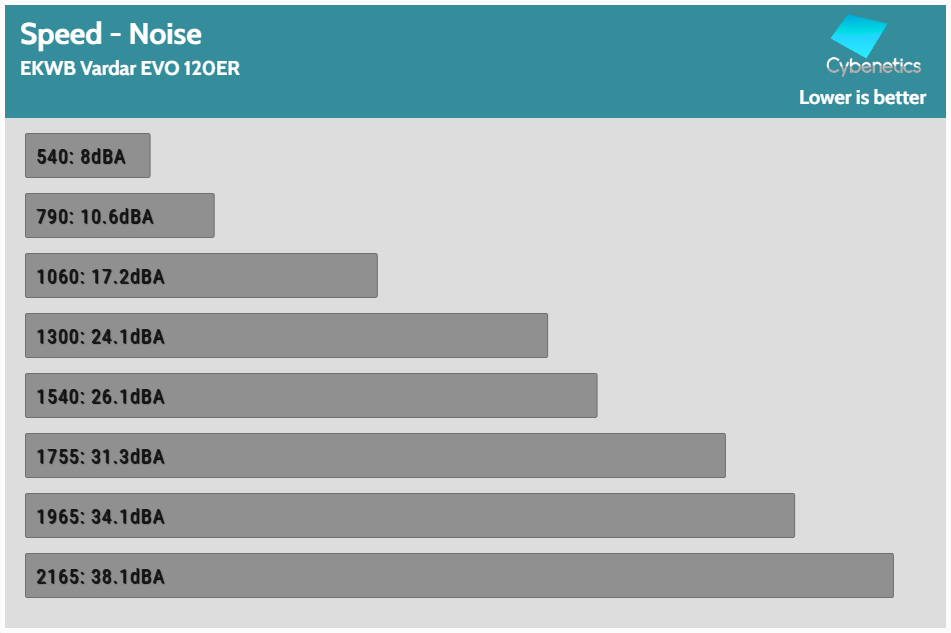

Fan Speed Noise

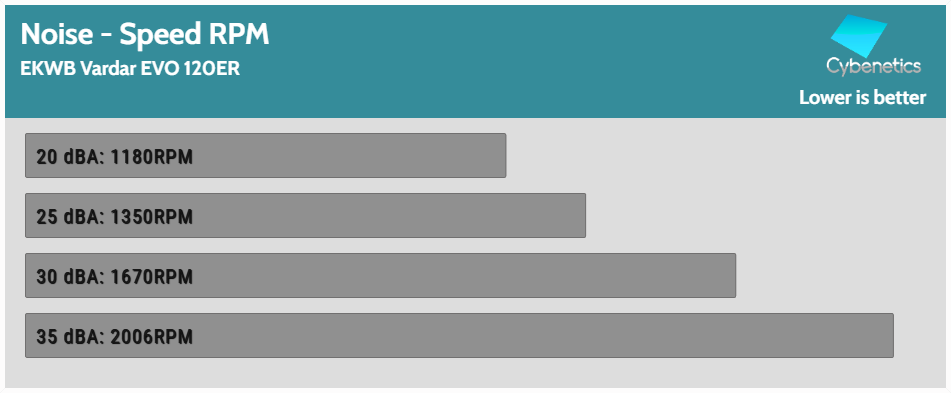

Fan Noise Speed

EKWB Vardar EVO 120ER
