be quiet! Light Wings Reverse 140mm PWM White
4260052192900
Lab IDBQ14000171
  • Report: 25FN171A
  • Receipt Date: Mar 17, 2025
  • Test Date: Mar 31, 2025
  • Report Date: Apr 2, 2025
Airflow Rating
Static Pressure Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

Fan Testing Instrument Technical Specifications

Manufacturer Long Win Science & Technology Corporation
Model Number LW-9266
Air Flow Rate 2.4 – 250 CFM
Accuracy of Air Flow Rage < 3.5% INFS
Repeatability error < 2%
Static pressure 0-20mmAq (100mmAq with the high static pressure throttle device)
Overall Dimensions 0.7 (W) x 2.2 (L) x 1.6 (H) m
Power Source 220VAC, 5A, Single Phase, 50/60Hz
Based on Standards ISO 5801-2007, AMCA 210-0, ASHRAE 51-2007, IEC 61591-2005, GB/T 1236-200

Test Equipment

Test Environment Hemi-Anechoic Chamber with 6 dB(A) noise floor
Conditions 25(±2) degrees Celsius, 40-50% humidity
Sound Analyzer Bruel & Kjaer 2270-S G4 & 2250-L G4
Microphone Bruel & Kjaer Type 4955-A
Mic Calibrator Bruel & Kjaer Type 4231
Data Logger Picoscope TC-08

Technical Specifications Table

be quiet!
ModellLight Wings Reverse 140mm PWM White
Max Speed (RPM)1372
Max Airflow (CFM)56.81
Max Static Pressure (mmAq)1.15
Max Fan Noise Level (dBA)29.20
Fan Bearing TypeRifle
Fan ConnectorPWM
Fan Max Current (A)0.08
Fan Weight (gr)238
Dimensions (W x H x D)140x140x26
Fan daisy-chain connector✗
Cable length (mm)490
NotesVery low pressure at 10% PWM.

Pressure and Airflow

PQ Chart All Speed

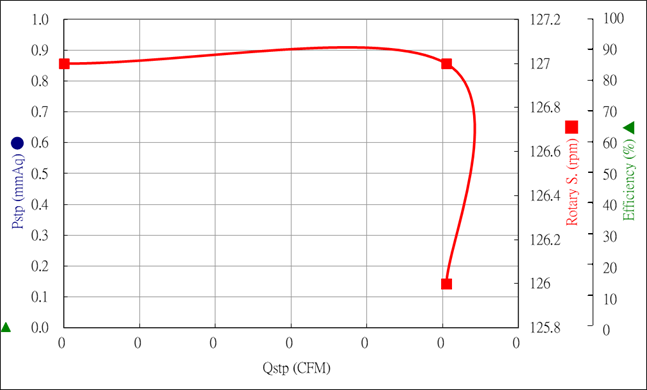

PQ Chart 10% Speed

PQ Chart 20% Speed

PQ Chart 30% Speed

PQ Chart 40% Speed

PQ Chart 50% Speed

PQ Chart 60% Speed

PQ Chart 70% Speed

PQ Chart 80% Speed

PQ Chart 90% Speed

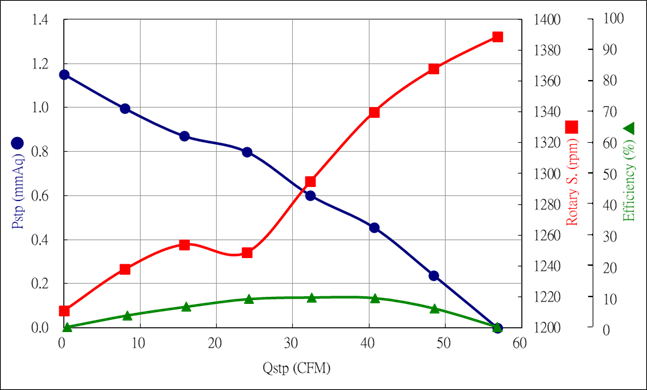

PQ Chart 100% Speed

General Performance

Fan Percentage RPM LongWin

Fan Percentage CFM

Fan Percentage Pressure

Fan Percentage Power

Fan Percentage Amps

Fan Percentage Noise

Fan Speed Noise

Fan Noise Speed
