Thermalright TR-TY141
English
Deutsch
繁體中文
简体中文
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

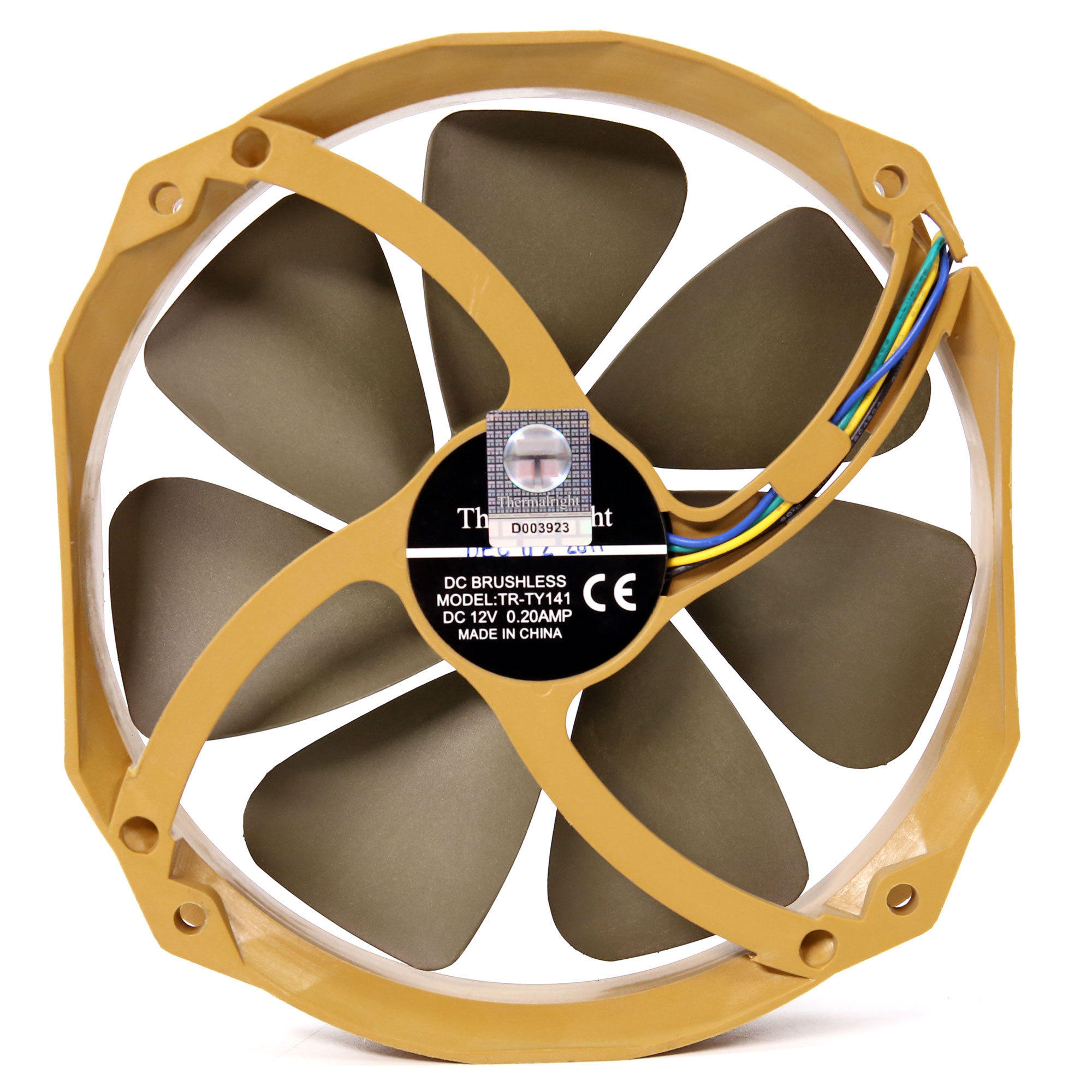

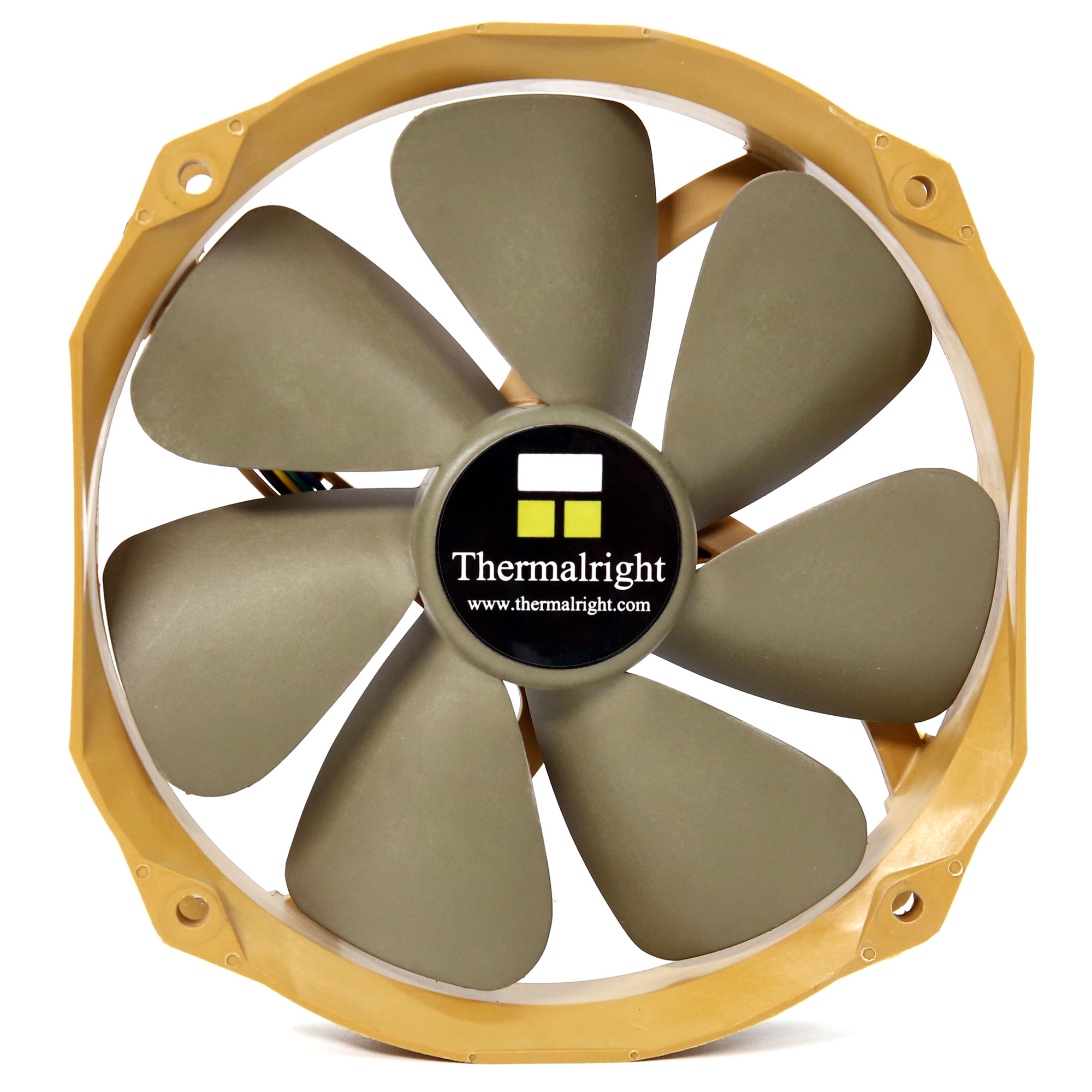

Thermalright TR-TY141
Lab ID
TR14000160
Report: 25FN160A
Receipt Date:
-
Test Date:
Feb 26, 2025
Report Date:
Feb 27, 2025
Airflow Rating
Static Pressure Rating
Aristeidis Bitziopoulos, Laboratory General Manager
General Information
Fan Testing Instrument Technical Specifications
tech-specs
Manufacturer
Long Win Science & Technology Corporation
Model Number
LW-9266
Air Flow Rate
2.4 – 250 CFM
Accuracy of Air Flow Rage
< 3.5% INFS
Repeatability error
< 2%
Static pressure
0-20mmAq (100mmAq with the high static pressure throttle device)
Overall Dimensions
0.7 (W) x 2.2 (L) x 1.6 (H) m
Power Source
220VAC, 5A, Single Phase, 50/60Hz
Based on Standards
ISO 5801-2007, AMCA 210-0, ASHRAE 51-2007, IEC 61591-2005, GB/T 1236-200
Test Equipment
test-equip
Test Environment
Hemi-Anechoic Chamber with 6 dB(A) noise floor
Conditions
25(±2) degrees Celsius, 40-50% humidity
Sound Analyzer
Bruel & Kjaer 2270-S G4 & 2250-L G4
Microphone
Bruel & Kjaer Type 4955-A
Mic Calibrator
Bruel & Kjaer Type 4231
Data Logger
Picoscope TC-08
Technical Specifications Table
tech-specs2
Thermalright
Modell
TR-TY141
Max Speed (RPM)
1346
Max Airflow (CFM)
55.03
Max Static Pressure (mmAq)
1.66
Max Fan Noise Level (dBA)
31.20
Fan Bearing Type
Fluid Dynamic
Fan Connector
PWM
Fan Max Current (A)
0.11
Fan Weight (gr)
174
Dimensions (W x H x D)
145x140x270
Fan daisy-chain connector
✗
Cable length (mm)
300
Pressure and Airflow
PWM

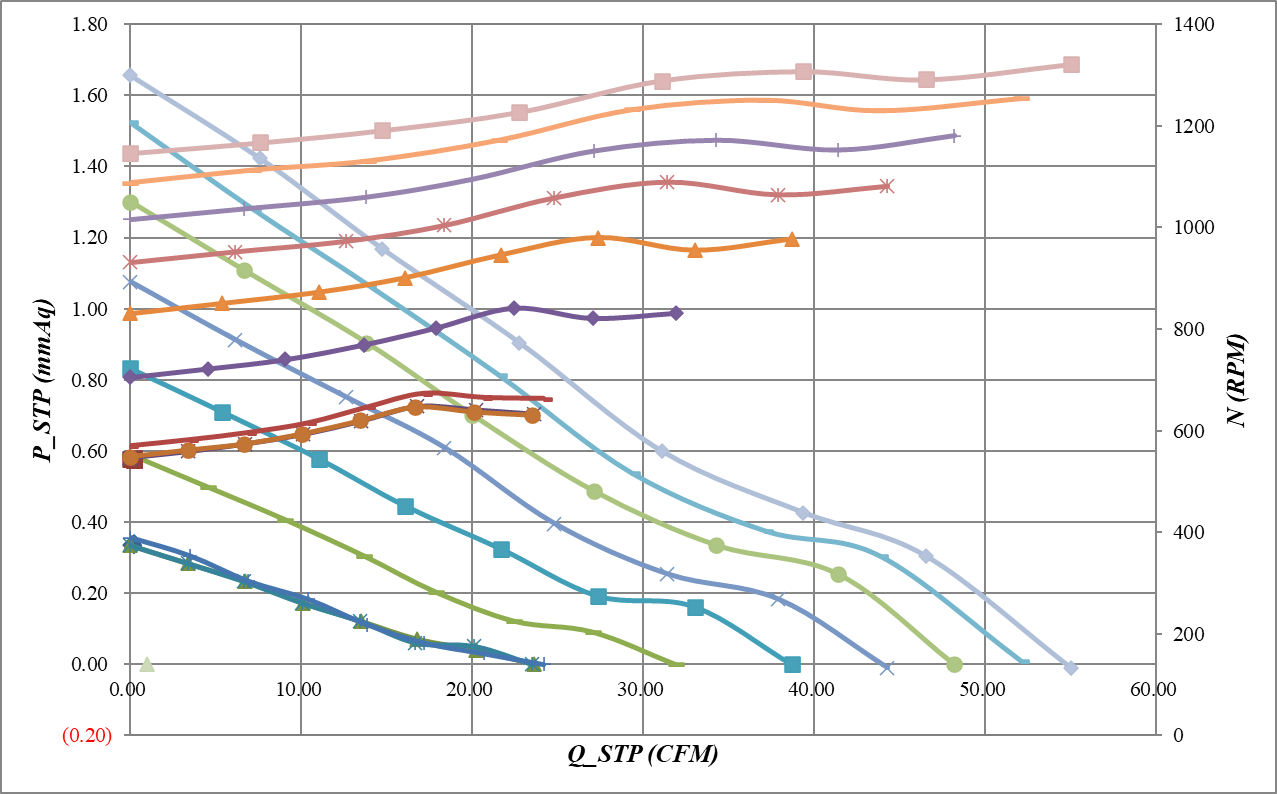

PQ Chart All Speed

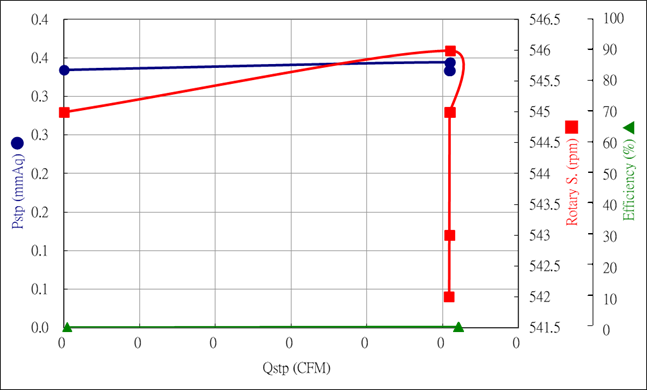

PQ Chart 10% Speed

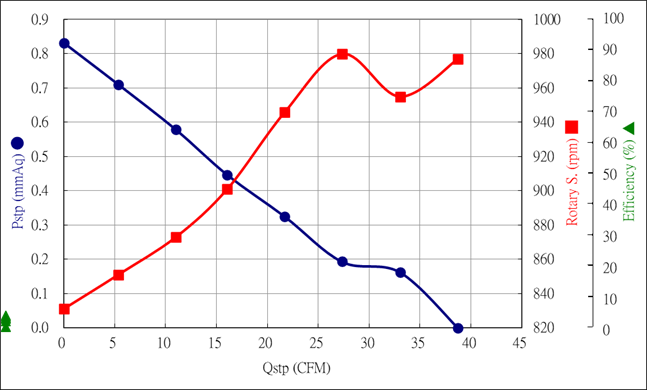

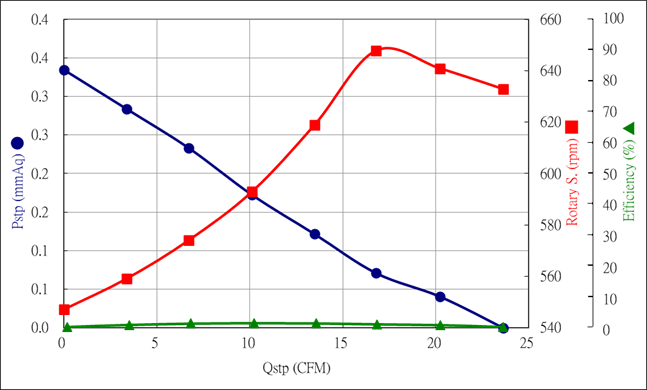

PQ Chart 20% Speed

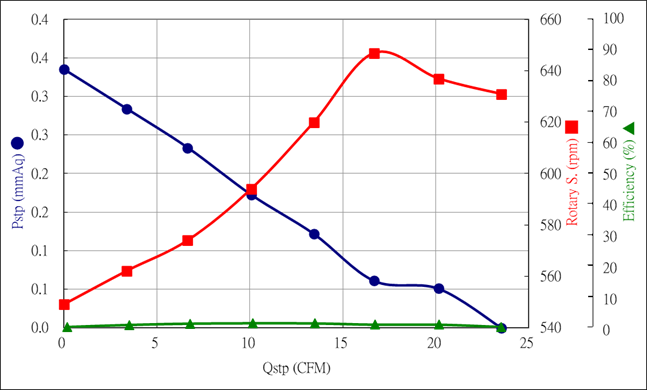

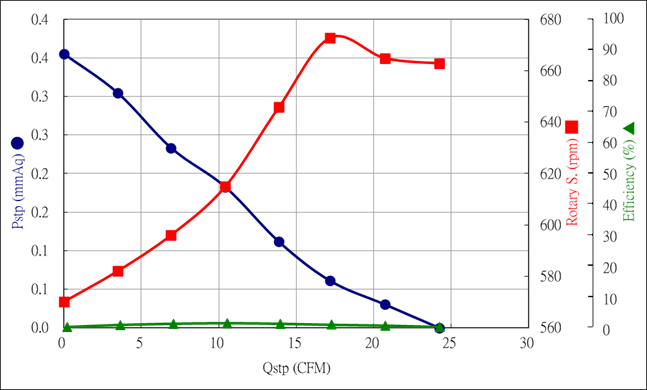

PQ Chart 30% Speed
PQ Chart 40% Speed

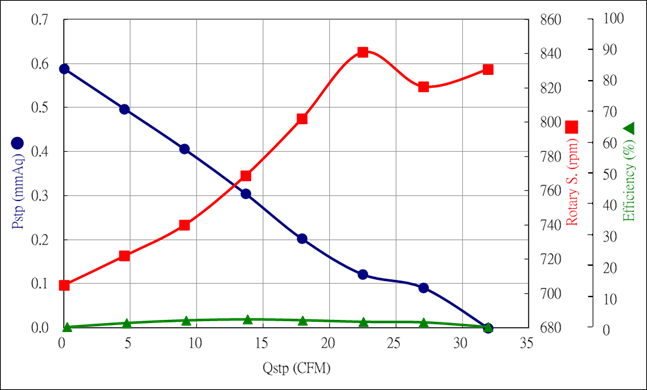

PQ Chart 50% Speed
PQ Chart 60% Speed

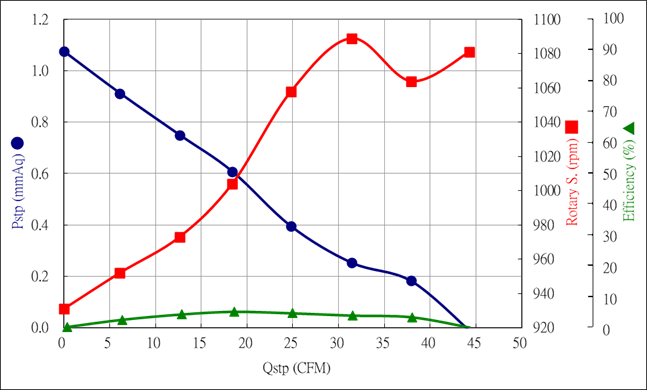

PQ Chart 70% Speed

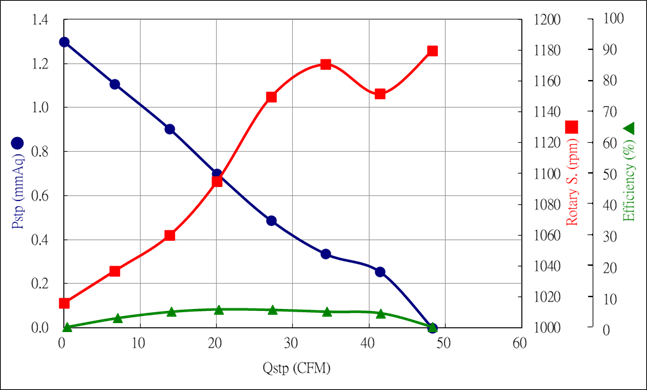

PQ Chart 80% Speed

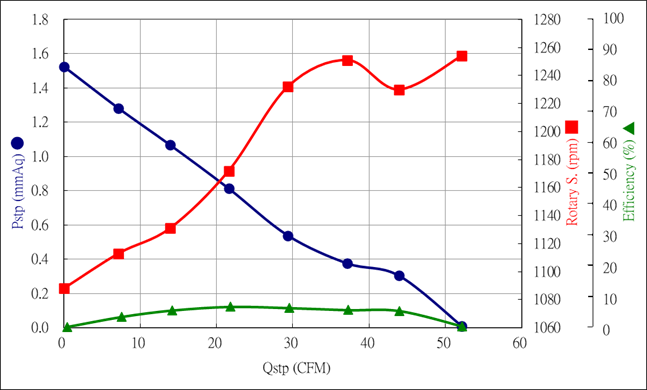

PQ Chart 90% Speed

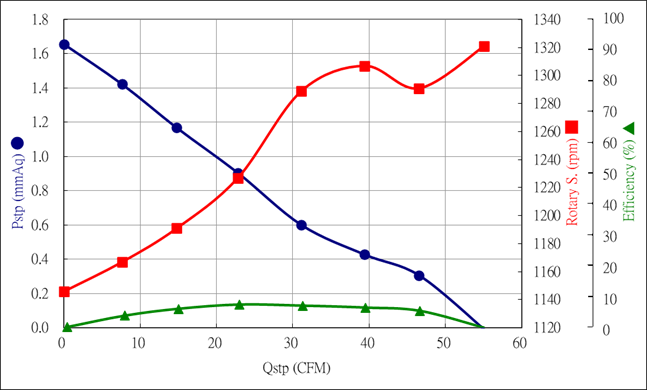

PQ Chart 100% Speed
General Performance
WTF
Fan Percentage RPM LongWin
Fan Percentage CFM

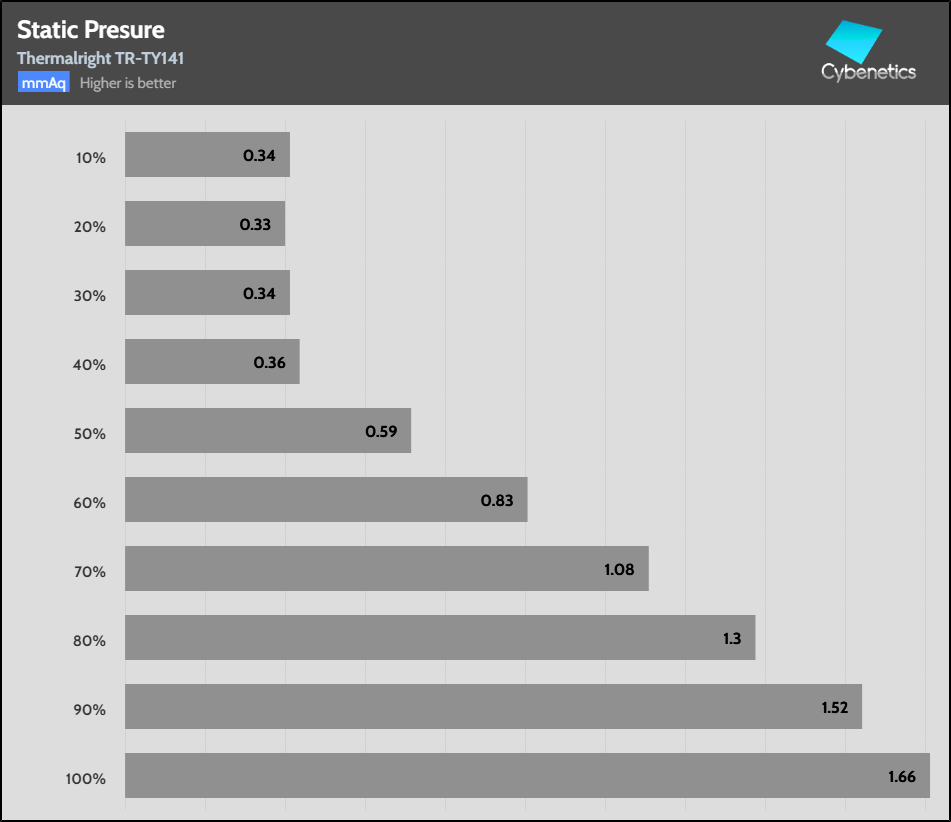

Fan Percentage Pressure
Fan Percentage Power

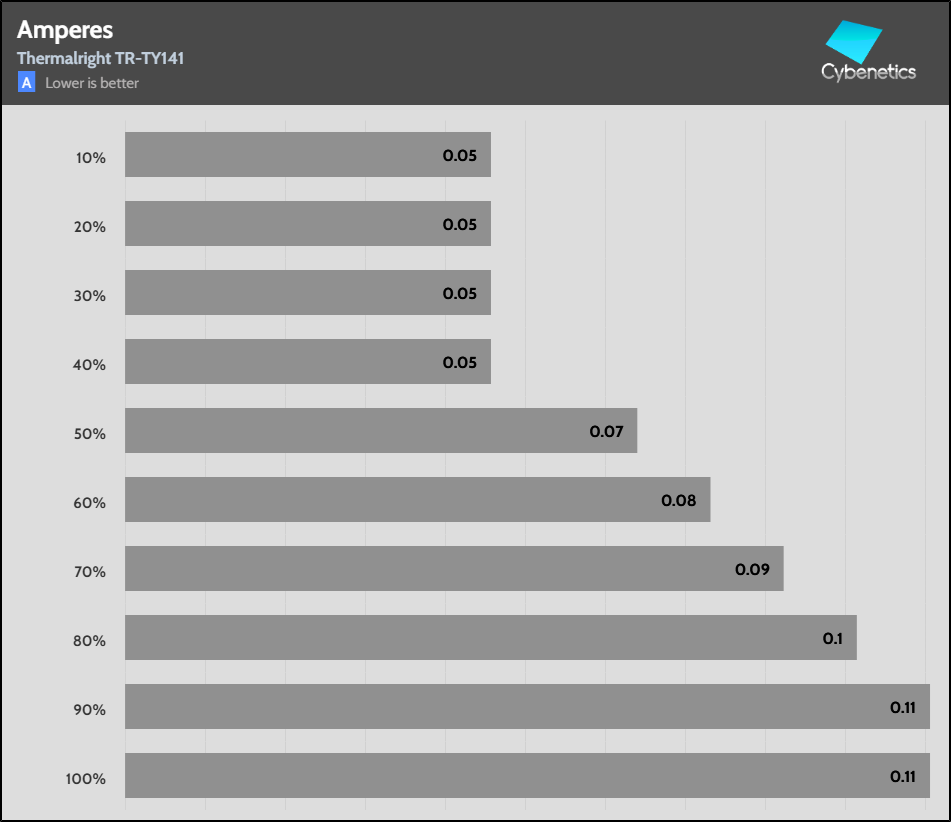

Fan Percentage Amps
Fan Percentage Noise

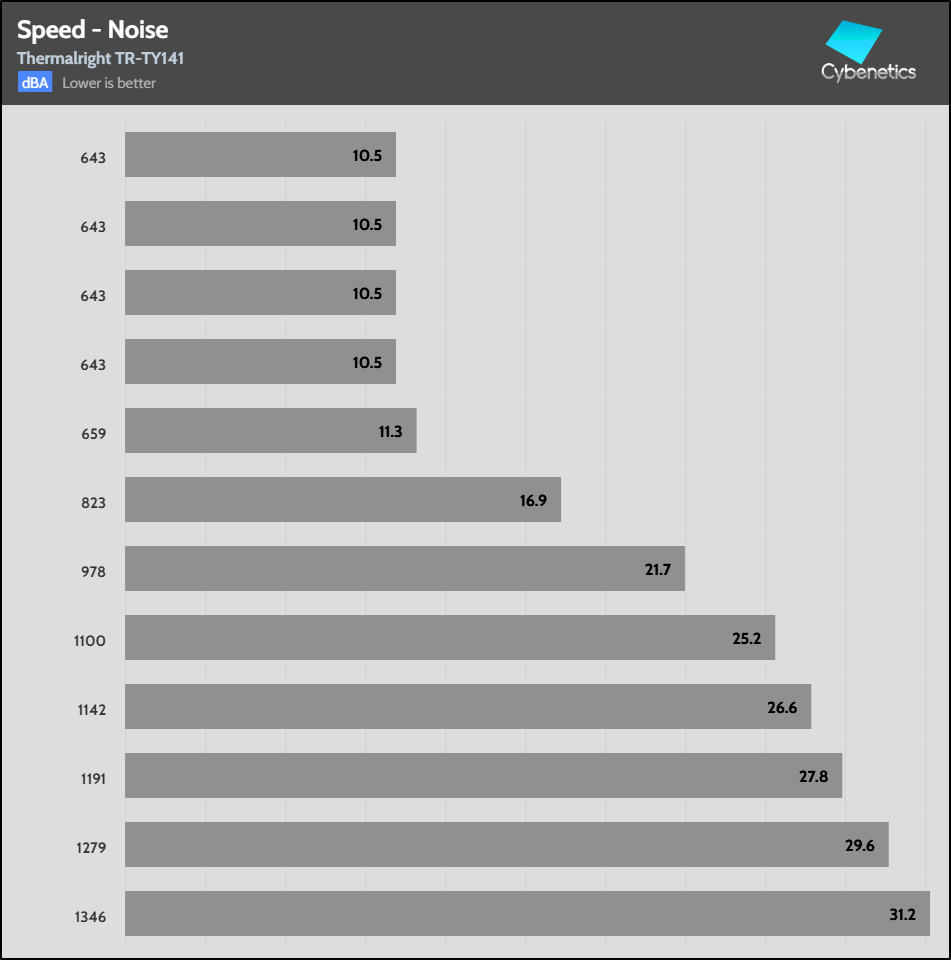

Fan Speed Noise

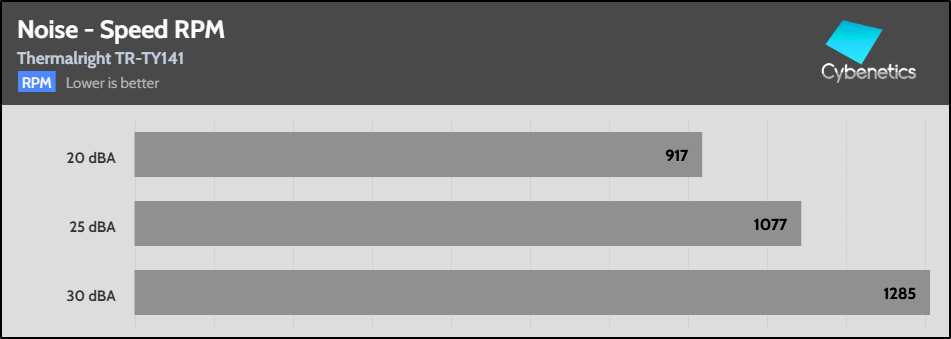

Fan Noise Speed
Thermalright TR-TY141
