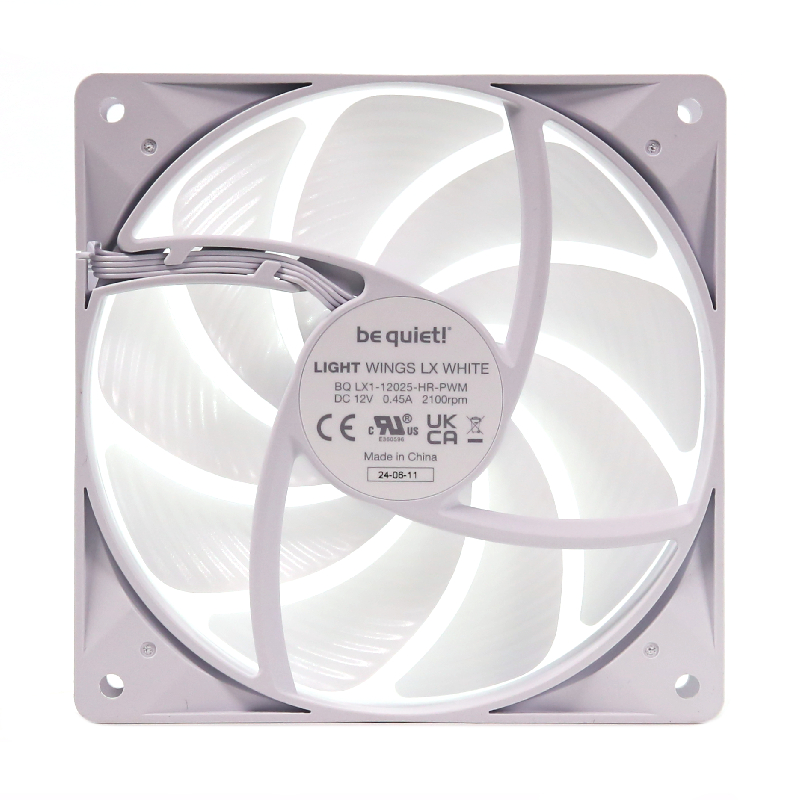

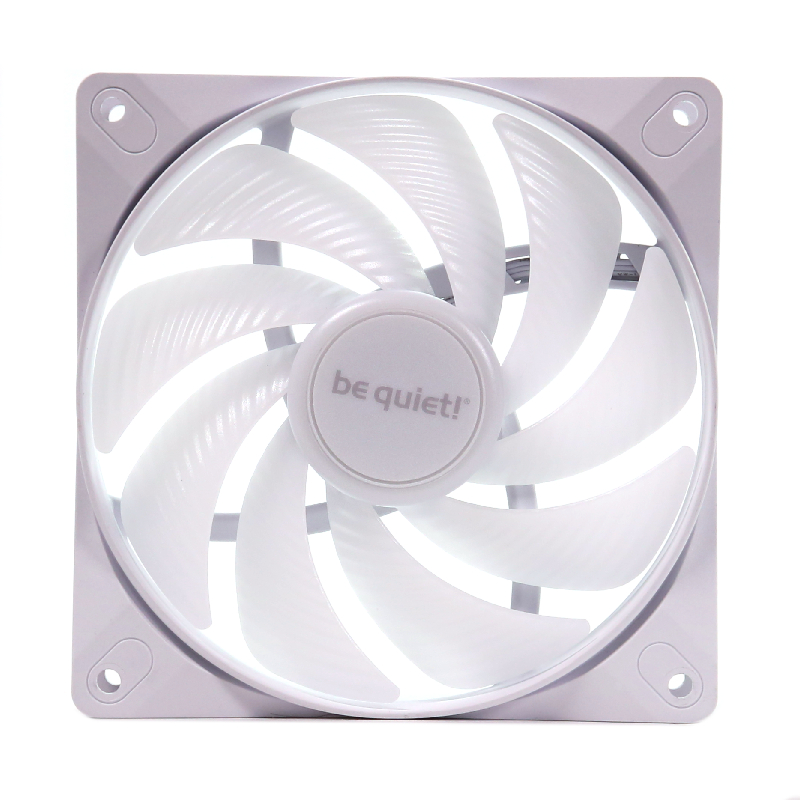

be quiet! Light Wings LX 120 High-Speed
Lab IDBQ12000130
  • Report: 24FN130A
  • Receipt Date: Sep 1, 2024
  • Test Date: Sep 18, 2024
  • Report Date: Sep 18, 2024
Airflow Rating
Static Pressure Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

Fan Testing Instrument Technical Specifications

Manufacturer Long Win Science & Technology Corporation
Model Number LW-9266
Air Flow Rate 2.4 – 250 CFM
Accuracy of Air Flow Rage < 3.5% INFS
Repeatability error < 2%
Static pressure 0-20mmAq (100mmAq with the high static pressure throttle device)
Overall Dimensions 0.7 (W) x 2.2 (L) x 1.6 (H) m
Power Source 220VAC, 5A, Single Phase, 50/60Hz
Based on Standards ISO 5801-2007, AMCA 210-0, ASHRAE 51-2007, IEC 61591-2005, GB/T 1236-200

Test Equipment

Test Environment Hemi-Anechoic Chamber with 6 dB(A) noise floor
Conditions 25(±2) degrees Celsius, 40-50% humidity
Sound Analyzer Bruel & Kjaer 2270-S G4 & 2250-L G4
Microphone Bruel & Kjaer Type 4955-A
Mic Calibrator Bruel & Kjaer Type 4231
Data Logger Picoscope TC-08

Technical Specifications Table

be quiet!
ModellLight Wings LX 120 High-Speed
Max Speed (RPM)2142
Max Airflow (CFM)61.22
Max Static Pressure (mmAq)2.28
Max Fan Noise Level (dBA)33.60
Fan Bearing TypeRifle
Fan ConnectorPWM
Fan Max Current (A)0.24
Fan Weight (gr)135
Dimensions (W x H x D)120x120x25
Fan daisy-chain connector✗
Cable length (mm)500

Pressure and Airflow

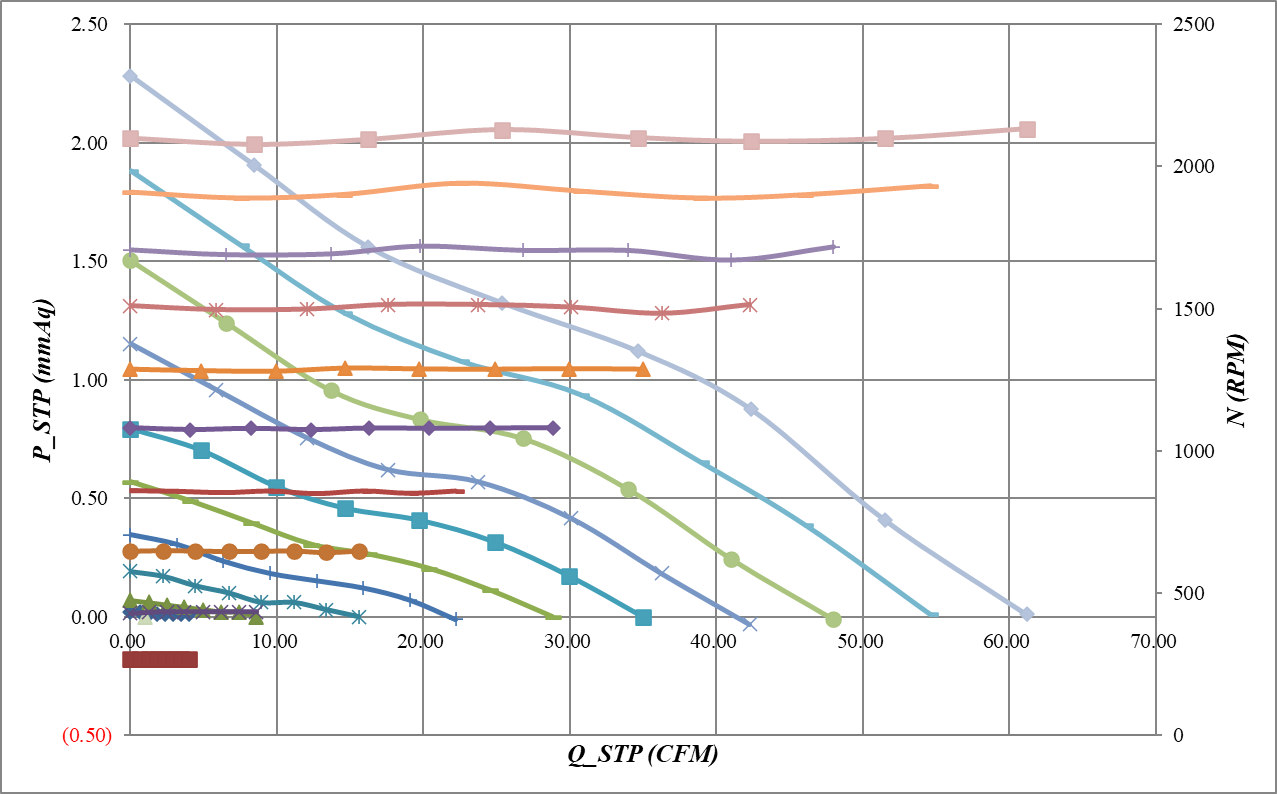

PQ Chart All Speed

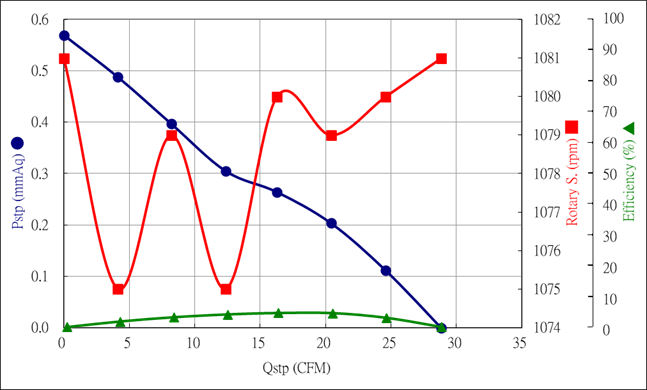

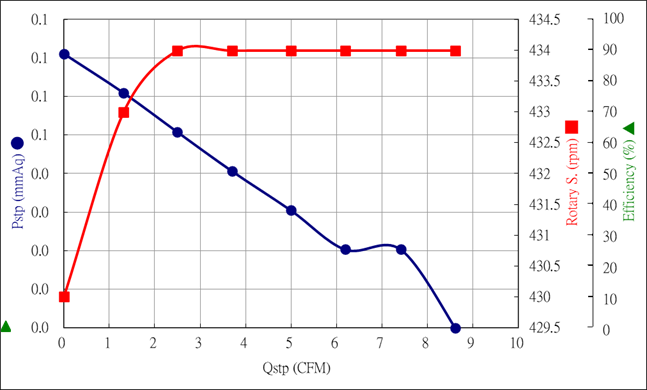

PQ Chart 10% Speed

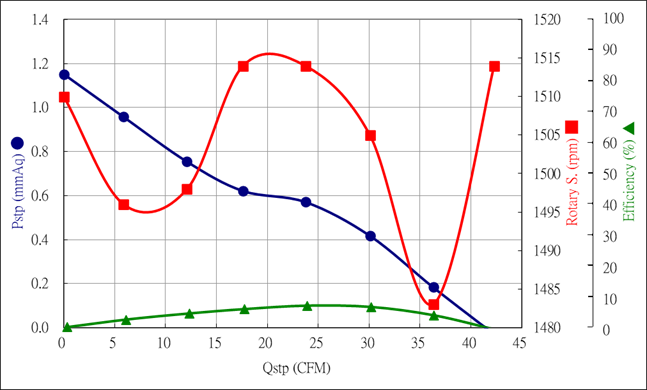

PQ Chart 20% Speed

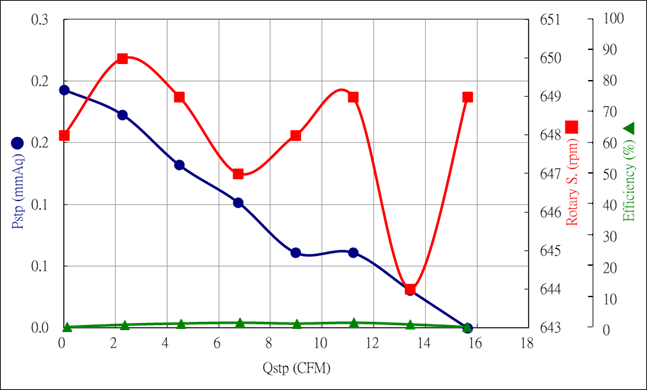

PQ Chart 30% Speed

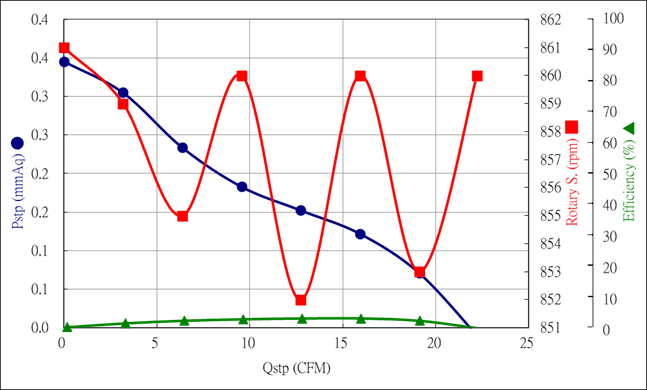

PQ Chart 40% Speed

PQ Chart 50% Speed

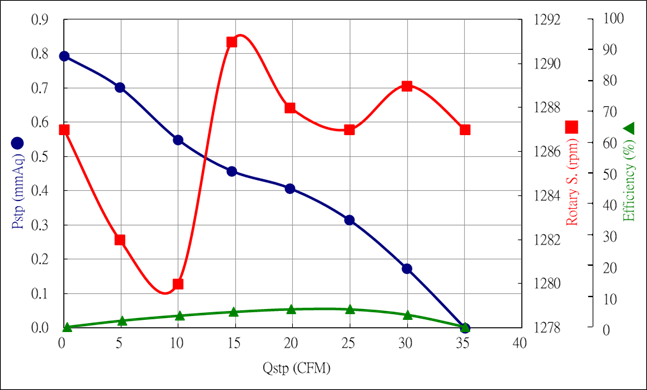

PQ Chart 60% Speed

PQ Chart 70% Speed

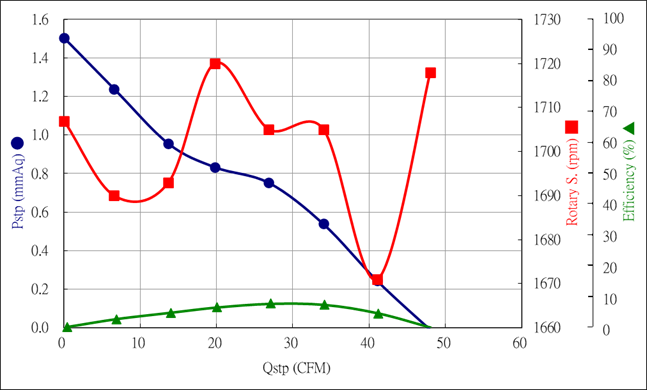

PQ Chart 80% Speed

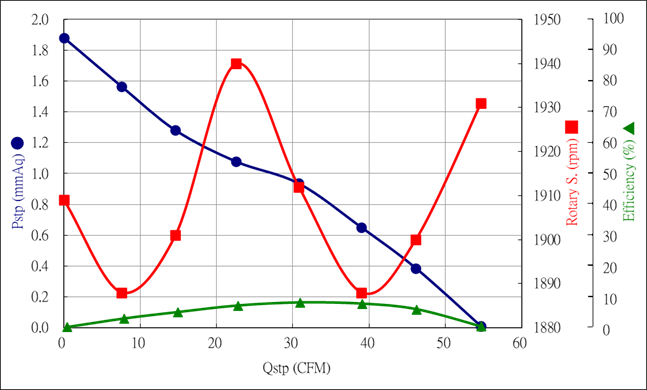

PQ Chart 90% Speed

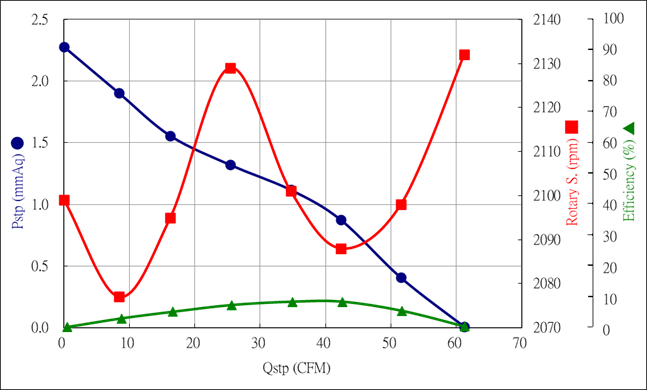

PQ Chart 100% Speed

General Performance

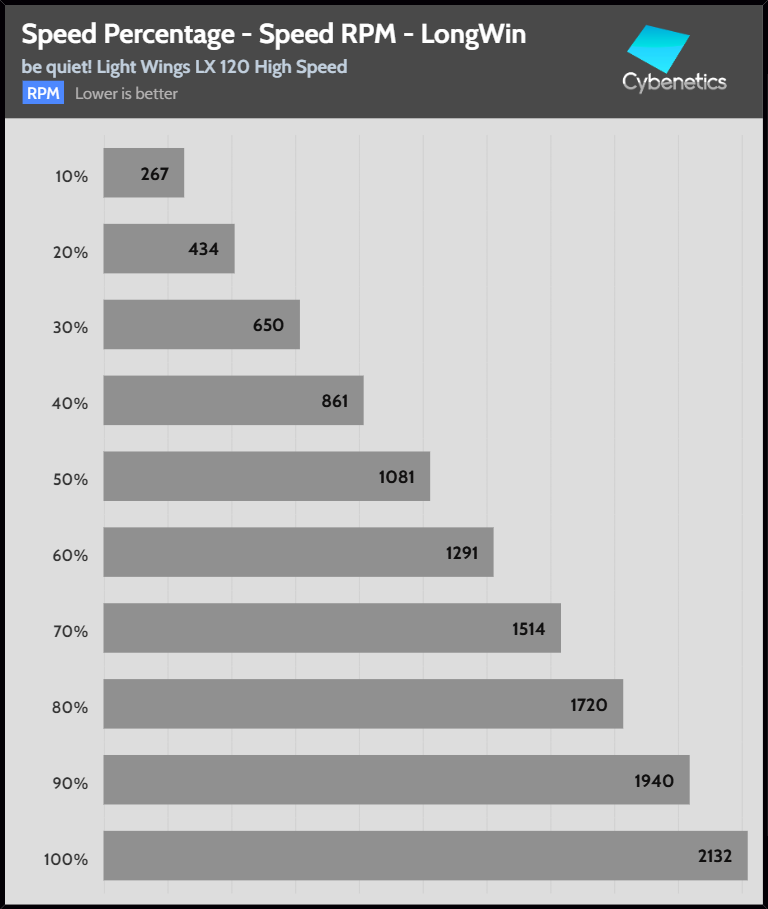

Fan Percentage RPM LongWin

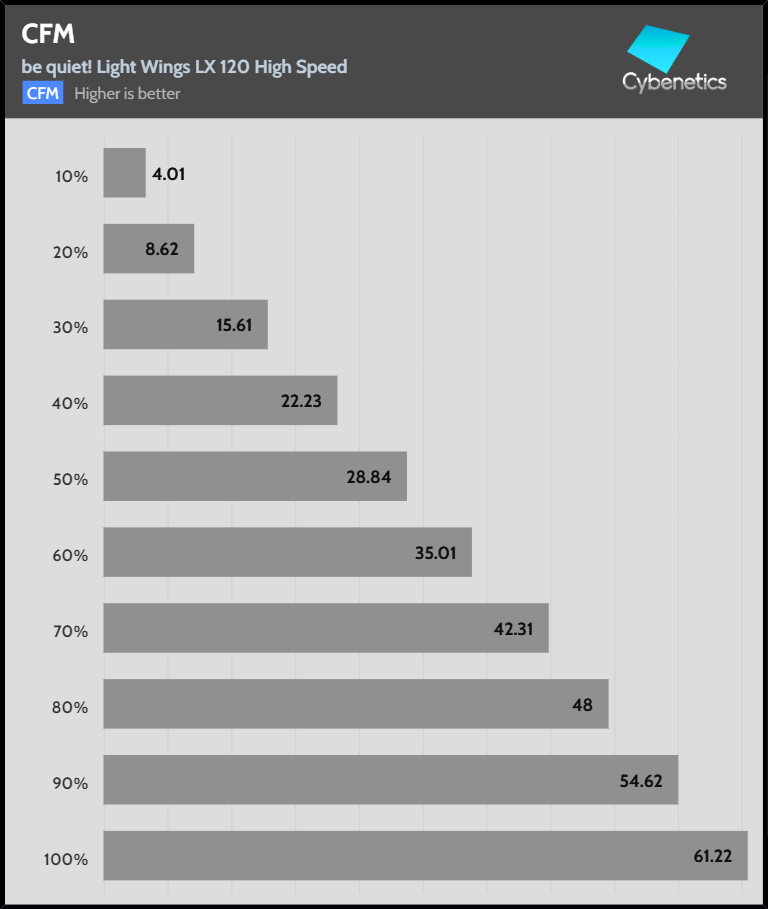

Fan Percentage CFM

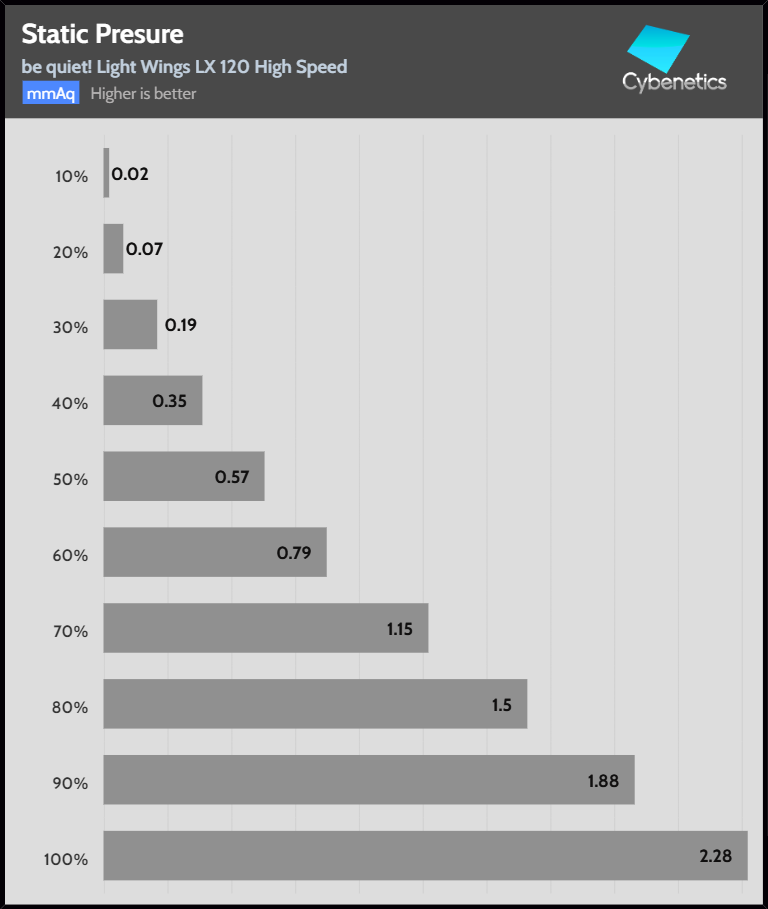

Fan Percentage Pressure

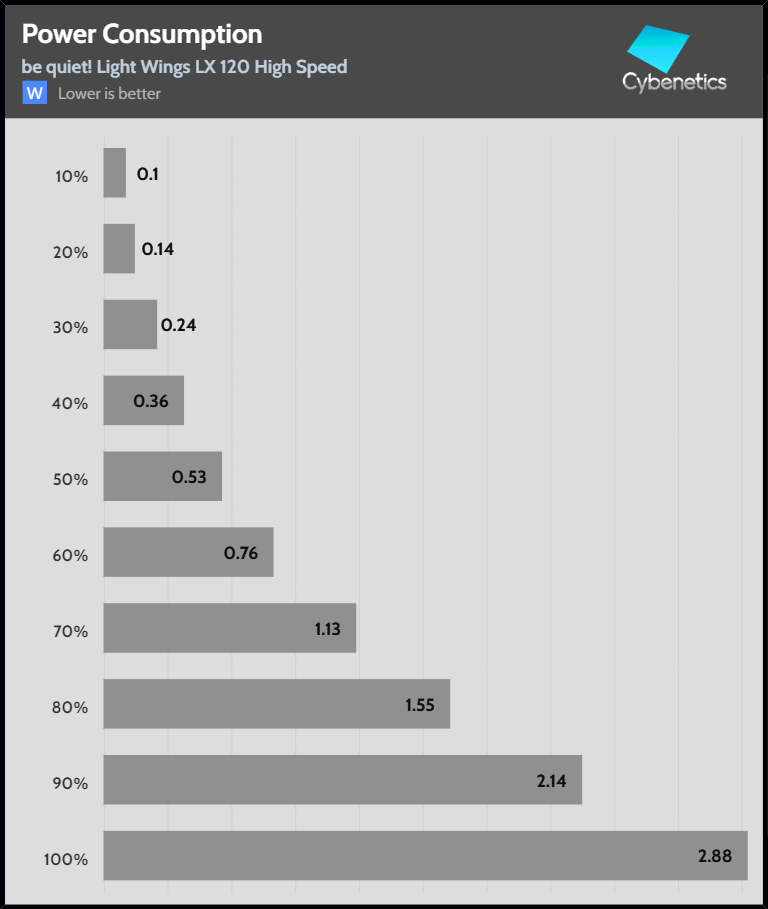

Fan Percentage Power

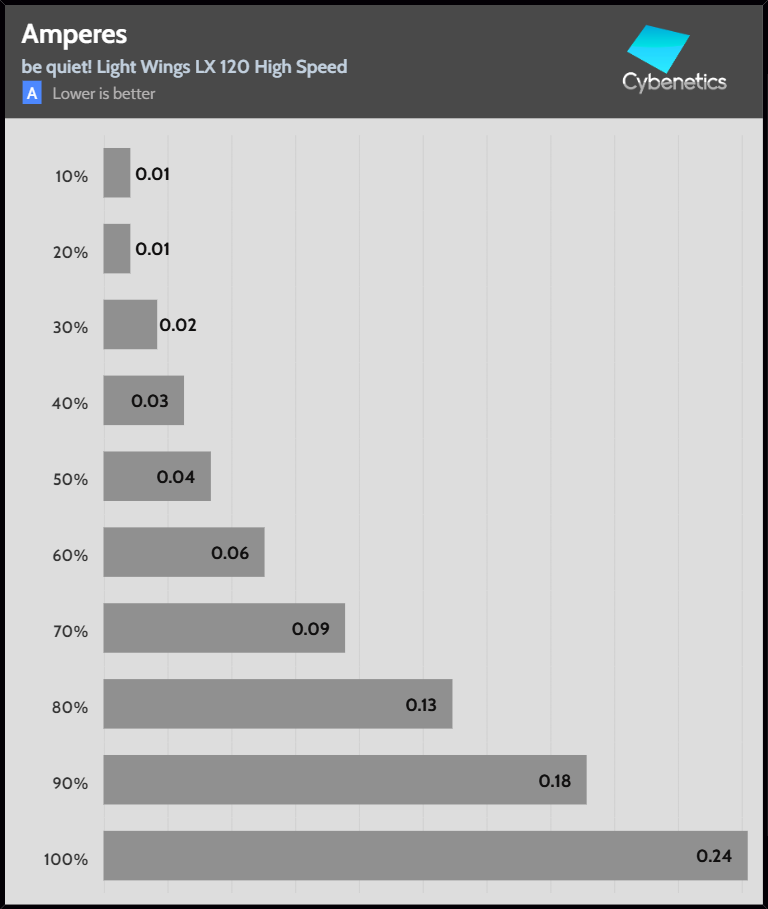

Fan Percentage Amps

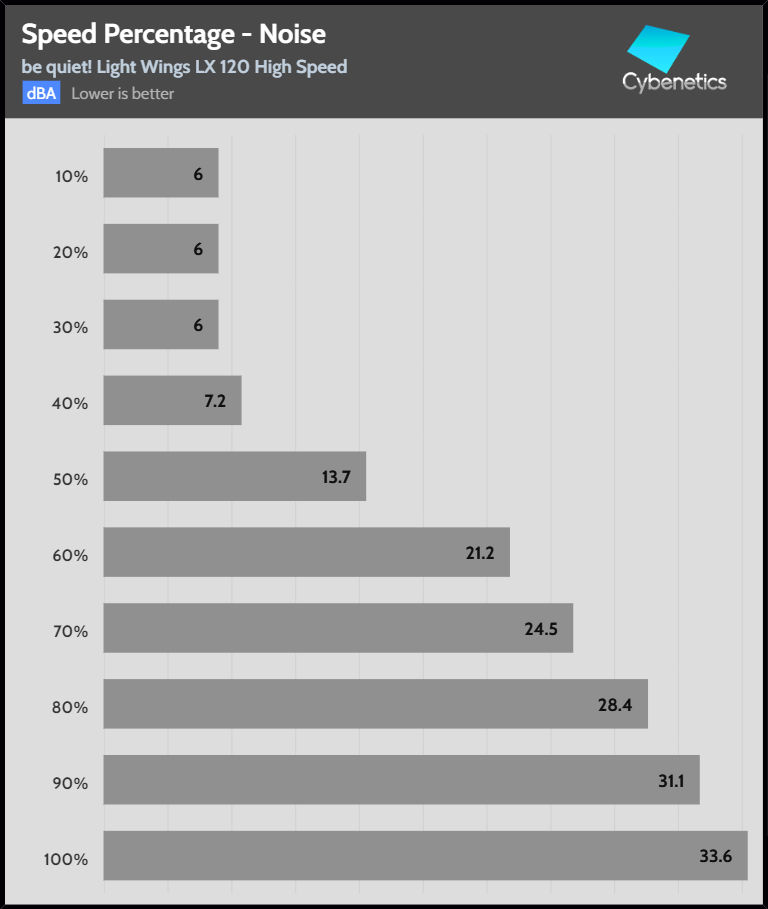

Fan Percentage Noise

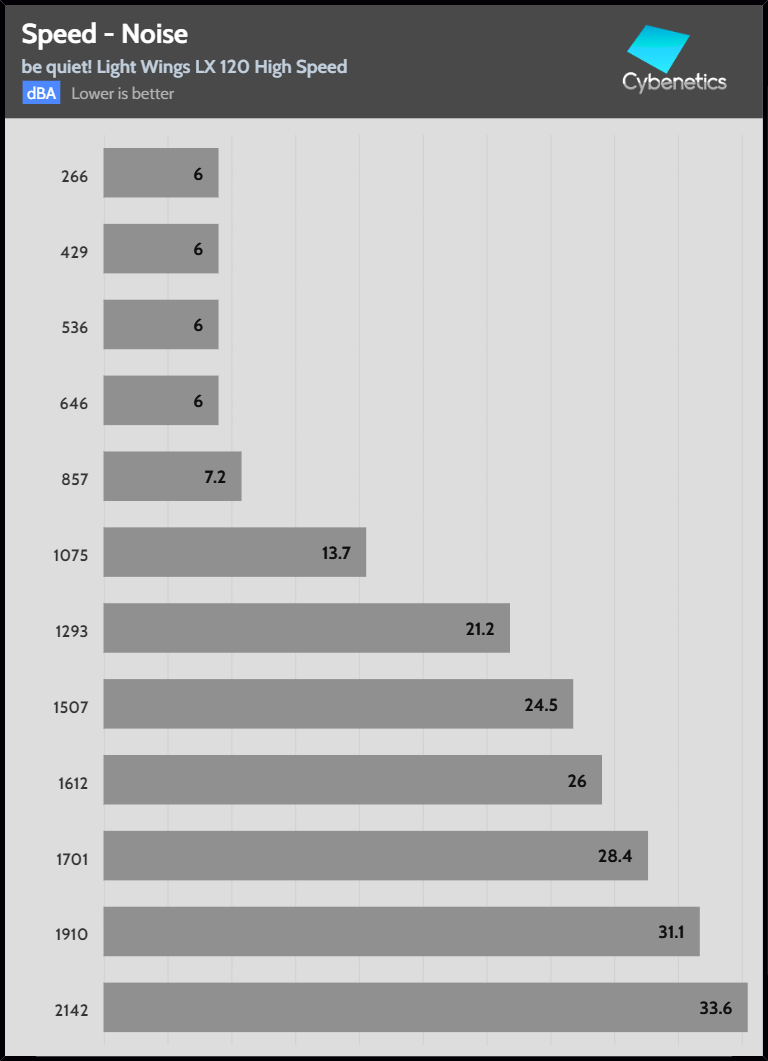

Fan Speed Noise

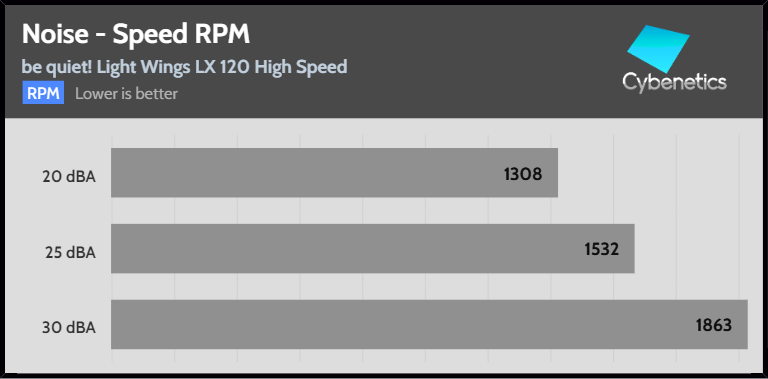

Fan Noise Speed

be quiet! Light Wings LX 120 High-Speed
