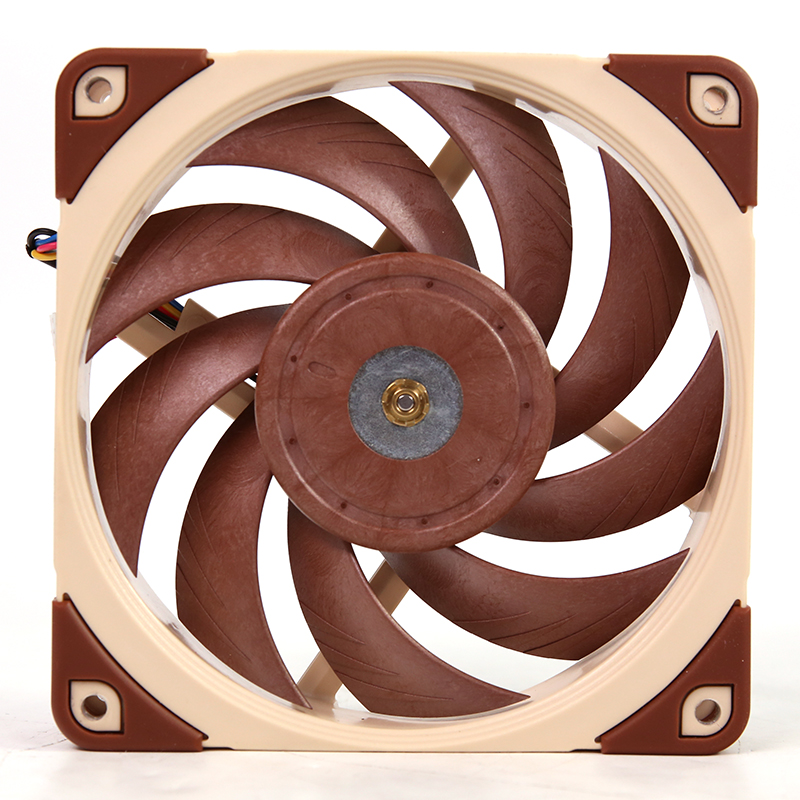

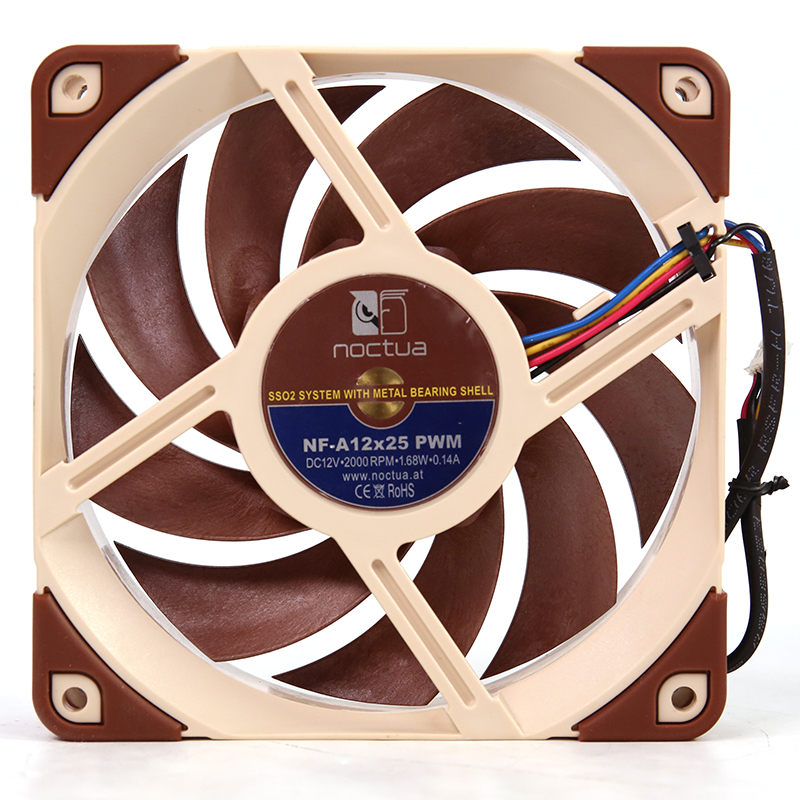

Noctua NF-A12x25 PWM High Speed Edition
序号
Lab IDNC12000125
  • Report: 24FN125A
  • Receipt Date: -
  • Test Date: Aug 1, 2024
  • Report Date: Aug 2, 2024
Airflow Rating
Static Pressure Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

Fan Testing Instrument Technical Specifications

Manufacturer Long Win Science & Technology Corporation
模式l Number LW-9266
Air Flow Rate 2.4 – 250 CFM
Accuracy of Air Flow Rage < 3.5% INFS
Repeatability error < 2%
Static pressure 0-20mmAq (100mmAq with the high static pressure throttle device)
Overall Dimensions 0.7 (W) x 2.2 (L) x 1.6 (H) m
Power Source 220VAC, 5A, Single Phase, 50/60Hz
Based on Standards ISO 5801-2007, AMCA 210-0, ASHRAE 51-2007, IEC 61591-2005, GB/T 1236-200

Test Equipment

测试 Environment Hemi-Anechoic Chamber with 6 dB(A) noise floor
Conditions 25(±2) degrees Celsius, 40-50% humidity
Sound Analyzer Bruel & Kjaer 2270-S G4 & 2250-L G4
Microphone Bruel & Kjaer Type 4955-A
Mic Calibrator Bruel & Kjaer Type 4231
Data Logger Picoscope TC-08

Technical Specifications Table

品牌名称否ctua
型号NF-A12x25 PWM High Speed Edition
Max Speed (RPM)2469
Max Airflow (CFM)64.64
Max Static Pressure (mmAq)2.91
Max 风扇噪音 Level (dBA)35.40
Fan Bearing TypeSSO2
Fan ConnectorPWM
Fan Max Current (A)0.18
Fan Weight (gr)203
Dimensions (W x H x D)120x120x25
Fan daisy-chain connectorx
Cable length (mm)145

Pressure and Airflow

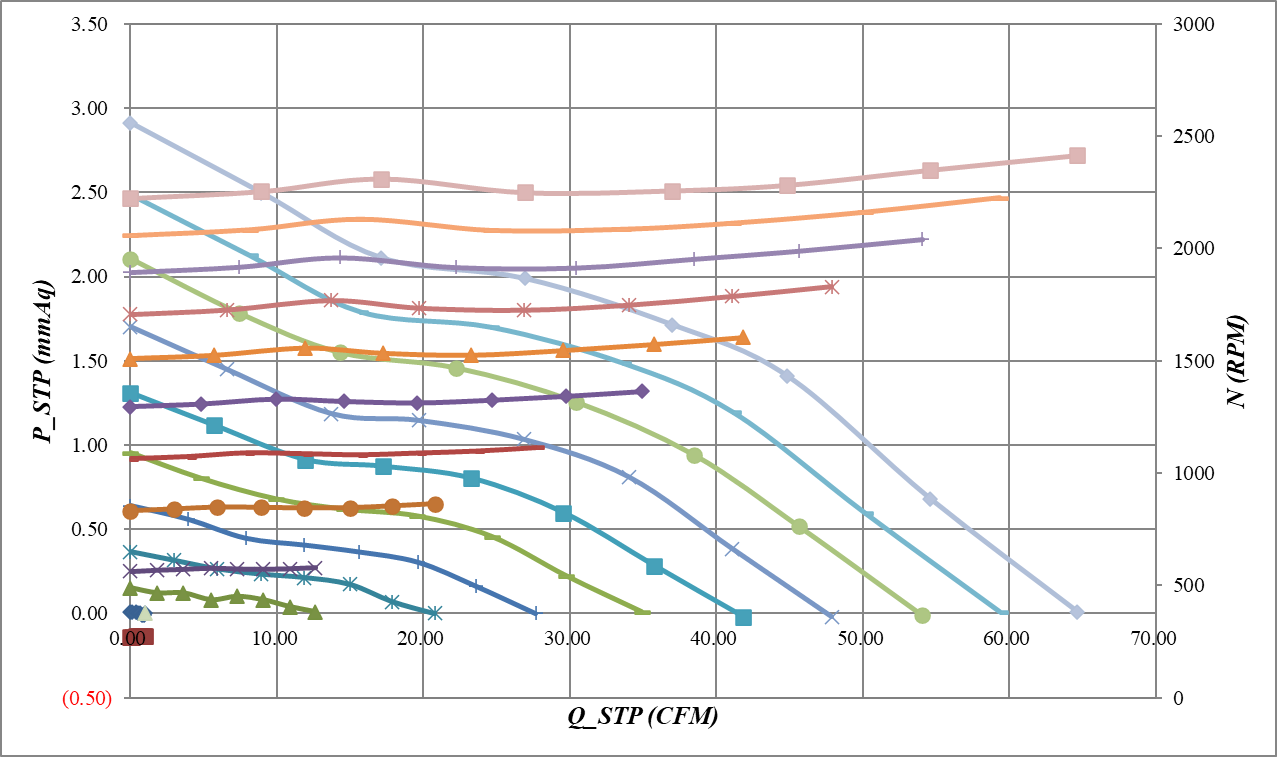

PQ Chart All Speed

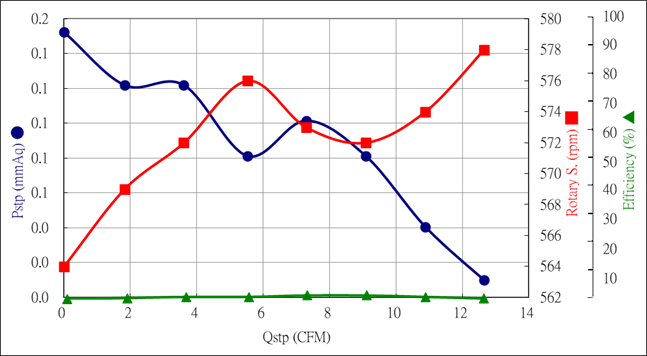

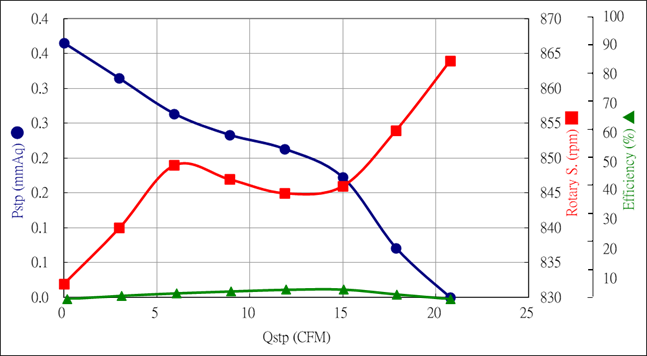

PQ Chart 20% Speed

PQ Chart 30% Speed

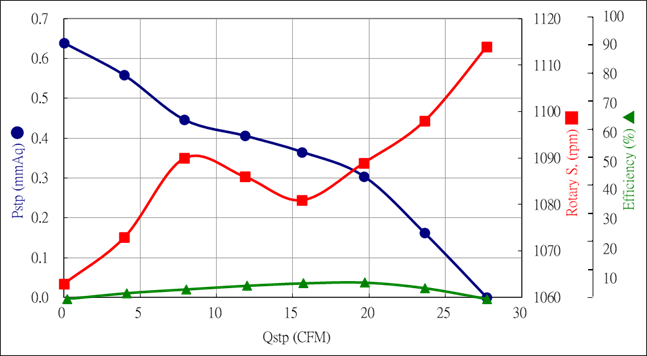

PQ Chart 40% Speed

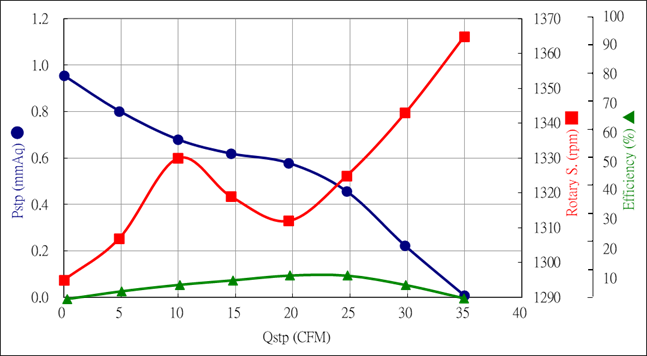

PQ Chart 50% Speed

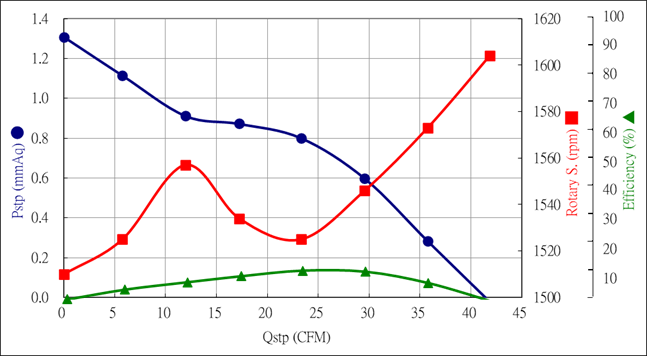

PQ Chart 60% Speed

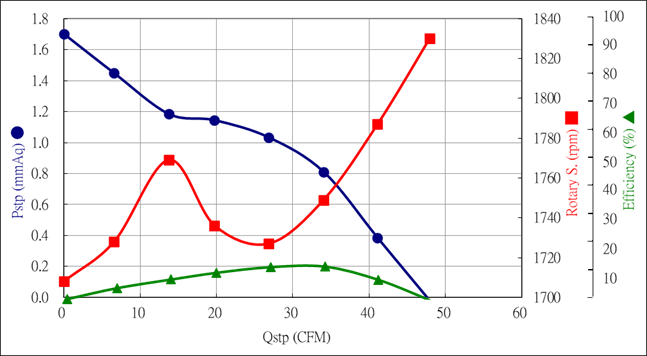

PQ Chart 70% Speed

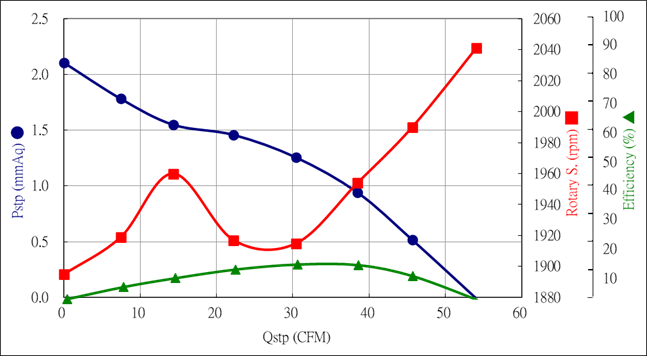

PQ Chart 80% Speed

PQ Chart 90% Speed

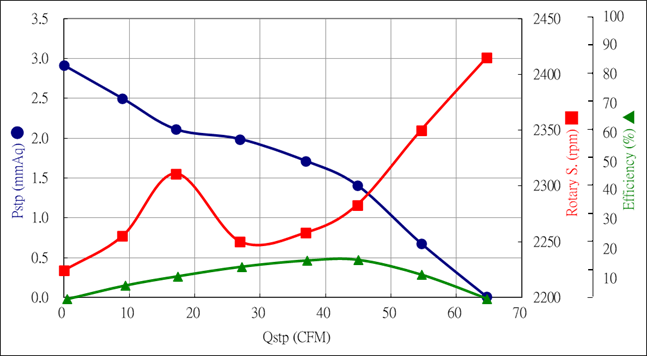

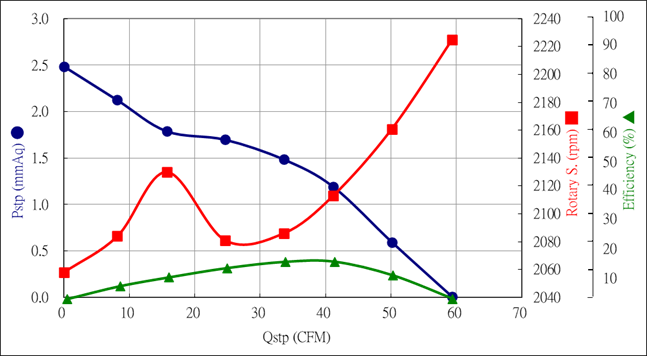

PQ Chart 100% Speed

General Performance

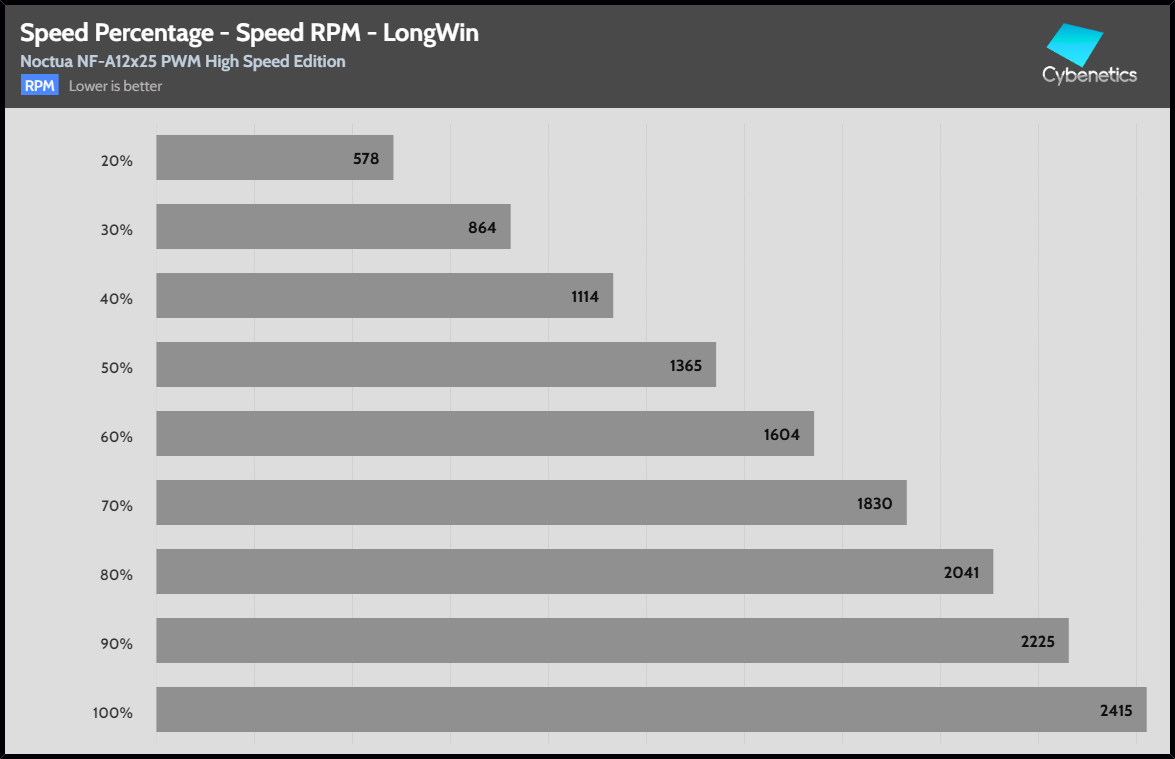

Fan Percentage RPM LongWin

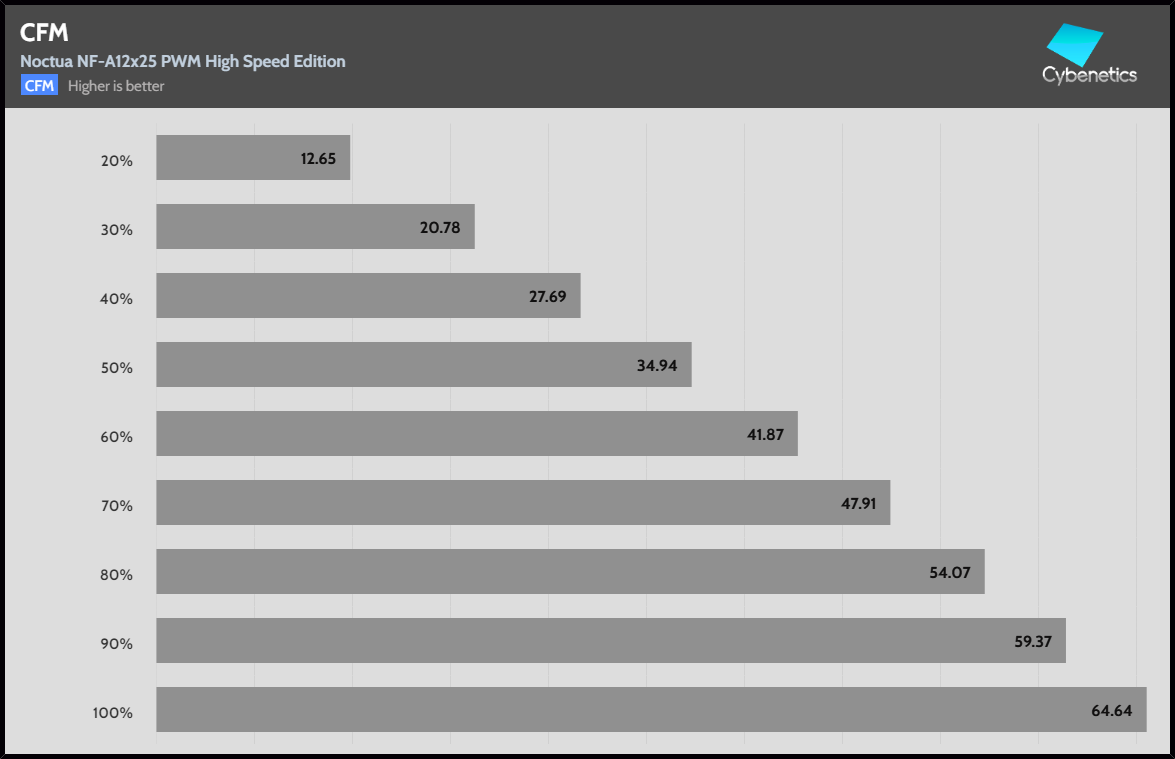

Fan Percentage CFM

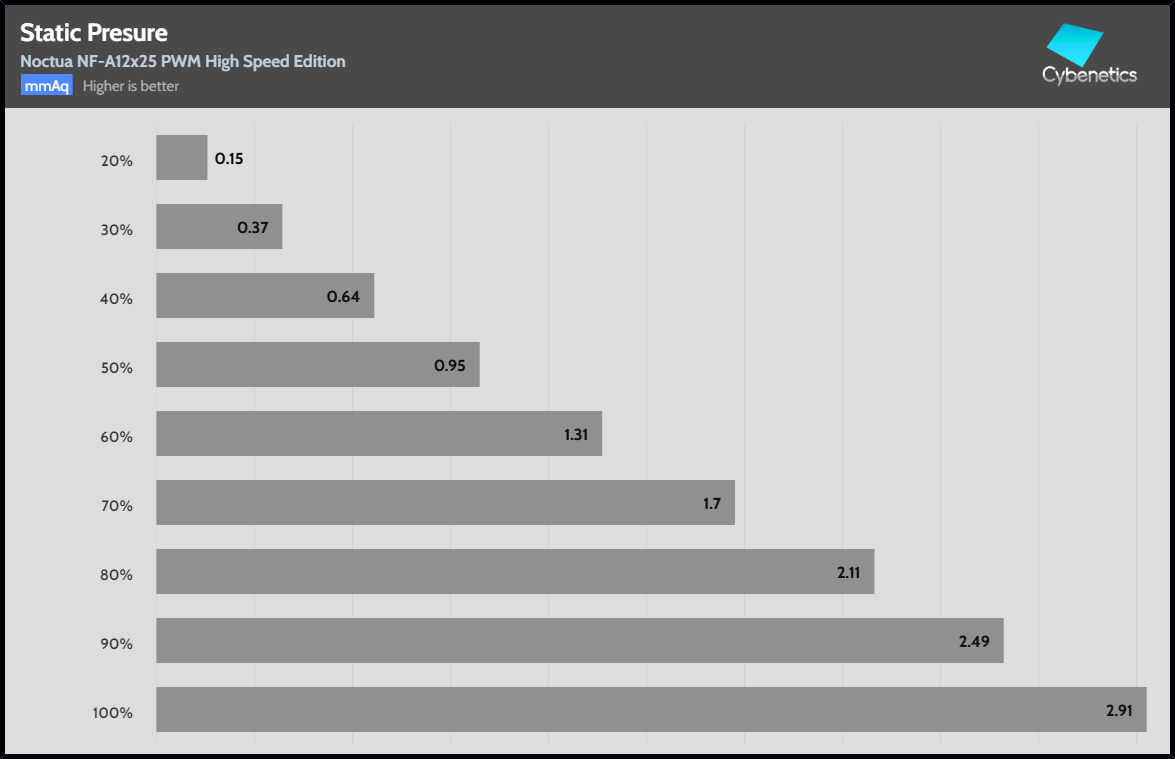

Fan Percentage Pressure

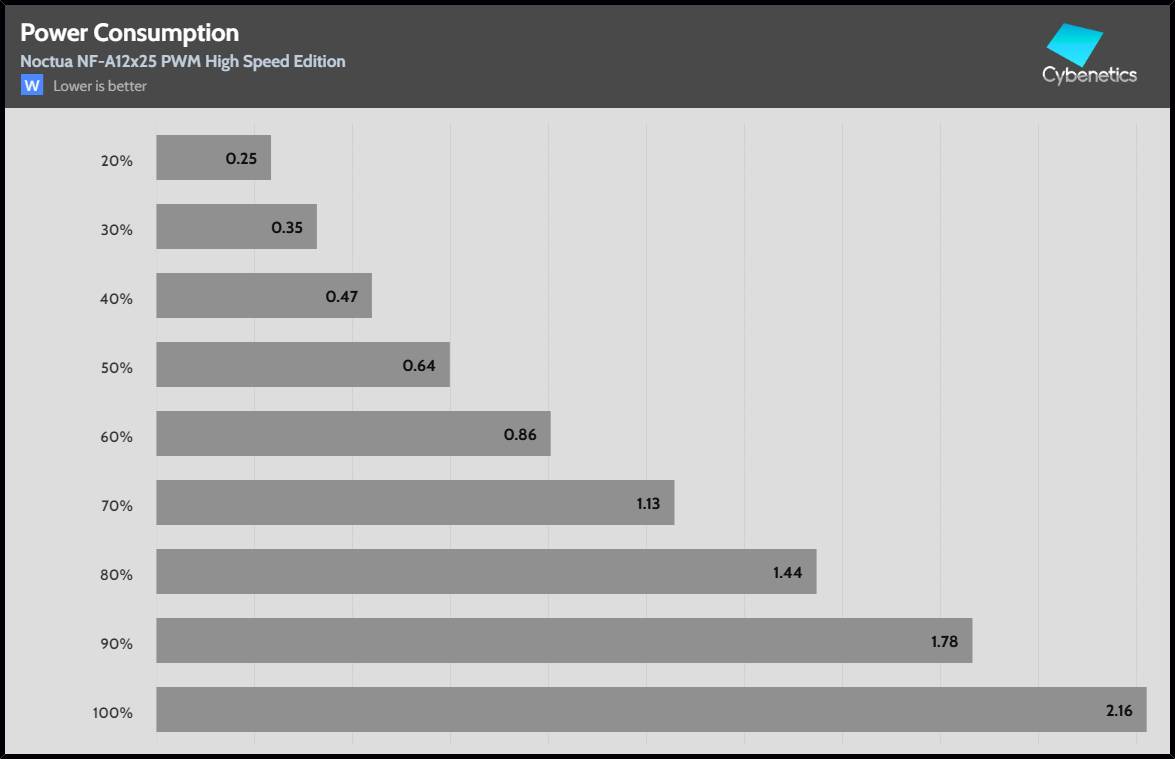

Fan Percentage Power

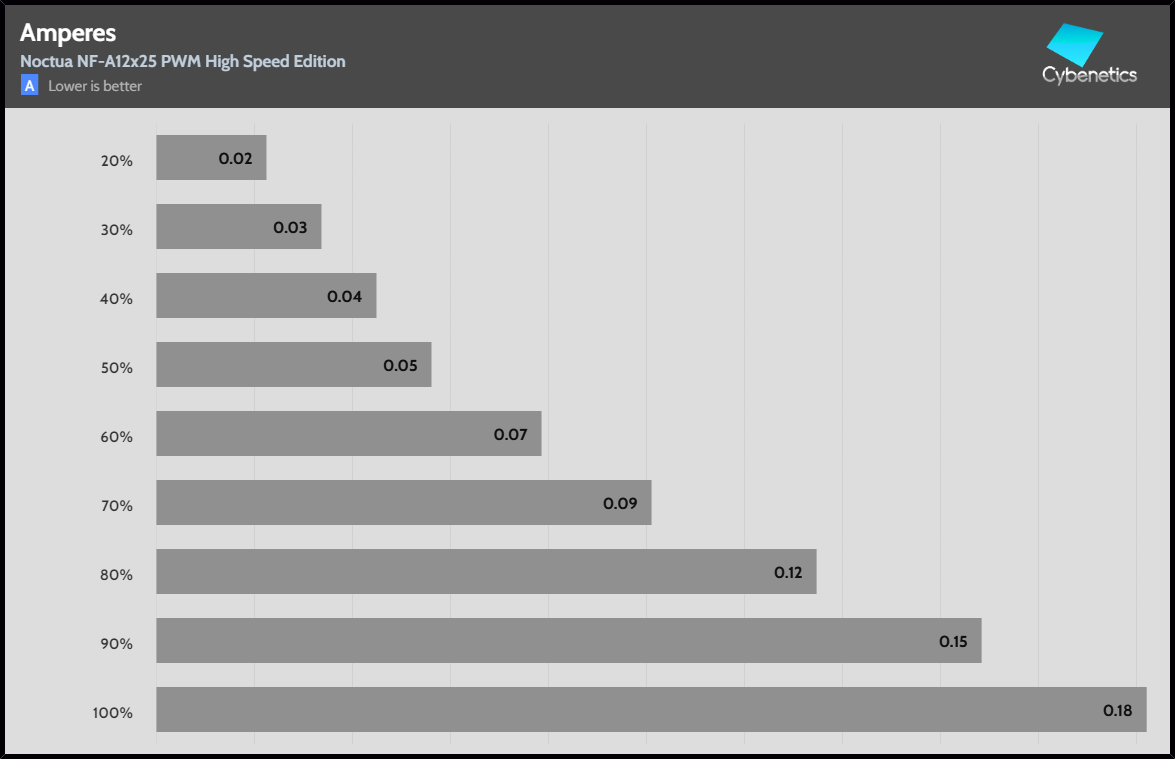

Fan Percentage Amps

Fan Percentage Noise

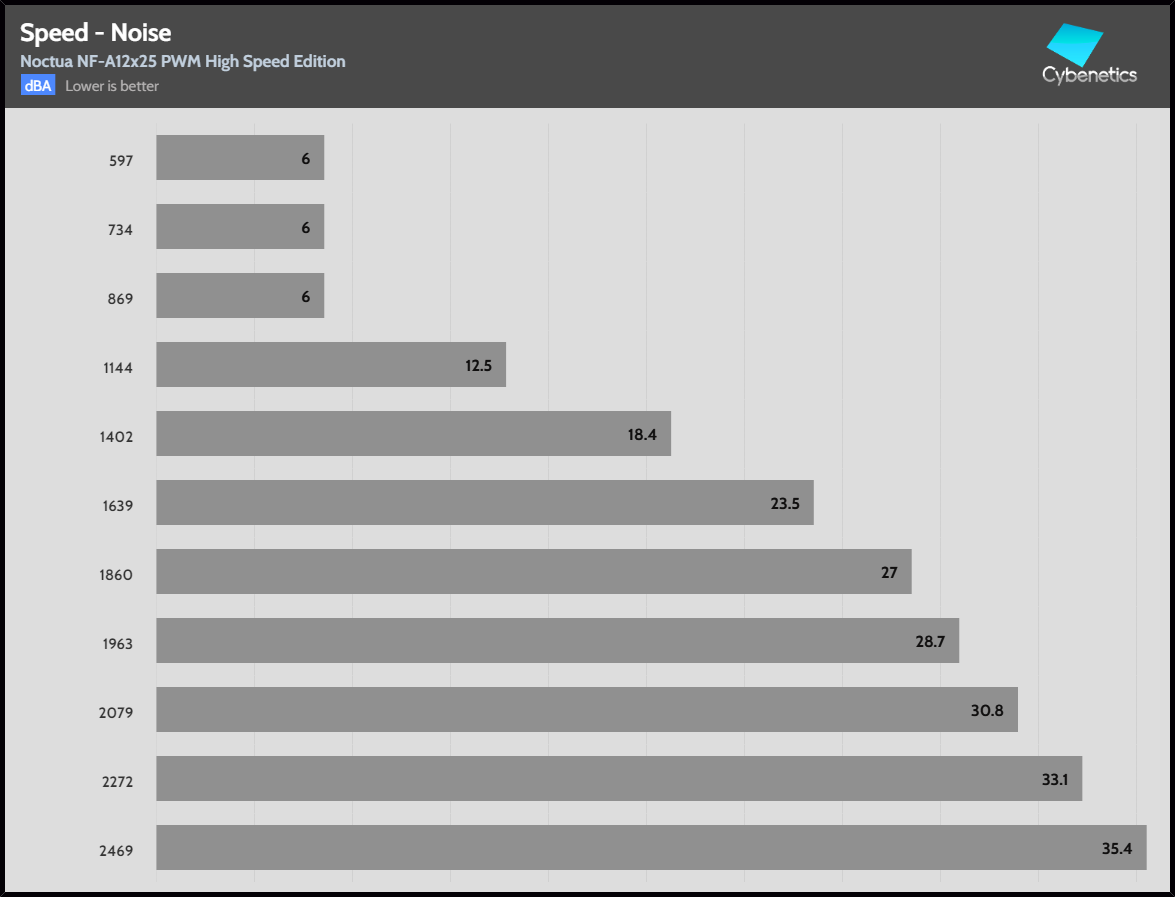

Fan Speed Noise

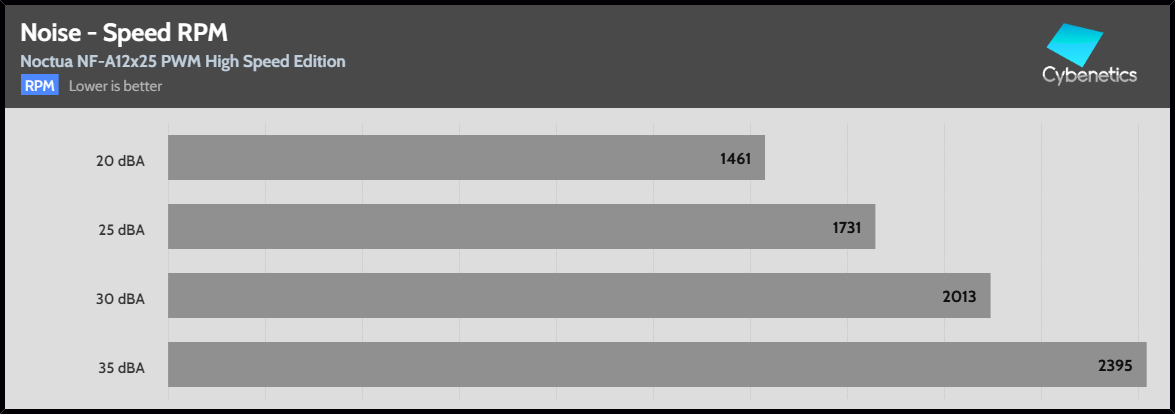

Fan Noise Speed

Noctua NF-A12x25 PWM High Speed Edition
