Hong Hua HA13525H12F-Z (0.5A)
序号
Lab ID13500111
  • Report: 24FN111A
  • Receipt Date: -
  • Test Date: -
  • Report Date: -
Airflow Rating
Static Pressure Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

Fan Testing Instrument Technical Specifications

Manufacturer Long Win Science & Technology Corporation
模式l Number LW-9266
Air Flow Rate 2.4 – 250 CFM
Accuracy of Air Flow Rage < 3.5% INFS
Repeatability error < 2%
Static pressure 0-20mmAq (100mmAq with the high static pressure throttle device)
Overall Dimensions 0.7 (W) x 2.2 (L) x 1.6 (H) m
Power Source 220VAC, 5A, Single Phase, 50/60Hz
Based on Standards ISO 5801-2007, AMCA 210-0, ASHRAE 51-2007, IEC 61591-2005, GB/T 1236-200

Test Equipment

测试 Environment Hemi-Anechoic Chamber with 6 dB(A) noise floor
Conditions 25(±2) degrees Celsius, 40-50% humidity
Sound Analyzer Bruel & Kjaer 2270-S G4 & 2250-L G4
Microphone Bruel & Kjaer Type 4955-A
Mic Calibrator Bruel & Kjaer Type 4231
Data Logger Picoscope TC-08

Technical Specifications Table

品牌名称Hong Hua
型号HA13525H12F-Z (0.5A)
Max Speed (RPM)2315
Max Airflow (CFM)120.34
Max Static Pressure (mmAq)3.58
Max 风扇噪音 Level (dBA)41.60
Fan Bearing TypeFluid Dynamic
Fan Connector2-Pin
Fan Max Current (A)0.38
Fan Weight (gr)161
Dimensions (W x H x D)135x135x25
Fan daisy-chain connectorx
Cable length (mm)145

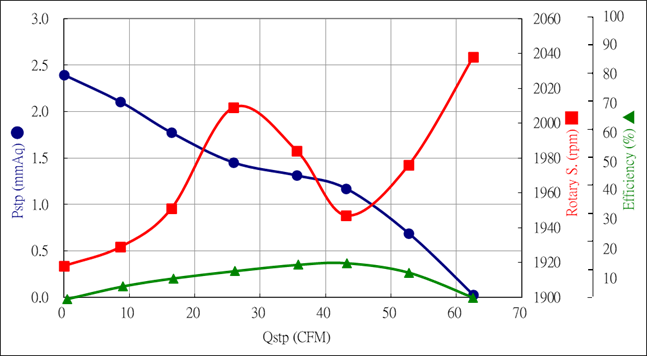

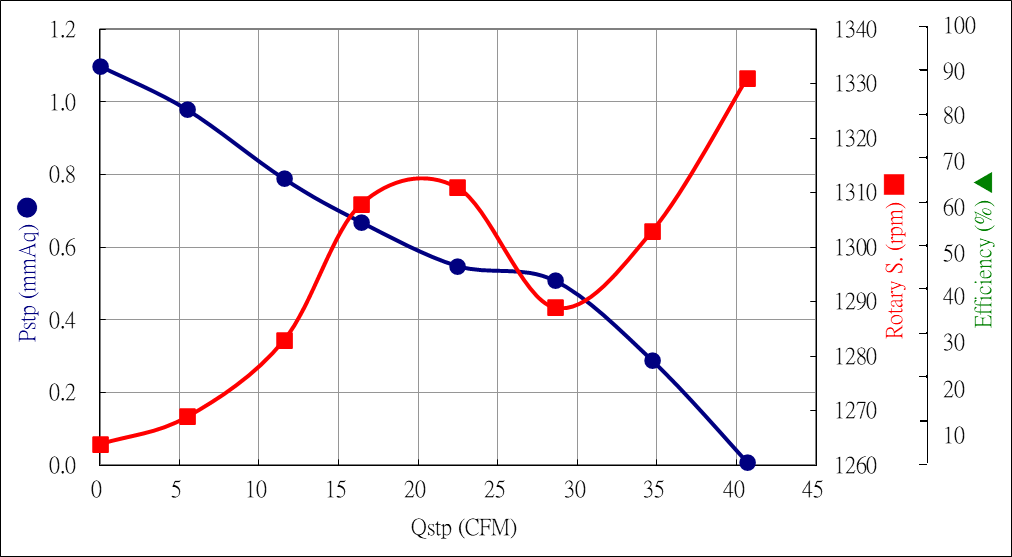

Pressure and Airflow

PQ Chart All Speed

PQ Chart 3.14V

PQ Chart 3.5V

PQ Chart 4.5V

PQ Chart 5V

PQ Chart 6V

PQ Chart 7V

PQ Chart 8V

PQ Chart 10V

PQ Chart 11V

PQ Chart 12V

General Performance

Fan Percentage RPM LongWin

Fan Percentage CFM

Fan Percentage Pressure

Fan Percentage Power

Fan Percentage Amps

Fan Percentage Noise

Fan Speed Noise

Fan Noise Speed

Hong Hua HA13525H12F-Z (0.5A)
