Cybenetics Test - SilverStone CS380

CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

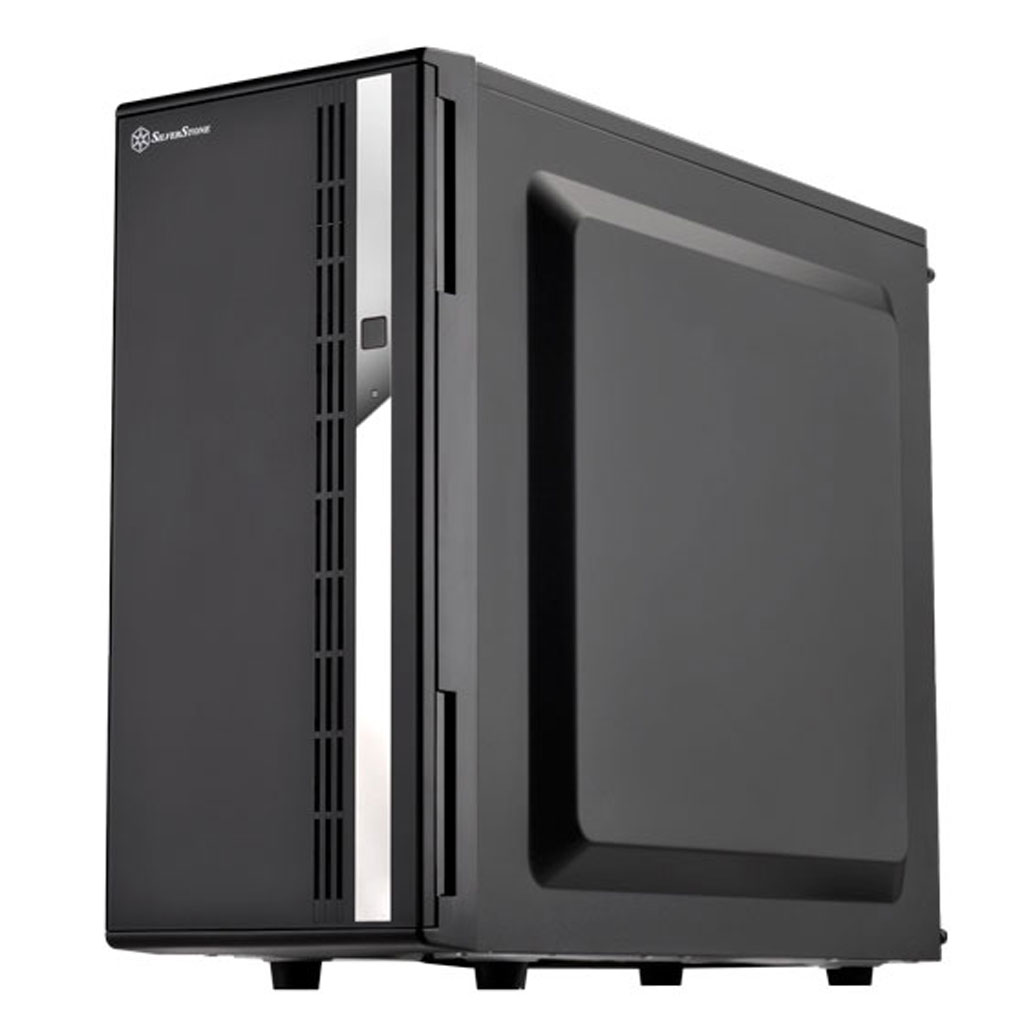

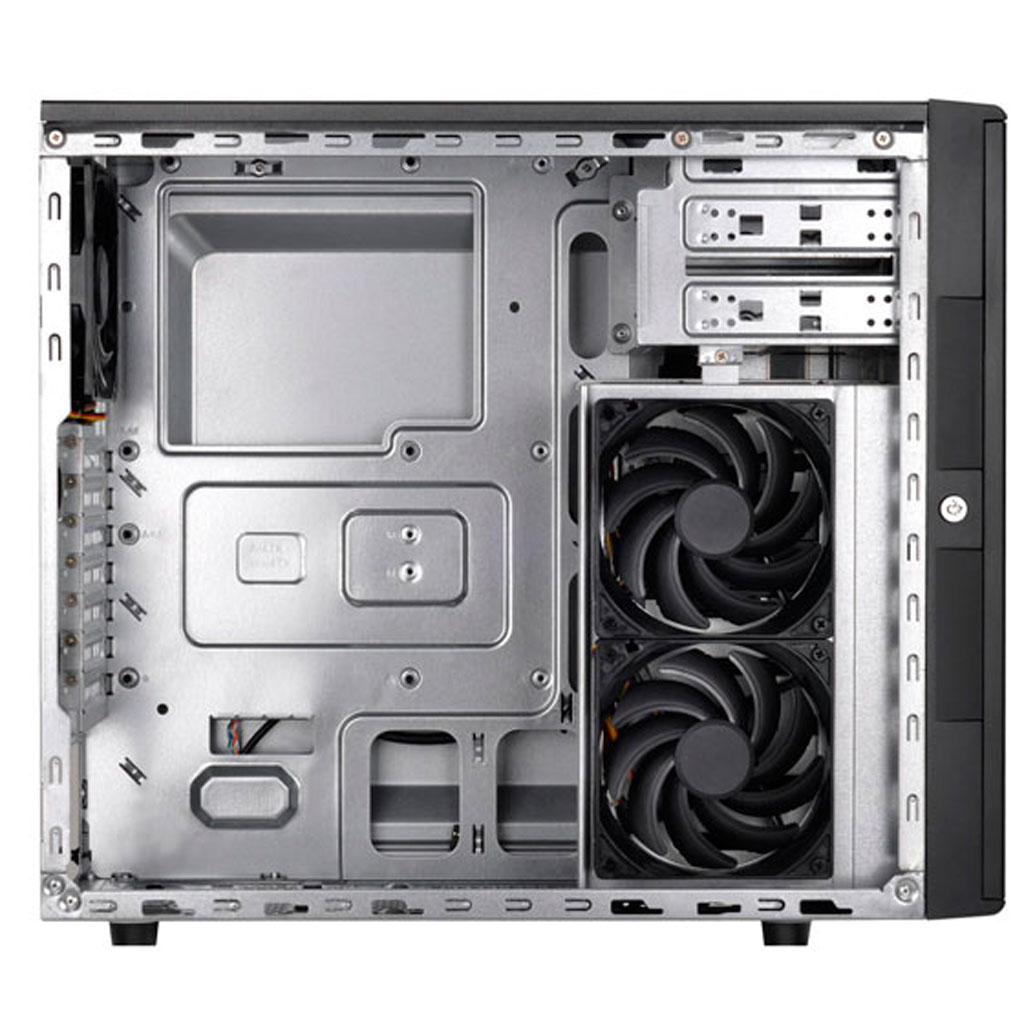

SilverStone CS380

Lab IDSLCAS00062

噪音等级

Aristeidis Bitziopoulos, Laboratory General Manager

General Information

测试 Environment	Hemi-Anechoic Chamber with 6 dB(A) noise floor
Conditions	25(±2) degrees Celsius, 40-50% humidity
Sound Analyzer	Bruel & Kjaer 2270-S G4 & 2250-L G4
Microphone	Bruel & Kjaer Type 4955-A
Mic Calibrator	Bruel & Kjaer Type 4231
Data Logger	Picoscope TC-08

Brand	Silverstone
Product Name	CS380
Type	Midi Tower
Dimensions (LxWxH)	496 x 216 x 424mm
Motherboard Support	Mini-ITX, Micro-ATX, ATX
Removable Motherboard Tray	否
Front Door/Cover	是
Materials Body	Steel, Plastic
Materials Side Panel	Left: Steel Right: Steel
Expansion Slots	7x
Drive Bays	5.25": 2x External 3.5 " : 8x Internal hot-swap (2.5" compatible)
I/O Panel	2x USB 3.0, 1x audio jack, 1x mic jack

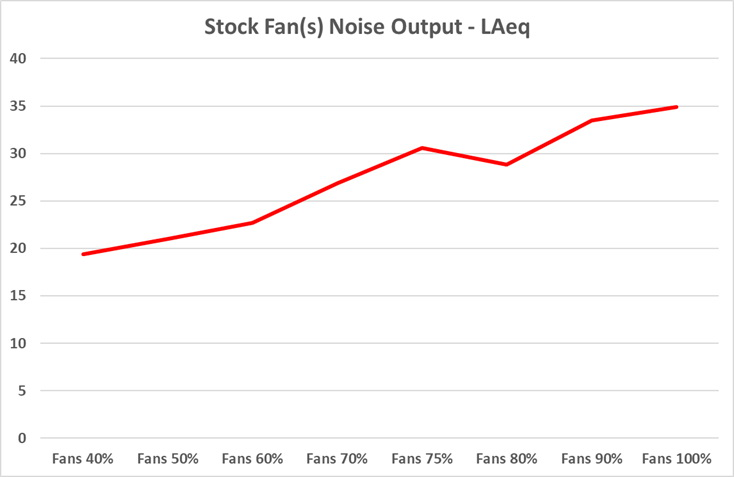

Pre-installed Fan(s)	Side: 2x 120mm (1200 RPM max) Rear: 1x 120mm (1200 RPM max)
Fan Support	Side: 2x 120mm Rear: 1x 120mm
Fan Bearing Type	Sleeve
Fan Power Connector	3-Pin
Fan/LED Controller	否
Radiator Support	Rear: 120mm
CPU Cooler Height (Max)	163mm
VGA Length (Max)	270mm
PSU Length (Max)	220mm
Behind MB Tray Clearance/Cable Management Support	5-30mm
Dust Filters	Side, Bottom
PSU Support	Bottom, ATX
Weight	6.6 kg
Warranty	Limited 1-year warranty for 否rth America and Australia
