Cybenetics Test - Montech Sky Two GX

CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

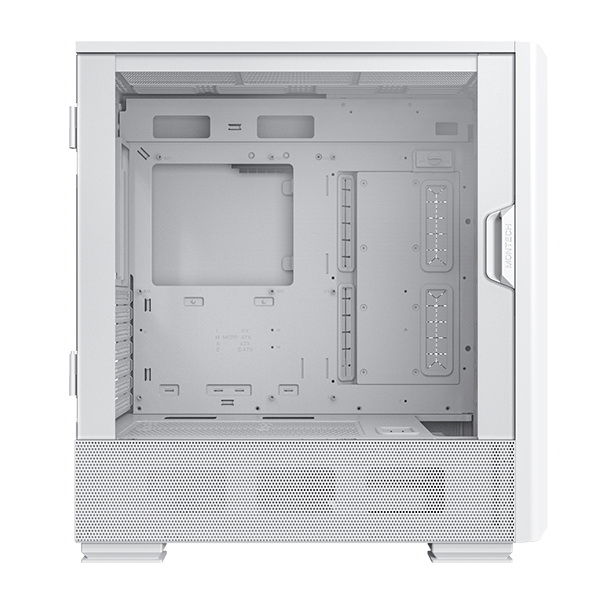

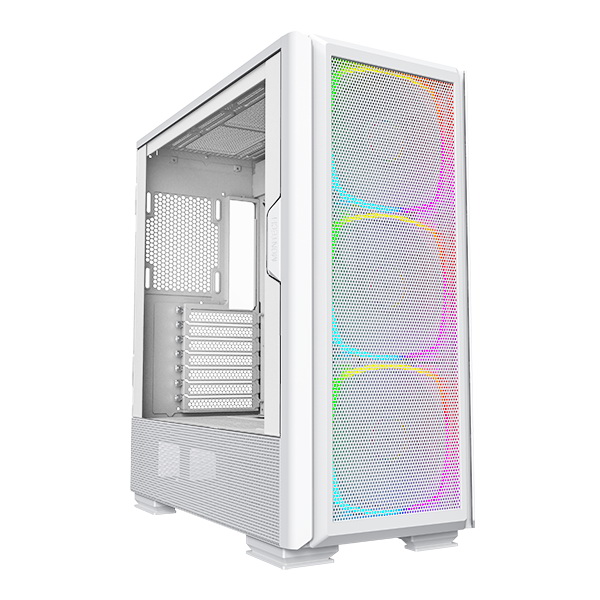

Montech Sky Two GX

Lab IDMTCAS00136

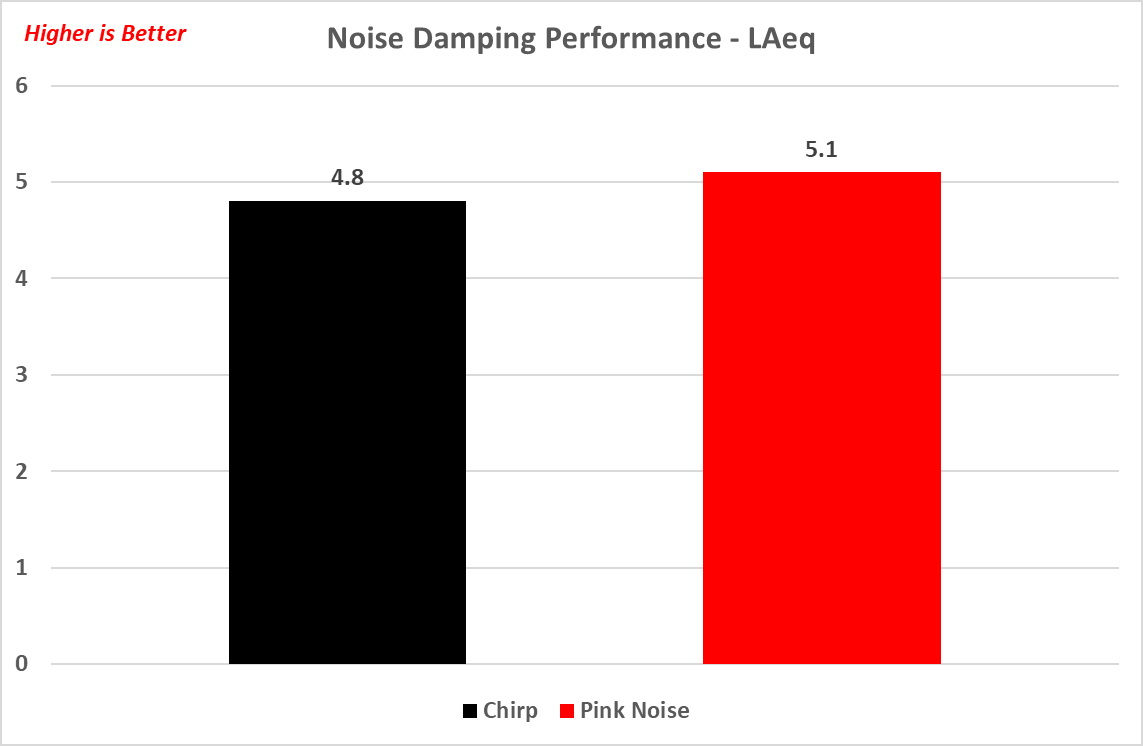

噪音等级

Aristeidis Bitziopoulos, Laboratory General Manager

General Information

测试 Environment	Hemi-Anechoic Chamber with 6 dB(A) noise floor
Conditions	25(±2) degrees Celsius, 40-50% humidity
Sound Analyzer	Bruel & Kjaer 2270-S G4 & 2250-L G4
Microphone	Bruel & Kjaer Type 4955-A
Mic Calibrator	Bruel & Kjaer Type 4231
Data Logger	Picoscope TC-08

Brand	Montech
Product Name	Sky Two GX
Type	Midi Tower
Dimensions (LxWxH)	460 x 215 x 500mm
Motherboard Support	E-ATX, ATX, Micro-ATX, Mini-ITX
Removable Motherboard Tray	否
Front Cover	是
Materials Body	Steel, Plastic, Tempered Glass
Materials Side Panel	Left: Tempered Glass Right: Steel
Expansion Slots	7x
Drive Bays	3.5 " : 2x Internal 2.5" : up to 5x Internal
I/O Panel	1x USB 3.x Type-C, 2x USB 3.0, 1x Audio Jack, 1x Mic Jack, 1x Power Button, 1x Reset Button

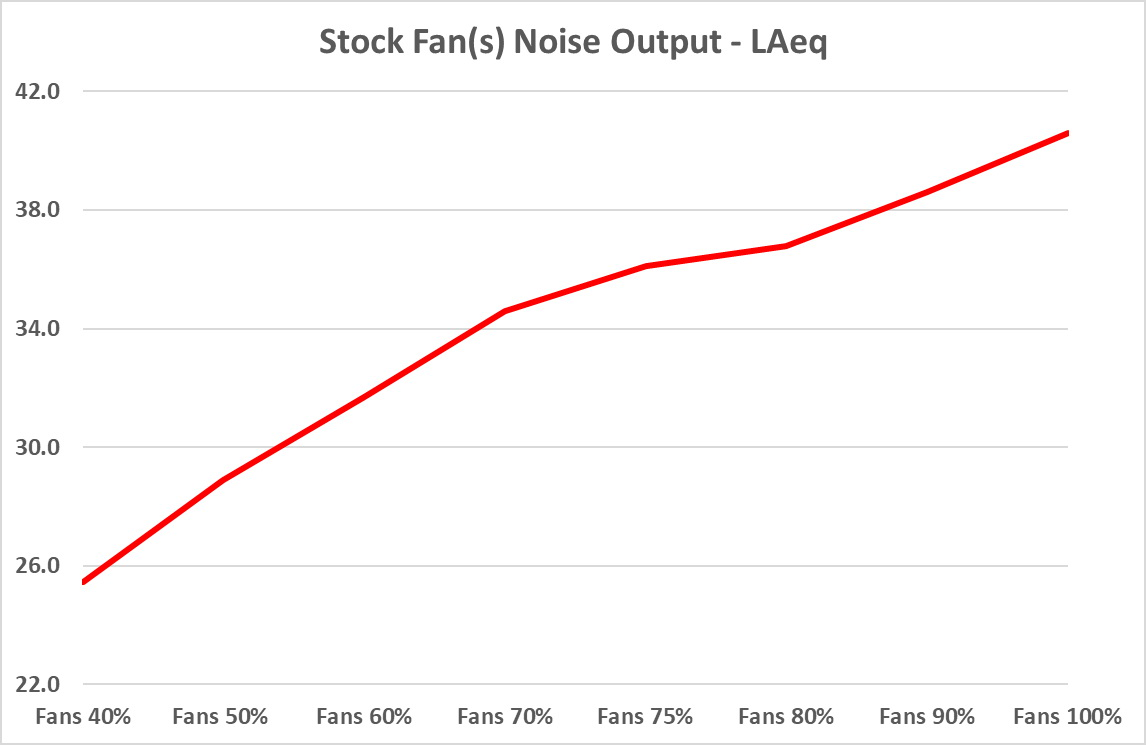

Pre-installed Fan(s)	Front: 3x 140mm (Montech AX140 PWM)
Fan Support	Front: 3x 120mm / 3x 140mm Top: 3x 120mm / 2x 140mm Side: 2x 120mm Rear: 1x 120mm PSU shroud: 2x 120mm
Fan Bearing Type	Hydro Dynamic Bearing
Fan Power Connector	PWM
Fan Hub	是 (PWM and ARGB)
Radiator Support	Front: 120 / 140 / 240 / 280 / 360mm Top: 120 / 140 / 240 / 280 / 360mm Rear: 120mm
CPU Cooler Height (Max)	168mm
VGA Length (Max)	400mm
PSU Length (Max)	210mm
Behind MB Tray Clearance/Cable Management Support	25mm
Dust Filters	Top, Front, Bottom, Sides
PSU Support	Bottom Mount, ATX
Weight	8.8 kg
Warranty	3-years
