Cybenetics Test - be quiet! Dark Base Pro 901

CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

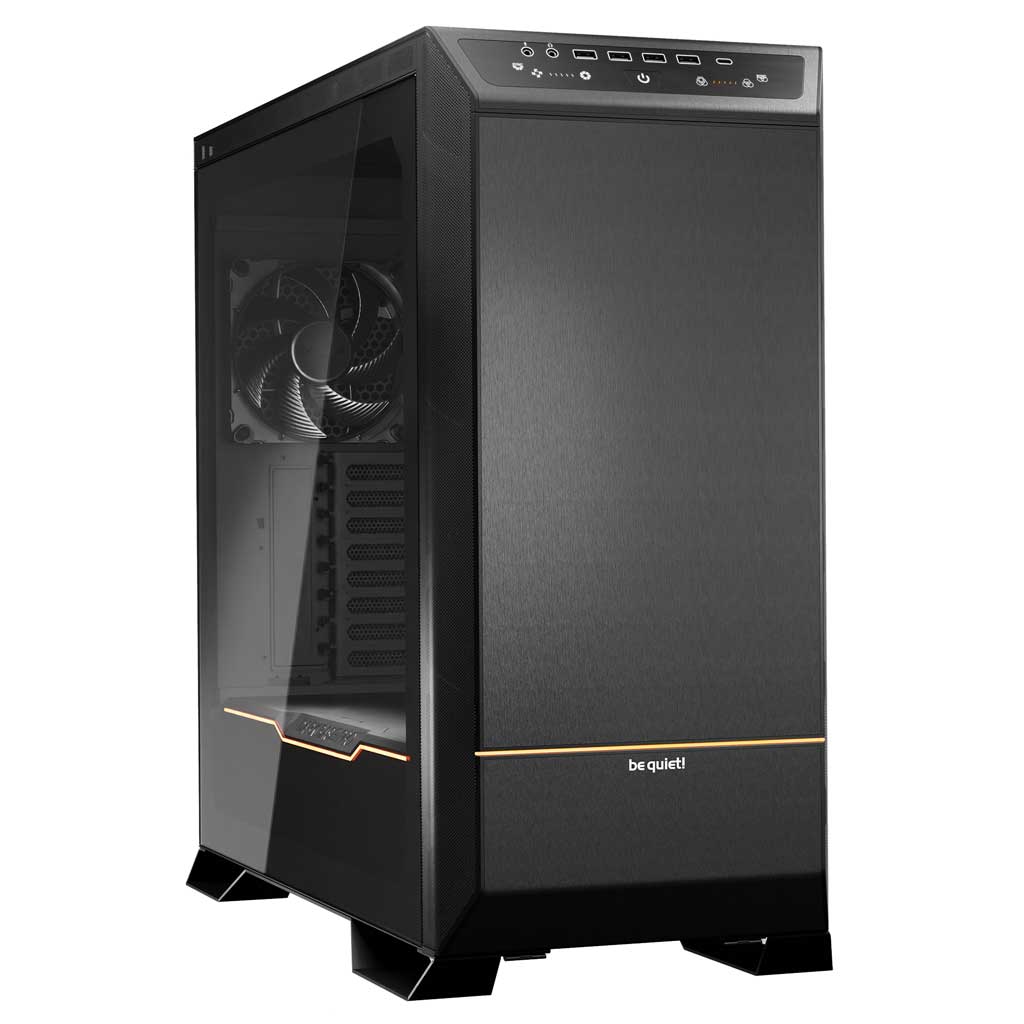

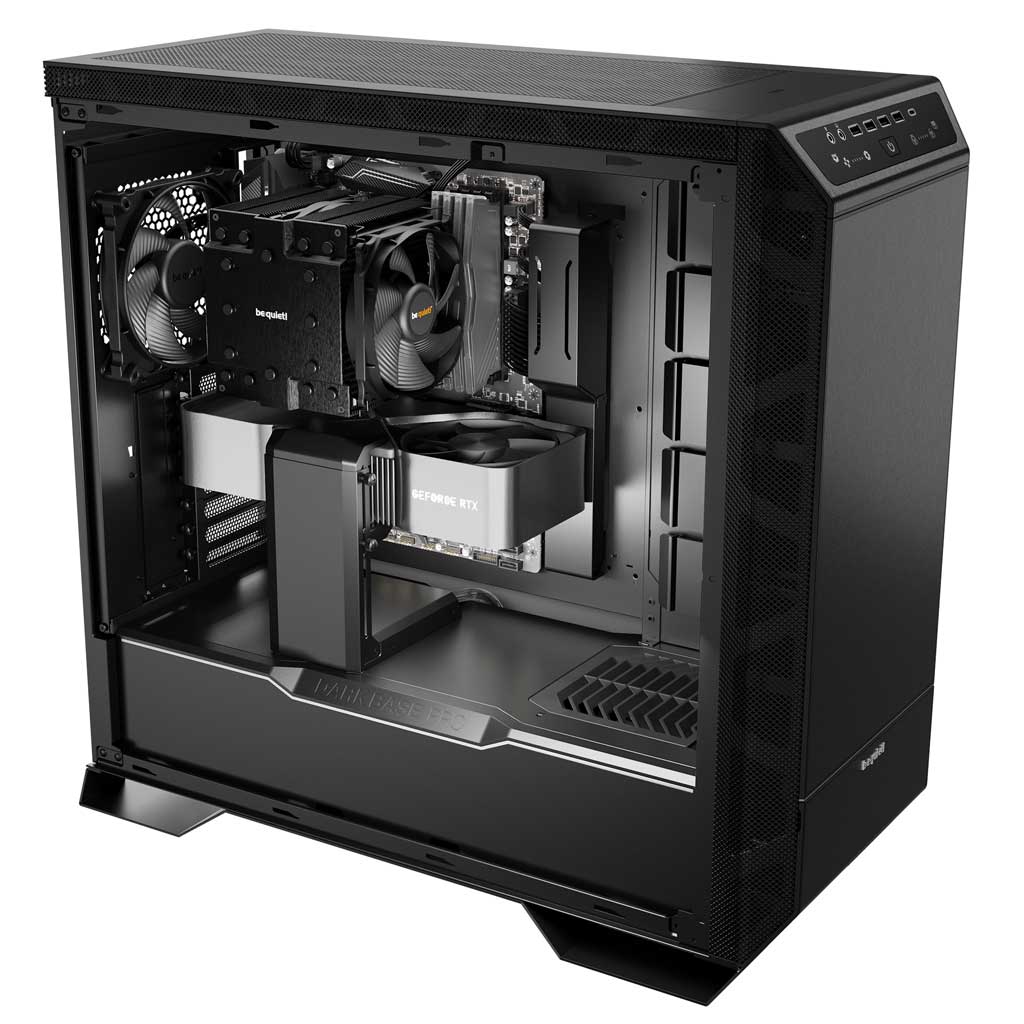

be quiet! Dark Base Pro 901

Lab IDBQCAS00129

噪音等级

Aristeidis Bitziopoulos, Laboratory General Manager

General Information

测试 Environment	Hemi-Anechoic Chamber with 6 dB(A) noise floor
Conditions	25(±2) degrees Celsius, 40-50% humidity
Sound Analyzer	Bruel & Kjaer 2270-S G4 & 2250-L G4
Microphone	Bruel & Kjaer Type 4955-A
Mic Calibrator	Bruel & Kjaer Type 4231
Data Logger	Picoscope TC-08

Brand	be quiet!
Product Name	Dark Base Pro 901
Type	Full Tower
Dimensions (LxWxH)	603 x 254 x 569mm
Motherboard Support	E-ATX / XL-ATX / ATX / M-ATX / Mini-ATX
Removable Motherboard Tray	是
Front Cover	是
Materials Body	Steel (SGCC), Aluminum, ABS Plastic, Tempered Glass
Materials Side Panel	Left: Tempered Glass Right: Sound-Dampened Steel
Expansion Slots	8x
Drive Bays	5.25": 1x 3.5 " : 2x Internal (7x max) 2.5" : 6x Internal (16x max)
I/O Panel	1x USB 3.2 Gen. 2 Type C, 1x USB 3.2 Type A, 1x Audio Jack, 1x Mic Jack, 1x Power Button, 1x 风扇转速, 1x RGB Light, 1x Qi charger (15W)
Pre-installed Fan(s)	Front: 2x Silent Wings 4 140mm PWM Rear: 1x Silent Wings 4 140mm PWM
Fan Support	Front: 3x 140mm / 3x 120mm Top: 3x 140mm / 3x 120mm, Side: 3x 120mm Bottom: 1x 140mm / 1x 120mm, Rear: 1x 140mm / 1x 120mm
Fan Bearing Type	Fluid Dynamic Bearing
Fan Power Connector	4-Pin
PWM Controller	是
Radiator Support	Front: 120 / 140 / 240 / 280 / 360 / 420mm Top: 120 / 240 / 360mm Side: 120 / 240 / 360mm Rear: 120 / 140mm
CPU Cooler Height (Max)	190mm
VGA Length (Max)	495mm
PSU Length (Max)	288mm
Behind MB Tray Clearance/Cable Management Support	26mm
Dust Filters	Top, Front, Bottom, Side
PSU Support	Bottom Mount, ATX
Weight	16.3kg (net) / 20.8kg (gross)
Warranty	3-years
