General Information
Test Equipment
Test Environment
Hemi-Anechoic Chamber with 6 dB(A) noise floor
Conditions
25(±2) degrees Celsius, 40-50% humidity
Sound Analyzer
Bruel & Kjaer 2270-S G4 & 2250-L G4
Microphone
Bruel & Kjaer Type 4955-A
Mic Calibrator
Bruel & Kjaer Type 4231
Data Logger
Picoscope TC-08
Technical Specifications Table
Brand
Silvetstone
Product Name
Seta Q1
Type
Midi Tower
Dimensions (LxWxH)
490.7 mm x 232 mm x 493.5 mm
Motherboard Support
SSI-EEB, SSI-CEB, E-ATX, ATX, Micro-ATX, Mini-ITX
Removable Motherboard Tray
No
Front Cover
Yes
Materials Body
Steel, Plastic, Sound Dampening Material
Materials Side Panel
Left: Tempered Glass Right: Sound-Dampened Steel
Expansion Slots
7 + 2
Drive Bays
5.25": - 3.5 " : 2x Internal 2.5" : 2x Internal
I/O Panel
1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 1x Combo Audio Jack, 1x Power Button
Pre-installed Fan(s)
Front: 2x 140 mm Rear: 1x 140 mm
Fan Support
Front: 3x 120 mm / 3x 140 mm Top: 3x 120 mm / 2x 140 mm Rear: 1x 120 mm / 1x 140 mm
Fan Bearing Type
Sleeve
Fan Power Connector
3-Pin
LED Controller
No
Radiator Support
Front:120 mm / 140 mm / 240 mm / 280 mm / 360 mm Top: 120 mm / 140 mm / 240 mm / 280 mm / 36 0mm Rear: 120 mm / 140 mm
CPU Cooler Height (Max)
182 mm
VGA Length (Max)
394 mm
PSU Length (Max)
250 mm
Behind MB Tray Clearance/Cable Management Support
19mm
Dust Filters
Top, Front, Bottom
PSU Support
Bottom Mount, ATX
Weight
10.54 kg
Warranty
no info
Graphs
Stock Fan(s) RPM

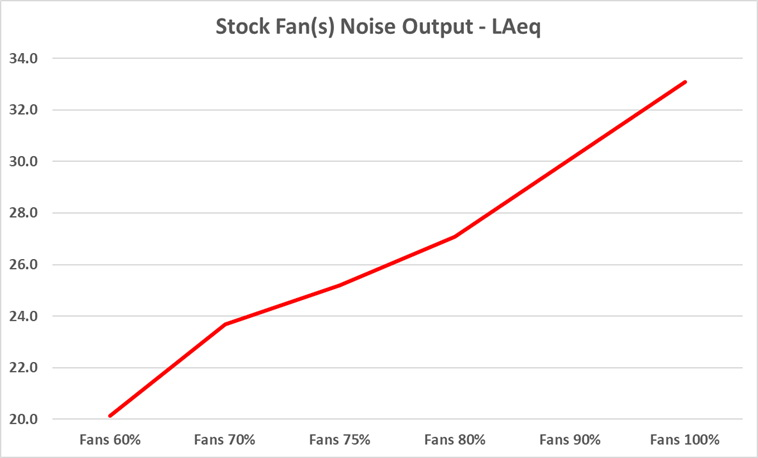

Stock Fan(s) Noise Output – LAeq
INFO
Stock Fan Noise Output from 40% to 100%

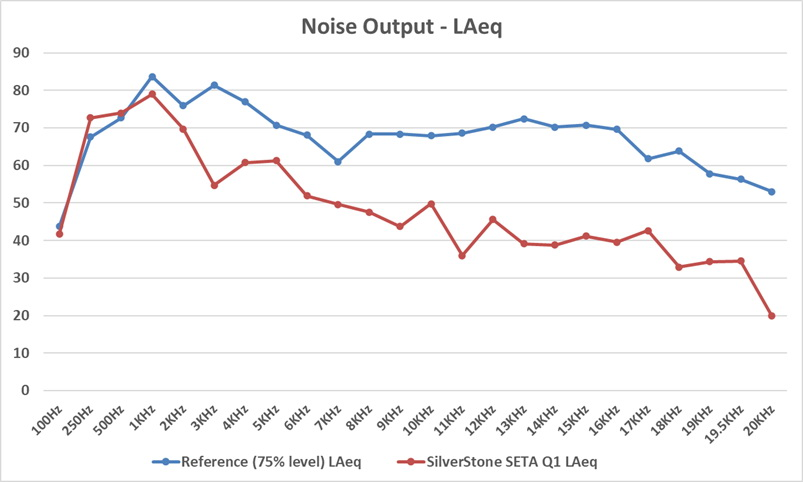

Noise Output LAeq – Test Tones
INFO
Noise Output in DB(A) from 100 Hz to 20 kHz

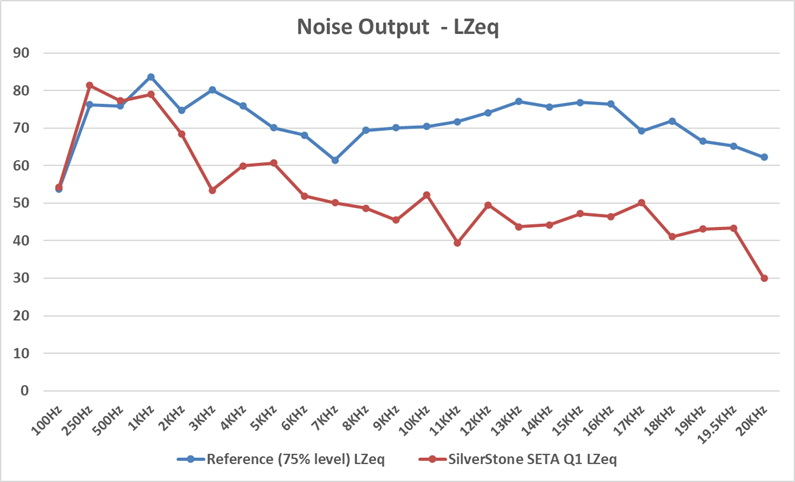

Noise Output LZeq – Test Tones
INFO
Noise Output in DB(Z) from 100 Hz to 20 kHz

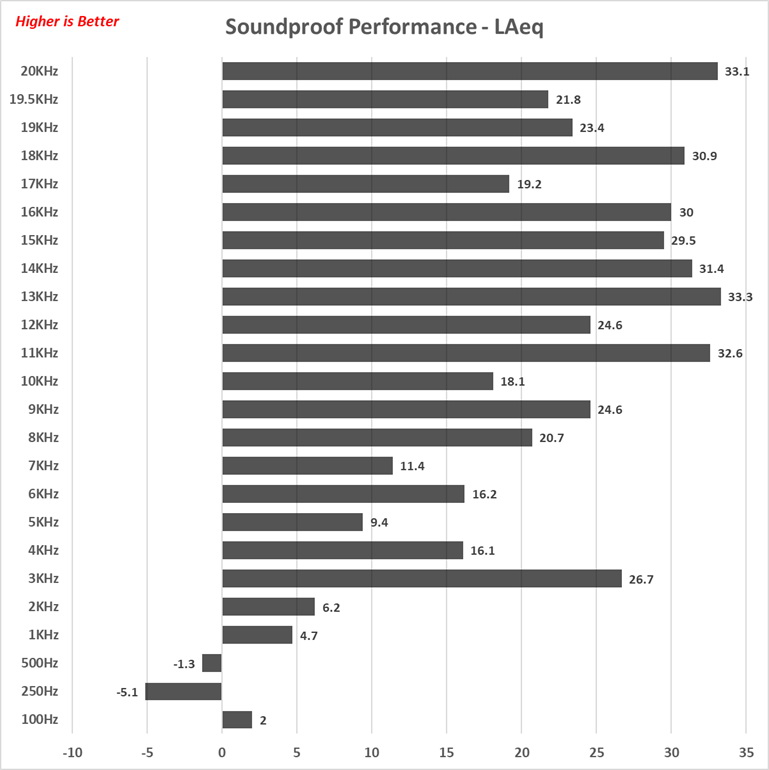

Noise Dampening Performance LAeq – Test Tones
INFO
Soundproof Performance in dB(A) from 100 Hz to 20 kHz
Noise Dampening Performance LZeq – Test Tones
INFO
Soundproof Performance in dB(Z) from 100 Hz to 20 kHz

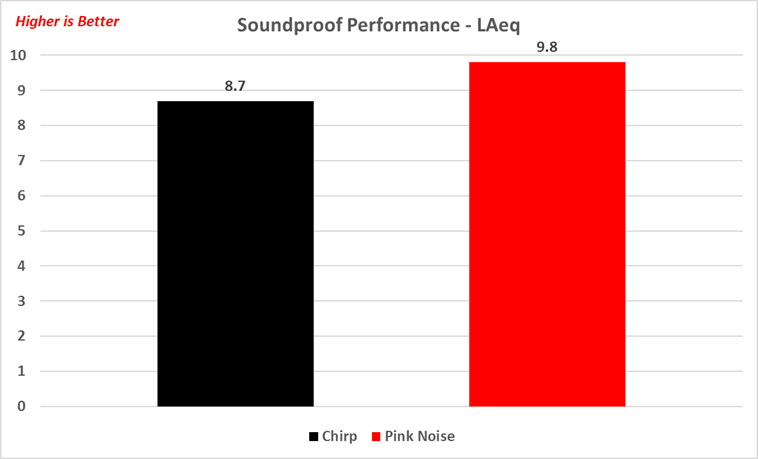

Noise Dampening Performance LAeq – Pink & Chirp
INFO
Chirp & Pink Noise Soundproof Performance (dB[A])

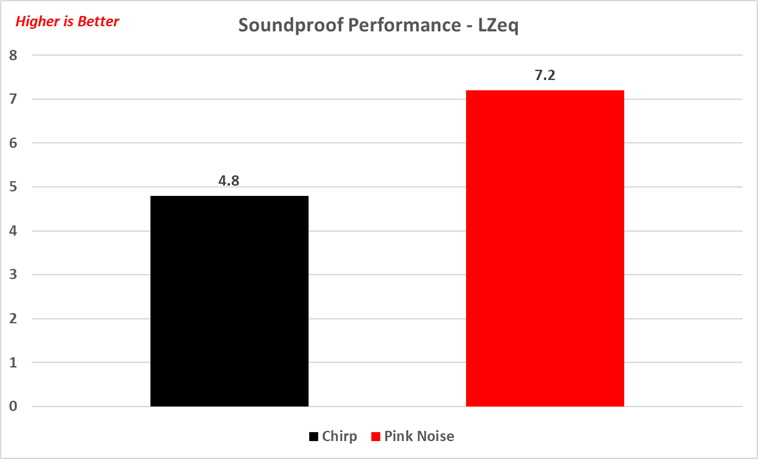

Noise Dampening Performance LZeq – Pink & Chirp
INFO
Chirp & Pink Noise Soundproof Performance (dB[Z])

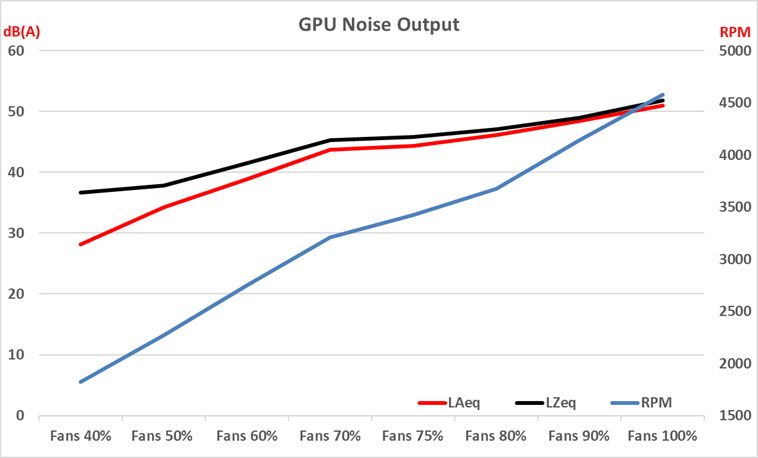

GPU Fan(s) Noise Output – LAeq
INFO
NVIDIA GeForce GTX 970 Noise Output from 40% to 100% Fan Speed
SilverStone SETA Q1

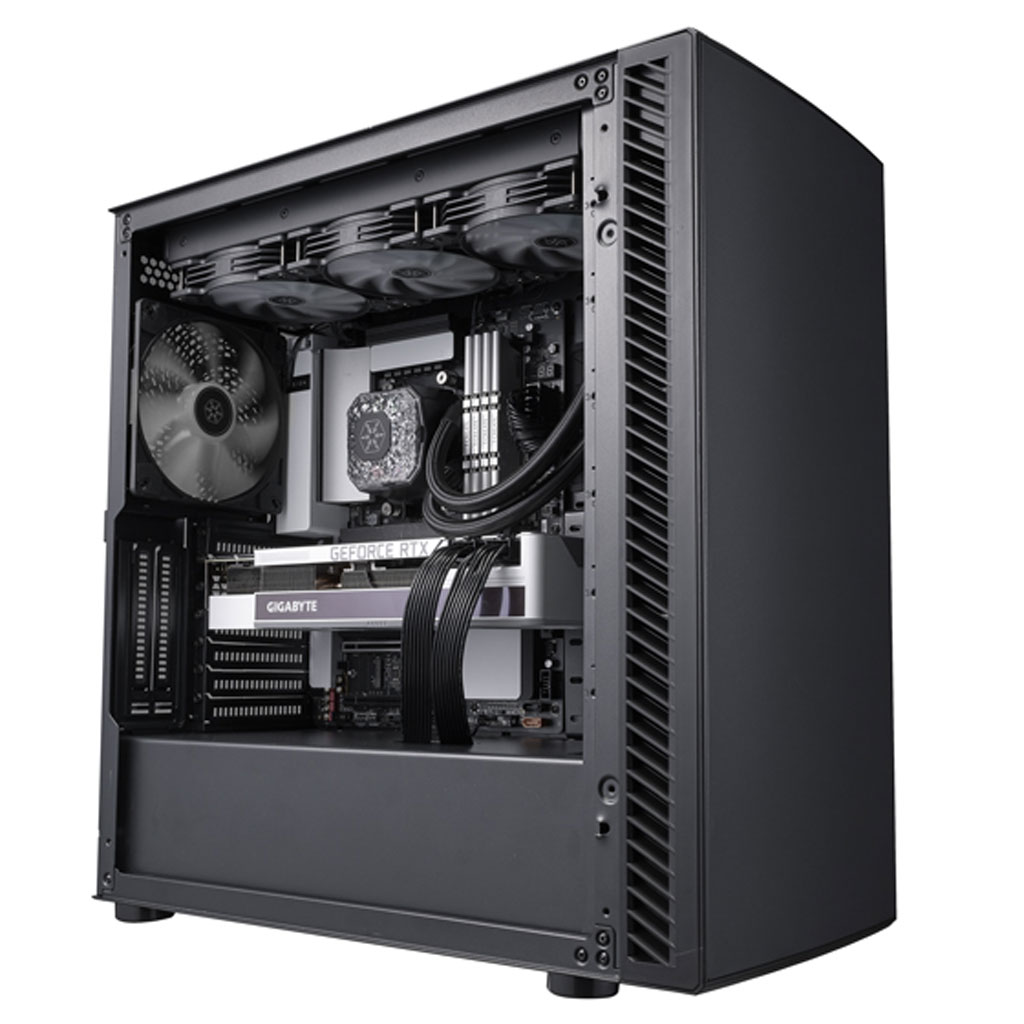

Case Photo

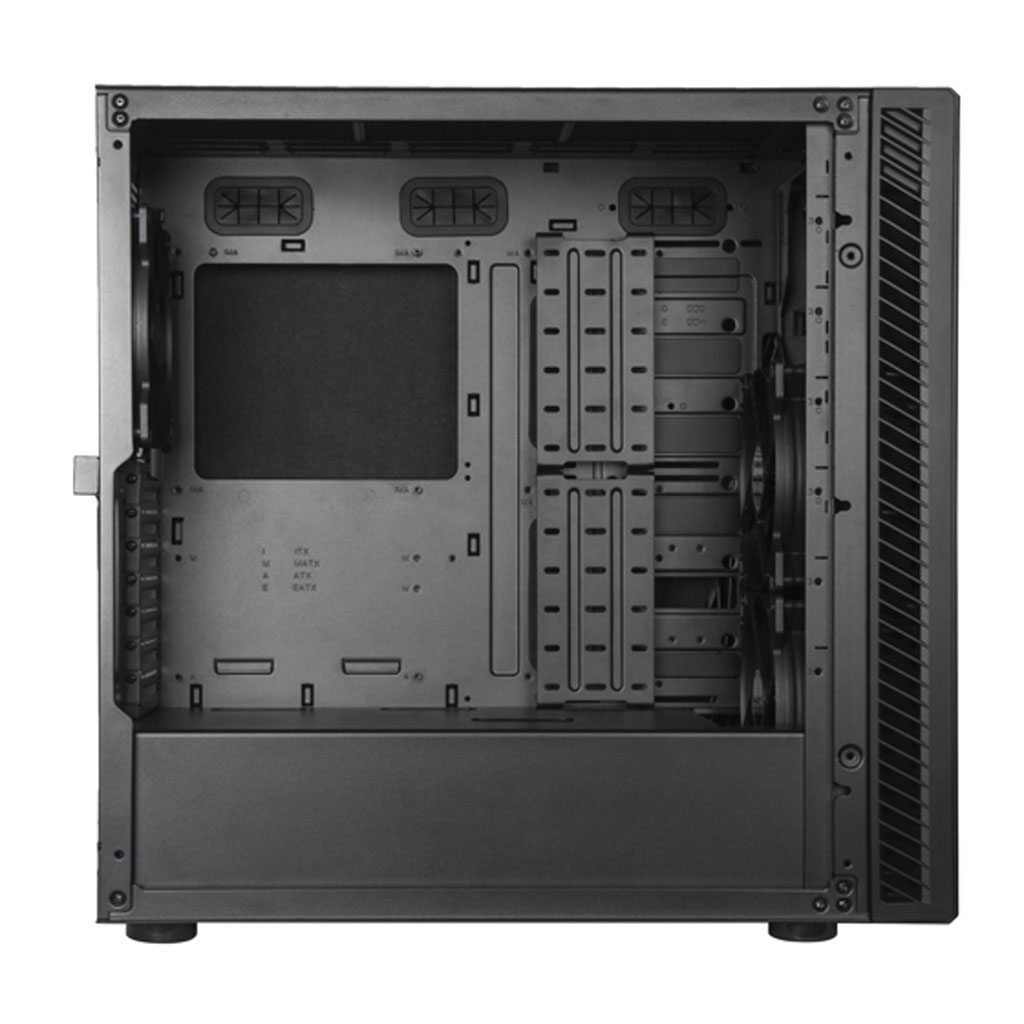

Case Photo #2
