Customer: Cybenetics LTD
Syrou 6, Latsia, 2231, Nicosia Cyprus
Syrou 6, Latsia, 2231, Nicosia Cyprus
SP0850P
| Electronic Loads | Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20 |
| AC Sources | Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500 |
| Power Analyzers | Rohde & Schwarz HMC8015 & NPA701 |
| Oscilloscopes | Picoscope 4444, Siglent SDS2104X PLUS |
| Sound Analyzer | Bruel & Kjaer 2270 G4 |
| Microphone | Bruel & Kjaer Type 4955-A |
| Temperature Logger | Picoscope TC-08 |
| Tachometer | UNI-T UT372 |
| Multimeters | Keysight 34465A |
| EMI Analyzer | TekBox TBMR-110M-EU |
| Isolation Transformer | 4kVA |
| UPS | FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA |
| Testing Methodology | Cybenetics PSU Test Protocol |
| Voltage | 115V | 230V |
|---|---|---|
| Efficiency (>1450 Load Combinations) | 90.731% | 92.384% |

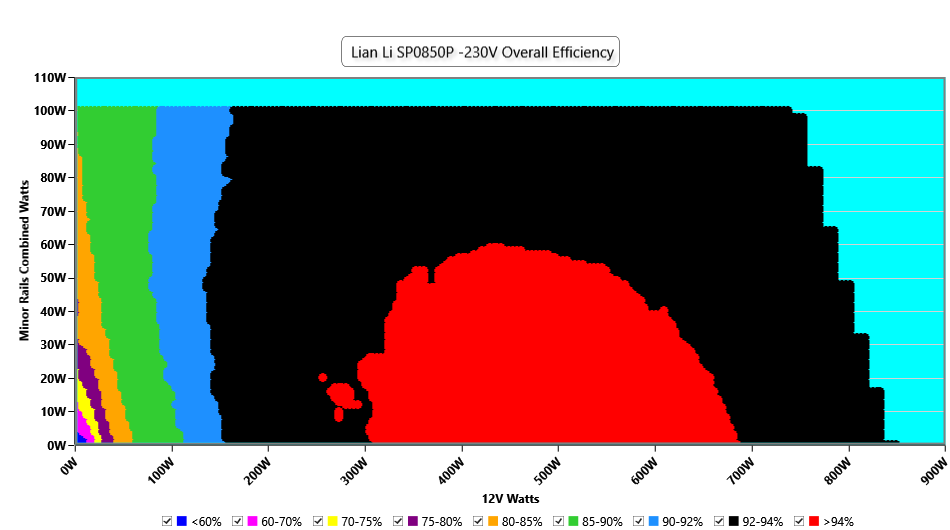

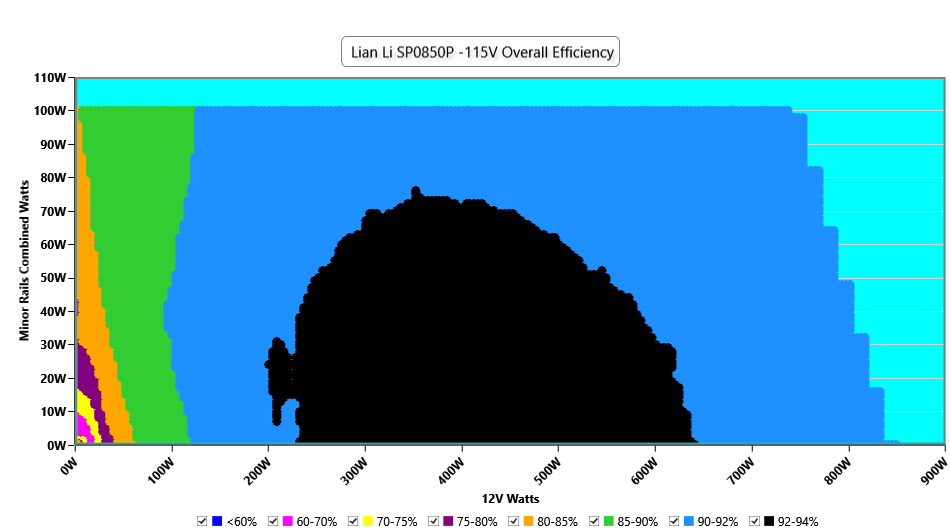

| Efficiency Graphs |  |  |
| Average PF (>1450 Load Combinations) | 0.986 | 0.947 |
| 12V Step | 8.00W | |
| 5V/3.3V Step | 2.00W | |
| Standby Power Consumption | 0.0318W | 0.0578W |
| ErP Lot 3/6 Ready | ✓ | |
| (EU) No 617/2013 Compliance | ✓ | |
| Average Efficiency VSB | 85.283% | 84.156% |
| Conducted Emissions EN55032 & CISPR 32 (48W) | Passed | |

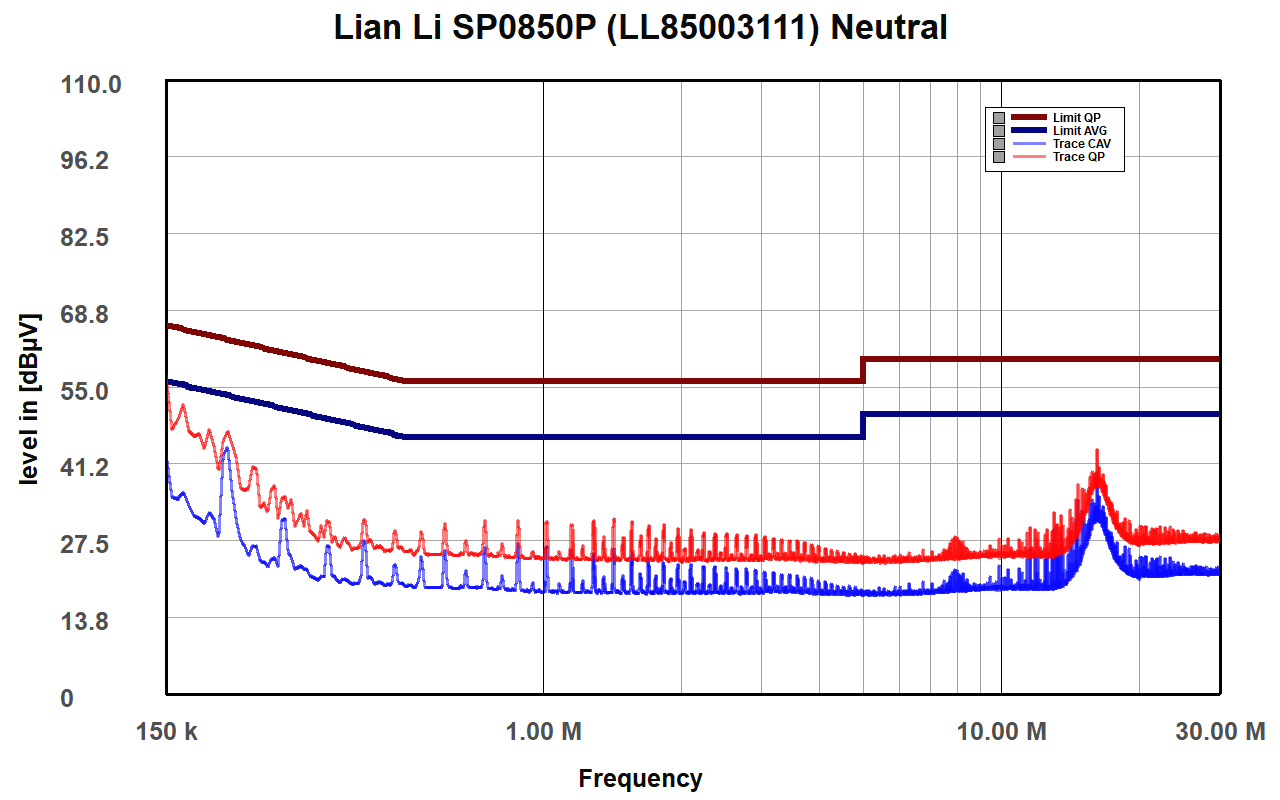

| Conducted Emissions Graphs |  |  |
| Voltage | 115V | 230V |
|---|---|---|
| Noise Rating (>1450 Load Combinations) | 32.42dBA | 31.17dBA |

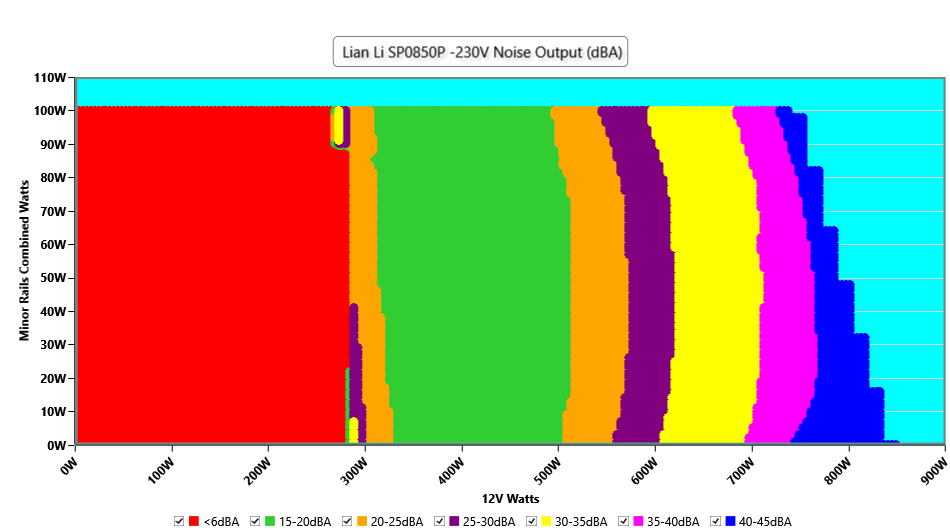

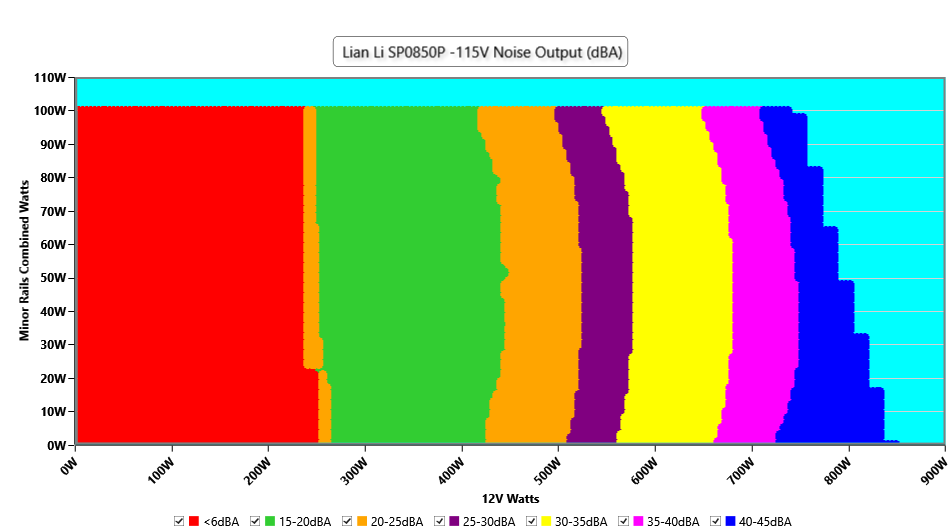

| Noise Graphs |  |  |
| Efficiency With 10W (≤500W) or 2% (>500W) Load | 73.627% |
| Hold Up Time | 18.40ms |
| Power OK | 16.70ms |
| Power OK to DC Loss | 1.70ms |
| Test\Rail | +12V | 5V | 3.3V | 5VSB |
| 100ms | 11.930 | 4.981 | 3.250 | 5.049 |
| 10ms | 11.609 | 4.968 | 3.235 | 5.037 |
| 1ms | 11.599 | 4.956 | 3.224 | 5.031 |
| 0.1ms | 11.603 | 4.927 | 3.203 | 5.039 |
| Product Identification Details | |
| Brand | Lian Li |
| Model | SP0850P |
| OEM | Zhong Yuan Power |
| Serial Number | G9PSP0850PB0CC255300001 |
| Product Specifications | |
| Manufacturer | |
| Rated Voltage (Vrms) | 100-240 |
| Rated Current (Arms) | 6-12 |
| Rated Frequency (Hz) | 50-60 |
| Rated Power (W) | 850 |
| Operating Temperature (Continuous Full Load) (°C) | 0 - 40 |
| Type | SFX |
| Cable Design | Fully Modular |
| Warranty | 10 Years |
| Cybenetics | |
| Dimensions (W x H x D) | 125 x 63.5 x 100mm |
| Weight | 0.99kg (2.18lbs) |
| Cooling | 92mm Fluid Dynamic Bearing Fan (HA9215VH12FD-F00) |
| Semi-Passive Operation | ✓ |
| Cybenetics Testing Information | |
| Lab ID | LL85003111 |
| Date of receipt | Jan 5, 2026 |
| Testing Date | Feb 24, 2026 |
| Report Issued Date | Feb 27, 2026 |
| Engineer Name | Georgios Theodoros Sarimpalas |
| Authorized By the Laboratory Technical Manager | Aristeidis Bitziopoulos |
| Signature |  |
| Modular Cables | ||||
| Description | Cable Count | Connector Count (Total) | Gauge | Cable Type |
| ATX connector 20+4 pin (350mm) | 1 | 1 | 18-22AWG | Tinned Copper |
| 4+4 pin EPS12V (450mm) | 2 | 2 | 16AWG | Tinned Copper |
| 6+2 pin PCIe (400mm) | 1 | 1 | 16AWG | Tinned Copper |
| 6+2 pin PCIe (400mm+150mm) | 1 | 2 | 16-18AWG | Tinned Copper |
| 12+4 pin PCIe (400mm) (600W) | 1 | 1 | 16-24AWG | Tinned Copper |
| SATA (300mm+155mm+160mm) | 1 | 3 | 18AWG | Tinned Copper |
| SATA (300mm+160mm) / 4-pin Molex (+155mm+150mm) | 1 | 2 / 2 | 18-20AWG | Tinned Copper |
| AC Power Cord Extension with Switch (360mm) - C13/C14 couplers | 1 | 1 | 16AWG | - |
| AC Power Cord (1400mm) - C13 coupler | 1 | 1 | 18AWG | - |
| Over Power Protection | ✓ |
| Over Current (+12V) Protection | ✓ |
| Over Temperature Protection | ✓ |
| Short Circuit Protection | ✓ |
| Surge Protection | ✓ |
| Inrush Current Protection | ✓ |
| Fan Failure Protection | ✗ |
| General Data | |
| Manufacturer (OEM) | Zhong Yuan Power |
| PCB Type | Double-Sided |
| Primary Side | |
| Transient Filter | 2x X caps, 2x CM chokes, 1x MOV |
| Inrush Protection | NTC Thermistor HNP 5D20 (5 Ohm @ 25°C) & Relay |
| Bridge Rectifier | 2x Yangzhou GBUL1506 (600V, 15A @ 100°C) |
| APFC MOSFETs | 1x Oriental Semiconductor OSG60R030HT3ZF-F (600V, 51A @ 100°C, Rds(on): 30mOhm) |
| APFC Boost Diode | Sanrise Tech SRD10V65A (650V, 10A @ 153°C) |
| Bulk Cap(s) | |
| Main Switchers | 2x Sanrise SRC60R090BS (600V, 26.4A @ 100°C, Rds(on): 90mOhm) |
| APFC Controller | Monolithic Power HR1213 |
| Resonant Controller | Monolithic Power HR1213 |
| Topology | Primary side: APFC, Half-Bridge & LLC Resonant Converter Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters |
| Secondary Side | |
| +12V MOSFETs | 6x iPS FTG014N04SA (40V, 140A @ 25°C, Rds(on): 1.4mOhm) |
| 5V & 3.3V | DC-DC Converters: 4x Alpha & Omega AON6512 (30V, 130A @ 100°C, Rds(on): 1.7mOhm) PWM Controller(s): uPI Semi uP8361P |
| Filtering Capacitors | Electrolytic: |
| Supervisor IC | UTC8313F (OVP, UVP, OCP, PG) |
| Fan Model | Hong Hua HA9215VH12FD-F00 (92mm, 12V, 0.36A, Fluid Dynamic Bearing Fan) |
| 5VSB Circuit | |
| Rectifier | Dongke DK5V60R10S (60V, 10mOhm) |
| Standby PWM Controller | Esthome EST.3026M |
| Photos |  |  |
| Top side | Power specifications label |
F.1 General Statement
Measurement uncertainty associated with the reported results was evaluated and estimated in accordance with JCGM 100:2008 (Guide to the Expression of Uncertainty in Measurement — GUM) and ISO/IEC 17025:2017, Clauses 7.6 and 7.2.
The uncertainty budget accounts for all significant identified contributors arising from the measurement process, instrumentation, test conditions, and operator interaction.
The reported expanded uncertainty U is obtained by multiplying the combined standard uncertainty uc by a coverage factor k = 2, corresponding to a confidence level of approximately 95 %, assuming a normal probability distribution.
Unless otherwise stated, the reported uncertainty applies only to the specific measurements performed and does not include long-term drift, aging effects, or future environmental changes.
F.2 Expanded Measurement Uncertainty by Measurement Type
| Measurement | Expanded Uncertainty U (k=2, norm) |
| Efficiency | ±0.18% |
| Timings | ±0.48ms |
| Power Excursions (Transient Response) | ±0.1V |
| Conducted EMI Emissions (150 kHz – 30 MHz) | ±2.35 dBμV |
| Noise Output | ±1.23 dB |
